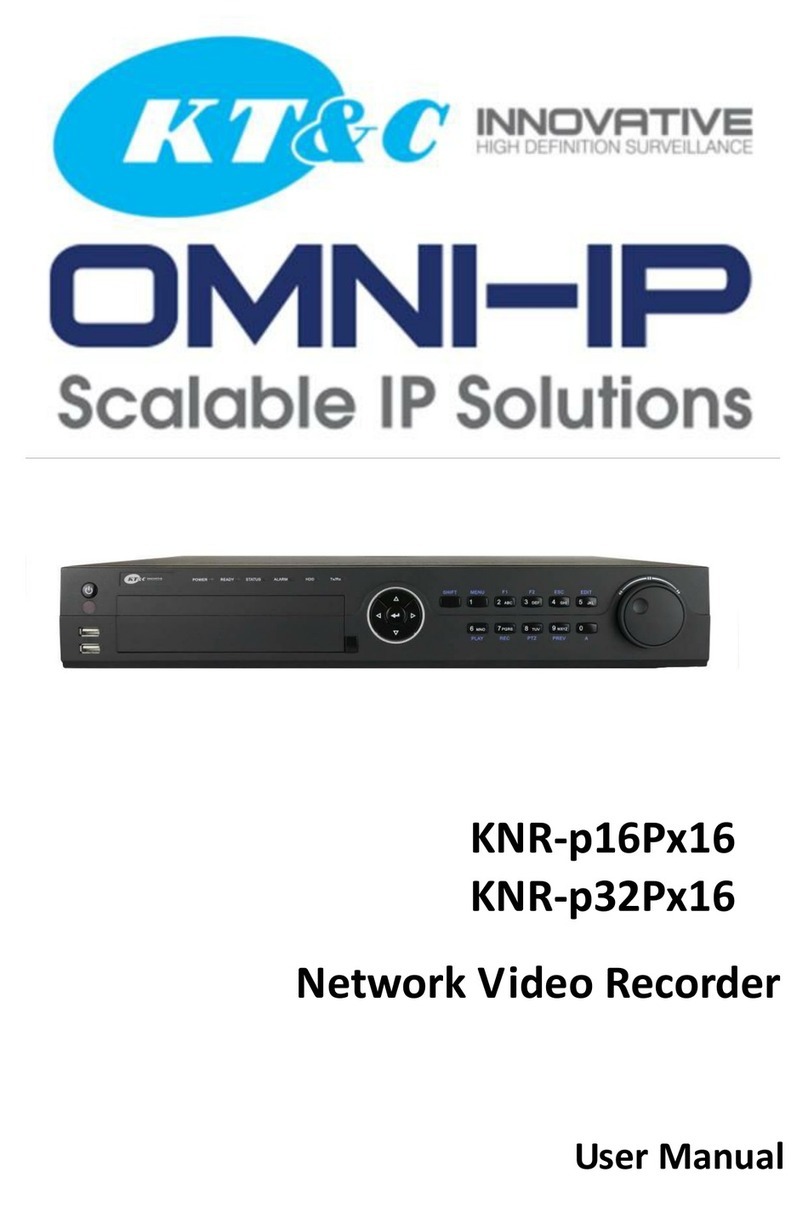

KT&C KNR-p16Px16 User manual

KNR-p16Px16
KNR-p32Px16
Network Video Recorder
Quick Installation Guide

Quick Install Guide KNR-p16Px16 KNR-p32Px16
1
TABLE OF CONTENTS
NVR Pre-Installation.......................................................................................................................................2
NVR Installation..............................................................................................................................................2
Hard Disk Installation.....................................................................................................................................2
Front Panel.......................................................................................................................................................2
Peripheral Connections ...................................................................................................................................6
Wiring of Alarm Input................................................................................................................................6
Wiring of Alarm Output.............................................................................................................................6
Using of Alarm Connectors........................................................................................................................6
Controller Connection................................................................................................................................7
Specifications....................................................................................................................................................8
HDD Storage Calculation Chart................................................................................................................... 11
Accessing by Web Browser............................................................................................................................12
Logging In................................................................................................................................................12
Live View.................................................................................................................................................12
Recording.................................................................................................................................................13
Playback...................................................................................................................................................15
Log .......................................................................................................................................................16
Menu Operation.............................................................................................................................................17
Menu Structure.........................................................................................................................................17
Startup and Shutdown..............................................................................................................................17
Live View.................................................................................................................................................18
Adding IP Cameras ..................................................................................................................................18
Recording.................................................................................................................................................20
Instant Recording.............................................................................................................................21
All-day Recording............................................................................................................................21
Playback...................................................................................................................................................21
Backup.....................................................................................................................................................22

Quick Install Guide KNR-p16Px16 KNR-p32Px16
2
Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.
This manual is applicable to the models listed in the following table.
Series
Model
Type
Omni IP
KNR-p16Px16
KNR-p32Px16
Network Video Recorder
NVR Pre-Installation
These Omni IP series KNR-p16Px16 and KNR-p32Px16 NVRs are highly advanced surveillance equipment that
should be installed with care. Please take into consideration the following precautionary steps before installation of
the NVR.
1. Keep all liquids away from the NVR.
2. Install the NVR in a well-ventilated and dust-free area.
3. Ensure environmental conditions meet factory specifications.
4. Install a manufacturer recommended HDD.
NVR Installation
During the installation of the NVR:
1. Use brackets for rack mounting.
2. Ensure there is ample room for audio and video cables.
3. When routing cables, ensure that the bend radius of the cables are no less than five times than its diameter.
4. Connect both the alarm (if used) and LAN/WAN cables.
5. Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.
6. Ensure the NVR is grounded.
7. Environmental temperature should be within the range of -10 ºC ~ 55 ºC, 14ºF ~ 131ºF.
8. Environmental humidity should be within the range of 10% ~ 90%.
Hard Disk Installation
Before you start:
Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory recommended HDD
should be used for this installation.
Up to 4 SATA hard disks can be installed on your NVR; or 2 SATA HDD plus optional DVD-RW.
Tools Required: Screwdriver.
Front Panel
KNR-p16Px16 and KNR-p32Px16
No.
Name
Function Description
1
POWER ON/OFF
Power on/off switch.
2
USB Interface
Connect to USB mouse or USB flash memory.
3
IR Receiver
Receiver for IR remote control.
4
POWER
Power indicator lights in green when NVR is powered up.

Quick Install Guide KNR-p16Px16 KNR-p32Px16
3
READY
Ready indicator is normally green, indicating that the NVR is functioning properly.
STATUS
Indicator turns green when NVR is controlled by an IR remote control with the
address from 1~254;
Indicator turns red when the SHIFT button is used;
Indicator does not light when the NVR is controlled by a keyboard or by the IR
remote control with the address of 255;
Indicator turns green when the NVR is controlled by IR remote control (with the
address from 1~254) and keyboard at the same time , and the SHIFT button is not
used;
Indicator turns orange : (a) when the NVR is controlled by IR remote control (with
the address from 1~254) and keyboard at the same time and the SHIFT button is used
as well; (b) when the NVR is controlled by IR remote control (with the address from
1~254) and the SHIFT button is used.
ALARM
Alarm indicator turns red when a sensor alarm is detected.
HDD
HDD indicator blinks in red when data is being read from or written to HDD.
Tx/Rx
TX/RX indictor blinks in green when network connection is functioning properly.
5
DVD-ROM
Slot for optional DVD-RW (replaces 2 HDD).
6
DIRECTION
The DIRECTION buttons are used to navigate between different fields and items in
menus.
In Playback mode, the Up and Down button is used to speed up and slow down
recorded video.
In All-day Playback mode, the Left/Right button can be used to select the recorded
video of next/previous day; in Playback by Normal Video Search, the Left/Right
button can be used to select the next/previous recorded file.
In Live View mode, the directional buttons can be used to cycle through channels.
In PTZ control mode, it can control the movement of the PTZ camera.
ENTER
Confirm selection in any of the menu modes. It can also be used to tick checkbox
fields.
In Playback mode, it can be used to play or pause the video.
In Single-frame Playback mode, pressing the ENTER button will advance the video
by a single frame.
In Auto-switch mode, it can be used to stop /start auto switch.
7
SHIFT
Switch of compound keys between the numeric/letter input and functional control.
1/MENU
Enter numeral “1”;
Access the main menu interface.
2ABC/F1
Enter numeral “2”;
Enter letters “ABC”;
The F1 button can be used to select all items on the list;
In PTZ Control mode, the F1 button can be used to zoom out (zoom-) the PTZ
camera;
In live view or playback mode, the F1 button can be used to switch between main
and spot video output.
3DEF/F2
Enter numeral “3”;
Enter letters “DEF”;
In PTZ Control mode, the F1 button can be used to zoom in (zoom+) the PTZ
camera;
The F2 button can be used to cycle through tab pages.
4GHI/ESC
Enter numeral “4”;
Enter letters “GHI”;
Exit and back to the previous menu.
5JKL/EDIT
Enter numeral “5”;
Enter letters “JKL”;
Delete characters before cursor;
Select the checkbox and ON/OFF switch;
Start/stop record clipping in playback.
6MNO/PLAY
Enter numeral “6”;
Enter letters “MNO”;
In Playback mode, it is used for direct access to playback interface.
7PQRS/REC
Enter numeral “7”;
Enter letters “PQRS”;
Manual record, for direct access to manual record interface; manually enable/disable
record.
8TUV/PTZ
Enter numeral “8”;

Quick Install Guide KNR-p16Px16 KNR-p32Px16
4
Enter letters “TUV”;
Access PTZ control interface.
9WXYZ/PREV
Enter numeral “9”;
Enter letters “WXYZ”;
Multi-camera display in live view;
In Playback mode or MenuPlaybackTag playback interface, this button can be
used to delete the selected tag.
0/A
Enter numeral “0”;
Switch between input methods (upper and lowercase alphabet, symbols and numeric
input).
In Playback mode, this button can be used to add the default tag.
8
JOG SHUTTLE
Control
Move the active selection in a menu. The inner ring will move the selection up and
down; the outer ring will move it left and right.
In Playback mode, the inner ring is used to jump 30s forward/backward in video
files. The outer ring can be used to speed up/slow down the video.
In Live View mode, it can be used to cycle through different channels.
In PTZ control mode, in can control the movement of the PTZ camera.

Quick Install Guide KNR-p16Px16 KNR-p32Px16
5
Rear Panel
KNR-p16Px16 and KNR-p32Px16
No.
Item
Description
1
VIDEO OUT
BNC connector for video output.
2
CVBS AUDIO OUT
BNC connector for audio output. This connector is synchronized with
CVBS video output.
VGA AUDIO OUT
BNC connector for audio output. This connector is synchronized with
VGA video output.
3
LINE IN
BNC connector for audio input.
4
RS-232 Interface
Connector for RS-232 devices.
5
VGA
DB15HD connector for VGA output. Display local video output and
menu.
6
HDMI
HDMI video output connector. Includes HDMI audio support.
7
eSATA (Optional)
Connects external SATA HDD, CD/DVD-RM.
8
LAN Interface
One 10/100/1000 RJ45 Ethernet interface
9
Termination Switch
RS-485 termination switch.
Up position is not terminated.
Down position is terminated with 120Ωresistance.
10
RS-485 Interface
Connector for RS-485 devices. T+ and T- pins connect to R+ and R-
pins of PTZ receiver respectively.
Controller Port
D+, D- pin connects to Ta, Tb pin of controller. For cascading devices,
the first NVR’s D+, D- pin should be connected with the D+, D- pin of
the next NVR.
ALARM IN
Connector for alarm inputs.
ALARM OUT
Connector for alarm outputs.
11
GROUND
Ground (recommended to be connected when NVR starts up).
12
AC 100V ~ 240V
AC 100V ~ 240V power supply.
13
POWER
Switch for turning on/off the NVR
14
USB interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
15
Network Interfaces with
PoE function
16 Plug-and-Play network interfaces for the cameras and to provide
Power over Ethernet.

Quick Install Guide KNR-p16Px16 KNR-p32Px16
6
Peripheral Connections
Wiring of Alarm Inputs
The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram.
If the alarm input is not an open/close relay, please connect an external relay between the alarm input and the
device.
Wiring of Alarm Output
To connect to an alarm output (AC or DC load), use the following diagram:
DC Load Connection Diagram AC Load Connection Diagram
For DC load, the jumpers can be used within the limit of 12V/1A safely.
To connect an AC load, jumpers should be left open (you must remove the jumper on the motherboard in the
NVR). Use an external relay for safety (as shown in the figure above).
There are 4 jumpers (JP1, JP2, JP3, and JP4) on the motherboard, each corresponding with one alarm output. By
default, jumpers are connected. To connect an AC load, jumpers should be removed.
Example:
If you connect an AC load to the alarm output 3 of the NVR, then you must remove the JP 3.
Using of Alarm Connectors
To connect alarm devices to the NVR:
1. Disconnect pluggable block from the ALARM IN /ALARM OUT terminal block.
2. Unfasten stop screws from the pluggable block, insert signal cables into slots and fasten stop screws. Ensure
signal cables are in tight.

Quick Install Guide KNR-p16Px16 KNR-p32Px16
7
3. Connect pluggable block back into terminal block.
Controller Connection
To connect optional controller to the NVR:
1. Disconnect pluggable block from the KB terminal block.
2. Unfasten stop screws from the KB D+, D- pluggable block, insert signal cables into slots and fasten stop
screws. Ensure signal cables are in tight.
3. Connect Ta on controller to D+ on terminal block and Tb on controller to D- on terminal block. Fasten stop
screws.
4. Connect pluggable block back into terminal block.
Make sure both the controller and NVR are grounded.

Quick Install Guide KNR-p16Px16 KNR-p32Px16
8
Specifications
KNR-p16Px16
KNR-p32Px16
Streaming Video Inputs & Recording
Maximum Number of IP Cameras
16
32
Number of built in PnP/PoE Switch Ports
16
16
Supported Live View/ Record Resolutions
5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Sub-stream
Supported for recording, playback and live viewing
Audio streaming
Supported from audio capable cameras
Maximum FPS rate per camera
(Live and Record)
30FPS Main stream; 30FPS
Sub-stream
Up to 480FPS total for 16 cameras
30FPS Main stream; 30FPS
Sub-stream
Up to 960FPS total for 32 cameras
Maximum Record Streaming Video Input
Bandwidth (all cameras combined)
80Mb/s
160 Mb/s
Recording Compression
Depends on IP Camera; typically H.264 for main stream, MJPEG for
sub-stream
Recording Modes
Continuous, Motion, Alarm, Motion+Alarm, Motion or Alarm
Motion Detection
Camera Side, configurable from NVR for KNC-p3 Omni IP Series Cameras
Schedule Period
Per day in 1 hour blocks; or 8 time periods per day, each with different
record mode; plus holidays
Pre- and Post- Event Recording
Pre-record 0~30 seconds; post record 5s~10 minutes
Built in network switch port speed
10/100 Mb/s each port
KT&C Omni-IP 'hands free Plug and Play'
Cameras Fully Supported
KNC-p3BR4IR, KNC-p3BR6IR, KNC-p3BR12IR, KNC-p3DR4IR,
KNC-p3DR3IR,KNC-p3DR6IR, KNC-p3DR12IR, KNC-p3BR4XIR,
KNC-p3BR6XIR, KNC-p3BR12XIR, KNC-p3TR4XIR, KNC-p3TR3XIR,
KNC-p3TR6XIR, KNC-p3LR4IR, KNC-p3LR3IR, KNC-p3LR6IR,
KNC-p3BR28V12IR, KNC-p3DR28V12IR
Third Party Cameras Supported
(requires traditional configuration and
setup)
Onvif; Acti, Arecont, Axis, Bosch, Brickcom, Canon, Hikvision, Hunt,
Panasonic, Pelco, Samsung, Sanyo, Sony, Vivotek, Zavio
Local Live Presentation of Streaming Video/Audio
Local Display Main Monitor Outputs
HDMI 60Hz: 1920×1080, 1600×1200, 1280×1024, 1280×720, 1024×768
VGA 60Hz: 1920×1080P, 1600×1200, 1280×1024, 1280×720, 1024×768
BNC/CVBS (1.0V p-p, 75 Ω) 704 × 480 (NTSC)
Camera Display Layouts
1, 2x2, 1+5, 1+7, 3x3, 4x4
1, 2x2, 1+5, 1+7, 3x3, 4x4,
5x5, 32, 6*6
Multiple Independent Monitors
HDMI and VGA monitors can be duplicates, or display independent live
and/or playback screens; CVBS is independent and can function as a call
or auxiliary monitor

Quick Install Guide KNR-p16Px16 KNR-p32Px16
9
Automatic Stream Selection
Single camera view and 2x2 at main stream resolution; Automatic
switching to sub-stream resolution in >4 cameo multi-view
display to conserve CPU capacity and maintain parity between
per-camera screen area and image size
Audio Output (requires audio equipped
cameras)
2-ch Line Level, BNC (Linear, 600Ω), one synched to CVBS, one synched to
VGA; HDMI audio on HDMI monitor output
Playback of Recorded Video/Audio
Supported Playback Resolutions
5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Local Display Playback Maximum Video
Bandwidth (all cameras combined)
~32Mb/s nominal
Nominal Local Playback Capability
(actual playback depends on decoding load which varies
based on settings for recorded video bandwidth
restrictions, resolution, image quality, FPS rate,
compression efficiency, and complexity of pixel change in
the scene)
8 channels @ 1920x1080; 16 channels @ 1280x720
(based on average per channel bandwidth of ~4Mb/s@1080p and ~2Mb/s @ 720p)
Reduced total bandwidth permits greater number of cameras to be played.
Playback search modes
Time/Date; Alarm (motion or other source); Manual Tags; Smart Search
for motion events from recorded video
Playback Controls
Play; Pause; Forward/Reverse; speed control for single~1.8~16X; Slide bar
with overview of record type and snapshot display from slider position
Digital Zoom During Playback
Supported on Local Displays and CMS
Local Hard Drives and Other Storage
Number of Internal Hard Drives
Up to 4 SATA HDD; up to 4TB each for 16TB maximum
Mirror Recording
Can clone pairs of disks
S.M.A.R.T
With extensive statistics, alarms, on demand tests and reporting
Optional DVD-RW
Replaces 2 HDD, limiting internal storage to 8TB maximum
External HDD
one eSATA Interface
Record to
HDD, eSATA, NAS or SAN
Archive to
USB, HDD, eSATA, NAS or SAN
Local Plug and Play Camera Network Support
Integral PoE Switch
16 Ports 10/100 Mb/s
Camera Network Security
Option to enable pass though access from LAN/WAN to cameras,
or to isolate camera network from LAN/WAN for increased security
PoE Type
802.3at Max 30W per port
Total Power Budget
200W all ports
PnP Network Support
(Using KT&C KNC-p3 Omni-IP Series cameras
connected to internal PnP PoE switch ports)
Integral DHCP function with address-per-port initial assignment
Internal bridge can forward connections from LAN/WAN network port to
individual IPC for remote access to IPC OSD detail configuration menus

Quick Install Guide KNR-p16Px16 KNR-p32Px16
10
Remote Viewing and Local/Remote Configuration
Built in Web Server Interface
Live view, playback and configuration via IE, Chrome, Firefox, Safari (with
free plug-in/extension installed)
CMS
PC and MAC Client supports multiple device viewing, playback (with
digital zoom) and configuration; user rights per camera; E-map support;
live view up to 64 cameras in 4:3 and 48 cameras in 16:9; up to 16
cameras in playback
Mobile Apps
iOS and Android supported ; live 1 & 4 camera views; single camera
playback; snapshots from live or play; copy clips/record to smartphone;
audio support; PTZ control. HD version of app, optimized for tablets, is
available
User Rights Control
Per user-per camera for multiple functions
Event Logging
Multiple types: alarm, exception, operation, information; dozens of
sub-types within each major type
Firmware Upgrade
From USB or remotely
Backup/Restore Configuration
For NVR settings and for IP Camera settings; from USB or remotely
Network and Other Interfaces
LAN/WAN Network Port
One 10/100/1000Mb/s RJ-45 port
Connection of non-PnP IP cameras
Supported
Remote Monitoring Output Maximum
Bandwidth
240Mb/s
160Mb/s
Maximum number of remote connections
128
DST/NTP
Supported; choice of time zone, NTP server, DST start/end/offset
Port Mapping/uPnP
Automatic port forwarding/redirection using uPnP on routers with this
capability
Serial Interfaces
1xRS-232 DB9; 1xRS-485; 1xKeyboard controller input
USB 2.0 Interfaces
2 front; 1 rear
Audio Input
1 BNC
Alarm Inputs
16
Alarm Outputs
4 single pole
General Mechanical and Environmental
Power Input
100~240VAC, up to 300W max. continuous/450W peak,
50~60Hz; USA Power Cord
Continuous Power Consumption
Up to 40W for NVR; up to 200W for
PoE
Up to 45W for NVR; up to 200W for
PoE
Operating Temperature
14°F ~ 131°F (-10°C ~ +55°C)
Operating Humidity Range
10% ~ 90%
Cooling Fan
1, in power supply

Quick Install Guide KNR-p16Px16 KNR-p32Px16
11
Size
1.5U Rack mountable chassis (rack ears provided)
17.52" x 15.35" x 2.76" (445mm x 390mm x 70mm)
Weight (without hard drives or ODD)
8.8 lb./4 Kg allow ~1.4 lb. per HDD
Certifications
FCC, CE, RoHS
HDD Storage Calculation Chart
The following chart shows an estimation of storage space used based on recording at one channel for an hour at a
fixed bit rate.
Bit Rate
Storage Used
96K
42M
128K
56M
160K
70M
192K
84M
224K
98M
256K
112M
320K
140M
384K
168M
448K
196M
512K
225M
640K
281M
768K
337M
896K
393M
1024K
450M
1280K
562M
1536K
675M
1792K
787M
2048K
900M
4096K
1800M
8192K
3600M
16384K
7200M
Please note that supplied values for storage space used is just for reference. The storage values in the chart
are estimated by formulas and may have some deviation from actual value.

Quick Install Guide KNR-p16Px16 KNR-p32Px16
12
Accessing by Web Browser
Logging In
You can get access to the device via web browser. Open web browser, input the IP address of the device and then
press Enter. The login interface appears.
Input the user name and password, and click the Login button.
The default IP address is 192.0.0.64.
The default user name is admin, and password is 12345.
You may use one of the following listed web browsers: Internet Explorer 6.0, Internet Explorer 7.0, Internet
Explorer 8.0, Internet Explorer 9.0, Internet Explorer 10.0, Apple Safari, Mozilla Firefox, and Google
Chrome.
The supported resolutions include 1024*768 and above.
When you log in for the first time, the system will remind you to install the Plug-in control. After the installation,
you can configure and manage the device remotely.
Live View
The live view interface appears by default when you log in the device.

Quick Install Guide KNR-p16Px16 KNR-p32Px16
13
Interface Introduction
No.
Name
Description
1
Channel List
Displays the list of channels and the playing and recording status of each
channel.
The stream type can be switched by clicking the icon before the channel name:
stands for main stream and for sub-stream.
2
Live View Window
Displays the image of channel, and multi-window division is supported.
3
Play Control Bar
Play control operations are supported.
4
PTZ Control
Pan, tilt, zoom operations are supported, as well as preset and patrol editing
and calling.
PTZ function can only be realized if the connected camera supports PTZ control.
5
Video Parameters
Configuration
Brightness, contrast, saturation and hue of the image can be edited.
Start Live View
Steps:
1. In the live view window, select a playing window by clicking the mouse.
2. Double click a camera from the device list to start the live view.
3. You can click the button on the toolbar to start the live view of all cameras on the device list.
Refer to the following table for the description of buttons on the live view window:
Icon
Description
Icon
Description
Select the window-division mode
/
Open/Close audio
/
Start/Stop all live view
/
Start/Stop two-way Audio
Capture pictures in the live view
mode
Adjust volume
/
Start/Stop all recording
/
Enable/Disable digital zoom
/
Previous/Next page
Full screen
Recording
Before you start
Make sure the device is connected with HDD or network disk, and the HDD or network disk has been initialized
for the first time to use.
Two recording types can be configured: Manual and Scheduled. The following section introduces the
configuration of scheduled recording.
Steps:
1. Click Remote Configuration> Camera Settings> Record Schedule to enter Record Schedule settings
interface.
2. Select the camera to configure the record schedule.

Quick Install Guide KNR-p16Px16 KNR-p32Px16
14
3. Check the checkbox of Enable Schedule to enable recording schedule.
4. Choose the day in a week to configure scheduled recording.
5. Click Edit to edit record schedule.
1) Configure All Day or Customize Record:
If you want to configure the all-day recording, please check the All Day checkbox.
If you want to record in different time sections, check the Customize checkbox. Set the Start Time
and End Time.
Up to 8 segments can be configured and each segment cannot be overlapped.
2) Select a Record Type. The record type can be Continuous, Motion, Alarm, Motion & Alarm, Motion |
Alarm and VCA.
3) Check the checkbox of Select All and click Copy to copy settings of this day to the whole week. You
can also check any of the checkboxes before the date and click Copy.
4) Click OK to save the settings and exit the Edit Schedule interface.
6. Click Advanced to configure advanced record parameters.
7. Click Save to validate the above settings.
8. (Optional) You can click the Copy to…button to copy the same setting to other cameras.

Quick Install Guide KNR-p16Px16 KNR-p32Px16
15
Playback
Interface Introduction
No.
Name
Description
1
Channel List
Displays the list of channels and the playing status of each channel.
2
Playback Window
Displays the image of channel.
3
Play Control Bar
Play control operations are supported.
4
Time Line
Displays the time bar and the records marked with different colors.
5
Playback Status
Displays the playback status, including channel number and playback speed.
6
Calendar
You can select the date to play.
Start Playback
Steps:
1. Click Playback on the menu bar to enter playback interface.
2. Click the camera from the device list for playback.
3. Select the date from the calendar and click Search.
4. Click the button to play the searched video file on the current date.
5. Use the buttons on the toolbar to operate in playback mode.
Playback Control Buttons Description
Area
Description
Area
Description
/
Play/Pause
Stop
Slow down
Speed up
Play by single frame
Capture
Stop all playback
Download
/
Video clip
/
Open/Close audio

Quick Install Guide KNR-p16Px16 KNR-p32Px16
16
Area
Description
Area
Description
Full screen
Transcoded playback
Reverse playback
Window division
6. You can drag the progress bar with the mouse to locate the exact playback point. You can also input the time
in the textbox and click button to locate the playback point.
The color of the video on the progress bar stands for the different video types.
To play back recording files from different channel, you may set the window division mode by clicking the
button and choose a window, and then repeat the above steps 2-4.
Transcoded Playback
Purpose:
To save the bandwidth cost, the transcoded playback can be adopted.
Steps:
1. Make sure the playback of current channel is stopped.
2. Move the mouse to the icon and edit the required parameters for transcoded playback, including
Resolution, Bitrate, and Frame Rate.
3. Click the button, if it turns to , then the trancoding process is compeleted.
4. Click the button to start transcoded playback.
Log
You can view and export the log files at any time, including operation, alarm, exception and information of device.
Before you start:
The Log function can be realized only when the device is connected with HDD or network disk.
Steps:
2. Click Log on the menu bar to enter the Log interface.
3. Set the log search conditions to refine your search, including the Major Type, Minor Type, Start Time and
End Time.
4. Click the Search button to start searching log files.
5. The matched log files will be displayed on the list.
Up to 2000 log files can be found each time, and 100 log files can be displayed on each page.
You can click the button to save the searched log files to local directory.

Quick Install Guide KNR-p16Px16 KNR-p32Px16
17
Menu Operation
Menu Structure
Startup and Shutdown
Proper startup and shutdown procedures are crucial to expanding the life of the NVR.
To start your NVR:
1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an
Uninterruptible Power Supply (UPS) be used in conjunction with the device.
2. Press the POWER button on the rear panel. The Power LED should turn green. The unit will begin to start.
After the device starts up, the wizard will guide you through the initial settings, including modifying
password, date and time settings, network settings, HDD initializing, and recording.
To shut down the NVR:
1. Enter the Shutdown menu.
Menu > Shutdown
2. Select the Shutdown button.
3. Click the Yes button.

Quick Install Guide KNR-p16Px16 KNR-p32Px16
18
Live View
Some icons are provided on screen in Live View mode to indicate different camera status. These icons include:
Live View Icons
In the live view mode, there are icons at the upper-right corner of the screen for each channel, showing the status
of the record and alarm in the channel, so that you can find problems as soon as possible.
Alarm (video loss, tampering, motion detection or sensor alarm)
Record (manual record, schedule record, motion detection or alarm triggered record)
Alarm & Record
Event/Exception (event and exception information, appears at the lower-left corner of the screen.)
Adding IP Cameras
You should add and configure the online IP cameras to enable the live view and recording function.
Steps:
1. Right-click the mouse when you in the live view mode to show the right-click menu.
2. Select Add IP Camera in the pop-up menu to enter the IP Camera Management interface.

Quick Install Guide KNR-p16Px16 KNR-p32Px16
19
3. The online cameras with same network segment will be displayed in the camera list. Click the button to
add the camera.
Or you can click the One-couch Adding button to add all the online IP cameras.
The added camera is marked in white while the camera has not been added is marked in yellow.
Explanation of the icons
Icon
Explanation
Icon
Explanation
Edit basic parameters of the camera
Add the detected IP camera.
The camera is connected.
The camera is disconnected; you can
click the icon to get the exception
information of camera.
Delete the IP camera
Advanced settings of the camera.
4. To add other IP cameras:
1) Click the Custom Adding button to pop up the Add IP Camera (Custom) interface.
