KTM 2009 690 Rally Factory Replica User manual

OWNER'S MANUAL 2009
690 Rally Factory Replica
ART. NO. 3211361en

DEAR KTM CUSTOMER 1
DEAR KTM CUSTOMER
Congratulations on your decision to purchase a KTM motorcycle. You are now the owner of a state-of-the-art sports motorcycle that will
give you enormous pleasure if you service and maintain it accordingly.
We wish you great pleasure riding the vehicle!
Enter the serial numbers of your vehicle below.
Chassis number ( p. 7) Dealer's stamp
Engine number ( p. 7)
Key number ( p. 7)
The owner's manual corresponded to the latest state of this series at the time of printing. Slight deviations resulting from continuing
development and design of our motorcycles can however not be completely excluded.
All specifications are not binding. KTM Sportmotorcycle AG specifically reserves the right to modify or delete technical specifica-
tions, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt
these to local conditions, as well as to stop production of a particular model without prior notice. KTM accepts no liability for delivery
options, deviations from illustrations and descriptions, as well as printing and other errors. The models portrayed partly contain special
equipment that does not belong to the regular scope of delivery.
© 2008 by KTM-Sportmotorcycle AG, Mattighofen Austria
All rights reserved
Reproduction, even in part, is permitted only with the express written permission of the copyright owner.
ISO 9001(12 100 6061)
According to the international quality management standard ISO 9001, KTM uses quality assurance processes that lead
to the maximum possible quality of the products.
Issued by: TÜV Management Service
KTM-Sportmotorcycle AG
5230 Mattighofen, Austria

CONTENTS 2
CONTENTS
MEANS OF REPRESENTATION ............................................ 4
IMPORTANT NOTES............................................................ 5
LOCATION OF SERIAL NUMBERS ........................................ 7
Chassis number............................................................... 7
Type label....................................................................... 7
Key number .................................................................... 7
Engine number................................................................ 7
Fork part number............................................................. 7
Shock absorber part number............................................. 8
CONTROLS......................................................................... 9
Clutch lever .................................................................... 9
Hand brake lever ............................................................. 9
Short circuit button ......................................................... 9
Ignition switch ................................................................ 9
Electric starter button ...................................................... 9
Light switch .................................................................. 10
Horn button .................................................................. 10
Flasher switch............................................................... 10
Speedometer................................................................. 10
Speedometer activation and test ..................................... 10
Tripmaster switch .......................................................... 11
Setting kilometers or miles ............................................. 11
Setting the clock ........................................................... 11
Adjusting the speedometer functions............................... 12
Querying the lap time .................................................... 12
SPEED display mode (speed).......................................... 13
Display mode SPEED/H (service hours)............................ 13
Display mode SPEED/CLK (clock) ................................... 13
Display mode SPEED/LAP (lap time) ............................... 13
Display mode SPEED/ODO (odometer)............................. 14
Display mode SPEED/TR1 (trip master 1) ........................ 14
Display mode SPEED/TR2 (trip master 2) ........................ 14
Disply mode SPEED/A1 (average speed 1) ....................... 15
Display mode SPEED/A2 (average speed 2)...................... 15
Display mode SPEED/S1 (stop watch 1) .......................... 15
Display mode SPEED/S2 (stop watch 2) .......................... 15
Fuses ........................................................................... 16
Fuel tank ...................................................................... 17
Fuel tap........................................................................ 17
Choke........................................................................... 18
Shift lever..................................................................... 18
Foot brake pedal ........................................................... 19
Side stand .................................................................... 19
Steering lock................................................................. 19
Locking the steering ...................................................... 19
Unlocking the steering ................................................... 20
Tool set ........................................................................ 20
Handrail ....................................................................... 20
GENERAL TIPS AND HINTS ON PUTTING INTO
OPERATION...................................................................... 21
Advice on first use......................................................... 21
Running in the engine.................................................... 22
RIDING INSTRUCTIONS .................................................... 23
Checks before putting into operation ............................... 23
Starting ........................................................................ 23
Starting up ................................................................... 24
Shifting, riding.............................................................. 24
Braking ........................................................................ 24
Stopping, parking .......................................................... 25
Refueling...................................................................... 25
SERVICE SCHEDULE......................................................... 27
Important maintenance work to be carried out by an
authorized KTM workshop. ............................................. 27
Important maintenance work to be carried out by an
authorized KTM workshop. (as additional order)................ 28
Important checks and maintenance work to be carried
out by the rider. ............................................................ 28
MAINTENANCE WORK ON CHASSIS AND ENGINE.............. 29
Jacking up the motorcycle.............................................. 29
Removing the motorcycle from the work stand.................. 29
Checking the basic chassis setting with the rider's
weight .......................................................................... 29
Compression damping of shock absorber.......................... 29
Adjusting the compression damping of the shock
absorber ....................................................................... 29
Adjusting the rebound damping of the shock absorber....... 30
Measuring the unloaded rear wheel sag............................ 30
Checking the static sag of the shock absorber .................. 31
Checking the riding sag of the shock absorber .................. 31
Adjusting the spring preload of the shock absorber x...... 31
Checking the riding sag of the shock absorber .................. 32
Adjusting the riding sag x............................................. 32
Removing the shock absorber ......................................... 33
Installing the shock absorber .......................................... 33
Checking basic setting of fork......................................... 34
Adjusting the compression damping of the fork ................ 34
Adjusting the rebound damping of the fork....................... 35
Bleeding fork legs.......................................................... 35
Cleaning dust boots of fork legs ...................................... 35
Dismounting the front fender.......................................... 36
Installing the front fender............................................... 36
Checking play of steering head bearing............................ 36
Adjusting play of steering head bearing x....................... 37
Fork offset .................................................................... 38
Handlebar position ........................................................ 38
Adjusting the handlebar position x................................ 39
Adjusting the Bowden cable ........................................... 40
Checking chain dirt ....................................................... 40
Cleaning the chain......................................................... 40
Checking the chain tension ............................................ 40
Checking the rear sprocket/engine sprocket for wear ......... 41
Adjusting chain tension.................................................. 41
Adjusting basic setting of clutch lever ............................. 42
Checking the fluid level of the hydraulic clutch ................ 42
Checking the brake discs................................................ 42
Checking free play of hand brake lever............................. 43
Adjusting free travel of handbrake lever ........................... 43
Checking the front brake fluid level ................................. 43
Adding front brake fluid x............................................ 44
Checking the front brake linings...................................... 44
Removing front brake linings x..................................... 45
Installing the front brake linings x................................. 45
Changing the front brake linings x................................. 46
Checking free play of foot brake lever .............................. 47
Adjusting free travel of foot brake pedal x...................... 47
Checking rear brake fluid level........................................ 47
Adding rear brake fluid x.............................................. 48
Checking the rear brake linings....................................... 48
Removing rear brake linings x....................................... 49
Installing the rear brake linings x.................................. 49
Changing the rear brake linings x.................................. 50
Removing front wheel x................................................ 51

CONTENTS 3
Mounting the front wheel x........................................... 51
Removing rear wheel x................................................. 52
Mounting the rear wheel x............................................ 53
Checking the tire condition............................................. 53
Checking tire air pressure............................................... 54
Checking spoke tension.................................................. 54
Removing the trim......................................................... 54
Mounting the trim ......................................................... 55
Removing the seat......................................................... 55
Mounting the seat ......................................................... 56
Removing the front fuel tank .......................................... 56
Installing the fuel tank................................................... 56
Folding up the fuel tank at the rear ................................. 57
Lowering the fuel tank at the rear.................................... 58
Removing the motor guard.............................................. 59
Mounting the motor guard .............................................. 59
Checking the headlamp setting ....................................... 60
Adjusting the headlamp ................................................. 60
Removing the battery x................................................ 61
Installing the battery x................................................. 61
Recharging the battery x.............................................. 61
Removing the main fuse................................................. 62
Installing the main fuse ................................................. 62
Checking the coolant level.............................................. 63
Checking the coolant level and antifreeze ........................ 64
Removing the air filter x............................................... 64
Installing the air filter x............................................... 65
Carburetor - idle ............................................................ 65
Carburetor - adjusting the idle speed x.......................... 66
Checking the engine oil level .......................................... 67
Changing engine oil and filter, cleaning oil screens x...... 67
Draining the engine oil x.............................................. 67
Removing the oil filter x............................................... 68
Cleaning the oil screens x............................................ 69
Installing the oil filter x............................................... 70
Filling up with engine oil x........................................... 70
Adding engine oil .......................................................... 71
TROUBLESHOOTING......................................................... 72
CLEANING........................................................................ 74
Cleaning motorcycle ...................................................... 74
STORAGE ......................................................................... 75
Storage......................................................................... 75
Putting the motorcycle into operation after storage ........... 75
TECHNICAL DATA - ENGINE.............................................. 76
Capacity- engine oil ....................................................... 76
Capacity - coolant.......................................................... 76
TECHNICAL DATA - ENGINE TIGHTENING TORQUES.......... 77
TECHNICAL DATA - CARBURETOR..................................... 79
690 Rally Factory Replica .............................................. 79
TECHNICAL DATA - CHASSIS ............................................ 80
Lighting equipment ....................................................... 80
Tires ............................................................................ 81
Capacity - fuel............................................................... 81
TECHNICAL DATA - FORK.................................................. 82
Capacity - fork oil .......................................................... 82
TECHNICAL DATA - SHOCK ABSORBER ............................. 83
TECHNICAL DATA - CHASSIS TIGHTENING TORQUES ........ 84
WIRING DIAGRAM ............................................................ 86
690 Rally Factory Replica 1 of 3 .................................... 86
690 Rally Factory Replica 2 of 3 .................................... 90
690 Rally Factory Replica 3 of 3 .................................... 92
SUBSTANCES................................................................... 96
AUXILIARY SUBSTANCES.................................................. 98
STANDARDS..................................................................... 99
INDEX ............................................................................ 100

MEANS OF REPRESENTATION 4
Symbols used
The meaning of specific symbols is described below.
Indicates an expected reaction (e.g. of a work step or a function).
Indicates an unexpected reaction (e.g. of a work step or a function).
All work marked with this symbol requires specialist knowledge and technical understanding. In the interest of
your own safety, have these jobs done in an authorized KTM workshop! There, your motorcycle will be serviced
optimally by specially trained experts using the specialist tools required.
Identifies a page reference (more information is provided on the specified page).
Formats used
The typographical and other formats used are explained in the following.
Specific name Identifies a proprietary name.
Name®Identifies a protected name.
Brand™ Identifies a trademark.

IMPORTANT NOTES 5
Use definition
KTM sport motorcycles are designed and built to withstand the normal stresses and strains of competitive use. The motorcycles com-
ply with currently valid regulations and categories of the top international motorsport organizations.
Info
The motorcycle is authorized for public road traffic in the homologous (reduced) version only.
In the derestricted version, the motorcycle must be used only on closed off properties remote from public road traffic.
Maintenance
A prerequisite for perfect operation and prevention of wear is that the engine and chassis maintenance and adjustment work described
in the owner's manual are properly carried out. Poor adjustment and tuning of the engine and chassis can lead to damage and break-
age of components.
Using the motorcycle in extreme conditions such as very muddy or wet terrain can lead to above-average wear of components such as
the transmission train or the brakes. For this reason, it may be necessary to service or replace worn parts before the limit specified in
the service schedule is reached.
Pay careful attention to the prescribed running-in period, inspection and maintenance intervals. If you observe these exactly, you will
ensure a much longer service life for your motorcycle.
Warranty
The work prescribed in the service schedule must be carried out in an authorized KTM workshop only and confirmed in the customer's
service record, since otherwise no warranty claims will be recognized. No warranty claims can be granted for damage resulting from
manipulations and/or alterations to the vehicle.
Fuel, oils, etc.
You should use the fuels, oils and greases according to specifications as listed in the owner's manual.
Spare parts, accessories
For your own safety, only use spare parts and accessory products that have been approved and/or recommended by KTM and have
them installed by an authorized KTM workshop. KTM accepts no liability for other products and any resulting damage or loss.
The current KTM PowerParts for your vehicle can be found on the KTM website.
International KTM Website: http://www.ktm.com
Work rules
During assembly, non-reusable parts (e.g. self-locking screws and nuts, seals, seal rings, O-rings, pins, lock washers) must be replaced
by new parts.
If a thread locker is used on screw connections (e.g. Loctite®), the specific manufacturer instructions on its application must be
observed.
Parts that are to be reused after disassembly should be cleaned and checked for damage and wear. Change damaged and worn parts.
Ensure that the vehicle is roadworthy after completing repair and maintenance work.
Transport
Note
Danger of damage The parked vehicle can roll away or fall over.
–Always place the vehicle on a firm and even surface.
Note
Fire hazard Some vehicle components get very hot when the machine is driven.
–Do not place the vehicle where there are flammable or explosive substances. Do not place objects over the vehicle while it is still
warm from being run. Always let the vehicle cool first.
–Switch off engine.
–Use straps or other suitable devices to secure the motorcycle against accidents or falling over.

IMPORTANT NOTES 6
Environment
Offroad motorcycling is a wonderful sport and we naturally hope that you will be able to enjoy it to the fullest. However, it is a poten-
tial problem for the environment and can lead to conflicts with other persons. But if you use your motorcycle responsibly, you can
ensure that such problems and conflicts do not have to occur. To protect the future of motorcycle sport, make sure that you use your
motorcycle legally, display environmental consciousness, and respect the rights of others.
Notes/warnings
Pay close attention to the notes/warning.
Info
Various information and warning labels are affixed to the vehicle. Do not remove information/warning labels. If they are miss-
ing, you or others may not recognize dangers and may therefore be injured.
Grades of risks
Danger
Identifies a danger that will immediately and invariably lead to fatal or serious permanent injury if the appropriate measures
are not taken.
Warning
Identifies a danger that is likely to lead to fatal or serious injury if the appropriate measures are not taken.
Note
Identifies a danger that will lead to considerable machine and material damage if the appropriate measures are not taken.
Warning
Identifies a danger that will lead to environmental damage if the appropriate measures are not taken.
Owner's manual
–It is important that you read this owner's manual carefully and completely before making your first trip. It contains useful informa-
tion and tips to help you operate and handle your motorcycle. Only then will you find out how to customize the motorcycle ideally
for your own use and how you can protect yourself from injury. The owner's manual also contains important information on servic-
ing the motorcycle.
–The owner's manual is an important component of the motorcycle and should be handed over to the new owner if the vehicle is
sold.

LOCATION OF SERIAL NUMBERS 7
3.1Chassis number
600001-10
Chassis number is embossed in the steering head at the right.
3.2Type label
600001-11
Type label is fixed to the right of the steering head.
3.3Key number
500125-10
The key number is stamped on the key strap.
3.4Engine number
600003-10
The engine number is stamped on the left side of the engine under the engine
sprocket.
3.5Fork part number
600002-10
The fork part number is stamped on the inner side of the fork stub.

LOCATION OF SERIAL NUMBERS 8
3.6Shock absorber part number
600026-10
Shock absorber part number is attached at the shock absorber unit, to the rear of
the direction of travel.

CONTROLS 9
4.1Clutch lever
600006-10
The clutch lever is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
4.2Hand brake lever
400290-10
The hand brake lever is fitted on the right side of the handlebar.
The front brake is engaged using the hand brake lever.
4.3Short circuit button
600005-20
The short circuit button is fitted on the left side of the handlebar and has no func-
tion upon delivery.
4.4Ignition switch
600044-10
The ignition switch is located to the left of the indicator lamp on the instrument
support.
Possible states
• Ignition off –Ignition switch flipped up. In this position, the ignition circuit is
interrupted, a running engine stops, and a non-running engine will not start.
• Ignition on –Ignition switch flipped down. In this position, the ignition circuit is
closed, and the engine can be started.
4.5Electric starter button
600010-10
The electric starter button is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position.
• Electric starter button pressed –In this position, the electric starter is actuated.

CONTROLS 10

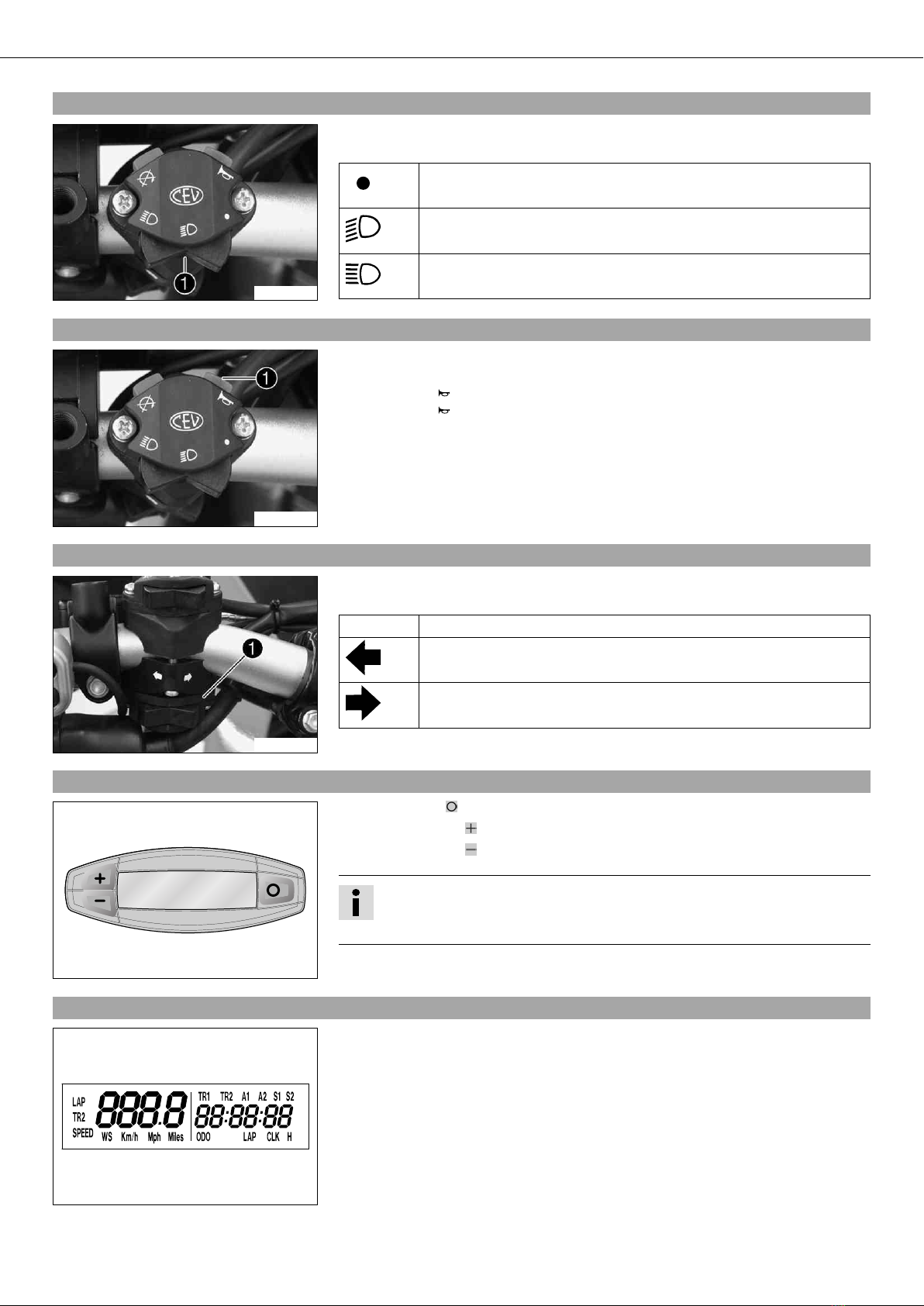

4.6Light switch
600005-30
The light switch is fitted on the left side of the handlebar.
Possible states
Light off –Light switch is turned to the right. In this position, the light
is switched off.
Low beam on –Light switch is in the central position. In this position,
the low beam and tail light are switched on.
High beam on –Light switch is turned to the left. In this position, the
high beam and the tail light are switched on.
4.7Horn button
600005-10
The horn button is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position.
• Horn button pressed –The horn is operated in this position.
4.8Flasher switch
600004-10
The flasher switch is fitted on the left side of the handlebar.
Possible states
Flasher light off –Flasher switch is in the central position.
Flasher light, left, on –Flasher switch turned to the left.
Flasher light, right, on –Flasher switch turned to the right.
4.9Speedometer
400312-01
–Press the key to change the display mode or change to one of the setup menus.
–Press the button to control different functions.
–Press the button to control different functions.
Info
In its condition at delivery, the display mode SPEED/H and SPEED/ODO is acti-
vated.
4.10Speedometer activation and test
400313-01
Activating the speedometer:
The speedometer is activated when one of the keys is pressed or an impulse comes
from the wheel speed sensor.
Display test
For the function test of the display, all display segments light up briefly.

CONTROLS 11
400314-01
WS (wheel size)
After the display function test, the wheel size WS is displayed briefly.
Info
2205 mm corresponds to the size of the 21" front wheel with a series produc-
tion tire.
The display then changes to the last selected mode.
4.11Tripmaster switch
(Option: Tripmaster switch)
You can use the trip master switch to control the functions of the speedometer from the handlebar.
Info
The trip master is an optional accessory.
4.12Setting kilometers or miles
Info
If you change the unit, the value ODO is retained and converted accordingly.
The values TR1,TR2,A1,A2 and S1 are cleared when the unit of measure is changed.
Condition
The motorcycle is standing.
400329-01
–Press the button briefly and repeatedly until Happears at the bottom right of the
display.
–Press the button for 3 - 5 seconds.
The Setup menu opens and the active functions are displayed.
–Press the button repeatedly until the Km/h/Mph display flashes.
Km/h adjusting
–Press the button .
Mph adjusting
–Press the button .
–Press the button for 3 - 5 seconds.
The settings are saved and the Setup menu closed.
Info
If no button is pressed for 20 seconds, or if no impulse comes from the
wheel speed sensor, the settings are automatically saved and the Setup
menu closed.
4.13Setting the clock
Condition
The motorcycle is standing.
400330-01
–Press the button briefly and repeatedly until CLK appears at the bottom right of
the display.
–Press the button for 3 - 5 seconds.
The hour display flashes.
–Set the hour display with the button and/or button .
–Press the button briefly.
The next segment of the display flashes and can be set.
–You can set the following segments in the same way as the hours by pressing
the button and the button .
Info
The seconds can only be set to zero.

CONTROLS 12
–Press the button for 3 - 5 seconds.
The settings are saved and the Setup menu closed.
Info
If no button is pressed for 20 seconds, or if no impulse comes from the
wheel speed sensor, the settings are automatically saved and the Setup
menu closed.
4.14Adjusting the speedometer functions
Info
Upon delivery, only the SPEED/H and SPEED/ODO display modes are activated.
Condition
The motorcycle is standing.
400318-01
–Press the button briefly and repeatedly until Happears at the bottom right of the
display.
–Press the button for 3 - 5 seconds.
The Setup menu opens and the active functions are displayed.
–Switch to the function you require by briefly pressing the button .
The selected function flashes.
Activating a function
–Press the button .
The icon remains in the display and the display changes to the next func-
tion.
Deactivating a function
–Press the button .
The icon disappears from the display and the display changes to the next
function.
–Activate or deactivate all functions accordingly.
–Press the button for 3 - 5 seconds.
The settings are saved and the Setup menu closed.
Info
If no button is pressed for 20 seconds, or if no impulse comes from the
wheel speed sensor, the settings are automatically saved and the Setup
menu is closed.
4.15Querying the lap time
Info
This function can be called only if lap times are measured.
Condition
The motorcycle is standing.
400321-01
–Press the button briefly and repeatedly until LAP appears at the bottom right of
the display.
–Press the button briefly.
LAP 1 appears on the left side of the display.
–Laps 1-10 can be displayed by pressing the button .
–The button has no function
–Press the button briefly.
Next display mode
Info
If an impulse is received from the wheel speed sensor, the left side of the
display changes back to the SPEED mode.

CONTROLS 13
4.16SPEED display mode (speed)
400317-02
–Press the button briefly and repeatedly until SPEED appears on the left side of
the display.
The current speed is displayed in the SPEED display mode.
The current speed can be displayed in Km/h or Mph.
Info
Making the setting according to the country.
When an impulse comes from the front wheel, the left side of the speedometer
display changes to the SPEED mode and the current speed is shown.
4.17Display mode SPEED/H (service hours)
400316-01
Condition
• The motorcycle is standing
–Press the button briefly and repeatedly until Happears at the bottom right of the
display.
In display mode H, the service hours of the engine are displayed.
The service hour counter stores the total traveling time.
Info
The service hour counter is necessary for ensuring that maintenance work is car-
ried out at the right intervals.
If the speedometer is in Hdisplay mode at the start of the journey, it automati-
cally changes to the ODO display mode.
The Hdisplay mode is suppressed during the journey.
Press the button . No function
Press the button . No function
Press the button
for 3 - 5 seconds.
The display changes to the Setup menu of the speedometer
functions.
Press the button
briefly.
Next display mode
4.18Display mode SPEED/CLK (clock)
400319-01
–Press the button briefly and repeatedly until CLK appears at the bottom right of
the display.
The time is displayed in CLK display mode.
Press the button . No function
Press the button . No function
Press the button
for 3 - 5 seconds.
The display changes to the Setup menu of the clock.
Press the button
briefly.
Next display mode
4.19Display mode SPEED/LAP (lap time)
400320-01
–Press the button briefly and repeatedly until LAP appears at the bottom right of
the display.
In the LAP display mode, up to 10 lap times can be timed with the stop watch.
Info
If the lap time continues after you press the button , 9 memory locations are
already occupied.
Lap 10 must be timed with the button .
Press the button . Starts or stops the clock.
Press the button . Stops the current lap time and saves it, and the stop watch
starts the next lap.

CONTROLS 14
Press the button
for 3 - 5 seconds.
The stop watch and the lap time are reset.
Press the button
briefly.
Next display mode
4.20Display mode SPEED/ODO (odometer)
400317-01
–Press the button briefly and repeatedly until ODO appears at the bottom right of
the display.
In ODO display mode, the total number of kilometers ridden is displayed.
Press the button . No function
Press the button . No function
Press the button
for 3 - 5 seconds.
–
Press the button
briefly.
Next display mode
4.21Display mode SPEED/TR1 (trip master 1)
400323-01
–Press the button briefly and repeatedly until TR1 appears at the top right of the
display.
TR1 (trip master 1) runs constantly and counts up to 999.9.
It can be used to measure the distance covered during trips or between two refueling
stops.
TR1 is coupled with A1 (average speed 1) and S1 (stop watch 1).
Info
If 999.9 is exceeded, the values of TR1,A1 and S1 are automaticallt reset to
0.0.
Press the button . No function
Press the button . No function
Press the button
for 3 - 5 seconds.
Displays of TR1,A1 and S1 are reset to 0,0.
Press the button
briefly.
Next display mode
4.22Display mode SPEED/TR2 (trip master 2)
400324-01
–Press the button briefly and repeatedly until TR2 appears at the top right of the
display.
TR2 (trip master 2) runs constantly and counts up to 999.9.
The displayed value can be set manually with the button and the button . A very
practical function for rides by the road book.
Info
The TR2 value can also be corrected manually during the journey with the but-
ton and the button .
If 999.9 is exceeded, the value of TR2 is automatically reset to 0.0.
Press the button . Increases value of TR2.
Press the button . Reduces value of TR2.
Press the button
for 3 - 5 seconds.
Deletes value of TR2.
Press the button
briefly.
Next display mode

CONTROLS 15
4.23Disply mode SPEED/A1 (average speed 1)
400325-01
–Press the button briefly and repeatedly until A1 appears at the top right of the
display.
A1 (average speed 1) shows the average speed calculated using TR1 (trip master 1) and
S1 (stop watch 1).
The calculation of this value is activated by the first impulse of the wheel speed sensor
and ends 3 seconds after the last impulse.
Press the button . No function
Press the button . No function
Press the button
for 3 - 5 seconds.
Displays of TR1,A1 and S1 are reset to 0,0.
Press the button
briefly.
Next display mode
4.24Display mode SPEED/A2 (average speed 2)
400326-01
–Press the button briefly and repeatedly until A2 appears at the top right of the
display.
A2 (average speed 2) shows the average speed on the basis of the current speed if the
stop watch S2 (stop watch 2) is running.
Info
The displayed value can differ from the actual average speed if S2 was not
timed after the ride.
Press the button . No function
Press the button . No function
Press the button
for 3 - 5 seconds.
–
Press the button
briefly.
Next display mode
4.25Display mode SPEED/S1 (stop watch 1)
400327-01
–Press the button briefly and repeatedly until S1 appears at the top right of the
display.
S1 (stop watch 1) displays the journey time on the basis of TR1 and continues when an
impulse is received from the wheel speed sensor.
The calculation of this value starts with the first impulse of the wheel speed sensor and
ends 3 seconds after the last impulse.
Press the button . No function
Press the button . No function
Press the button
for 3 - 5 seconds.
Displays of TR1,A1 and S1 are reset to 0,0.
Press the button
briefly.
Next display mode
4.26Display mode SPEED/S2 (stop watch 2)
400328-01
–Press the button briefly and repeatedly until S2 appears at the top right of the
display.
S2 (stop watch 2) is a manual stop watch.
If S2 is running in the background, the S2 display flashes in the speedometer display.
Press the button . Starts or stops S2.
Press the button . No function
Press the button
for 3 - 5 seconds.
Displays of S2 and A2 are reset to 0.0.
Press the button
briefly.
Next display mode

CONTROLS 16
Table of functions
Display Press the button . Press the button . Press the button for 3 -
5 seconds.
Press the button
briefly.
Display mode SPEED/H
(service hours)
No function No function The display changes to
the Setup menu of the
speedometer functions.
Next display mode
Display mode SPEED/CLK
(clock)
No function No function The display changes to
the Setup menu of the
clock.
Next display mode
Display mode SPEED/LAP
(lap time)
Starts or stops the
clock.
Stops the current lap
time and saves it, and
the stop watch starts
the next lap.
The stop watch and the
lap time are reset.
Next display mode
Display mode
SPEED/ODO (odometer)
No function No function –Next display mode
Display mode SPEED/TR1
(trip master 1)
No function No function Displays of TR1,A1 and
S1 are reset to 0,0.
Next display mode
Display mode SPEED/TR2
(trip master 2)
Increases value of TR2. Reduces value of TR2. Deletes value of TR2. Next display mode
Disply mode SPEED/A1
(average speed 1)
No function No function Displays of TR1,A1 and
S1 are reset to 0,0.
Next display mode
Display mode SPEED/A2
(average speed 2)
No function No function –Next display mode
Display mode SPEED/S1
(stop watch 1)
No function No function Displays of TR1,A1 and
S1 are reset to 0,0.
Next display mode
Display mode SPEED/S2
(stop watch 2)
Starts or stops S2. No function Displays of S2 and A2
are reset to 0.0.
Next display mode
Table of conditions and activability
Display The motorcycle is
standing
Menu can be acti-
vated
Display mode SPEED/H (service hours) •
Display mode SPEED/CLK (clock) •
Display mode SPEED/LAP (lap time) •
Display mode SPEED/TR1 (trip master 1) •
Display mode SPEED/TR2 (trip master 2) •
Disply mode SPEED/A1 (average speed 1) •
Display mode SPEED/A2 (average speed 2) •
Display mode SPEED/S1 (stop watch 1) •
Display mode SPEED/S2 (stop watch 2) •
4.27Fuses
600029-10
The fuse box is located under the seat.

CONTROLS 17
600028-10
Fuse - Electric starter system
Fuse - Radiator fan
Fuse - lighting Sentinel (optional)
Fuse - Roadbook
Fuse - Not assigned
Fuse - Lighting
Fuse -GPS (optional)
Fuse -Iritrac (optional)
4.28Fuel tank
This model has three separate fuel tanks controlled by a fuel tap. Two fuel tanks are
located in front of the seat and one fuel tank is located beneath the seat.
600045-10
The right fuel tank is filled via filler cap and the left fuel tank is filled via filler
cap .
600046-10
The rear fuel tank is filled via filler cap .
4.29Fuel tap
600008-10
Fuel tap is located on the right over the fork pivot.
The fuel tap can be used to control the individual fuel tanks. The fuel tap does not
have an OFF position since the fuel pump does not let fuel pass when the engine is
stopped.
Possible states
600015-10
•F+R –If tap handle of the fuel tap points down, fuel is taken from all three fuel
tanks. All fuel tanks empty out completely.

CONTROLS 18
600017-10
•F FRONT –If tap handle of the fuel tap points toward the rear, fuel is taken from
the two front fuel tanks. Only the front fuel tanks empty out completely.
600016-10
•R REAR –If tap handle of the fuel tap points up, fuel is taken from the rear fuel
tank. Only the rear fuel tank empties out completely.
4.30Choke
600072-10
The choke knob is fitted on the left side of the frame.
Activating the choke function frees an opening through which the engine can draw
extra fuel. This gives a richer fuel-air mixture, which is needed for a cold start.
Info
If the engine is warm, the choke function must be deactivated.
Possible states
• Choke function activated –The choke knob has been pulled out slightly and
turned.
• Choke function deactivated –The choke knob is engaged in the guide.
4.31Shift lever
600003-12
The shift lever is mounted on the left side of the engine.
600003-20
The gear positions can be seen in the photograph.
The neutral or idle position is between the first and second gears.
