KTM 450 SXS-F User manual

OWNER'S MANUAL 2008
450bSXS-F
ART. NO. 3211253en

DEAR KTM CUSTOMER 1
'($5 .70 &86720(5
Congratulations on your decision to buy a KTM motorcycle. You are now the owner of a state-of-the-art sports motorcycle that will give
you enormous pleasure if you service and maintain it accordingly.
We wish you great pleasure riding the vehicle!
Enter the serial numbers of your vehicle below.
Chassis number ( P. 9) Dealer's stamp
Engine number ( P. 9)
The owner's manual corresponded to the latest state of this series at the time of printing. Slight deviations resulting from continuing
development and design of our motorcycles can however not be completely excluded.
All specifications are not binding. KTM Sportmotorcycle AG in particular reserves the right to modify or delete technical specifica-
tions, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt
these to local conditions, as well as to stop production of a particular model without prior notice. KTM accepts no liability for delivery
options, deviations from illustrations and descriptions, as well as printing and other errors. The models portrayed partly contain special
equipment that does not belong to the regular scope of delivery.
© 2007 by KTM-Sportmotorcycle AG, Mattighofen Austria
All rights reserved
Reproduction, even in part, is permitted only with the express written permission of the copyright owner.
ISO 9001(12 100 6061)
Within the meaning of the international quality management standard ISO 9001, KTM uses quality assurance processes
that lead to the maximum possible quality of the products.
Issued by: TÜV Management Service
KTM-Sportmotorcycle AG
5230 Mattighofen, Austria

CONTENTS 2
&217(176
MEANS OF REPRESENTATION ............................................ 4
IMPORTANT NOTES............................................................ 5
VIEW OF VEHICLE............................................................... 7
View of vehicle, front left side........................................... 7

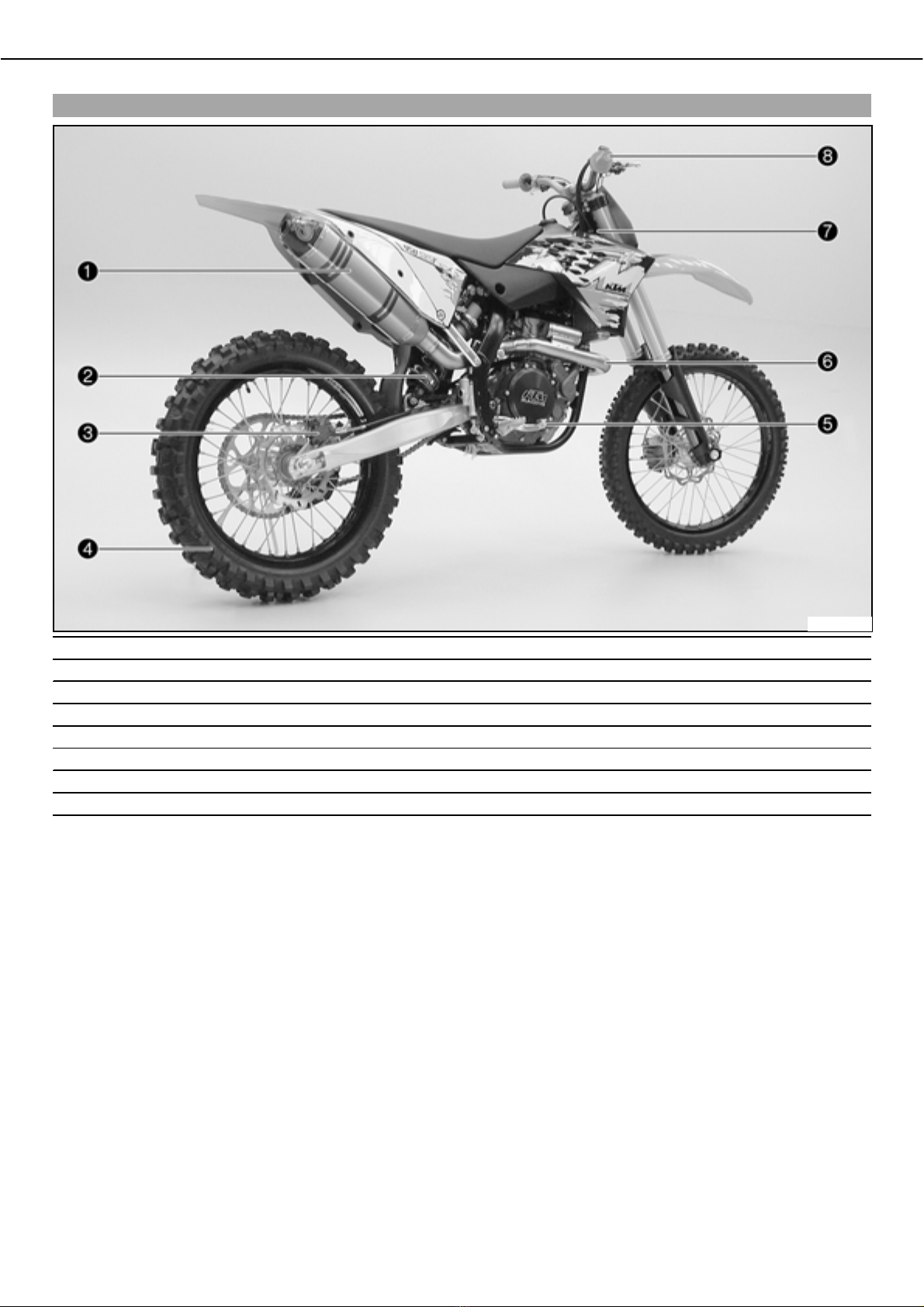

View of vehicle, rear right side .......................................... 8
LOCATION OF SERIAL NUMBERS ........................................ 9
Chassis number............................................................... 9
Type label....................................................................... 9
Engine number................................................................ 9
Fork part number............................................................. 9
Shock absorber part number............................................. 9

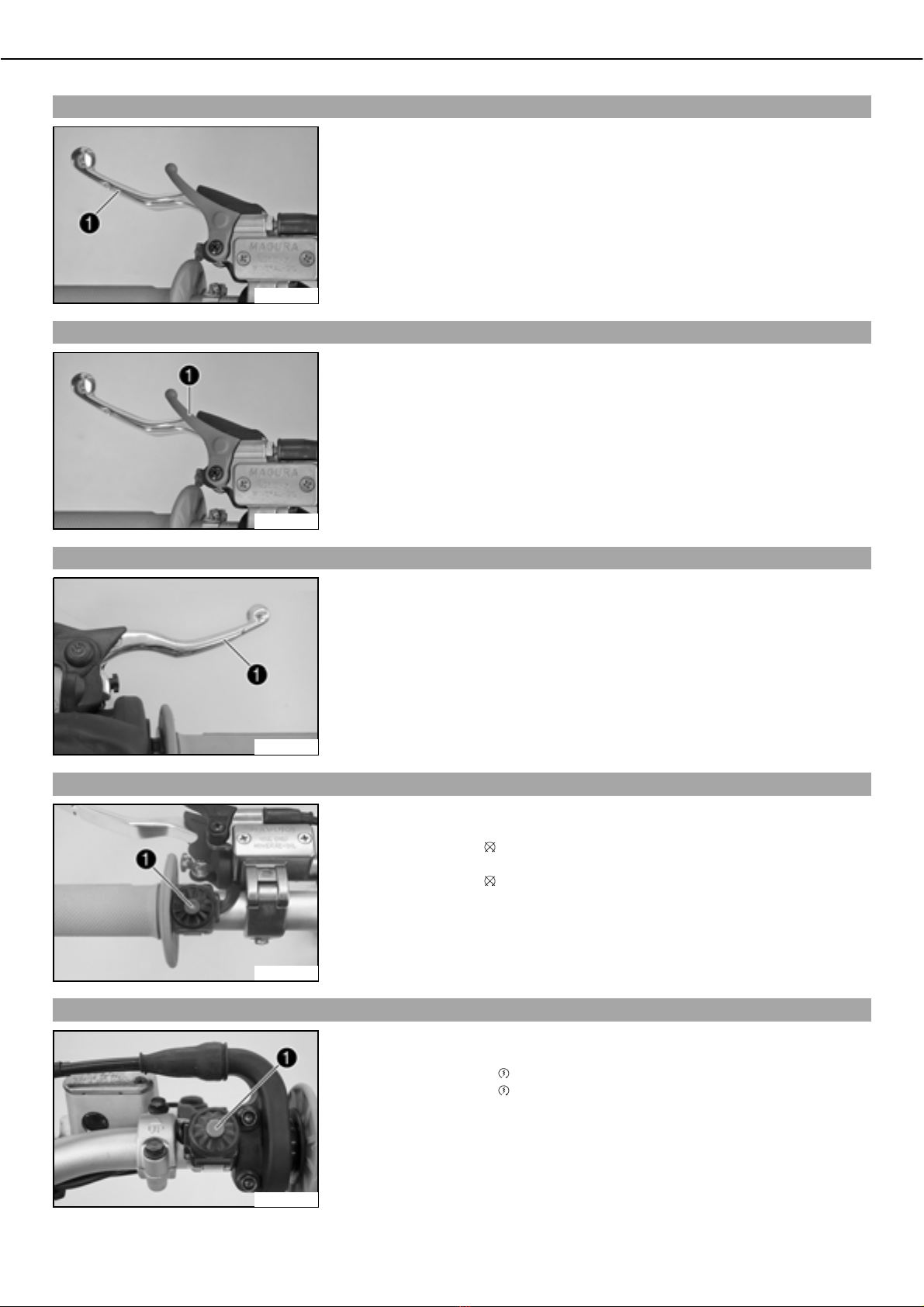

OPERATING ELEMENTS.................................................... 10
Clutch lever .................................................................. 10
Hot start lever ............................................................... 10
Hand brake lever ........................................................... 10
Short circuit button ....................................................... 10
Electric starter button .................................................... 10
Fuel tap........................................................................ 11
Opening filler cap.......................................................... 11
Closing filler cap ........................................................... 11
Choke........................................................................... 11

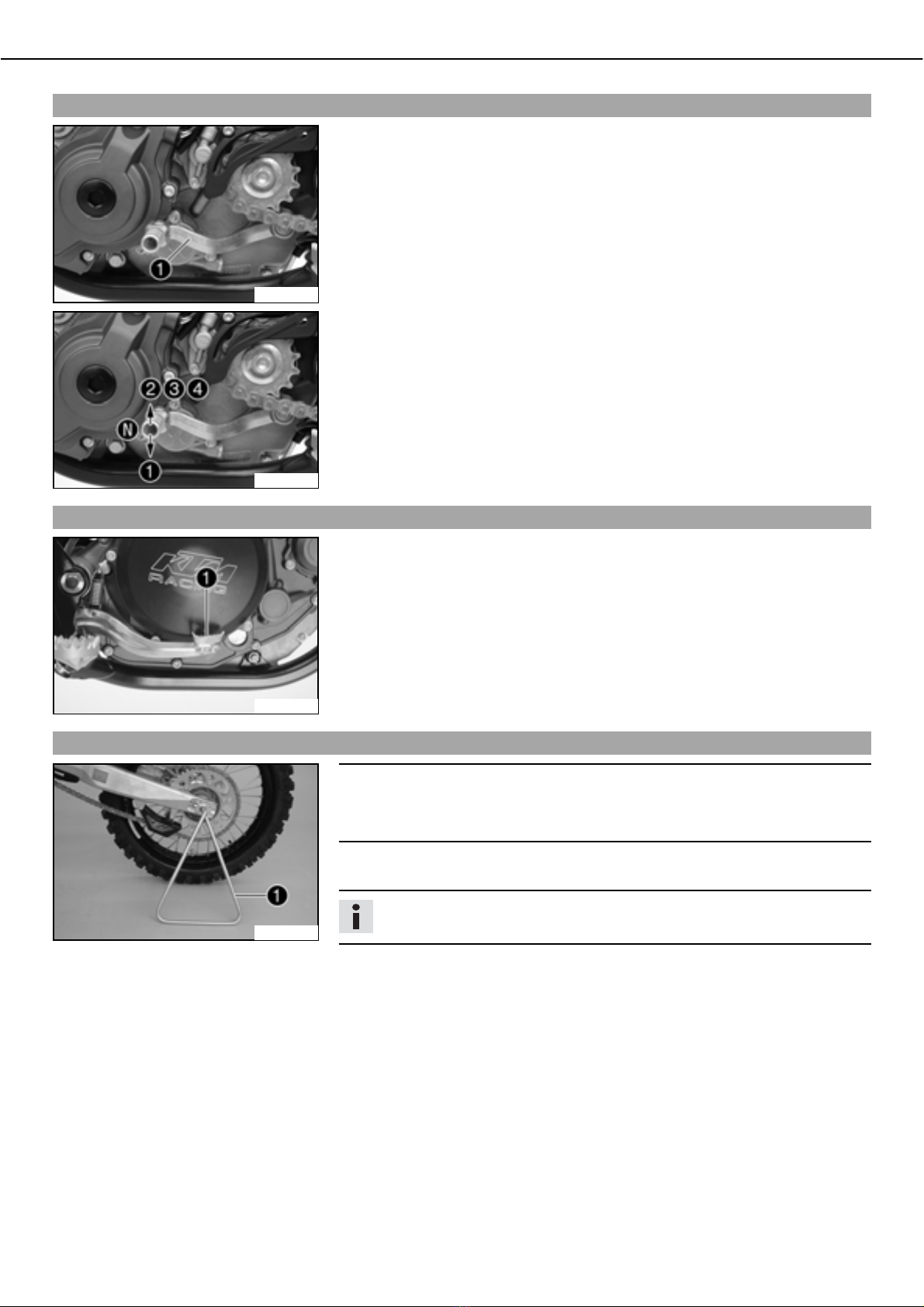

Shift lever..................................................................... 12
Foot brake pedal ........................................................... 12
Plug-in stand ................................................................ 12
TIPS ON PUTTING INTO OPERATION ................................. 13
Advice on first use......................................................... 13
Running in the engine.................................................... 14
RIDING INSTRUCTIONS .................................................... 15
Checks before putting into operation ............................... 15
Starting ........................................................................ 15
Starting up ................................................................... 16
Shifting, riding.............................................................. 16
Braking ........................................................................ 16
Stopping, parking .......................................................... 17
Refueling...................................................................... 17
GREASING AND SERVICE TABLE ....................................... 18
Important maintenance work to be carried out by an
authorized KTM workshop. ............................................. 18
Important maintenance work to be carried out by an
authorized KTM workshop. (as additional order)................ 19
Important checks and maintenance work to be carried
out by the rider. ............................................................ 19
MAINTENANCE ON CHASSIS AND ENGINE ........................ 21
Jacking up the motorcycle.............................................. 21
Removing the motorcycle from the work stand.................. 21
Checking the basic chassis setting with the rider's
weight .......................................................................... 21
Compression damping of shock absorber.......................... 21
Adjusting high-speed compression damping of the shock
absorber ....................................................................... 21
Adjusting the low-speed compression damping of the
shock absorber.............................................................. 22
Adjusting rebound damping of the shock absorber ............ 22
Measuring rear wheel sag unloaded ................................. 23
Checking static sag of the shock absorber ........................ 23
Checking riding sag of shock absorber ............................. 24
Adjusting spring preload of the shock absorberbx............ 24
Adjusting riding sagbx.................................................. 25
Removing the shock absorberbx..................................... 25
Installing shock absorberbx........................................... 25
Checking basic setting of fork ......................................... 26
Adjusting compression damping of fork ........................... 26
Adjusting rebound damping of fork.................................. 26
Bleeding fork legs.......................................................... 27
Cleaning dust boots of fork legs ...................................... 27
Loosening the fork protection.......................................... 27
Positioning the fork protection ........................................ 27
Checking play of steering head bearing ............................ 28
Adjusting play of steering head bearingbx....................... 28
Fork offset .................................................................... 29
Setting the fork offsetbx............................................... 29
Removing the fork legsbx.............................................. 30
Installing the fork legsbx............................................... 31
Removing the fork protectorbx....................................... 31
Installing the fork protectorbx........................................ 32
Removing the lower triple clampbx................................ 32
Installing the lower triple clampbx................................. 32
Greasing the steering head bearingbx............................. 33
Dismounting the front fender .......................................... 33
Installing the front fender............................................... 33
Dismount the start number plate..................................... 34
Fitting the start number plate ......................................... 34
Handlebar position ........................................................ 34
Adjusting handlebar positionbx...................................... 34
Checking gas Bowden cable route ................................... 35
Checking play in the gas Bowden cable ........................... 35
Adjusting the gas Bowden cable playbx.......................... 35
Checking chain dirt ....................................................... 36
Cleaning the chain......................................................... 36
Checking the chain tension ............................................ 36
Checking the chain tension when fitting rear wheel........... 37
Checking the rear sprocket / engine sprocket for wear ....... 37
Checking chain wear...................................................... 37
Adjusting the chain tension ............................................ 38
Adjusting chain tension - after checking .......................... 39
Adjusting chain tension - fitting rear wheel ...................... 39
Adjusting chain guidebx............................................... 40
Brake fluid reservoir....................................................... 40
Brake calipers ............................................................... 40
Checking brake discs ..................................................... 40
Checking free play of hand brake lever............................. 41
Adjusting basic position of handbrake lever...................... 41
Checking the front brake fluid level................................. 41
Topping up the front brake fluidbx................................. 42
Checking the front brake linings...................................... 42
Removing front brake liningsbx...................................... 43
Mounting front brake liningsbx...................................... 43
Changing the front brake liningsbx................................. 44
Checking free play of foot brake lever .............................. 44
Adjusting basic position of footbrake leverbx................... 45
Checking the rear brake fluid level .................................. 45
Adding rear brake fluidbx.............................................. 46
Checking rear brake linings ............................................ 46
Removing rear brake liningsbx....................................... 47
Installing the rear brake liningsbx.................................. 47
Changing the rear brake liningsbx.................................. 48
Removing front wheelbx................................................ 48
Fitting front wheelbx.................................................... 49
Removing rear wheelbx................................................. 50
Fitting rear wheelbx...................................................... 50
Tire condition checking.................................................. 51
Checking tire air pressure............................................... 51
Checking spoke tension.................................................. 52

CONTENTS 3
Removing the batterybx................................................ 52
Installing the batterybx................................................. 52
Recharging the batterybx.............................................. 53
Removing a fuse............................................................ 54
Replacing the fuse......................................................... 54
Ignition curve plug connection........................................ 55
Changing the ignition curve ............................................ 55
Removing the seat ......................................................... 55
Mounting the seat ......................................................... 55
Dismounting the fuel tankbx......................................... 55
Installing the fuel tankbx.............................................. 56
Cooling system.............................................................. 57
Checking antifreeze and coolant level .............................. 57
Checking the coolant level.............................................. 58
Draining coolantbx....................................................... 58
Refilling coolantbx....................................................... 59
Removing main silencer ................................................. 59
Fitting the main silencer ................................................ 59
Glass fiber yarn filling of main silencer............................ 60
Removing glass fiber yarn filling from main silencerbx..... 60
Fitting glass fiber yarn filling in main silencerbx.............. 60
Changing glass fiber yarn filling of main silencerbx.......... 60
Dismounting the air filter box lid..................................... 60
Installing the air filter box lid.......................................... 61
Removing the air filterbx............................................... 61
Installing the air filterbx............................................... 61
Cleaning air filterbx...................................................... 61
Adjusting basic position of clutch lever............................ 62
Checking fluid level of hydraulic clutch ........................... 62
Changing fluid level of hydraulic clutchbx...................... 62
Carburetor - idle ............................................................ 63
Carburetor - adjusting idlebx......................................... 63
Emptying the carburetor float chamberbx....................... 64
Checking engine oil level................................................ 65
Changing engine oil and oil filter, cleaning oil screenbx... 65
Draining engine oilbx.................................................... 65
Cleaning the oil screenbx.............................................. 66
Removing the oil filterbx............................................... 66
Mounting oil filterbx..................................................... 67
Filling up with engine oilbx........................................... 67
Topping up engine oil .................................................... 67
TROUBLESHOOTING......................................................... 68
CLEANING........................................................................ 70
Cleaning motorcycle ...................................................... 70
STORAGE ......................................................................... 71
Storage......................................................................... 71
Putting into operation after storage ................................. 71
TECHNICAL DATA - ENGINE.............................................. 72
Capacity - engine oil ...................................................... 72
Capacity - cooling liquid................................................. 72
TECHNICAL DATA - ENGINE TIGHTENING TORQUES.......... 73
TECHNICAL DATA - CARBURETOR..................................... 75
TECHNICAL DATA - CHASSIS ............................................ 76
Capacity - fuel............................................................... 76
TECHNICAL DATA - FORK.................................................. 77
Capacity - fork oil .......................................................... 77
TECHNICAL DATA - SHOCK ABSORBER ............................. 78
TECHNICAL DATA - CHASSIS TIGHTENING TORQUES ........ 79
WIRING DIAGRAM ............................................................ 80
Wiring diagram.............................................................. 80
SUBSTANCES................................................................... 82
AUXILIARY SUBSTANCES.................................................. 84
STANDARDS..................................................................... 86
INDEX .............................................................................. 87

MEANS OF REPRESENTATION 4
0($16 2) 5(35(6(17$7,21
Symbols used
The symbols used are explained in the following.
Indicates an expected reaction (e.g. of a work step or a function).
Indicates an unexpected reaction (e.g. of a work step or a function).
All work marked with this symbol requires specialist knowledge and technical understanding. In the interest of
your own safety, have these jobs done in an authorized KTM workshop! There, your motorcycle will be serviced
optimally by specially trained experts using the specialist tools required.
Identifies a page reference (more information is provided on the specified page).
Formats used
The typographical and other formats used are explained in the following.
Specific name Identifies a specific name.
Name®Identifies a protected name.
Brand™ Identifies a brand in merchandise traffic.

IMPORTANT NOTES 5
,03257$17 127(6
Use definition
KTM sport motorcycles are designed and built to withstand the normal stresses and strains of competitive use. The motorcycles com-
ply with currently valid regulations and categories of the top international motorsport organizations.
Info
The motorcycle must be used only on secluded property remote from public road traffic.
Maintenance
A prerequisite for perfect operation and prevention of wear is that the engine and chassis maintenance and adjustment work described
in the owner's manual are properly carried out. Poor adjustment and tuning of the engine and chassis can lead to damage and break-
age of components.
Using the motorcycle in extreme conditions such as very muddy or wet terrain can lead to above-average wear of components such as
the transmission train or the brakes. For this reason, it may be necessary to service or replace worn parts before the limit specified in
the greasing and service table is reached.
Pay careful attention to the prescribed running-in period, inspection and maintenance intervals. If you observe these exactly, you will
ensure a much longer service life for your motorcycle.
Warranty
The maintenance work prescribed in the greasing and service table must be carried out in an authorized KTM workshop and confirmed
in the customer's service record, since otherwise no warranty claims will be recognized. No warranty claims can be considered for
damage resulting from manipulations and alterations to the motorcycle.
Fuel, oils, etc.
You should use the fuels, oils and greases according to specifications as listed in the owner's manual.
Spare parts, accessories
For your own safety, use only spare parts and accessories approved by KTM. KTM accepts no liability for other products and any
resulting damage or loss.
Transport
Note
Danger of damageಘDanger of damage by the vehicle running away or falling over.
ದAlways place the vehicle on a firm and even surface.
Note
Fire hazardಘSome components (engine, radiator and exhaust system) get very hot when the engine is running.
ದDo not place the vehicle where there are flammable or explosive substances.
ದSwitch off the engine.
ದTurn the handlebof the fuel tap to thebOFF position. (Figureb500178-10bP. 11)
ದUse straps or other suitable devices to secure the motorcycle against accidents or falling over.
Environment
Offroad motorcycling is a wonderful sport and we naturally hope that you will be able to enjoy it to the fullest. However, it is a poten-
tial problem for the environment and can lead to conflicts with other persons. But if you use your motorcycle responsibly, you can
ensure that such problems and conflicts do not have to occur. To protect the future of motorcycle sport, make sure that you use your
motorcycle legally, display environmental consciousness, and respect the rights of others.
Warning notes
In your own interest, read the specified warning notes.
Info
Various warning labels are attached to your vehicle. Do not remove any warning labels. If they are missing, you or others may
not recognize dangers and may therefore be injured.

IMPORTANT NOTES 6
Grades of risks
Danger
Danger that leads immediately and certainly to severe and permanent injury or death.
Warning
Danger that will probably lead to severe and permanent injury or death.
Note
Danger of serious damage to machine or material.
Warning
Risk of environmental damage.
OWNER'S MANUAL
ದRead this owner's manual carefully and completely before making your first trip. It contains a lot of information and tips to help
you operate and handle your motorcycle. Only then will you find out how to customize the motorcycle ideally for your own use and
how you can protect yourself from injury. The owner's manual also contains important information on servicing the motorcycle.
ದThe owner's manual is an important component of the motorcycle and should be handed over to the new owner if the vehicle is
sold.

VIEW OF VEHICLE 7
9,(: 2) 9(+,&/(

View of vehicle, front left side
200393-10
1 Hand brake lever
2 Start number plate
3 Front fender
4 Front wheel
5 Fork part number
6 Oil filter cover
7 Plug-in stand
8 Shift lever
9 Choke button
10 Air filter
11 Filler cap
12 Clutch lever

VIEW OF VEHICLE 8
View of vehicle, rear right side
200394-10
1 Main silencer
2 Shock absorber
3 Brake caliper of rear brake
4 Rear wheel
5 Foot brake pedal
6 Manifold
7 Chassis number/type label
8 Throttle grip

LOCATION OF SERIAL NUMBERS 9
/2&$7,21 2) 6(5,$/ 180%(56

Chassis number
400193-10
The chassis numberbis stamped on the steering head on the right.
Type label
400284-10
The type labelbis fixed to the front of the steering head.
Engine number
400194-10
The engine numberbis stamped on the left side of the engine under the engine
sprocket.
Fork part number
500082-10
The fork part numberbis stamped on the inner side of the fork stub.
Shock absorber part number
500083-10
The shock absorber part numberbis stamped on the top of the shock absorber above
the adjusting ring on the engine side.

OPERATING ELEMENTS 10
23(5$7,1* (/(0(176

Clutch lever
400195-10
The clutch leverbis fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
Hot start lever
400195-12
The hot start leverbis fitted on the left side of the handlebar.
If you pull the hot start lever to the handlebar during the start procedure, a bore is
opened in the carburetor through which the engine can draw in extra air. This gives a
leaner fuel-air mixture, which is needed for a hot start.
Possible states
• Hot start function activated ದbHot start lever is pulled out to the stop.
• Hot start function deactivated ದbHot start lever is pushed back to the stop.
Hand brake lever
400196-10
The hand brake leverbis located on the right side of the handlebar and operates the
front wheel brake.
Short circuit button
400197-10
The short circuit buttonbis fitted on the left side of the handlebar.
Possible states
• Short circuit buttonbin basic position ದbIn this position, the ignition circuit is
closed, and the engine can be started.
• Short circuit buttonbpressed ದbIn this position, the ignition circuit is interrupted,
a running engine stops, and a non-running engine will not start.
Electric starter button
400198-10
The electric starter buttonbis fitted on the right side of the handlebar.
Possible states
• Electric starter buttonbin basic position
• Electric starter buttonbpressed ದbIn this position, the electric starter is actuated.

OPERATING ELEMENTS 11
Fuel tap
500178-10
With the tap handlebon the fuel tap, you can open or close the supply of fuel to the
carburetor.
Possible states
• Fuel supply closed OFF ದbNo fuel can flow from the tank to the carburetor.
• Fuel supply open ON ದbFuel can flow from the tank to the carburetor. The fuel tank
empties completely.
Opening filler cap
400199-10
ದPress release buttonb, turn filler cap counterclockwise and lift it free.
Closing filler cap
400199-11
ದReplace the filler cap and turn clockwise until the release buttonblocks in place.
Info
Run the fuel tank breather hosebwithout kinks.
Choke
400202-10
The chokebis fitted on the left side of the carburetor.
Activating the choke function frees an opening through which the engine can draw
extra fuel. This gives a richer fuel-air mixture, which is needed for a cold start.
Info
If the engine is warm, the choke function must be deactivated.
Possible states
• Choke function activated ದbThe choke lever is pulled out to the stop.
• Choke function activated ದbThe choke lever is pushed in to the stop.

OPERATING ELEMENTS 12
Shift lever
400204-12
The shift leverbis mounted on the left side of the engine.
400204-10
The gear positions can be seen in the photograph.
The neutral or idle position is between the first and second gears.
Foot brake pedal
200363-10
The foot brake pedalbis located in front of the right footrest and operates the rear
wheel brake.
Plug-in stand
400203-10
Note
Danger of damageಘDanger of damage by the vehicle running away or falling over.
ದAlways place the vehicle on a firm and even surface.
To park the motorcycle, insert the plug-in standbin the left side of the wheel spindle.
Info
Remove the plug-in stand before the journey.

TIPS ON PUTTING INTO OPERATION 13
7,36 21 3877,1* ,172 23(5$7,21

Advice on first use
Danger
Danger of accidentsಘDanger from inadequate traffic experience.
ದDo not use the vehicle if you are inexperienced or if you have consumed alcohol or drugs.
Warning
Risk of injuryಘRisk of injury by missing/inadequate protective clothing.
ದWear protective clothing (helmet, boots, gloves, pants and jacket with protectors) every time you ride the motorcycle.
Always wear protective clothing, which must be in perfect condition and meet legal requirements.
Warning
Danger of crashingಘImpairment of riding behavior due to different tire tread patterns on front and rear wheels.
ದThe front and rear wheels must be fitted with tires with similar tread patterns to prevent loss of control over the vehicle.
Warning
Danger of accidentsಘCritical riding behavior due to inappropriate riding.
ದAdapt your riding speed to the road conditoins and your riding ability.
Warning
Danger of accidentsಘAccident risk caused by presence of a passenger.
ದYour vehicle is not designed to carry passengers. Do not ride with a passenger.
Warning
Danger of accidentsಘBrake system failure.
ದIf the foot brake pedal is not released, the brake linings drag permanently. The rear brake can fail due to overheating. Take
your foot off the foot brake pedal if you do not want to brake.
Warning
Danger of accidentsಘUnstable riding behavior.
ದDo not exceed the maximum permitted weight and axle loads.
Warning
Risk of misappropriationಘUsage by unauthorized persons.
ದNever leave the vehicle while the engine is running. Secure the vehicle against use by unauthorized persons.
Info
When using your motorcycle, remember that others may feel disturbed by excessive noise.
ದMake sure that the pre-delivery inspection work has been carried out by an authorized KTM workshop.
You receive a delivery certificate and the service record at vehicle handover.
ದBefore your first trip, read the entire operating instructions carefully.
ದGet to know the operating elements.
ದadjust the basic position of clutch lever. ( P. 62)
ದadjust the basic position of handbrake lever. ( P. 41)
ದAdjust the basic position of the footbrake lever.bx( P. 45)
ದGet used to handling the motorcycle on a suitable piece of land before making a longer trip.
Info
Your motorcycle is not licensed for use on public roads.
Offroad, you should be accompanied by another person on another machine so that you can help each other.
ದTry also to ride as slowly as possible and in a standing position to get a better feeling for the vehicle.
ದDo not make any offroad trips that over-stress your ability and experience.
ದHold the handlebar firmly with both hands and keep your feet on the footrests when riding.
ದDo not make any changes to the motorcycle, and use only KTM approved parts.

TIPS ON PUTTING INTO OPERATION 14
ದIf you carry any baggage, make sure it is fixed firmly as close as possible to the center of the vehicle and ensure even weight dis-
tribution between the front and rear wheels.
Info
Motorcycles react sensitively to any changes of weight distribution.
ದDo not exceed the overall maximum permitted weight and the axle loads.
Specification
Maximum permissible overall weight 335bkg (739blb.)
Maximum permissible front axle load 145bkg (320blb.)
Maximum permissible rear axle load 190bkg (419blb.)
ದRun the engine in.
Running in the engine
ದDuring the running-in phase, do not exceed the specified engine speed and engine performance.
Specification
Maximum engine speed
During the first 3 service hours 7,000brpm
Maximum engine performance during the running-in period
During the first 3 service hours ืb50b%
During the next 12 service hours ืb75b%
ದAvoid fully opening the throttle!

RIDING INSTRUCTIONS 15
5,',1* ,16758&7,216

Checks before putting into operation
Info
Make sure that the motorcycle is in a perfect technical condition before use.
Info
In the interests of riding safety, make a habit of making a general check before you ride.
ದCheck the engine oil level. ( P. 65)
ದCheck the chain tension. ( P. 36)
ದCheck the chain dirt accumulation. ( P. 36)
ದCheck the tire condition. ( P. 51)
ದCheck the tire air pressure. ( P. 51)
ದCheck the front brake fluid level. ( P. 41)
ದCheck the rear brake fluid level. ( P. 45)
ದCheck the front brake linings. ( P. 42)
ದCheck the rear brake linings. ( P. 46)
ದCheck brake system function.
ದCheck the coolant level. ( P. 58)
ದCheck that all operating elements are correctly adjusted and free to move.
Starting
Danger
Danger of poisoningಘExhaust gases are poisonous and can result in unconsciousness and/or death.
ದWhen running the engine, always make sure there is sufficient ventilation, and do not start or run the engine in a closed
space.
Note
Engine failureಘHigh engine speeds in cold engines have a negative effect on the service life of the engine.
ದAlways warm up the engine at low engine speeds.
Info
If the motorcycle is unwilling to start, the cause can be old fuel in the float chamber. The flammable elements of the fuel
evaporate after a long time of standing.
If the float chamber is filled with fresh fuel, the engine starts immediately.
Press the starter for a maximum of 5 seconds. Wait for a least 5 seconds before trying again.
Conditions
Motorcycle standing still: ุb1bweek
ದEmpty the carburetor float chamber.bx( P. 64)
ದTurn the handlebof the fuel tap to thebON position. (Figureb500178-10bP. 11)
Fuel can flow from the tank to the carburetor.
ದRemove the motorcycle from the stand.
ದShift gear to neutral.
Conditions
Engine cold
ದPull choke lever out as far as possible.
Conditions
Engine warm
ದPull the hot start lever out to the stop.
ದPress the electric starter button.b
Info
Don't open the throttle.
Conditions
Engine hot and running

RIDING INSTRUCTIONS 16
ದPush back the hot start lever to the stop with the engine running.
Starting up
ದPull the clutch lever, engage 1st gear, release the clutch lever slowly and simultaneously open the throttle carefully.
Shifting, riding
Warning
Danger of accidentsಘIf you change down at high engine speed, the rear wheel can lock up.
ದDo not change into a low gear at high engine speed. The engine races and the rear wheel can block.
Info
If you hear unusual noises while riding, stop immediately, switch off the engine and contact an authorized KTM workshop.
First gear is used for starting off or for steep inclines.
ದWhen conditions allow (incline, road situation, etc.), you can shift into a higher gear. To do so, release the throttle while simulta-
neously pulling the clutch lever, shift into the next gear, release the clutch and open the throttle.
ದIf the choke function was activated, deactivate it after the engine has warmed up.
ದWhen you reach maximum speed after fully opening the throttle, turn back the throttle to about 3/4 of its range; the speed hardly
drops, but the fuel consumption falls considerably.
ದAlways open the throttle only as much as the engine can handle ದabrupt throttle opening increases fuel consumption.
ದTo shift down, brake if necessary and close the throttle at the same time.
ದPull the clutch lever and shift into a lower gear, release the clutch lever slowly and open the throttle or shift again.
ದSwitch off the engine if you expect to be standing for a long time.
Specification
ุb2bmin
ದAvoid frequent and longer slipping of the clutch. This heats the engine oil, the engine and the cooling system.
ದRide with a lower engine speed instead of with a high engine speed and a slipping clutch.
Braking
Warning
Danger of accidentsಘIf you brake too hard, the wheels can lock.
ದAdapt your braking to the traffic situation and the road conditions.
Warning
Danger of accidentsಘReduced braking caused by spongy pressure point of front or rear brake.
ದHave the brake system checked in an authorized KTM workshop, and do not ride any further.
Warning
Danger of accidentsಘReduced braking due to wet or dirty brakes.
ದClean or dry dirty or wet brakes by riding and braking gently.
ದOn sandy, wet or slippery surfaces, use the rear brake.
ದBraking should always be completed before you go into a bend. Change down to a lower gear appropriate to your road speed.
ದOn long downhill stretches, use the braking effect of the engine. Change down one or two gears, but do not overstress the engine.
In this way, you have to brake far less and the brakes do not overheat.

AA
RIDING INSTRUCTIONS 17
Stopping, parking
Warning
Danger of burnsಘSome vehicle components get very hot when the machine is driven.
ದDo not touch hot components such as exhaust system, radiator, engine, shock absorber and brakes. Allow these compo-
nents to cool down before starting work on them.
Note
Danger of damageಘDanger of damage by the vehicle running away or falling over.
ದAlways place the vehicle on a firm and even surface.
Note
Fire hazardಘSome components (engine, radiator and exhaust system) get very hot when the engine is running.
ದDo not place the vehicle where there are flammable or explosive substances.
ದBrake the motorcycle.
ದShift gear to neutral.
ದPress the short circuit buttonbwhen the engine is idling until the engine stops.
ದTurn the handlebof the fuel tap to thebOFF position. (Figureb500178-10bP. 11)
ದStand the motorcycle on a hard surface.

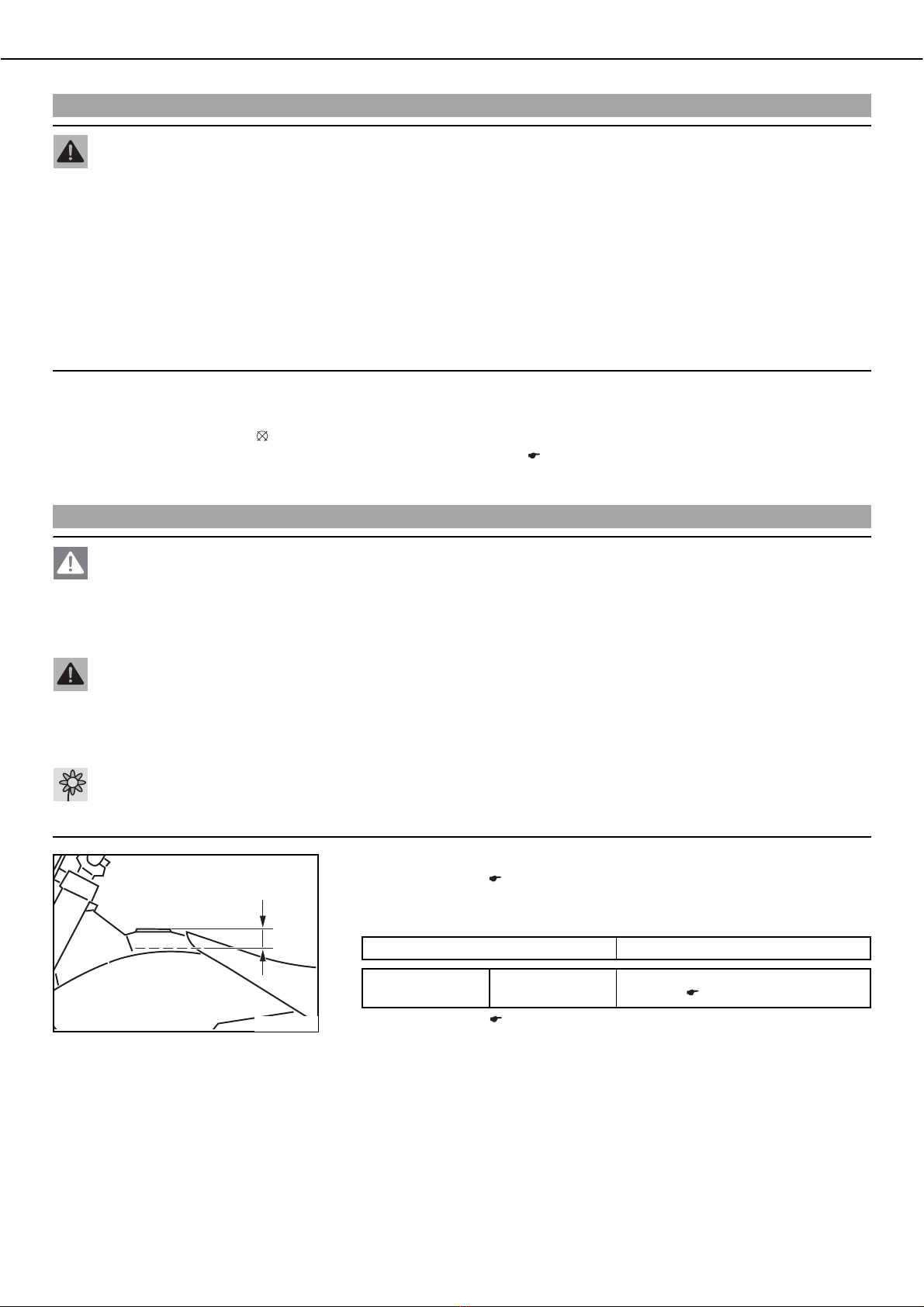

Refueling
Danger
Fire hazardಘFuel can easily catch fire.
ದNever fill up the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
ದFuel in the fuel tank expands when warm and can escape if the tank is overfilled. See specifications on filling up with fuel.
Warning
Danger of poisoningಘFuel is poisonous and a health hazard.
ದAvoid contact between fuel and skin, eyes and clothing. Do not inhale fuel vapors. If fuel gets into your eyes, rinse imme-
diately with water and contact a doctor. Wash affected skin areas immediately with soap and water. If fuel is swallowed,
contact a doctor immediately. Change clothing that has come into contact with fuel.
Warning
Environmental hazardಘImproper handling of fuel is a danger to the environment.
ದDo not allow fuel to get into the ground water, the ground, or the sewage system.
400382-10
ದSwitch off the engine.
ದOpen the filler cap. ( P. 11)
ದFill the fuel tank with fuel up to measurementb.
Specification
Measurement ofb35bmm (1.38bin)
Tank capacity 8.2bl
(2.17bUSbgal)
Super unleaded (ROZ 95 / RON 95 /
PON 91) ( P. 82)
ದClose the filler cap. ( P. 11)

GREASING AND SERVICE TABLE 18
*5($6,1* $1' 6(59,&( 7$%/(

Important maintenance work to be carried out by an authorized KTM workshop.
S3N S10A S30A
Engine Change the engine oil and oil filter, and clean the oil screen.bx( P. 65) •••
Replace spark plug. •
Check and adjust valve clearance. • • •
Check engine mounting screws for tightness. • • •
Clean spark plug connectors and check for tightness. • • •
Check screw of shift lever for tightness. • • •
Carburetor Check carburetor connection boots for cracks and leakage. • •
Check vent hoses for damage and routing without sharp bends. • • •
Check idle. •••
Attachments Check the cooling system for leakage. • • •
Check the antifreeze and coolant level. ( P. 57) • • •
Check the exhaust system for leakage and looseness. • •
Check Bowden cables for damage, smooth operation and routing without sharp
bends. •••
Check the fluid level of the hydraulic clutch. ( P. 62) • • •
Clean the air filter.bx( P. 61) •••
Check cables for damage and routing without sharp bends. • •
Brakes Check the front brake linings. ( P. 42) • • •
Check the rear brake linings. ( P. 46) • • •
Check the brake discs. ( P. 40) • • •
Check the front brake fluid level. ( P. 41) • • •
Check the rear brake fluid level. ( P. 45) • • •
Check brake lines for damage and leakage. • • •
Check the free play of the hand brake lever. ( P. 41) • • •
Check the free play of the foot brake lever. ( P. 44) • • •
Check brake system function. • • •
Check screws and guide bolts of brake system for tightness. • • •
Chassis Check shock absorber and fork for leakage and functioning. • • •
Clean dust boots of fork legs. ( P. 27) • •
Bleed fork legs. ( P. 27) ••
Check swingarm bearing. ••
Check play of steering head bearing. ( P. 28) • • •
Check all screws to see if they are tight. • • •
Wheels Check the spoke tension. ( P. 52) • • •
Check rim run-out. • • •
Check the tire condition. ( P. 51) • • •
Check the tire air pressure. ( P. 51) • • •
Check the chain wear. ( P. 37) • • •
Check the chain tension. ( P. 36) • • •
Clean the chain. ( P. 36) • • •
Check wheel bearing for play. • • •
Clean and grease adjusting screws of chain adjuster. • • •
S3N: After 3 service hours - corresponds to about 21 liters of fuel
S10A: Every 10 service hours - corresponds to about 70 liters of fuel / after every race
S30A: Every 30 service hours - corresponds to about 210 liters of fuel
