Kuassa Efektor RV 3604 Reverb User manual

R e v e r b

Thank you for choosing Kuassa products!
We encourage you to take the time to read this User Manual thoroughly
to ensure trouble free and proper operation of the software.
The most commonly used effect. Found on small practice amps to big
touring amps. Also on stompbox pedals to large studio rack units. It’s
usage is somewhat tricky, but it could be the fine border of a professional
recording and a beginner’s work. Reverb is a powerful tool to add
depth, distance, and also to build emotion to the listener. It gives
ambience, creates space, and produces a sense of three dimensional
to the original sound.
Taken the algorithms from the sounds of natural spaces to artificially
created electrical and mechanicall devices, Kuassa Efektor RV3604
Reverb provides five types of Reverb to enhance your recordings.
R e v e r b

System Requirements
Windows:
Windows Vista or Later (32/64 bit)
Intel Pentium 4, or AMD Athlon XP or better (Core2 Duo, Athlon64, or
better is recommended) with 512MB minimum RAM
VST/VST3/AAX/RE compatible host/sequencer or Propellerhead Reason
7.1 or later.
Macintosh:
Mac OSX 10.6.8 or later (32/64 bit)
Intel Pentium 4, or AMD Athlon XP or better (Core2 Duo or Athlon64
recommended) with 512MB minimum RAM
VST/VST3/AU/AAX/RE compatible host/sequencer, Protools 10 or later or
RE Propellerhead Reason 7.1 or later.
Key Features:
• 5 popular reverb types:
Room: Tight and fat roomy sound.
Hall: Big and wide concert space.
Plate: Simulated vibrating metal plate. Grainy and unique because
the low frequency propagates slower than the high freq.
Spring: Simulating mechanical springs commonly found on guitar amps.
Shimmer: Haunting and atmospheric, created by pitch shifting the reverb tails.
• Simplified controls for easier and faster work.
• Separate Wet and Dry controls.
• Photorealistic graphics for lifelike guitar playing experience.
• Straightforward and easy to use interface.
• CV Inputs for Automation (Rack Extension only)

Mac OSX 10.6.8 or later
Note for MacOS X users: you must be logged in to a user account with administration privileges to run the installer.
For Mac installer(.pkg) format, double-click the installer and follow the instructions. The installer automatically poin to your
Mac’s default VST/VST3/AU/AAX plug-ins path (see below). Alternatively you can customize the installation target to
specific folder.
Here is the list of default folder installation path for each of our supported platforms in Mac OSX:
• Mac Audio Unit (EfektorRV3604.component) : Library/Audio/Plug-Ins/Components
• Mac VST (EfektorRV3604.vst) : Library/Audio/Plug-Ins/VST/Kuassa
• Mac VST3 (EfektorRV3604.vst3) : Library/Audio/Plug-Ins/VST3
• Mac AAX (EfektorRV3604.aaxplugin) : Library/Application Support/Avid/Audio/Plug-Ins
Windows Vista or later
Note for Windows Vista, 7, or later: We recommend installation with Administrator rights using “Run as Administrator” for
both Kuassa Installer and Sequencer/Host installer.
For Windows Installer (.exe), double-click the installer and follow the instructions. The installer automatically point to your
system's default plugins path (see below). Alternatively you can point the installation target to specific folder. Most VST
host already have a “Plugins” or “VSTplugins” folder inside its installation directory, or you can point the host to read any
folder you choose.
Here is the list of default folder installation path for each of our supported platforms:
• Windows 32-bit VST (EfektorRV3604 .dll) : C:\Program Files\Steinberg (x86)\VstPlugins\Kuassa
• Windows 64-bit VST (EfektorRV3604 .dll) : C:\Program Files\Steinberg\VstPlugins\Kuassa
• Windows 32-bit VST3 (EfektorRV3604 .vst3) : C:\Program Files (x86)\Common Files\VST3
• Windows 64-bit VST3 (EfektorRV3604 .vst3) : C:\Program Files\Common Files\VST3
• Windows 32-bit AAX (EfektorRV3604 .aaxplugin) : C:\Program Files (x86)\Common Files\Avid\Audio\Plug-Ins
• Windows 64-bit AAX (EfektorRV3604 .aaxplugin) : C:\Program Files\Common Files\Avid\Audio\Plug-Ins

Mac OSX 10.6.8 or later
To uninstall from OS X, simply delete the plug-in located on the Plug-ins folder, and delete other file resources located at:
/Users/[YourName]/Music/Audio Music Apps/Kuassa/*/*
Windows VISTA or Later
Use “Add/Remove programs” or “Programs and Features” from the Windows Control Panel. If EFEKTOR Plug-in(s) does not
listed, delete the .dll file from your VST plug-in folder. And other EFEKTOR file resources at ~\Documents\Kuassa\*\*

1 2 3
On evaluation mode, you will
see this pop-up window
when you first start the plugin.
To start the authorization
process, click the [File] button
on the top-left of the plug-in’s
interface, there, you will find
a selection box titled [import
License].
Locate the License File
[ EfektorRV3604.kuassa]
obtained from the
confirmation e-mail sent to
you after you purchase
EFEKTOR Plug-in(s) from our
web store or downloaded
from member area.
Note that the License File
contains your personal
information used to authorize
the plug-in.

After you locate the License
File, a pop-up box confirming
that you are successfully
authorize your plug-in will
show.
To check if you have
completed the authorization
process, just simply load the
About Box by clicking the
Efektor logo on the bottom left
corner. If your authorization is
successful, either your name or
your e-mail address will be
shown on the About Box. You
will also notice that the
generated noise/silence on the
Evaluation Version is now gone.
4 5

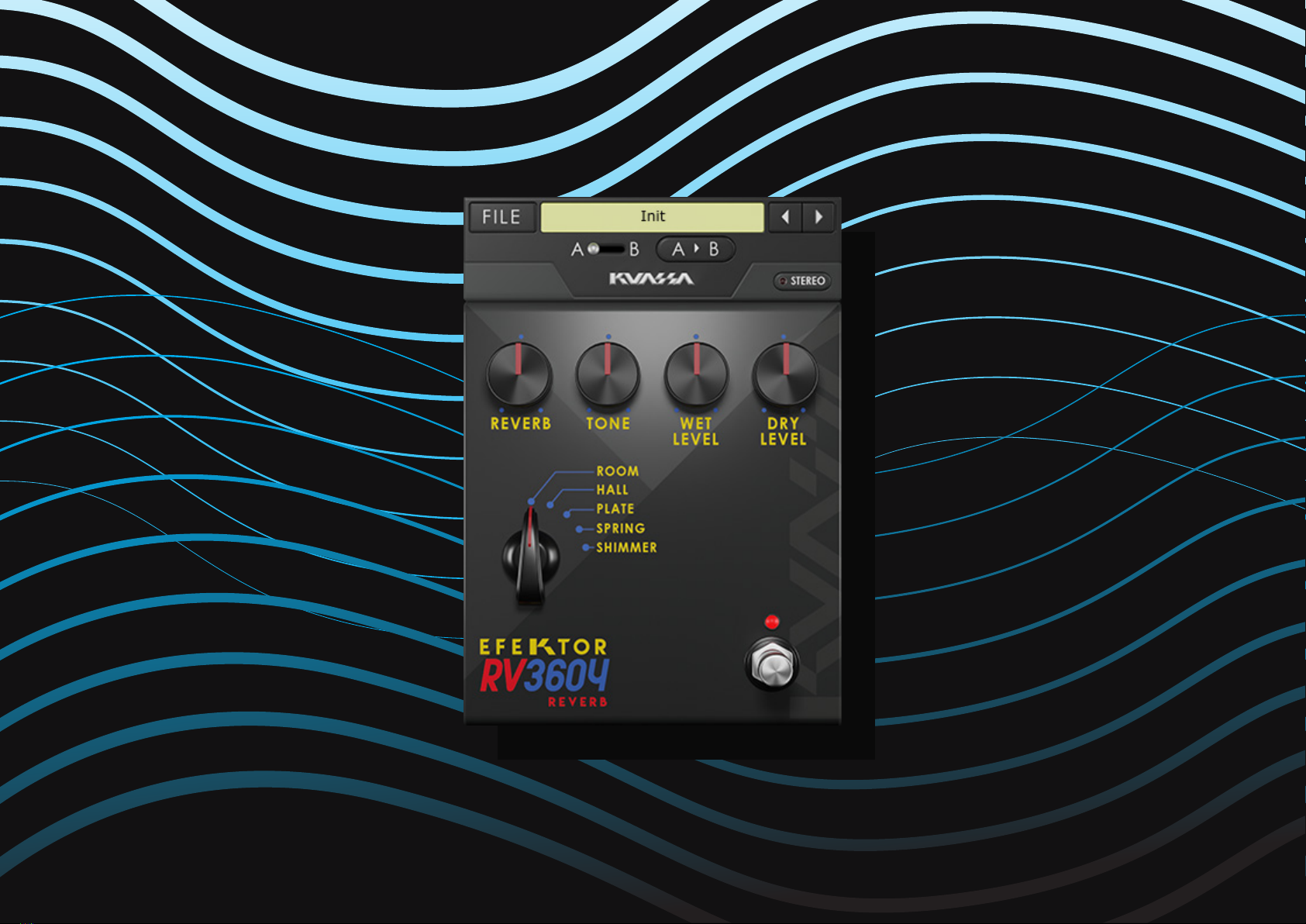

[FILE] BUTTON: The Menu button contains several functions; preset saving,
and shortcuts to the user manual and Kuassa website.
PRESET SELECTOR: Select from available Presets, press left-right buttons or select
from drop down menu.
A-B COMPARE: Compares two different settings of the effect.
COPY A to B: Copies settings from the “A” state to the “B” state or vise versa.
STEREO: switch between mono and stereo operation.
REVERB: Sets the amount and length of the reverb effect.
TONE: Adjust the tone for the reverb from dark to bright.
WET LEVEL: Controls the level of reverberated signal.
DRY LEVEL: Control the level of original signal.
3
2
1
4
5
6
7
8
9
TYPE SELECTOR: Select from five types of reverb, each comes with different tonal
characteristics.
EFEKTOR LOGO: Click to show the About Box.
BYPASS: Turns the effect unit completely On or Bypass.
12
11
10
1 2
43
5
5
10
6 98
11
7
12

EfektorRV3604

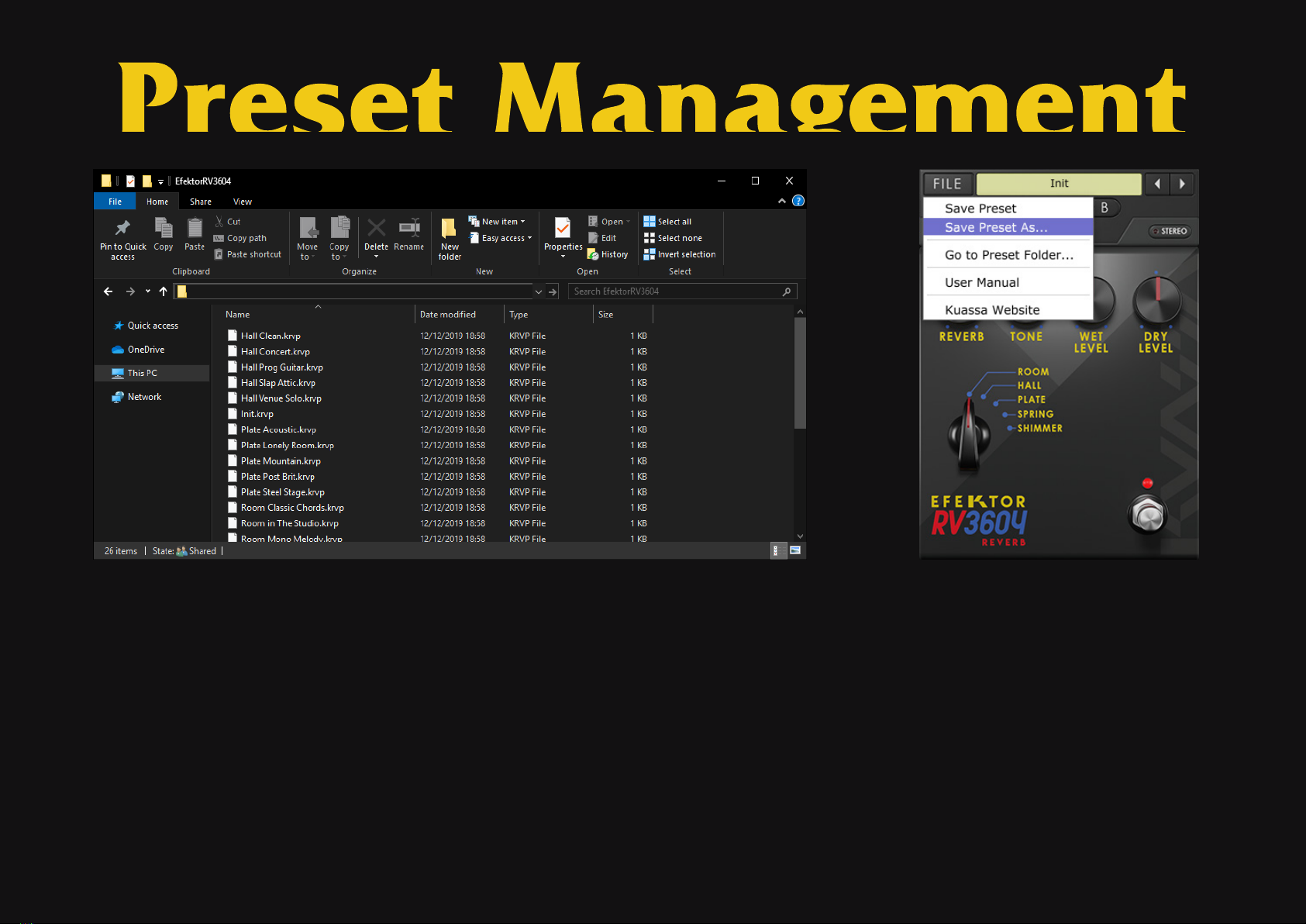

• Win: ~\Documents\Kuassa\Presets\
Presets for EFEKTOR Plug-in(s) are located in the following folders*:
• Mac: Users/[YourName]/Music/Audio Music Apps/Kuassa/Presets/
EfektorRV3604
All presets inside these folders will be recognized by the plugin as individual presets,
you can also create a folder to group the preset(s). They will thus be shown on the
EFEKTOR Plug-in’s preset selector.
1

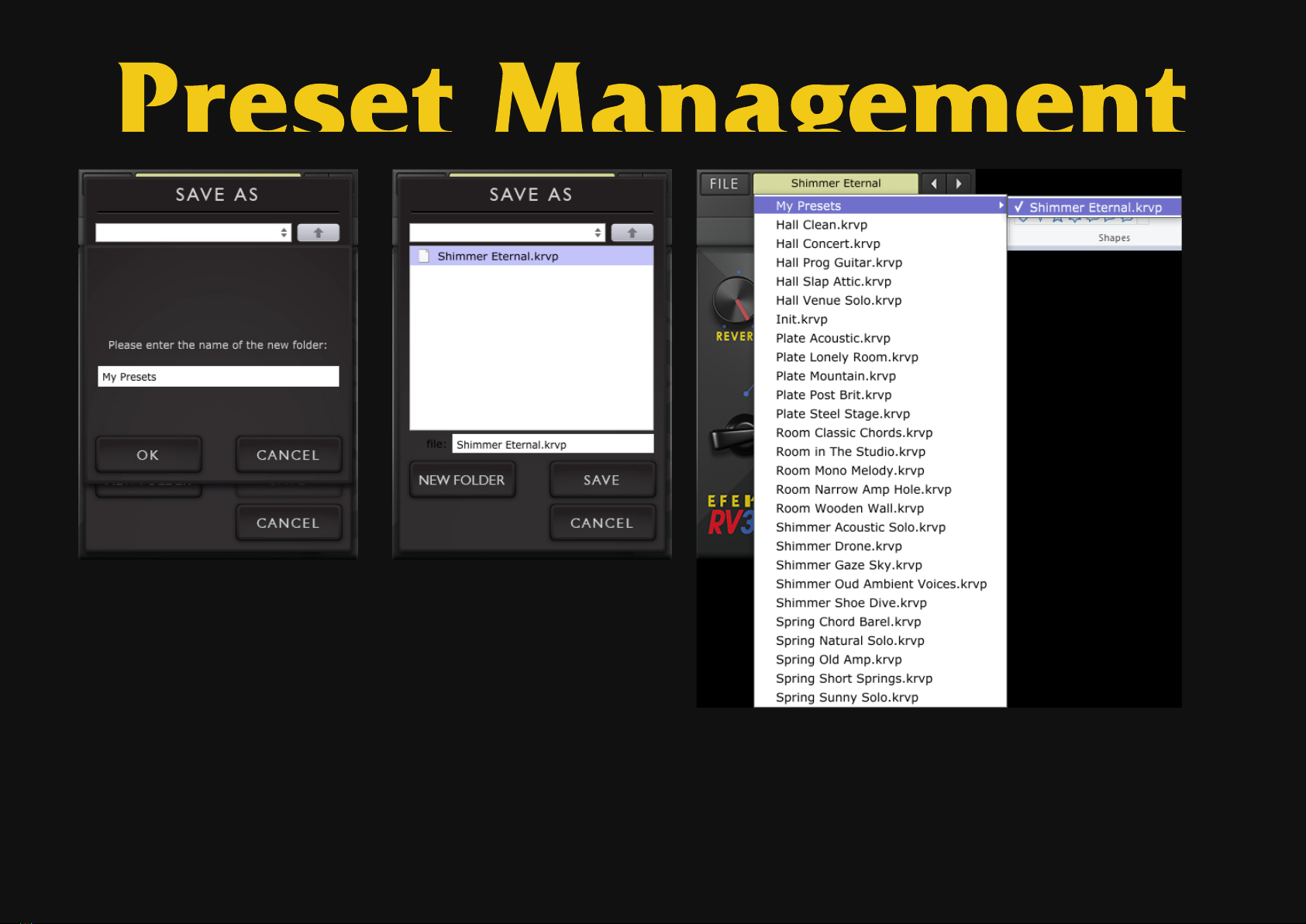

To save a preset, set your
plugin to the desired
parameter settings, then
select:
• “Save Preset”: Overwrites
currently active preset.
• “Save Preset As”: Saves
current settings into a new
preset file (*.krvp for RV3604 ).
2

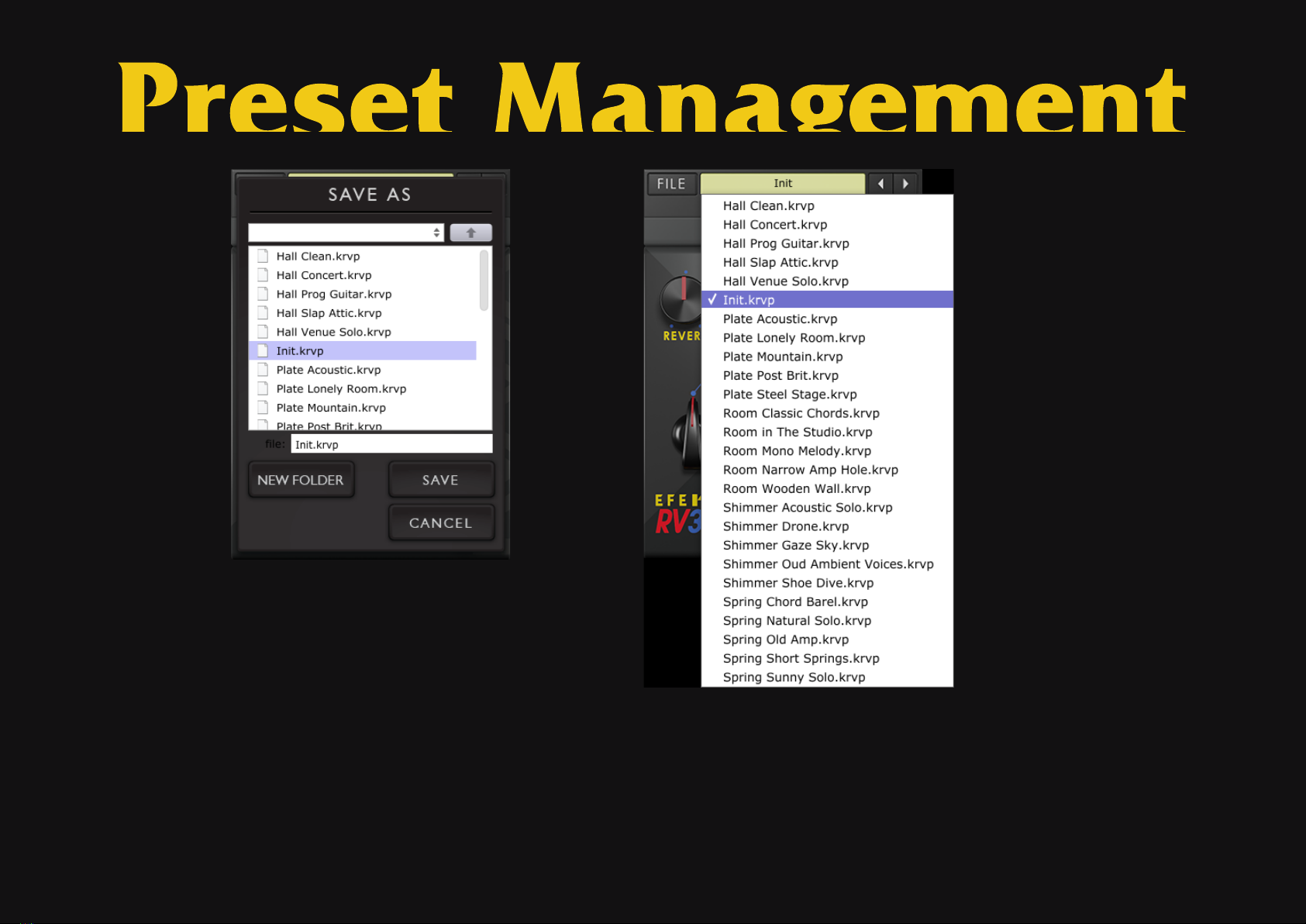

When you create a new
preset using “Save Preset
As...”, make sure that you
have chosen the correct
preset folder as
aforementioned on point 1
above to make sure that it will
be recognized automatically
by EFEKTOR plug-ins.
3

To add new additional preset
banks, create a new folder by
clicking “New Folder” button
and rename it.
Sub-folders are also
recognized to manage
presets into groups, useful to
manage additional preset
bank, or grouping presets
based by their use.
4

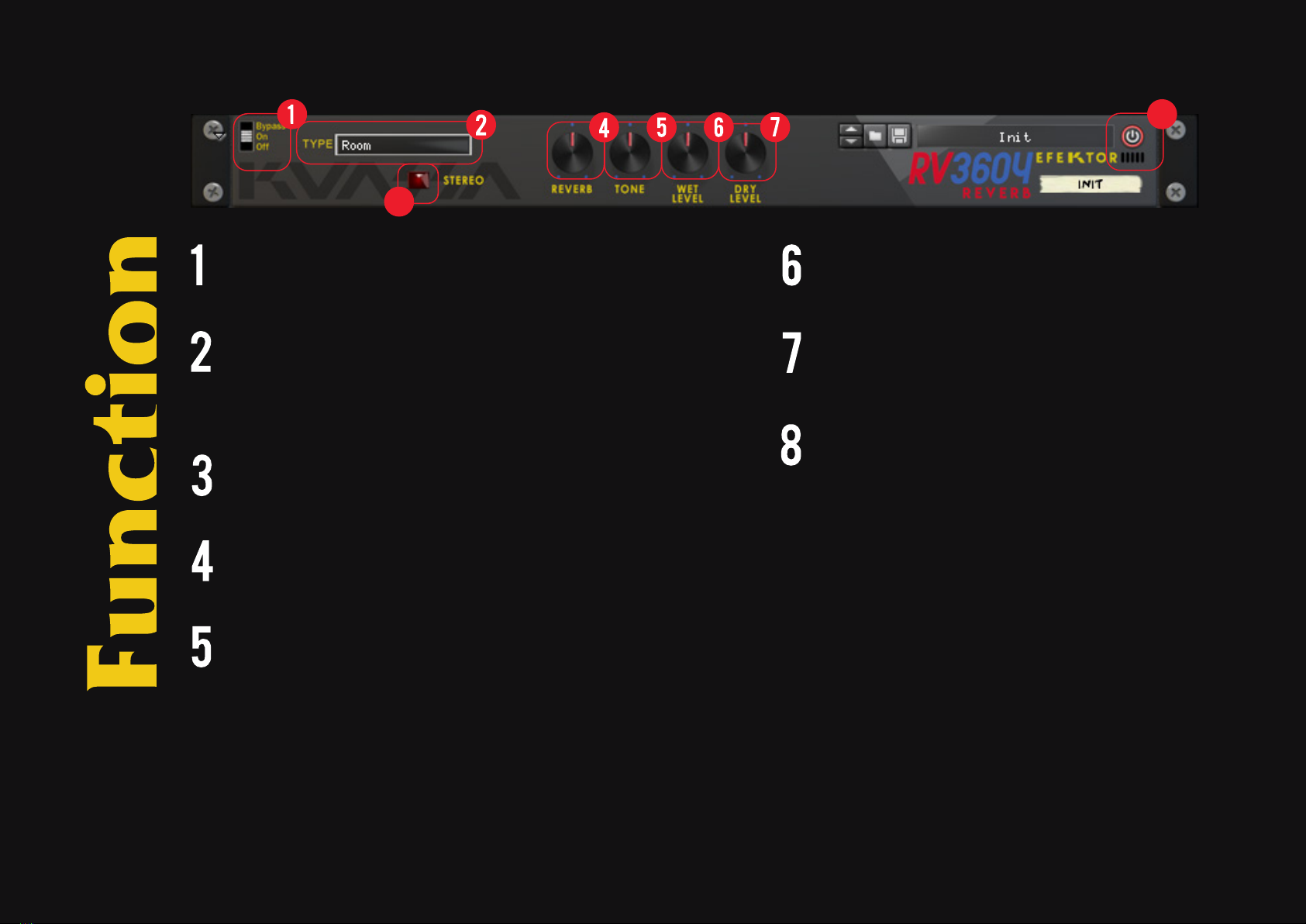

BYPASS
Turns on, off or bypass the rack extension.
TYPE SELECTOR
There are multiple fx models emulated within the device,
each comes from different era, with different flavor, and
character. Pick one which suited your desired sound.
REVERB
Sets the amount and length of the reverb effect.
3
8
TONE
Adjust the tone for the reverb from dark to bright.
WET LEVEL
Controls the level of reverberated signal.
DRY LEVEL
Control the level of original signal.
STEREO
Switch between mono and stereo operation.
ADDITIONAL BYPASS Switch
Turns the effect unit completely On or Bypass.

CV INPUTS
CV Input Socket:
Receives incoming CV message for controlling each of
EFEKTOR's CV control enabled parameters from another
device’s CV output.
CV Input Trim:
Turn counter-clockwise for each corresponding input to
trim or reduce the intensity of incoming CV message.
Audio input and output sockets :
Please note that EFEKTOR is an FX, and should always
be added as FX device instead of instrument.
MIDI CC PARAMETER LIST
(Propellerhead reason)
128 = onBypass
129 = reverbType
130 = stereoOn
131 = reverb
132 = tone
133 = wetLevel
134 = dryLevel

Muhammad Abduh
Intan Zariska Daniyanti
Iman Firman Amarullah
Juan Prahamma Hartjamt
Dimitar Nalbantov
Arie Ardiansyah
Raden Pratama Kusuma
Adhitya Sulistia Wibisana
Bramantyo Ibrahim
Cil Satriawan
Grahadea Kusuf
Iqbal Ansyori
Sundawan Sukmaya
Kuassa Efektor Series Created by:
Presets and Audio Demos by:
Dimitar Nalbantov (http://www.nalbantov.com)

KUASSA TEKNIKA, PT
Jl. Sukasenang V No.14
Bandung 40124
West Java, INDONESIA
https://www.kuassa.com
General inquiry: [email protected]
Technical support :
[email protected]
A Product of KUASSA. Bandung, West Java. Indonesia
