Kubota AP-LB60 User manual

Table of Contents
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator’s Manual and Decal Kit in French
Language, please see your Kubota dealer.
Read the Operator’s Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
!
Loader Boom
AP-LB60
319-192MK
Operator’s Manual
Printed 10/30/20
70571

11/2/20AP-LB60 Loader Boom 319-192MK
Machine Identification
Record your machine details in the log below. If you replace this manual, be sure to transfer this information to the new
manual.
If you, or the dealer, have added Options not originally ordered with the machine, or removed Options that were
originally ordered, the weights and measurements are no longer accurate for your machine. Update the record by
adding the machine weight and measurements provided in the Specifications & Capacities Section of this manual with
the Option(s) weight and measurements.
Dealer Contact Information
Model Number
Serial Number
Machine Height
Machine Length
Machine Width
Machine Weight
Delivery Date
First Operation
Accessories
Name:
Street:
City/State:
Telephone:
Email:
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov
!
California Proposition 65

Table of Contents
© Copyright 2020 All rights Reserved
Kubota provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Kubota
assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Kubota reserves the right
to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
Kubota is a registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
11/2/20 AP-LB60 Loader Boom 319-192MK
Table of Contents
Important Safety Information . . . . . . . . . . . . . 1
Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1
Look for the Safety Alert Symbol . . . . . . . . . . . . . . . 1
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . 8
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Section 1: Assembly & Set-up . . . . . . . . . . . . 9
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Power Machine Shutdown Procedure . . . . . . . . . . . 9
Attach Loader Boom . . . . . . . . . . . . . . . . . . . . . . . 10
Shackles & Chains . . . . . . . . . . . . . . . . . . . . . . . . 10
Section 2: Operating Procedures . . . . . . . . . 11
Operating Checklist . . . . . . . . . . . . . . . . . . . . . . . . 11
Operating Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Transport Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Loader Boom Operation . . . . . . . . . . . . . . . . . . . . 12
Pick Up Load . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Travel With Load . . . . . . . . . . . . . . . . . . . . . . . . 12
Place Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Detach Loader Boom . . . . . . . . . . . . . . . . . . . . . . 14
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . 14
Section 3: Maintenance . . . . . . . . . . . . . . . . . 15
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Long-Term Storage . . . . . . . . . . . . . . . . . . . . . . . . 15
Section 4: Specifications & Capacities . . . . 16
Section 5: Features & Benefits . . . . . . . . . . . 17
Section 6: Troubleshooting . . . . . . . . . . . . . . 18
Section 7: Warranty & Legal Disclaimer . . . 19

Table of Contents Continued
Parts Manual QR Locator
The QR (Quick Reference) code on the
cover and to the left will take you to the
Parts Manual for this equipment.
Download the appropriate App on your
smart phone, open the App, point your
phone on the QR code and take a picture.
Dealer QR Locator
The QR code on the left will
link you to available dealers
for Kubota products. Refer to
Parts Manual QR Locator on
this page for detailed
instructions.
Table of Contents
11/2/20AP-LB60 Loader Boom 319-192MK
See previous page for Table of Contents.

Important Safety Information
11/2/20 1
Important Safety Information
Listed below are common practices that may or may not be applicable to the products
described in this manual.

Safety at All Times
Careful operation is your best
assurance against an accident.
All operators, no matter how much
experience they may have, should
carefully read this manual and
other related manuals, or have the
manuals read to them, before
operating the power machine and
this attachment.
Thoroughly read and understand
the “Safety Label” section. Read
all instructions noted on them.
Do not operate the equipment
while under the influence of drugs
or alcohol as they impair the ability
to safely and properly operate the
equipment.
Operator should be familiar with all
functions of the skid steer and
attachment and be able to handle
emergencies quickly.
Make sure all guards and shields
appropriate for the operation are in
place and secured before
operating the attachment.
Keep all bystanders away from
equipment and work area.
Start skid steer from the driver’s
seat with steering levers and
hydraulic controls in neutral.
Operate skid steer and controls
from the driver’s seat only.
Never dismount from a moving
skid steer or leave skid steer
unattended with engine running.
Do not allow anyone to stand
between attachment and skid
steer while hooking-up.
Keep hands, feet, and clothing
away from power-driven parts.
While transporting and operating
equipment, watch out for objects
overhead and along side such as
fences, trees, buildings, wires, etc.
Store attachment in an area where
children normally do not play.
When needed, secure attachment
against falling with support blocks.
OFF
REMOVE
Safety Precautions for
Children
Tragedy can occur if the operator
is not alert to the presence of
children. Children generally are
attracted to attachments and their
work.
Never assume children will remain
where you last saw them.
Keep children out of the work area
and under the watchful eye of a
responsible adult.
Be alert and shut the attachment
and skid steer/track loader down if
children enter the work area.
Never carry children on the power
machine or attachment. There is
not a safe place for them to ride.
They may fall off and be run over
or interfere with the control of the
power machine.
Never allow children to operate the
power machine, even under adult
supervision.
Never allow children to play on the
power machine or attachment.
Use extra caution when backing
up. Before the power machine
starts to move, look down and
behind to make sure the area is
clear.
Skid Steer Shutdown
And Storage
Reduce engine speed and shut-off
all power to the attachment.
Park on solid, level ground and
lower attachment until it is flat on
the ground or support blocks.
Turn off engine, and remove
ignition key to prevent
unauthorized starting.
Relieve all hydraulic pressures.
If included, raise seat bar and
move controls until both lock.
Wait for all components to stop
before leaving operator’s seat.
Use steps, grab-handles and
anti-slip surfaces when stepping
on and off the skid steer.
Detach and store attachment in an
area where children normally do
not play. Secure attachment by
using blocks and supports.
Look for the Safety Alert Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety and extra precaution
must be taken. When you see this symbol, be alert and
carefully read the message that follows it. Hazard
control, and accident prevention are dependent upon the
awareness, concern, prudence, and proper training of
personnel involved in the operation, transport,
maintenance, and storage of equipment.
!
Be Aware of
Signal Words
A signal word designates a degree or
level of hazard seriousness. The
signal words are:
Indicates a hazardous situation that, if
not avoided, will result in death or
serious injury.
Indicates a hazardous situation that, if
not avoided, could result in death or
serious injury.
Indicates a hazardous situation that, if
not avoided, may result in minor or
moderate injury.
WARNING
CAUTION
!
!
DANGER
!

Important Safety Information
11/2/20
2
Dig Safe - Avoid
Underground Utilities
USA: Call 811
CAN: digsafecanada.ca
Always contact your local utility
companies (electrical, telephone,
gas, water, sewer, and others)
before digging so that they may
mark the location of any
underground services in the
area.
Be sure to ask how close you can
work to the marks they
positioned.
Listed below are common practices that may or may not be applicable to the products
described in this manual.
Transport Safely
Comply with federal, state, and local
laws.
Use towing vehicle and trailer of
adequate size and capacity. Secure
equipment towed on a trailer with
chocks, tie downs, and chains.
Sudden braking can cause a towed
trailer to swerve and upset. Reduce
speed if towed trailer is not equipped
with brakes.
Avoid contact with any overhead
utility lines or electrically charged
conductors.
Always drive with load on end of
loader arms low to the ground.
Always drive straight up and down
steep inclines with heavy end of skid
steer on the “uphill” side.
Engage park brake when stopped on
an incline.
Maximum transport speed for an
attached equipment is 20 mph. DO
NOT EXCEED. Never travel at a
speed which does not allow
adequate control of steering and
stopping. Some rough terrains
require a slower speed.
As a guideline, use the following
maximum speed weight ratios for
attached equipment:
20 mph when weight of attached
equipment is less than or equal to
the weight of machine towing the
equipment.
10 mph when weight of attached
equipment exceeds weight of
machine towing equipment but not
more than double the weight.
IMPORTANT: Do not tow a load that
is more than double the weight of the
vehicle towing the load.
Practice Safe Maintenance
Understand procedure before doing
work. Refer to the Operator’s Manual
for additional information.
Work on a level surface in a clean
dry area that is well-lit.
Lower attachment to the ground and
follow all shutdown procedures
before leaving the operator’s seat to
perform maintenance.
Do not work under any hydraulically
supported equipment. It can settle,
suddenly leak down, or be lowered
accidentally. If it is necessary to work
under the equipment, securely
support it with stands or suitable
blocking beforehand.
Use properly grounded electrical
outlets and tools.
Use correct tools and equipment for
the job that are in good condition.
Allow equipment to cool before
working on it.
Disconnect battery ground cable (-)
before servicing or adjusting
electrical systems or before welding
on equipment.
Inspect all parts. Make certain that
parts are in good condition &
installed properly.
Replace parts on this attachment
with genuine Kubota parts only. Do
not alter this attachment in a way
which will adversely affect its
performance.
Do not grease or oil attachment
while it is in operation.
Remove buildup of grease, oil, or
debris.
Always make sure any material and
waste products from the repair and
maintenance of the attachment are
properly collected and disposed.
Remove all tools and unused parts
from the equipment before
operation.
Tire Safety
Tire changing
can be
dangerous
and must be
performed by
trained personnel using the
correct tools and equipment.
Always properly match the wheel
size to the properly sized tire.
Always maintain correct tire
pressure. Do not inflate tires
above recommended pressures
shown in the Operator’s Manual.
When inflating tires, use a clip-on
chuck and extension hose long
enough to allow you to stand to
one side and NOT in front of or
over the tire assembly. Use a
safety cage if available.
Securely support the implement
when changing a wheel.
When removing and installing
wheels, use wheel handling
equipment adequate for the
weight involved.
Make sure wheel bolts have been
tightened to the specified torque.

Important Safety Information
11/2/20 3
These are common practices that may or may not be applicable to the products described in
this manual.
Prepare for Emergencies
Be prepared if a fire starts.
Keep a first aid kit and fire
extinguisher handy.
Keep emergency numbers for
doctor, ambulance, hospital, and
fire department near phone.
911
Use Safety
Lights and Devices
Slow moving tractors, skid steers,
track loaders, and self-propelled
machines can create a hazard
when driven on public roads.
They are difficult to see,
especially at night. Use the Slow
Moving Vehicle (SMV) sign when
on public roads.
Flashing warning lights and turn
signals are recommended
whenever driving on public roads.
Keep Riders Off
Machinery
Never carry riders on skid steer
or attachment.
Riders obstruct operator’s view
and interfere with the control of
the power machine.
Riders can be struck by objects
or thrown from the equipment.
Never use skid steer or
attachment to lift or transport
riders.
Use Seat Belt and ROPS
Kubota recommends the use of a
CAB or roll-over-protective-
structures (ROPS) and seat belt
in almost all power machines.
Combination of a CAB or ROPS
and seat belt will reduce the risk
of serious injury or death if the
power machine should be upset.
If ROPS is in the locked-up
position, fasten seat belt snugly
and securely to help protect
against serious injury or death
from falling and machine
overturn.
Avoid High Pressure
Fluids
Escaping fluid
under pressure can
penetrate the skin
causing serious injury.
Relieve all residual pressure
before disconnecting hydraulic
lines or performing work on the
hydraulic system.
Make sure all hydraulic fluid
connections are properly
tightened/torqued and all
hydraulic hoses and lines are in
good condition before applying
pressure to the system.
Use a piece of paper or
cardboard, NOT BODY PARTS,
to check for suspected leaks.
Wear protective gloves and
safety glasses or goggles when
working with hydraulic systems.
DO NOT DELAY. If an accident
occurs, see a doctor familiar with
this type of injury immediately.
Any fluid injected into the skin or
eyes must be treated within a few
hours or gangrene may result.
Wear Personal Protective
Equipment (PPE)
Wear protective clothing and
equipment appropriate for the job
such as safety shoes, safety,
glasses, hard hat, dust mask,
and ear plugs.
Clothing should fit snug without
fringes and pull strings to avoid
entanglement with moving parts.
Prolonged exposure to loud noise
can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.
Operating a machine safely
requires the operator’s full
attention. Avoid wearing
headphones while operating
equipment.

Important Safety Information
11/2/20
4

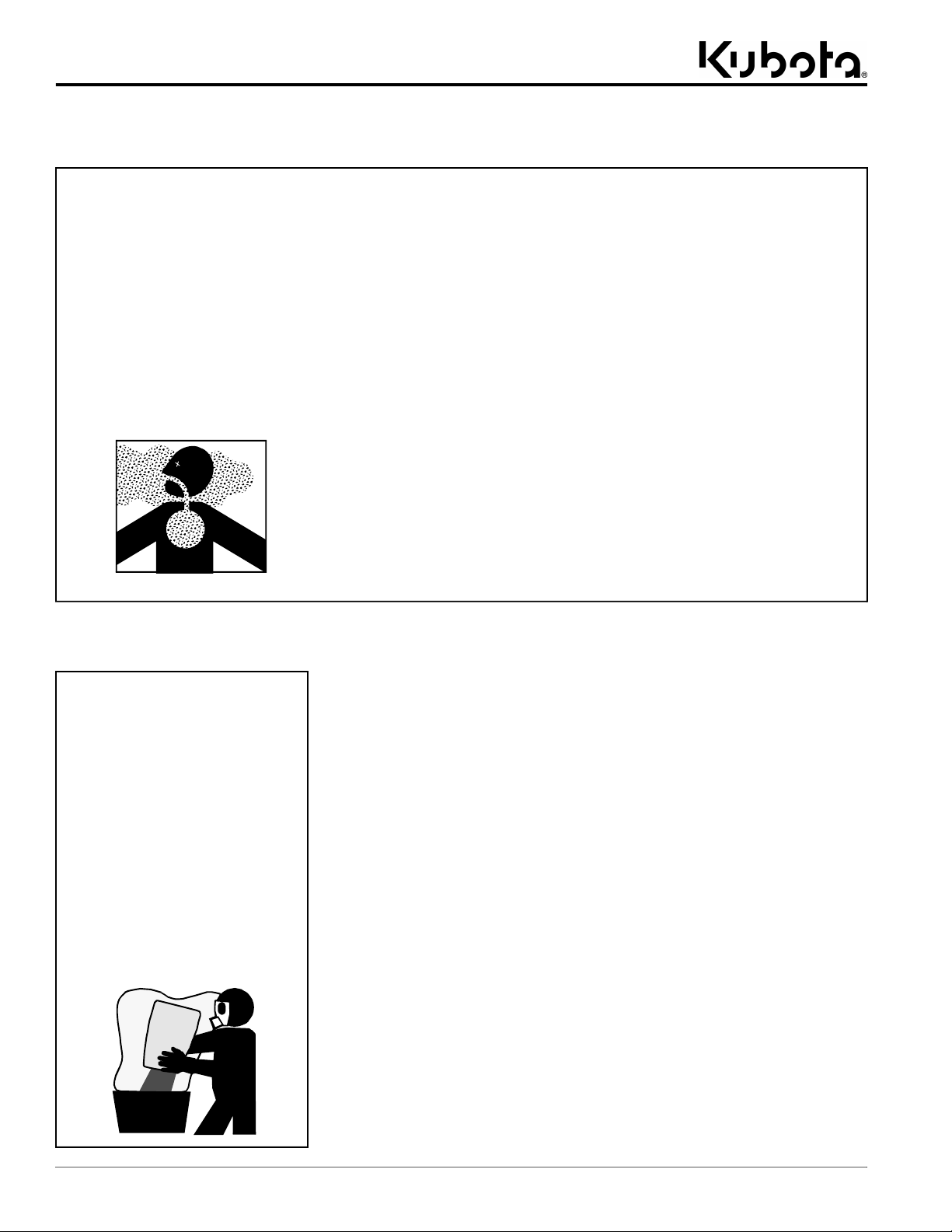

Avoid crystalline Silica
(quartz) Dust
Because crystalline silica is a basic
component of sand and granite,
many activities at construction sites
produce dust containing crystalline
silica. Trenching, sawing, and boring
of material containing crystalline
silica can produce dust containing
crystalline silica particles. This dust
can cause serious injury to the
lungs (silicosis).
There are guidelines which should
be followed if crystalline silica
(quartz) is present in the dust.
Be aware of and follow OSHA
(or other local, State, or Federal)
guidelines for exposure to airborne
crystalline silica.
Know the work operations where
exposure to crystalline silica may
occur.
Participate in air monitoring or
training programs offered by the
employer.
Be aware of and use optional
equipment controls such as water
sprays, local exhaust ventilation,
and enclosed cabs with positive
pressure air conditioning if the
machine has such equipment.
Otherwise respirators shall be worn.
Where respirators are required, wear
a respirator approved for protection
against crystalline silica containing
dust. Do not alter respirator in any
way. Workers who use tight-fitting
respirators can not have beards/
mustaches which interfere with the
respirator seal to the face.
If possible, change into disposable
or washable work clothes at the
work site; shower and change into
clean clothing before leaving the
work site.
Do not eat, drink, use tobacco
products, or apply cosmetics in
areas where there is dust containing
crystalline silica.
Store food, drink, and personal
belongings away from the work
area.
Wash hands and face before eating,
drinking, smoking, or applying
cosmetics after leaving the exposure
area.
Listed below are common practices that may or may not be applicable to the products
described in this manual.
Handle
Chemicals Properly
Protective clothing should be
worn.
Handle all chemicals with care.
Follow instructions on container
label.
Chemicals can be dangerous.
Improper use can seriously injure
persons, animals, plants, soil, and
property.
Inhaling smoke from any type of
chemical fire can be a serious
health hazard.
Store or dispose of unused
chemicals as specified by the
chemical manufacturer.

Important Safety Information
11/2/20 5
This page left blank intentionally.

Important Safety Information
AP-LB60 Loader Boom 319-192MK 11/2/20
6
Table of Contents

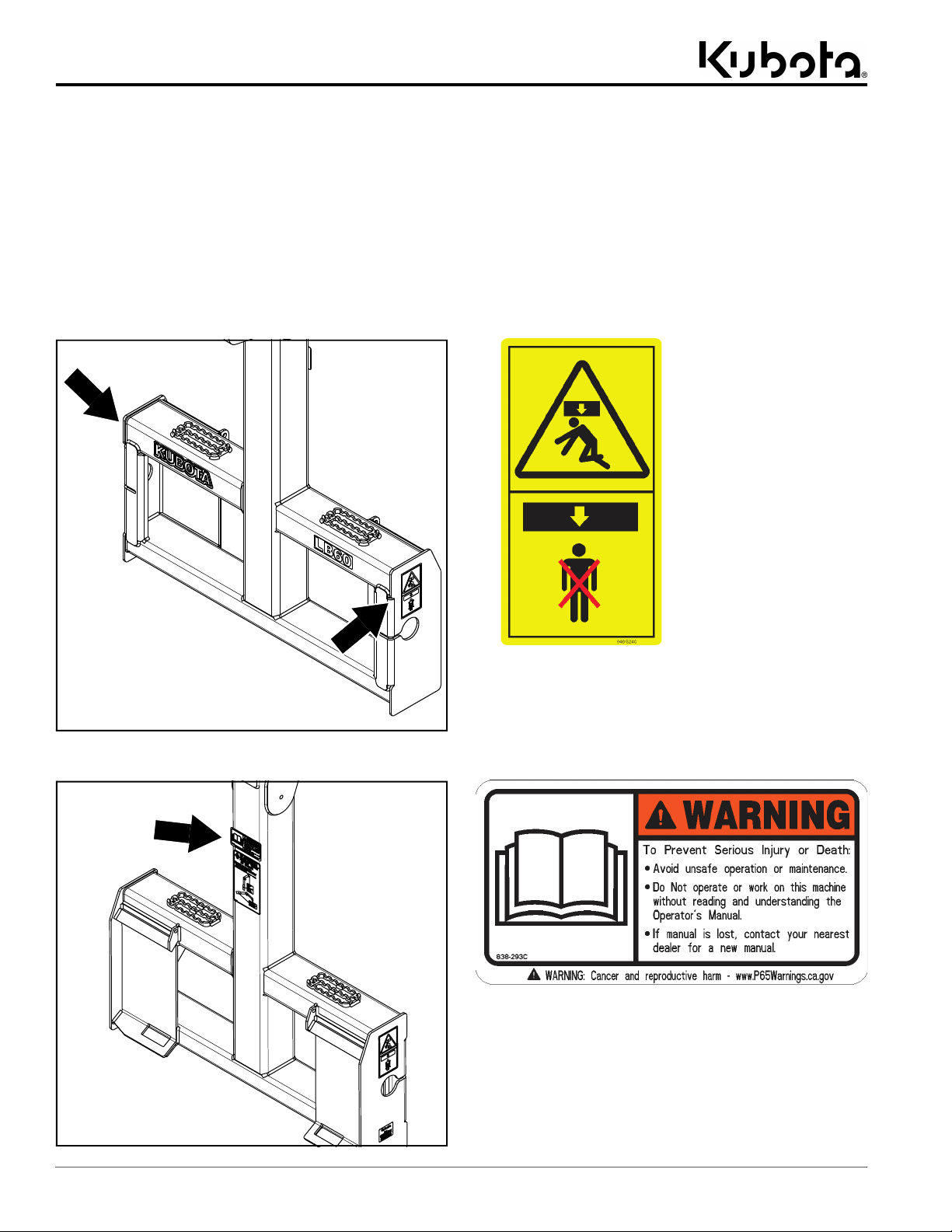

Safety Labels
Your Loader Boom comes equipped with all safety labels in
place. They are designed to help you safely operate your
attachment. Read and follow their directions.
1. Keep all safety labels clean and legible.
2. Refer to this section for proper label placement. Replace
all damaged or missing labels. Order new labels from your
nearest Kubota dealer. To find your nearest dealer, visit
our dealer locator at www.landpride.com.
3. Some new equipment installed during repair requires
safety labels to be affixed to the replaced component as
70571
70572
specified by Kubota. When ordering new components make
sure the correct safety labels are included in the request.
4. Refer to this section for proper label placement.
To install new labels:
a. Clean surface area where label is to be placed.
b. Spray soapy water onto the cleaned area.
c. Peel backing from label and press label firmly onto the
surface.
d. Squeeze out air bubbles with edge of a credit card or
with a similar type of straight edge.
848-524C
Danger: Overhead Crushing Hazard. Stay Clear From
Under Unit and load
2-Places (Left and right side)
Important Safety Information
838-293C
Warning: To Prevent Serious Injury Or Death

Important Safety Information
AP-LB60 Loader Boom 319-192MK11/2/20 7
Table of Contents
70572
858-944C
Warning: To Prevent Tipping Or Damage

Introduction
AP-LB60 Loader Boom 319-192MK 11/2/20
8
Table of Contents
Introduction
Owner Assistance
The dealer should complete the Online Warranty
Registration at the time of purchase. This information is
necessary to provide you with quality customer service.
The parts on your Loader Boom have been specially
designed by Kubota/Land Pride and should only be
replaced with genuine Kubota parts. Contact a Kubota
dealer if customer service or repair parts are required.
Your Kubota dealer has trained personnel, repair parts,
and equipment needed to service this attachment.
See “Specifications & Capacities” on page 16 and
“Features & Benefits” on page 17 for additional
information and performance enhancing options.
Serial Number
For quick reference and prompt service, record model
and serial number on the inside cover page and again on
the warranty page. Always provide model number and
serial number when ordering parts and in all
correspondences with your Kubota dealer. For location of

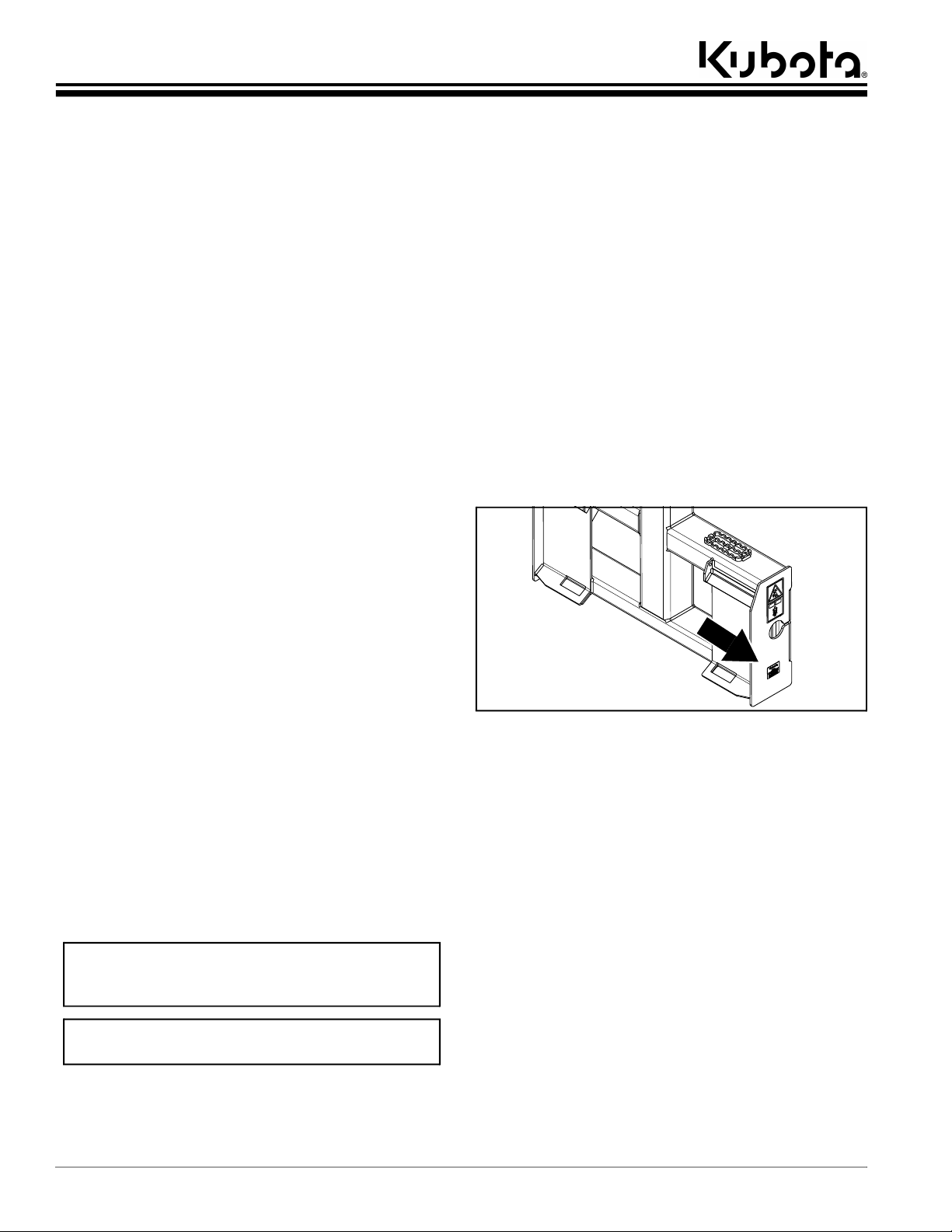

your serial number plate, see Figure 1.
Loader Boom Serial Number Decal
Figure 1
Further Assistance
Your Kubota dealer wants you to be satisfied with your
new attachment. If for any reason you do not understand
any part of this manual or are not satisfied with the
service received, the following actions are suggested:
1. Discuss any problems you have with your attachment
with your dealership service personnel so they can
address the problem.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
question/problem, and request assistance.
3. For further assistance write to:
Kubota by Land Pride
Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address
lpservicedep[email protected]
70572
Kubota welcomes you to the growing family of new
product owners. This Loader Boom has been designed
with care and built by skilled workers using quality
materials. Proper assembly, maintenance, and safe
operating practices will help you get years of satisfactory
use from this attachment.
Application
The Kubota LB60 (Loader Boom) is a construction grade
lifting device designed with the contractor, landscaper, or
farmer/rancher in mind. Using the LB60 gives the user
the ability to reach higher and out further from the skid
steer or track loader. This comes in handy when loading
material onto a trailer or when carrying tall vertical
objects such as trees, rocks, and shrubs in a nursery or
landscape setting. Contractors will find removing
concrete forms with this tool will eliminate a tremendous
amount of human labor as well as speed up the process.
Two 1" lifting lugs along with stabilizing chain slots on
each side gives the LB60 the ability to connect to almost
any object that falls within the skid steer/track loader’s
capability.
With only one model and size, the LB60 covers any lifting
chore 6000 lbs. and under. You will quickly find that the
Kubota LB60 will save you time and money by making
your loading/unloading operations more efficient.
Using This Manual
•This Operator’s Manual is designed to help familiarize
you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.
•The information contained within this manual was
current at the time of printing. Some parts may change
slightly to assure you of the best performance.
•To order a new Operator’s or Parts Manual, contact
your authorized dealer. Manuals can also be
downloaded, free-of-charge, from our website at
www.landpride.com
Terminology
“Right” or “Left” as used in this manual is determined by
facing the direction the machine will operate while in use
unless otherwise stated.
Definitions
IMPORTANT: A special point of information related
to the following topic. Kubota’s intention is this
information must be read & noted before continuing.
NOTE: A special point of information that the
operator should be aware of before continuing.

Section 1: Assembly & Set-up
AP-LB60 Loader Boom 319-192MK11/2/20 9
Table of Contents
Before You Start
WARNING
!
To prevent serious injury or death:
•Consult your skid steer’s manual for operating capacity,
lifting capacity, and operating specifications. Exceeding
rated capacities and specifications can result in a roll-over
or other serious hazard.
•Allow only persons to operate this attachment who have
fully read and comprehended this manual, who have been
properly trained in the safe operation of this attachment,
and who are age 16 or older. Serious injury or death can
result from the inability to read, understand, and follow
instructions provided in this manual.
Read and understand the operator’s manual for your
LB60. An understanding of how it works will aid in the
assembly and setup of your Loader Boom.
Power Machine Shutdown Procedure
The following are basic shutdown procedures. Follow
these procedures and any additional shutdown
procedures provided in your skid steer or track loader
Operator’s Manual before leaving the operator’s seat.
1. Reduce engine speed and shut-off all power to the
attachment.
2. Park on solid, level ground and lower attachment until
it is flat on the ground or on non-concrete support
blocks.
3. Turn off engine, and remove switch key to prevent
unauthorized starting.
4. Relieve all hydraulic pressure to auxiliary hydraulic
lines.
5. If included, raise seat bar and move controls until
both lock.
6. Wait for all components to come to a complete stop
before leaving the operator’s seat.
7. Use steps, grab-handles and anti-slip surfaces when
stepping on and off the power machine or
attachment.
Section 1: Assembly & Set-up

Section 1: Assembly & Set-up
AP-LB60 Loader Boom 319-192MK 11/2/20
10
Table of Contents
Attach Loader Boom
DANGER
!
To avoid serious injury or death:
A crushing hazard exists while hooking-up and unhooking the
attachment. Do not allow anyone to stand between attachment
and power machine while approaching or backing away from
the attachment. Do not operate lift and/or tilt controls while
someone is near the power machine and/or attachment.
Refer to Figure 1-2:
1. Drive skid steer/track loader slowly to the Loader
Boom making sure the front hitch plate of the power
machine is parallel with the Loader Boom hitch.
2. Tilt top of loader hitch plate lightly forward.
3. Place top of loader hitch plate directly under the
Loader Boom top angle bars.
4. Slowly lift skid steer/track loader hitch until it fully
contacts the Loader Boom top angle bars.
5. Slowly rotate the loader hitch plate back.
6. Engage lock mechanism:
Hydraulic Lock Mechanism:
a. Engage quick hitch locking mechanism
hydraulically.
Mechanical Lock Mechanism:
a. Shut the skid steer or track loader down before
dismounting. Refer to “Power Machine
Shutdown Procedure” on page 9.
b. Push lock handles down to drive lock pins through
bottom slots in the hitch plate. Make sure handles
lock down.
c. Return to the skid steer/track loader. Using the
machine’s start-up procedures, restart the engine.
Loader Boom Hitch
Figure 1-2
NOTE: The Loader Boom should be laid over on the
ground, resting on its top lift lug during the hook-up
process. See Figure 1-3. The Loader Boom should
never be in vertical position while initiating hook-up.
70572
Top Angle Bars
Bottom Slot
Bottom Slot
Loader Boom Attaching Position
Figure 1-3
Shackles & Chains
Refer to Figure 1-4:
The Loader Boom does not include rigging shackles,
chains or any other device that is meant for lifting a load
and/or securing the load to the Loader Boom. Those
devices must be supplied by the customer.
Make sure the devices being used are rated for the
weight being lifted by the Loader Boom. The ratings and
capacities information for any device should be obtained
from the device manufacturer.
Device Locations
Figure 1-4
70598
Ground
70571
Attach Shackles Here
Attach Chains Here

Section 2: Operating Procedures
AP-LB60 Loader Boom 319-192MK11/2/20 11
Table of Contents
Operating Checklist
Hazard control and accident prevention are dependent
upon the awareness, concern, prudence, and proper
training involved in the operation, transport, storage, and
maintenance of the Loader Boom. Therefore, it is
absolutely essential that no one operates the Loader
Boom unless they are age 16 or older and have read, fully
understood, and are totally familiar with the Operator’s
Manual.
Perform the following inspections before using your
Loader Boom.
Operating Safety
DANGER
!
To prevent serious injury or death:
•A crushing hazard always exists around equipment
handling suspended loads. Stay clear of suspended loads.
•Keep all pedestrians, pets, and livestock away from your
work area. Never allow anyone to go under raised boom.
•Do not drive up to anyone or an animal in front of a fixed
object such as a wall or bench. Never assume that the power
machine will stop in time.
•Use a “spotter” when it is hard to see in the direction you
are traveling and when placing a load that obstructs your
vision. A person or animal could be nearby in a blind spot.
•Optimize load stability and protect from load swinging.
Always lift load by center of gravity and secure with chains.
WARNING
!
To prevent serious injury or death:
•Check Loader Boom frequently to make sure it is properly
attached to the loader hitch plate.
•Always utilize stabilizing chains or straps to prevent the
load from swinging. Excessive swinging of the load can
cause the skid steer/track loader to become unstable and tip
or result in the load impacting the operator’s zone.
•Traveling up steep inclines may cause slack in stabilizer
chains and result in load impacting operator’s zone. Adjust
angle of boom to prevent slack in stabilizer chains.
•Do not abuse equipment. Incorrect use of the attachment
can damage equipment structurally and cause serious
injury or death.
Operating Checklist
Check Page
Read and follow all safety information carefully.
Refer to “Important Safety Information”. 1
Read and follow hook-up & preparation.
Refer to “Section 1: Assembly & Set-up”. 9
Read and follow all operating procedures.
Refer to “Section 2: Operating Procedures”. 11
Read and follow all maintenance instructions.
Refer to “Section 3: Maintenance”. 15
•Backup alarm must be in good working order to warn
others. Use a backup camera or rear-view mirror that is in
good condition to ensure the area behind the unit is clear.
Drive at a slower speed to compensate for blind spots.
•Never allow riders on the power machine or attachment.
•Do not lift loads exceeding rated capacity of the Loader
Boom or tipping load of skid steer/track loader.
•Do not use the Loader Boom for digging, pushing or pulling
objects. Only use the Loader Boom for its intended purpose.
•Lower the Loader Boom to ground before dismounting the
power machine. Follow manufacturer’s recommendations
when dismounting and parking the machine.
•Always store the Loader Boom in a secure position so that
it will not fall over.
Transport Safety
WARNING
!
To prevent serious injury or death:
•Follow all safety precautions when transporting a load. Not
using safe transporting methods can damage the equipment
and cause serious injury or death.
•Allow only persons to operate this attachment who have
fully read and comprehended this manual, who have been
properly trained in the safe operation of this attachment,
and who are age 16 or older. Serious injury or death can
result from the inability to read, understand, and follow
instructions provided in this manual.
•Keep equipment and suspended load away from electrical
power lines. Place an orange warning sign under overhead
electrical power lines indicating type of danger above.
•Always transport loads as close to the ground as possible
without hitting objects. A load carried high could shift
causing the load to fall, tipping of the machine, and/or loss
of control.
•Transporting loads across inclines, over ramps, on bumpy,
soft, or slippery surfaces reduces machine stability and lift
capacity. Transporting and lifting loads under these
conditions is extremely dangerous. Follow all transport
instructions in your power machine Operator’s Manual.
•Always travel straight up and straight down inclines. Never
make turns on the incline.
•Always transport over ramps and inclines with the heavy
end of the power machine on the “uphill” side. This may
require one to drive up or back down inclines.
•When traveling on public roadways, travel in such a way
that faster moving vehicles may pass safely. Use accessory
lights and devices for adequate warning to operators of
other vehicles. Comply with all federal, state, and local
laws.
•Lightweight power machines may need weight added to the
rear to maintain steering control and prevent tipping.
Consult your power machine Operator’s Manual to
determine proper weight requirements and maximum weight
limitations.
Section 2: Operating Procedures

Section 2: Operating Procedures
AP-LB60 Loader Boom 319-192MK 11/2/20
12
Table of Contents
Loader Boom Operation
Before operating the Loader Boom, scan the area for
obstacles and over head power lines. Be aware of
pedestrians and other workers in the area.
Make sure the Loader Boom is correctly attached to the
skid steer or track loader and that it is in good working
condition. Check all shackles, chains and other devices
to make sure they are correctly attached and are in good
working condition.
Pick Up Load
Refer to Figure 2-1 on page 13:
WARNING
!
To avoid serious injury or death:
Loads that require the loader arms to be raised to allow the
chain to be connected or disconnected must be hooked to the
shackle by someone other than the operator. The operator
should not dismount the skid steer or track loader with the
loader arms raised.
1. Drive skid steer/track loader up to the load to be
carried and stop. Shut the power machine down
before dismounting. Refer to “Power Machine
Shutdown Procedure” on page 9.
2. Make sure the load does not exceed the smaller of
two lift capacities:
•6000 lbs (2720 kg) rated lift capacity of the Loader
Boom.
•Adjusted lift capacity of the skid steer or track
loader. Refer to “Figure 2-1” on page 13.
3. Inspect area for any overhead lines. Make sure that
there is enough clearance to lift the load.
4. Position shackle lug (#1) or (#2) above the load’s
center of gravity. Lower loader arms all the way while
keeping the shackle lug over the load’s center of
gravity.
5. Shut skid steer or track loader down. See “Power
Machine Shutdown Procedure” on page 9.
6. Connect the load to the Loader Boom. Make sure the
load is balanced and secure.
7. Use two or more chains or straps to secure the load
to the holes in side plates (#3). This is to stabilize the
load and prevent it from swinging.
IMPORTANT: The Loader Boom is only designed to
lift from shackle lugs. Do not attempt to use any
other part of the boom to secure lines for lifting. This
could result in damage to the Loader Boom.
IMPORTANT: The operator must determine which
shackle lug is best to use for the load being lifted.
Use only one shackle lug at a time.
8. Restart the skid steer/track loader. Lift loader arms to
remove all slack and make sure the shackle lug (#1)
or (#2) is still over the load’s center of gravity.
9. Begin lifting the load off the ground. If the load begins
to excessively move to the side, then set the load
back down and reposition over the center of gravity.
10. If when raising the load, the stabilizing chains or
straps begin to assist in lifting or begin to pull the
load, set the load down and reposition chain so that
it only assists in minimizing the load from swinging.
11. Once load is raised, tilt boom forward to remove slack
from the stabilizing chains or straps.
12. Position the load at a safe traveling height before
moving. Two to four inches above the ground is
recommended traveling height.
Travel With Load
Refer to Figure 2-1 on page 13:
WARNING
!
To avoid serious injury or death:
•Identify any overhead electric power lines and do not come
in contact with them.
•Always utilize stabilizing chains or straps to prevent the
load from swinging. Excessive swinging of the load can
cause the skid steer or track loader to become unstable and
tip or result in the load impacting the operator’s zone.
•Be aware of load when traveling on inclines and keep
stabilizer chains or straps tight by tilting the boom. Failure
to do so can result in load impacting the operator’s zone.
1. Read and follow all transport safety alerts. Refer to
“Transport Safety” on page 11.
2. Keep stabilizer chains or straps tight to prevent load
from swinging.
3. Keep load low, two to four inches above the ground,
when possible.
4. Continually scan for pedestrians or other traffic.
5. If load is large and blocks your view, travel in reverse
or with a spotter.
6. If attachment is to be operated in reverse, make sure
visibility to the rear of the power unit is appropriate
for the attachment. Backup camera or mirror is
recommended. Maintain cleanliness of lens or
mirror.
7. Always drive at a safe speed and slow down when
going around corners. Avoid sudden braking.
8. Leave enough clearance when turning to keep the
load from contacting obstacles such as storage
racks, buildings, trees, or fences.
IMPORTANT: Pedestrians always have right-of-way.

Section 2: Operating Procedures
AP-LB60 Loader Boom 319-192MK11/2/20 13
Table of Contents
9. When traveling over a ramp or incline, keep load on
the “uphill” side of the skid steer or track loader.
10. When possible, travel straight up and down grades,
ramps, and inclines. Avoid making turns on grades,
ramps, and inclines.
11. Raise or lower load only when stopped, never while
traveling.
12. Slow down when traveling over rough or hilly terrain.
13. Refrain from transporting loads on public roadways.
14. When traveling on public roadways, transport in a
way that faster moving vehicles may pass you safely.
15. Plan your route to avoid heavy traffic.
Place Load
Refer to Figure 2-1:
WARNING
!
To avoid serious injury or death:
Loads that require the loader arms to be raised to allow the
chain to be connected or disconnected must be hooked to the
shackle by someone other than the operator. The operator
should not dismount the skid steer/track loader with the loader
arms raised.
1. Stop in front of desired location to place the load.
2. Slowly raise or lower the load to the required height.
3. If needed, raise the loader arms and tilt them forward
for more reach. This may require stabilizer chains or
straps to be removed from load. Move forward slowly
with load raised until load is positioned directly above
its final destination.
4. Lower load onto its final resting location and lower
boom enough to create slack in all chains and straps.
5. Shut the skid steer or track loader down. See “Power
Machine Shutdown Procedure” on page 9.
6. Disconnect the load from the Loader Boom.
7. Remove or secure all loose chains, straps and other
devices to the Loader Boom.
8. Return to the skid steer or track loader and turn it on.
Before backing, check for pedestrians or other traffic.
IMPORTANT: Chains or straps that are dragging can
be run over by the skid steer/track loader and cause
damage to the Loader Boom and power machine.
Loader Boom Operation
Figure 2-1
70582
Vertical carry from shackle (#1)
Approximately 70% of loader
lift capacity up to 6,000 lbs
Horizontal carry from shackle (#1)
Approximately 30% of loader lift capacity
up to 6000 lbs
Horizontal carry from shackle (#2)
Approximately 50% of loader lift
capacity up to 6000 lbs
70581
70578

Section 2: Operating Procedures
AP-LB60 Loader Boom 319-192MK 11/2/20
14
Table of Contents
Detach Loader Boom
Refer to Figure 2-3:
WARNING
!
To avoid serious injury or death:
•Do not unhook an attachment that is in an unstable position
or carrying a load. An attachment that is unstable or has a
load can flip-over suddenly once unhooked.
•Do not let children play on or around the attachment
including when stored. Children and/or attachment can fall.
1. See “Long-Term Storage” on page 15 if parking the
Loader Boom for long periods and end of season.
2. Park the skid steer or track loader with unit on a flat,
level solid surface and tilt the Loader Boom forward
until it rests on its top lift lug. See Figure 2-2.
3. Disengage lock mechanism:
Hydraulic Lock Mechanism:
a. Disengage quick hitch locking mechanism
hydraulically.
Mechanical Lock Mechanism:
a. Shut the skid steer or track loader down before
dismounting. Refer to “Power Machine
Shutdown Procedure” on page 9.
b. Pull lock handles up to remove lock pins from the
bottom slots in the hitch plate.
c. Return to the power machine. Using the
machine’s start-up procedures, restart the engine.
4. Tilt the top of the loader hitch plate slightly forward to
begin separating the Loader Boom top angle bars
from the skid steer/track loader.
5. Slowly back the skid steer/track loader away until the
top angle bars and top of the loader hitch plate have
separated.
Loader Boom Detaching Position
Figure 2-2
NOTE: The Loader Boom should be laid over on the
ground, resting on its top lift lug during the
unhooking process. See Figure 2-2. Never attempt
to detach the Loader Boom with it in a vertical
position.
70598
Ground
Loader Boom Hitch
Figure 2-3
Operating Instructions
By now you should have familiarized yourself with the
Operator’s Manual for your Loader Boom. If you haven’t,
please do so now. We cannot over-stress the importance
of following the safety operating procedures that are
spelled out in this Manual.
Proceed by getting onto the seat of your skid steer/track
loader and starting it up. It isn’t going to take you long to
learn how to use your new Kubota Loader Boom.
We recommend that you take a little time to practice
securely attaching and detaching your Loader Boom to
and from your loader hitch. It is also important to practice
lifting, lowering and maneuvering the Loader Boom on a
level site until you gain the confidence and skill needed to
have a good feel in what you are doing.
As you quickly become more skilled and adept in using
your Loader Boom, you will soon learn that it is always
more important to focus on the don’ts than it is to focus on
the dos. For example, don’t exceed the lift capacity of
your Loader Boom or skid steer/track loader. Don’t lift
your load too high creating an unstable load and unsafe
situation. Don’t allow the load to swing excessively,
setting up a situation that could cause your skid steer/
track loader to lose balance or even tip over. Don’t drive
too fast for your ground and load conditions. Don’t work
on or around slippery or sloped areas that could cause
you to lose control of the skid steer/track loader. Don’t
allow pedestrians, pets, or livestock to approach the
danger zone of your working area. Don’t leave your skid
steer/track loader with the Loader Boom raised off of the
ground, with or without a load.
If you follow these few safety reminders, you will find that
you will quickly become very adept, handy, and skillful at
using your Kubota Loader Boom.
See “Specifications & Capacities” on page 16 and
“Features & Benefits” on page 17 of your Operator’s
Manual for additional information.
70572
Top Angle Bars
Bottom Slots

Section 3: Maintenance
AP-LB60 Loader Boom 319-192MK11/2/20 15
Table of Contents
Maintenance
Proper servicing and adjustment are key to the long life of
any attachment. With careful inspection and routine
maintenance, you can avoid costly downtime and repair.
Your Loader Boom has been specially designed and
should not be altered in any way which will adversely
affect its performance.
•After using your Loader Boom for a few lifts, check it for
any deformation. Make sure the Loader Boom is still
properly attached to the loader hitch plate.
•Check the lift lugs and side plates to make sure they
are not damaged, broken, or worn excessively.
•Check shackles, chains, straps and any other devices
for excessive damage. Make sure they are in good
working condition. Replace as needed.
•Always remove any material that has become
entangled on the Loader Boom before continuing to
use it.
•Replace any worn, damaged, or illegible safety labels
by obtaining new labels from your Kubota dealer.
Long-Term Storage
Clean, inspect, service, and make necessary repairs to
the Loader Boom when parking it for long periods and
when parking it at the end of a working season. This will
help ensure that the unit is ready for use next time you
hook-up to it.
WARNING
!
To avoid serious injury or death:
Always shut power machine down following the “Shutdown
Procedure” provided in this manual before leaving the
operator’s seat.
1. Remove any dirt and grease that may have
accumulated on the Loader Boom. Scrape off
compacted dirt and then wash its surface thoroughly
with a garden hose.
2. Inspect the Loader Boom for damaged or worn parts
and replace when needed.
3. Repaint parts where paint is worn or scratched to
prevent rust. Ask your Kubota dealer for touch-up
paint. Paint is available in aerosol can, quarts, and
gallon sizes. See chart below.
4. Replace all damaged or missing decals.
5. A coating of oil may also be applied to areas where
paint is worn off to minimize oxidation.
6. Store the Loader Boom inside a building and away
from human activity if possible. Inside storage will
reduce maintenance and make for a longer life.
7. Follow all detaching instructions on page 14 when
disconnecting skid steer or track loader from the
Loader Boom.
8. Do not allow children to play on or around the stored
Loader Boom.
Touch-Up Paint
Part No. Part Description
821-070C Gloss black enamel spray can
821-070CTU Gloss black enamel bottle with brush
821-070CQT Gloss black enamel quart
821-070CGL Gloss black enamel gallon
Section 3: Maintenance

Section 4: Specifications & Capacities
AP-LB60 Loader Boom 319-192MK 11/2/20
16
Table of Contents
LB60
Specifications & Capacities
LB60 lb
Weight lbs (kg) 384 (174)
Lift capacity lbs (kg) 6000 (2722)
Frame width in (cm) 45 (1.14)
Frame height in (m) 68 (1.73)
Lift lugs in (cm) two lugs, 1 (2.5) plate
Lift lug hole diameter in (cm) For up to 1 (2.5) shackle pins
Side plate in (mm) Slot for 5/16 (8) chain and 3 (76) hole for other chains or straps
Mast in (cm) 6 x 6 (15.2 x 15.2) tube
Reinforced mast in (mm) 1/4 (6) plate
68"
(1.73 m)
45" (1.14 m) 33" (84 cm)
Section 4: Specifications & Capacities
