KuchePro KPYSH1800 User manual

Instruction Manual
使用說明書
Model No:KPYSH1800
Please read this manual carefully before using the product.
使用前請仔細閱讀本說明書
Multi-Function Kettle
Distributor 總代理
USA Pacific Kitchen Life
美國 太平洋廚藝生活
390 Kansas Street, San Francisco CA 94103 ,
Tel 415: -896-2888 免費服務專線 Toll free: 888-833-8833
www.buffalocookware.comhttp www.2pacific.comhttp
CANADA Yanonaka Houseware Ltd.
加拿大 屋之內家品中心
3419 Kennedy Road, Scarborough Ontario Canada M1V 4Y3, ,
3474-754-416Tel:
www. pacificrangehood. com

1 2
目 錄
安全使用注意事項............................................................
產品規格.............................................................................
產品使用須知....................................................................

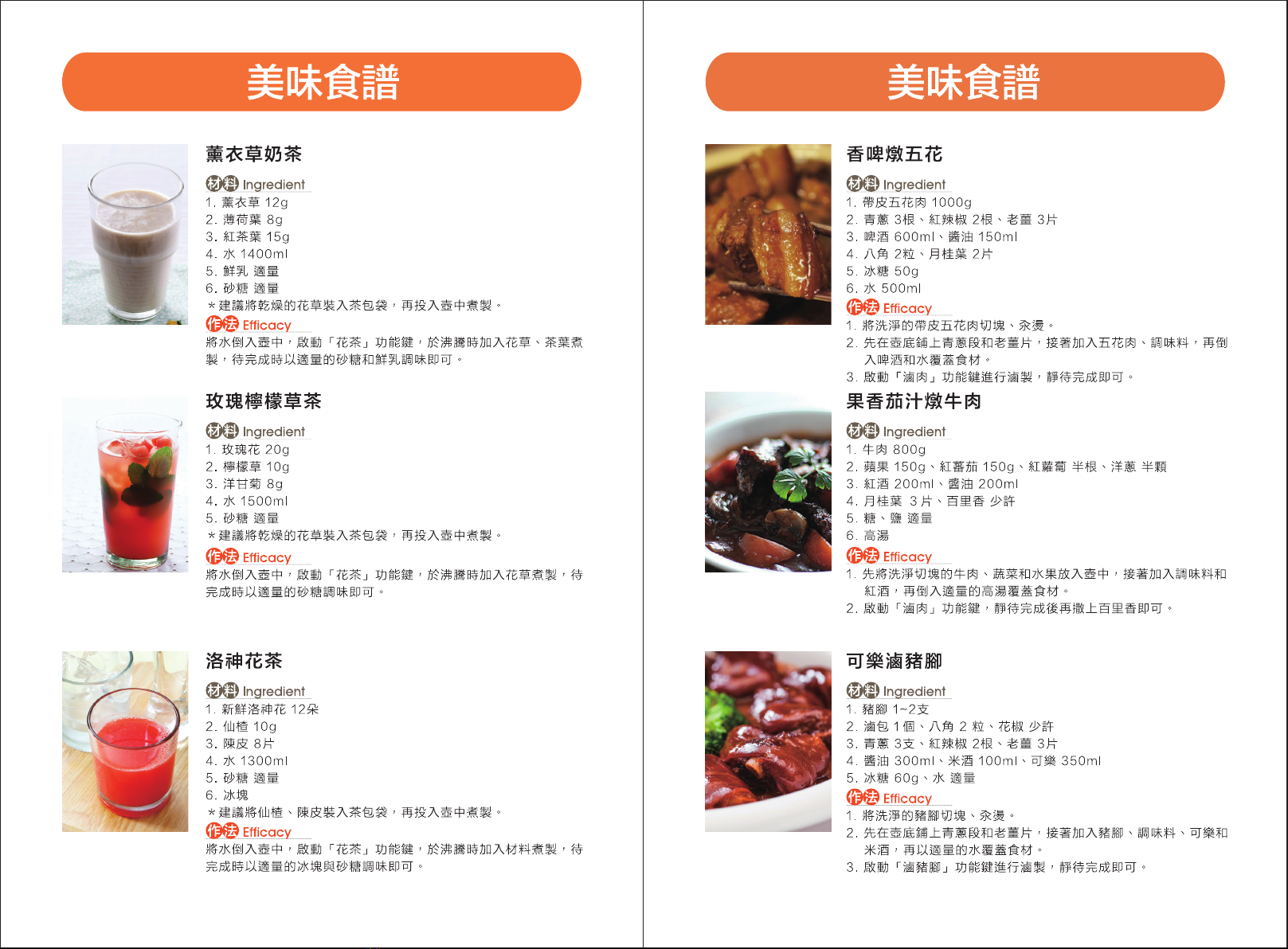

美味食譜.............................................................................
Content
Safety Caution and Warnings.......................................
Product Specification......................................................
Product instructions.........................................................
1.不可用力拉扯電源線。
2.電源線表皮受損易發生觸電、火災等
3.不得彎曲或損壞電源線表皮，不得放置於高溫處，不得壓重物或隨意加工。
電源線損壞，可能導致火災、觸電。
4.請使用120Ｖ單獨插座。
5.禁止用溫手碰觸電源插頭。
6.用濕手拔下插頭，可能導致觸電。
7.電源插頭需插入插座深處。
8.主機不得浸水或沖水。
9.當發生漏電、觸電、火災，浸水請立即停止使用並且撥打公司服務電話。
10.不得隨意拆解、修理、改造。
11.啟動異常容易發生觸電、傷害、火災等危險。
12.請勿使用受損的電源插頭或電源線以及插座，否則容易造成觸電或火災。
13.不使用時請拔掉電源線。
14.僅放置材料最大容量，避免容器杯之超量負荷。
15.清潔或外部擦試時請拔掉電源線,否則容易造成觸電事故。
16.請放置於嬰幼兒觸及不到的地方，兒童沒有大人陪同不得單獨使用。
17.操作錯誤或碰倒容易損壞或發生故障。
18.主機面板、壺身均為玻璃製品，請小心使用與洗淨。
19.請勿將主體接觸高溫表面或在不平的臺面上操作。
為防止危險或傷害發生應注意以下幾點，請根據提示項正確使用 :
安全使用注意事項
2
3
4-6
7-10
11
12-13
14-18

KPYSH1800
3 4
產 品 規 格 產 品 使 用 須 知

5 6
產 品 使 用 須 知 產 品 使 用 須 知

7 8

9 10

11 12
1.Do not pull power cord.
2. The damage of the power cord may cause electric shock , fire.
3. Do not bend or damage the power cord. Do not place it at high
temperature .Damage to power cord may lead to fire and electric shock .
4.Pls use 120V separate socket.
5. Do not touch the electric source plug with warm hands
6. Unplug the plug with a wet hand, which may cause an electrical shock
7. The power plug should be inserted deeply into the socket
8. The unit can not be soaked or flushed
9. When the unit is soaked, will cause electric leakage ,electric shock and
fire , stop using immediately and contact customer service.
10. Do not disassemble ,repair or transform at will
11. Abnormal starting is prone to electric shock, injury, fire and other
hazards.
12. Do not use damaged power plug or power cord or socket,otherwise
easy to cause electric shock or fire
13. Unplug the power cord when not in use
14. Only place the maximum capacity of the material to avoid overloading
the container cup.
15. Unplug the power cord when cleaning or external wiping, otherwise
easy to cause electric shock accident.
16. Please keep out of reach of infants and children. Children should not
used the product without adults' guidance.
17. Operation error or knock down easy to cause damage or malfunction.
18.The host panel and pot body are made of glass please use carefully
and wash them.
19. Do not put the subject on high temperature surfaces or operate on
uneven surfaces.
Product SpecificationSafety Caution and Warnings:
In order to prevent the occurrence of danger or injury should pay
attention to the following points, Pls use according to the prompt: Part Name
Product specification:
KPYSH1800
1.Work environment:Temperature -25℃~+65 relative humidity below 90%RH
2.Storage conditions: temperature-25℃~+65℃ relative humidity below 90%RH
℃
1. The temperature with ℃,showing the current working temperature or
temperature setting.
2. Power: in manual mode ,display current working power or medium power
settings.
3. Time :display the remaining work time or ongoing time settings.
4. ---: standby status,waiting for work instructions.
5. END: with a prompt, the work is done.
6. E1: with the prompt sound,it indicates that the pot body is separated from the
host,and it needs to be put back as soon as possible.
7. ER2: with the prompt sound, it indicates the electrical fault of the host. The
power shall be cut off immediately.
Work environment
Description of LCD screen information:

13 14
Control panel descriptionOther information notes:
Product instructionsProduct Specification
1.The product automatically adjusts the boiling point, it can automatically
detects water boiling point in plateau region, when it detected by a temperature
for the local boiling point. The machine intelligence adjust the temperature to 100℃
2.Intelligent power cut: when the machine is used ,remove the pot body and
immediately disconnect from heating. The display screen displays 0000, put
it back to work within 1 minute.
3.Warning : dry detected sentence to dry when the temperature over 110℃,6
sound alarm stop heating,screen display E3,recoverable after the
temperature is lowered.
4.Sensor short circuit: when sensor short circuit.alarm 6 will stop heating and the
display screen shows E2, which can be recovered after the fault is
removed .
Press this button in the standby state to enter the standby state.In the standby ,
the display screen will display 0 at the end ,and the indicator light will be
completely off.
Power on/off:
Preset/Timer:
Power/temperature key:
Function
Temperature
Power Preset
Timer
Power on
Power off
Key function from left to right is: Function, Power/Temperature,
Preset/Timer,Power on/off
Preset: standby mode, press this button to preset setting ,preset time range
0:10~12:00, short press to 10 minutes, long press to 30 minutes,finish the
preset setting,choose the function to start again , if no function selected ,it
automatically return to standby status after 5times, after the preset has been
set ,it will countdown until buzzer keeps then begin to work.
Timer: after selecting the function, press this button to enter the timing setting,
with the timing range from 0:03 to 12:00,the timeing adjustment speen is as
follows: short press+1 minute before 2 hours, long press +10 minutes, short
press+10 minutes after 2 hours ,long press + 30 minutes.
After selecting the function, press this button to adjust the heating power. The
adjustment range is 100-800W(porridge is 150-800W). When selecting the heat
preservation function, press this button to adjust the heat preservation
temperature .this key is invalid when the work is finished and entered to the heat
preservation state.
Coffee Milk Yogurt Porridge Dessert Stew Fruit tea
Braised
pork hock
Warm
water
Sterilizing
Keep
Warm
Boiling Flower
tea
Jujube
tea
Tea egg Boiled
egg Noodles
Vermicelli Dumplings Hot pot Soup Herbal
Dish

15 16
Function key:
Product instructionsProduct instructions
In standby mode, press the function button to select :Boiling、Flower tea
Jujube tea、Tea egg、Boiled egg、Noodles、Vermicelli、Dumplings、Hot pot、
Soup、Herbal Dish、Coffee、Milk、Yogurt、Porridge, Dessert、Stew、Fruit tea、
Braised、pork hock、Warm water、Sterilizing, Keep warm.
Check the power cord, plug and main engine regularly for any damage, if any
damage is found, please stop using the machine immediately ,do not disassemble
and repair by yourself, contact the maintenance center for inspection and
、
Operating function description
When the machine is on ,press the function key to enter the automatic mode, and
select the corresponding function through the function key, the water will start
boiling after 1 second ,after entering the correspondent function state, other
functions can be selected.
1.Boiling
With 800 w after heated up to boiling then enter keep warm status for 2 hours at
80℃ them to shutdown, if there is timer set, it will be turned off accordingly.
2.Flower tea
Heated up to 90℃ with 800W then 400W heated to boiling for 3minutes,200w
heat for 15
minutes ,and then keep warm for 2 hours at 80℃ to shutdowns. If there is timer
set, it will be turned off accordingly .
3.Jujube tea
Heated up to 90℃ for 800W then 400W heated to boiling for 3 minutes, 200W
heat for 20 minutes, and then keep warm for 2 hours at 80℃ to shutdown, if a
timer is set, it will be turned off accordingly.
4.Tea egg
Heat to boiling at 800W, switch to 400W and turn off after 8 minutes, if there is a
timer ,it will be turned off accordingly.
5.Boiled egg
Heat to boiling at 800W, switch to 400W and turn off after 5 minutes, if there is a
timer ,it will be turned off accordingly.
6.Noodles
Heat to boiling at 800W, switch to 400W and turn off after10 minutes, if there is a
timer ,it will be turned off accordingly.
7.Vermicelli
Heat to boiling at 800W, switch to 400W and turn off after 8 minutes, if there is a
timer ,it will be turned off accordingly.
8.Dumplings
Heat to boiling at 800W, switch to 400W and turn off after 12 minutes, if there is a
timer ,it will be turned off accordingly.
9.Hot pot
With 800W heated up to boiling, then reheat for 60 minutes, keep warm at 60℃
for 2 hours before shutdown, if a timer set , it will be shut down accordingly.
10.Soup
After heated to 90℃ with 800W, 400W heated to boiling, for 1 minute, turn to the
200W heat for 120 minutes before shutdown, if there is timer set,it will be turned
off accordingly.
11.Herbal Dish
With 800W heated to boiling, and 200W heat for 60 minutes, then keep warm at
45℃ for 2 hours to shutdown, if there is timer set , it will be turned off
accordingly.
12.Coffee
With 800W heated to boiling, then keep warmat 95℃ for 2 hours to shutdown, if
there is timer set , it will be turned off accordingly.
13. Milk
Automatically constant temperature at 45℃ for 2 hours then shut down, if there
is timer ,it will be turned off accordingly.
14. Yogurt
After automatic constant temperature at 38℃ for 10hours,it will be shut down
automatically, if timer is set, it will be turned off accordingly.
15.Porridge
After heated to 90℃ with 800W , 400W heated to boiling, then 200W heat for 45
minutes, keep warm for 2 hours at 60℃ , if there is timer it will be shut down
accordingly
16. Dessert
With 800W heated up to boiling, 200W heat for 60 minutes, then keep warm at
45℃ for 2 hours , if there is timer set ,it will shut down accordingly.

Product instructionsProduct instructions
Regular descaling can prolong the life of electric kettle.
In the case of normal use(5 times a day),it is recommended to remove scale at
the following frequencey;
Softer water quality(up to 18dH) should be descaled every three months.
Soft and hard water quality(over 18dH) should be descaled once a month.
1.Fill the pot with water to 3/4 of the maximum level and bring to boil.
2.Turn off the power and soak in white vinegar or citric acid for about 8 hours.
3.Pour out the solvent and rinsethe inside of the pot thoroughly .
4.Fill the pot with water until it is full and bring to a boil.
5.Empty the dirty water and clean the inside of the pot again with clean water .
6.If you still have scale in the pot ,repeat the above.
Clean
Remove scale
Unplug the power plug before cleaning the product.
Do not use steel wool,abrasive cleaner or corrosive liquids(such as gasoline or
acetone) to clean the product
Do not soak the base of the product or glass pot into water or any other liquid.
17. Stew
With 800W heated up to boiling, 200W heat for 60 minutes, keep warm at 45℃
for 2 hours shutdown, if timer isset , it will shut down accordingly.
18. Fruit tea
With 800W heated to boiling, 200W heat for 7 minutes, keep warm at 80℃ for 2
hours , if timer isset , it will shut down accordingly.
19. Braised pork hock
With 800W heated up to boiling,200W heat for 100 minutes to shutdown, if timer
is set , it will shut down accordingly.
20.Warm water
With 800W heated up to boiling,then keep warm at 40℃ for 2 hours ,if timer is set
, it will shut down accordingly.
21. Sterilizing
With 800W heated up to boiling, 400W heat for 3 minutes to shutdown, if timer is
set , it will shut down accordingly.
22. Keep Warm
After automatic constant temperature to set temperature for 24hours, it will
automatically shut down, if timer is set ,it will be turned off accordingly.
17 18
Maintenance
