KUDOS K-SW15TE Manual

S AFE O PERATION & M AINTENANCE I NSTRUCTIONS MUST BE FOLLOWED
KuDos hydraulic flange spreaders are carefully inspected for quality and
tested for safety. We meet ISO 9001:2015, ISO 14001:2015, IECQ QC
080001, OHSAS 18001:2007, CE standards & UVDB
KUDOS INDUSTRIAL INC. U.S.A.
Hydraulic Flange Spreader
K-SW15TE / K-SW9TM
S AFE O PERATION & M AINTENANCE I NSTRUCTIONS
ATTENTION!
www.ptr.co.th
KuDos Mechanical Co., Ltd

Safety Warnings
Carefully read ALL warnings before operating this tool:
2 KuDos Industrial Inc. USA
Hydraulic Flange Spreaders
DO NOT attempt to disassemble or
repair this product. Doing so will violate
the terms of the warranty.
DO NOT use bare hands to check for oil
leaks. High-pressure oil can penetrate
the skin and cause severe damage.
WARNING:
ATTENTION!
Always wear safety goggles when
operating this product. Projectiles or
hydraulic fluid can cause serious injury.
Read all instructions and warnings
carefully. Follow all safety precautions
to avoid injury or damage to property.
DO NOT use this tool on glass, plastic,
wood or any other materials which
could shatter. Do not exceed equipment
ratings.
Two-handed operation of this tool is
required at all times. Maintain a firm
grip on both handles when in use.
www.ptr.co.th
KuDos Mechanical

KuDos Industrial Inc. USA 3
Table of Contents
Safety Warnings ......................................................... 2
Table of Contents ....................................................... 3
Safety Instructions ..................................................... 4
Maintenance ............................................................... 5
Product Descriptions ................................................. 6
Operating Instructions .............................................. 12
Troubleshooting ......................................................... 14
Limited Lifetime Warranty .................................... 15

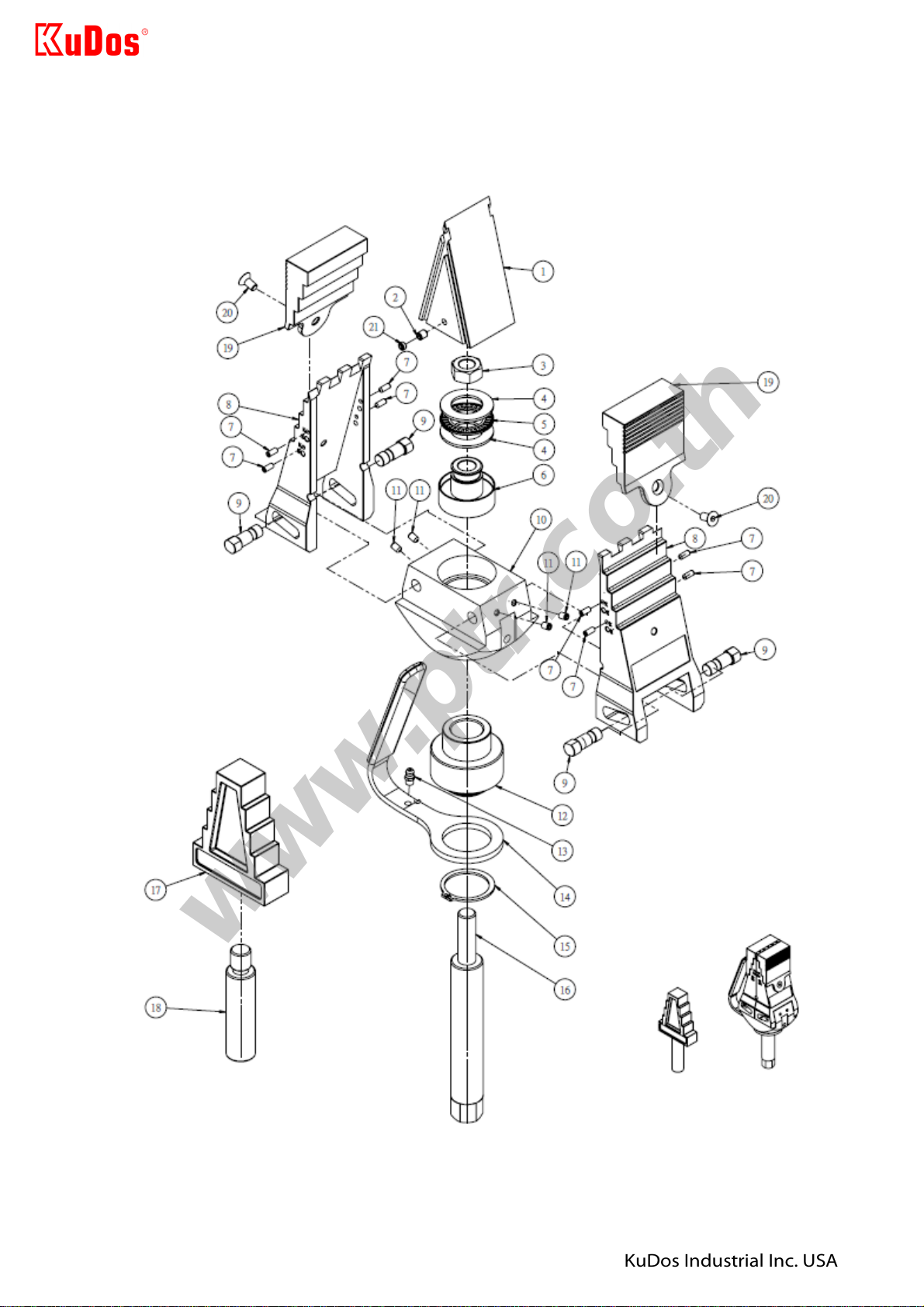

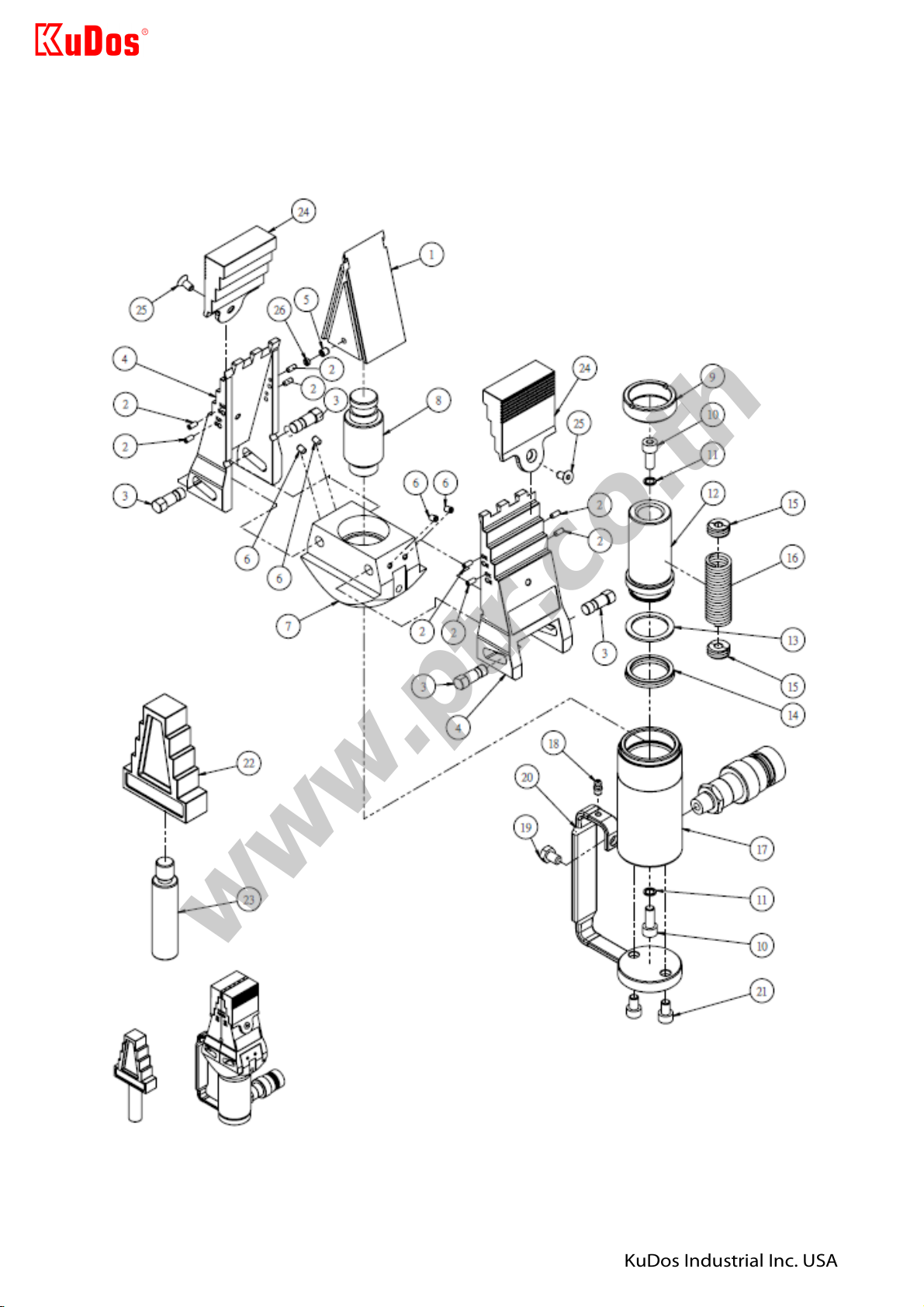

Parts Guide ................................................................. 16
Hydraulic Flange Spreaders
Thank you for using KuDos® products. This manual must be read
carefully prior to operating this product. Special attention should
be paid to the section ‘Safety Instructions’.
Damages and injuries caused by improper use of this product are
NOT included in our warranty. We would like to remind you to work
safely and to keep this manual on hand.
www.ptr.co.th
KuDos Mechanical

4 KuDos Industrial Inc. USA
Safety Instructions
Follow ALL instructions to ensure safety
W ORK A REA S AFETY
1. Keep the area around the equip-
ment clean and free of obstruc-
tions
2. Bystanders should stay clear of
the work area to ensure safety
P ERSONAL S AFETY
1. Stay alert while using this hydrau-
lic equipment to prevent serious
injury. Do not use under the influ-
ence of drugs, alcohol or medi-
cine.
2. Do not wear loose hair or clothes
that may get caught while the
equipment is in operation.
3. To reduce the risk of injury, wear
nonconductive gloves and non-
skid safety-shoes. Always wear
protective eyewear.
4. Work safely. Maintain your bal-
ance and do not reach while oper-
ating hydraulic tools.
T OOL U SE AND C ARE
1. Do not use this tool if there are
any abnormalities or damage to
any of its components.
2. Keep out of the reach of children.
All users should be familiar with
its use before operating.
3. Inspect the tool before and after
every use. Do not use this tool if it
is damaged in any way.
4. Personal injury can be caused by
operating damaged or poorly
maintained tools. Check for loose
parts before use.
5. Use only KuDos recommended
accessories with this tool.
6. Do not use this tool in wet condi-
tions. Store this tool in a dry
place.
S ERVICE
1. This tool must be repaired by
qualified technicians. Do not
attempt to disassemble or repair
this tool yourself.
2. When having the tool serviced,
always use identical KuDos
replacement parts.
Hydraulic Flange Spreaders
www.ptr.co.th
KuDos Mechanical

• Keep the tool head free of dirt and metal chips. Use a
lubricant to clean the tool when necessary.
• DO NOT let the tool drop to the ground or into the case to
avoid damage to internal parts or to the plastic case.
• DO NOT keep this tool in places with high temperatures,
high humidity, or direct sunlight.
• Suggested working temperatures are -10°C to 40°C. Check
hydraulic fluid specifications.
• Hydraulic fluid temperatures over 65°C might soften seals
and cause fluid leaks.
• DO NOT DISASSEMBLE OR ATTEMPT TO REPAIR THIS TOOL.
Maintenance
Follow these tips to ensure long product life:
KuDos Industrial Inc. USA 5
Hydraulic Flange Spreaders
ATTENTION:
• KuDos hydraulic tools must be serviced by a qualified
technician.
• Replace any worn or damaged parts immediately. Do not
use any parts not supplied by KuDos.
• Contact KuDos service representatives to request parts or
for problems not shown here.
www.ptr.co.th
KuDos Mechanical

Product Description: K-SW15TE/K-SW9TM
S PECIFICATIONS :
• Length: 288 mm/283 mm •
Weight: 7.5kg/6kg
• Max. pressure: 700 bar/10,000psi
• Oil required: 79.0 cc/none
• Max. output: 15.60 tons/9.0 tons
• Max. tip clearance: 33 mm/32 mm
• Max. spread: 81 mm
• Integrated wedge concept: friction-free parallel
wedge movement eliminates flange damage and
spreading arm failure.
• Unique interlocking wedge design: no first step
bending and risk of slipping out of joint.
• Requires very small access gap of only 6mm (.24 in.)
• Two-stage pumping action
• Accessories: Spreader block, KuDos® tool bag, and
stepped-block extension kit. (Optional: wrench
used for model K-SW9TM)
F EATURES :
KuDos® Stepped Blocks can be used in a joint with
a wider gap or used to open a joint up to 3.16 in.
(81mm) further with less penetration. Fits both the
K-SW15TE and K-SW9TM models.
The stepped blocks can be attached by using the
supplied countersunk screws and hex key.
Hydraulic Flange Spreaders
S TEPPED -B LOCK E XTENSION K IT :
6 KuDos Industrial Inc. USA
www.ptr.co.th
KuDos Mechanical

KuDos Industrial Inc. USA 7

Hydraulic Flange Spreaders

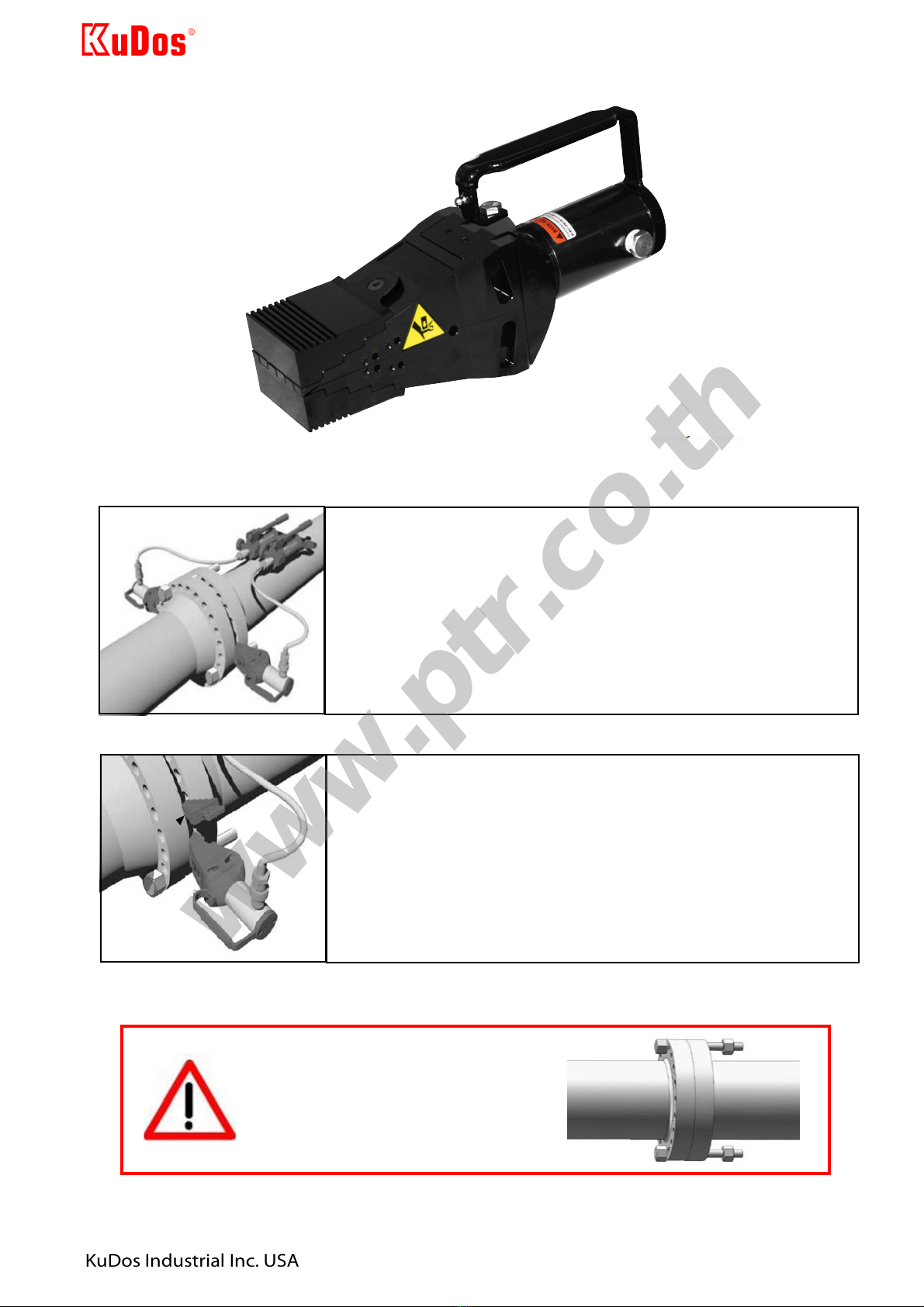

K-SW15TE
Before attaching the tool ensure at least
two ange bolts remain in place 180
degrees apart with nuts loosened
sufciently enough for ange work to
be carried out. These bolts will reduce
lateral ange movement during ange
spreading.
Strongly recommended that two K-SW15TE wedges be
used on the flange joint positioned 180 degrees apart.
Prime each pump individually ensuring that the flange
joint opens evenly.
The safety block should be inserted into the joint and
the pressure released when the joint has been opened
to the desired or the maximum spreading distance.
www.ptr.co.th
KuDos Mechanical

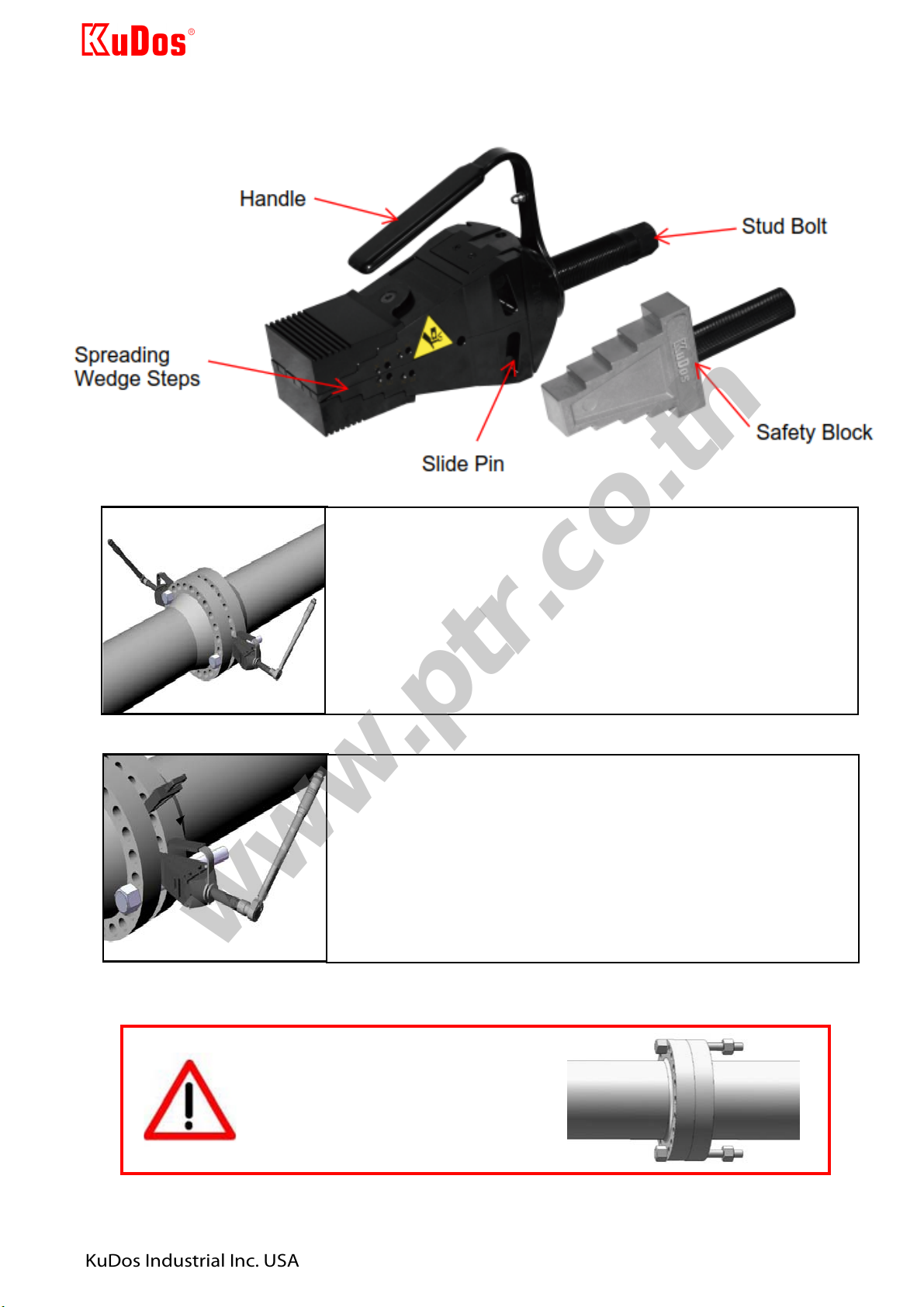

Handle
Spreading
Wedge
Slide Pin
Coupler

Hydraulic Flange Spreaders
8 KuDos Industrial Inc. USA
6mm
(0.236")
288mm
(11.338")
31mm
(1.22"0
57mm
(2.244")
33mm
(1.299")
333mm
(13.11")
58mm
(2.283")
84mm
(3.307")
Close Open
288mm
(11.417")
6mm
(0.236")
75mm
(2.952")
132mm
(5.196")
146.7mm
(5.775")
Dimensions
www.ptr.co.th

KuDos Industrial Inc. USA 9
Hydraulic Flange Spreaders

K-SW9TM
Before attaching the tool ensure at least
two ange bolts remain in place 180
degrees apart with nuts loosened
sufciently enough for ange work to
be carried out. These bolts will reduce
lateral ange movement during ange
spreading.
Strongly recommended that two K-SW15TE wedges be
used on the flange joint positioned 180 degrees apart.
Prime each pump individually ensuring that the flange
joint opens evenly.
The safety block should be inserted into the joint and
the pressure released when the joint has been opened
to the desired or the maximum spreading distance.
www.ptr.co.th
KuDos Mechanical

Hydraulic Flange Spreaders
Close Open
Dimensions
6mm
(0.236")
283mm
(11.14")
31mm
(1.22")
57mm
(2.244")
33mm
(1.30")
274mm
(10.78")
41.67mm
(1.64")
58mm
(2.28")
84mm
(3.30")
10
www.ptr.co.th
KuDos Mechanical

Hydraulic Flange Spreaders
Dimensions
    11
6mm
(0.236")
283mm
(11.14")
15mm
(0.59")
75mm
(2.952")
147.55mm
(5.8")
28mm
(1.10")
38mm
(1.49")
48mm
(1.89")
58mm
(2.28")
79.1mm
(3.11")
23mm
(1.023")
27
(1.06")
182mm
(7.165")
www.ptr.co.th
KuDos Mechanical

Operating Instructions
12
B EFORE USE , DON ’ T FORGET TO ...
• Make sure all parts of the product are clean and rust less, and that
no loose parts exist.
• Check that no leakage occurs while the tool is resting or while the
product is tested without cables.

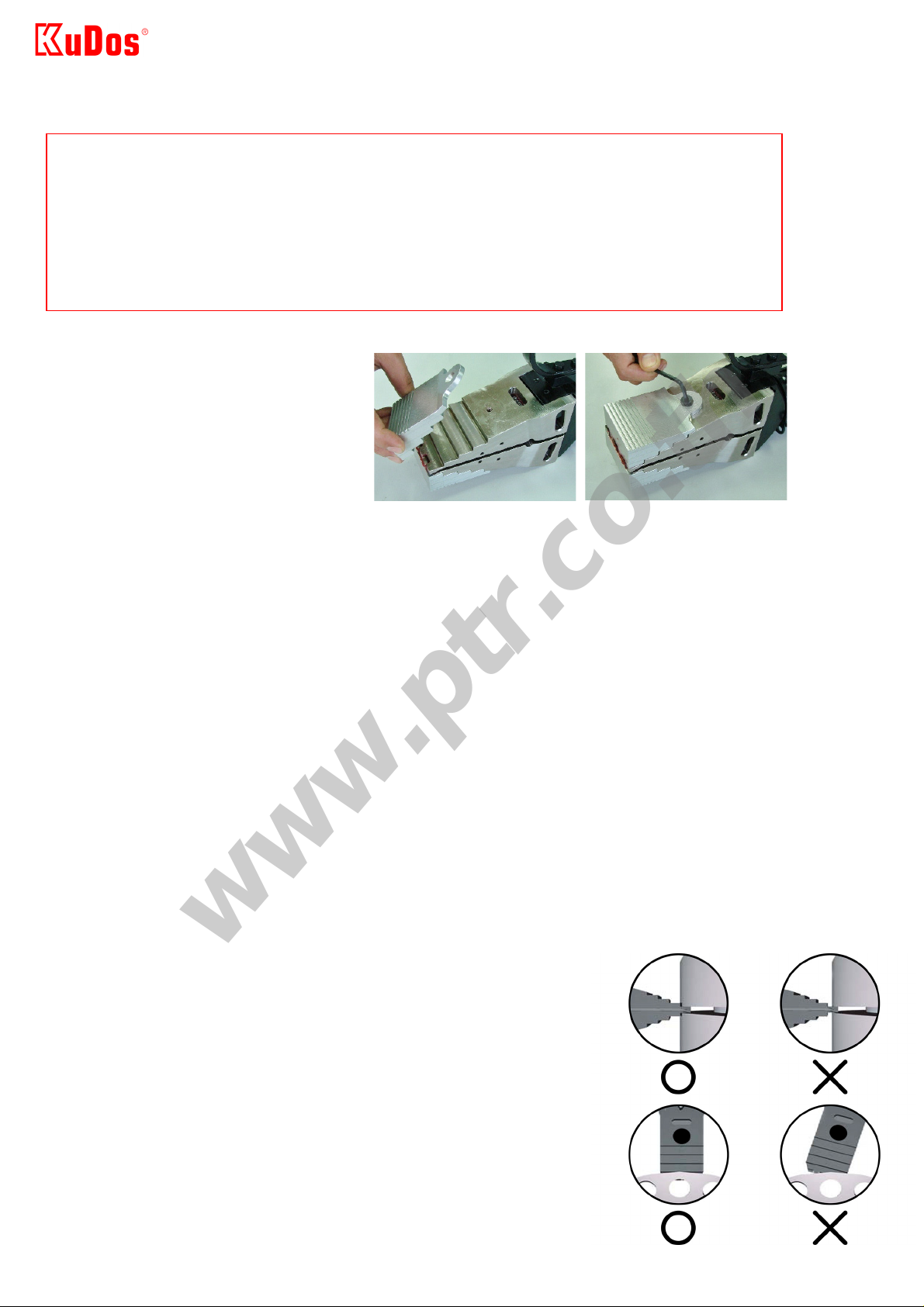

ATTENTION! When using the stepped blocks, ensure there is a mini-
mum hold of 15mm (0.59”) and that the full width of the block is used.
1. Connect the tool to the pump by engaging the couplers on the
tool and hose. Firmly tighten the couplers to prevent restricted
oil flow.
2. There must be a minimum access gap of 6mm or greater for the
flange spreader to be inserted.
3. Advance and retract the cylinder piston several times to
remove air trapped in the tool, hose or pump. Return the piston
to the start position.
4. Insert the spreading wedge into the access gap as far as the
heel of the chosen wedge step. The heel should be touching
the outer surface of the joint and the spreader squarely facing
the workpiece.
Hydraulic Flange Spreaders
Stepped-block extension kit:
Easy-to-install wedge extenders
closely fit the spreader wedges.
Install using the provided screws
and hex key.
- Insert the wedge into the joint until the heel of the step is in contact
with the outer surface of the joint.
- Ensure that the full step is used and that the jaw is positioned
centrally.
- Inserting the wedge incorrectly may result in tool breakage and ren-
der the warranty void.
www.ptr.co.th
KuDos Mechanical

5. Operate the pump to spread the flange. When the
flange has been opened to the maximum spreading dis-
tance of the current step, position the safety block into
the gap to hold the flange apart.
6. Once the safety block is inserted, retract the spreader,
and remove it. Continue the operation with a second
flange spreader if available.
7. Re-insert the spreader up to the heel of the next step so
the flange joint can be opened further. Repeat step 4.
8. Repeat steps 3-6 until the flange joint has been opened
wide enough to do the necessary maintenance or repair
work.
9. When the job is done, reverse steps 3-6 to gradually
bring the flanges back to their original position.
10. Retract the piston completely by releasing the pump
pressure.
11. Dismount the couplers. If the couplers won’t dismount,
restart the pump to release the internal pressure.
Replace the dust caps to the couplers.
A FTER USE , DON ’ T FORGET TO ...
• Clean the product and check to ensure that all pieces are in
working condition.
• Apply rust preventive oil to the product and blades before
returning it to the carrying case.
• Care should be taken not to drop any of the component parts
when removing them from the flange joint. This is to prevent
injuries to either operators or passers-by.
KuDos Industrial Inc. USA          13
Hydraulic Flange Spreaders
www.ptr.co.th
KuDos Mechanical

• A. One or more tool parts require repair. Replace
the parts immediately to prevent serious personal
injury or property damage.
• B. Spreader tool tip may be broken or damaged.
• C. Insufficient hydraulic fluid. Follow steps on page
9 to add fluid.
• D. The cylinder piston might be deformed after
crimping an off-centre fitting, or from the tool
being used in a manner for which it was not
intended.
• A. Piston may be deformed by uneven distributed
or oversized workpieces.
• B. Slide pins are blocked with impediments. Use an
airgun to remove impediments or a lubricant to
clean the tool.
• A. There is air in the hydraulic system. Follow the
directions on page 9 to eject the air and restore
piston action.
• B. Insufficient hydraulic fluid. Follow steps on page
9 to add fluid.
• A. Release valve is leaking. Contact your KuDos®
service representatives.
• B. Piston seal is leaking. Contact KuDos® service
representatives.
• C. Fluid leakage from the cylinder or pump body.
Contact your KuDos® service representatives.
Troubleshooting
The spreader tool
can’t complete the
task:
Spreader wedges
are stuck or unable
to retract:
Piston action is slow
or spongy:
14 KuDos Industrial Inc. USA
Hydraulic Flange Spreaders
Pressure leaks away:
www.ptr.co.th
KuDos Mechanical

Limited Lifetime Warranty
• KuDos® hydraulic products are warranted against defects in mate-
rials and workmanship for the life of the product. This is defined
as that point in time when the product no longer functions due to
normal wear.
• This warranty is subject to the following exclusions and limitations:
1. This warranty does not cover damages to products which
are not installed, operated, used and maintained in
accordance with written instructions.
2. This warranty does not cover products that have been
worn out, damaged by improper storage, damaged or oth-
erwise altered, or from disassembly or attempted disas-
sembly by parties other than KuDos® or its authorized
service representatives.
3. This warranty does not cover damages caused by the use
of components not manufactured or authorized by
KuDos®, acts of God, accidents, or use in a manner for
which they are not intended.
• KuDos's liability in all cases is limited to, and shall not exceed, the
purchase price paid. KuDos shall not be liable to any buyer for con-
sequential or incidental damages of any kind.
• Batteries, chargers, electric motors, gas engines and cutting blades
sold with KuDos products are not covered by this warranty. All elec-
tric motors and gas engines are separately warranted by the manu-
facturer.
• Receipt and warranty card are required for warranty services.
• If the tool is found to be defective, in our sole judgement, KuDos will
either repair or replace the defective product or part.
• All revisions in warranty policy and product information will be
included in future versions of our manuals. Copies of this warranty
are available from the factory upon request.
Hydraulic Flange Spreaders
KuDos Industrial Inc. USA 15
www.ptr.co.th
KuDos Mechanical

16 KuDos Industrial Inc. USA
K-SW15TE: Parts Guide
Hydraulic Flange Spreaders
www.ptr.co.th
KuDos Mechanical

KuDos Industrial Inc. USA 17



No. Part Q’ty
1 Locating Block 1
2 Socket Head Cap Screw 8
3 Slide Pin 4
4 Spreading Piece 2
5 Socket Head Cap Screw 1
6 Socket Head Cap Screw 4
7 Cylinder Cover 1
8 Piston Connector 1
9 Cylinder Bush 1
10 Screw 2
11 Copper Washer 2
12 Main Piston 1
13 Back-up Ring 1
14 Oil-Seal 1
15 Spring Connector 2
16 Tension Spring 1
17 Cylinder Body 1
18 Funnel 1
19 Hex. Nut 1
20 Handle 1
21 Screw 2
22 Safety Block 1
23Block Handle 1

24 Spreading Block 2

Hydraulic Flange Spreaders
25Hex. Screw   2
26 Screw 1
www.ptr.co.th
KuDos Mechanical

18 KuDos Industrial Inc. USA
K-SW9TM: Parts Guide

Hydraulic Flange Spreaders
www.ptr.co.th
KuDos Mechanical

KuDos Industrial Inc. USA 19

No. Part Q’ty
1 Locating Block 1
2 Socket Head Cap Screw 1
3 Hex. Nut 1
4 Bush Washer 2
5 Bushing 1
6 Locating stand 1
7 Socket Head Cap Screw 8
8 Spreading Piece 2
9 Slide Pin 4
10 Cylinder Cover 1
11 Socket Head Cap Screw 4
12 Nut 1
13 Funnel 1
14 Handle 1
15 Retaining Ring 1
16 Stud Bolt 1
17 Safety Block 1
18 Block Handle 1
19  Spreading Block 2
20 Hex. Screw 2
21 Screw 1




Hydraulic Flange Spreaders
www.ptr.co.th
KuDos Mechanical
No. Part Q’ty

We hereby certify that the following KuDos product was
manufactured in accordance with our specifications and
has passed our quality inspection.
For KuDos Authorized
Distributor Use Only:
//
Date of Purchase (dd/mm/yy)
For Industry or Individual
Buyer Use Only:
//
Date of Purchase (dd/mm/yy)
Manufacture & Quality Certificate
I TEM : H YDRAULIC F LANGE S PREADER
M ODEL NO .: □K-SW15TE □K-SW9TM
S ERIAL NO .:
I NSPECTION DATE :
Q.C. SUPERVISOR :
www.ptr.co.th
