Kul Teknik Extreme HD User manual

Pocket Mini HD Digital Video Recorder
USER MANUAL

CATALOG
PREFACE----------------------------------------------------------------------------------1
APPROVAL INFORMATION--------------------------------------------------------1
ABOUT THE MANUAL----------------------------------------------------------------1
WARNING---------------------------------------------------------------------------------2
Main Features-----------------------------------------------------------------------------3
The Name of Each Part------------------------------------------------------------------4
Display Instructions----------------------------------------------------------------------5
Package Contents-------------------------------------------------------------------------6
Power Charger--------------------------------------------------------------------------7-9
Storage Card-----------------------------------------------------------------------------10
Manual Structure--------------------------------------------------------------------11-12
Basic Operation----------------------------------------------------------------------13-19
General Specification-------------------------------------------------------------------20

01
PREFACE
Thank you for choosing the Extreme HD 1080p Full HD Helmet Camera to pursue your
digital video adventures. Whether you are racing at the track, pedaling through the woods or
gliding through fresh powder, to get the utmost satisfaction from your digital video, please
take a moment to read this manual. It’s contents will send you on an educational journey into
your camera’s multiple capabilities.
APPROVAL INFORMATION
All our products meet the requirements of approval FCC or CE, and are granted the FCC
or CE certification. They are authorized to bear FCC or CE mark.
FCC:
This product has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
CE:
This product complies with standards including Low Voltage Device Directive 73/23/EEC;
EMC Directive 89/336/EEC and R&TTE Directive1999/5/EC. It passed the subject tests by
the authority concerned and is authorized to bear CE mark.
ABOUT THE MANUAL
We do our best to ensure all content and details contained within this manual are accurate
and up to date with the product specifications at the time of printing this manual. However,
product functions and specifications may change without notice. In the event that the manual
information does not match the actual product functions or specifications, the products
functions or specifications will be considered correct and the manual’s considered incorrect.

02
WARNING
Do not store the device in any place with following conditions:
- High temperature (45C or higher)
- Exposure to the direct sun rays or a heating device
- Inside the car with closed windows (especially, in the summer)
- Humid place such as the bathroom
When removing dust, use soft, dry cloth. Do not use organic solvents such as thinner or
benzene or wet cloth.
Do not place a debit card or a bus pass near the speakers. Magnetic interference may
occur, which will damage the card.
Do not place the device near a magnet. The device may not work properly.
Do not repair, disassemble, or remodel the device.
Do not use the product in a place where use of electronic devices is prohibited.
Do not operate or set up this device while driving. If it is required to change set up,
please do it after pulling over the car or before driving.
Do not heat up or short the main body or the battery.
When using an auxiliary device, leave a gap between the auxiliary device and the main
device.
Incorrect use of the product by the user or a third party or static electricity or electric
shock loaded on the product may cause loss of or change in the data saved in the product
during repair services or replacement of the battery.
Keep the device out of reach of children.
Waterproof Capability
-The waterproof capability of this camera is similar as IPX6;
-Please do not use the camera under water;

03
Main Features
1.5inch TFT LCD(480 x 240)
5.0 MP High definition CMOS image s ens or
1080p H.264 .MOV video recording format
 Waterproof function ( Rain water l e v e l )
 Easy operation for recording and taking a p i ctu r e
 Optional recording resolution (Full HD /HD/WV GA / VGA)
 Optional picture resolution(3200 x 2400 /8M , 2592 x 1944/5M )
Video and Picture playback a v a il a b l e
Internal SD card reader for memory expand(SDHC 1GB~32GB a v a il a b l e )
High speed USB2.0interface for power charge and date tr a ns f er
HDMI 1080i o ut p ut
3.7V 1300MA removable and rechargeable Li-ion b a tt e r y
Secure mounts for different use

04
The Name of Each Part
1.Main Unit & Buttons
1 M I C
2 Power
o n / Po w e r charge i n di ca to r
3 M E NU b ut to n
4 D o w n / Fas t Fo r w a rd
5
Up / R e w i nd
6Recording i ndi c a to r
7 1.5inch LCD
8 Power ON/OFF,
/ Picture Capture / Quit / Co nf i r m
9 R e co rd / Pl a y / Cho o s e

05
Display Instructions
2.Display
& Icon
SD card
Icon
Usable Memory
Usable Recording time

3.Package Contents
Package Contents 06
Extreme HD

07
Power Charger
1. Checking The Battery Status
To install the battery, open the battery door by sliding the latch up (Latch is tight. You
may need to use a coin). Insert battery and rotate locking tab as shown. Close and latch
battery door fully before use.
1) Charging the battery
User can charge HD119 by connecting the USB cable to a computer or by using the AC
Adaptor.
A. Charging by connecting to PC
Connecting to the PC with the camera off will charge the battery. Connecting to the PC with
camera on will allow for data transfer.

08
Power Charger
B.Charging with AC/DC Adaptor
C.Charging with Cigar-lighter
2) Battery Charging Time & Operating Time
Charging Time
Continuous play time
Recording time
Approx. 5hrs in Power On
Approx 4 hours
Approx 2 hours and 30
minutes 1080P
Approx. 3hrs 30mins in Power Off
When plugging or unplugging the AC/DC adaptor, turning off the unit is strongly
recommended. The maker strongly recommends using a supplied AC/DC adaptor, but if it is
necessary that another AC/DC adaptor is purchased separately at a shop, please check its
electric specification is in accordance with HD119's specification.

09
Power Charger
3) Battery Remaining Status
Full Charge
Some Power Consumed
Power almost drained
No Power
To make sure the battery and power charge work as long as possible.
Do not leave unit plugged in for extended periods. Excessive power charge will
reduce the battery working life and possibly damage the unit;
The battery will gradually loose charge when not in use. Always charge it prior to
use.
Please disconnect power when unit is not in use.
For the first time usage, charge the battery at least 12 hours. Make sure the
power is off when charging battery

10
Storage Card
1, Card Type and Capacity.
A, The camera’s built in 32MB ROM memory is for system files only.
B, The camera’s built in SD card reader supports SD and SDHC cards up to 32GB.
Note: Some SD or SDHC cards may not work properly. SD/SDHC cards made by
Sandisk are strongly recommended.
2, Checking the Memory:
User should check if the SD card is installed well before using the camera.
Internal Memory
External
memory(SD card)
Please install the SD card correctly, the side with metal faces up, the side with character
faces down.

11
Manual Structure
Main Menu Record Setting
System Setting
Record Setting Size 1920 x 1080
1280 x 720
848 x 480
640 x 480
Size 8M
5M
EV +0/+0.3/+0.7/+1/+1.3/+1.7/+2.0
+0/-0.3/-0.7/-1/-1.3/-1.7/-2.0
White B Auto/Fluorescent/Tungsten/Cloudy/Sunny
Contrast Standard
Soft
Hard
Sharpness Standard
Soft
Hard
Effect Off/Vivid/Monochrome/Negative/Sepia/Art
Recycle No
15Mins
35Mins
45Mins
Audio No
Off

12
Manual Structure
System Setting Volume 1/2/3/4/5/6/7/8
Language
English
Russian
Spanish
Italiano
Date YYYY-MM-DD
Clock HH:MM
Format No
Yes
Sys.Reset No/ Yes
Off
Auto Off 5Mins
3Mins
1Min
Light Fred 50Hz
60Hz
Stamp On
Off
Lcd Off Off
5Mins
3Mins
1Mins
Version V2010924

13

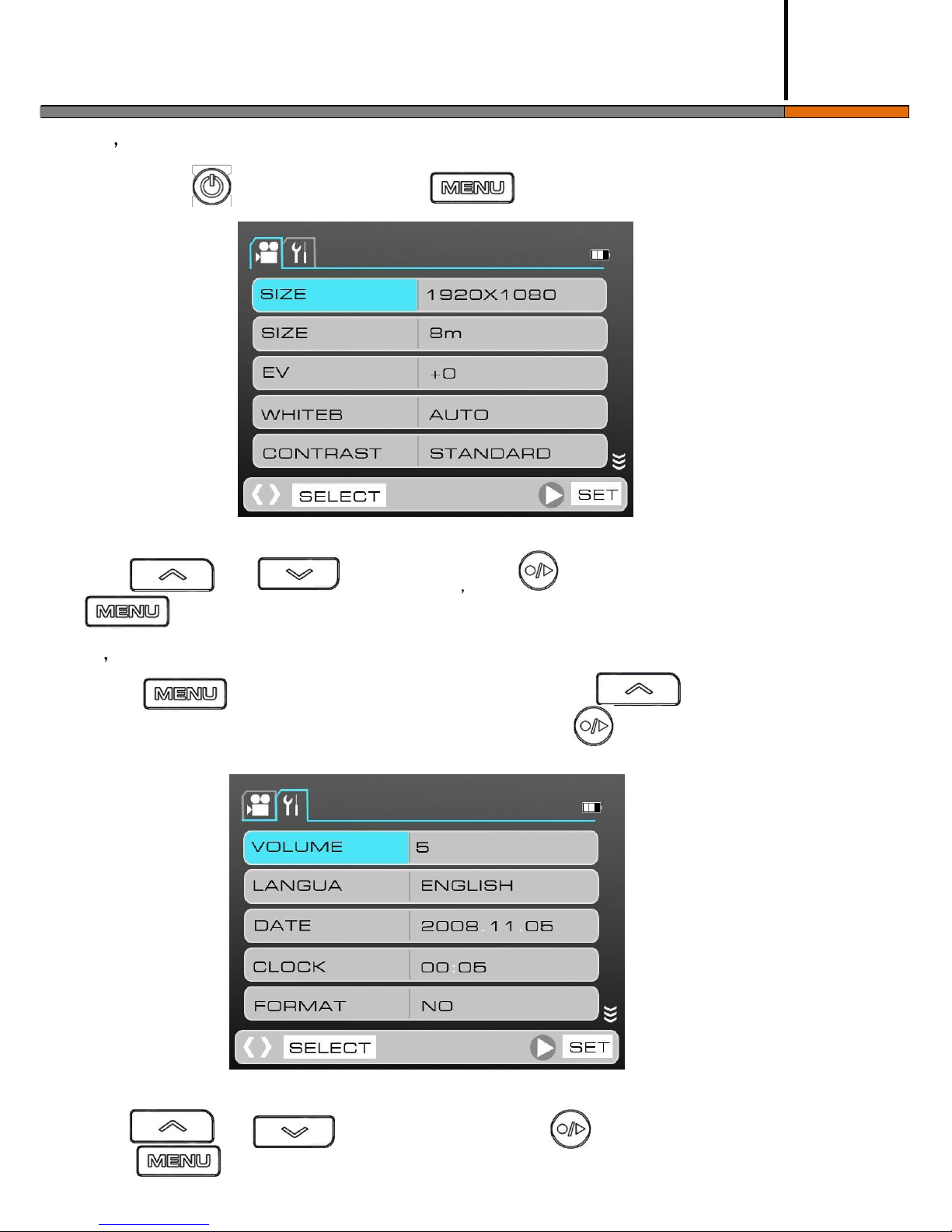

Basic Operation
to
1 Record Setting
Long press to power on, then press to enter the setting menu .
Use and to select menu press to change setting and press
save and quit.
2 System Setting
Press to enter the record setting menu, then press to enter the “system
setting”and “record setting”switch condition, then press to switch to the “system
setting”menu.
Use and to select menu, and press to change the setting, then
press to save and quit.

14
Basic Operation
3Take picture and Record video
Short press under monitor condition will take a picture, the red recording indicator
will flash one time .
Short press under monitor condition will start the video Recording. While recording,
the red recording indicator will flash and the red REC icon will be displayed in the upper left
corner of the screen . Figure below
Red indicator mean the camera is under recording condition
00:03:29 is the recorded time.
Estimated SD card recording time.
Below is the available recording time for video and pictures.( For reference only, real
parameters shall control)
SD Card
1280x720P
1920x1080P
848x480P
2592x1944
3200x2400
8GB
200min
120min
320min
3996photos
3193photos
4GB
100min
60min
160min
2386photos
1565photos
2GB
50min
30min
80min
1148hotos
753photos
1GB
25min
15min
40min
589photos
386photos

15
Basic Operation

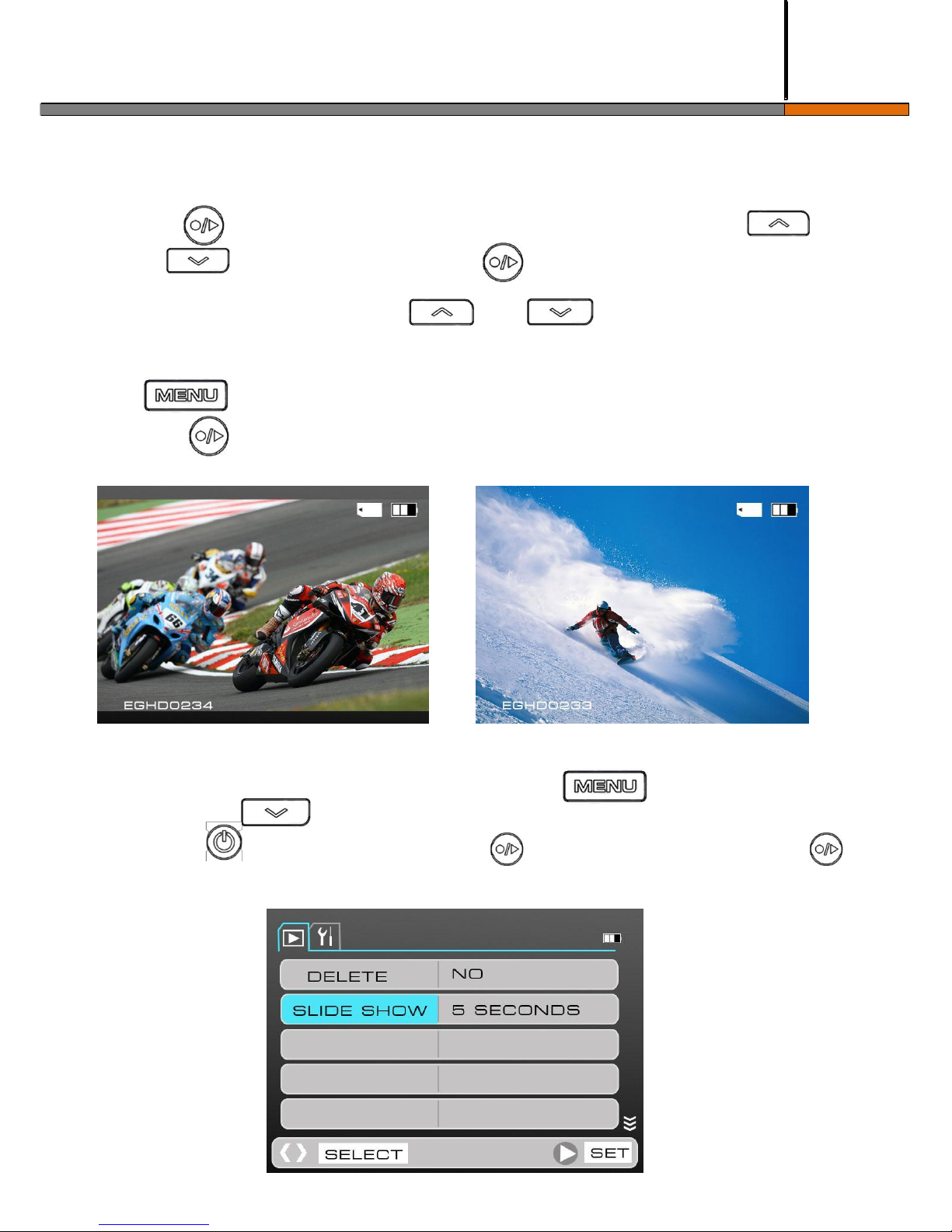

4, Video
p l a y b a ck
A, Playback in the camera
Long press to enter the playback condition under playback condition, use and
to select the files, short press to play the files.
While playing the files, you could use and to do Fast Forward and
Rewind.
Press to stop playing and quit.
Long press to quit playing back menu.
Video file display: Picture file display:
Slide show playback:
To review videos and pictures in slideshow mode, press under playback
condition, use to select “SLIDE SHOW”menu, choose the playing speed and
then press to confirm the setting, Press to begin slide show. Long press
to stop the slide show and return to video mode.

16
Basic Operation

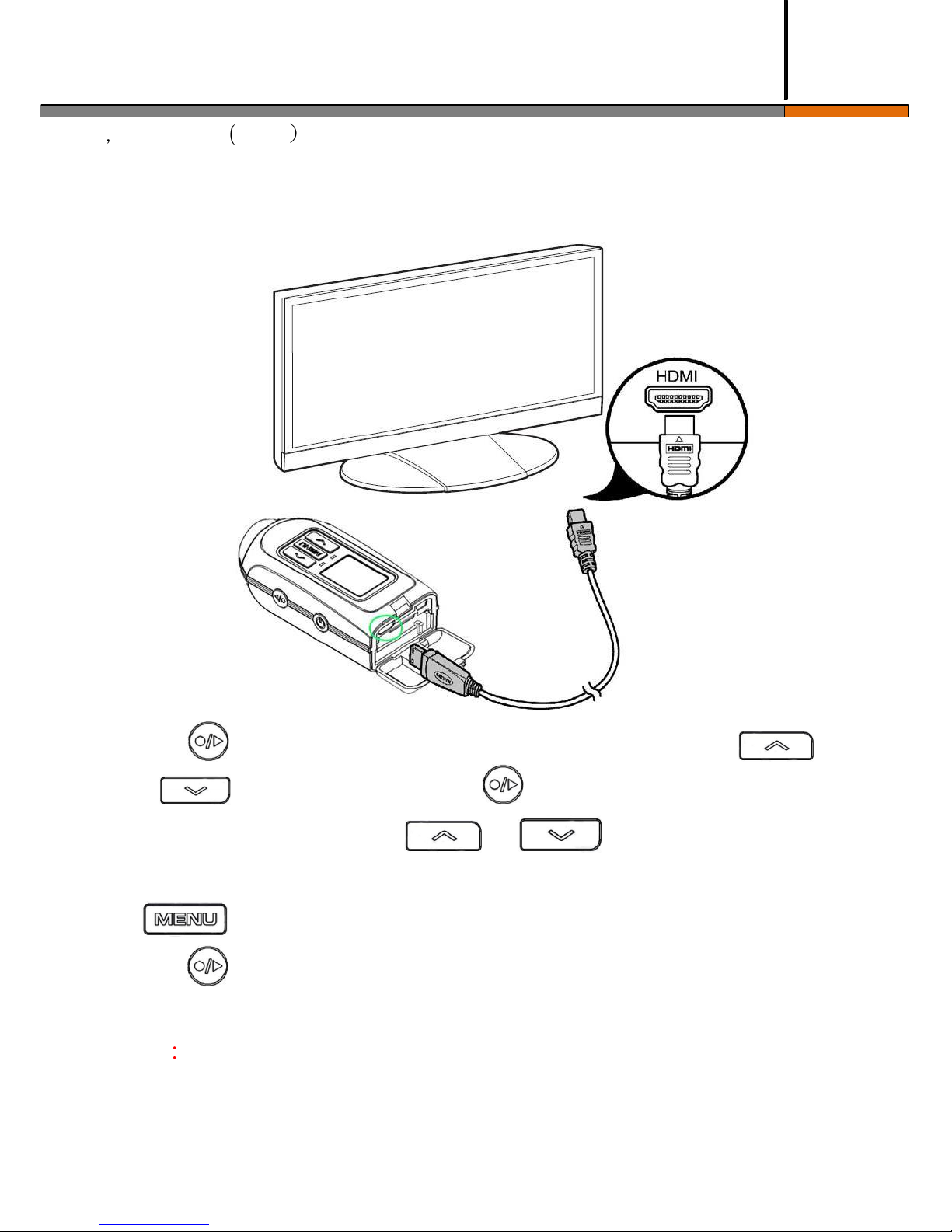

B TV playback HDMI
Connect the camera with TV by HDMI cable, power on the camera, switch the TV to the
HDMI video channel.
Long press to enter the playback condition under playback condition, use and
to select the files, short press to play the files.
While playing the files, you could use and to do Fast Forward and
Rewind.
Press to stop playing and quit.
Long press to quit playing back menu.
Attention
Output resolution is 1080i in playback mode and 480i in record mode. A 1080p HD TV is
required to view the 1080i HD signal. The camera will recognize the TV system when
connected.

17
Basic Operation

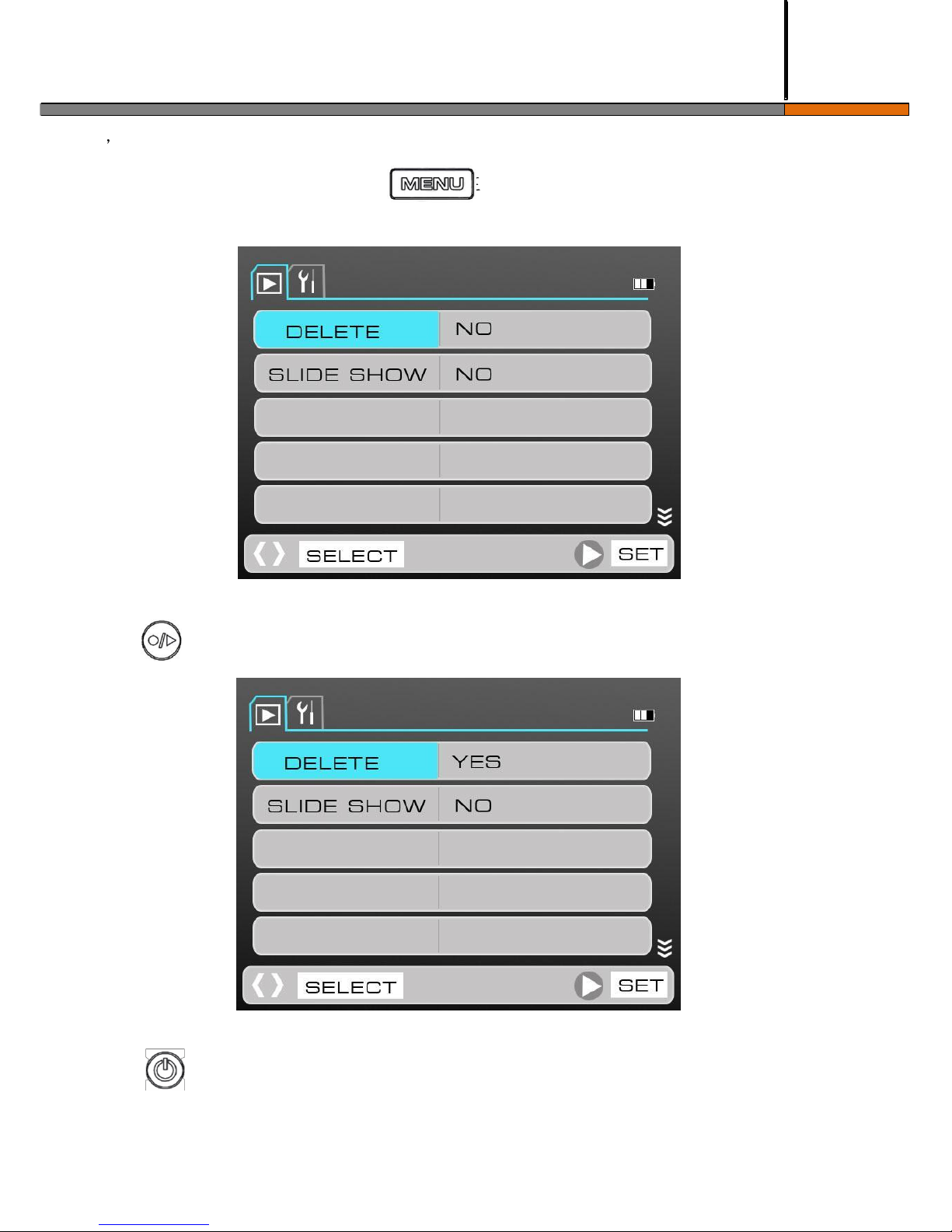

C Delete files
Under the playback condition, press to switch out the delete menu and do the
delete operation. (figure below)
Press to select YES or delete all.
Press to confirm “delete”operation.

18
Basic Operation

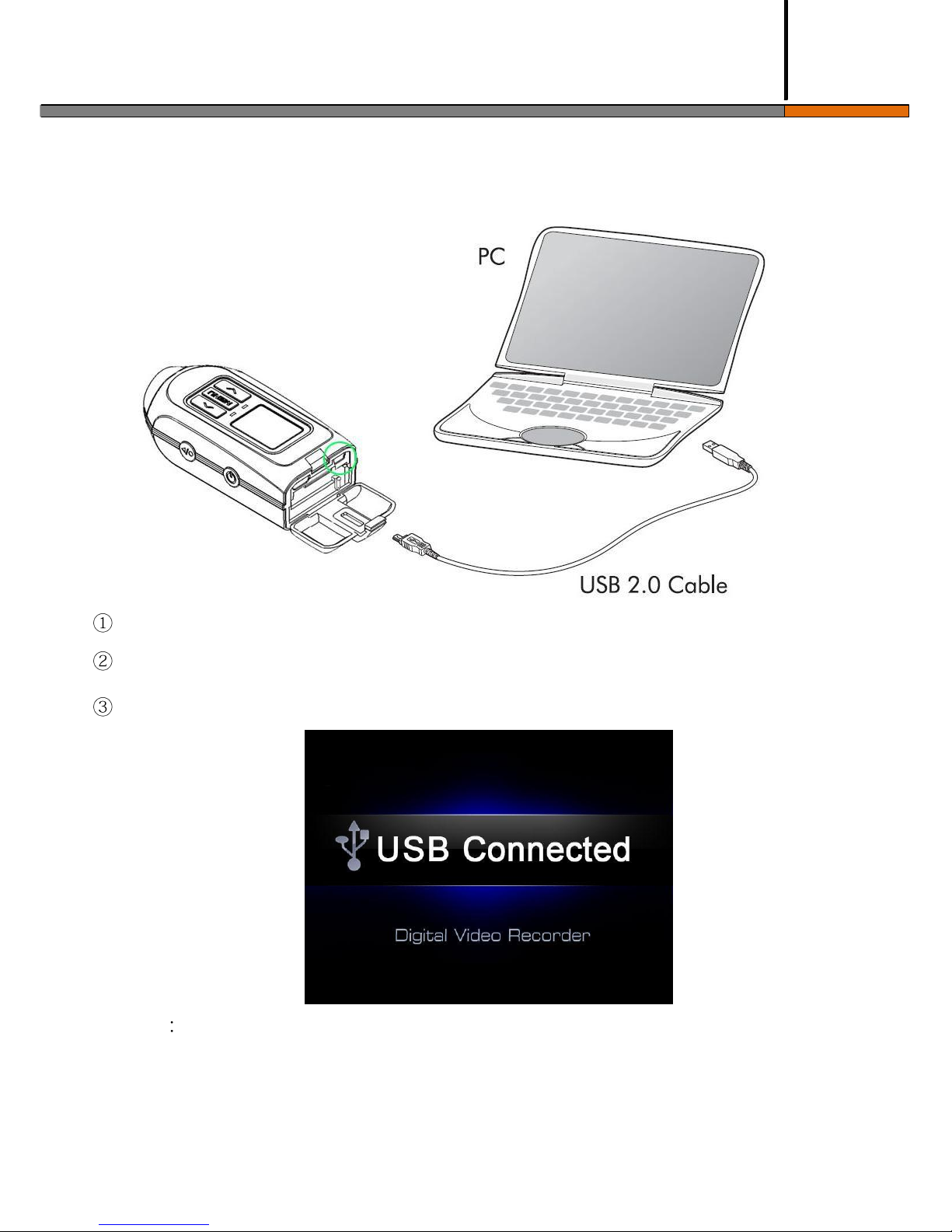

D, Connect with Computer
Connect HD119 to PC thru the provided USB cable for downloading or
uploading files and upgrading firmware
Connect the Camera with Computer by the USB cable
Power on the camera
The screen of the camera will display ”USB connected”.
Attention User can not do any operation on the Camera after connected with the computer,
only operation in computer available.
