Dear client,
Thank you for purchasing this product.
The quality of this appliance has been certied by several
laboratory tests. This instructions manual is provided to
simplify the use of the appliance as well as to guarantee a
safe use.
Please read carefully the instructions and safety measures
described in this manual.
We sincerely hope you will be satised when using your new
appliance.
Frigo-KC3120-Manual-1.indd 2 18/02/06 11:36

2
3
KC3120 WH
INDEX
1. SAFETY INSTRUCTIONS...................................... 4
1.1. Power Supply ................................................. 5
1.2. Power Cord and Other Cables........................ 5
1.3. Humidity and Water ........................................ 6
1.4. Cleaning.......................................................... 6
1.5. General Precautions ....................................... 6
2. OPERATING INSTRUCTIONS............................. 12
2.1. Product Description....................................... 12
2.2. Product usage............................................... 12
2.3. Maintenance ................................................. 18
2.4. Troubleshooting ............................................ 21
3. POST-SALE SERVICE......................................... 22
4. ENVIRONMENTAL PROTECTION ...................... 22
EN
refrigerator combi
Frigo-KC3120-Manual-1.indd 3 18/02/06 11:36

4
5
1. SAFETY INSTRUCTIONS
WARNING
Risk of Electric Shock
Do Not Open
Warning: to avoid the risk of electric shock,
do not remove the cover. The interior does
not contain any parts that can be repaired
by the user. Ask for assistance from the
Customer Support Service.
Important Warnings
Before using your appliance read these ins-
tructions manual carefully and keep it in a
safe place as you may need to consult it in
the future.
Before turning on your appliance, and to
ensure a safe and correct operation, do not
use if:
- It has fallen to the ground;
- You notice any evidence of damage;
- Any anomaly occurs during its operation.
To avoid hazards or deterioration of your ap-
pliance through incorrect use it is advisable
to read these instructions thoroughly.
Your appliance should not be used for other
purposes than the ones intended and sole-
ly for household use. Any damage resulting
from using the appliance outside this scope,
any incorrect use, as well as any manual
modications to the product will not be co-
vered and automatically voids the warranty.
Frigo-KC3120-Manual-1.indd 4 18/02/06 11:36

4
5
KC3120 WH
EN
refrigerator combi
Assistance
In case of malfunction, take your appliance
to the Customer Support Service for assis-
tance.
This appliance can be used by
children from the age of 8 and by
people with reduced physical, sen-
sorial or mental capabilities and/or
lack of experience and knowledge
if they have been given instructions
on using the appliance safely and
if they understand the hazards in-
volved. Children may not play with
the appliance. Cleaning and main-
tenance must not be carried out by
children without supervision.
These instructions are also available at
www.suporteworten.pt
1.1. Power Supply
Make sure the main voltage is compatible
with the appliance’s. If this is not the case,
please consult the Customer Support Ser-
vice.
1.2. Power Cord and Other Cables
Do not tangle the cord or pull it to discon-
nect the appliance. Also, keep the cord
away from warm surfaces.
Frigo-KC3120-Manual-1.indd 5 18/02/06 11:36

6
7
Never use the appliance if it has a damaged
cable or socket.
Take it to the Customer Support Service for
replacement.
1.3. Humidity and Water
Do not use your appliance in humid places.
Do not allow the appliance to become wet
under any circumstances as this may be
dangerous. To avoid re hazard or electric
shock do not expose your appliance to humi-
dity or water. Furthermore, do not place your
appliance under water (e.g. for cleaning).
1.4. Cleaning
Before cleaning, be sure to switch off the ap-
pliance and remove the plug from the main
power supply. Always allow the unit to cool
down before cleaning.
To clean the exterior of the product, use a
dry soft cloth only.
1.5. General Precautions
In the interest of your safety and to en-
sure the correct use, before installing and
rst using the appliance, please read this
user manual carefully, including its hints
and warnings. To avoid unnecessary mis-
takes and accidents, it is important to en-
sure that all people using the appliance
are thoroughly familiar with its operation
and safety features. Save these instruc-
Frigo-KC3120-Manual-1.indd 6 18/02/06 11:36

6
7
KC3120 WH
EN
refrigerator combi
tions and make sure that they remain with
the appliance if it is moved or sold, so that
everyone using it throughout its lifecycle
will be properly informed on how to safely
use the appliance.
For health safety purposes, please keep the
precautions of these user’s instructions as
the manufacturer is not responsible for da-
mages caused due to omission.
• Please follow the instructions in the user
manual which will help you to properly ins-
tall and operate this product and enjoy its
advanced features. Please keep the ins-
tructions for future reference.
• Read all instructions before using the pro-
duct.
• Maintenance and service operations are
only to be carried out by authorized pro-
fessionals.
• Any damage caused by manual modica-
tions to the product is not covered by the
warranty.
• If this product is used for other purposes
than the ones originally intended, or if it is
not correctly connected, the product may
become damaged and the warranty will be
voided.
• Keep all packaging materials away from
children, since there is risk of suffocation.
• If you are discarding the appliance pull the
plug out of the socket, cut the connection
Frigo-KC3120-Manual-1.indd 7 18/02/06 11:36

8
9
cable (as close to the appliance as you
can) and remove the door so to avoid chil-
dren from playing inside the fridge and su-
ffer an electric shock or to lock themselves
inside it.
• If this appliance featuring magnetic door
seals is to replace an older appliance ha-
ving a spring lock (latch) on the door or lid,
be sure to make that spring lack unusable
before you discard the old appliance. This
will prevent it from becoming a death trap
for a child.
WARNING! Keep ventilation openings,
in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING! Do not use mechanical de-
vices or other means to accelerate the de-
frosting process, other than those recom-
mended by the manufacturer.
WARNING! Do not damage the refrige-
rant circuit.
WARNING! Do not use other electrical
appliances (such as ice cream makers) in-
side of refrigerating appliances, unless they
are approved for this purpose by the manu-
facturer.
WARNING! Do not touch the light bulb if
it has been on for a long period of time since
it could be very hot1.
1. If there is a light in the compartment.
Frigo-KC3120-Manual-1.indd 8 18/02/06 11:36

8
9
KC3120 WH
EN
refrigerator combi
• Do not store explosive substances such as
aerosol cans with a ammable propellant
in this appliance.
• This appliance’s refrigerant circuit contains
a refrigerant called isobutane (R600a), a
natural gas with a high level of environ-
mental compatibility, which is nevertheless
ammable.
• When transporting or installing this ap-
pliance, please ensure that none of the
components of the refrigerant circuit beco-
mes damaged.
- avoid open ames and sources of ignition
- thoroughly ventilate the room in which
the appliance is located
• It is dangerous to alter the specications
or modify this product in any way. Please
keep in mind that any damage to the cord
may cause a short circuit, re and/or elec-
tric shock.
• This appliance is intended to be used in
household and similar applications such as:
- staff kitchen areas in shops, ofces and
other working environments;
- farm houses and by clients in hotels, mo-
tels and other residential type environ-
ments;
- bed and breakfast type environments;
- catering and similar non-retail applica-
tions.
Frigo-KC3120-Manual-1.indd 9 18/02/06 11:36

10
11
WARNING! Any electrical components
(plug, power cord, compressor, etc.) must
be replaced by a certied service agent or
qualied service personnel.
WARNING! The light bulb supplied with
this appliance is a “special use lamp bulb”
usable only with the appliance supplied.
This “special use lamp” is not usable for do-
mestic lighting2.
• Please be advised that the power cord
must not be lengthened.
• Make sure that the power plug does not
get pressed or damaged by the back of the
appliance, since a pressed or damaged
power plug may overheat and cause a re.
• Make sure that the appliance’s power plug
is always accessible.
• Do not pull the power cable.
• If the mains socket is loose, do not insert
the power plug, as there is a risk of electric
shock or re.
• This appliance must not be operated wi-
thout the lamp.
• Please note that this appliance is heavy,
therefore care should be taken when mo-
ving it.
• Do not remove nor touch items from the
freezer compartment if your hands are
2. If there is a light in the compartment.
Frigo-KC3120-Manual-1.indd 10 18/02/06 11:36

10
11
KC3120 WH
EN
refrigerator combi
damp/wet, as this could cause skin abra-
sions or frost/freezer burns.
• Please avoid extended exposure of the ap-
pliance to direct sunlight.
Daily use
• Do not put hot food on the plastic parts
inside the appliance.
• Do not place food products directly against
the rear wall.
• Frozen food must not be re-frozen once it
has been thawed out3.
• Please store pre-packed frozen food in ac-
cordance with the frozen food manufactu-
res instructions3.
• Storage recommendation provided by ap-
pliance manufactures should be strictly
followed. Please refer to relevant instruc-
tions.
• Do not place carbonated of zzy drinks
in the freezer compartment as it creates
pressure on the container, which may cau-
se it to explode, resulting in damage to the
appliance3.
• Ice lollies can cause frost burns if consu-
med straight from the appliance3.
3. If there is a freezer compartment.
Frigo-KC3120-Manual-1.indd 11 18/02/06 11:36

12
13
2. OPERATING INSTRUCTIONS
2.1. Product Description

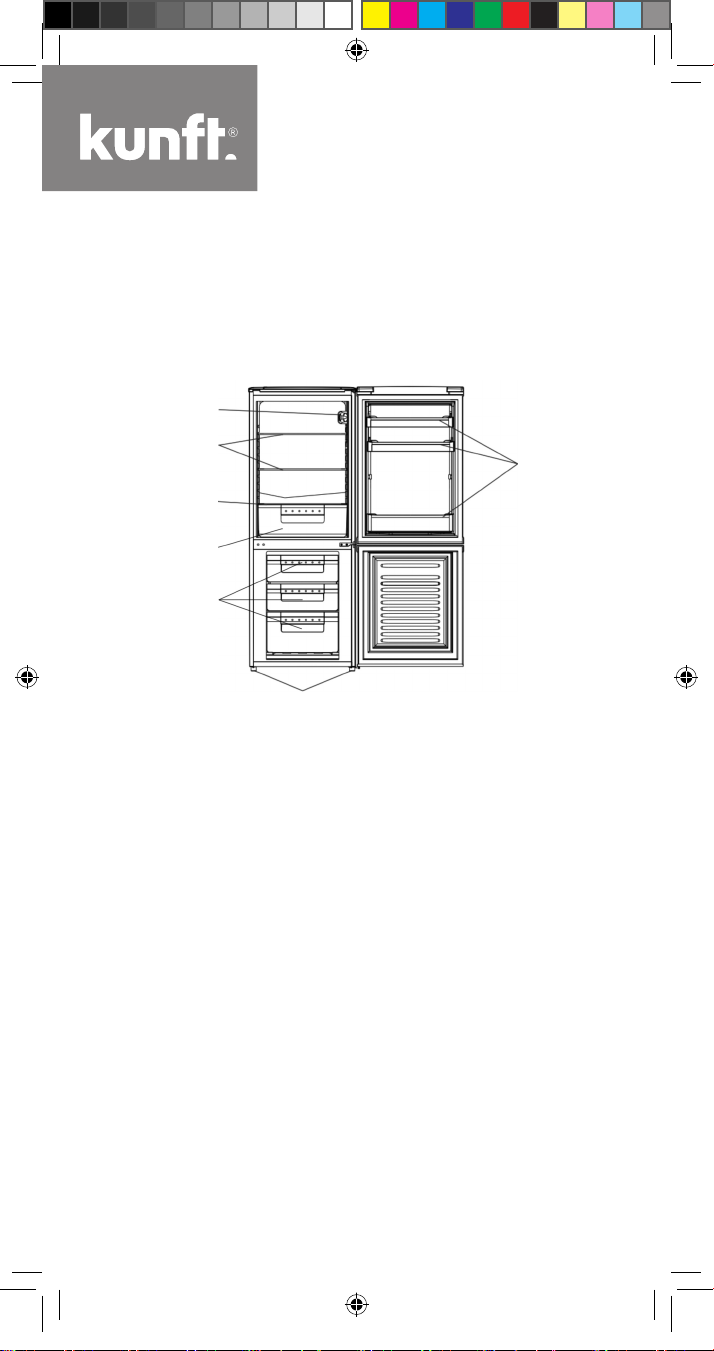

Overview
This illustration is only for reference, for details please check your
appliance.
2.2. Product usage
First use
Cleaning the interior
Before using the appliance for the rst time, wash the interior and all
internal accessories with lukewarm water and some neutral soap so
as to remove the typical smell of a brand-new product, and then dry
it thoroughly.
Important! Do not use detergents or abrasive powders, as these will
damage the nish.
Electrical connection
Before plugging your appliance to the mains, please ensure that the
voltage and frequency shown on the rating plate correspond to your
domestic power supply. Since the appliance must be earthed, the
power supply cable plug is provided with a contact for this purpose.
If the domestic power supply socket is not earthed, connect the
appliance to a separate earth in compliance with current regulations,
consulting a qualied electrician.
Levelling Feet
Thermostat
and Light
Glass Shelves
Crisper Cover
Crisper
Freezer Drawer
Balconies
Frigo-KC3120-Manual-1.indd 12 18/02/06 11:36

12
13
KC3120 WH
EN
refrigerator combi
The manufacturer declines all responsibility if the above safety
precautions are not observed.
This appliance complies with the EEC Directives.

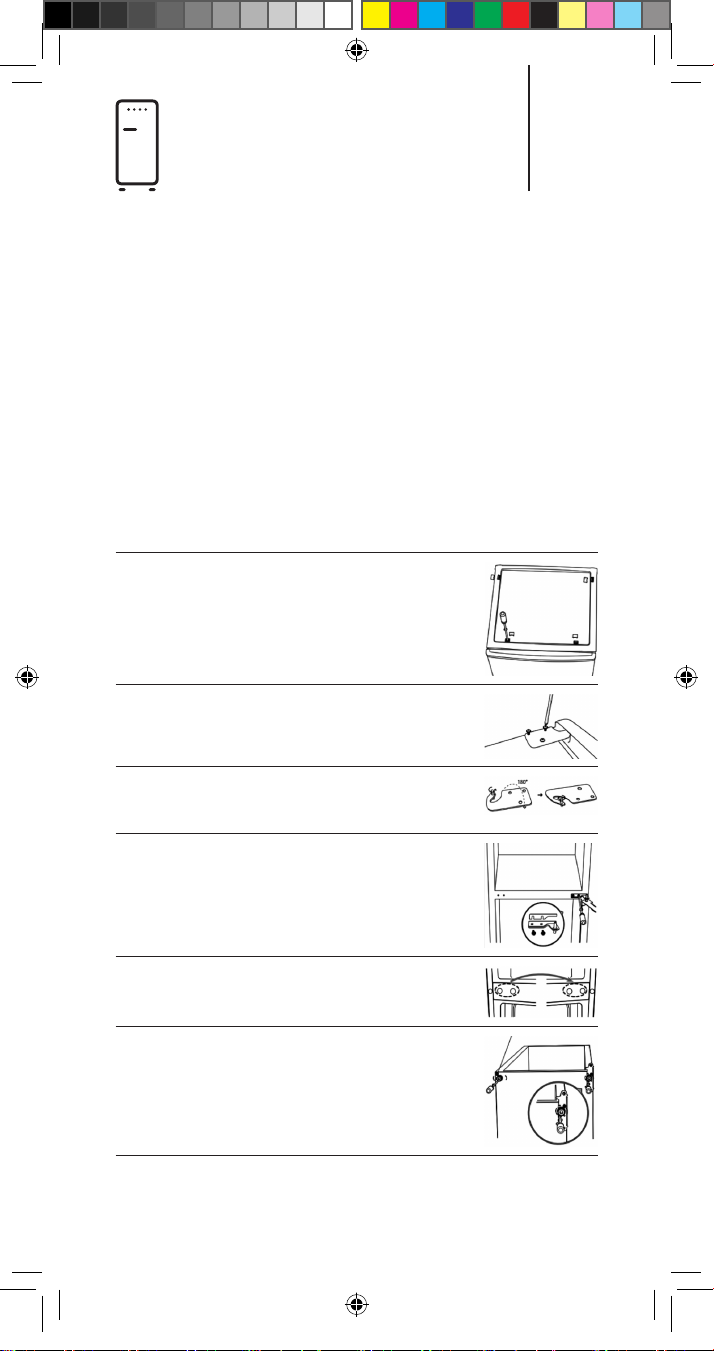

Reversing the door
Tool required: Philips screwdriver, Flat bladed screwdriver, Hexa-
gonal spanner.
• Please ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You
should rest the unit on something solid so that it will not slip during
the door reversing process.
• All parts removed must be saved to do the door’s reinstallation.
• Do not lay the unit at as this may damage the coolant system.
• It is advisable that 2 people handle the unit during assembly.
1. Remove all four screws in the top cover and
then lift it.
2. Unscrew the top hinge and then remove the
upper door, placing it on a soft pad to avoid
any scratches.
Unscrew
3. Remove the pin with a screwdriver and ip the
hinge bracket. Then ret the pin to the hinge
bracket.
4. Unscrew the middle hinge. Then lift the lower
door and place it on a soft pad to avoid any
scratches.
5. Move the hinge hole covers from the left side
to the right side.
6. Unscrew the bottom hinge.
Then remove the adjustable feet from both
sides.
Note: remove this screw if it is present.
Frigo-KC3120-Manual-1.indd 13 18/02/06 11:36

14
15

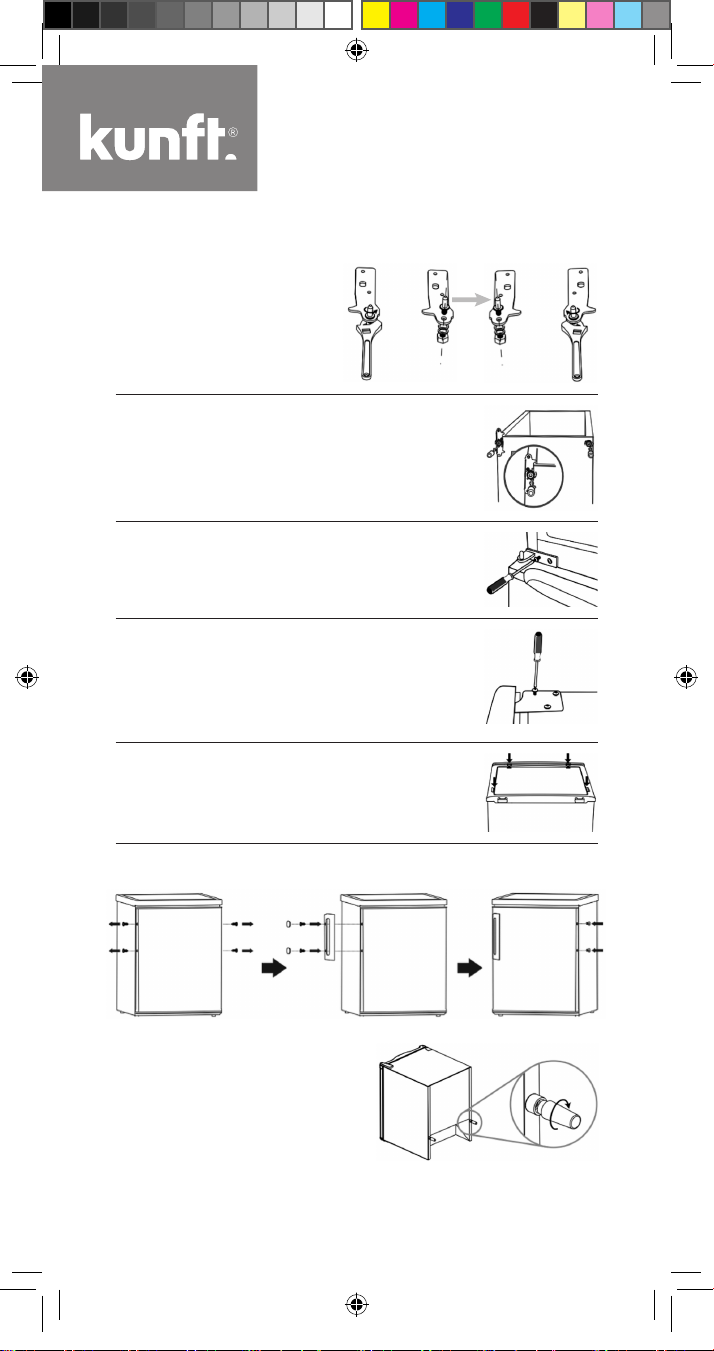

7. Unscrew and remove the
bottom hinge pin, turn the
bracket over and replace it. Unscrew Screw
8. Ret the bracket tting the bottom hinge pin.
Replace both adjustable feet. Transfer the
lower door to the proper position.
9. Make the middle hinge reverse 180º, then
transfer it to the left proper position. Place
the middle hinge pin in the upper hole of the
lower door and then tight the bolts.
10. Place the upper door back on. Ensure the
door is horizontally and vertically aligned
so that the seal closes on all sides before
nally tightening the top hinge. Then place
the hinge in position and screw it to the top
of the unit.
11. Put the top cover and then screw it back.
Install door external handle (if an external handle is present)
Rear spacer
Screw the rear spacers on the back
of the unit. Screw
Frigo-KC3120-Manual-1.indd 14 18/02/06 11:36

14
15
KC3120 WH
EN
refrigerator combi
Space Requirements
• Keep enough space to open the door.
• Keep at least 50 mm gap from both
sides.
Levelling the unit
To do this you need to adjust the two levelling
feet at the front of the unit.
If the unit is not levelled, the doors and
magnetic seal alignments will not be covered
properly.
Positioning
Install this appliance at a location where the ambient temperature
corresponds to the climate class specied on the appliance’s rating
plate:
Climate class Ambient temperature
SN +10 °C to +32 °C
N +16 °C to +32 °C
ST +16 °C to +38 °C
T +16 °C to +43 °C
Location
This appliance should be installed away from sources of heat
such as radiators, boilers, direct sunlight, etc. Please ensure
that air can circulate freely around the back of the appliance. To
ensure best performance, if the appliance is positioned below an
overhanging wall unit, the minimum distance between the top of
the appliance and the wall unit must be at least 100 mm. Ideally,
however, the appliance should not be positioned below overhanging
wall units. Accurate levelling is ensured by one or more adjustable
feet at the base of the appliance.
Warning! It should be possible to disconnect the appliance from the
mains power supply, and so the plug must be easily accessible after
installation.
Frigo-KC3120-Manual-1.indd 15 18/02/06 11:36

16
17
Temperature Setting
• Plug your appliance to the mains. The internal
temperature is controlled by a thermostat. There
are 8 settings, whereas 1 is the warmest setting,
7 is the coldest setting and 0 is off.
• The appliance may not operate at the correct temperature if it
is particularly hot or if you open the door often.
Freezing fresh food
• The freezer compartment is suitable for freezing fresh food and
storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the freezer compartment.
• The maximum amount of food that can be frozen in 24 hours is
specied on the rating plate.
• The freezing process lasts 24 hours: during this period do not add
other food to be frozen.
Storing frozen food
When rst starting-up or after a period out of use, before putting the
product in the compartment let the appliance run at least 2 hours on
the higher settings.
Important! In the event of accidental defrosting, for example the
power has been off for longer than the value shown in the technical
characteristics chart under “rising time”, the defrosted food must be
quickly consumed or immediately cooked and then re-frozen (after
being cooked).
Thawing
Deep-frozen or frozen food, prior to be used, can be thawed in the
fridge compartment or at room temperature, depending on the time
available for this operation.
Small pieces may even be cooked while still frozen, directly from the
freezer. In this case, the cooking process will take longer.
Ice-cube
This appliance may be equipped with one or more ice-cube
accessories to produce ice.
Accessories
Movable shelves
The walls of the refrigerator are equipped with
a series of runners so that the shelves can be
positioned as desired.
Frigo-KC3120-Manual-1.indd 16 18/02/06 11:36

16
17
KC3120 WH
EN
refrigerator combi

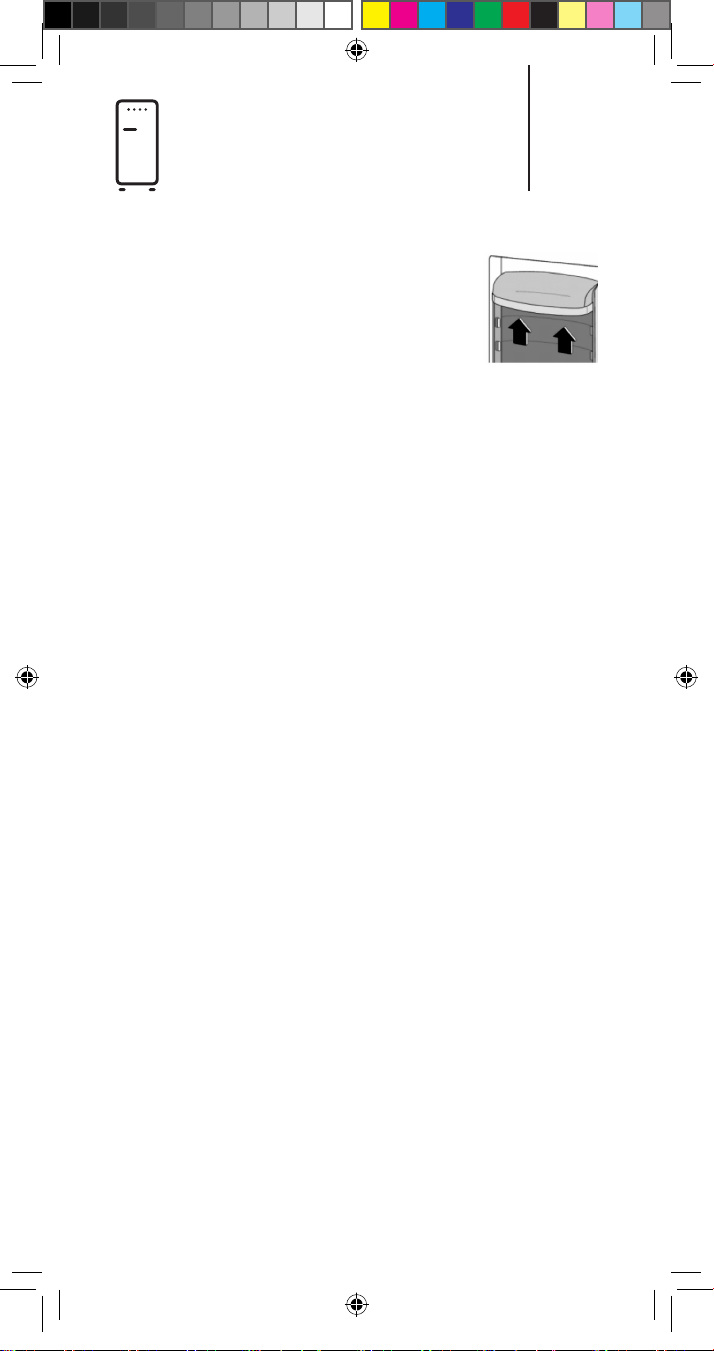

Positioning the door balconies
To permit storage of food packages of various
sizes, the door balconies can be placed at
different heights. To make these adjustments
proceed as follows: gradually pull the balcony
in the direction of the arrows until it comes free,
then reposition it as required.
Helpful hints and tips
To help you make the most of the freezing process, here are some
important hints:
• the maximum quantity of food that can be frozen in 24 hrs. is shown
on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen
should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned foodstuffs;
• prepare food in small portions so these can be rapidly and completely
frozen and to allow to subsequently thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that
the packages are airtight;
• do not allow fresh, unfrozen food to touch food that is already
frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; also remember
that salt reduces food’s storage life;
• ice cubes, if consumed immediately after removing them from the
freezer compartment, can possibly cause the skin to be freeze
burnt;
• it is advisable to show the freezing date on each individual pack to
enable a fast removal from the freezer compartment;
• it is advisable to show the freezing date on each individual pack to
enable you to keep tab of the storage time.
Hints for storing frozen food
To obtain the best performance from this appliance, you should:
• make sure that the commercially frozen foodstuffs were adequately
stored by the retailer;
• be sure that frozen foodstuffs are transferred from the food store to
the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than strictly
necessary.
• not re-frost food; once defrosted, food deteriorates rapidly and
cannot be re-frozen;
• not exceed the storage period specied by the food manufacturer.
Frigo-KC3120-Manual-1.indd 17 18/02/06 11:36

18
19
Hints for fresh food refrigeration
To obtain the best performance:
• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has a strong avour
• Make/pre-prepared doughs (all types): wrap in polythene bags and
place on the glass shelves above the vegetable drawer.
• For safety purposes, store like this only for one or two days at the most.
• Cooked foods, cold dishes, etc.: these should be covered and may
be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and
placed in the special drawer(s) provided.
• butter and cheese: these should be placed in special airtight
containers or wrapped in aluminium foil or polythene bags to
exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the
balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be
kept in the fridge.
2.3. Maintenance
Installation
Important! For electrical connection, please carefully follow the
instructions given in specic paragraphs.
• Unpack the appliance and check if there are any damages on it.
Do not connect the appliance if it is damaged and report possible
damages immediately to the place you bought it, retaining all
packing materials.
• It is advisable to wait at least four hours before connecting the
appliance to allow the oil to ow back in the compressor.
• Please allow proper air circulation around the appliance, otherwise
there is a risk of overheating. To achieve sufcient ventilation,
please follow the relevant instructions to installation.
• Wherever possible the spacers of the product should be against
a wall to avoid touching or catching warm parts (compressor,
condenser) to prevent possible burns.
• The appliance must not be located close to radiators or cookers.
• Please make sure that the power plug is accessible after installing
the appliance.
Service
• Any electrical work required to repair or maintain the appliance
should be carried out by a qualied electrician or competent person.
• This product should be serviced by an authorized Service Centre,
and only genuine spare parts should be used.
Frigo-KC3120-Manual-1.indd 18 18/02/06 11:36

18
19
KC3120 WH
EN
refrigerator combi
Energy saving
• Do not put hot food inside the appliance;
• Do not pack food close together as this prevents air circulating;
• Make sure food does not touch the back of the compartment(s);
• If electricity goes off, do not open the door(s);
• Do not open the door(s) frequently;
• Do not keep the door(s) open for too long;
• Do not set the thermostat on exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to get larger
storage volume and lower energy consumption.
Care and cleaning
• Before performing any maintenance to your appliance, switch it off
and disconnect the power plug from the mains socket.
• Do not clean the appliance with metal objects.
• Use a plastic scraper 4 to remove frost from the appliance, instead
of using any sharp objects.
• Regularly examine the drain in the refrigerator for defrosted water. If
necessary, clean the drain, because if it is blocked, water will collect
at the bottom of the appliance5.
For hygienic reasons the appliance’s interior, including interior
accessories, should be regularly cleaned.
Caution! The appliance may not be connected to the mains
during cleaning, since there is a danger of electrical shock!
Before cleaning, switch the appliance off and remove the plug from
the mains, or switch off or turn out the circuit breaker or fuse. Never
clean the appliance with a steam cleaner because moisture could
accumulate in electrical components and pose a danger of electrical
shock! Hot vapours can lead to the damage of plastic parts. Therefore,
the appliance should be dried before it is placed back into service.
Important! Ethereal oils and organic solvents can attack plastic
parts, e.g. lemon juice or the juice from orange peel, butyric acid, any
cleanser that contains acetic acid.

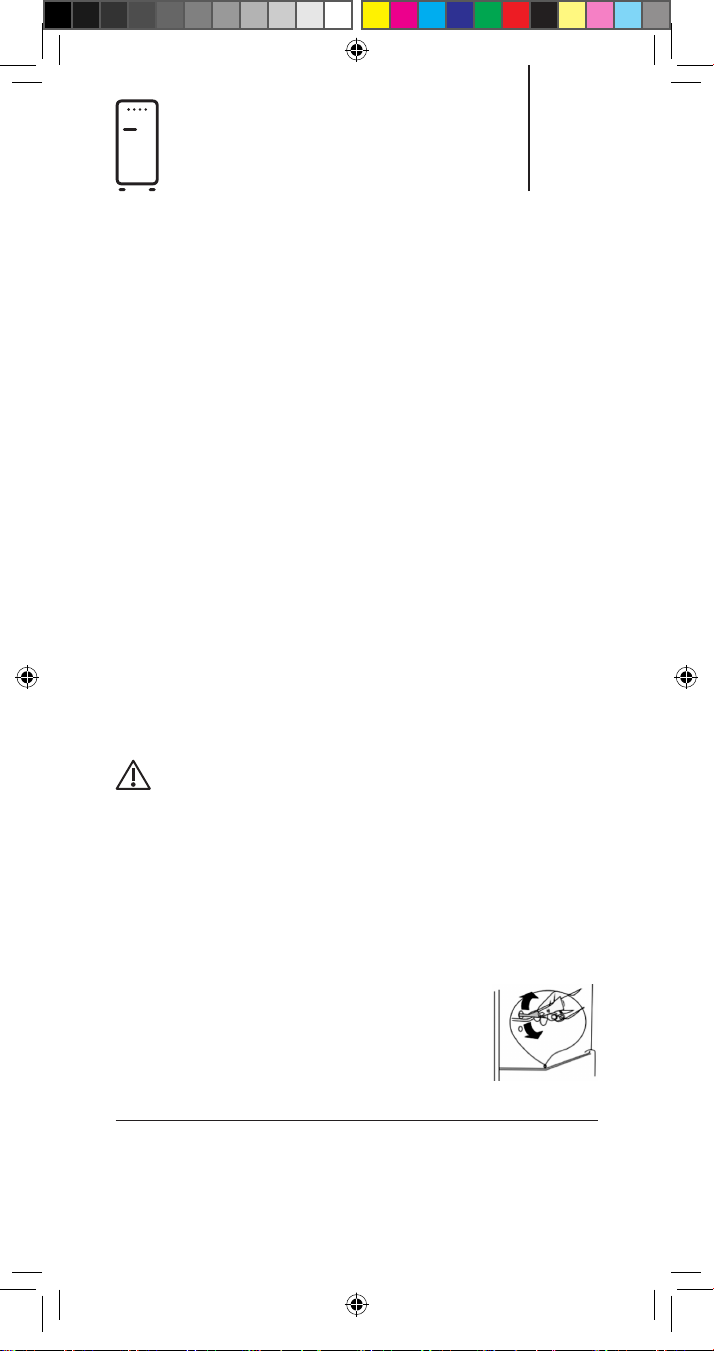

Cleaning the drain hole
To avoid defrost water overowing into the fridge,
periodically clean the drain hole at the back of the
fridge compartment. Use a cleaner tool to clean
the hole as showed in the picture on the right.
4. If there is a freezer compartment.
5. If there is a fresh-food storage compartment.
Frigo-KC3120-Manual-1.indd 19 18/02/06 11:36

20
21
1) If the condenser is at the back of the appliance
• Do not allow such substances to come into contact with the
appliance’s parts.
• Do not use any abrasive cleaners.
• Remove the food from the freezer. Store it in a cool place, well
covered.
• Switch the appliance off and remove the plug from the mains, or
switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth
and lukewarm water. After cleaning, wipe it with fresh water and
rub dry it.
• After everything is dry place the appliance back into service.
Defrosting the freezer
The freezer compartment, however, will become progressively
covered with frost, which should be removed. Never use sharp metal
tools to scrape off frost from the evaporator as you could damage it.
However, when the ice becomes very thick on the inner liner,
complete defrosting should be carried out as follows:
• unplug the appliance from the socket;
• remove all stored food, wrap it in several layers of newspaper and
put it in a cool place;
• keep the door open, and place a basin underneath the appliance to
collect all defrost water;
• when defrosting is complete, dry the interior thoroughly
replace the plug back in the socket to run the appliance again.
Replace the lamp
Caution! Before replacing the lamp,
please disconnect the appliance from the
main power supply.
The lamp’s specications are listed on the rating plate.
Please follow below process to replace the lamp:
1. Set the temperature regulation knob at number “0” to switch off
the appliance.
2. Unplug the appliance to make sure it is disconnected from the
main power supply.
3. Remove the screw of the lamp cover.
4. Pull the lamp cover out.
5. Unscrew the lamp.
6. Fit the new lamp in the opposite direction, then put the lamp cover
and screw back on.
7. Plug in the appliance and regulate the knob to the correct position.
Frigo-KC3120-Manual-1.indd 20 18/02/06 11:36
