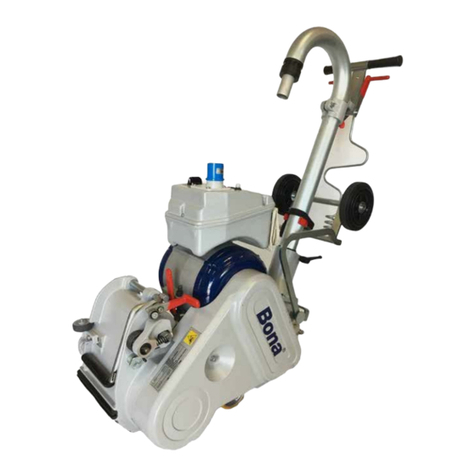

Kunzle & Tasin Bona Belt UX Operating instructions

EN
CS
DE
NL
FR
SK
ES
RU
SE
DK
PL
IT
Operating and Maintenance Manual
Bedienungs- und Wartungshandbuch
Manuel d’utilisation et de maintenance
Manual de funcionamiento y mantenimiento
Bruksanvisning
Instrukcja użytkowania i konserwacji
Manuale d'uso e manutenzione
Návod k obsluze a údržbě
Gebruiks- en onderhoudshandleiding
Príručka na obsluhu a údržbu
Руководство по эксплуатации и обслуживанию
Drifts- og vedligeholdelsesmanual
Bona Belt UX

Bona Belt UX Manual
2
Foreword
For a new manual contact:
Bona AB
Murmansgatan 130
P.O. Box 21074
SE-200 21 Malmö, Sweden
Tel [phone]
www.bona.com
ATTENTION:
This manual contains important information on the safe use
and operationof this machine. Failure to read this manual
before operating, adjusting or servicing this machine could
cause injury or damage to persons or objects.
Anybody operating the machine should understand how to
use and operate it before starting it up. Keep this manual for
future reference.
This manual is an ENGLISH translation of the original
version in Italian.

Bona Belt UX Manual
3
EN
Table of Contents
Foreword 2
Table of Contents 3
Machine Specifications 4
Machine Symbols Key 5
Operator Safety 6
Storage 7
Transporting and Handling 8
With one person 8
With two people 10
Introduction 11
Safe and correct use 11
Machine data plate 12
Commencing Operation 12
Instructions for assembly following transportation 12
Instructions for electrical connection 14
Cables, extensions and plugs 15
Removing sawdust generated during use 16
Prevention Measures for Users 16
Personal safety measures 16
Compliance with safety measures and warnings 17
Instructions on Correct Machine Use 17
Machine Warnings 18
Prohibited use 18
Starting the Machine 19
Machine Adjustment Procedures 22
Centering the abrasive belt 22
Adjusting sanding pressure 22
Wall edge castor 23
Wheel adjustment 23
Routine Maintenance 24
Sawdust chamber 24
Drums 24
Wheels 24
Dust bag 24
Belt tension 24
Drum pulleys and motor pulleys 25
Bearings 25
Spare Parts 26
Troubleshooting 26
Declaration of Conformity 28
Disposal 29

Bona Belt UX Manual
44
Machine Specications
Abrasive Belt Dimensions:
Drum Width:
Drum Diameter:
Drum Speed:
Motor:
Safety Motor Protection:
Drum Control:
Wheels Adjustment:
Wheels:
Bearings:
Drum Pressure Adjustment:
Noise Level:
(IEC 60704-1 [continuous
weighted sound pressure level A,
measured at a distance of 0.4m
from the handle and a height of
1.5m from the ground])
Vibration:
(ISO 5349 [weighted value of
the mean square derivation of
acceleration])
Machine Dimensions:
(assembled)
Net Weight:
Gross Packaging Dimensions:
Gross Weight:
(cardboard packages)
Standard Equipment:
750 mm x 203 mm
200 mm
185 mm
50 Hz – 1800-2050 rpm
(A85) EU – 230 V~50 Hz – 2.2 kW
(A34) EU – 230 V~50 Hz – 3 kW
(A34-5Hp) EU – 230 V~50 Hz – 3.7 kW
(A85 - A34 - A34-5 Hp) THERMAL SWITCH 20 A
In the event of a power cut the motor will not start without manual intervention.
Hand grip lever
Via adjustment screw
Ø 95 mm and 75 mm replaceable
Lifetime lubricated ball bearings
Innite adjustment via handwheel
87.5 dB(A) max
≤1.08 m/s2
1045 mm x 382 mm x 980 mm
85 kg
1 cardboard item on base pallet
830 mm x 536 mm x 760 mm
95÷98 kg
Dust bag
Start-up keys
Cable and dust pipe safety arm
Dust adaptor multi suction
Transport trolley
Power supply cable
Hear and facemask protection
User and maintenance manual

Bona Belt UX Manual
5
EN
5
Machine Symbols Key
Operator Safety
Read the instructions
contained in this user
and maintenance
manual before using
the machine.
Hearing protection
during use is
recommended.
Protection of the
airways during use
is recommended.
Hazard due to
moving parts.
Hazard due
to electricity.
HAZARD means:
Serious injury or death may
occur to the operator or
others if 'HAZARD' warnings
on the machine or in this
manual are ignored or not
kept to. Read and follow all
'HAZARD' warnings on this
machine or in this manual.
WARNING means:
Injury may occur to the
operator or others if
'WARNING' notices on the
machine or in this manual are
ignored or not kept to. Read
and follow all 'WARNING'
notices on this machine or in
this manual.
CAUTION means:
Damage may occur to
the operator or others if
'CAUTION' alerts on the
machine or in this manual are
ignored or not kept to. Read
and follow all 'CAUTION'
alerts on this machine or in
this manual.
Failure to read the Bona Belt HD machine manual
before operating, adjusting or performing maintenance
operations on the machine could cause injury or
damage to persons or objects.
Anyone operating the machine should understand how to
use and operate it before starting it up.
KEEP AWAY FROM CHILDREN
Children should be supervised to ensure that they do not
play with the appliance. This machine is not intended for
use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and
knowledge unless they have received instructions regarding
the use and are supervised by a person responsible for their
safety.

Bona Belt UX Manual
6
Operator Safety (Cont.)
Sanding may create an explosive environment. Cigarettes,
cigars, pipes, lighters, pilot ames, or any other source of re
may create an explosion, if lit during sanding operations. All
sources of ignition should be removed entirely from the work
area.
Poorly ventilated work areas may create an explosive
environment, when some combustible materials (solvents,
thinners, alcohol, fuel, some paints, wood dust, etc) are
present in the atmosphere. Floor sanding may cause various
materials and fumes to ignite. Read the manufacturer’s
instructions for each chemical product used and establish its
combustibility. Always keep the work area well-ventilated.
Striking nails when sanding may generate an explosion or re.
Always ensure all nails are sunk before sanding surfaces.
Serious injury and/or death due to electrocution may occur, if
the power supply circuit trips repeatedly or is undersized. Have
the fuses, safety circuit and power supply line checked by an
authorized electrician.
Performing maintenance and/or repairing the machine, when
it is not fully disconnected from the power supply, may cause
serious injury and/or death due to electrocution. Disconnect
the power supply before carrying out any maintenance and/or
repair work.
The use of this machine on a circuit which is not grounded
may cause serious injury and/or death due to electrocution.
Never disconnect or disable the grounding conductor. Consult
an electrician, if the ground conductor is missing or it is
suspected that the circuit is not suitably grounded.
The use of this machine with a damaged power supply cable
may cause electric shock. Check the power supply cable
regularly for damage, such as splitting or wear and tear. DO
NOT use the machine, if the power supply cable is damaged.
DO NOT use the electric cable to move the machine. DO NOT
close a door on cord. DO NOT pull cord around sharp edges
or corners.
DO NOT unplug by pulling on power supply cable. To unplug
grasp the plug. DO NOT handle plug or operate machine with
wet hands. DO NOT put any objects into motor openings.
Serious injury and/or death due to electrocution may occur if
the machine runs over the power supply cable and it becomes
damaged. Keep the cable away from the sanding tool. Always
keep the power supply cable raised above the machine and
sand away from the power supply cable.
The moving parts on this machine may cause serious injury
and/or damage. Keep hands, feet and loose clothing away
from all moving parts of the machine.
Operating the machine without all guards, doors, or covers in
place can cause an injury or damage.
DO NOT pass with the machine on objects that are hot,
burning or smoking, such as cigarettes, matches or cinders.
Performing maintenance or replacing the dust bag may cause
injury to the operator or people nearby, if the machine is
connected to the power supply. Always unplug the machine
when not in use.
DO NOT use solvents or other ammable products to clean
this machine.
Dry use only. DO NOT use for liquid recovery, which could
result in motor failure, electric shock, and electrocution.

Bona Belt UX Manual
7
EN
Operator Safety (Cont.)
Never become distracted during sanding operations, check
what is happening continually. Use common
sense. DO NOT use the machine, if you are tired, have
consumed alcohol or have taken medication that
may affect your judgement or your body control.
DO NOT smoke during sanding operation.
DO NOT use this machine to sand steps and furniture.
DO NOT ride on this machine.
DO NOT put any objects into openings. DO NOT use with
blocked openings. Keep free from dust, lint, hair or anything
that may reduce airow.
Storage
It is advisable to store the machine in its original
packaging. Doing so makes it possible to form a
column of two packages maximum, with one
on top of the other.
If the machine is removed from the original
packaging and is not used for some time ensure
the wheels and drum are not in contact
with the ground.
This equipment is for dry use only and must not be used
or kept outside in wet conditions. Store the machine in a
dry building, otherwise the machine could be damaged.
Storage temperature
from -20 °C to 50 °C.

Bona Belt UX Manual
8
Transporting the machine by yourself? Proceed as follows:
Transporting and Handling
With one person
The machine is heavy therefore remove the motor and handle unit before it is transported.
Ask for assistance to transport the three parts.
The machine can be dismantled into three parts to facilitate transportation:
Motor Suction tube/handle unit Base frame with drum
Ensure the power supply cable is disconnected from the mains
and the machine.
Open the belt guard after turning the screw counter-clockwise.
1. 2.

Bona Belt UX Manual
9
EN
3. A.
4. 5.
6.
Transporting and Handling (Cont.)
With one person (cont.)
Loosen the belt tightener using the lever (A) and remove the belts.
Loosen the knob (A) until the hollow
washers positioned on the motor
support shaft slip out of their support
housing.
Remove the motor and take it
to the work area.
After lowering the lever (A), lift the casing (B) and release the bar (C) from the cylinder (D).

Bona Belt UX Manual
10
Transporting and Handling (Cont.)
Loosen the handle (A) and remove
the tube (B) from its housing and
take it to the work area.
Lift the base frame by clasping
the front and back. Bring
the belt guard to the edge and
take it to the work area.
7. 8.
One operator should clasp the handle grip...
1.
...The second, holding the lift
handle, will lift the machine.
2.
With one person (cont.)
With two people
Transporting the machine with two people? Proceed as follows:

Bona Belt UX Manual
11
EN
Transporting and Handling (Cont.)
Introduction
With two people (cont.)
Safe and correct use
This instruction manual should be read carefully before
using the Bona®BELT UX wood flooring sander for the
first time.
The instruction manual contains important information on
safety and preventing improper use of the machine and will
resolve any doubts or questions, making it possible to operate
the machine safely and with ease.
Removing safety features could cause death or physical
injury. Familiarize yourself with the machine before using
it for the rst time.
This equipment is not to be used by anyone (children included)
with physical or mental disabilities, or anyone without the
relevant experience and knowledge, unless they have received
instructions on using the equipment and are supervised by a
responsible person to ensure their safety.
Children must be supervised to ensure that they DO NOT play
with the machine.
If a situation arises which has not been described in this manual, contact your distributor or
Bona®Representative.

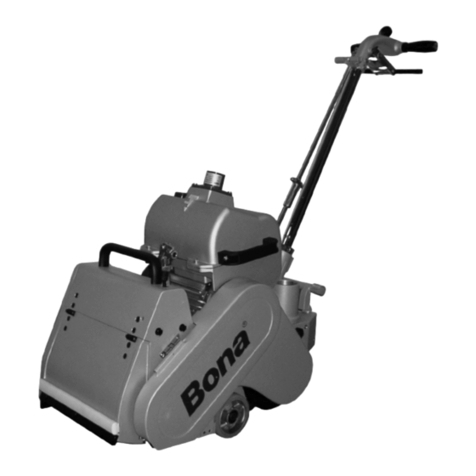

The Bona® BELT UX wood ooring sander is suitable for the
dry sanding of wood oors. Any other use without the consent
of the manufacturer is prohibited. DO NOT use on wet oors.
See ‘Prohibited use’ on page 18.
Keep hands and clothing away from moving mechanical parts.
The work area is protected via the base frame and the mobile
cover on the abrasive drum.

Bona Belt UX Manual
12
Introduction (Cont.)
Commencing Operation
Machine data plate
Instructions for assembly following transportation
1) Machine model
2) Safety symbols
3) Motor power
4) Supply voltage and frequency
5) Country of manufacture
6) Year of manufacture (see 8)
The following information can be found on the machine data plate:
7) Name of manufacture
8) Serial number. For example TA1915103
• The rst two numbers refer to the year of manufacture
(19 =2019)
• The second group of three numbers indicates the day of
the year the machine was manufactured (151 = May 31h)
• The last two numbers indicate the progressive number of
machines produced that day of manufacture
(03 = 3th machine produced that day)
To reassemble the machine after transportation, proceed as follows:
Open the belt guard after turning
the screw counter-clockwise.
1.
Position the motor in its
housing.
2.

Bona Belt UX Manual
13
EN
Commencing Operation (Cont.)
Instructions for assembly following transportation (cont.)
Secure the motor by tightening the
knob (A).
Fit and stretch the belts.
3. 4.
Close the belt guard and tighten
the screw.
5.
Pull the belt tightener (A) as
shown.
6.
Excessive belt tension may cause the premature failure of the ball bearings.
The drum belt must have a 10.5 mm stretch with a center load of 30±3 N.
Belt tension can be adjusted using the screw.
The vacuum cleaner belt must have a 8 mm stretch with a center load of 18±2 N.
The belt tension can be adjusted using the belt tightener.
Using the machine when not fully assembled may cause injury or damage to people or objects.
DO NOT use the machine when it is not fully assembled. Keep all ttings tightly closed. Maintain
machine settings in accordance with the specications.

Bona Belt UX Manual
14
Commencing Operation (Cont.)
Instructions for assembly following transportation (cont.)
Instructions for electrical connection
Lift the drum with the lever (A).
8.
Connect the power supply cable
to the machine and power supply.
9.
Fit the suction pipe (A) and drum control rod (B).
7.
This machine only operates with the voltage and frequency
shown on the machine data plate. Before connecting the cable
to the power supply ensure the correct voltage and frequency
are available.
DO NOT expose the machine to rain. This machine is intended
for dry use only. Keep the machine in a dry building and
DO NOT use it in damp or wet places.If the machine is not
connected correctly to the electricity network, death due to
electrocution may occur.

Bona Belt UX Manual
15
EN
Cables, extensions and plugs
Commencing Operation (Cont.)
Instructions for electrical connection (cont.)
If the machine is not connected correctly to the electricity
network, death due to electrocution may occur. To prevent
electric shocks always use a grounded three wire electrical
system. For maximum protection against electric shocks use a
circuit protected with a differential cut-out switch.
Tampering with the grounding plug in any way may result in
death from electrocution. DO NOT cut, remove or break the
grounding plug. If the socket does not match the plug consult
a qualied electrician.
Using the machine with unsuitable and/or excessively long
cables may cause injury or damage to people or objects.
Do not use the machine if the switch malfunctions.
If the machine is used with a damaged plug or power supply
cable, death may occur from electrocution. If cables or plugs
are worn or damaged in any way, have them replaced by the
manufacturer or certied machine repair center in order to
prevent risks to safety.
The machine must never be moved using its cable and the
cable must never be pulled when disconnecting from the
socket.
Keep the cable away from sources of heat, oil and sharp
edges.
Only use approved cables. The maximum recommended cable length is 10 m; for greater lengths use cables
with a larger cross-section.
MACHINE WITH 230 V~50 Hz SINGLE PHASE MOTOR 2.2 kW
For machines with a 230 V~50 Hz motor (EU), a HO5VV-F-3x2.5 mm2HAR-approved power supply cable must be used
along with an approved SCHUKO 2P+E 16 A 200÷250 V plug.
MACHINE WITH 230 V~50 Hz SINGLE PHASE MOTOR 3.0 kW
For machines with a 230 V~50 Hz motor (EU), a HO5VV-F-3x2.5 mm2HAR-approved power supply cable must be used
along with an approved 2P+E CE 32 A 200÷250 V plug.
MACHINE WITH 230 V~50 Hz SINGLE PHASE MOTOR 3.7 kW
For machines with a 230 V~50 Hz motor (EU), a HO5VV-F-3x2.5 mm2HAR-approved power supply cable must be used
along with an approved 2P+E CE 32 A 200÷250 V plug.

Bona Belt UX Manual
16
Commencing Operation (Cont.)
Prevention Measures for Users
Removing sawdust generated during use
Personal safety measures
Sawdust can ignite spontaneously and cause injury or
damage. It must be disposed of appropriately. Always empty
the sawdust into metal containers which are located outside
the building.
Sawdust can ignite spontaneously and cause injury or
damage. Empty the contents of the dust bag when it is 1/3 full.
Empty the dust bag at the end of each machine use. Never
leave the dust bag unattended when it contains sawdust. Do
not empty the contents of the dust bag above a re.
For minimized dust environment use a vacuum cleaner
intended for wooden dust.
Sawdust can spread through the air and be inhaled when
using the sanding machine. Always wear a dust mask of at
least class P2, when using the sanding equipment.
The eyes and/or body may suffer injury if personal safety
clothing is not used. It is adviceble to wear safety goggles,
protective clothing during sanding operations.
Lengthy exposure to noise levels during sanding operations
may damage the hearing. Always use ENISO approved ear
protectors (earmuffs) during sanding operations.

Bona Belt UX Manual
17
EN
Prevention Measures for Users (Cont.)
Compliance with safety measures and warnings
Using the machine when not fully assembled may cause
injury or damage to people or objects. DO NOT use the
machine when it is not fully assembled. Keep all ttings
tightly closed. Maintain machine settings in accordance with
the specications.
Failure to comply with instructions on this machine and
in this manual may cause serious injury and/ or damage.
Read and comply with all safety instructions. Ensure that all
plates, labels, warnings and instructions are secured to the
machine. New plates can be obtained from an authorized
Bona /Kunzle & Tasin dealer.
Injury or damage may occur if maintenance operations or
repairs are carried out by any unauthorized
personnel.
Instructions on Correct Machine Use
Read this manual carefully and become familiar with the machine.
The equipment is suitable for industrial use (e.g. in hotels, schools, hospitals, ofces, factories and shops).
The following information highlights particularly hazardous situations for the operator and/or machine. Understand when these
conditions may be present. Removing safety features could cause death or physical injury. Take all steps necessary to instruct
personnel who may use the machine. Report any damage on the machine or incorrect operation immediately.
1) Keep hands and clothes away from rotating parts.
2) Keep hands on the handle when the motor is operating.
3) DO NOT leave the machine unattended when the motor is operating.
4) Always use the machine with the dust bag in the correct position.
5) DO NOT detach the dust bag when the motor is operating.
6) Always disconnect the power supply cable from the machine before performing maintenance.
7) Transport the machine with care due to the heavy weight of the individual parts making up the machine.
8) Always use the machine in well-ventilated areas.
9) Always keep the work area well-lit.
10) Always dispose of the sawdust appropriately.
11) Use the type and amount of abrasive specied in the instruction manual.
12) The use of accessories other than those recommended in this manual may cause injury.
13) The machine is for indoor use only.

Bona Belt UX Manual
18
Machine Warnings
Prohibited use
Children should be supervised to ensure that they do not play with the appliance. This
machine is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge unless they have
received instructions regarding the use and are supervised by a person responsible for
their safety.
This equipment is not suitable for collecting hazardous dust.
Using the machine to move objects or moving on an incline may cause injury or damage. The
machine must only be used to sand dry oors which are level or have a maximum incline of 2%.
DO NOT use the machine to sand steps and furniture.
Work surfaces may be seriously damaged if the machine is left turning on one point while the
tool is in contact with the surface. To avoid damaging the surface approach the cutting line
carefully.
DO NOT stop when lowering and raising the equipment, keep moving at constant speed.

Bona Belt UX Manual
19
EN
Starting the Machine
To start the machine proceed as follows:
Become familiar with the
machine and read all
instructions & safety notices.
Ensure that all operators
read this manual.
1. 2. 3.
Locate the power supply. The
socket must be compatible
with the plug.
To avoid electrical hazards
the socket must be grounded
with a 20 A fuse.
If using DCS, connect tha
adaptor supplied with the
machine and DCS hose
directly.
If using a dust bag, place the
dast bag on the suction pipe
by tying the cord.
4.
Wind the cable around the
cable safety arm (A) to keep
it away from the path of the
machine.
Open the side guard (A).
5. 6.
Lower the tensioning unit
using the drum tensioning
lever (A).
Insert the abrasive belt
(A), ensuring it protrudes
approximately 2 mm from
the rubber drum area but
runs along the inside of the
tensioning unit.
7.
Only use 750 mm x 203 mm abrasive belts.
Tighten the drum using the
drum tensioning lever (A).
8.

Bona Belt UX Manual
20
Starting the Machine (Cont.)
Turn the knob on
the switch from
“0” to “START”
To start the machine stand behind the handle, then...
11.
9. 10.
Connect the plug to the
socket.
Hold it in this position until
the motor has reached a
sufcient rotation speed
Ensure the lever (A) is
lowered and drum is raised
from the oor.
Release the knob, which will
automatically return to work
position “1”
If starting the machine is difcult in winter when temperatures are very low remove the abrasive belt and start the
motor, letting it idle for several minutes. Replace the belt and repeat the start up operations described.
