Kuppersbusch EKDG6550 0 Series User manual

BEDIENUNGS- UND
MONTAGEANWEISUNG
EN User Manual
1630184-c
EKDG6550.0

37
EN
Contents
Safety Instructions .................................................................................................................................38
Description of your oven .........................................................................................................................40
Basic settings........................................................................................................................................42
Basic functions......................................................................................................................................46
Regenerating & Sterilising .......................................................................................................................46
Auto Cooking functions ..........................................................................................................................49
Water feeding ........................................................................................................................................55
Emptying the water tank..........................................................................................................................55
When the oven is working... .....................................................................................................................56
Use of Acessories ..................................................................................................................................57
Care and maintenance ............................................................................................................................65
Oven Cleaning .......................................................................................................................................68
What should I do if the oven doesn’t work?................................................................................................69
Technical characteristics.........................................................................................................................70
Environmental protection ........................................................................................................................71
Installation instructions...........................................................................................................................72
Installation ............................................................................................................................................73
Dear Customer,
Thank you for choosing this Küppersbusch product.
We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from using it.
KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
Always keep the instruction manual handy. If you lend the appliance to someone else give them the manual as well!
The user manual is also available for download at www.kueppersbusch.de

38
EN
Safety Instructions
Before the installation and use of the appliance, carefully read the supplied instructions.
The manufacturer is not responsible if an incorrect installation and use causes injuries and
damages. Always keep the instructions with the appliance for future reference.
CHILDREN AND VULNERABLE PEOPLE SAFETY
Warning! Risk of suffocation, injury or permanent disability.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they are supervised by an adult or a person who is responsible for their safety.
Do not let children play with the appliance.
Keep all packaging away from children.
WARNING: Keep children away from the appliance when it operates or when it cools
down. Accessible parts are hot.
If the appliance has a child safety device, we recommend that you activate it. Children
under 3 years must not be left unsupervised in the vicinity of the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
GENERAL SAFETY
This appliance is intended to be used in household and similar applications such as:
–staff kitchen areas in shops, offices and other working environments;
–farm houses;
–by clients in hotels, motels and other residential environments;
–bed and breakfast type environments.
Internally the appliance becomes hot when in operation. Do not touch the heating
elements that are in the appliance. Always use oven gloves to remove or put in
accessories or ovenware.
The appliance is intended for heating food and beverages. Drying of food or clothing and
heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of
injury, ignition or fire.
Make sure you never catch the power cables of other electrical appliances in the hot door or the
oven. The cable insulation may melt. Danger of short-circuiting!

39
EN
Safety Instructions
Do not lean or sit on the open oven door. This may damage the oven, especially in the
hinge zone. The door can bear a maximum weight of 8 kg.
The grills can bear a maximum load of 8 kg. To avoid damaging the oven, do not exceed
this load.
INSTALLATION
The electrical installation is to be set up so that the appliance can be isolated from the
mains with a minimum 3mm all-pole contact separation.
Suitable separation devices include e.g. cutouts, fuses (screw fuses are to be taken out of
the holder), RCD’s and contactors. This installation must comply with current regulations.
If the electrical connection is done through a plug and this remains accessible after
installation, then it is not necessary to provide the mentioned separation device.
Protection against electric shock must be provided by the electrical installation
Warning: The oven must be earthed.
CLEANING
The appliance should be cleaned regularly and any food deposits removed.
Failure to maintain the appliance in a clean condition could lead to deterioration of the
surface that could adversely affect the life of the appliance and possibly result in a
hazardous situation.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since
they can scratch the surface, which may result in shattering of the glass.
Do not use a steam cleaner to clean the appliance.
Please follow the instructions regarding cleaning in the section "Oven Cleaning and
Maintenance”.
REPAIRS
WARNING: Before maintenance cut the power supply.
If the power cable is damaged it should be substituted by the manufacturer, authorized
agents or technicians qualified for this task in order to avoid dangerous situations.
Furthermore, special tools are required for this task.
Repair and maintenance work, especially of current carrying parts, can only be carried out
by technicians authorized by the manufacturer.

40
EN

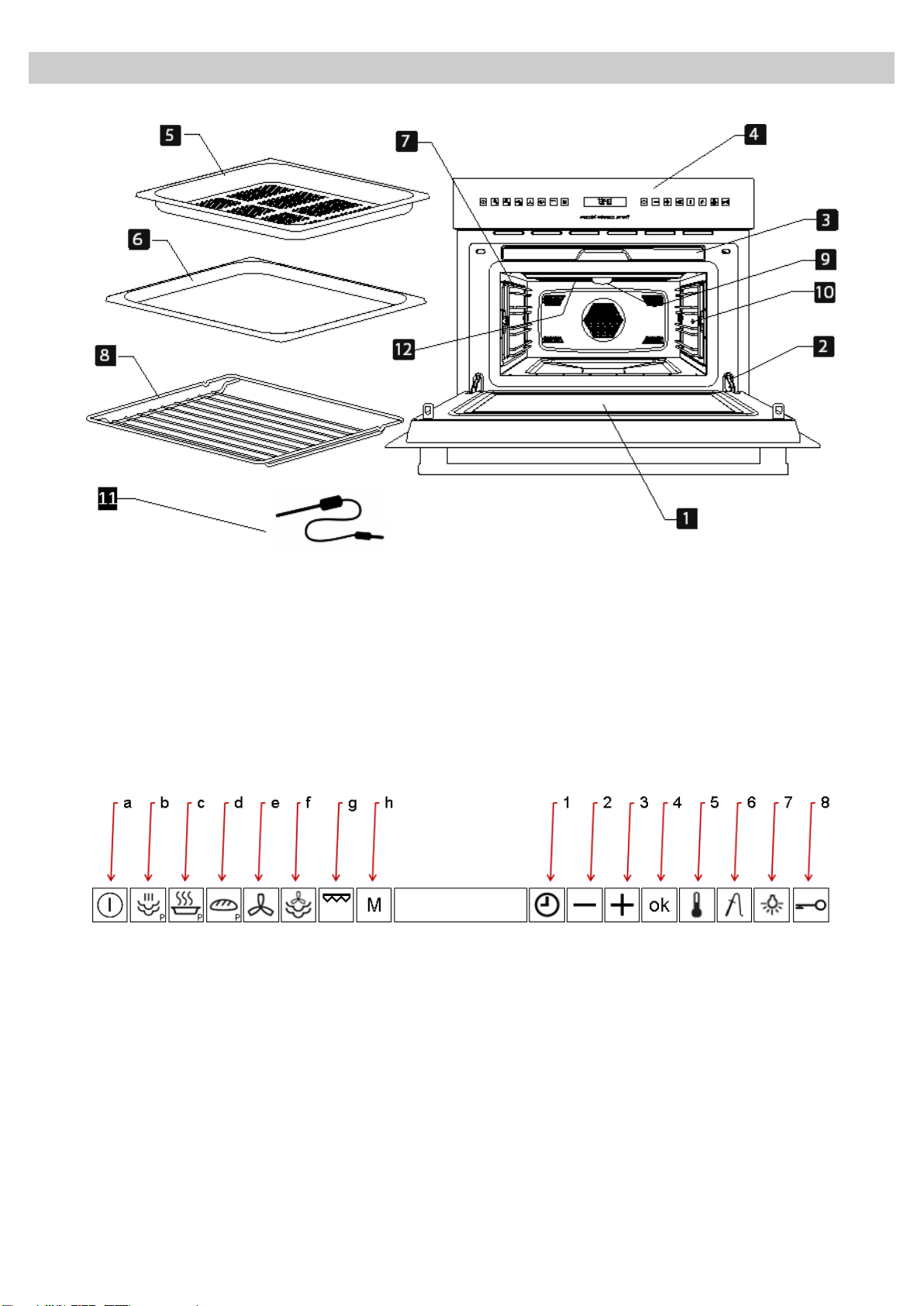

Description of your oven
1. –Door window glass
7. –Shelf guides
2. –Safety catches
8. –Rack
3. –Water tank
9. –Lamp bulb
4. –Control panel
10. –Plug socket for the Food Probe
5. –Perforated baking tray
11. –Food Probe
6. –Baking tray
12. –Grill

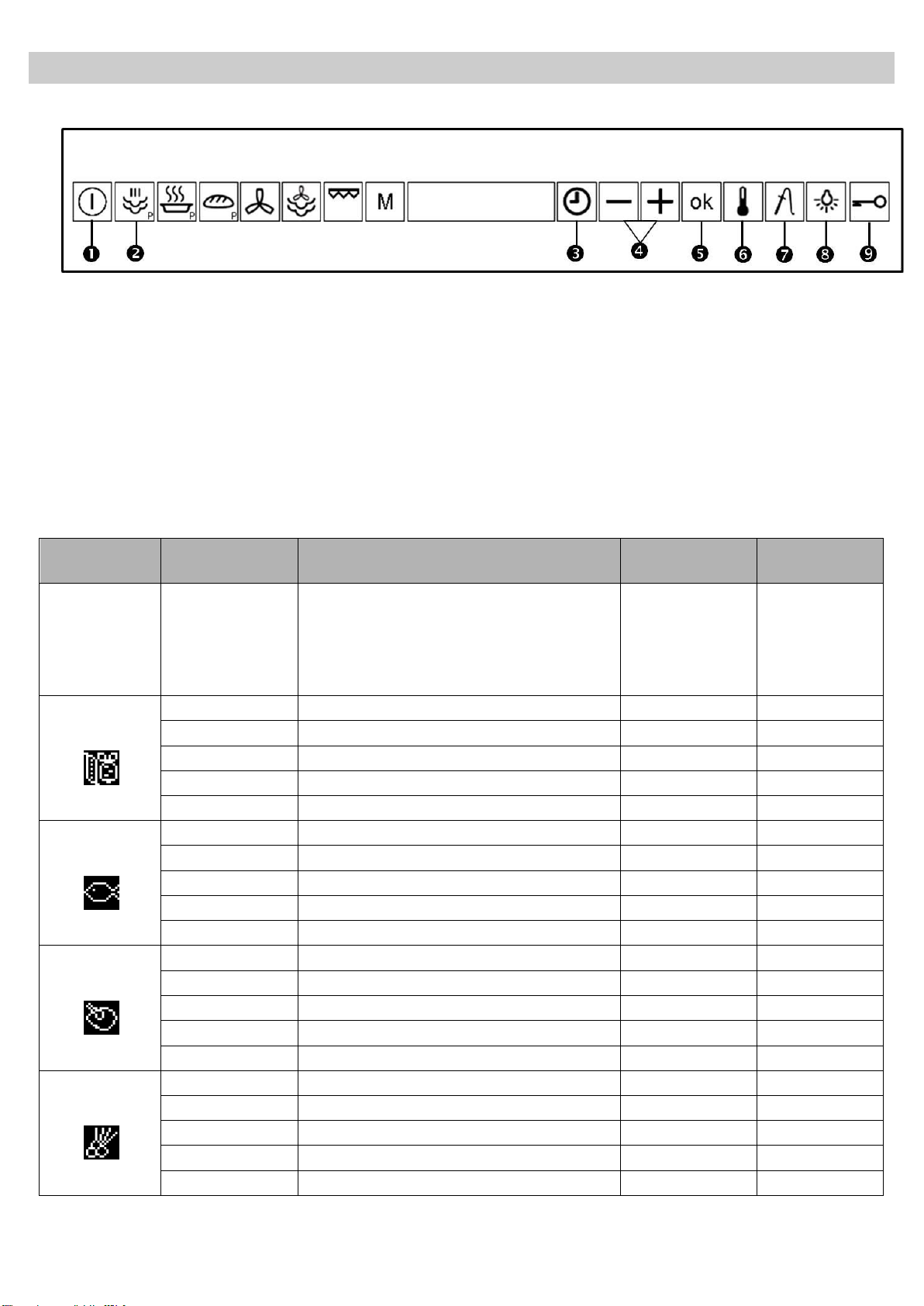

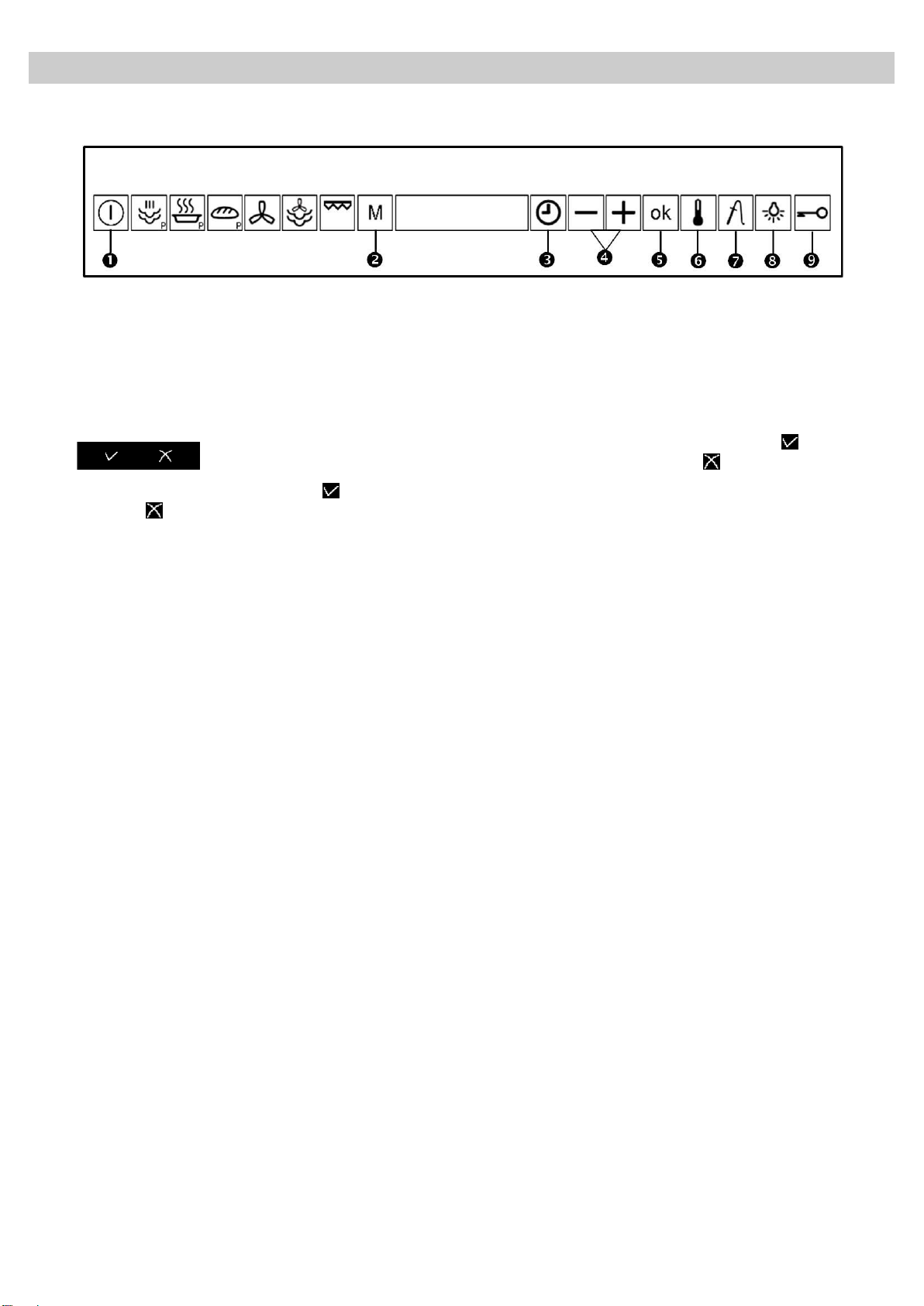

Control Panel
a. ON/OFF
1. Time Functions
b. Steam
2. Minus
c. Regenerating & Sterilising
3. Plus
d. “Profi” Cooking
4. Confirmation (OK)
e. Hot Air
5. Temperature
f. Hot Air + Steam
6. Food Probe
g. Grill
7.Lamp
h. Memory Functions (M1-M5)
8.Safety Block

41
EN
Description of your oven

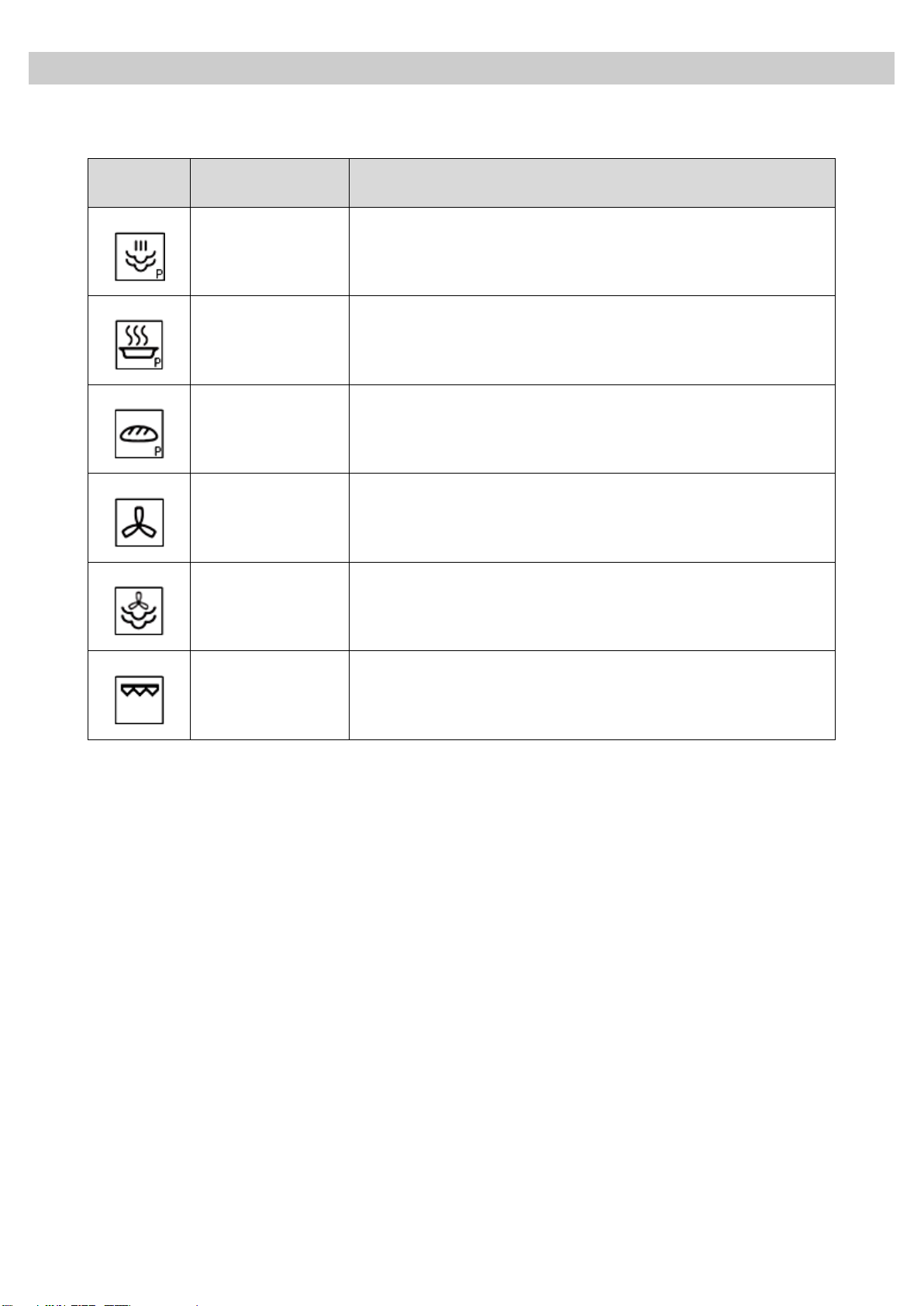

Description of Functions
Symbol
Function
Foods
Steam
Cooking all sorts of vegetables, rice, cereals and meat.
Extracting juice from berries.
Simultaneous defrosting and cooking of vegetables.
Regenerating &
Sterilising
Regenerating plate dishes and ready-made meals.
Sterilising/boiling down fruit.
“Profi” Cooking
Fine pastry and cakes.
Hot Air
Roasting and baking.
Hot Air + Steam
Cooking meals with hot damp circulating air.
Cooking potatoes, rice.
Moist garnishing.
Grill
Grilling meat and fish
Grilling Potatoes –deep frozen, defrosting and roasting.

42
EN
Basic settings
Initial Settings
After your steam oven is first plugged in or after a power
failure, the clock display will flash to indicate that the time
shown is not correct.
The oven will not operate until the clock, the water hardness
parameter and the Calibration is set.
To set the clock and the water hardness parameter value
proceed as described in the following chapters.
Setting the clock
The clock display will flash if your appliance is first plugged in or after a power failure, to indicate that the time shown is not correct. To set
the clock, proceed as follows:
To set the clock, proceed as follows:

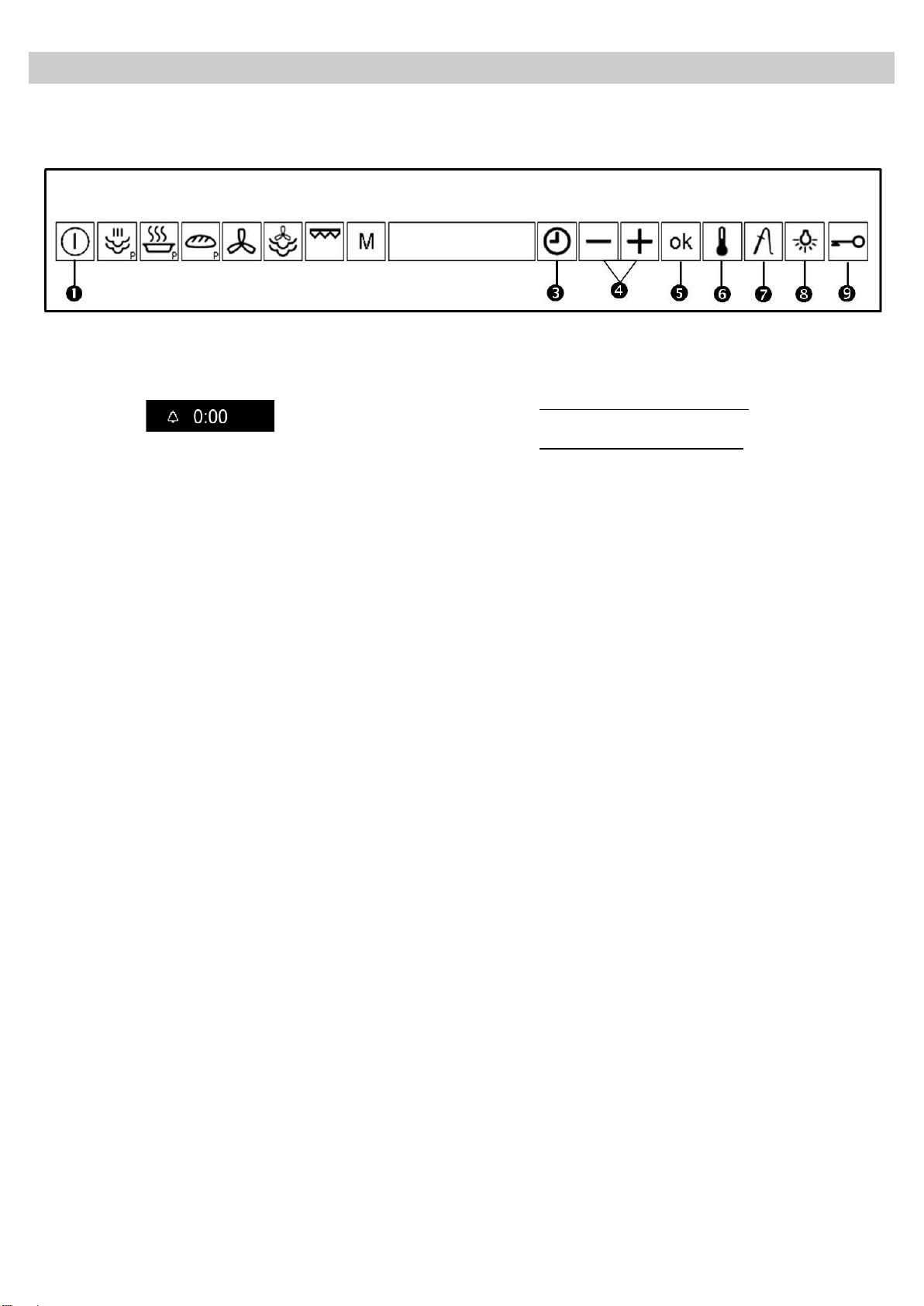

1. Press the “On/Off” key to switch the oven on.
2. Press the “Time function” key.
3. Press the “–” and “+” keys to select the desired hour.
4. Press the OK key , to confirm the hours.
5. Press the OK key to confirm the hours. The minutes
digits will flash.
6. Press the “-” and “+” keys to set the minutes.
7. Press the OK key to confirm the minutes.
Water Hardness setting
The appliance features a system that automatically indicates
when it is time to descale.
The system can be optimized for households with very soft water
(also through using a water softening appliance) and very hard
water, by changing the user settings to the relevant range of
water hardness (see table below).
To set the water hardness parameter, proceed as follows:
1. Press the “On/Off” key to switch the oven on.
2. Press the “–” and “+” keys simultaneously
(approximately 1 second). The Water Hardness level will
start to flash on the display.
(Steps 1 and 2 are not necessary if the oven is first
plugged in or after a power failure.)
(If you hold the "-" and "+" keys for about 5 seconds the
appliance will start the descaling process. To cancel the
descaling process, press the “On/Off” . key).
3. Press the “–” and “+” keys to select the desired
water hardness according to the table below.
4. Press the “OK” key to set the parameter. The oven
returns to the “ON” state.

43
EN
Basic settings
Type
Water hardness
Display
Ca + Mg
(ppm)
English deg. [°eH]
French deg.
[°dF]
German deg.
[°dH]
Soft water
0 to 150
0 to 11
0 to 15
0 to 8
1
Medium water
151 to 350
12 to 25
16 to 35
9 to 20
2
Hard water
501 to 500
26 to 35
36 to 50
21 to 28
3
Hiding/Displaying the Clock
If the clock display disturbs you, you can hide it by proceeding as
follows:
1. Press the “On/Off” key to switch the oven on.
2. Press the “Time” function key .
3. Press the “–” and “+” keys to navigate to the Hide
Clock function.
4. Press “OK” to validate
Safety blocking
The oven functioning can be blocked (for example, to stop it being used by children).
To block the oven proceed as follows:
1. Press the “On/Off” key to switch the oven on.
2. Hold down the “Safety Block” key for 3 seconds.
The “Safety Block” key lights up and the display shows a
key symbols. The oven will not operate until it is
unblocked.
3. To unblock the oven repeat the above procedure.

44
EN
Basic settings
Timer
The timer functions like an egg timer. It can be used at any time and independently of all other functions.
To set the Timer proceed as follows:
1. Press the “On/Off” key to switch the oven on.
2. Press the “Time” function key.
3. Press the “-”and “+” keys navigate to the “Timer”
function.
4. With the “OK” key confirm the selected function
5. Press the “–” and “+”keys to set the desired time.
6. Press the OK key to validate. The timer will start to
countdown.
When the set time has elapsed the oven will emit three
beeps that will be repeated every 30 seconds and the Timer
key will flash. Press the “Time” key .to cancel the beeps.
While the Timer is running the Timer light is on. The display
and lights show the following:
1. If there is no active function the display shows the
Timer counting-down and the Timer key is red.
2. If there is an active function, the display and keys
show the normal function parameters. To check the Timer’s
remaining time press the Timer key. The display will briefly
show the Timer and resume the function indications after 5
seconds or once the Timer key is pressed again. While the
Timer is shown the remaining time can be changed with the
“–” and “+”keys as described above.

45
EN
Basic settings
Duration of a function
When the duration of a function expires, the selected mode will automatically turn off.
Setting the function
1. Select the desired function and temperature.
2. Press the „–“ and „+“ keys to select the Symbol
(cooking time).
3. Press the „OK“ key to confirm.
4. Set the desired cooking time with the “-” and “+” keys
.
5. Press the „OK“ key to confirm.
6. Press the “OK” key again. The Oven will start to
operate.
Delayed Start
1. Select the desired function and temperature.
2. Press the „–“ and „+“ keys to select the Symbol
(End time).
3. Press the „OK“ key to confirm.
4. Set the desired cooking end time with the “+” key .
5. Press the „OK“ key to confirm.
6. The oven will start operating at the programmed time.
Meanwhile the Time Symbol flashes.

46
EN
Basic functions

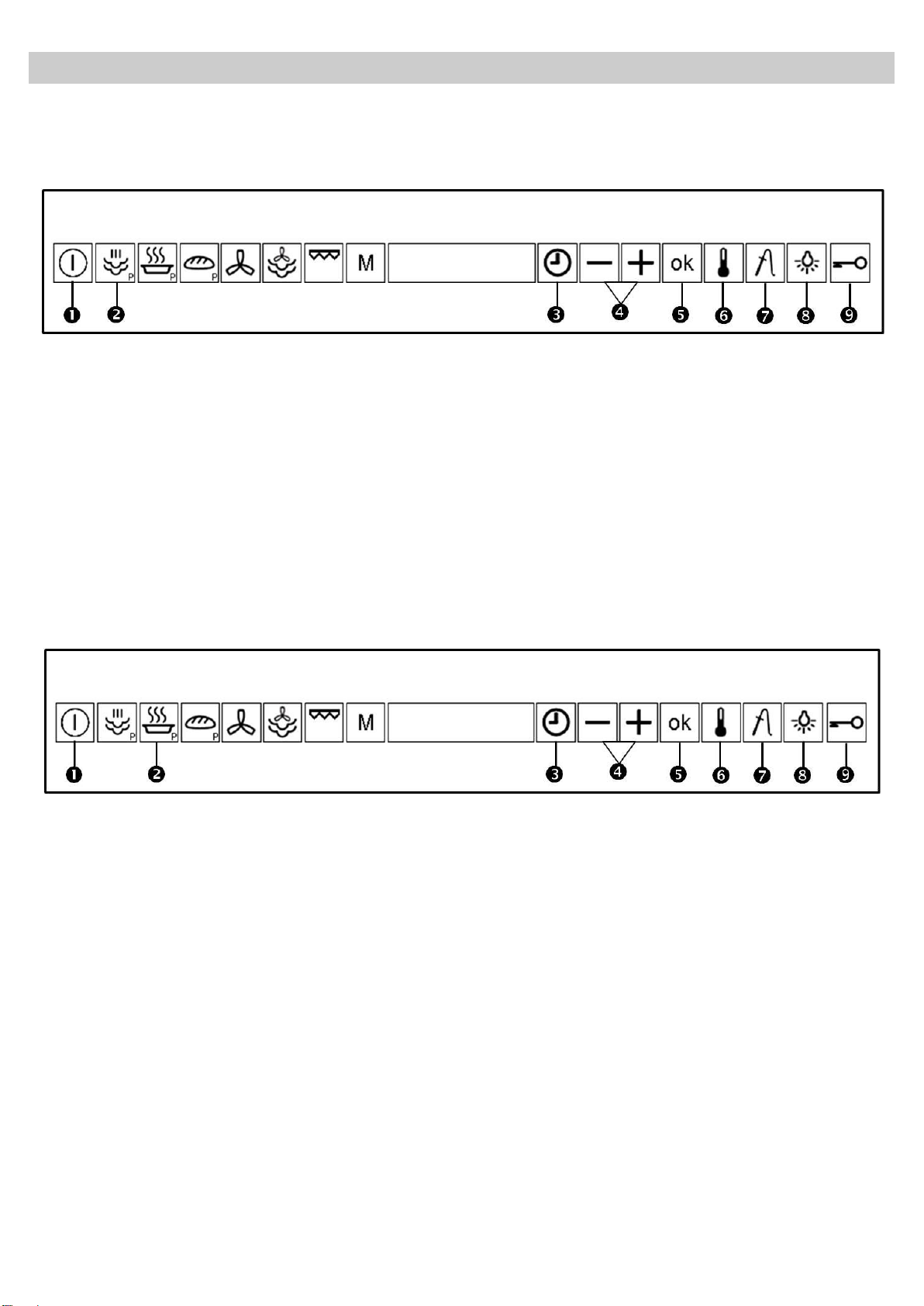

Steam function
Use this function to cook all sorts of vegetables, rice, cereals and meat. It is also suitable for extracting juice from berries and
for simultaneous defrosting and cooking of vegetables.
1. Press the “On/Off” key to switch the oven on.
2. Press the “Steam Function” key 
3. Press the “OK”key if you wish to use the default
values (Temperature - 100ºC + Time 30 min.).
The oven will start to operate. If you wish to change the
parameters proceed to the next step.
4. Press the “Temperature” key .
5. Set the desired temperature with the “-” and “+” key.
Press the “OK” key to validate. The oven will start to
operate.
6. Press the “Time” key .
7. Press the “OK” key to enter the duration menu.
8. Set the desired time with the “-” and “+” keys .
9. Press the “OK” key to validate.
10. Press the “OK” key . The Oven will start to operate.

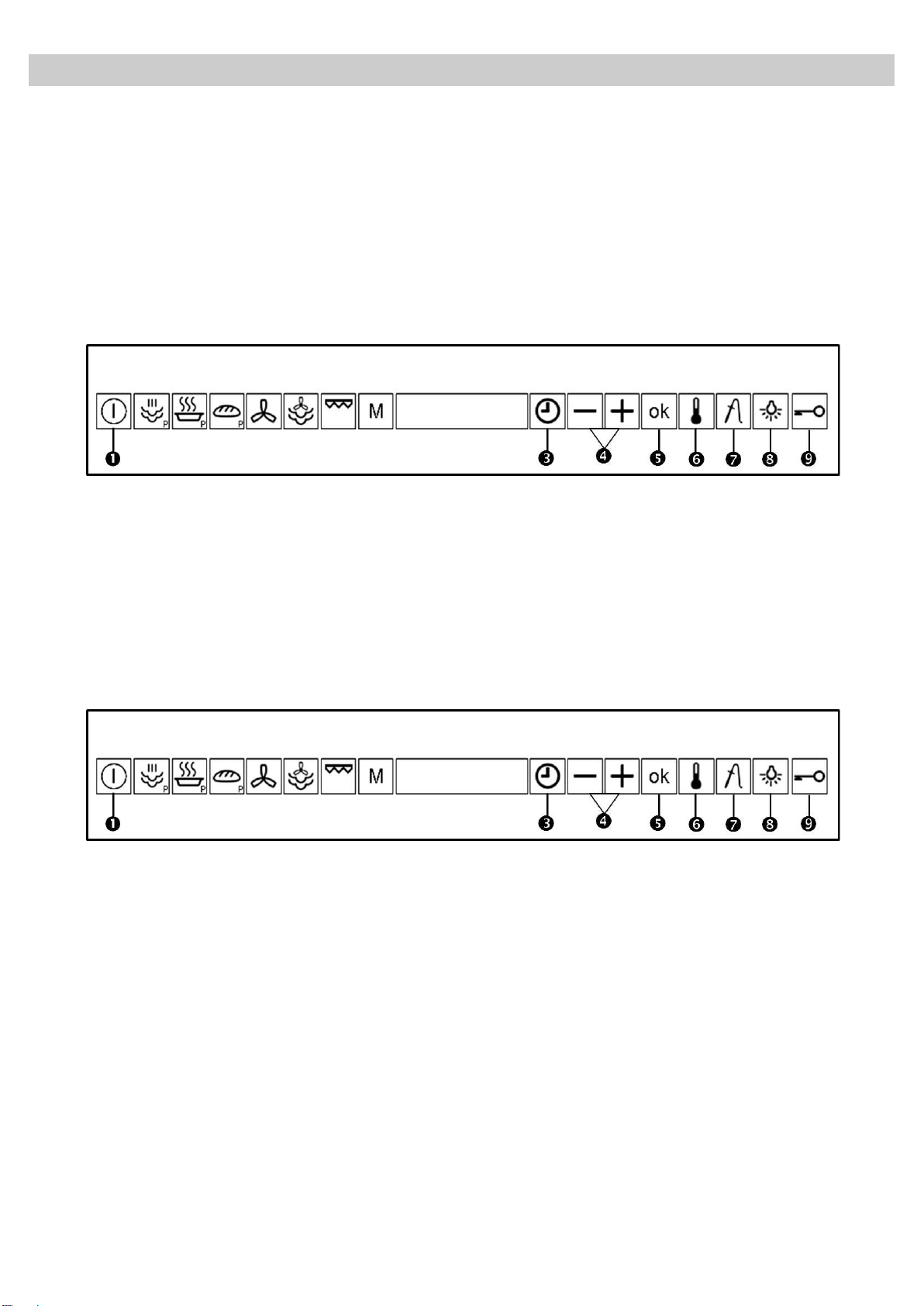

Regenerating & Sterilising
Use this function to regenerate plate dishes and ready-made meals as well as to sterilise and boil down fruit.
1. Press the “On/Off” key to switch the oven on.
2. Press the “Regenerating & Sterilising” key .
3. Press the “OK”key if you wish to use the default
values.
The oven will start to operate. If you wish to change
the parameters proceed to the next step.
4. Press the “Temperature” key .
5. With the “-”and “+” key define the desired
temperature.
6. Press the “OK” key to validate.
7. Press the “Time” key .
8. With the “-”and “+” define the desired time.
9. Press the “OK” key to validate. The Oven will
start to operate.

47
EN
Basic Functions
“Profi” Cooking
1. Press the “On/Off” key to switch the oven on.
2. Press the “Profi” Cooking key .
3. Press the “OK”key if you wish to use the default
values.
The oven will start to operate. If you wish to change
the parameters proceed to the next step.
4. Press the “Temperature” key .
5. With the “-” and “+” key define the desired
temperature.
6. Press the “OK” key to validate.
7. Press the “Time” key .
8. With the “-” and “+” define the desired time.
9. Press the “OK” key to validate. The Oven will
start to operate.

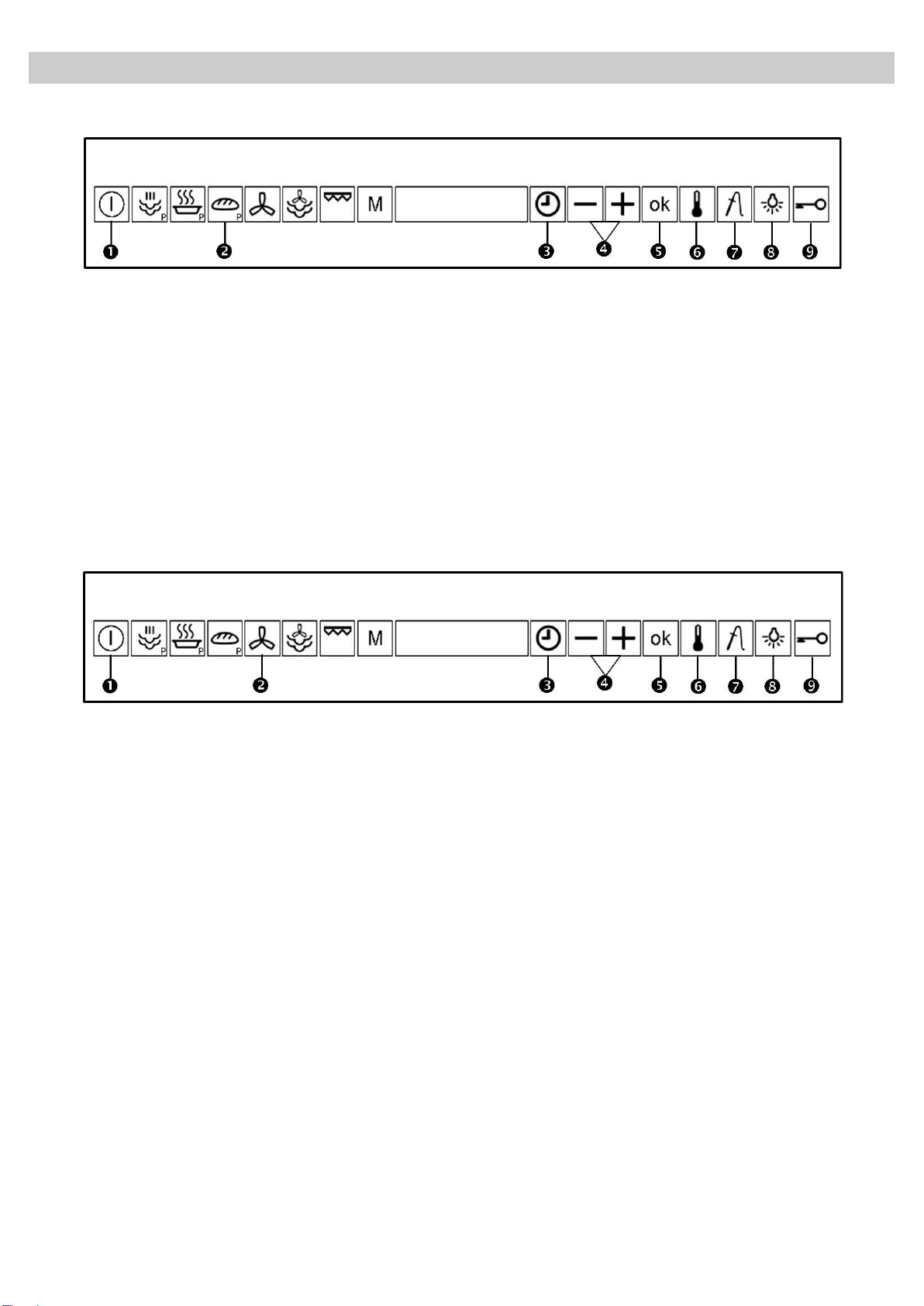

Hot air
Use this function to bake and roast.
1. Press the “On/Off” key to switch the oven on.
2. Press the “Hot Air” key function key .
3. Press the “Temperature” key .
4. Press the “-” and “+” keys to set the required
Temperature.
5. Press the “OK” key to validate the temperature.
6. Press the “Time” function key .
7. Press the “-” and “+” keys to set the desired
Time.
8. Press the “OK” key to validate the cooking time.
The oven will start to operate.

48
EN
Basic Functions
Hot Air + Steam function
1. Press the “On/Off” key to switch the oven on.
2. Press the “Hot Air + Steam” function key .
3. Press the “Temperature” key .
4. Press the “-” and “+” keys to set the required
Temperature.
5. Press the “OK” key to validate the temperature.
6. Press the “Time” function key .
7. With the “-“ and “+” key select the timer
function.
8. Press the “OK” key .
9. Press the “-” and “+” keys to set the desired
Time.
10. Press the “OK” key to validate the cooking
time. The oven will start to operate.
Grill
Use this function to brown the top of food quickly.
1. Press the “On/Off” key to switch the oven on.
2. Press the “Grill” function key .
3. Press the “Temperature” key .
4. Press the “-” and “+” keys to set the required
Temperature.
5. Press the “OK” key to validate the temperature.
6. Press the “Time” key .
7. With the “-“ and “+” keys select the timer function.
8. Press the “OK” key .
9. Press the “-” and “+” keys to set the desired Time.
10. Press the “OK” key to validate the cooking time. The
oven will start to operate.

49
EN
Auto Cooking functions
Steam function menus
1. Press the “On/Off” key to switch the oven on.
2. Press the “Steam Function” key.
3. Press the “+” key to enter the “Steam Function –
Auto Cooking” menu. The display presents the
following screens with the available functions:
Vegetables , Fish , Meat and Side Dishes .
4. Select the desired function with the “-”and “+”. The
display will show the corresponding Program of the
selected Function.
5. Press the “OK”key to select the desired program. If you
wish to use the default time press the “OK” key. If you
wish to change the parameters proceed to the next step.
6. Press the “Time” key.
7. With the “-” and “+” select the desired time.
8. Press the “OK” key to validate. The oven will start to
operate.
Altering duration
1. Press the “Time” key.
2. Define the desired temperature with the “-” and “+”
keys.
3. Press the “OK” key to validate.
Function
Program
Food types
Temperature (ºC)
Duration (min.)
Steam
Cooking all sorts of vegetables, rice, cereals and
meat.
Extracting juice from berries.
Simultaneous defrosting and cooking of
vegetables.
Vegetables
A01
Broccoli / florets
100
20
A02
Cauliflower / florets
100
25
A03
Potatoes / pieces
100
25
A04
Snow peas
100
15
A05
Asparagus
100
25
Fish
B01
Trout
80
25
B02
Shrimp
90
15
B03
Fish filet
80
18
B04
Mussels
100
25
B05
Lobster
100
30
Meat
C01
Chicken breast
100
30
C02
Smoked pork loin / pieces
100
45
C03
Turkey escalope
100
20
C04
Pork filet, whole
100
25
C05
Vienna sausages
90
15
Side dishes
D01
Sweet yeast dumpling
100
20
D02
Yeast dumpling
100
25
D03
Napkin dumpling
100
30
D04
Rice
100
35
D05
Lentils
100
40

50
EN
Auto Cooking functions
Regenerating & Sterilising menus
1. Press the “On/Off” key to switch the oven on.
2. Press the “Regenerating & Sterilising” key .
3. Press the “+” key to enter the “Regenerating &
Sterilising –Menu”.
4. With the “-” and “+” keys select the desired
function. (See table below).
5. Press the “OK” key to validate.
6. With the “-” and “+” keys select the desired
Program.
7. Press the “OK” key to validate. The oven will
start to operate.
Altering duration
1. Press the “Time” key .
2. With the “-”and “+” keys define the desired
temperature.
3. Press the “OK” key to validate.
Function
Program
Food type
Temperature
(ºC)
Time (min)
Instructions
Regenerating
R 01
Plate dishes
100°C
13
Remove lid from container and put
on rack.
R 02
Ready-made
meals / frozen
100°C
18
Sterilising
R 03
Beans
100°C
35
The times and temperatures refer
to 1L preserving jars.
R 04
Cherries
80°C
35
R 05
Plums
90°C
35
R 06
Baby bottles and
pacifiers
100°C
12
Put the (open) bottles and
pacifiers on the perforated baking
tray.
“Profi” Cooking menus
1. Press the “On/Off” key to switch the oven on.
2. Press the “Profi” Cooking key to enter the menu.
3. With “+” key enter the Profi” Cooking – menu. The
display presents the following screens with the
available functions. There are “Profi” Cooking
Bread, Cake and Gratin/Pizza.
4. With the “-” and “+” keys select the desired
function.
5. Press the “OK” key to validate the selected
function.
6. Press the “-” and “+” keys to select the desired
program. (See table below).
7. Press the “OK” key. The Oven starts to operate.

51
EN
Auto Cooking functions
Function
Program
Food types
Temperature (⁰C)
Duration (min.)
Bread
PC01
Baking Buns
200
15
PC02
Frozen Buns
200
20
PC03
Fresh Dough
180
25
PC04
White Bread
190
50
PC05
Braided Bread
200
40
PC06
Brown Bread
200
60
PC07
Whole Wheat Bread
190
70
PC08
Fruit Bread
180
70
Cake
PC09
Pound Cake
160
70
PC10
Puff Pastry
200
20
PC11
Sweet Cake, Dry
170
40
PC12
Sweet Cake with Fruit
Surface
170
50
PC13
Cheesecake
150
70
Gratin
PC14
Gratin, Fresh
160
60
PC15
Gratin, Precooked
160
50
PC16
Casserole, Fresh
180
35
PC17
Casserole, Precooked
180
30
PC18
not assigned
220
15
PC19
not assigned
230
15

52
EN
Memory Functions
Memory Functions (M1 –M5)
This function is intended to store five separated settings that can be saved and called.
Store a memory
1. Press the “On/Off” key to switch the oven on.
2. Press the “Memory Function” key for 3
seconds.
3. Press the “-” and “+” keys to navigate the menu
and to chose one of the available memories M1 –
M5.
4. Press the “OK” key to validate.
5. Select a function that you want to memorize.
6. Press “-“ and “+” keys to define the desired
parameters.
7. Press the “OK” key to validate.
8. Press “-” and “+” keys to set the desired time.
9. Press the “OK” key to validate.
10. Press the “Temperature” key to define a new
temperature.
11. Press “-” and “+” keys to define the desired
temperature.
12. Press the “OK” key to validate.
13. Press the “Memory Function” key for 3
seconds.
14. Press “-” and “+” keys to navigate the menu
and to chose to validate the storage of “M5” or
to cancel it.
15. Press the “OK” to validate the chosen function.
Selecting a stored memory
1. Press the “On/Off” key to switch the oven on.
2. Press the “Memory Functions” key .
3. Press the “-“ and “+” keys to select the stored
memory.
4. Press the “OK” key to confirm.
5. The system enters the Execution state and the oven is
initiated with the parameterization store in the chosen
memory.

53
EN
Memory Functions
Delete a memory
1. Press the “On/Off” key to switch the oven on.
2. Press the “Memory Functions” key .
3. Press the “-“ and “+” keys to select the stored
memory which you want to delete.
4. Press the “OK” key to validate. The display shows
.
5. Press the “-“and “+” keys to chose to validate the
deletion or to cancel.
6. Press the “OK” key to confirm.
Deleting all memories
1. Press the “-“ and “+” keys to select the symbol del.
2. Press the “OK” key .
3. Press the “-“ and “+” keys to chose to validate the
deletion of all memories or to cancel it.
4. The oven reverts to the ON state.

54
EN
Food Probe
The food probe measures the inner temperature of the food being cooked and ends the active function when a selected
temperature is reached
1. Insert the Food Probe into the socket inside the oven’s
cavity.
2. The display, independently of the existing state or function,
will show the following screen with the temperature by
default “65º” blinking.
3. Press the “-“and “+” keys to chose a new temperature.
4. The selection is linear from 35ºC to 99ºC in steps of one
degree.
5. Press the “OK” key or wait 10 seconds to validate the
default or the new temperature. The system returns to the
state or function prior to step 1.
6. When a cooking function becomes active, for example Hot
Air function, the display shows the parameterized cavity’s
temperature and the temperature’s symbol blinking (see
Chapter) alternating with the temperature currently
measured by the Food Probe.
7. When the temperature defined by the Food Probe is
reached the active function ends.
8. When the function ends the system enters the END state.
Warning! Please cover the socket inside the cavity if you are not using the food probe. This will prevent possible damages on the
appliance.
Only use the food probe recomended for this oven.
Food Probe –Setting Tips (Steaming + Hot Air)
We recommend that the Combi- Steamer is preheated until the cavity’s temperature is reached.
Meat
Cavity’s temperature ºC
Food Probe
temperature
ºC
Time
(min)
Level
Accessories
Sirloin steak, roast beef
200–210
53–58
40–50
2
1
Beef shoulder
190–200
75–80
60–75
Veal shoulder
200–210
75–80
60–75
Pork shoulder
180–200
78–82
60–90

55
EN
Water feeding
Filling the water tank
All functions require the water tank to be full.
Fill the water tank with cold, fresh drinking water and
introduce it into the slot located above the cavity
(approximately 1L).
Refilling the water
The contents of the water tank normally suffice for one
cooking session of 50-60 minutes.
If, however, the water tank needs to be refilled this is
signalled by the message meaning that the water tank is
empty.
Warning! Only fill the water tank up to a maximum of 0.5
litres to ensure that the water does not overflow when it
is pumped back to the water tank. RISK OF OVERFLOW.
Emptying the water tank
When the appliance is switched off, the residual water is
pumped back into the water tank.
While the water is being pumped the display shows “PUMP”.
This message stays on until the temperature of the water
reaches 75º C before it can be pumped back to the water
tank.
Warning: the water in the tank may be hot. Danger of
burns!
After the water is pumped back to the water tank, the display
will show the message “DEP” requiring the following actions:
1. Remove and empty the water tank.
2. Dry the water tank and introduce it back into the slot
located above the cavity. Clean and dry the cooking
space.
3. Leave the appliance door open so that the cooking space
can cool down and dry completely.
IMPORTANT NOTE: It is advisable to remove the water
tank and empty it after a cooking cycle. This prevents
the formation of bacteria and limestone inside the
appliance.
If the water tank has not been removed from the oven and a
new cooking cycle is started, the oven displays the warning
“DEP”.
This warning can be cleared by pressing the Stop key and
proceed with the new cooking cycle without removing and
emptying the water tank.
