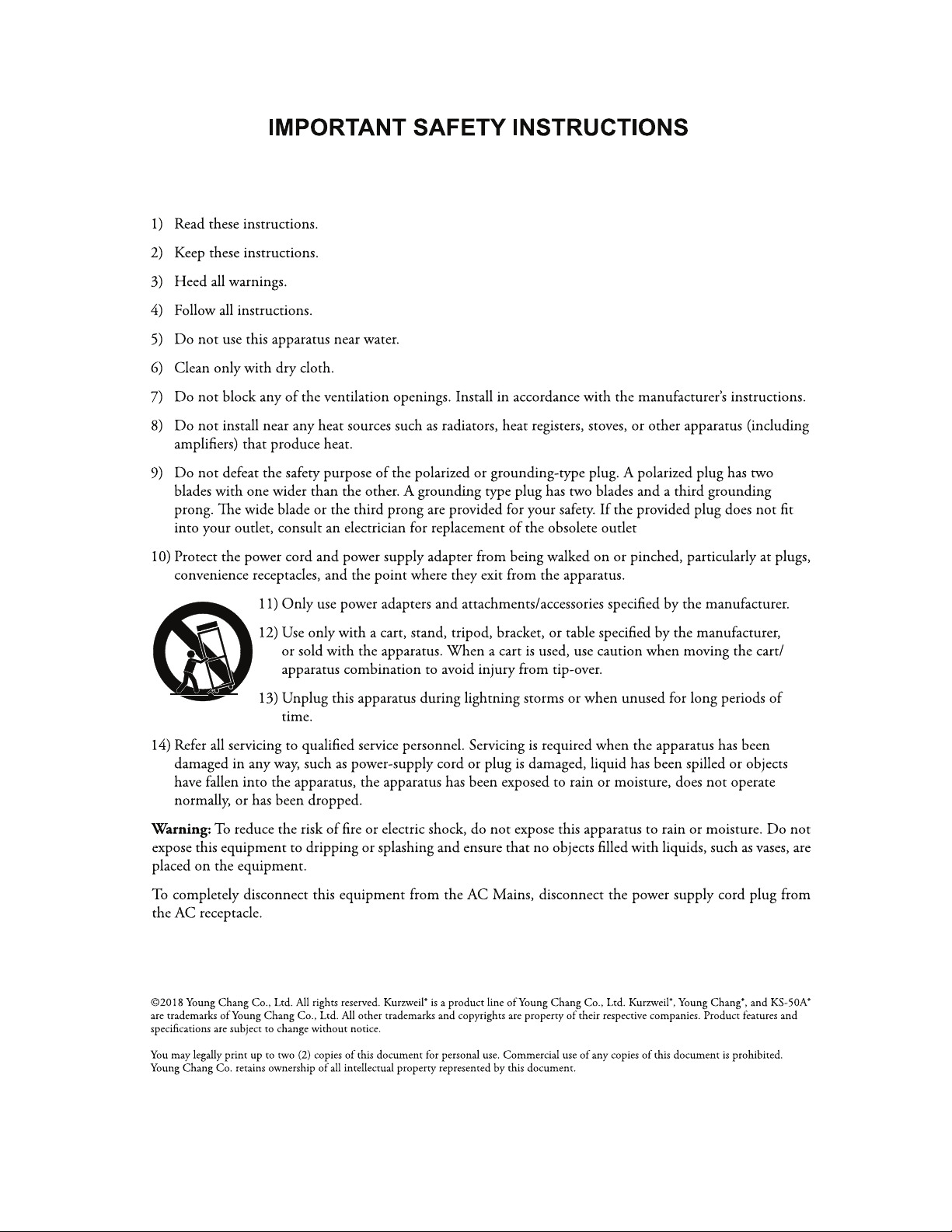

KURZWEIL
KS-50A
INDEX
1. Introduction .................................................................................................................................. 6
2. Basics & Installation .................................................................................................................... 6
Unpacking / Handling ................................................................................................................................................ 6
Connection ................................................................................................................................................................. 6
3. Placement ...................................................................................................................................... 7
Stereo / 2.0 Positioning .............................................................................................................................................. 7
Stereo with Subwoofer / 2.1 Positioning .................................................................................................................... 7
5.1 Positioning ........................................................................................................................................................... 8
7.1 Positioning ........................................................................................................................................................... 8
Orientation ................................................................................................................................................................. 9
Comments .................................................................................................................................................................. 9
4. Technical Data .............................................................................................................................. 9
Specifications ............................................................................................................................................................. 9
Rear Panel ................................................................................................................................................................ 10
5. General Information .................................................................................................................. 11
KURZWEIL
KS-50A
1. Introduction
Congratulations on your purchase of the KURZWEIL KS-50A.
The KS-50A top quality near field reference monitor has been developed especially for high level
home studios and special project studios. They take 5" near field monitoring speakers to a new level,
boasting an ultra-flat low frequency response and a top quality kevlar 5" driver delivering
unparalleled punch in the low-mid frequency a major improvement over the paper and
polypropylene drivers used in most comparable products. KS-50A is perfect to provide the best
output signal and frequency response 100% matching the installed drivers and cabinet design. KS-
50A is magnetically shielded for desktop operation next to your other electronic equipment without
interference.
2. Basics & Installation
For optimal performance of KS-50A, read the instructions in this manual carefully before using the
speakers.
Unpacking / Handling
To remove the monitor from the carton, it is best to turn the package carefully upside down on the
floor or on a table and then lift the carton up slowly to leave the monitor resting in the packaging
foam. To avoid damage, make sure that you don
monitors. Check the monitor for signs of damage that might have occurred in shipping. In the
unlikely event of damage, please contact the reseller of the product immediately. Be careful when
you remove the packaging foam. Please keep all packing materials.
Connection
High quality XLR balanced or TS unbalanced audio cables are recommended for input connection.
The monitor typically connects to the line level output of a mixing console or computer audio card.
Make sure the power of the monitor is switched off before you connect any audio cables. Also turn
down the volume initially.
XLR balanced connection
Connect the male side of a XLR balanced cable to the balanced XLR input of KS-50A. Make sure
the power cable is connected as well. Setup all speakers (i.e. left / right channels) with the same
type of cable.
TS unbalanced connection
Connect a TS unbalanced cable to the input jack of KS-50A. Make sure the power cable is
connected as well. Setup all speakers (i.e. left / right channels) with the same type of cable.
KURZWEIL
KS-50A
3. Placement
The placement of monitoring speakers is very critical and can compromise their performance. This
is a general rule for every loudspeaker. To monitor with KS-50A utilizing their maximum
capabilities, an appropriate listening environment and correct placement are important.
Typically you would be using 2 units of KS-50A as one stereo pair or more in surround setups (i.e.
in a 5.1 setup you would use 5 units of KS-50A together with a subwoofer).
Stereo / 2.0 Positioning
In a stereo setup, the listener and speakers should be positioned in a triangle formation. Please refer
to the following diagram to understand how to position your monitors. Each distance x should be
identical.
Stereo with Subwoofer / 2.1 Positioning
In a stereo setup with an added subwoofer, the subwoofer speaker should be positioned ideally in
the exact middle in front of the listener (with the same distance x). If this is not possible, it should
be as close to that position as possible.
KURZWEIL
KS-50A
5.1 Positioning
In a 5.1 surround set, the center speaker should ideally be placed on top of the subwoofer. If this is
not possible, the subwoofer can be moved to the left or right but should be as close as possible. The
rear surround speakers should be positioned around 110° from the center speaker (all with the same
distance x).
7.1 Positioning
In a 7.1 surround set, the center speaker should also ideally be placed on top of the subwoofer or as
close as possible. The surround speakers are best placed 90° from the center speaker and the back
surround speakers are best placed 135° to 150° from the center speaker. All speakers should be
placed with the same distance x to the listener.
KURZWEIL
KS-50A

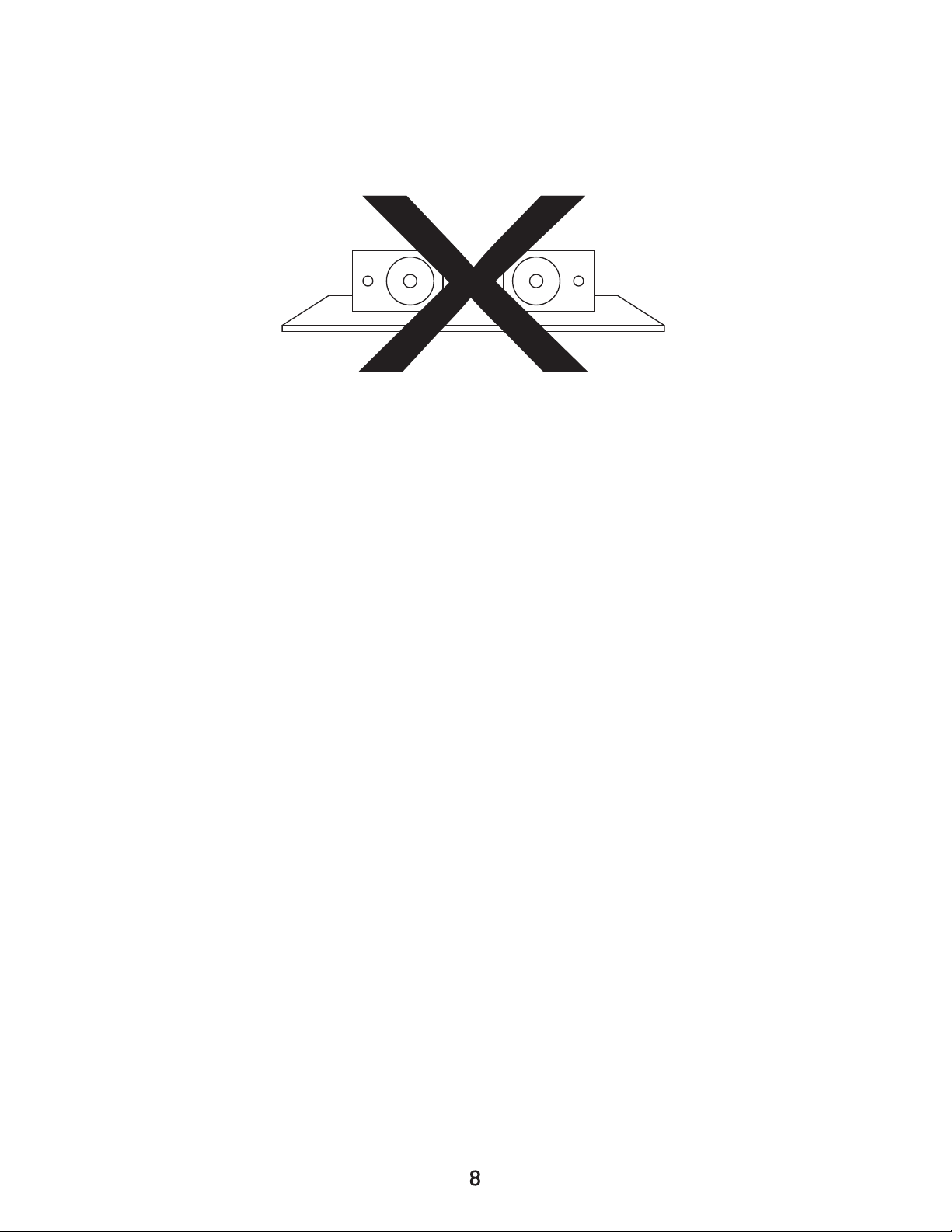

Orientation
-50A vertically. Never place them horizontally.
Comments
Please make sure to not place any obstacles that may block the flow of air or that could generate
sound reflections (especially highly reflective material including glass or metal) in front of the
monitor. Al
wall behind the speaker, so as not to block air flow.
4. Technical Data
Please note that technical specifications are subject to change without any prior notice. The specs
given in this manual are up-to-date at the time of the creation of this document.
Specifications
Model:
KS-50A
Type:
2-way powered speaker
System Type:
Active Studio Monitor Speaker
Dimensions:
250mm (H) x 176mm (W) x 200mm (D)
Weight:
4.5kg
HF Driver:
1" silk dome tweeter
LF Driver:
5" kevlar curved cone (magnetic shielding type)
Output Power:
60W (HF 30W, LF 30W), 85W AC consumption power
Working Voltage:
AC100-240V 50/60Hz, with 115V / 230V AC selection switch
Frequency Response:
50 Hz 20kHz
Input Impedance:
23.3 kOhm balanced, 13.3 kOhm unbalanced
Crossover Point:
2.5kHz
SPL:
88dB+/- 3dB
Rated Noise Power:
30 Watt (THD=1%, 4ohm@1kHz)
Input Sensitivity:
75mV@1Watt, 415mV@30Watt
Input Connectors:
XLR / TS1/4" combo connector, balanced / unbalanced input
Volume Control:
min - center - max
Indicator:
power LED on front panel, blue
KURZWEIL
KS-50A

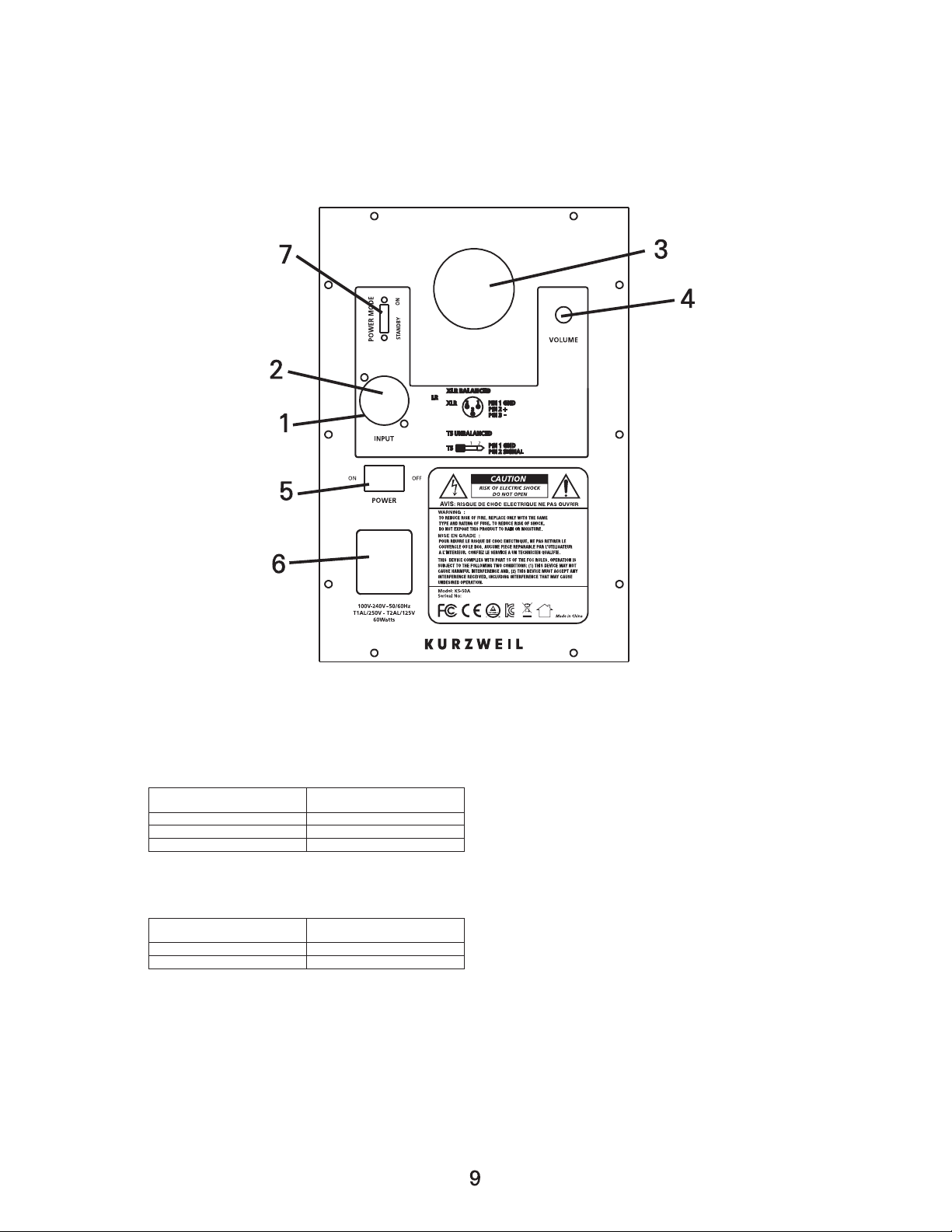

Rear Panel
1. XLR input this connector accepts balanced XLR input connections (optimised for +4dBu).
XLR input is wired like this:
INPUT SIGNAL
XLR CONNECTIONS
+
PIN 2
-
PIN 3
Shield
PIN 1
2. TS input this jack accepts TS input connections, unbalanced (optimised for -10dBV). The TS
input is wired like this:
INPUT SIGNAL
TRS CONNECTIONS
Signal
Tip
Shield
Sleeve
The TS input should not be used with balanced TRS signals. Although this is possible, the input
level will not be correct in that case. For balanced connection, please use a XLR cable whenever
possible.
KURZWEIL
KS-50A
3. Vent Port KS-50A is a vented box speaker system with a vent port on the rear panel. Make
sure you are not blocking the vent port (i.e. by putting the speaker too close to a wall) or the sound
color will be changed.
4. Volume Control Knob Use the volume control knob to set the proper input level from the
sound source. Make sure to setup all speakers accordingly. When set to the center position, the
output level is set to the recommended calibrated level to reach the most optimised dynamic
response (expecting a balanced XLR +4dBu or unbalanced TS -10dBV input signal).
5. Power Switch Use the power switch to power KS-50A on or off.
6. Power Port with Ext. Fuse Use this connector to plug in the power cord that connects to the
power outlet. The connector contains a replaceable fuse (T1AL250V).
7. Power Mode Switch You can select either STANDBY or ON. When set to ON, the unit will
always be turned on. When set to STANDBY, the unit will switch to power saving mode after a
while without any audio signal. The power saving mode is indicated by a red LED on the front
panel (instead of the blue power LED). When there is an audio signal again, regular operation
resumes. Please note that the POWER MODE switch is only available in models sold in certain
countries.
5. General Information
Trademarks
KURZWEIL, KS-50A are trademarks of HDC YOUNG CHANG. Other product and brand names
are trademarks or registered trademarks of their respective companies.
Correspondence
For technical support inquiries, contact your nearest dealer, local distributor or KURZWEIL support
online at www.kurzweil.com.
Disclaimer
All features and specifications subject to change without notice. Please check our web site
www.kurzweil.com for the most recent information.
