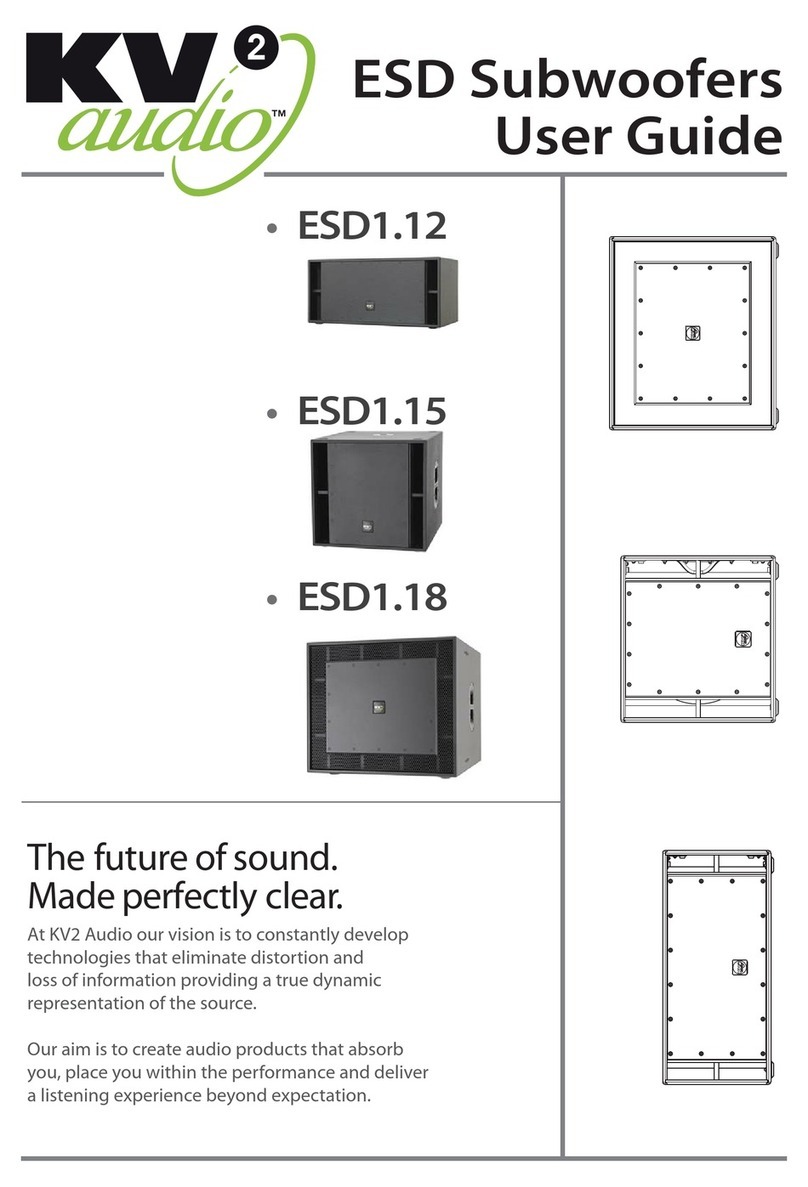

KV2 Audio ESD Series User manual

User Guide
ESD Series Subwoofers
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.
· ESD1.12 · ESD1.15 · ESD1.18

ESD Series Subwoofers · Contents
Contents
ESD1.12 3
Overview 3
Specications 4
Drawing 5
ESD1.15 6
Overview 6
Specications 7
Drawing 8
ESD1.18 9
Overview 9
Specications 10
Drawing 11
Accessories 12
Warranty · Service 13
ESD Series Subwoofers · Contents

ESD1.12 · Overview
Introduction
The ESD1.12 is a very compact passive, high output subwoofer. The ESD1.12 is a passive version of the active EX1.2,
12" subwoofer and features the same high quality neodymium driver.
This subwoofer's low prole and size makes it ideal for discreet applications.
With a power handling of 600 watts, the ESD1.12 is capable of delivering tight, fast, controlled bass response at high
output levels from a compact cabinet.
The ESD1.12 woofer is protected by a reverse thermal-circuit breaker (autoreset) and features a professional Baltic Birch
construction with a wear resistant polymer coating and a specially designed handle for simplied handling
and carrying. The ESD1.12 is also available in any RAL colour (white RAL9003 on stock).
Application
Specically designed as a passive subwoofer to accompany
and compliment the ESD5/6 as a true full range system
• For xed installation
• Bars-small entertainment projects
• Small footprint and dimensions allow placement under
seating and xtures
ESD1.12 - part number KVV 987 225
Connection
The ESD1.12 features both Speakon (NL4) connectors and a terminal block. The connectors are interconnected in
parallel to allow the "daisy chaining" of additional ESD1.12's.
ESD1.12 · Overview
3
Congurations example
ESD1.12 + 1x ESD10 or 4x ESD6

ESD1.12 · Specications
4
ESD1.12 · Specications
Specications
System Acoustic Perfomance
Max SPL Long-term 124dB
Max SPL Peak 127dB
-3dB Response 38Hz to 150Hz
Recommended Power 600W
Sensitivity 97dB (half-space area)
Impedance 4Ω
Crossover Point 80Hz to 150Hz
Low Frequency Section
Acoustic Design Twin Asymmetrical loading
Number of Drivers 1
Woofer Size / Voice Coil Diameter / Design 12" / 3" / Inside Outside
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Ferrite
Protection Thermal breaker - autoreset
Speaker Input
Speaker Input 2x Neutrik Speakon®, Terminal Block
Cabinet
Cabinet Material Baltic birch
Handles 2
Pole Mount M20
Flyware 8x M10 suspension points
Color "Orange peeled" Matt Black or any RAL
Physical Dimensions
Height 379.5 mm (14.94")
Width 800 mm (31.49")
Depth 400 mm (15.75")
Weight 26.7 kg (58.8lbs)

ESD1.12 · Drawings
ESD1.12 · Drawings
5
Drawings

ESD1.15 · Overview
6
ESD1.15 · Overview
ESD1.15 - part number KVV 987 241
Introduction
The ESD1.15 is a compact passive, high output subwoofer. The ESD1.15 features a single 15" neodymium driver.
Oering a peak SPL of 130dB the ESD1.15 produces considerable output yet in true KV2 style retains a compact
footprint. Multiple units of ESD1.15's can be stacked together to create a powerful and scalable subwoofer system.
With a power handling of 600 watts and high eciency, the ESD1.15 is capable of delivering fast, controlled bass
response at high output levels from a compact cabinet.
The ESD1.15 woofer is protected by a reverse thermal-circuit breaker (autoreset) and features a professional Baltic Birch
construction with a wear resistant polymer coating and a specially designed handle for simplied handling
and carrying. The ESD1.15 is also available in any RAL colour (white RAL9003 on stock).
Application
Specically designed as a passive subwoofer to accompany
any of the ESD range to create true full range system
performance
• Fixed installation
• Portable PA
• Bars-small entertainment projects
• Scalable into larger systems
Connection
The ESD1.15 features both Speakon (NL4) connectors and a terminal block. The connectors are interconnected in
parallel to allow the "daisy chaining" of additional ESD1.15's.
Congurations example
2x ESD1.15 + 2x ESD10 or 2x ESD12

ESD1.15 · Specications
ESD1.15 · Specications
7
Specications
System Acoustic Perfomance
Max SPL Long-term 127dB
Max SPL Peak 130dB
-3dB Response 37Hz to 150Hz
Recommended Power 600W
Sensitivity 99dB (half-space area)
Impedance 4Ω
Crossover Point 80Hz to 150Hz
Low Frequency Section
Acoustic Design Twin Asymmetrical loading
Number of Drivers 1
Woofer Size / Voice Coil Diameter / Design 15" / 3" / Inside Outside
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Ferrite
Protection Thermal breaker - autoreset
Speaker Input
Speaker Input 2x Neutrik Speakon®, Terminal Block
Cabinet
Cabinet Material Baltic birch
Handles 2
Pole Mount M20
Flyware 8x M10 suspension points
Color "Orange peeled" Matt Black or any RAL
Physical Dimensions
Height 510 mm (20.08")
Width 550 mm (21.65")
Depth 570 mm (22.44")
Weight 34.2 kg (75.4lbs)

ESD1.15 · Drawings
8
ESD1.15 · Drawings
Drawings

ESD1.18 · Overview
ESD1.18 · Overview
9
ESD1.18 - part number KVV 987 242
Introduction
The ESD1.18 is a high output subwoofer. The ESD1.18 is a passive version of the active EX1.8, 18" subwoofer
and features the same high quality neodymium driver. The unit provides a very rm foundation on which to build
a powerful ESD system.
With a power handling of 1000 watts, the ESD1.18 is capable of delivering controlled bass response at very high output
levels from a relatively small cabinet.
The ESD1.18 woofer is protected by a reverse thermal-circuit breaker (autoreset) and features a professional Baltic
Birch construction with a wear resistant polymer coating and a specially designed handle for simplied handling and
carrying. The ESD1.18 is also available in any RAL colour.
Application
Specically designed as a passive subwoofer to accompany
any of the ESD range to create true full range system
performance
• Fixed installation
• Portable PA
• Bars-small entertainment projects
• Scalable into larger systems
Connection
The ESD1.18 features both Speakon (NL4) connectors and a terminal block. The connectors are interconnected
in parallel to allow the "daisy chaining" of additional ESD1.18's.
Congurations example:
2x ESD1.18 + 2x ESD12

ESD1.18 · Specications
10
ESD1.18 · Specications
Specications
System Acoustic Perfomance
Max SPL Long-term 131dB
Max SPL Peak 134dB
-3dB Response 30Hz to 150Hz
-10dB Response 27Hz to 150Hz
Recommended Power 1000W
Sensitivity 100dB
Impedance 8Ω
Crossover Point 80 to 150Hz
Low Frequency Section
Acoustic Design Twin Asymmetrical loading
Number of Drivers 1
Woofer Size / Voice Coil Diameter / Design 18" / 4" / Inside Outside
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Neodymium
Protection Thermal breaker - autoreset
Speaker Input
Speaker Input 2x Neutrik Speakon®, Terminal Block
Cabinet
Cabinet Material Baltic birch
Handles 2
Pole Mount M20
Color "Orange peeled" Matt Black or any RAL
Physical Dimensions
Height 612 mm (24.1")
Width 700 mm (27.56")
Depth 750 mm (29.5")
Weight 52 kg (114.7lbs)

ESD1.18 · Drawings
ESD1.18 · Drawings
11
Drawings

ESD Series Subwoofers · Accessories
12
ESD Series Subwoofers · Accessories
Recommended speaker cable lenghts
MINIMUM CROSS SECTION [mm2] LENGTH [m], impedance 4Ω LENGTH [m], impedance 8Ω LENGTH [m], impedance 16Ω
1.5 8 15 30
2.5 15 30 60
2 x 2.5 20 40 90
4 25 50 100
Speaker pole - universal
part name:
KV2-H
part number:
KVV 987 130
description:
- Heavy duty telescopic speakerpole
- 0,735 to 1,23 m
- diameter 35 mm
- weight 2,2 kg
- max. load 50 kg
- bottom terminal M20
- matte black
min - max
735 mm - 1230 mm
28,937" - 48.425"
Speakon speaker cable 4.15
part name:
CABLE SPEAKON 4.15
part number:
KVV 987 326
description:
- 4 wire speaker cable
- Speakon NL4FX connectors
- 1,5m (5ft)
Speakon speaker cable 4.40
part name:
CABLE SPEAKON 4.40
part number:
KVV 987 327
description:
- 4 wire speaker cable
- Speakon NL4FX connectors
- 4m (13ft)

ESD Series Subwoofers · Warranty · Service
ESD Series Subwoofers · Warranty · Service
13
Warranty
Your ESD is covered against defects in material and workmanship.
Refer to your supplier for more details.
Service
In the unlikely event that your ESD develops a problem, it must be returned to an authorised distributor, service
centre or shipped directly to our factory. Because of the complexity of the design and the risk of electrical shock, all
repairs must be attempted only by qualied technical personnel.
If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly packed, the unit
may be damaged.
To obtain service, contact your nearest KV2 Audio Service Centre, Distributor or Dealer.

KV2 Audio International
Nádražní 936, 399 01 Milevsko
Czech Republic
Tel.: [phone]
Email: [email protected]
www.kv2audio.com
KVV120056-00-05-0
