KWorld PC TO TV VIDEO BOX User manual

PC to TV Converter
User Manual

1. Introduction
The KWorld PC to TV converter provides automatic conversion of PC
desktop images to high quality video images for standard television
viewing.
1.1 Support Mode and Resolution
IPC Compatible
VGA mode Apple MAC G4,G4
Cubic,G3 Apple iMac, iMac DV
Resolution
Vertical frequency (Hz)
640x480 60,70,72,75,85,100,120 60,66,72,75,85,100,120 117
800x600 56,60,70 ,72,75,85,100 56,60,72, 75,85,100 95
1024x768 60,70,72, 75 60,70,75 x
1152x864 60,70,72, 75 60,70 x
1280x960 60 x x
1280x1024 60 x x
1600x1200 60 x x
1.2 Product Features
a. Automatically saves your adjustment settings.
b. Pure hardware design- just Plug and Display, no software drivers or setup required.
c. Supports resolution standards up to 1600 x 1200.
d. Supports CVBS, S-VIDEO or RGB & Y.Cb.Cr video outputs with a simple switch
change.
e. Programmable 2D scaling (without black frame on TV).
f. Powered from a USB or PS/2 port - no power adaptor required.
g. Simultaneous display on both TV and VGA monitors.
h. Simultaneous RGB and CVBS output signal available on RGB connector.
i. 24 bit, true color digitizer.
j. Panel Buttons: Power, Fine Tune, PAL/NTSC, Zoom, Menu and Position control
function.
k. Y.Cb.Cr output supports all interlace formats including YUV,Y.Cb.Cr and Y.Pb.Pr.
l. PAL/NTSC button functions: NTSC, NTSC-EIAJ, PAL-M, PAL-N, PAL, PAL-
COMBINATION-N.
m. MENU button functions: Freeze, Horizontal SIZE (H-SIZE), Vertical SIZE (V-SIZE),

Brightness, Contrast, Hue, Saturation, Flicker, OSD color & Reset.
n. LED power indicator.
o. Independent Horizontal Size and Vertical Size adjustment (programmable 2D
scaling).
p. 64 stages of output Brightness, output Contrast, output Hue, and output Saturation
adjustment.
q. 16 stages of FINE TUNING (Sharpness), and Flicker adjustment.
r. Remote Control functions: POWER, VIDEO STANDARD, Position control, RESET,
MENU, FREEZE, and ZOOM adjustment.
s. On Screen Display (OSD) operation status.
1.3 System Requirements
a. IBM PC Compatible or notebook and Apple MAC.
b. Supports NTSC or PAL video standard TV or VCR.
c. Provides composite video output, S-Video output, and Y.Cb.Cr terminal output.

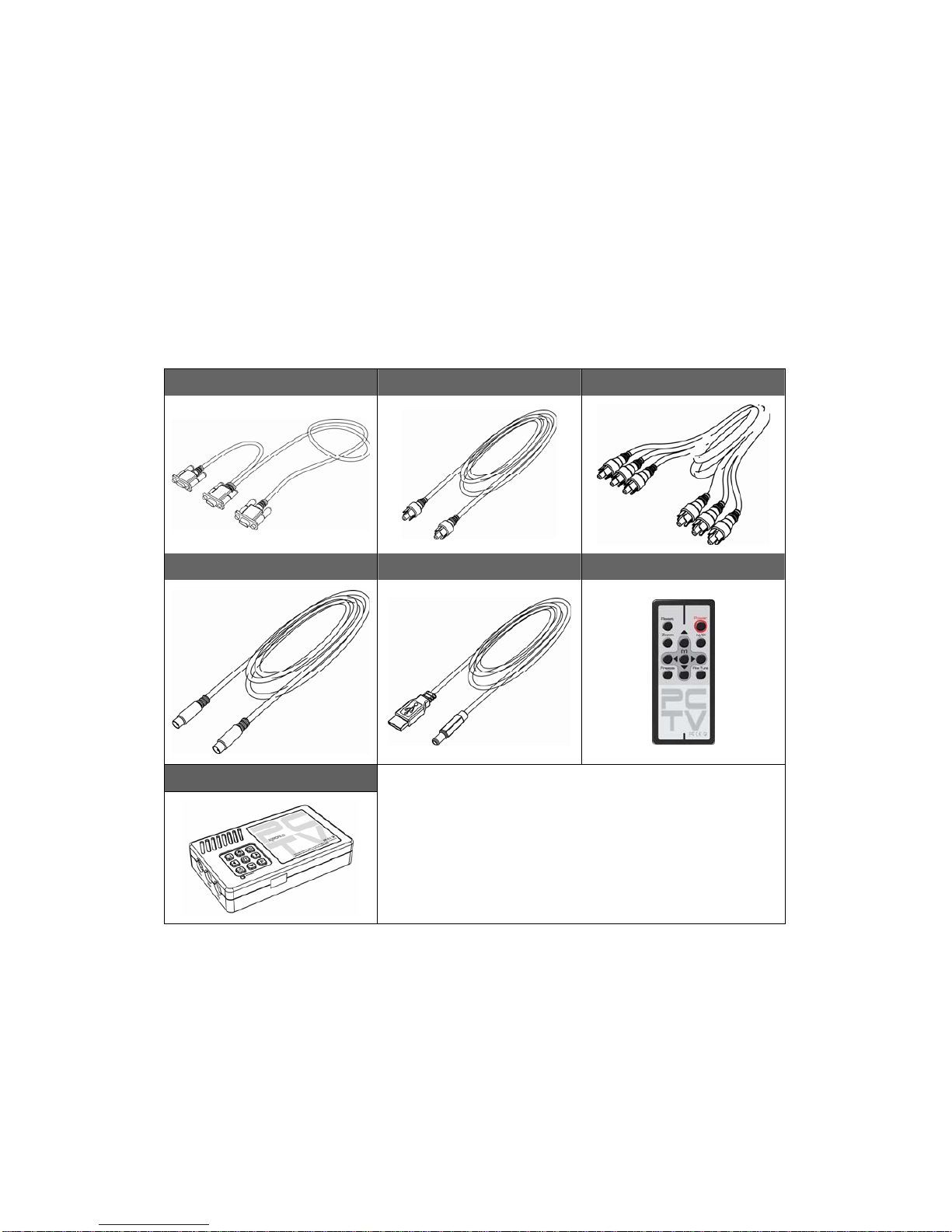

2. Package Contents
a. Remote control.
b. User’s Manual.
c. Y Cable.
d. USB power cable.
e. Video Cable.
f. S-Video Cable.
g. Lithium battery *1 for remote control.
h. Kworld PC-TV Adapter Box.
i. Y.Cb.Cr Cable.
Y Cable Video Cable Y.Cb.Cr Cable
S-Video Cable USB power line Remote Control

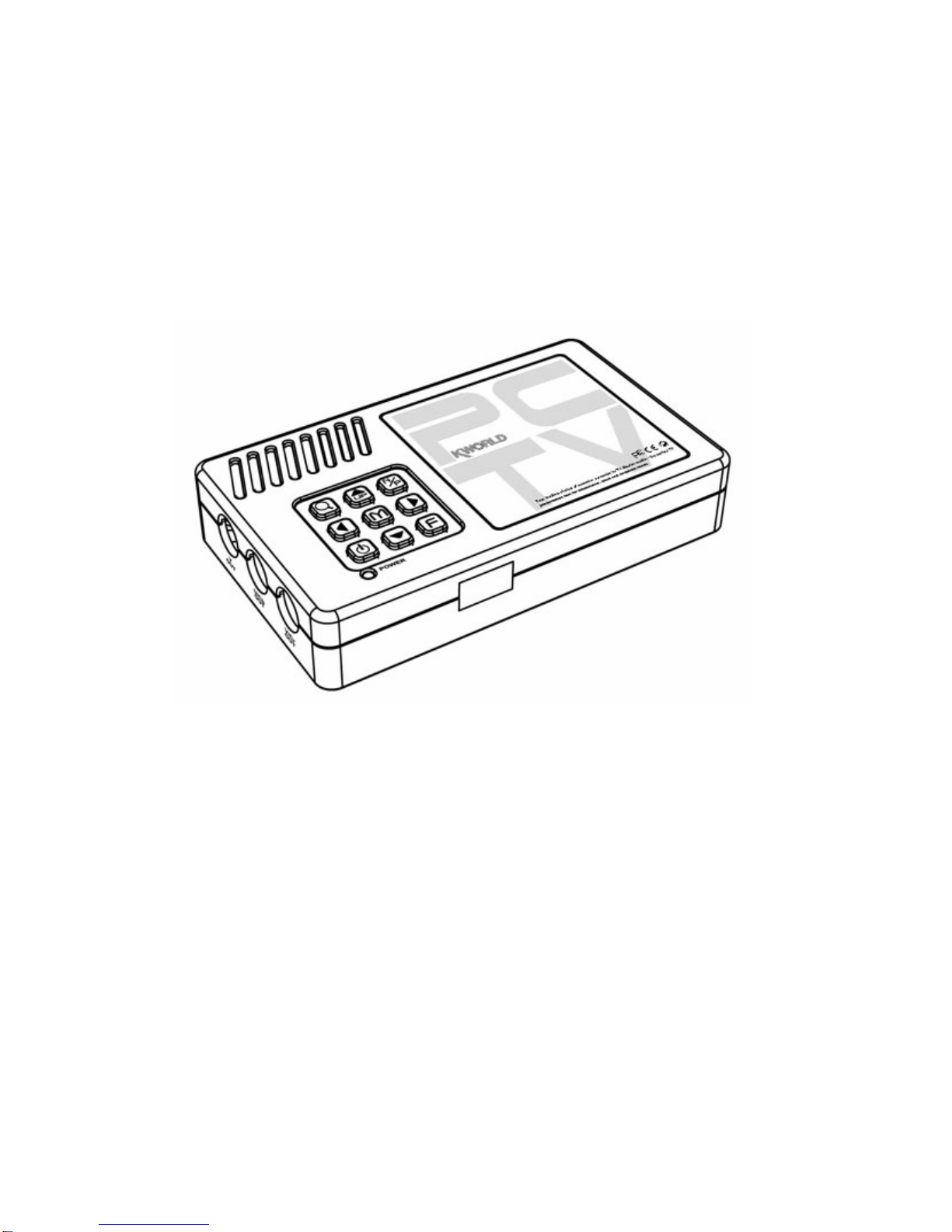

PC-TV Box

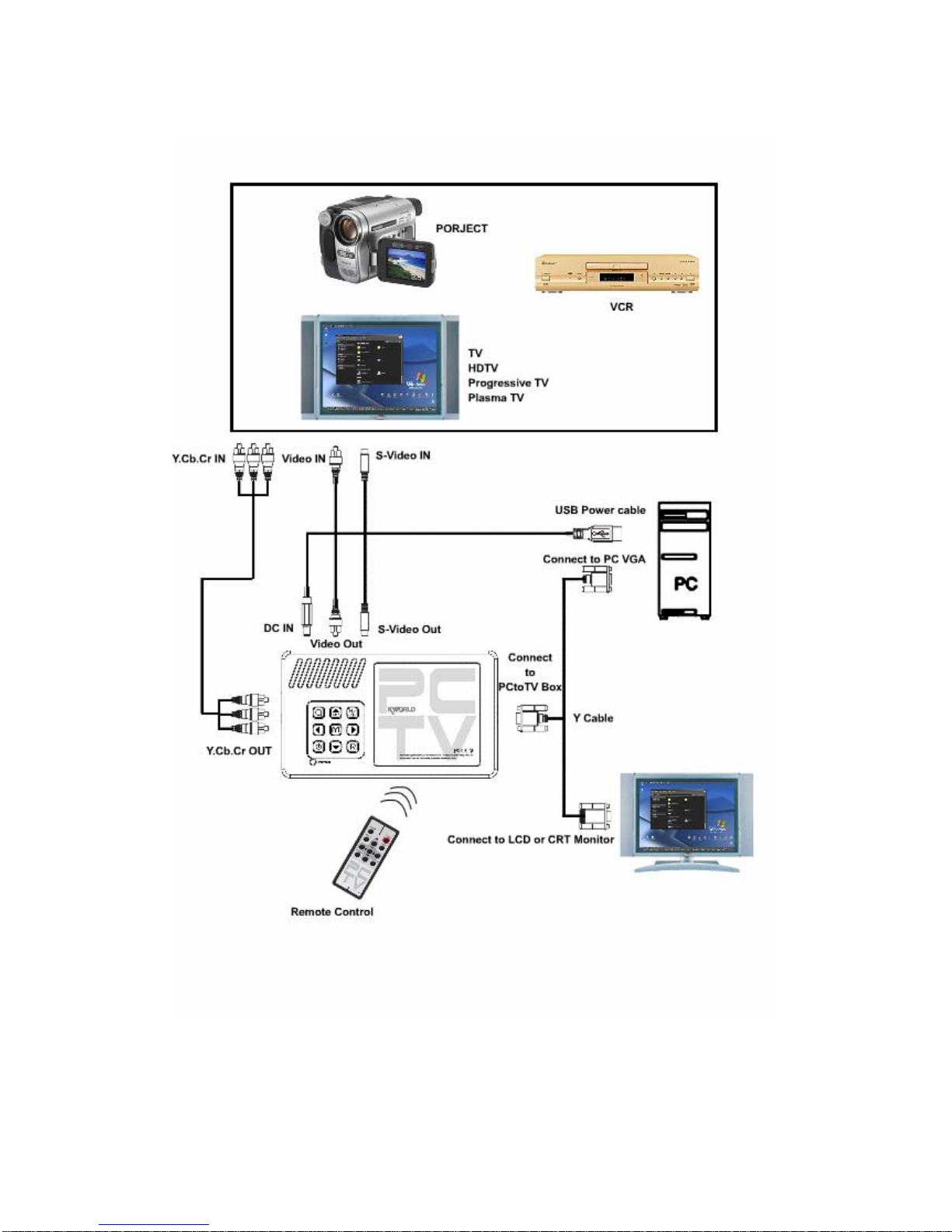

3. Hardware Connection

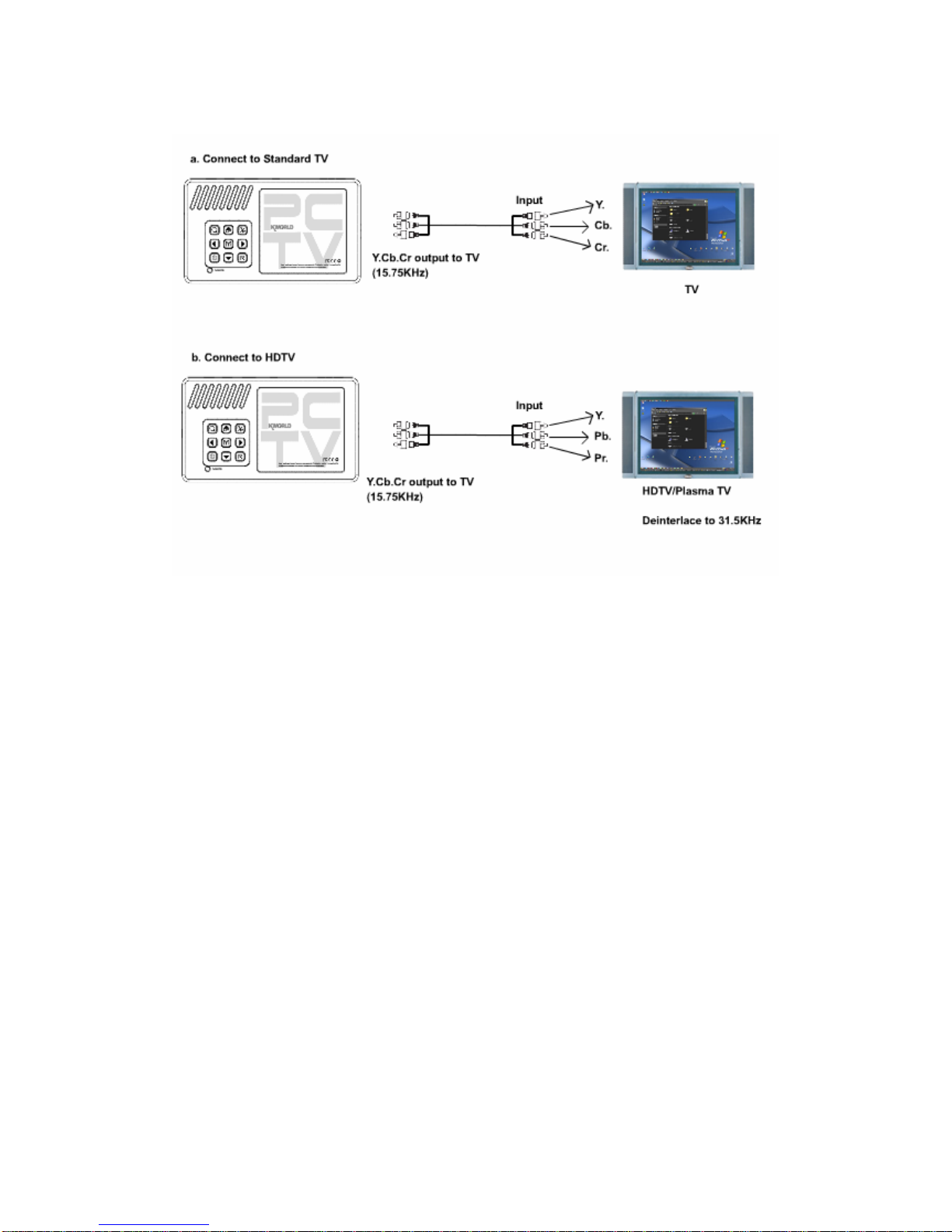

HDTV Connection

4. Function

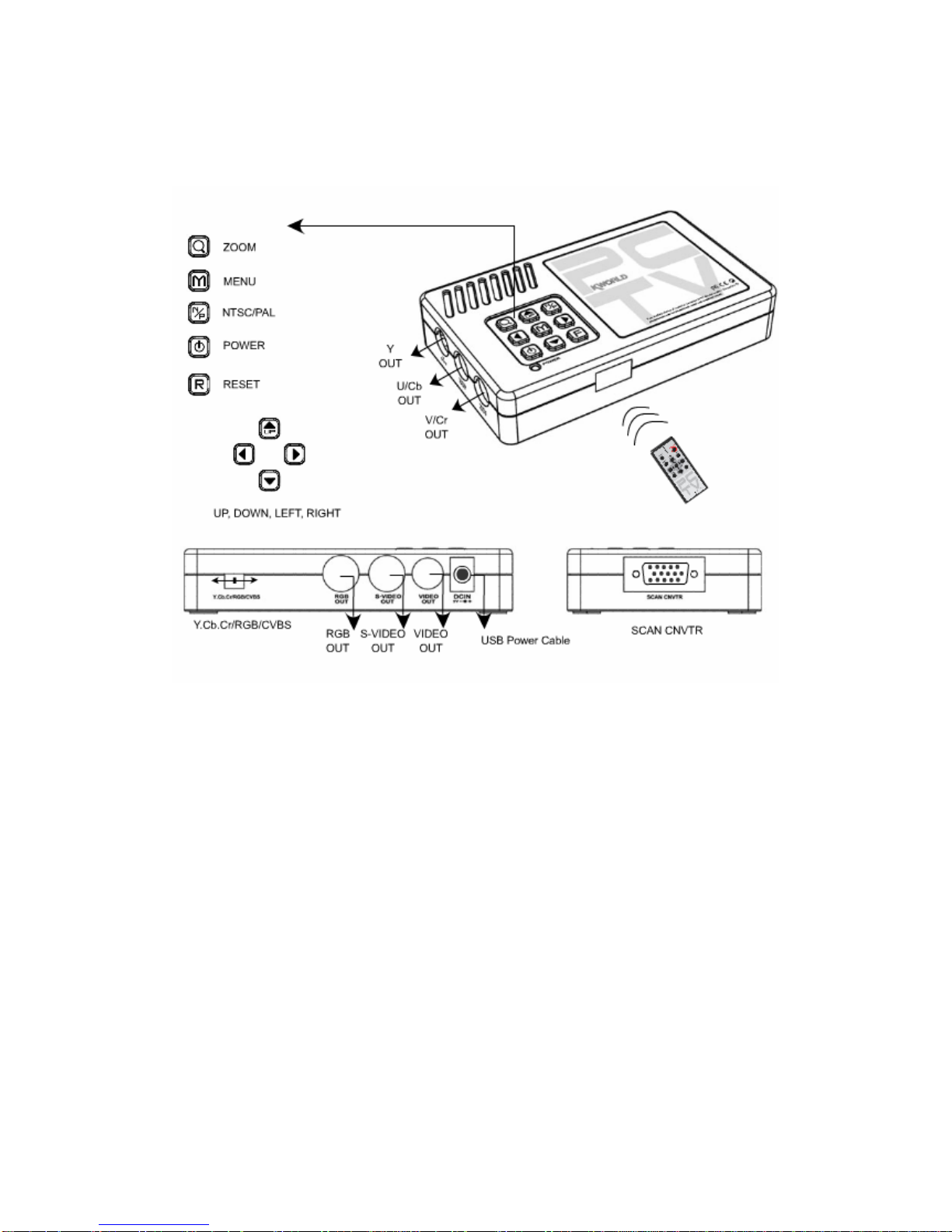

4.1 Input/Output Connections
a. SCAN CNVTR: VGA signal input/output. Connect to the Y cable.
b. RGB OUT: Output RGB signal.
c. S-VIDEO OUT: Output S-VIDEO signal connects to TV or VCR.
d. VIDEO OUT: Output VIDEO signal, connects to TV or VCR.
e. DC IN: Connect USB power cable, obtains power from USB port on PC
f. Y.Cb.Cr OUT: Output Y.Cb.Cr signal, connects to TV or VCR.

4.2 Buttons and Switches
POWER: Power Switch.
NTSC/PAL: NTSC/PAL button switches between different TV
Standards.
MENU: Displays the OSD menu on screen. Main menu controls the
following functions: H-SIZE, V-SIZE, FREEZE, BRIGHTNESS, CONTRAST,
HUE, SATURATION, FLICKER, OSD BACKGROUND, RESET.
ZOOM: Switches on-screen video between 2x ZOOM and normal.
RESET: Resets all functions to factory standard settings.
Y.Cb.Cr/RGR/CVBS: Switches between different output modes.
CVBS: Switches to CVBS for Composite Video and S-Video output mode.
RGB: Switches to RGB for RGB output mode.
Y.Cb.Cr : Switches to Y.Cb.Cr for Component Video mode.

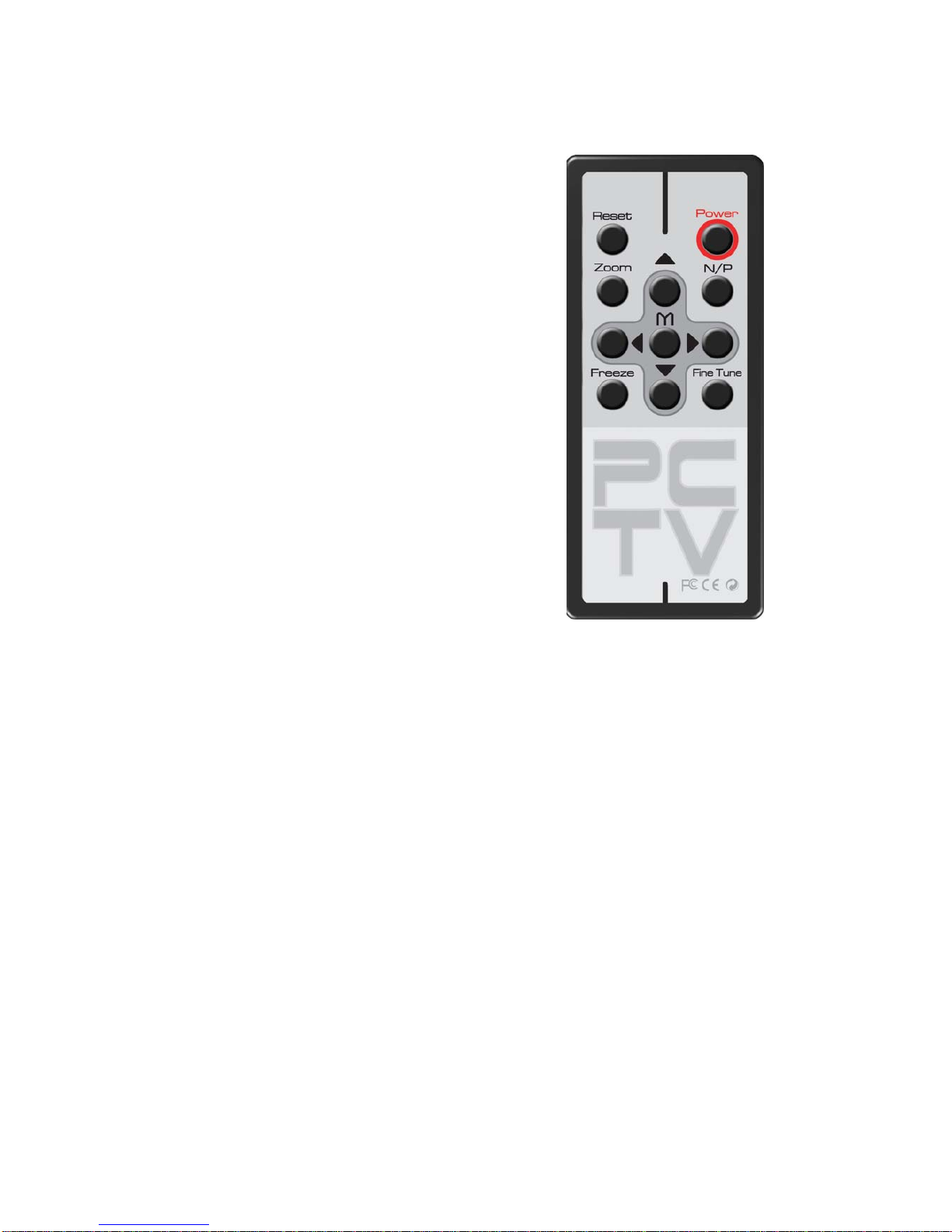

4.3 Remote Control
a. POWER: Power switch.
b. RESET: Resets all functions to factory
standard settings.
c. N/P: NTSC/PAL button switches between
different TV Standards.
d. ZOOM: Switches on-screen video from
normal to 2x zoom.
e. M: Displays the OSD menu on screen.
Main menu controls: H-SIZE, V-SIZE,
FREEZE, BRIGHTNESS, CONTRAST,
HUE, SATURATION, FLICKER,
OSD BACKGROUND, RESET.
f. FINE TUNE: Reduces on-screen video
shaking.
g. FREEZE: Freezes on-screen TV image.
h. c: Tilts screen UP.
i. d: Tilts screen DOWN.
j. e: Pans screen to the LEFT.
k. f: Pans screen to the RIGHT.

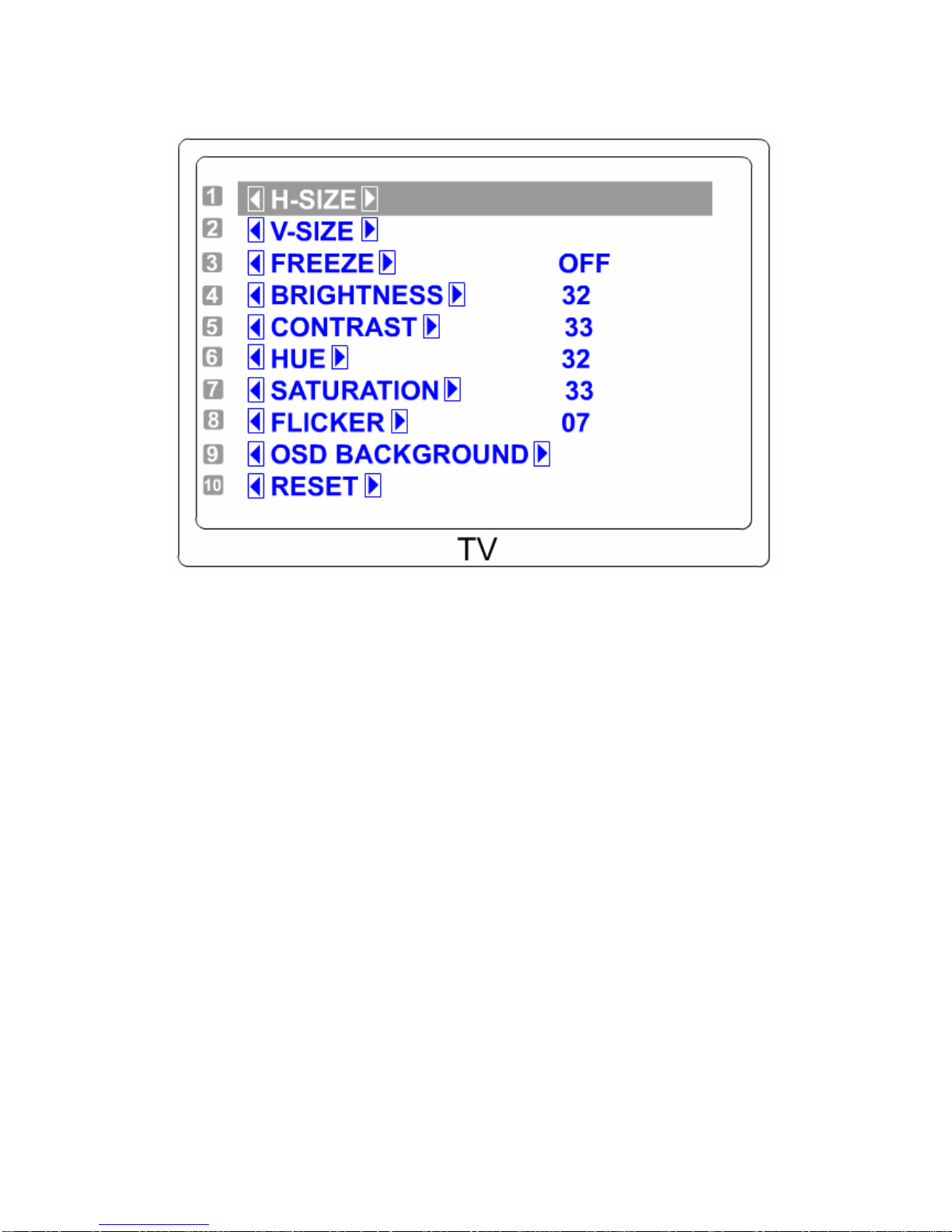

4.4OSD MENU
1. H-SIZE: Adjusts the horizontal size of on-screen video.
2. V-HIZE: Adjust the vertical size of on-screen video.
3. FREEZE: Freezes current TV screen.
4. BRIGHTNESS: Adjusts the video brightness 64 degrees. (Default
value is 32).
5. CONTRAST: Adjusts the video contrast 64 degrees. (Default
value is 32).
6. HUE: Adjusts the video HUE 64 degrees. (Default value is 32).
7. SATURATION: Adjust the video saturation 64 degrees. (Default
value is 32).
8. FLICKER: The Flicker filter controls the width and height of the
edge enhancement.
9. OSD BACKGROUND: Switches the OSD background color.
10.RESET: Resets all functions to factory standard settings.
