KYLAND Technology PTS-DR200 User manual

PTS-DR200
Time Server
Operation Manual
Kyland Technology (Shanghai) Co., Ltd.
Version Copyright
R7

Kyland Technology (Shanghai) Co., Ltd.
Room 802, Building 5, No.3000 Longdong Avenue
Pudong District, Shanghai, China
Tel: [phone]
Fax: [phone]

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 1 -
Contents
1. Basic Features............................................................................................................ 4
1.1. Introduction................................................................................................. 4
2. Structure .................................................................................................................... 5
2.1. Panel ............................................................................................................ 5
2.2. Output ......................................................................................................... 7
2.3. Screen.......................................................................................................... 8
2.4. Indicator Lights ............................................................................................ 9
3. WEB Operations ...................................................................................................... 10
3.1. Login .......................................................................................................... 10
3.2. Logout........................................................................................................ 10
3.3. Languages.................................................................................................. 11
3.4. Status......................................................................................................... 11
3.4.1. Time Information................................................................................ 11
3.4.2. Source Status...................................................................................... 12
3.4.3. Clock Status ........................................................................................ 14
3.5. Configuration............................................................................................. 15
3.5.1. Sync Source Settings........................................................................... 16
3.5.2. Clock Settings ..................................................................................... 21
3.5.3. NTP Settings ....................................................................................... 25
3.5.4. PTP Settings (Optional)....................................................................... 25
3.5.5. Output Settings .................................................................................. 28
3.5.6. Network Settings................................................................................ 36
3.5.7. TMS Settings (Optional) ..................................................................... 37
3.6. System ....................................................................................................... 45
3.6.1. Gateway.............................................................................................. 46
3.6.2. Route .................................................................................................. 46
3.6.3. Configuration...................................................................................... 47
3.6.4. Firmware ............................................................................................ 47
3.6.5. SNMP (Optional)................................................................................. 48
3.7. Management ............................................................................................. 48
3.7.1. Change Password ............................................................................... 49
3.7.2. Reboot ................................................................................................ 49
Table Index...................................................................................................................... 51
Figure Index .................................................................................................................... 52

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 2 -
Notice for Safety Operation
The product performs reliably as long as it is used according to the guidance. Artificial
damage or destruction of the device should be avoided. Before using the device, read
this notice carefully for personal and equipment safety. Please keep the manual for
further reference.
Do not place the device near water sources or damp areas. Keep the ambient
relative humidity within the range from 5% to 95% (non-condensing).
Do not place the device in an environment with high magnetic field, strong shock,
or high temperature. Keep the working and storage temperatures within the
allowed range.
Install and place the device securely and firmly.
Please keep the device clean; if necessary, wipe it with a soft cotton cloth.
Do not place any irrelevant materials on the device or cables. Ensure adequate
heat dissipation and tidy cable layout without knots.
Wear antistatic gloves or take other protective measures when operating the
device.
Avoid any exposed metal wires because they may be oxidized or electrified.
Install the device in accordance with related national and local regulations.
Before power-on, make sure the power supply is within the allowed range of the
device. High voltage may damage the device.
Power connectors and other connectors should be firmly interconnected.
Do not plug in or out the power supply with wet hands. When the device is
powered on, do not touch the device or any parts with wet hands.
Before operating a device connected to a power cable, remove all jewelry (such as
rings, bracelets, watches, and necklaces) or any other metal objects, because they
may cause electric shock or burns.
Do not operate the device or connect or disconnect cables during an electrical
storm.
Use compatible connectors and cables. If you are not sure, contact our sales or
technical support personnel for confirmation.
Do not disassemble the device by yourself. When an anomaly occurs, contact our
sales or technical support personnel.
If any part is lost, contact our sales or technical support personnel to purchase
the substitute. Do not purchase parts from other channels.
Dispose of the device in accordance with relevant national provisions, preventing

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 3 -
environmental pollution.
In the following cases, please immediately shut down your power supply and contact
your Kyland representative:
Water gets into the equipment.
Equipment damage or shell damage.
Equipment operation or performance has abnormally changed.
The equipment emits odor, smoke or abnormal noise.
Indicator Flag
Note Highlight the important information and use of skills, necessary to
the operation of your tips, supplement and instructions.
Attention Remind you of operation must be pay attention to and follow such as
not operating in accordance with the requirements, equipment
damage may arise or other unpredictable result.
Alarm Warning you could potentially dangerous situation, if unavoidable,
may cause serious personal injury.

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 4 -
1. Basic Features
1.1. Introduction
[Figure 1-1] PTS-DR200 Time Server
PTS-DR200 is a multifunction time server. PTS-DR200 is designed for DIN Rail Mount
requirements. It is a compact and provides nanosecond accuracy time service for any
industry fields. It supports GPS (Global Positioning Service), BDS (Chinese Satellite
System), and GLONASS (Russian Satellite System) as sky time sources and IEEE1588
PTP (Precision Timing Protocol), IRIG-B as ground time sources. Based on the multiple
time source input PTS-DR200 has multi-time source selection logical and Sky-
Grounding time backup function inside. It also supports IEEE1588 PTP (Precision
Timing Protocol), NTP (Network Time Protocol), IRIG-B, 1PPS, 1PPM, 1PPH and TOD
etc. time synchronization signal output as time synchronization purpose. PTS-DR200
supports TMS (Time Management System) features to report PTS-DR200 time status
by IEC61850, IEC60870-5-104, SNMP, Modbus TCP, and DNP over TCP etc. It also can
generate accurate GOOSE signal to trigger an event to monitor IED time status in
power system and provides GOOSE subscriber to send time status by IEC61850 MMS.
The default embedded WEB service provides system management and also optional
support SNMP management.

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 5 -
2. Structure
2.1. Panel
(12)
(1)(2) (3)(4) (5)
(6)
(7)
(8)
(9)
(10)
(13)
(11)
(14)

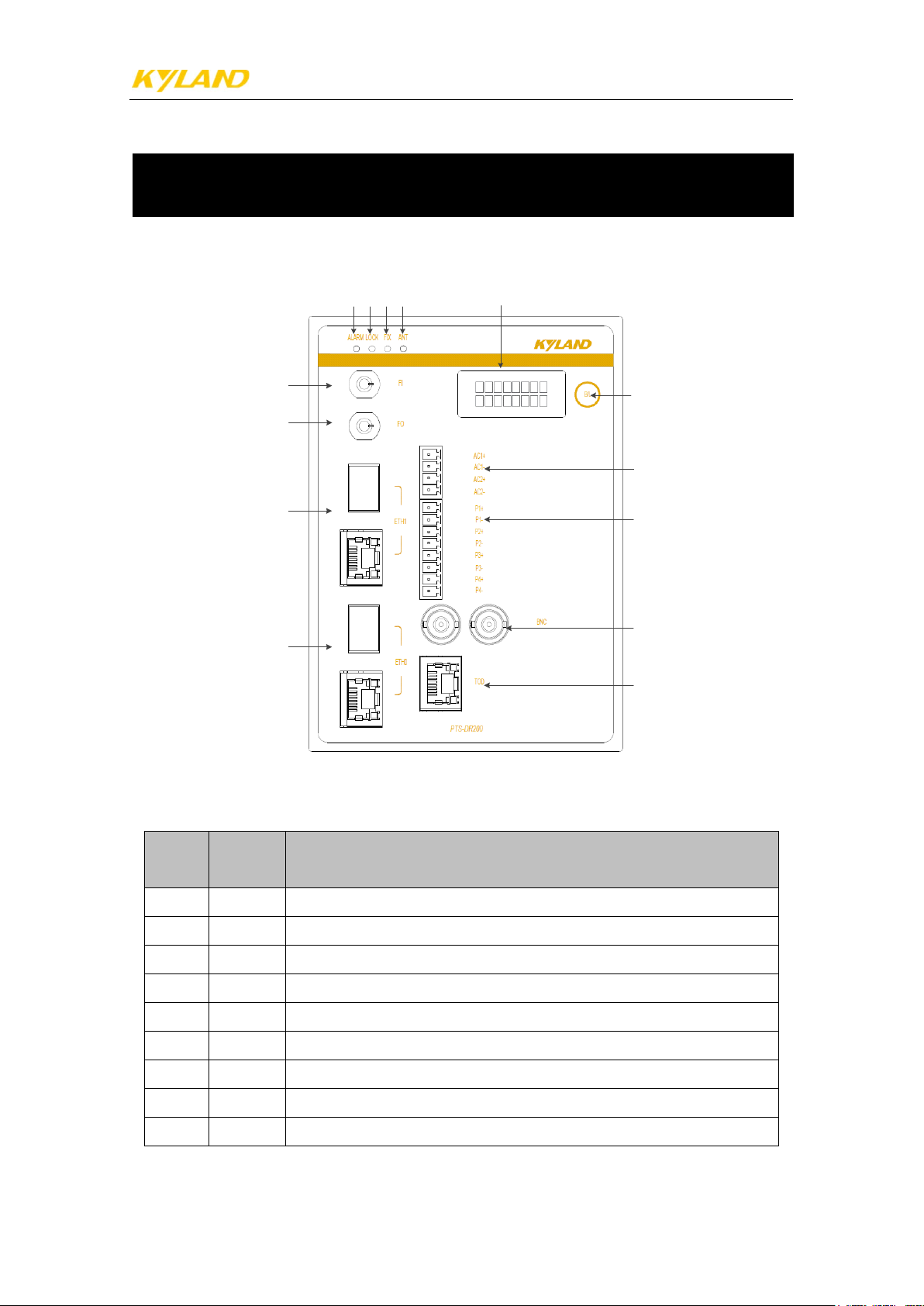

[Figure 2-1] PTS-DR200 Front Panel
Table 1 – Front Panel of PTS-DR200
No. Panel
Printing Description
(1) ALARM System Alarm Status Indicator Light
(2) LOCK Time Lock Status Indicator Light
(3) FIX Satellite Position Fix Status Indicator Light
(4) ANT Antenna Status Indicator Light
(5) -- LCD with backlight
(6) B/L B/L Button, show message and turn on backlight
(7) AC(1-2) Two Terminal output ports, IRIG-B modulated signal
(8) P(1-4) Four Terminal TTL output ports, PPS/PPM/PPH/IRIG-B configurable
(9) BNC Two BNC TTL output ports, PPS/PPM/PPH/IRIG-B configurable

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 6 -
(10) TOD
Two RS485 RJ45 output ports, RJ45 Pin Definition will be shown as:
Pin Definition
1 N/C
2 N/C
3 SO-PPS-
4 GND
5 GND
6 SO-PPS+
7 SO-TxD-
8 SO-TxD+
SO-PPS is PPS/PPM/PPH/IRIG-B configurable;
SO-TxD is TOD serial message.
(11) ETH0 ETH0, Copper and Optical multiplex Ethernet interface, NTP/PTP signal
(12) ETH1 ETH1, Copper and Optical multiplex Ethernet interface, NTP/PTP signal
(13) FO Optical Fiber output port, PPS/PPM/PPH/IRIG-B configurable
(14) FI Optical Fiber input port, IRIG-B unmodulated signal
(1)
(2)
(3) (4)
(5)
(6)
(7)

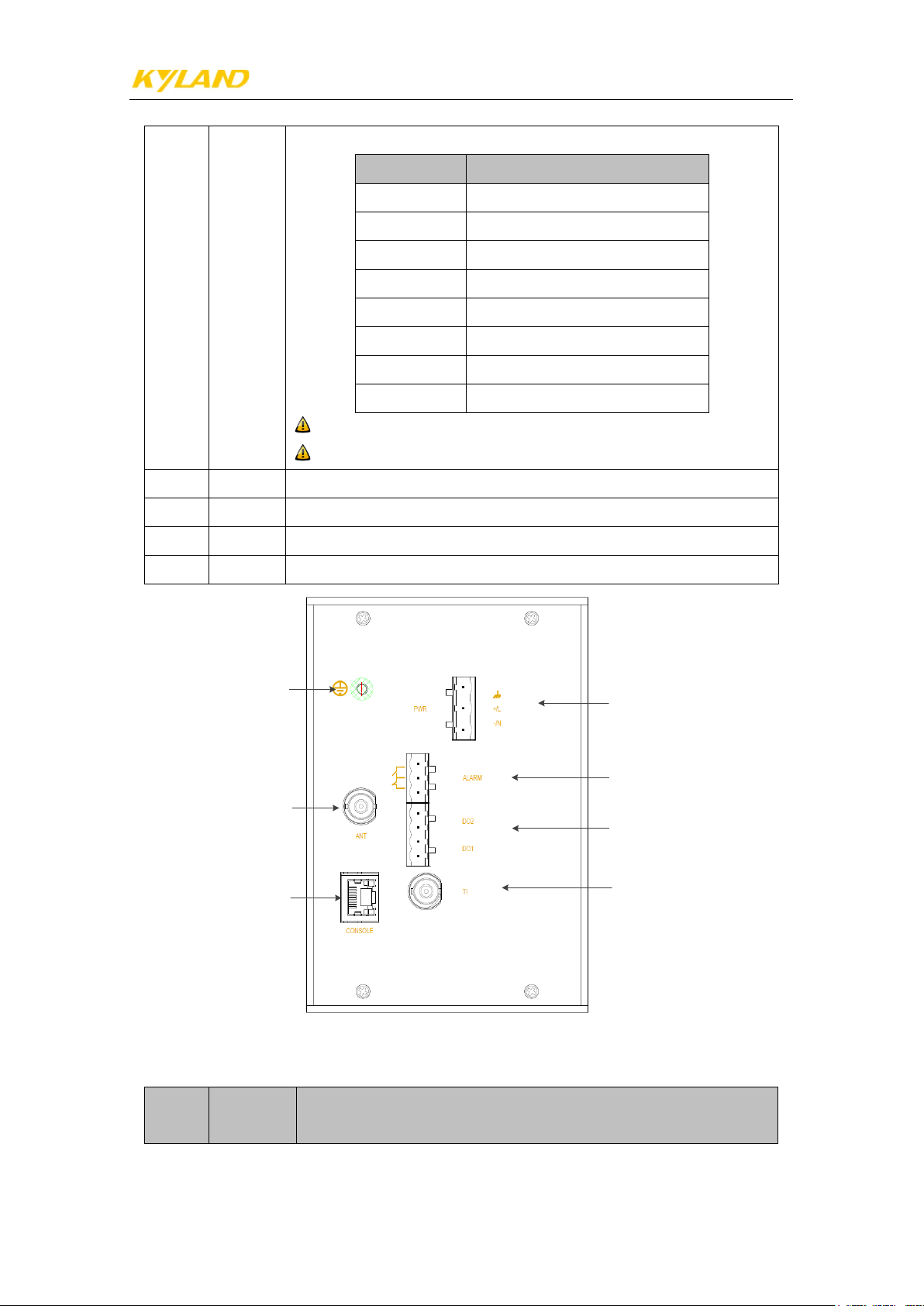

[Figure 2-2] PTS-DR200 Top Panel
Table 2 – Top Panel of PTS-DR200
No. Panel
Printing Description

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 7 -
No. Panel
Printing Description
(1) Grounding protect
(2) ANT One Antenna BNC Input interface
(3) CONSOLE
One RS232 RJ45 Console port, RJ45 Pin Definition will be shown as:
Pin Definition
1 N/C
2 TXD
3 RXD
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
115200-8-N-1 is supported.
(4) TI One TTL BNC Input port, IRIG-B unmodulated signal
(5) DO Two Contact output ports, PPS/PPM/PPH/IRIG-B configurable
(6) ALARM System Status Alarm Terminal output port with NO and NC
(7) PWR
Power Supply Terminal Input Interface
Power Grounding(PGND)
DC(+) or AC(L)
DC(-) or AC(N)
Please confirm power supply parameters before use
2.2. Output
PTS-DR200 supports one serial output channel named SO and five output channels
named O1/O2/O3/O4/O5. Each interface can bind one fixed output channel and one
configurable output signal. The output definition will be shown as:
Table 3 – Output Definition
No Output Channel Output Interface Output Signal
①SO TOD PPS/PPM/PPH/IRIG-B (Optional)
②O1 FO PPS/PPM/PPH/IRIG-B (Optional)
③O2 DO(1-2) PPS/PPM/PPH/IRIG-B (Optional)
④O3 P(1-4) PPS/PPM/PPH/IRIG-B (Optional)
⑤O4 BNC PPS/PPM/PPH/IRIG-B (Optional)

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 8 -
No Output Channel Output Interface Output Signal
⑥O5 AC(1-2) IRIG-B Modulated
2.3. Screen
The Screen has two lines to indicate system information.
Press Button can switch different screens to show different messages.
17-07-01
06:02:36
[Figure 2-3] PTS-DR200 Local Date & Time Information
GPS LOCK
11/OK/3D
TI LOCK
D+/0/100
FI LOCK
D+/0/100
PTP LOCK
S P2P
[Figure 2-4] PTS-DR200 Time Source Information
HV
R0914
[Figure 2-5] PTS-DR200 Hardware Version Information
SV
R7.51
[Figure 2-6] PTS-DR200 Software Version Information
OS 0703
17:12:33
[Figure 2-7] PTS-DR200 System Information

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 9 -
APP 0707
14:55:10
[Figure 2-8] PTS-DR200 Application Information
2.4. Indicator Lights
The Screen has two lines to indicate system information.
Table 4 – Indicator Light Definition
Name Definition Status Description
ALARM System Alarm On Device is abnormal.
Off Device is normal.
LOCK Time Lock
Flash(1 second) Clock is LOCK status.
Flash(3 seconds) Clock is HOLD status.
Off Clock is initializing.
FIX Satellite Position Fix On Position fix is 3D type.
Off Position fix is invalid.
ANT Antenna Status On Antenna is normal.
Off Antenna is abnormal.
The enclosure is one part of the whole cooling system. Don’t cover it when it works.
The picture of Manual is only schematic. Please refer to real device.

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 10 -
3. WEB Operations
3.1. Login
Please connect ETH0 of PTS-DR200 time server and PC by network cable. Open any
WEB Browser of PC and input http://192.168.0.111 and press enter, the login WEB
screen of PTS-DR200 time server will be shown on your screen.
[Figure 3-1] Login Screen
The default user name is ‘admin’, the default password also is ‘admin’. PTS-DR200
time server supports user to modify the password of ‘admin’ after you login WEB
management system.
Before you access WEB management system of PTS-DR200 time server, please confirm you
might access this Ethernet port, if find any problems you should check the network whether or not
is ready, maybe connection cable has some broken or something else.
3.2. Logout
After you submit your correct user name and password, the default screen of WEB
management system will be shown as:

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 11 -
[Figure 3-2] Default Login Screen
On the top right corner, system has a ‘Logout’ option, if you want to logout system,
you might directly click this and then system will go to original login screen and wait
user to input login information again.
3.3. Languages
The default language is English, the WEB management system of PTS-DR200 time
server supports English and Chinese. System can switch language to Chinese language
by ‘中文’ option on login screen and default screen.
3.4. Status
The WEB management system supports to view time status by WEB. The status
information can help user to easy know the current status and help them to analyze
problems as soon as possible.
Press ‘Status’ to go to the status screen on the top of navigation bar.
The status screen will be shown as:
[Figure 3-3] Status Screen
3.4.1. Time Information
On the top right navigation bar, there is an area to show the current local time of PTS-

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 12 -
DR200 time server.
[Figure 3-4] Time Information Screen
3.4.2. Source Status
Press ‘Source Status’ on the left navigation bar to show source status screen.
Press ‘Source Channel’ to select SAT1/IRIG-B1/IRIG-B2/PTP channel.
Please refer to ‘Configuration’ section to set parameters.
Select ‘SAT1’ in Source Channel, the screen will be shown as:

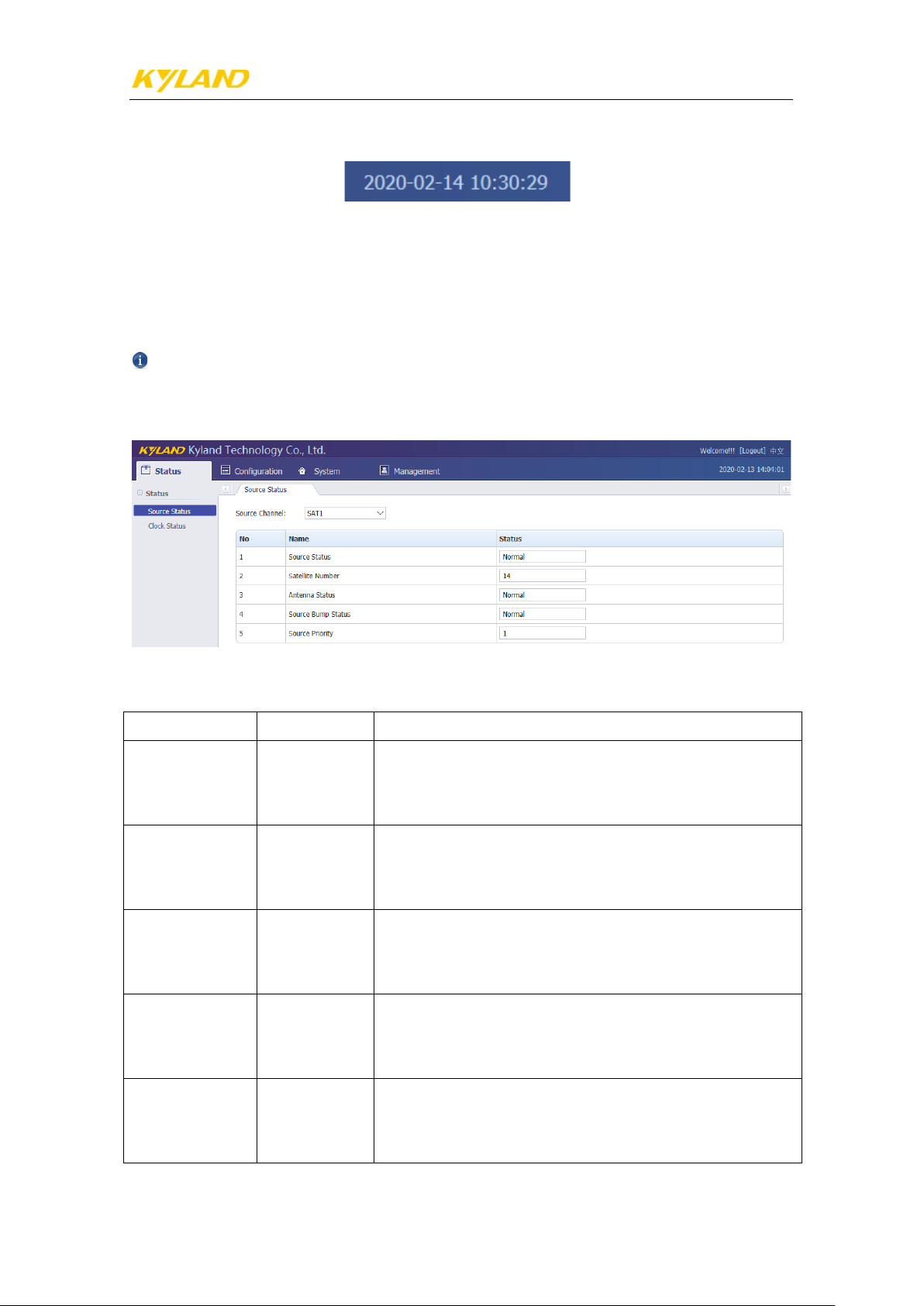

[Figure 3-5] Source Status Screen (SAT1)
Table 5 – Source Status Information (SAT1)
Items Parameters Description
Source Status Normal
Alarm
Show the time source status.
Normal: The time source can use;
Alarm: The time source cannot use.
Satellite Number 0~128
Show how many satellites work together.
Range is between 0 and 128;
Default value is 0.
Antenna Status Normal
Alarm
Show the antenna status.
Normal: The antenna can use;;
Alarm: The antenna cannot use.
Source Bump
Status
Normal
Alarm
Show the time source bump status.
Normal: The time source has not bump data.
Alarm: The time source has bump data.
Source Priority 1~10
Show the priority for time source. 1 is highest source and 10 is
lowest source. It has 10 levels. System can select best time
sources by source priority.

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 13 -
Select ‘IRIG-B1’ in Source Channel, the screen will be shown as:
[Figure 3-6] Source Status Screen (IRIG-B1)
Table 6 – Source Status Information (IRIG-B1)
Items Parameters Description
Source Status Normal
Alarm
Show the time source status.
Normal: The time source can use;
Alarm: The time source cannot use.
Source Bump
Status
Normal
Alarm
Show the time source bump status.
Normal: The time source has not bump data.
Alarm: The time source has bump data.
Source Priority 1~10
Show the priority for time source. 1 is highest source and 10 is
lowest source. It has 10 levels. System can select best time
sources by source priority.
Select ‘IRIG-B2’ in Source Channel, the screen will be shown as:
[Figure 3-7] Source Status Screen (IRIG-B2)
Table 7 – Source Status Information (IRIG-B2)
Items Parameters Description
Source Status Normal
Alarm
Show the time source status.
Normal: The time source can use;
Alarm: The time source cannot use.
Source Bump Normal Show the time source bump status.

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 14 -
Items Parameters Description
Status Alarm Normal: The time source has not bump data.
Alarm: The time source has bump data.
Source Priority 1~10
Show the priority for time source. 1 is highest source and 10 is
lowest source. It has 10 levels. System can select best time
sources by source priority.
Select ‘PTP’ in Source Channel, the screen will be shown as:

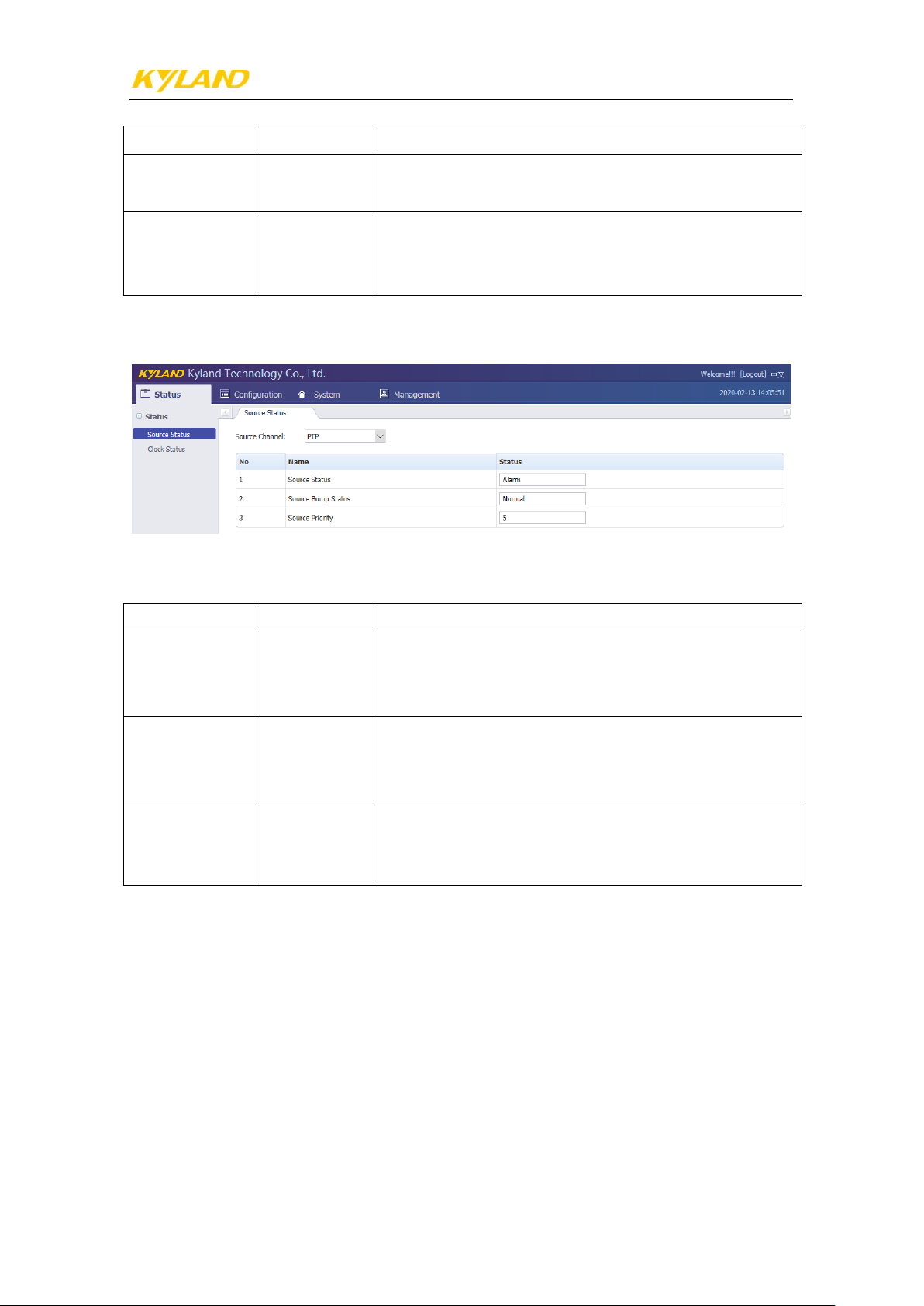

[Figure 3-8] Source Status Screen (PTP)
Table 8 – Source Status Information (PTP)
Items Parameters Description
Source Status Normal
Alarm
Show the time source status.
Normal: The time source can use;
Alarm: The time source cannot use.
Source Bump
Status
Normal
Alarm
Show the time source bump status.
Normal: The time source has not bump data.
Alarm: The time source has bump data.
Source Priority 1~10
Show the priority for time source. 1 is highest source and 10 is
lowest source. It has 10 levels. System can select best time
sources by source priority.
3.4.3. Clock Status
Press ‘Clock Status’ on the left navigation bar to show clock status screen.
The clock status screen will be shown as:

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 15 -

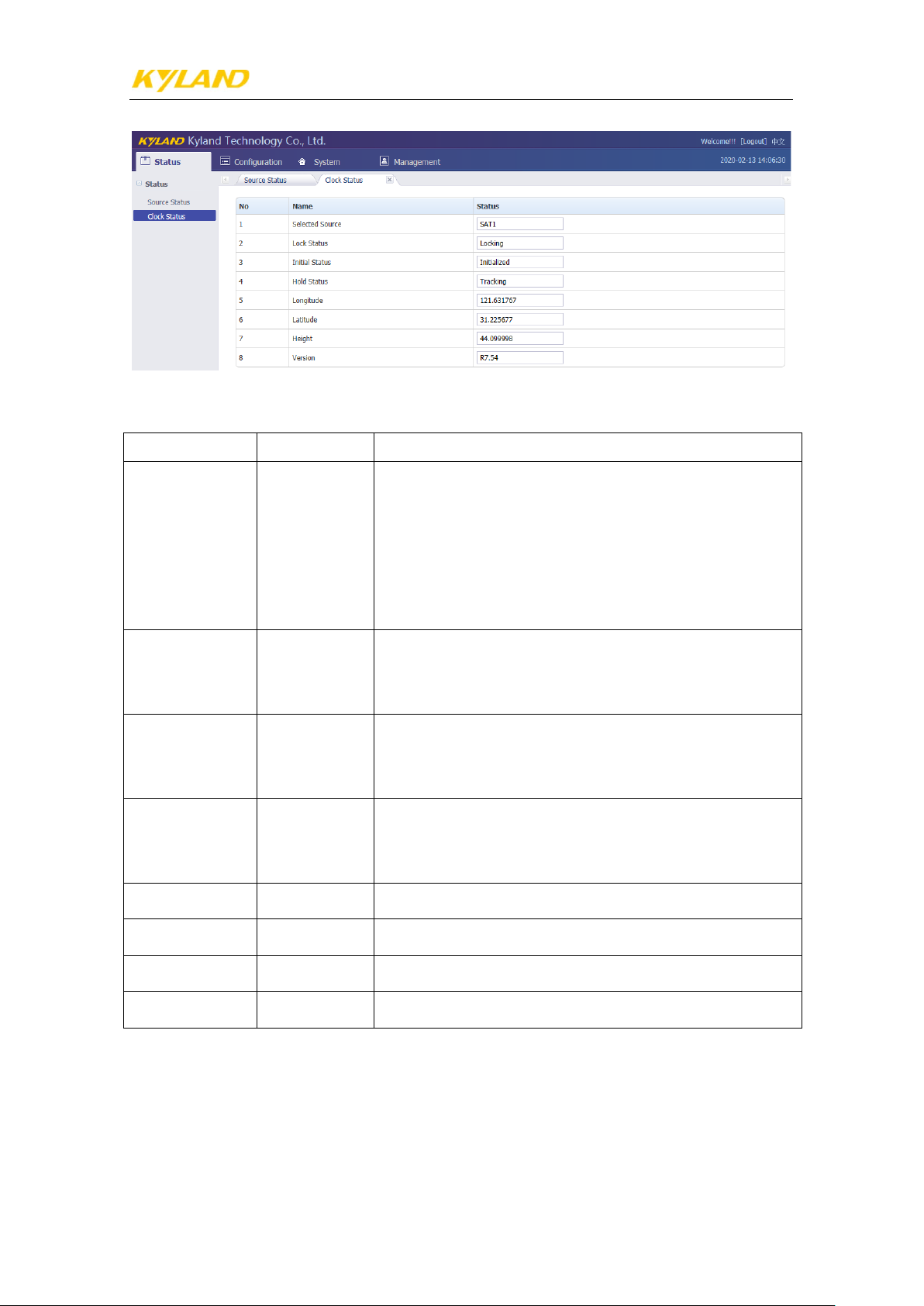

[Figure 3-9] Clock Status Screen
Table 9 – Clock Status Information
Items Parameters Description
Selected Source
SAT1
IRIG-B1
IRIG-B2
PTP
Local
Show which time source is the current time source.
SAT1: The time source is SAT1 source channel.
IRIG-B1: The time source is IRIG-B1 source channel.
IRIG-B2: The time source is IRIG-B2 source channel.
PTP: The time source is PTP source channel.
Local: The device don’t has time source.
Lock Status Locking
Locked
Show the oscillator status.
Locking: The oscillator is locking;
Locked: The oscillator is locked.
Initial Status Initializing
Initialized
Show the initial status.
Initializing: The device is initializing;
Initialized: The device is initialized.
Hold Status Tracking
Hold
Show the hold status.
Tracking: The device is tracking with time source;
Hold: The device lost time source。
Longitude 0.00 Show longitude of geographic position information.
Latitude 0.00 Show latitude of geographic position information.
Height 0.00 Show height of geographic position information.
Version - Show the current version.
3.5. Configuration
The WEB management system supports to set configuration parameter by WEB. The
user does not need go to local place to set parameter when time server supports this
configuration interface. It is a good option for user to easy manage time server.

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 16 -
Press ‘Configuration’ to go to the configuration screen on the top of navigation bar.
The screen will be shown as:
[Figure 3-10] Configuration Screen
3.5.1. Sync Source Settings
Press ‘SYNC’ on the left navigation bar to show synchronization source setting screen.
Press ‘Source Channel’ to select SAT1/IRIG-B1/IRIG-B2/PTP channel.
SAT1 source signal comes from ANT interface;
IRIG-B1 source signal default comes from FI and also can be set to TI by manual;
IRIG-B2 source signal default comes from TI and also can be set to FI by manual;
PTP source signal comes from ETH0 or ETH1 interface.
If select ‘SAT1’ in Source Channel, the setting screen will be shown as:

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 17 -

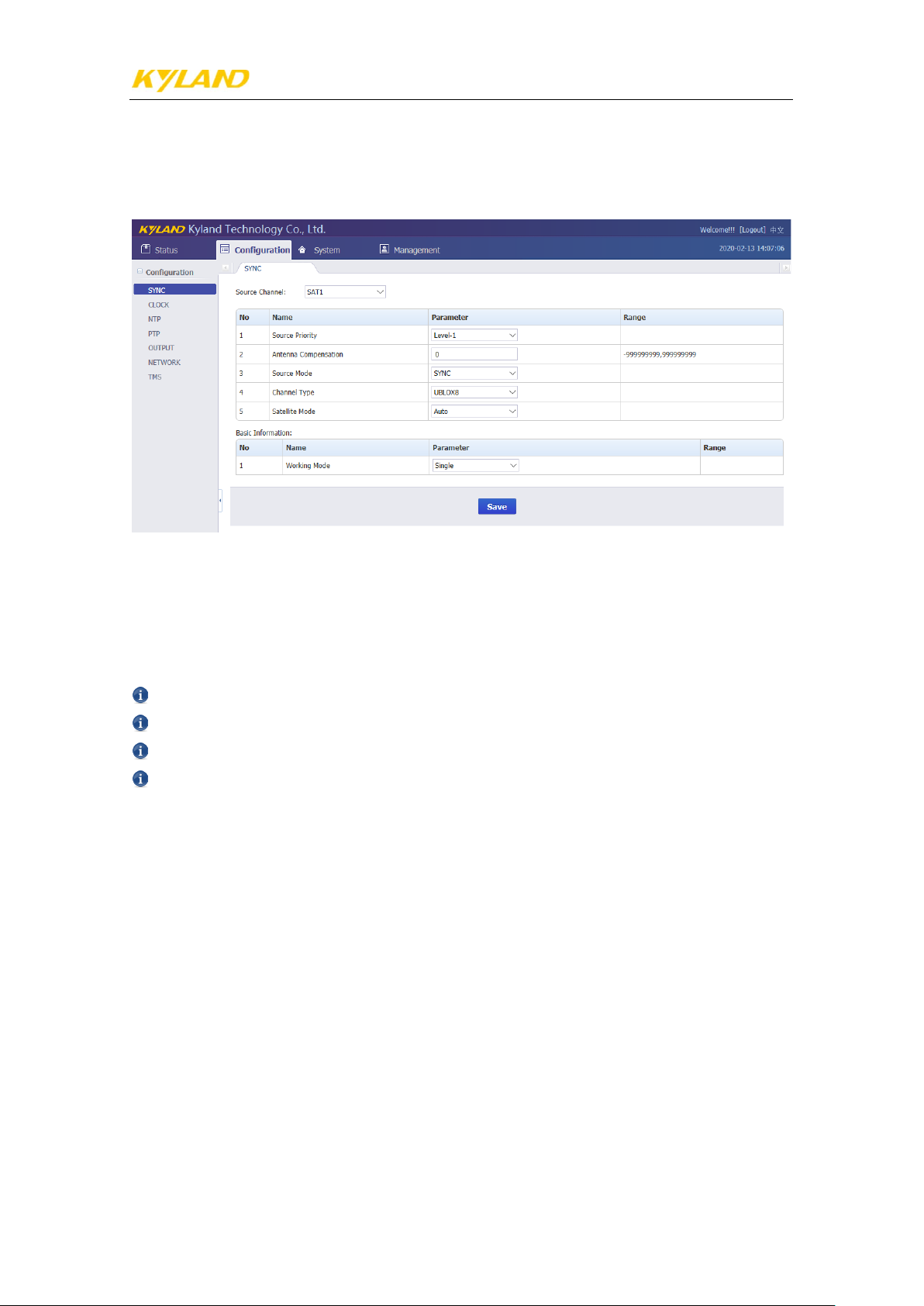

[Figure 3-11] Sync Source Setting Screen (SAT1)
Table 10 – Sync Source Setting (SAT1)
Item Parameter Description
Channel
Type
UBLOX8
AT3340
Set satellite receiver module to receive satellite signal.
UBLOX8: Select UBLOX8 receiver module;
AT3340: Select AT3340 receiver module.
The device only installs one receiver module for each
channel. Please confirm with factory label and set the
correctly channel type to receive satellite information.
Satellite
Mode
Auto
A-BDS
A-GPS
A-GLN
F-BDS
F-GPS
F-GLN
When you select satellite receiver module for each satellite
channel, you might use this parameter to make it work at
right mode. Different satellite receiver module has different
definition on these options. Before you use this device, please
contact technical support to confirm how to use them.
UBLOX8 will define as following description:
Auto: Make satellite automatic working at GPS mode;
A-BDS: Make satellite priority working at BDS mode by mixed
position fix mode with BDS and GPS, when BDS is
invalid, it can work at GPS mode.;
A-GPS: Make satellite priority working at GPS mode by mixed
position fix mode with GPS and BDS, when GPS is
invalid, it can work at BDS mode;
A-GLN: Make satellite priority working at GLONASS mode by
mixed position fix mode with GLONASS and GPS, when
GLONASS is invalid, it can work at GPS mode;

Kyland Technology (Shanghai) Co., Ltd PTS-DR200 Time Server
- 18 -
Item Parameter Description
F-BDS: Make satellite only working at BDS mode;
F-GPS: Make satellite only working at GPS mode;
F-GLN: Make satellite only working at GLONASS mode.
AT3340 will define as the following description:
Auto: Make satellite automatic working at GPS mode;
A-BDS: Make satellite only working at BDS mode;
A-GPS: Make satellite only working at GPS mode;
A-GLN: AT3340 does not support GLONASS, this parameter
can make satellite working at GPS mode by mixed
position fix mode with GPS and BDS;
F-BDS: Make satellite only working at BDS mode;
F-GPS: Make satellite only working at GPS mode;
F-GLN: AT3340 does not support GLONASS, this parameter
can make satellite working at GPS mode by mixed
position fix mode with GPS and BDS.
Antenna
Compensation 0ns
According to different antenna types and lengths, system can
set time delay compensation for satellite channel.
Unit is nanosecond(ns);
Range is between -999999999ns and 999999999ns;
Default value is 0ns.
Source
Priority 1~10
Set the priority for time source. 1 is highest source and 10 is
lowest source. It has 10 levels. System can select best time
sources by source priority.
Source
Mode
SYNC
PEER
NONE
Set source working mode.
SYNC: Make it work at individual time source;
PEER: Make it work at redundancy time source;
NONE: Make it doesn’t work.
Working
Mode Single Set time source working logic.
Single: The system can work at one valid time source.
Press ‘Save’ button to save the current setting when you change setting.
If select ‘IRIG-B1’ in Source Channel, the setting screen will be shown as:
