A password entry screen will be displayed.
Enter root for the user name and the password set for this product to the
password. Click OK when completed.
(As factory default, no password is set for this product. In this case, enter
root for the user name and then leave the password blank and click OK.)

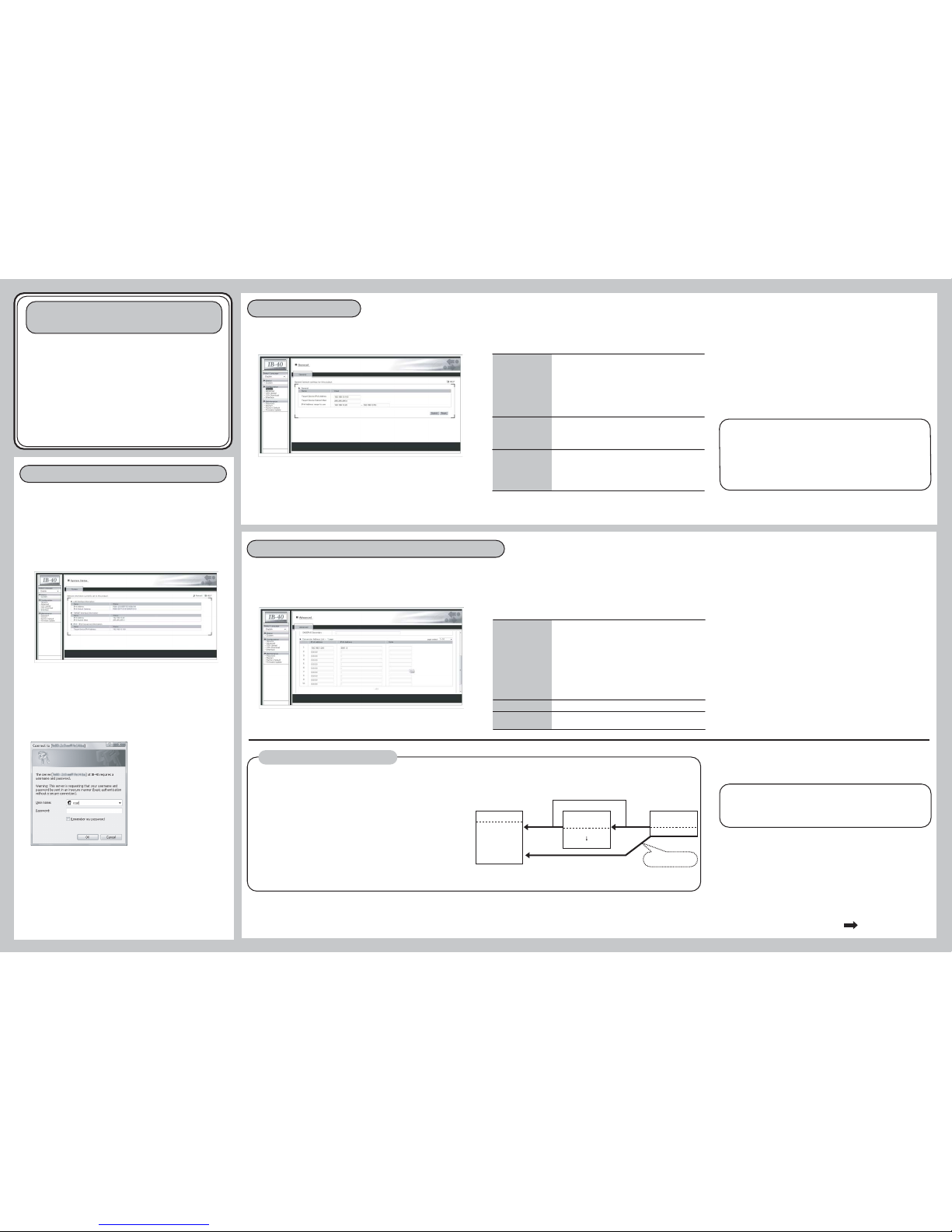

IPv6-IPv4 Converter IB-40
Setup Guide
This Setup Guide describes how to setup the IPv6-IPv4 Converter, IB-40 (this
product).
Please refer to the "Installation Guidance" before starting the setup.
Access the Web page and configure the general settings
1.General Configuration
2.Configuration for accessing IPv6 devices from the MFP main unit
Protocols enabled by completing the general configuration (example).
When communicating from the MFP main unit to an IPv6 network such as when sending/receiving an email or transferring a file, the IPv4 address sent out from the MFP main
unit needs to be converted to an IPv6 address.
This product converts IPv4 addresses to IPv6 addresses by mapping IPv4 addresses to IPv6 addresses in the Conversion Address List.
Click Advanced on the left pane.
Access the Web page of this product using a Web browser.
1.
This product can be configured from its Web page by using a Web browser.
The following explains how to access theWeb page and view each configuration
page.
(Example) http://ib40:60000/
<Windows Vista>
(Example) http://[fe80::2c0:eeff:fe00:1122]:60000/
2.
Click the item you wish to configure from the configuration items displayed
in the Web page.
3.
4. Once user authentication has succeeded, the configuration page you have
selected will be displayed.
Configure the general settings of this product. To use this product, these settings must be configured.
1. Click General on the left pane. 2. In the page displayed, enter the value for each configuration item.
MFP main unit IPv4
address
MFP main unit
subnet mask
IPv4 Address range
to use
Enter the IPv4 address set for the MFP main unit (not the
IPv4 address of this product). If your machine is 50 ppm
(cpm) or lower speed model, enter the fixed IP address.
If your machine is 60 ppm (cpm) or higher speed model,
IPv4 address will be automatically assigned by DHCP. Leave
this field as "0.0.0.0".
* If you fail to connect using 0.0.0.0, enter the IP address
assigned by DHCP.
Configure the subnet mask for the MFP main unit
running on an IPv4 network.
*
This value must be entered even if the IP address is automatically
assigned.
Set the Start Address and End Address of the IPv4 address
range you reserved for this product in Before using this
product....
* Please make sure that the IPv4 address of the MFP main
unit is not included in this range.
3. Click Submit.
A message will appear and ask whether to reboot this product or not. Click OK.
This product will automatically reboot itself and finish the configuration.
The general configuration has been completed.
Now, the MFP main unit can be accessed from the IPv6 network via this
product. By using the IPv6 address of this product, IPv6 devices can
communicate with the MFP main unit via the IPv6 network.
* This product transparently forwards protocols other than IPv6.
Communication to the MFP main unit using IPv4 or other protocols
(e.g. Netware and AppleTalk) can be carried out as usual.
TCP: telnet(#23), http(#80), LPR(#515), IPP(#631), RAW mode print(#9100),
FTP-Server(#21)
UDP: SNMP(#161)
Protocols enabled by making use of the Conversion Address List. (Example)
TCP: SMTP(#25), POP(#162), SMB(#445), FTP-Server(#21)
UDP: SNMP-Trap(#162)
1. 2. On the page displayed, enter the addresses into the Conversion Address List.
Up to 128 addresses can be set to the Conversion Address List.
IPv4 Address
IPv6 Address
Note
Set the IPv4 address of the destination device to be set on the
MFP main unit.
The IPv4 address configured here is not the IPv4 address actually
used by the device that the MFP main unit communicates with.
It is the address used for the MFP main unit and this product to
communicate with each other.
The value must be an address within the IPv4 Address range
to use which you set during the general configuration. However,
do not use the first address in the range.
* Do not enter the IPv4 address of the MFP main unit in this field.
Set the IPv6 address of the destination device.
Enter a comment describing the destination device if
desirable (Up to 15 characters).
3.
Go on to the backside
Change the MFP main unit settings
Convert the IP address of the destination device set on the MFP main unit to the
IPv4 address registered in the Conversion Address List on this product.
* This product looks at the IP address in the network data sent from the MFP main
unit, and converts only the network data destined for IPv4 addresses (registered in
the Conversion Address List) to IPv6 network data and then sends it. If the IP
address in the network data sent by the MFP main unit is not registered in the
Conversion Address List, the network data is sent without being converted to IPv6
format. Please do not forget to change the IP address of the destination device set
on the MFP main unit.
Communication from the MFP main unit to the IPv6 network has now been
enabled.
Network data destined for the IPv4 address
registered in the Conversion Address List is
converted to IPv6 format and then sent.
To IPv4 Address -BTo IPv6 Address - A
Network data not registered in the Conversion
Address List is sent as it is.
Conversion
Address List
[ IPv6 Address - A ]
[ IPv4 Address - B ]
Destination address
of the MFP main unit
[ IPv4 Address - B ]
When the destination
address is not changed...
To IPv4 Address - A
Destination device
[ IPv6 Address - A ]
[ IPv4 Address - A ]
Click Submit.
A message will appear and ask whether to reboot this product or not. Click OK.
This product will automatically reboot itself and finish the configuration.

3.How to register IPv4/IPv6 addresses to the Conversion Address List by creating aCSV file
5.How to block IPv4 communication by the MFP main unit
7.Network port settings
The Conversion Address List can be edited as aCSV file and then uploaded to this product. This function is convenient when using the same Conversion Address List for two or more of this product.
The following explains how to register IPv4/IPv6 addresses to the Conversion Address List using aCSV file.
Touse the same Conversion Address List for two or more of this product,
repeat the process described in 4-6 for each one.
This product can be configured not to send any network packets including an IPv4 address. Please utilizethis function when establishing anetwork environment where
onlyIPv6 addresses are sent/received.
Detailed communication settings can be configured for the network port of this product.
Usuallythese communication settings do not need to be changed, but when this product does not link up (when the Link LED does not turn on even though this product
is powered on), modify these settings.
Click Interface on the left pane.
1.
Start asoftware application that can
edit CSV files, such as Excel.
2. Enter the address information into the CSV filein the order of
[IPv4 Address]-> [IPv6 Address]-> [Note]. Up to 128 addresses
can be registered to the Conversion Address List.
*Please enter correct values for the IPv4/IPv6 addresses. If characters
that cannot be recognized as an address are included, they will
not be used for the address conversion.
*Do not enter the IPv4 address of the target device.
*Up to 15characters can be entered into the [Note]field.
However, acomma (,)cannot be entered.
3. When finished editing, save the filein CSV format.
*If using Excel,click File -> Save As....On the dialog displayed,
select "CSV(Comma delimited) (*.csv) "for Save as type
and click Save.
5.
On the page displayed, click Browse and select the CSV filethat you have saved.
6.
1. Click Advanced on the left pane. 2. On the page displayed, select DISABLE for IPv4 Communication.
3.
1. In the page displayed, change each configuration.
2.
LAN Interface
Auto MDI/MIDX
Set the physical transfer speed of the LAN. Select the value
that matches the communication type of the device connected
to each network port. In most cases, it is recommended to
use AUTO.
Either astraight cableor cross cablecan be used with this
product. However, depending on the device connected to
each network port, this auto-detect function may not work
properly. In such acase, select DISABLE for this setting.
3.
Click Upload.
*The information contained in the CSV filewill be uploaded to the Conversion
Address List.
Click Submit.
Amessage will appear and ask whether to reboot this product or not. Click OK.
This product will automaticallyreboot itselfand finish the configuration.
Amessage will appear and ask whether to reboot this product or not. Click OK.
This product will automaticallyreboot itselfand finish the configuration.
Click Submit.
Amessage will appear and ask whether to reboot this product or not. Click OK.
This product will automaticallyreboot itselfand finish the configuration.
6.IPv6 Settings
This product enables you to fine tune the configuration for IPv6.
Select the appropriate configuration for the network environment in which the product is installed.
Click Advanced on the left pane.
1. In the page displayed, change each configuration.
2.
IPv6 Manual
Address
Prefix Length
Set the IPv6 address.
Set IPv6 the prefix length.
DHCPv6 Enableor disablethe DHCPv6 protocol.Touse DHCPv6 to
configure IPv6 addresses, aDHCPv6 server must be
running in the sub-network.
DNS (IPv6) Primary Set the address of the DNSv6 primary server. If DHCPv6 is
enabled, the DNSv6 server acquired by DHCPv6 takes
priority.
DNS (IPv6)
Secondary
Set the address of the DNSv6 secondary server. If DHCPv6
is enabled, the DNSv6 server acquired by DHCPv6 takes
priority.
3. Click Submit.
Amessage will appear and ask whether to reboot this product or not. Click OK.
This product will automaticallyreboot itselfand finish the configuration.
4. Access the Web page of this product via aWeb browser and
click CSV Upload on the left pane.
4. How to save the Address Conversion List to aCSV file
The Address Conversion List currentlystored in this product can be saved to your PC as aCSV file.
The following describes how to save the Address Conversion List:
1. Click CSV Download on the left pane. 2. Click Download.In the screen displayed, specify afilename and save the file.
The Address Conversion List has been saved.
*If you have mistakenlyuploaded aCSV filethat includes the IPv4 address of the
MFP main unit, click Advanced -Address Conversion List and delete the
address information of the target device manually.
First Edition 2008.9
