L.A. Spas In-Fit 13 SL User manual

1
In-Fit Exercise Pools
TABLE OF CONTENTS.........................................................................................................1
IMPORTANT SAFETY WARNINGS......................................................................................3
LETTER OF INTRODUCTION...............................................................................................4
SPA RECORD KEEPING INFORMATION............................................................................5
IMPORTANT SAFETY INSTRUCTIONS...............................................................................6
DOS AND DON'TS............................................................................................................8
HYPERTHERMIA..............................................................................................................8
SWIM SPA INSTALLATION..................................................................................................9
SITE AND POSITIONING..................................................................................................9
OUTDOOR INSTALLATION.............................................................................................10
INDOOR INSTALLATION.................................................................................................10
SWIM SPA SYSTEM COMPONENTS.................................................................................12
SWIM SPA COMPONENTS.................................................................................................13
JETS AND AIR CONTROLS...............................................................................................14
JETS.............................................................................................................................14
CLEANING AND REPLACING JETS............................................................................14
ELECTRICAL INFORMATION............................................................................................15
ELECTRICAL CONNECTIONS....................................................................................16
START UP PROCEDURES.................................................................................................19
PRIMING YOUR SWIM SPA...........................................................................................19
OPERATING INSTRUCTIONS............................................................................................20
CONTROL PANEL TYPES AND MODELS (in.k1000)....................................................20
CONTROL PANEL OPERATION....................................................................................20
Power...........................................................................................................................20
Main Screen.................................................................................................................20
Start or Stop Accessories.............................................................................................21
Notications..................................................................................................................21
Water Temperature.......................................................................................................22
TABLE OF CONTENTS

2In-Fit Exercise Pools
Home Page..................................................................................................................22
Settings........................................................................................................................22
Water Care..................................................................................................................23
Water Care Modes.......................................................................................................23
Modifying Schedules...................................................................................................24
Maintenance................................................................................................................24
Error Log......................................................................................................................25
Set Date & Time...........................................................................................................25
Keypad Settings...........................................................................................................26
Electrical Conguration................................................................................................26
About............................................................................................................................26
WiFi..............................................................................................................................27
FEATURE OPERATIONS....................................................................................................28
JET SELECTOR VALVES..............................................................................................28
AIR CONTROL VALVES................................................................................................28
WATER FEATURE/WATERFALL CONTROL VALVES..................................................28
in.stream2 AUDIO SYSTEM..........................................................................................28
in.touch SYSTEM..........................................................................................................28
in.touch BASIC SET-UP INSTRUCTIONS.........................................................................29
MAINTENANCE...................................................................................................................31
WATER CHEMISTRY.....................................................................................................31
SANITIZING...................................................................................................................31
pH LEVEL......................................................................................................................31
WATER MAINTENANCE...............................................................................................31
SANITIZING WITH OZONE...........................................................................................32
SPECIALTY CHEMICALS..............................................................................................32
DRAINING YOUR SWIM SPA.......................................................................................32
FILTER MAINTENANCE................................................................................................33
WINTERIZING...............................................................................................................33
SWIM SPA CABINET CARE..........................................................................................34
SWIM SPA SURFACE CARE........................................................................................34
UNDERWATER LED LIGHTS........................................................................................34
KEEPING YOUR WATER CLEAN & SAFE...................................................................35
WARRANTY SERVICE INFORMATION..............................................................................35
TROUBLESHOOTING.........................................................................................................36
WIRING DIAGRAMS...........................................................................................................40

3
In-Fit Exercise Pools
IMPORTANT SAFETY WARNINGS
SAVE THESE INSTRUCTIONS
NOTE: When installing and using this equipment, basic safety precautions should
always be taken to reduce the risk of electrical shock, to ensure safe usage, and to
safeguard the user’s health. Failure to follow instructions and warnings contained
in this Owner’s Manual, in the Swim Spa Installation Guide, and on the swim spa
itself may result in severe personal injury, including death, as well as property
damage.
WARNING:
Children should not use swim spas or
hot tubs without adult supervision.
WARNING:
Do not use swim spas or hot tubs unless all
suction guards are installed to prevent body
and hair entrapment.
WARNING:
People using medications and/or having an
adverse medical history should consult a
physician before using a swim spa or hot tub.
WARNING:
People with infectious diseases should not
use a swim spa or hot tub.
WARNING:
To avoid injury exercise care when entering
or exiting the swim spa or hot tub.
WARNING:
Water temperature in excess of 100° F (38°
C) may be injurious to your health.
WARNING:
Do not use drugs or alcohol before or
during the use of a swim spa or hot tub
to avoid unconsciousness and possible
drowning.
WARNING:
Pregnant, or possibly pregnant, women
should consult a physician before using a
swim spa or hot tub.
WARNING:
Before entering the swim spa or hot tub
measure the water temperature with an
accurate thermometer.
WARNING:
Do not use a swim spa or hot tub
immediately following strenuous exercise.
WARNING:
Prolonged immersion in a swim spa or
hot tub may be injurious to your health.
WARNING:
Do not permit electric appliances (such as a
light, telephone, radio, or television) within
1.5m of the swim spa or hot tub.
WARNING:
Maintain water chemistry in accordance
with manufacturer’s instruction.
WARNING:
The use of alcohol or drugs can greatly
increase the risk of fatal hyperthermia in
hot tubs and swim spas.

4In-Fit Exercise Pools
LETTER OF INTRODUCTION
Dear Valued Customer:
Congratulations! On behalf of the entire L.A. Spas family, thank you for your decision to
purchase one of our products.
The following pages contain valuable and helpful information for the care and safe opera-
tion of your new spa.
Please take the time to read these instructions carefully. When the spa is properly installed
and maintained, your spa will provide years of enjoyable, trouble free operation.
Every effort has been made to ensure the accuracy of this owner’s manual, however, L.A.
Spas reserves the right to modify and improve the product without notice. This may create
minor variations between this manual and your spa. If you have any questions regarding
your spa or the owner’s manual, please contact your authorized L.A. Spas dealer.
Sincerely yours,
L.A. Spas

5
In-Fit Exercise Pools
SPA RECORD KEEPING INFORMATION
Serial Number Location
The serial number is located in the lower right corner of the equipment access panel on the front of the
swim spa.
PLEASE FILL IN THE INFORMATION BELOW
Spa Information:
Model _________________ Color __________________ Serial No. __________________________
Owner Information:
Name __________________________________ Date of Purchase __________________________
Address __________________________________________________________________________
City _________________________ State _______________ Zip Code _______________________
Dealer Information:
Name ____________________________________________________________________________
Address __________________________________________________________________________
City _________________________ State _______________ Zip Code _______________________
Telephone No. _____________________________________________________________________
SAVE THIS INFORMATION FOR FUTURE REFERENCE
TO OFFICIALLY ACTIVATE YOUR WARRANTY YOU MUST GO TO www.laspas.com
AND REGISTER YOUR SPA BY CLICKING ON THE REGISTER YOUR SPA LINK
UNDER THE CUSTOMER CARE TAB AND FILL OUT ALL THE INFORMATION

6In-Fit Exercise Pools
IMPORTANT SAFETY INSTRUCTIONS
1. WARNING - To reduce the risk of inju
ry, do not permit children to use this
product unless they are closely super
vised at all times.
2. A wire connector is provided on this
unit to connect a minimum 6 AWG
(5.15 mm2) solid copper conductor
between this unit and any metal
equipment, metal enclosures of
electrical equipment, metal water pipe,
or conduit within 5 feet (1.5m) of the
unit.
3. (For cord-connected/convertible units)
DANGER - Risk of injury.
a. Replace damaged cord
immediately.
b. Do not bury cord.
c. Connect to a grounded,
grounding type receptacle
only.
4. DANGER - Risk of Accidental Drown-
ing. Extreme caution must be exer-
cised to prevent unauthorized access
by children. To avoid accidents, ensure
that children cannot use this spa unless
they are supervised at all times.
5. DANGER - Risk of injury. The suction
ttings in this spa are sized to match
the specic water ow created by the
pump. Should the need arise to re-
place the suction ttings or the pump,
be sure that the ow rates are compat-
ible. Never operate spa if the suction
ttings are broken or missing. Never
replace a suction tting with one rated
less than the ow rate marked on the
original suction tting.
6. DANGER - Risk of Electric Shock.
Install at least 5 feet (1.5m) from all
metal surfaces. As an alternative, a
spa may be installed within 5 feet of
metal surfaces if each metal surface is
permanently connected by a minimum
6 AWG (5.15 mm2) solid copper con-
ductor to the wire connector on the
terminal box that is provided for this
purpose.
7. DANGER - Risk of Electric Shock.
Do not permit any electric appliance,
such as a light, telephone, radio, or
television,within 5 feet (1.5m) of a
spa.
8. WARNING - To reduce the risk of
injury:
a. The water in a spa should never
exceed 40°C (104°F).Water tempera
tures between 38°C (100°F) and 104°F
(40°C) are considered safe for a
healthy adult. Lower water tempera
tures are recommended for young
children and when spa use exceeds 10
minutes.
b. Since excessive water temperatures
have a high potential for causing fetal
damage during the early months of
pregnancy, pregnant or possibly
pregnant women should limit spa water
temperatures to 38°C (100°F).
READ AND FOLLOW ALL INSTRUCTIONS

7
In-Fit Exercise Pools
c. Before entering a spa the user should
measure the water temperature since
the tolerance of water temperature
regulating devices varies.
d. The use of alcohol, drugs, or medica-
tion before or during spa use may lead
to unconsciousness with the possibility
of drowning.
e. Obese persons and persons with a
history of heart disease, low or high
blood pressure, circulatory system
problems, or diabetes should consult a
physician before using a spa.
NOTE: Check with your state/local
code enforcement ofcer to determine
electrical code requirements and com-
pliance. Use a qualied licensed elec-
trician to complete all spa nal electric
connections.
TO AVOID RISK OF ELECTRICAL
SHOCK:
1. A green colored terminal or a terminal
marked G, GR, Ground, Grounding, or
the international symbol is located
on the side of the supply terminal box
or compartment. This terminal must
be connected to the grounding means
provided in the electric supply service
panel, using a continuous copper wire
equivalent in size to the circuit conduc-
tors supplying this equipment.
*IEC Publication 417, Symbol 5019.
2. At least two lugs marked “BONDING
LUGS” are provided on the external
surface or on the inside of the supply
terminal box or compartment. Connect
the local common bonding grid (house-
hold ground) in the area of the hot tub
or spa to these terminals, using an
insulated or bare copper conductor not
smaller than No. 6 AWG.
3. All eld-installed metal components
such as rails, ladders, drains or similar
hardware located within 5 ft. of the spa
or hot tub shall be bonded to the equip-
ment grounding bus with copper con-
ductors not smaller than No. 6 AWG.
4. Never connect unit to a power supply
with a load controller.
5. Install to provide drainage of compart-
ment for electrical components.
6. The electrical supply for this product
must include a suitably rated switch
or circuit breaker to open all unground-
ed supply conductors. This disconnect-
ing means must be readily accessible
for operation but installed at least 1.5m
from the spa. All electrical connections
should comply with local regulations.
7. Never use the swim spa to swim,
jog or exercise in hot water. Recom-
mended water temperature for
swimming and exercising is 80ºF -
86ºF (27ºC - 30ºC).
Caution: Risk of electrical shock.
Read and follow all instructions.
SAVE ALL INSTRUCTIONS

8In-Fit Exercise Pools
Dos and Don’ts of Spa Care:
Do:
• Save these instructions!
• Replace the cover immediately after
use.
• Keep the cover locked when spa is not
in use.
• Be aware of the dangers of a wet and
slippery surface. Use caution when
entering and exiting your spa.
• Have a licensed electrician make all
nal electrical connections.
• Replace worn, frayed or broken electri-
cal cords.
• Keep the water chemistry correctly
balanced. Untreated spa water will
cause problems with your spa and
equipment as well as being a health
risk.
• Clean the spa lter monthly or as
needed.
• Position the spa so that all sides re-
main accessible for maintenance.
• Use a bathing cap for long hair.
• Refer to information on hyperthermia,
next column.
• Use only authorized spa care products
for the best performance and to keep
the water properly balanced.
Hyperthermia
The causes, symptoms, and effects of
hyperthermia may be described as follows:
Hyperthermia occurs when the internal
temperature of the body reaches a level
several degrees above the normal body
temperature of 98.6°F (37°C). The symp-
toms of hyperthermia include an increase
in the internal temperature of the body, diz-
ziness, lethargy, drowsiness, and fainting.
The effects of hyperthermia include:
a. Failure to perceive heat
b. Failure to recognize the need to exit
swim spa
c. Unawareness of impending hazard
d. Fetal damage in pregnant women
e. Physical inability to exit the swim spa
f. Unconsciousness resulting in the dan-
ger of drowning.
WARNING - The use of alcohol, drugs,
or medication can greatly increase the
risk of fatal hyperthermia.
Don’t:
• Use the spa at 104°F (40°C) for long
periods of time (more than 30
minutes). See Hyperthermia.
• Use an extension cord to power your
spa.
• Allow anyone to stand on the spa cov-
er. It is not designed to support weight.
• Power the spa unless it is lled with
water 5-6” below top of the lip of the
spa.
• Operate the pump on high speed for
extended periods of time with the cover
in place. Extended operation can cause
heat build-up and interfere with spa
operation.

9
In-Fit Exercise Pools
SWIM SPA INSTALLATION
Danger: Electrical shock risk. Install at
least 1.5m from all metal surfaces.
The electrical supply for this product must
include a suitably rated switch or circuit
breaker to open all ungrounded supply
conductors. The disconnecting means must
be readily accessible but installed at least
1.5 meters from the Swim spa water. All
electrical connections should comply with
local regulations.
The appliance should be supplied
through a residual current device (RCD)
or Ground Fault Interrupter (GFCI) with
a rated tripping current not exceeding
30 mA. Means for disconnection must
be incorporated in the xed wiring in
accordance with the wiring rules. Parts
containing live parts, except parts supplied
with safety extra-low voltage not exceeding
12 V, must be inaccessible to a person
in the bath. Earthed appliances must be
permanently connected to xed wiring.
Site and Positioning
MAAX® Spas recommends that a Swim
spa be placed in its nal installation site by
crane. In any installation where a crane
cannot be used, you may want to consult
with a professional rigging company.
When utilizing a crane for delivery, be sure
that crane operator understands the weight
of the Swim spa, the height it must be lifted,
and the distance that the crane boom must
travel. Be sure that the crane operator
uses an 8’ spreader bar and that the straps
wrap all the way around the bottom frame
of the Swim spa.
Locate the Swim spa on a solid, level
foundation keeping in mind the weight of
the lled Swim spa (in excess of 18,000 lb.
(8165 kg.) on some models). If you have
any doubts about the load bearing ability of
your chosen site, contact an architect or a
building contractor. The entire perimeter of
the Swim spa Frame and bottom must be
evenly supported.
We recommend that you provide a concrete
foundation pad for the Swim spa. The
foundation pad should be wider and longer
than the Swim spa by at least 12 inches (30
cm) in each direction. Failure to provide
a level surface could structurally damage
your Swim spa and void the warranty.
The Swim spa must be installed to allow
access for service and maintenance on
all four sides; therefore, if you choose to
install your Swim spa below grade level,
you will be required to have a vault or
pit constructed to prevent ground water,
rain, snowmelt, or sources of water from
collecting around the equipment of the
Swim spa. The vault must have either
sufcient drainage through a drain line or
through the use of a sump pump. The vault
must have adequate safe access as to
allow for routine maintenance of the Swim
spa components.
IMPORTANT: Proper drainage must be
provided to keep base dry, especially if
installed below grade/in a pit.

10 In-Fit Exercise Pools
WARNING: ACCESS TO THE Swim
spa SHOULD BE CONTROLLED IN
ACCORDANCE WITH ALL APPLICABLE
NATIONAL AND LOCAL CODES. IN
SOME LOCATIONS THIS MAY INCLUDE
AN APPROVED FENCE WITH SELF-
CLOSING, SELF-LOCKING GATE
AND/OR A LOCKABLE SAFETY
HARDCOVER FOR OUTDOOR USE AND
A LOCKABLE DOOR AND/OR SAFETY
HARDCOVER FOR INDOOR USE.
Outdoor Installation
The following considerations apply when
installing your Swim spa outdoors:
1. Local codes pertaining to fencing.
2. Local electrical and plumbing codes.
3. View from your house.
4. Wind direction.
5. Exposure to sunlight.
6. Location relationship to trees (twigs,
leaves and shade).
7. Dressing and bathroom location.
8. Storage area for maintenance
equipment and chemicals.
9. Location to facilitate adult supervision.
10. Landscaping and night time lighting.
11. Accessibility to equipment.
12. Location and routing of power supply to
Swim spa and foot trafc.
Indoor Installation
In addition to the Outdoor installation
consideration, please also understand that
the following considerations apply when
installing your Swim spa indoors:
1. Indoor Swim spas promote high
humidity. Using either ventilation fans or
commercial grade de-humidiers will
help to reduce the humidity. Consult
your dealer for details.
2. Floor drains must be provided near
the Swim spa to drain off water that
may cause falls and /or water
damage. Water will splash out of the
Swim spa during normal use when
swimming and when exiting the
Swim spa.
3. Surface area of foundation pad and
surrounding area should be at with a
non-skid nish. Carpeting or other
porous materials may retain moisture,
which leads to mold, mildew and odors
and is not recommended.
4. Walls, ceilings, woodwork should be
made of materials capable of
withstanding high humidity.
5. MAAX® Spas only recommends the use
of a concrete foundation pad to support
your Swim spa. If you intend to install
your Swim spa in an area where you
cannot utilize a concrete foundation pad,
you must consult with a structural
engineer to ensure the oor load bearing
capacities are adequate to support the
concentrated Swim spa weight, the
weight of the Swim spa occupants, and
any furniture or people that will be using
the immediate area of the Swim spa.
6. During shipment from the factory,
plumbing components may loosen;
therefore it is imperative that the
Swim spa is double checked for leaks
before installing to avoid possible water
damage. Your dealer may include this
service in their installation procedures.
7. Indoor sunrooms are capable of
maintaining high ambient temperatures
which may affect the Swim spa water
temperature. It is NOT recommended
that you operate your lter cycles for
longer than 4 hours per day under these
conditions.
Danger: Electrical shock risk. Install
at least 5 feet (1.5 m) from all metal
surfaces.

11
In-Fit Exercise Pools
NOTE: Reference separate swim spa
installation manual during installation.
Thermal Creep
Your spa is manufactured with energy-ef-
cient components and systems that capture
heat generated by the equipment, then
transfer that heat back to the spa water. In
warmer weather or in situations with ex-
tended run times, “Thermal Creep” may oc-
cur. Thermal Creep is a condition whereby
the actual water temperature is higher than
the set temperature. To manage “Thermal
Creep” you may:
- Vent your cover. Newer covers have
removable center seal padding. To remove
this padding, open the Velcro on one side
of the vinyl pouch and slide the white
padding out. If your spa does not have
removable center seal padding, you may
instead place a folded cloth about ¾” (2cm)
thick under all four corners of the cover be-
fore you lock it down. Opening the cover at
night will also quickly cool the water down
if desired.
- Open all air controls
- Set your ltration cycles to run during the
cooler times of the day or at night
- Reduce the length of your lter cycles
- Visit your local dealer for additional guid-
ance
Thermal Creep only occurs in well-insulated
hot tubs. It is not an indication that some-
thing is wrong with your spa or its equip-
ment.

12 In-Fit Exercise Pools

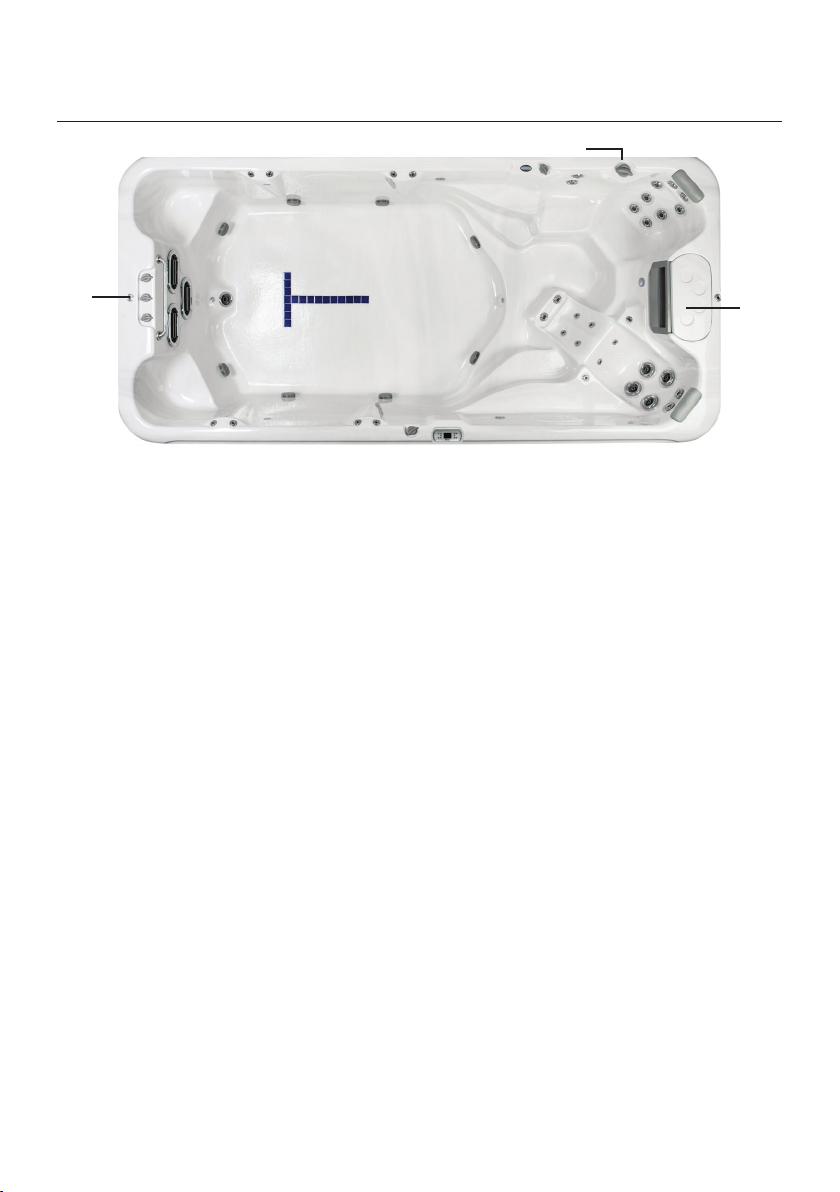

SWIM SPA SYSTEM COMPONENTS
A
C
B
G
A. Filter Skimmer/Weir: Removes
oating debris from the water surface,
provides a water return path to
equipment, and houses water lter
elements.
B. Topside Control Panel: Used to
control temperature setting, jet pumps,
circulation system, underwater lights
and ambient effect lighting.
C. Air Controls: Increases or decreases
air entering the jets. Close during
heating for maximum efciency. It
is recommended that air controls to the
swim jets remain closed during
swimming to provide a clearer stream of
water which is free from air bubbles.
D. Equipment Pack Service Panel (no
user serviceable parts): Spa support
system consisting of several of the
following devices: electronic control
pack, pumps, heater, UV water sanitizer,
ozone generator, LED lighting interface
and associated electrical controls (not
shown).
E. Drain Access (Adjacent to the
equipment service panel): Drain
faucets are located immediately behind
the front door panel. Remove panel to
access (not shown).
F. Manufacturer’s Identication Label:
Contains identication information for
warranty service (serial number, model
number, etc.) and electrical information
(ampere rating and ampere
requirements). Located on the lower
right side of the front door panel (not
shown).
G. Diverter Valve: Used to direct the ow
of water between the massage jets in
the hydrotherapy seats and the swim
jets. By turning the diverter valve
clockwise, the water is directed to the
massage jets in the hydrotherapy seats
and by turning the diverter jet
counterclockwise, the water is directed
to the swim jets.

13
In-Fit Exercise Pools
SWIM SPA COMPONENTS
Reference only. Equipment is not always as shown
Note: No consumer serviceable parts.
We recommend that only an authorized
service technician perform swim spa
repair or service.
A. Pumps: Each pump features single or
dual-speed capacity. Low speed is
utilized for water circulation during ltration
and heating, and for lighter therapy and
exercise programs; high speed is engaged
for maximum action of the jets when
deeper therapy or more rigorous exercise
programs are desired. All pump functions
are activated by topside controls.
B. Electronic Control Pack: All swim spa
functions are operated by this control.
There are no user-serviceable components
in this control. Opening this control may
subject you to high voltage and danger of
electrical shock or electrocution.
Warning and Installation Label: Contains
important safety information, hazard
warnings and installation instructions.
C. Slice Valve: Used to shut off water ow
from the swim spa vessel to pumps
and electronic control pack while servicing.
Quantity will vary depending on model.
All valves should be open during normal
operations.
D. Electrical Connections: Contains
receptacles for electrical connections.
Connections are made during manufacture
of the pool and by your electrician.
E. Heater Assembly: Thermostatically
controlled and equipped with an overheat
safety shut-off.

14 In-Fit Exercise Pools
JETS AND AIR CONTROLS
Swim Area Jets
Swim spa jets are designed to produce a
smooth ow of water with high output to
create a consistent swim stream. Whether
you want to swim or walk/jog against the
force of the jets, you will nd the ow of
water deep enough and swift enough to
meet your individual needs.
Hydrotherapy Area Jets
All spa jets are individually engineered
to provide a unique hydro-massage.
Depending on the model, your spa will
have a combination of the following jets.
Directional Jets
Positioned to focus on large muscle
groups, these jets deliver a concentrated,
high volume stream of water for a deep
massage. Each jet is fully adjustable,
allowing users to set the water ow to the
most comfortable setting. Nozzle can be
rotated to target sore muscles.
Rotating Jets
Positioned to focus on muscle tension
zones, these jets deliver a spinning
V-shaped water stream for a gentle,
pulsating massage. Each jet is fully
adjustable, allowing for comfortable water
ow settings for everyone to enjoy.
Euro Jets
Positioned in the foot well or shoulder
areas, these jets deliver a penetrating
massage to dissolve tension. This jet may
be the entry point for ozone produced
during automatic ltration and therefore it is
not adjustable.
Note: Ozone production is stopped
when functions are activated on control
panel.
Cleaning or Replacing Jets
Hard water can cause calcium/mineral
buildup that can restrict or bind the jets. A
jet consists of a face plate and a nozzle.
Rotate these parts weekly and remove/
clean monthly to ensure free movement.
NOTE: It is not necessary to drain the
spa to clean or remove the jets.
Rotating Jets
• Rotate the jet face left and right
• Return face plate to full open position
• Turn the jets on high speed
• Twist the nozzle left and right
• Rotate the nozzle in the socket
NOTE: If the jet insert disengages from
the spa housing, see steps to reinstall
below.
Cleaning Jets
• To REMOVE the jet insert, use the palm
of your hand to exert pressure on the face
of the jet. Turn counterclockwise until the
jet ‘clicks’. Gently pull the jet assembly
from the housing.
• To CLEAN the jet insert and housing,
use a pressurized hose and spray the
inside of the jet. Soak the jet in a diluted
spa cleaning solution, rinse. Wipe the
inside of the housing to remove any debris.
• To REINSTALL the jet, line up the
tab on the backside of the barrel with the
groove in the body. Use the palm of your
hand to gently tap the jet until it snaps into
position.

15
In-Fit Exercise Pools
Typical 240V GFCI (North America Only) and RCD Connections
The appliance should be supplied through a residual current device (RCD) or Ground
Fault Interrupter (GFCI) with a rated tripping current not exceeding 30mA. Means for
disconnection must be incorporated in the xed wiring in accordance with the wiring rules.
Parts containing live voltage, except parts supplied with safety extra-low voltage not
exceeding 12V, must be inaccessible to a person in the hot tub. Earthed appliances must
be permanently connected to xed wiring.

16 In-Fit Exercise Pools
IMPORTANT INFORMATION REGARDING ELECTRICAL INSTALLATION
NORTH AMERICA
Equipment Type Electrical Rating Branch Circuit Circuit Break1
2 pumps 240V 40A 3 wires + ground 50A
4 pumps 240V 48A 3 wires + ground 60A
5 pumps 240V 48A 3 wires + ground 60A
EXPORT
Equipment Type Electrical Rating Branch Circuit Circuit Breaker1
2 pumps 230V 32A 2 wires + ground 32/40A
4 pumps 230V 32A 2 wires + ground 32/40A
2 pumps 230V 32A 2 wires + ground 32/40A
4 pumps 230V 32A 2 wires + ground 32/40A
1. Circuit breaker amperages may vary according to the area of installation. Please check local
electrical codes to verify requirements and assure compliance. Spas purchased not fully
equipped may operate at a reduced total amp rating thus allowing installation of a lower rate
GFCI/RCD circuit breaker and service installation.
ELECTRICAL CONNECTIONS
To hook up your spa your authorized dealer or licensed electrician should follow
these instructions:
1. Remove the front cabinet panel.
2. Remove the cover for the equipment control pack.
3. Use ¾” exible non-metallic conduit for a spa requiring 10 AWG or 8 AWG wire. Use 1”
exible non-metallic conduit for a spa requiring 6 AWG wire. Run the conduit from the
power source to the spa, through the hole in the left or right front corner of the spa and
into the equipment control pack.
4. Pull the wires/cable through the conduit and through the cutout of the equipment
control pack. Secure the wires/cable with a 1” strain relief. Make sure only the uncut
sheathing is clamped at this opening.
5. Connect the wires to the proper terminals as shown below:

17

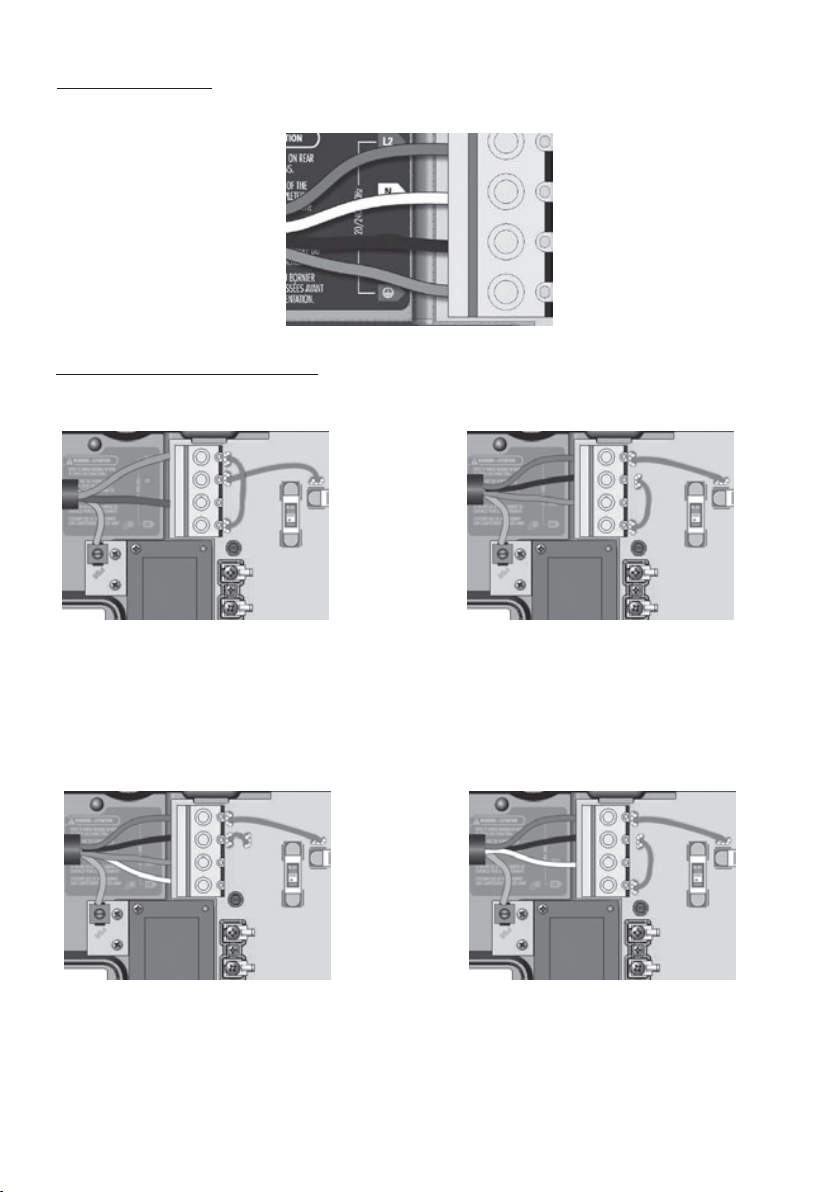

In-Fit Exercise Pools
in.yj-2 connections
240V Connection (3 wires + ground)
in.ye-5 connections (Export only)
230V Single-phase 230V Dual-phase*
(1x32A) (2x16A)
Connect jumpers Connect jumpers
(brown wires) (brown wires)
P7 ---> P13 P7 ---> P10
P10 ---> P74 P13 ---> P74
230V Three-phase* 230V Three-Phase*
(3x16A) Delta
Connect jumpers Connect jumpers
(brown wires) (brown wires)
P7 ---> P10 P7 ---> P10
P11 --->P13 P13 ---> P74

18 In-Fit Exercise Pools

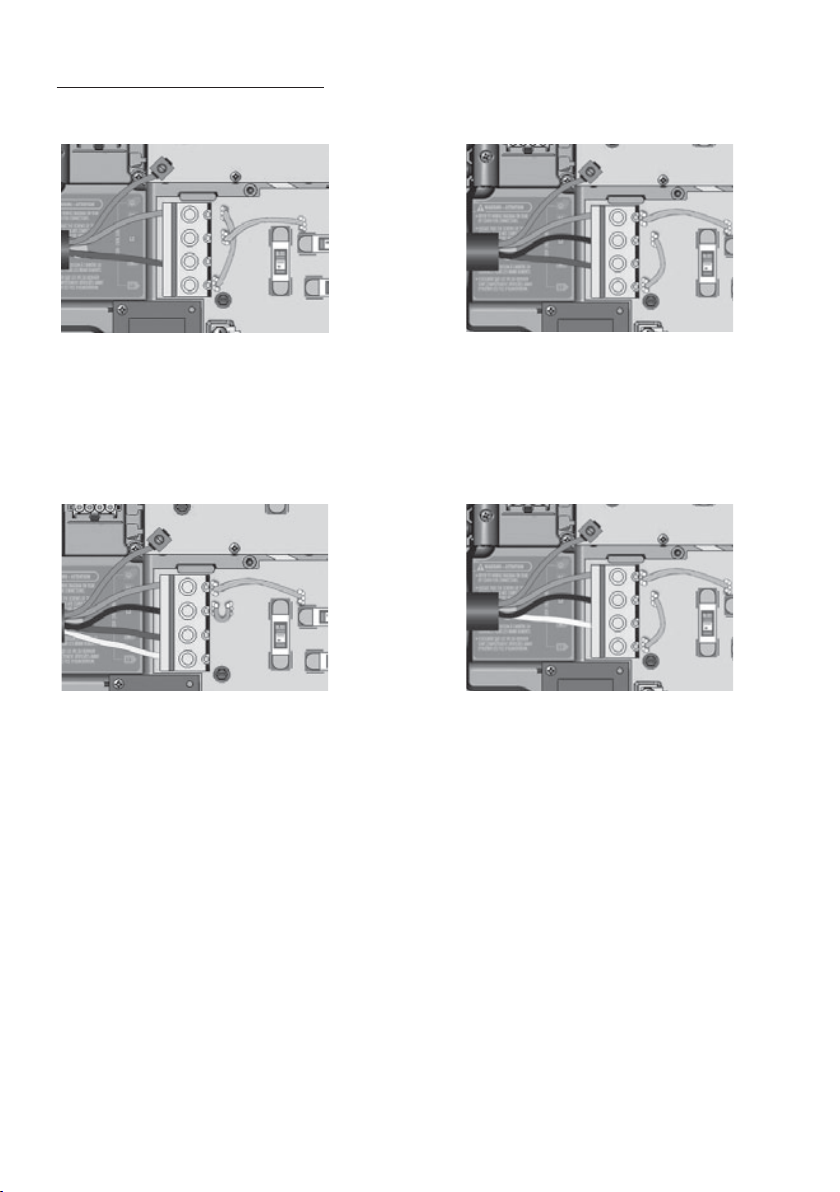

in.yt-12 connections (Export only)
230V Single-phase 230V Dual-phase*
(1x32A) (2x16A)
Connect jumpers Connect jumpers
(brown wires) (brown wires)
P7 ---> P13 P7 ---> P10
P10 ---> P74 P13 ---> P74
230V Three-phase* 230V Three-Phase*
(3x16A) Delta
Connect jumpers Connect jumpers
(brown wires) (brown wires)
P7 ---> P10 P7 ---> P10
P11 --->P13 P13 ---> P74
* For Dual and Three-phase connections, make sure to change the proper phase setting in the
Electrical Conguration section of the control panel.
6. Secure the wire connections. Push the wires into the equipment control pack.
7. Close the cover on the equipment control and tighten the screws.
8. Electrical hook up is now complete. Do not re-attach the front cabinet panel yet.
For Dual and Three phase connections: Change to proper phase setting in the control
panel. For In-Fit 13 SL, press and hold the Program Key until b32 is shown on the display.
Change to the proper breaker and phase settings. For all others, see Operation Instruc-
tions on how to enter the Electrical Conguration section. When prompted, press and hold
the key next to “conrm” to enter the menu where electrical setting can be changed.

19
In-Fit Exercise Pools
START UP PROCEDURES
Follow recommendations for site location
and electrical connection.
1. Use standard “tap water” to ll the
swim spa by draping a garden hose
over the wall. Take care to wrap the
metal end of the hose with a soft cloth
or set the end of the hose in the lter
canister to protect the swim spa surface
from the metal end of the hose. The
metal end of your hose can become
rough or jagged and may scratch the
surface of your swim spa, and this
damage is not covered under your
warranty. Fill the swim spa until the
water level is 2 to 2.5 cm from the top
lip. Never use “softened” water in
your pool or spa. Softened water can
impact the chemical balance of the
water and lead to degradation of metal
plumbing ttings.
2. After you have assured that the
swim spa is full of water and that all
plumbing valves are open, turn power
on at circuit breaker or disconnect panel.
3. Open the air controls, located on the top
lip, and cycle the jets from high to low.
Water should come from the therapy
jets. If water ow is not established, turn
off jets and see Priming Your Swim Spa.
4. Add chemicals. See Chemical Treatment
and Water Maintenance section. Follow
Operating Instructions for your particular
model to set heat to the desired
temperature. Initially, you may nd that
the swim spa requires 18 to 24 hours on
230 Volt installations to reach
temperature. Keep your thermal cover
on the unit and close the air controls to
help the heating process.
Priming Your Swim Spa
When lling your swim spa for the rst
time or, after draining and relling the swim
spa, you may need to bleed air from the
system. Should you experience an air-lock
on Pump 1, remove the lter basket cover,
insert a garden hose through the center
hole of the lter as far as possible without
using force. Hold the hose in place and
turn on the water. This forces water into the
pump and forces the air out.
NOTE: Because the Aqua Klean®
Filtration System is so efcient, the
lters should be cleaned every other
day for the rst two weeks of operation.
Important: Do not operate the Swim Spa
without full water ow.

20 In-Fit Exercise Pools
OPERATING INSTRUCTIONS
CONTROL PANEL TYPES AND MODELS

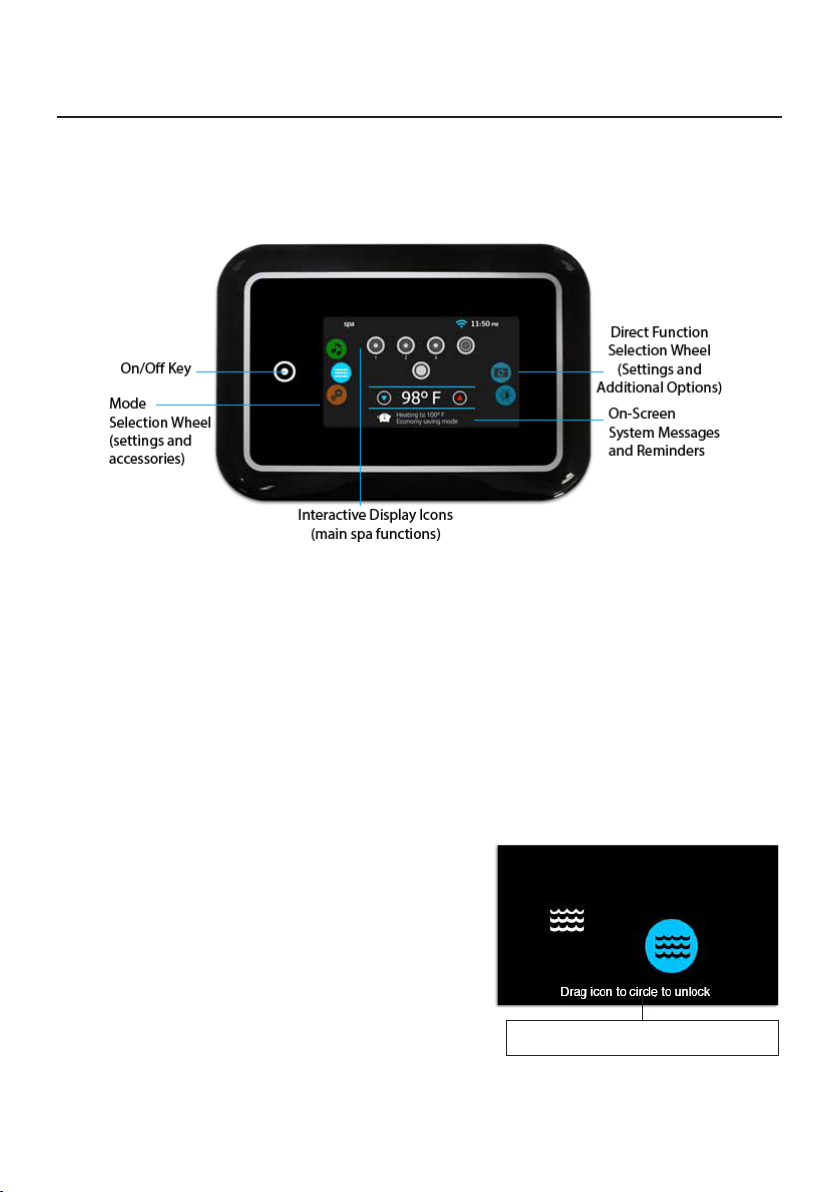

in.k1000 Control Panel
This easy to use control has been programmed to be “plug and play”. Turn the power on,
adjust the desired temperature and the system is ready to go. If there are situations that
require additional ltering time, the lter settings can be customized to any special require-
ments. Simple to use and easy to read, the Command Control System makes controlling
the spa effortless.
CONTROL PANEL OPERATION
Please note: All pumps and lights have an automatic timeout (shut-off) programmed 30
minutes after the pump or light is activated.
Power
Touch the screen to turn on the keypad. After 30
minutes without activity it will shut off automatically.
Follow the instructions on the screen to access the
main screen
Main Screen
The main screen gives you access to your acces-
sories and water temperature. At the bottom of
the screen you will see any error or maintenance
messages that are present.
Drag icon to circle to unlock
