l-com L-EL9000 User manual

Hardened Media Converter
1
Quick Start Guide
This quick start guide describes how to install and use the hardened media converter.
This is the media converter of choice for harsh environments constrained by space.
Physical Description

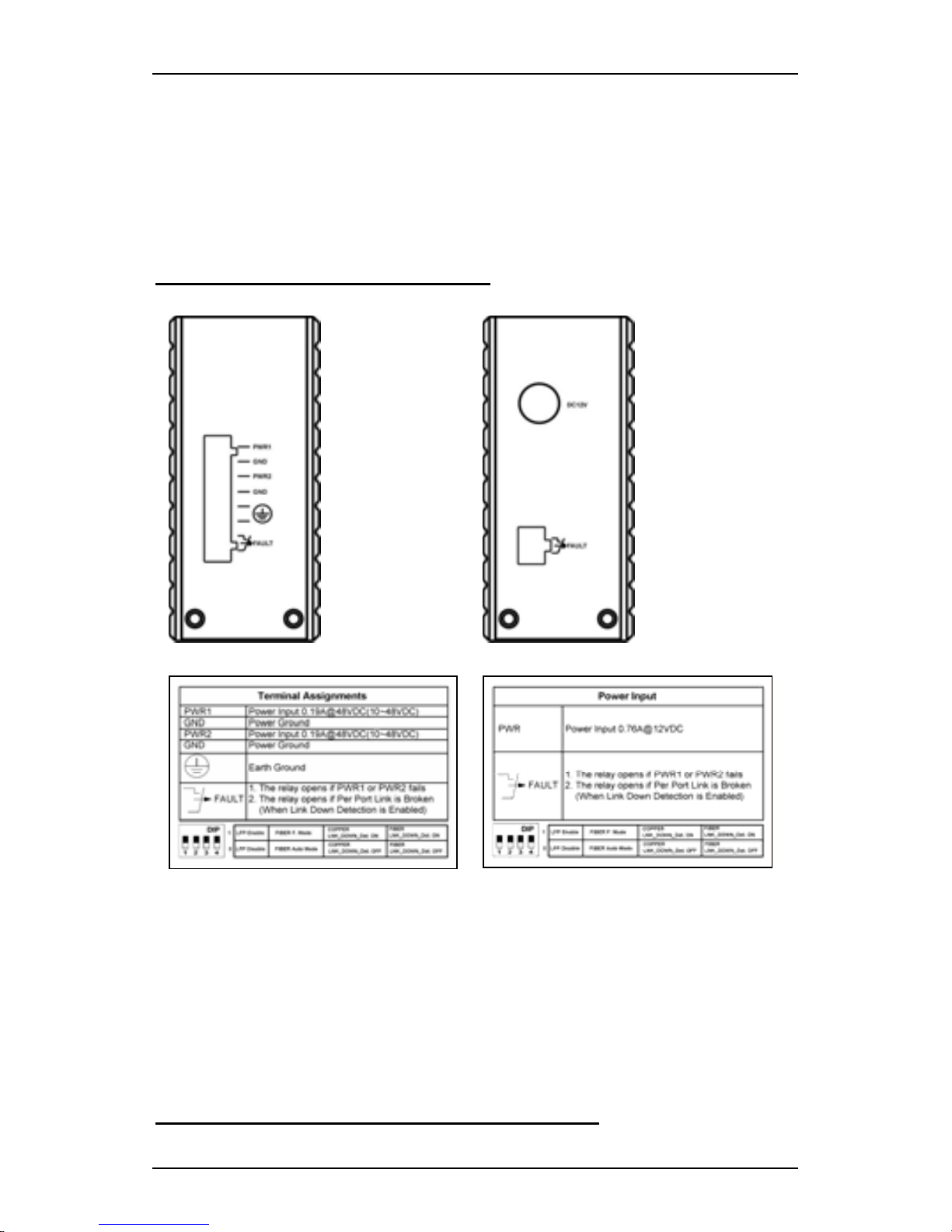

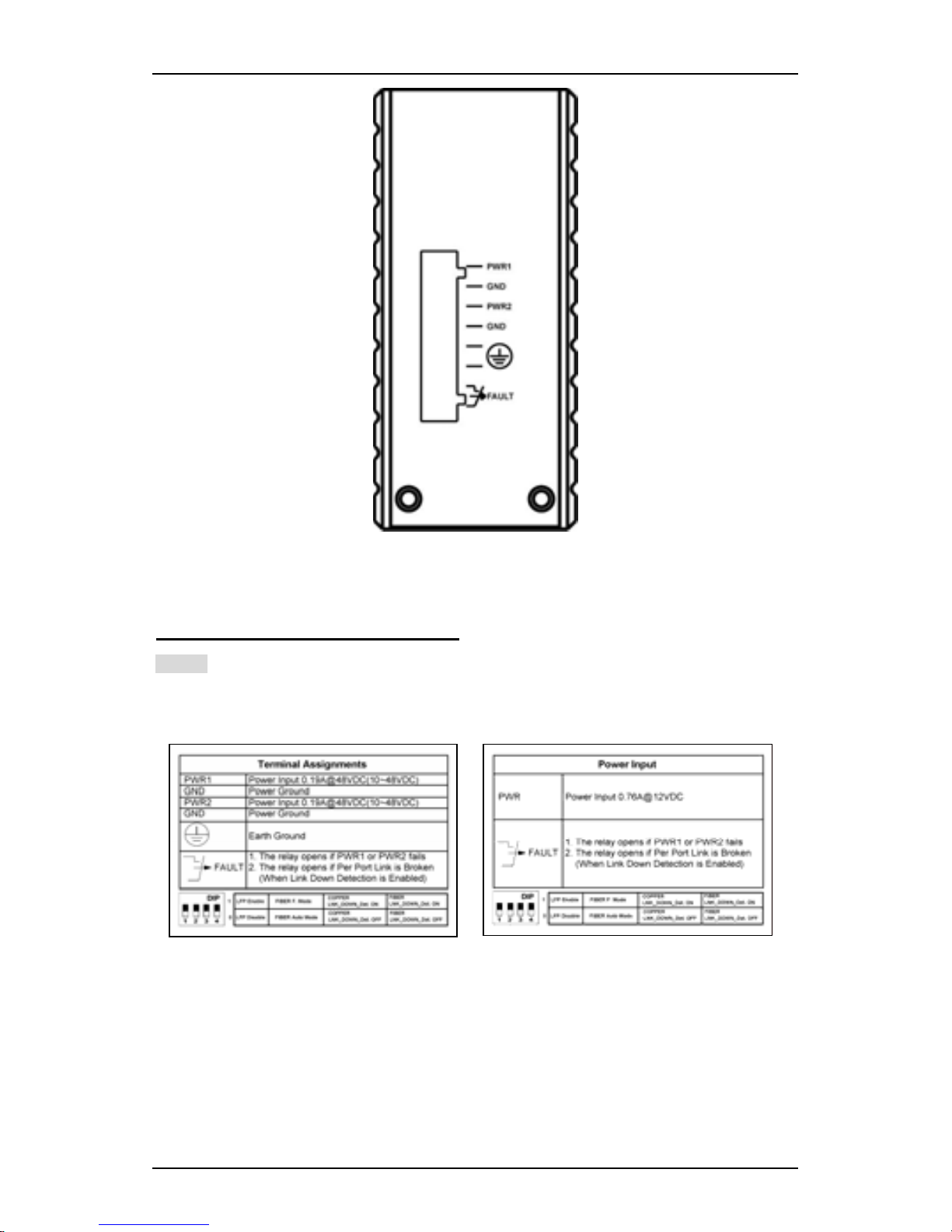

The Terminal Block and Power inputs
yDC Terminal Block Power Inputs: There are two pairs of power inputs can be
used to power up this media converter. Redundant power supplies function is
supported. You need to have two power inputs connected to run the media
converter, but the FAULT LED indicator will light up to remind that the power
redundant system functions abnormal in case either PWR1 or PWR2 is dead.
Media Converter, however, continues working normally even fault LED indicator
lights up.
yDC JACK Power input: 12VDC.
The 1000Base-T and 1000Base-SX/LX Connectors
The 1000Base-T Connections

Hardened Media Converter
2

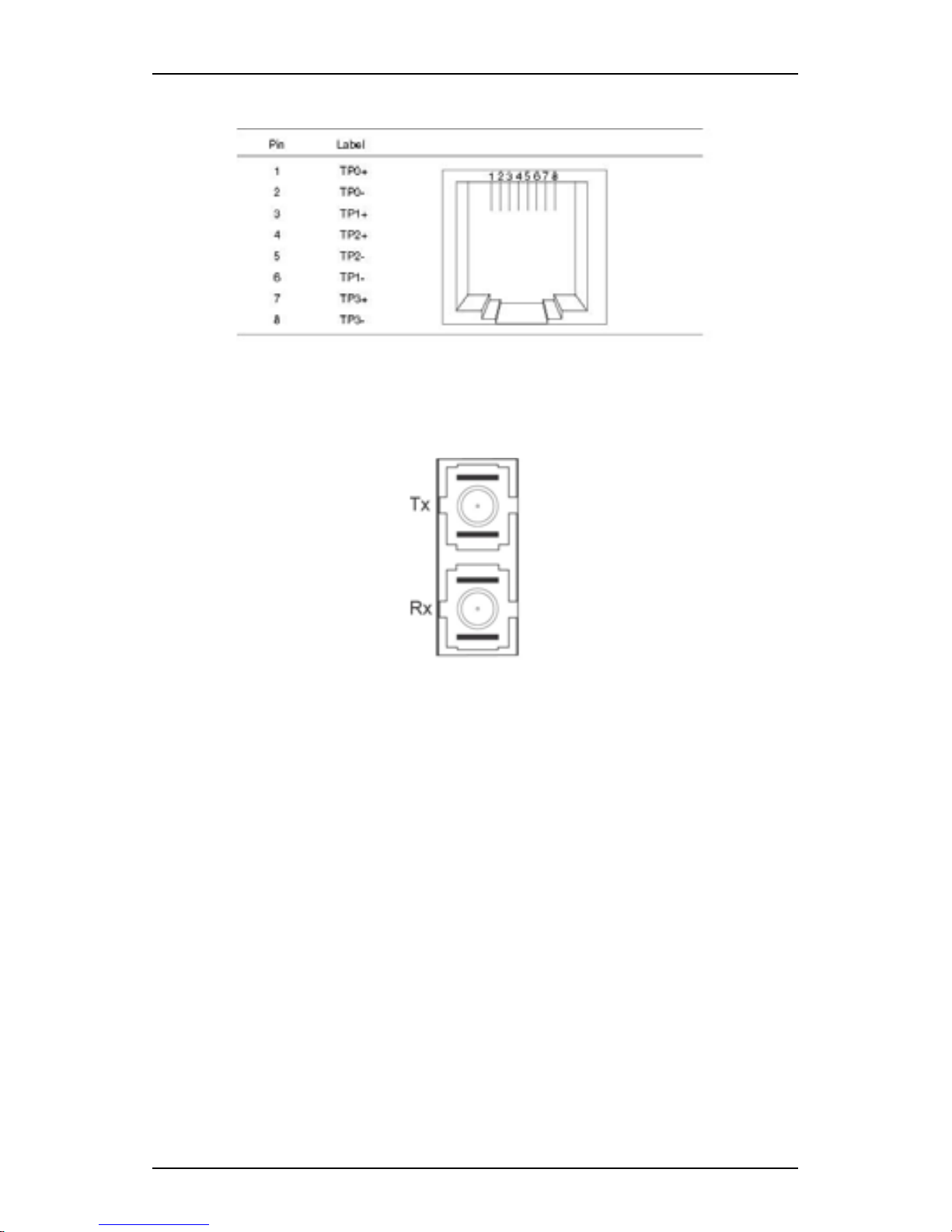

The following lists the pinouts of 1000Base-T port.
The 1000BaseSX/LX Connections
The fiber port pinouts: The Tx (transmit) port of device I is connected to the Rx
(receive) port of device II, and the Rx (receive) port of device I to the Tx (transmit)
port of device II.

Hardened Media Converter
3

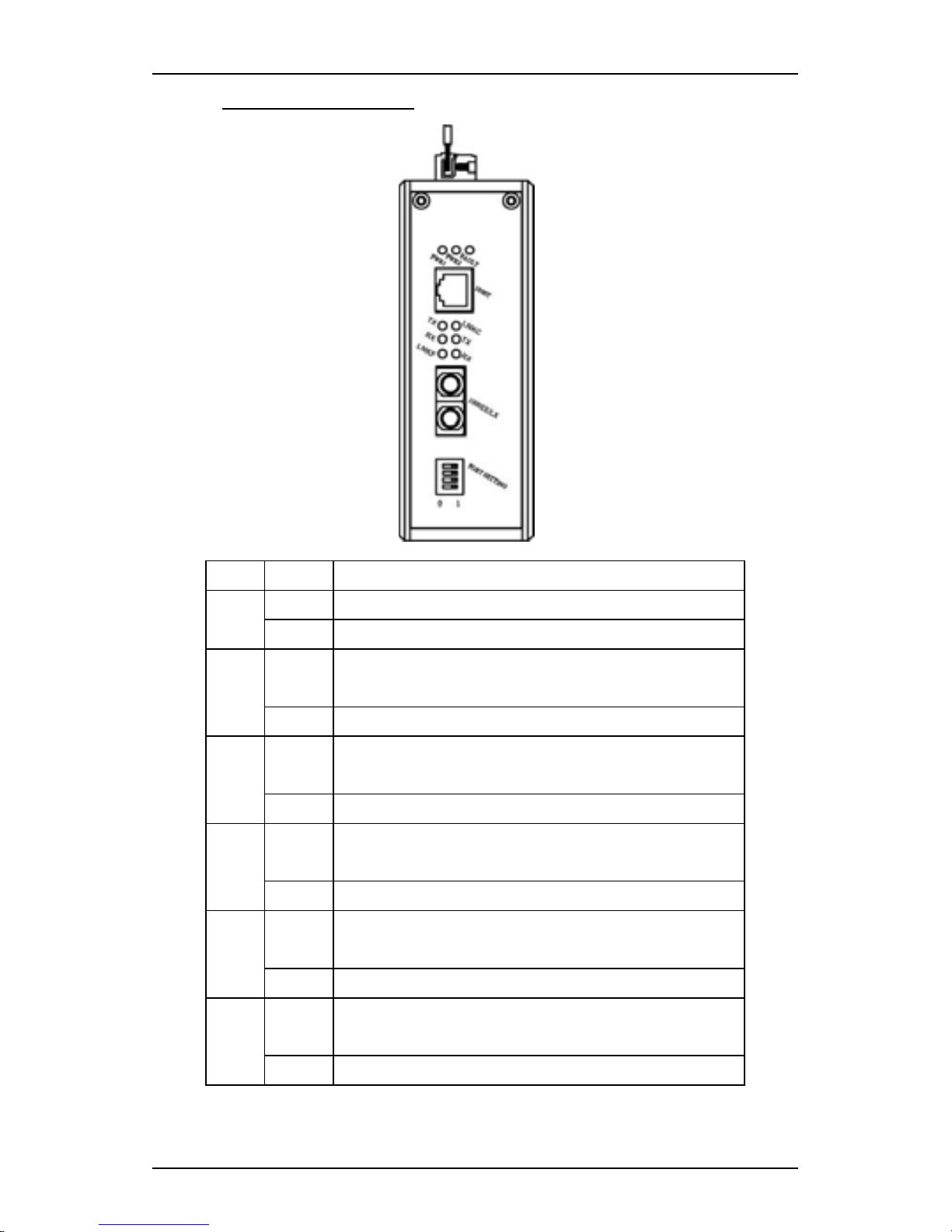

The Port Status LEDs
LEDs State Indication
Steady Power redundant system or ports function abnormallyFAULT
Off Power redundant system and ports function normally
Steady Power on
PWR stands for POWER
PWR1
PWR2
Off Power off
Steady A valid network connection established for copper port
LNK stands for LINK
LNKC
Off No valid network connection established for copper port
Steady A valid network connection established for fiber port
LNK stands for LINK
LNKF
Off No valid network connection established for fiber port
Flashing Transmitting data
TX stands for TRANSMIT
TX
Off No transmitting data
Flashing Receiving data
RX stands for RECEIVE
RX
Off No data being received

Hardened Media Converter
4
Functional Description
yMeets NEMA TS1/TS2 Environmental requirements: temperature, shock, and
vibration for traffic control equipment.
yMeets IEC61000-6-2 EMC Generic Standard Immunity for industrial environment.
ySupport 802.3ab/802.3z/802.3x. Auto-negotiation and Auto MDI/MDIX.
y1000Base-SX/LX: Multi mode, Single mode, or WDM Single mode SC type.
yOne DIP switch for configuring link-fault-pass-through, fiber auto negotiation,
and port link down alarm.
yAlarms for power and port link failure by relay output. Relay contact rating with
current 1.5A @ 24VDC, 0.5A @ 120VAC.
yOperating voltage and Max. current consumption: 0.76A @ 12VDC, 0.38A @
24VDC, 0.19A @ 48VDC. Power consumption: 9.12W Max.
yPower Supply: Redundant DC Terminal Block power inputs or 12VDC DC JACK
with 100-240VAC external power supply.
yField Wiring Terminal: Use Copper Conductors Only, 60/75℃, 12-24 AWG
torque value 7 lb-in.
y-40 to 75 (℃℃-40℉to 167℉) operating temperature range. Tested for
functional operation @ -40 to℃85 (℃-40℉to 185℉). UL1604 Industrial
Control Equipment certified Maximum Surrounding Air Temperature @ 74℃
(165℉).
ySupports DIN-Rail, Panel, or Rack Mounting installation.
yUL1604 Class I, Division 2 Classified for use in hazardous locations (applicable
to versions with terminal block power option).
yThis equipment is suitable for use in Class I, Division 2, Groups A, B, C and D
OR non-hazardous locations only.
yWARNING – EXPLOSION HAZARD – Do not disconnect equipment unless
power has been removed or the area is known to be non-hazardous.
yWARNING – EXPLOSION HAZARD – Substitution of components may impair
suitability for Class I, Division 2.
Assembly, Startup, and Dismantling
yAssembly: Place the media converter on the DIN rail from above using the slot.
Push the front of the media converter toward the mounting surface until it
audibly snaps into place.
yStartup: Connect the supply voltage to start up the media converter via the
terminal block (or DC JACK).
yDismantling: Pull out the lower edge and then remove the media converter from
the DIN rail.

Hardened Media Converter
5

Hardened Media Converter
6
Preface
Our hardened media converter provides an affordable solution for rugged
environments, transportation road-side cabinets, industrial shop floors, multi tenant
dwellings or Fiber To The Home (FTTH) applications. Capable of operating at
temperature extremes of -40°C to +75°C, this is by far the media converter of choice
for harsh environments in which space constraints exist.
Plug-and-Play Solution:
The hardened media converter is a plug-and-play compact media converter which
doesn't have any complicated software to set up.
This manual describes the installation and use of the hardened media converter with
the link-fault-pass-through function. The converter also provides one channel media
conversion between 1000Base-T and 1000Base-SX/LX.
The converter is in full compliance with IEEE802.3ab 1000Base-T and IEEE802.3z
1000Base-SX/LX standards.
In this manual, you will find:
yProduct overview
yFeatures of the media converter
yIllustrative LED functions
yInstallation instructions
ySpecifications

Hardened Media Converter
7
Table of Contents
Quick Start Guide.......................................................................1
PHYSICAL DESCRIPTION...........................................................1
FUNCTIONAL DESCRIPTION.......................................................4
ASSEMBLY,STARTUP,AND DISMANTLING...................................4
Preface ......................................................................................6
Table of Contents.......................................................................7
Introduction................................................................................8
PRODUCT OVERVIEW...............................................................8
PRODUCT FEATURES ...............................................................8
PACKING LIST .........................................................................9
One-Channel Media Converter ................................................10
PORTS .................................................................................10
PORT SETTINGS....................................................................10
DIP SWITCH .........................................................................10
FRONT PANEL &LEDS..........................................................11
Installation................................................................................12
SELECTING A SITE FOR THE EQUIPMENT ..................................12
DIN RAIL MOUNTING .............................................................12
CONNECTING TO POWER........................................................13
Specifications...........................................................................15

Hardened Media Converter
8
Introduction
The media converter provides one channel for media conversion between 1000Base-
T and 1000Base-SX/LX with the link-fault-pass-through function. This hardened fiber
optic solution is perfectly suitable for industrial applications or rugged environmental
conditions.
Product Overview
Product Features
yMeets NEMA TS1/TS2 Environmental requirements: temperature, shock, and
vibration for traffic control equipment.
yMeets IEC61000-6-2 EMC Generic Standard Immunity for industrial environment.
ySupport 802.3ab/802.3z/802.3x. Auto-negotiation and Auto MDI/MDIX.
y1000Base-SX/LX: Multi mode, Single mode, or WDM Single mode SC type.
yOne DIP switch for configuring link-fault-pass-through, fiber auto negotiation,
and port link down alarm.
yAlarms for power and port link failure by relay output. Relay contact rating with
current 1.5A @ 24VDC, 0.5A @ 120VAC.
yOperating voltage and Max. current consumption: 0.76A @ 12VDC, 0.38A @
24VDC, 0.19A @ 48VDC. Power consumption: 9.12W Max.
yPower Supply: Redundant DC Terminal Block power inputs or 12VDC DC JACK
with 100-240VAC external power supply.

Hardened Media Converter
9
yField Wiring Terminal: Use Copper Conductors Only, 60/75℃, 12-24 AWG
torque value 7 lb-in.
y-40 to 75 (℃℃-40℉to 167℉) operating temperature range. Tested for
functional operation @ -40 to℃85 (℃-40℉to 185℉). UL1604 Industrial
Control Equipment certified Maximum Surrounding Air Temperature @ 74℃
(165℉).
ySupports DIN-Rail, Panel, or Rack Mounting installation.
yUL1604 Class I, Division 2 Classified for use in hazardous locations (applicable
to versions with terminal block power option).
yThis equipment is suitable for use in Class I, Division 2, Groups A, B, C and D
OR non-hazardous locations only.
yWARNING – EXPLOSION HAZARD – Do not disconnect equipment unless
power has been removed or the area is known to be non-hazardous.
yWARNING – EXPLOSION HAZARD – Substitution of components may impair
suitability for Class I, Division 2.
<Note>
One of the fiber ports should be forced to full duplex mode when two 1000Base-T and
1000Base-SX/LX one-channel media converters are connected to each other via fiber
port.
Packing List
When you open this product package, you will find the items listed below. Please
inspect the contents, and report any apparent damage or missing items immediately
to our authorized reseller.
yThe Media Converter
yUser’s Manual
yAC to DC Power Adaptor and Power Cable (optional)

Hardened Media Converter
10
One-Channel Media Converter
Ports
The Converter provides one copper port and one fiber port. The fiber port provides
options of Multi-mode, Single-mode, or WDM Single-mode fiber using an SC
connector.
The copper port uses RJ-45 connector, auto-MDIX, and auto negotiates.
Port Settings
Port settings are made very simple by means of a DIP (Dual Inline Package) switch
on the front panel of the hardened media converter.
Default DIP switch settings:
1 2 3 4
1
0
DIP Switch
There are four pins on the DIP switch for port settings. Refer to the table below for more
details.
DIP
switch
No.
0 1
1 Disable LFPT Enable LFPT LFPT:
link-fault-
pass-through
2 Enable auto negotiation for
fiber port Enable forced mode for fiber port
3 Disable link down alarm for
copper port Enable link down alarm for copper port
4 Disable link down alarm for
fiber port Enable link down alarm for fiber port

Hardened Media Converter
11

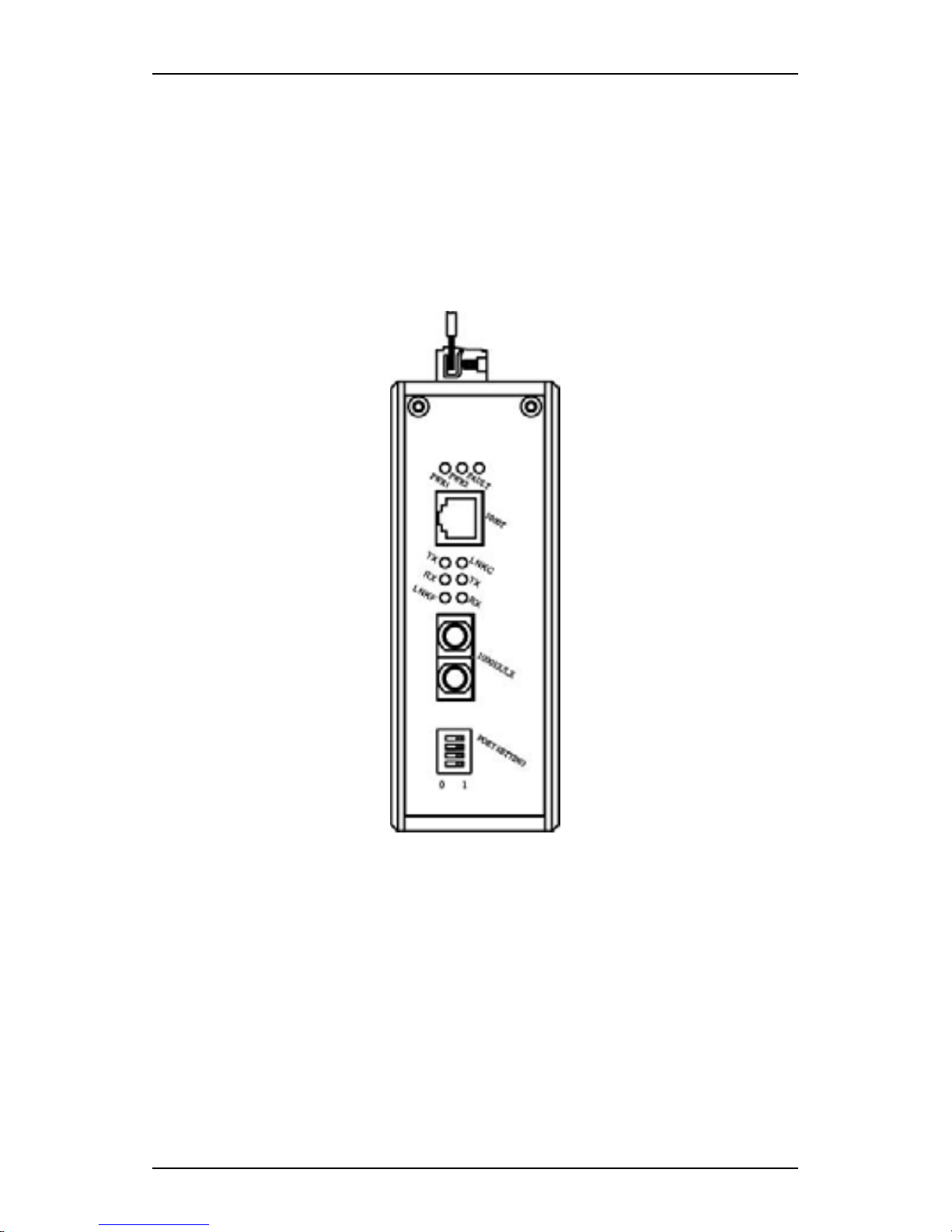

Front Panel & LEDs
LED Indicators
The LED indicators give you instant feedback on converter status:
LED’s State Indication
Steady Power redundant system or ports function abnormallyFAULT
Off Power redundant system and ports function normally
Steady Power on
PWR stands for POWER
PWR1
PWR2
Off Power off
Steady A valid network connection established for copper port
LNK stands for LINK
LNKC
Off No valid network connection established for copper port
Steady A valid network connection established for fiber port
LNK stands for LINK
LNKF
Off No valid network connection established for fiber port
Flashing Transmitting data
TX stands for TRANSMIT
TX
Off No transmitting data
Flashing Receiving data
RX stands for RECEIVE
RX
Off No data being received

Hardened Media Converter
12
Installation
This chapter gives step-by-step installation instructions for the Converter.
Selecting a Site for the Equipment
As with any electric device, you should place the equipment where it will not be
subjected to extreme temperatures, humidity, or electromagnetic interference.
Specifically, the site you select should meet the following requirements:
yThe ambient temperature should be between -40 to 75 degrees Celsius.
yThe relative humidity should be less than 95 percent, non-condensing.
ySurrounding electrical devices should not exceed the electromagnetic field (RFC)
standards.
yMake sure that the equipment receives adequate ventilation. Do not block the
ventilation holes of the equipment.
yThe power outlet should be within 1.8 meters of the product.

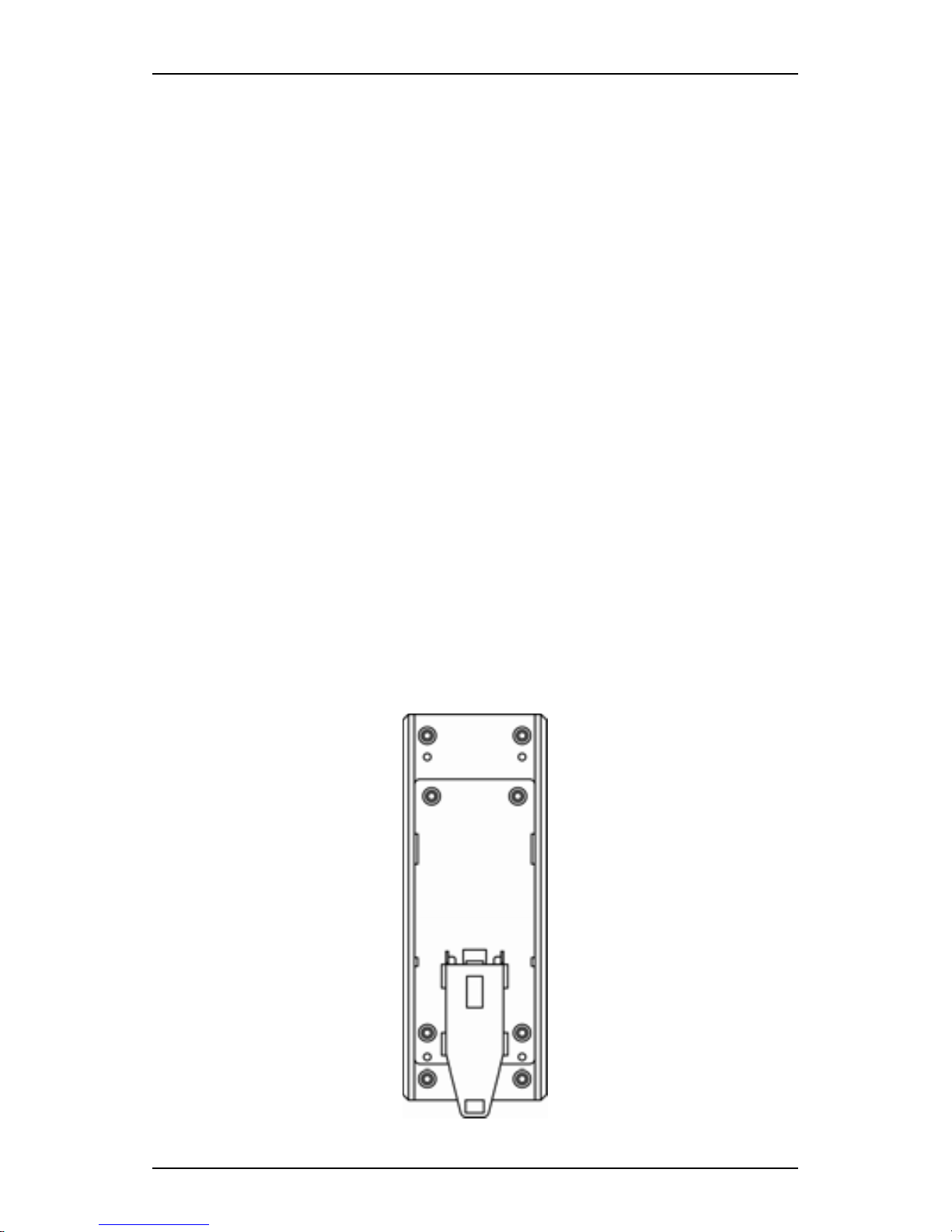

DIN Rail Mounting
Fix the DIN rail attachment plate to the back panel of the media converter.
Installation: Place the media converter on the DIN rail from above using the slot.
Push the front of the media converter toward the mounting surface until it audibly
snaps into place.
Removal: Pull out the lower edge and then remove the media converter from the DIN
rail.

Hardened Media Converter
13
Connecting to Power
Redundant DC Terminal Block Power Inputs or 12VDC DC Jack:
12VDC DC Jack
Step 1: Connect the supplied AC to DC power adapter to the receptacle on the topside
of the media converter.
Step 2: Connect the power cord to the AC to DC power adapter and attach the plug into
a standard AC outlet with the appropriate AC voltage.
Redundant DC Terminal Block Power Inputs
There are two pairs of power inputs can be used to power up this device. You need to
have two power inputs connected to run the media converter, but the FAULT LED
indicator will light up to remind that the power redundant system functions abnormal
in case either PWR1 or PWR2 is dead. Media Converter, however, continues working
normally even fault LED indicator lights up.
Step 1: Connect the DC power cord to the plug-able terminal block on the media
converter, and then plug it into a standard DC outlet.
Step 2: Disconnect the power cord if you want to shut down the media converter.

Hardened Media Converter
14
Field Wiring Terminal: Use Copper Conductors Only, 60/75℃, 12-24 AWG torque
value 7 lb-in.
Alarms for Power and Port Failure
Step 1: There are two pins on the terminal block that are used for power failure
detection. It provides a normal closed output when the power source is active. Use this
as a dry contact application to send a signal for power failure detection.
Special note:
The relay output is normal in an open position when there is no power to the media
converter. Please do not connect any power source to this terminal to prevent a
shortage to your power supply.

Hardened Media Converter
15
Specifications
Applicable Standards IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-SX/LX
Fixed Ports 1 copper port, 1 fiber port
2000Mbps for full-duplexSpeed 1000Base-T
1000Base-SX/LX
2000Mbps for full-duplex
Forwarding rate 1,488,000pps for 1000Mbps
4-pair UTP/STP Cat. 5 up to 100m
Cable 1000Base-T
1000Base-SX/LX MMF (50 or 62.5µm), SMF (9 or 10µm)
Per Unit- (3 LEDs): PWR1, PWR2, FAULTLED Indicators
Per Port- Copper (3 LEDs): LNKC, TX, RX
Fiber (3 LEDs): LNKF, TX, RX
Dimensions 50mm (W) × 110mm (D) x 135mm (H)
(1.97” (W) x 4.33” (D) x 5.31” (H))
Weight 0.8Kg (1.76lbs.)
Power DC Jack: 12VDC, External AC/DC required
Terminal Block: 10-48VDC
Operating Voltage & Max.
Current Consumption 0.76A @ 12VDC, 0.38A @ 24VDC, 0.19A @ 48VDC
Power Consumption 9.12W Max.
Operating Temperature -40°C ~ 75°C (-40℉~ 167℉)
Tested for functional operation @
-40°C ~ 85°C (-40℉~ 185℉)
UL1604 Industrial Control Equipment certified
Maximum Surrounding Air Temperature @ 74℃
(165℉)
Storage Temperature -40°C ~ 85°C (-40℉~ 185℉)
Humidity 5 ~ 95%, non-condensing
Safety Hazardous locations: Class I, Division 2
group A, B, C & D
UL60950-1, EN60950-1, IEC60950-1
EMI FCC Part 15, Class A
EN61000-6-3: EN55022, EN61000-3-2,
EN61000-3-3
EMS EN61000-6-2:
EN61000-4-2 (ESD Standard)
EN61000-4-3 (Radiated RFI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-5 (Surge Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)
EN61000-4-11 (Voltage Dips Standards)
Environmental Test
Compliance
IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
IEC60068-2-32 Ed (Free Fall)

Hardened Media Converter
16
NEMA TS1/2 Environmental requirements for traffic control equipment
