La Crosse Technology 616-146 User manual

1
Atomic Projection Alarm
with Indoor and Outdoor Temperature
This Atomic Projection Alarm with snooze alarm and backlit display projects time and outdoor
temperature on your wall or ceiling in a variety of ways. It automatically sets the time and date based on
your time zone, and even updates Daylight Saving Time for you. Monitor indoor and outdoor temperature,
track temperature trends and charge your smartphone or other device with the USB charging port--all in
one convenient device for your desktop or bedside table. It runs on AC power with battery backup, and
has a wireless transmission range of over 200 ft. to the backyard temp. sensor.
Atomic Projection Alarm
NOTE: This projection alarm will come with one
TX141 transmitter OR one TX14 transmitter.
Both transmitters work interchangeably.
Get Support: http://www.lacrossetechnology.com/616-146
INITIAL SETUP
Step 1: Insert the included 5-volt AC power adapter into projection alarm and then into wall outlet.
Step 2: Insert 3 new “AAA” batteries (not included) into the projection alarm. Observe the correct polarity.
Step 3: Insert 2 new “AA” batteries (not included) into the TX141 transmitter. Observe the correct polarity.
The red LED will flash with transmitting.
Do Not Mix Old and New Batteries
Do Not Mix Alkaline, Standard, Lithium or Rechargeable Batteries
RESTART:
If the outdoor temperature is not displayed after 3 minutes, unplug the AC adapter and remove
batteries from the projection alarm & transmitter for 15 minutes.
Return to Step 1 above.
Model: 616-146
Instruction Manual
Time, Alarm
+ Calendar
Outdoor/Indoor
Temperature
TX141
Outdoor
Transmitter
Projection
Arm
Rotates 180º

2
Table of Contents
Atomic Projection Alarm 1
Initial Setup 1
Restart 2
Table of Contents 2
Features 3
Power the Projection Alarm 3
A/C Adapter 3
Batteries 3
Install Batteries in the TX141 Transmitter 4
Install Batteries in the TX14 Transmitter 4
Functions Buttons 4
Program Menu 5
WWVB Reception On/Off 5
Time Zone 5
Daylight Saving Time Indicator 5
12/24 Hour Time Format 5
Set Time 6
Set Calendar 6
Fahrenheit/Celsius 6
Alarm Set 6
Deactivate Alarm 6
Snooze 7
Backlight and Projection Intensity 7
Projection 7
Battery Operation 7
A/C Power 7
Rotate Projection 7
Change Projection Mode 7
USB Charge Port 8
Temperature Trend Icons 8
Outdoor Temperature Flashes 8
WWVB Radio-controlled Time 8
WWVB Reception Icon 8
Manual Signal Search 9
Low Battery Icon 9
Position Outdoor Transmitter 9
Position Projection Alarm 10
Specifications 10
Care and Maintenance 11
Warranty 11
FCC Statement 11

3
Features
Projects time & outdoor temp. on wall or ceiling
Projection rotates in 90 degree increments
Projection options: (1) Default: toggle between time and temp.,
(2) time only, or (3) temperature only
Time zones: Atlantic Time (AST), Eastern Time (EST), Central Time (CST), Mountain Time (MST),
Pacific Time (PST), Alaskan Time (AKT) & Hawaiian Time (HAT)
Light up color display backlight and projection with a press of a button using battery power OR
continuous light with AC adapter (ON /OFF option)
Backlight and projection settings: High, low and off
Atomic time and date sets itself
12/24 hour time with minutes
Snooze alarm and alarm icon
Calendar: day, date
IN / OUT temperature (°F / °C) with trend arrow
Low battery icon for clock & sensor
Sits on desktop or tabletop
USB Charging port for convenient charging of mobile devices
5.0V AC adapter (included) for primary power and battery backup
Battery life is over 24 months when using the AC adapter
Power the Projection Alarm
The Projection Alarm can be powered by the 5-volt A/C adapter or by 2 AAA batteries.
A/C power adapter
Insert enclosed 5-volt A/C power adapter into a wall outlet, then into the Projection Alarm.
Optional Battery Operation
1. Remove battery cover: Slide tab to the right and pull out to remove battery cover.
2. Install two fresh AAA batteries according to the polarity markings.
Do Not Mix Old and New Batteries
Do Not Mix Alkaline, Lithium, Standard, or Rechargeable Batteries
If the Projection Alarm does not display indoor temperature after 60 seconds, remove adapter and
batteries, and wait for at least 60 seconds before repeating the setup process.
Battery
Compartment
5-Volt a/c adapter

4
ATOMIC SIGNAL SEARCH:
The LCD backlight, projection and USB charging port will momentarily turn off while the station searches
for the atomic signal. After the initial search, this station will only search for the atomic signal after
midnight.

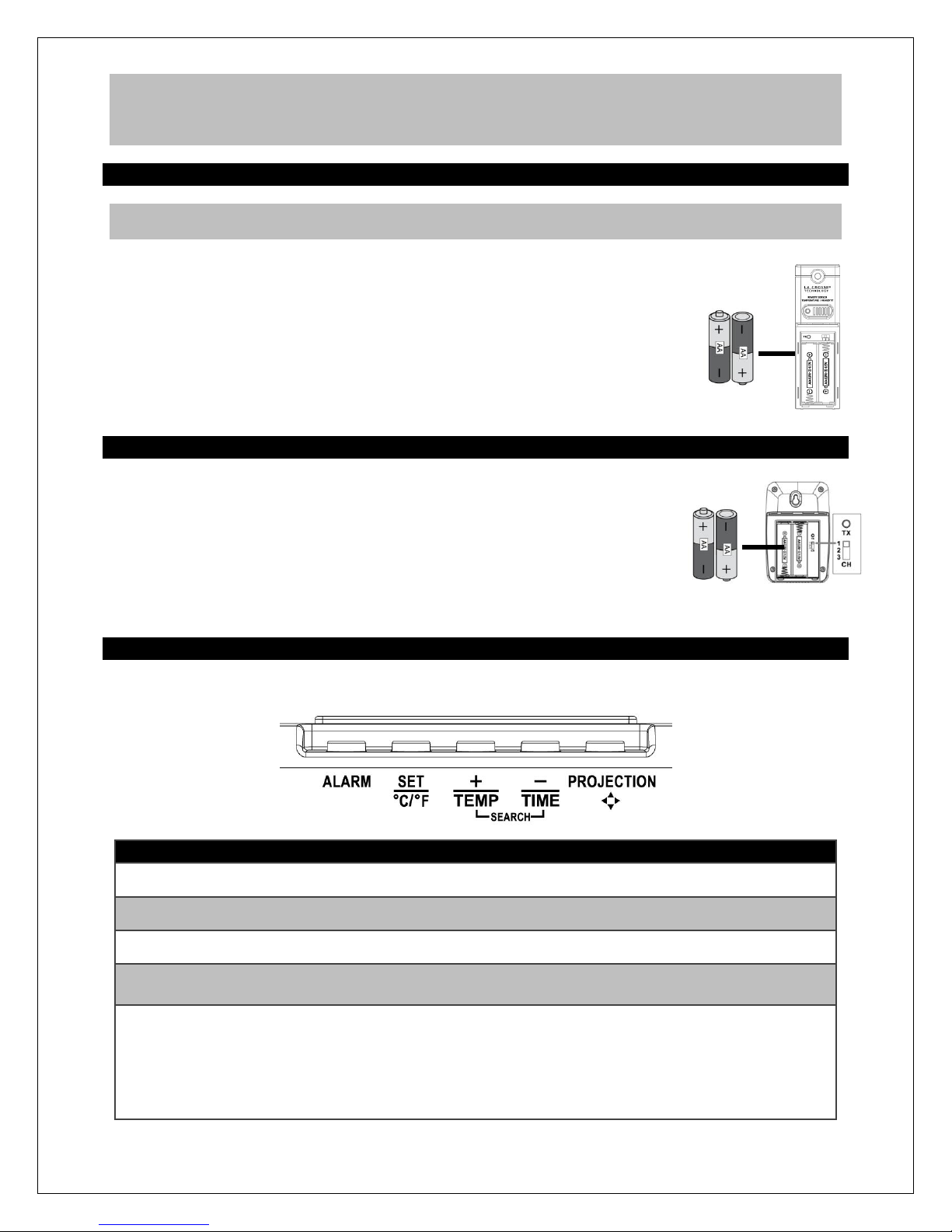

Install Batteries in the TX141 Transmitter
NOTE: This projection alarm will come with one TX141 transmitter OR one TX14 transmitter.
Both transmitters work interchangeably.
1. Slide the battery cover down, then lift off the front of the TX141 transmitter.
Note: Be careful not to break the tabs on the battery cover.
2. Confirm the channel selector switch is on channel 1.
3. Insert two new AA batteries into the transmitter.
Observe the correct polarity (see marking inside battery compartment).
4. Keep transmitter 5-10 ft. from the forecast station during setup.
5. After 15 minutes, if the outdoor temperature shows on the forecast station,
move the outdoor transmitter outside to a shaded location within range of the
forecast station.
Install Batteries in the TX14 Transmitter
1. Slide the battery cover down, then lift off the back of the TX14TH transmitter.
Note: Be careful not to break the tabs on the battery cover.
2. Confirm the channel selector switch is on channel 1.
3. Insert two new AA batteries into the transmitter.
4. Observe the correct polarity (see marking inside battery compartment).
5. Keep transmitter 5-10 ft. from the forecast station during setup.
6. After 15 minutes, if the outdoor temperature shows on the forecast station, move the outdoor
transmitter outside to a shaded location within range of the forecast station.
Function Buttons
Button
Press and Release Functions
Hold 2 seconds
SET/°C/°F
Move through program menu (setup)
Select temperature in °C/°F
Enter program menu, set time,
date, etc. (setup)
ALARM
Once: View Alarm
Twice: Activate or Deactivate Alarm
Alarm set
+/TEMP
1 step forward (setup)
Search for Sensor
Fast advance (setup)
-/TIME
1 step backward (setup)
Fast backward ( setup)
WWVB Search
PROJECTION
Rotate Projection 90 degrees
Change what is projected:
Time/Outdoor Temp alternating
(default)
Once:Time only
Twice: Outdoor Temp only
Third time: Time/Outdoor Temp
alternating (default)
SNOOZE/LIGHT/HI/LOW/OFF (TOP)

5
SNOOZE/LIGHT
HI/LOW/OFF
Once: Backlight and Projection low intensity
(A/C)
Twice: Backlight and Projection OFF (A/C)
Third time: Backlight and projection ON high
intensity (default, A/C adapter)
Battery Power: Activate backlight for 10
seconds
Trigger snooze alarm (ringing)
Program Menu
The SET button will moves through the items in the program menu. The +/TEMP or -/TIME buttons will
change these values:
WWVB reception ON or OFF
Time Zone (Seven Time Zones)
Daylight Saving Indicator
12/24 hour time format
Manual time set (Hour, Minutes)
Calendar set (Year, Month, Date)
WWVB Time Reception
The WWVB time reception defaults to ON. To turn the WWVB reception OFF:
1. Hold the SET button for 5 seconds.
2. WWVB and ON will flash.
3. Press and release the +/TEMP or -/TIME buttons to turn this OFF.
4. Confirm with the SET button and move to the Time Zone.
Time Zone
This station offers seven time zones listed in letter format (default is EST):
1. EST will flash.
2. Press and release the +/TEMP or -/TIME buttons to select a different Time Zone.
3. Confirm with the SET button and move to Daylight Saving Indicator.
Daylight Saving Indicator
DST will default to the ON position as most of the country observes the DST change. If you live in an
area does not observe the DST change, switch this to the OFF position.
1. DST and ON will flash.
2. Press and release the +/TEMP or -/TIME buttons to turn DST to OFF.
3. Confirm with the SET button and move to 12/24 hour time format.
12/24 Hour Time Format
The Time may be displayed in 12-hour or 24-hour format. Default is 12-hour time.
Note: When in 12-hour format AM or PM will show in front of the hour.
WWVB
ON
TIME
ZONE
EST
DST
ON

6
1. 12H will flash.
2. Press and release the +/TEMP or -/TIME buttons to select 24-hour time.
3. Confirm with the SET button and move to Set Time.
Set Time
To set the time manually:
1. The hour digit will flash.
2. Press and release the +/TEMP or -/TIME buttons to select the hour.
3. Press and release the SET button to set the minutes.
4. The minute’s digit will flash.
5. Press and release the +/TEMP or -/TIME buttons to select the minutes.
6. Confirm with the SET button and move to Set Calendar.
Set Calendar
The date default of the Projection Alarm is 1.1.2010.
To set the calendar:
1. The year will flash.
2. Press and release the +/TEMP or -/TIME buttons to set the year (between year 2010-2039).
3. Press the SET button again to confirm and to enter the month setting.
4. The month will flash.
5. Press and release the Press and release the +/TEMP or -/TIME buttons to set the month.
6. Press the SET button again to confirm and enter date setting.
7. The date will flash.
8. Press and release the +/TEMP or -/TIME buttons to set the date.
9. Confirm all calendar settings with the SET button to confirm and exit the program menu.
Note: The day of the week will set automatically once the year, month and date are set.
Fahrenheit/Celsius
1. Press and release the SET/°C/°F button once to switch from Fahrenheit to Celsius.
Alarm Set
Hold the ALARM button for 5 seconds to enter the alarm time set mode.
1. The alarm hour digit will flash.
2. Press and release the +/TEMP or -/TIME buttons to select the hour.
3. Press and release the SET button to set the minutes. The minute digits
will flash.
4. Press and release the +/TEMP or -/TIME buttons to select the minutes.
5. Press and release ALARM to confirm the alarm settings, then press and release SET button to exit.
6. The alarm icon will show after the minutes indicating the alarm is active.
7. The alarm icon will flash when the alarm is sounding.
Deactivate Alarm
1. Press and release the ALARM button once to show Alarm Time.
2. Press and release the ALARM button to deactivate the Alarm. The alarm icon will disappear
indicating the alarm is no longer active.
12H
2010
1M.1D

7
Snooze
1. When the alarm sounds, press the SNOOZE/LIGHT button to trigger snooze alarm for 10 minutes.
The snooze icon Zz will flash when the snooze feature is active.
2. To stop alarm for one day, press ALARM button, while in snooze mode. The alarm icon will remain
solid.
Note: When the alarm sounds, it continues for 2 minutes and then shuts off completely.
Backlight and Projection Intensity
Hold two seconds, and then release the SNOOZE/LIGHT button to adjust the brightness of the backlight
and projection (together):
High intensity: (default setting on A/C power)
Low intensity: Press and release SNOOZE/LIGHT button once
OFF: Hold and release SNOOZE/LIGHT button
ON:Hold and release SNOOZE/LIGHT button
Projection
Battery Power:
Press and release the SNOOZE/LIGHT button to show the projection for 10 seconds.
Note: Projection will not display constantly when operating on battery power.
A/C Power:
Projection is displayed constantly
Note: can be turned off see “Backlight and Projection Intensity”
Rotate Projection:
Press and release the PROJECT button to rotate projection image 90 degrees on the wall or ceiling.
Press and release the PROJECT button again to rotate another 90 degrees.
Projection Arm Rotation:
The projection arm can be rotated 180 degrees to view the projection on the wall or ceiling.
Change Projection Mode:
Hold two seconds, and then release the PROJECT button to switch
projection modes. You will need to watch the projection image to view the
changes.
Time and Outdoor Temperature: alternate every 5 seconds (default)
Time: Hold and release PROJECT button
Outdoor Temperature: Hold and release PROJECT button again
Note: Both Time and Outdoor Temperature will not show at the same time.

8

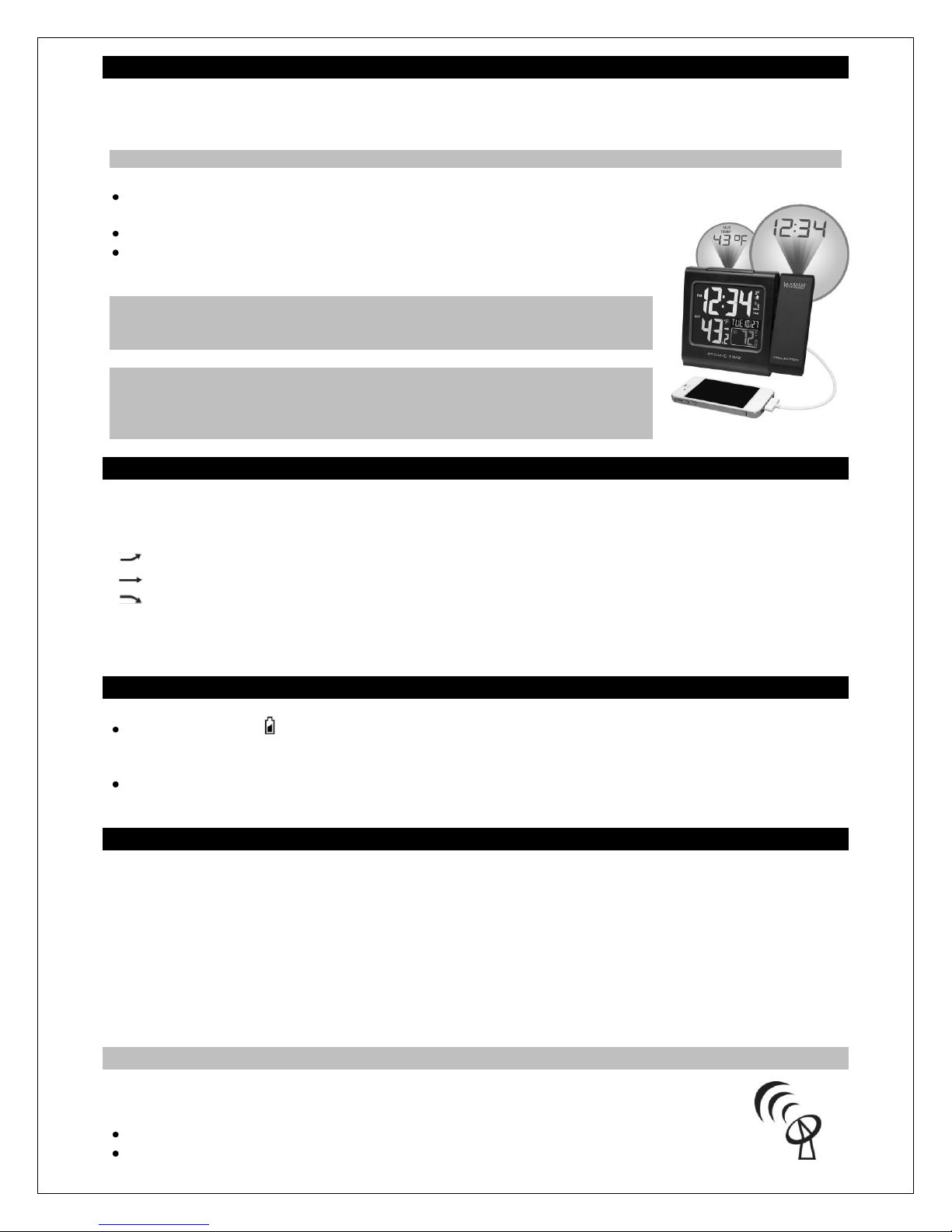

USB Charge Port
Charge a smart phone, camera or other devices when the forecast station is plugged into a power outlet
with the included 5V AC adapter.
Note: This is a power-output charging port. It does not supply power to the projection alarm.
Connect your external device’s USB charging cable (not included) to the
USB charging port.
Charging times will vary.
USB Power Output: 0.5A maximum current. Charge 0.5A devices or
devices that are self-regulating.
Note: Some USB cables are for data transfer only and cannot be used for
charging. Make sure that the USB cable you use will charge your device. Most
USB cables included with mobile devices will work for charging.
ATOMIC SIGNAL SEARCH:
The LCD backlight, projection and USB charging port will momentarily turn off
while the station searches for the atomic signal. After the initial search, this
station will only search for the atomic signal after midnight.
Temperature Trend Icons
The indoor and outdoor temperature trend indicators are updated every 30 minutes. These trends
represent temperature changes over the past three hours.
Temperature rose more than 2°F /1°C in the past three hours
Temperature has not changed more than 2°F /1°C in the past three hours
Temperature fell more than 2°F /1°C in the past three hours
The temperature trend indicators are shown next to the indoor temperature and outdoor temperature
readings.
Outdoor Temperature Flashing
Low battery icon present: Change batteries in the transmitter, and then hold the CH button until
the station beeps to search for the outdoor transmitter again.
End of Transmission Range: Move the transmitter closer to the display. Avoid obstructions in the
signal path. Keep transmitter and display away from electronics.
WWVB Radio-controlled Time
The NIST radio station, WWVB, is located in Ft. Collins, Colorado and transmits the exact time signal
continuously throughout the United States at 60 kHz. The signal can be received up to 2,000 miles away
through the internal antenna in the Projection Alarm. However, due to the nature of the Earth’s
Ionosphere, reception is very limited during daylight hours. The Projection Alarm will search for a signal
every night when reception is best. The WWVB radio station derives its signal from the NIST Atomic
Clock in Boulder, Colorado. A team of physicists continually measures every second of every day to an
accuracy of ten billionths of a second a day. These physicists have created an international standard,
measuring a second as 9,192,631,770 vibrations of a Cesium 133 atom in a vacuum. This atomic clock
regulates the WWVB transmitter.
WWVB Reception Icon
The icon with full signal strength will appear on screen in front of the date when the
reception of atomic time is successful.
The tower icon will show solid when the display has received the WWVB signal.
No tower icon displayed. The display was unable to receive a signal at this time.

9
Reposition the display for better signal reception or try again at bedtime.
The display will start searching at UTC: 07:00 and if no reception on the first attempt they will try
again at 08:00, 09:00 and 10:00. Each attempt will be at least 2 minutes and the most will be 10
minutes.
If there is no signal or too much interference, the receiver will only be on for 2 minutes.
If the signal is good, it may catch a signal in ABOUT 2-3 minutes.
If the signal is marginal it will try to catch a signal for up to 10 minutes.
ATOMIC SIGNAL SEARCH:
The LCD backlight, projection and USB charging port will momentarily turn off while the station searches
for the atomic signal. After the initial search, this station will only search for the atomic signal after
midnight.
Note: In case the Projection Alarm is not able to detect the WWVB-signal (disturbances, transmitting
distance, etc.); the time may be manually set.
Manual Signal Search
In normal mode, hold the RCC button until the reception icon appears to force a search of the WWVB
signal. The WWVB icon will flash during the search. If this icon disappears after the 2 minute search,
the radio time signal is not available at the moment.
Recommended distance to any interfering sources like computer monitors or TV sets is a minimum of
6 feet (2 meters).
Within ferro-concrete rooms (basements, superstructures, etc.), the received signal is naturally
weakened. In extreme cases, please place the unit close to a window and/or point its front or back
towards the Fort Collins, Colorado.
During nighttime, the atmospheric disturbances are usually less severe and reception is possible in
most cases. A single daily reception is adequate to keep the accuracy deviation below 1 second.
Note: In case the Projection Alarm is not able to detect the WWVB-signal (disturbances, transmitting
distance, etc.), the time and date can be manually set (see “program menu”).
Low Battery Icon
-
When this icon appears in the indoor (IN) data reading section, replace the batteries in the
Projection Alarm.
When this icon appears in the outdoor (OUT) data readings section, replace the batteries in the
outdoor transmitter.
Position the Outdoor Transmitter
Once the Projection Alarm shows the outdoor temperature, place the Projection Alarm and the transmitter
in the desired locations and wait approximately 1 hour before permanently mounting the transmitter to
ensure that there is proper reception. The transmitter should be mounted vertically, in a shaded,
protected area, at least 6 feet from the ground to avoid damage and ensure accurate readings. The
transmitter is water resistant, not waterproof and should not be placed anywhere it will become
submerged in water or subject to standing water or snow.
Choose a location for the transmitter that is within range of the Projection Alarm and under an overhang
for accuracy. Wireless transmitting range in open air is over 200 feet (60 meters) from outdoor transmitter
to Projection Alarm.
Option 1:
Install one mounting screw (not included) into a wall leaving approximately ½ of an inch
(12.7mm) extended.
Place the transmitter onto the screw, using the hanging hole on the backside.
Gently pull the transmitter down to lock the screw into place.
Option 2:
Insert the mounting screw (not included) through the front of the transmitter and into the
wall.
Tighten the screw to snug (do not over tighten).

10
To achieve a true temperature reading, mount where direct sunlight cannot reach the outdoor transmitter.
Mount the outdoor transmitter on a North-facing wall or in any well shaded area. Under an eave or deck
rail work well. The maximum transmitting range in open air is over 200-feet (60 meters). Obstacles such
as walls, windows, stucco, concrete and large metal objects can reduce the range. Place the transmitter
at least 6 feet in the air to improve signal transmission.
Position the Projection Alarm
1. The Projection Alarm has a wide base to sit on a desk or table.
2. Choose a location 6 feet or more from electronics such as cordless phones, gaming systems,
televisions, microwaves, routers, etc.
3. Place within range of the outdoor transmitter.
4. The maximum transmitting range in open air is 200-feet (60 meters). Obstacles such as walls,
windows, stucco, concrete, and large metal objects can reduce the range.
5. For best WWVB reception orientate the Projection Alarm with the front of the back facing Ft. Collins,
Colorado.
Specifications
Indoor:
Temperature Range:
+32°F to +122°F (0°C to 50°C)
Interval:
About every 30 seconds
Outdoor:
Temperature Range:
-40°F to 140°F (-40°C to 60°C)
Alkaline Batteries:
-20°F to 140°F (-28.8°C to 60°C)
Lithium Batteries:
-40°F to 140°F (-40°C to 60°C)
NOTE:
Temperatures below - 20°F (-28.8°C) require Lithium batteries in the
outdoor sensor.
Distance:
Over 200 ft. (60 meters) RF 433MHz (open air)
Interval:
About every 50 seconds
Power:
Projection Alarm
Primary Power:
5-volt AC power adapter (included)
Optional/Battery Backup
Optional 2-AAA, IEC, LR3 batteries (not included)
TX141 Transmitter:
2-AA, IEC, LR6 batteries (not included)
USB
USB Charge Port:
Output 0.5A
Battery Life:
Projection Alarm
Battery Backup:
Battery life is over 24 months when using the AC adapter for
primary power
TX141 Transmitter:
Battery life is over 12 months when using reputable battery brands
for both Alkaline and Lithium batteries
Dimensions:
Projection Alarm
5.23” W x 4.33” H x 1.96” D (133 x 110 x 50mm)
TX141 Transmitter:
2.4” L x 1.3” W x 3.78” H (64 x 36 x 101mm)

11
Care and Maintenance
Do Not Mix Old and New Batteries
Do Not Mix Alkaline, Standard, Lithium or Rechargeable Batteries
Do not expose the Projection Alarm to extreme temperatures, vibration or shock.
Keep Projection Alarm dry.
Clean the Projection Alarm with a soft damp cloth. Do not use solvents or scouring agents.
The Projection Alarm is not a toy. Keep it out of reach of children.
The Projection Alarm is not to be used for medical purpose or for public information. It is for home use
only.
The specifications of this Projection Alarm may change without prior notice.
Improper use or unauthorized opening of housing will void the warranty.
If the unit does not work properly, change the batteries and/or check the A/C cord connection.
Warranty Information
La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this
product relating to manufacturing defects in materials & workmanship.
View full warranty details online at:
www.lacrossetechnology.com/warranty_info.pdf
For warranty work, technical support or other information contact:
La Crosse Technology, Ltd
2817 Losey Blvd. S.
La Crosse, WI 54601
Contact Support:
1-608-782-1610
Product Registration: www.lacrossetechnology.com/support/register
Protected under U.S. Patents: 5,978,738, 6,076,044, 6,597,990 Online Product Support:
www.lacrossetechnology.com/616-146
FCC Statement
This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) the device must accept any interference
received, including interference that may cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT
All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or
processed using electronic, mechanical or chemical procedures without written permission of the
publisher.
This handbook may contain mistakes and printing errors. The information in this handbook is regularly
checked and corrections made in the next issue. We accept no liability for technical mistakes or printing
errors, or their consequences.
All trademarks and patents are acknowledged.
