La Crosse Technology 327-1418BW User manual

SET UP GUIDE
MODEL: 327-1418BW
Wind Speed Station

Table of Contents
Power Up
Settings Menu
Custom Calendar Display
Time or Rain Display
03
04
05
05
16
17
18
18
19
19
20
BASICS TEMPERATURE/HUMIDITY
APPENDIX
Temp./Humidity Readings
Temp./Humidty Records
Reset Records
06
07
07
2
Specifications
We’re Here to Help
Warranty & Patents
California Statement
Care & Maintenance
FCC Statement
Double Warranty Oer
WIND SPEED
Wind Speed Readings
Top Speed History
Reset Wind Records
08
08
09
ALERTS
Custom Alerts
Set Alerts
Triggered Alerts
09
10
10
ADD-ON RAIN SENSOR
Purchase Rain Sensor
Rain Sensor Connection
View Rain History
Reset Rain Records
11
11
12
12
SENSORS
Low Battery Icon
Search for Sensors
Factory Restart
Sensor Mounting
Basic Installation
Flexible Installation
13
13
13
14
15
15

1. Insert 2-AA batteries into your Temperature/Humidity (TH) Sensor.
2. Insert 3-AA batteries into your Glide Sensor.
3. Insert 2-AA batteries into your Wind Speed Station.
4. Once readings from both sensors appear on your station, you can mount
them outside. See pages 14-15 for more details.
Watch our sensor mounting videos:
TH Sensor: bit.ly/th_sensor_mounting
Wind Sensor: bit.ly/wind_sensor_mounting
TH Sensor
TX141TH-Bv4
Power Up
3
Wind Speed Station
327-1418BW
Glide
Wind Sensor
TX145W
Press and
slide down

4
Settings Menu
1. Hold the SET/TIME button until the display changes, to enter the
Settings Menu.
2. Press and release the +/- buttons to adjust values. Hold to adjust quickly.
3. Press and release the SET/TIME button to confirm values and move to
the next setting.
4. Press and release the EXIT/RAIN button at any time to save and exit.
Settings Menu Order:
• Greeting
• Beep ON/OFF
• 12HR/24HR Time
• Hour
• Minute
• Year
• Month
• Date
• Month/Date or Date/Month
• Fahrenheit/Celsius
• Decimal ON/OFF
• Wind Speed MPH or KMH
• Rain Inches or Millimeters
• Thank You
Weekday: Will set automatically when your Year, Month, and Date are set.

Custom Calendar Display
Press and release the DATE button to change Calendar selections:
Time or Rain Display
The station can read an add-on Rain Sensor TX145R (sold separately).
The rain sensor will read in place of the time.
See page 12 for details on the add-on rain sensor and viewing rain history.
If RAIN NO shows on the station, a rain sensor is not connected to a rain
sensor. Press and release the SET/TIME button to go back to the calendar
display or review page 12 to get the rain sensor connected.
5
Full Weekday Weekday/Month/Date Month/Date/Year No Calendar

6

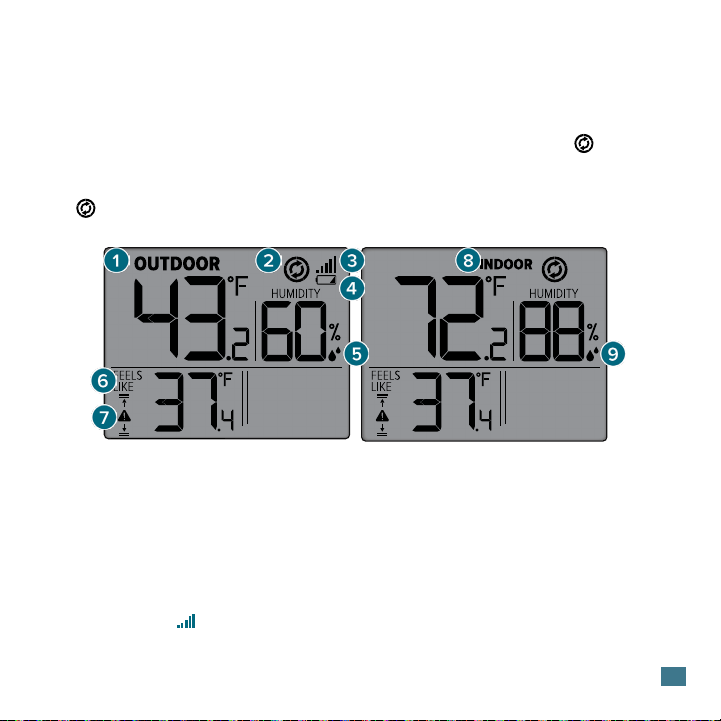

Temperature/Humidity Readings
Current Indoor Humidity.
Combination of
Temperature and Wind
Speed.
Current Outdoor
Temperature.
Current Outdoor Humidity. Current Indoor Temperature.
Low Battery in TH Sensor
4. LOW BATTERY ICON
1. OUTDOOR TEMPERATURE
Indicates if the station is
receiving data from the
sensor.
3. RECEPTION ICON 6. FEELS LIKE TEMPERATURE
5. OUTDOOR HUMIDITY 8. INDOOR TEMPERATURE
9. INDOOR HUMIDITY
Readings will automatically
change from Outdoor to
Indoor.
2. AUTO-SCROLL ICON
Shows an Alert is armed.
7. FEELS LIKE ALERT ICONS
Indoor and Outdoor Readings share the same space.
1. Hold the IN/OUT button to enter the Temperature Selection Menu.
2. Press and release the +/- buttons to select Outdoor Readings, Indoor
Readings, or Auto-scroll between both. The Auto-scroll Icon will show
when active.
Note: To stop the auto-scroll, repeat the steps above until the Auto-scroll
Icon disappears. The display will stay on your selection.

7
Viewing Records
Reset Temperature/Humidity Records
Records Viewing Order
Press and release the IN/OUT button to toggle through indoor/outdoor
temperature & humidity records with time and date stamps.
1. Press the IN/OUT button to view the individual temperature & humidity
values you’d like to reset.
2. Hold the MINUS (-) button until dashes appear.
3. The reading will then reset to the current value.
Outdoor High Temperature •Outdoor Low Temperature •Outdoor High Humidity
Outdoor Low Humidity •Indoor High Temperature •Indoor Low Temperature
Indoor High Humidity •Indoor Low Humidity

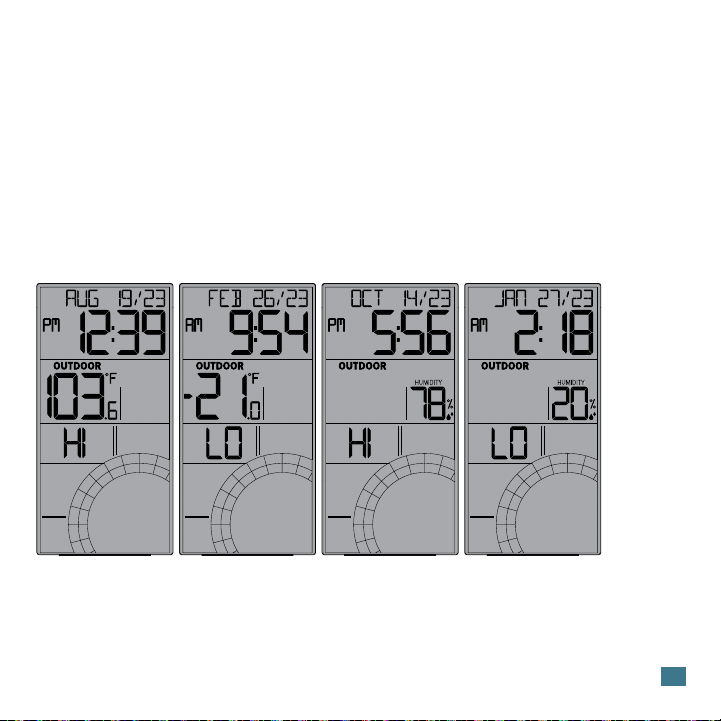

Temperature/Humidity Records
HUMIDITY HUMIDITY
Outdoor HI Temp Outdoor LO Temp. Outdoor HI Humidity Outdoor LO Humidity

8

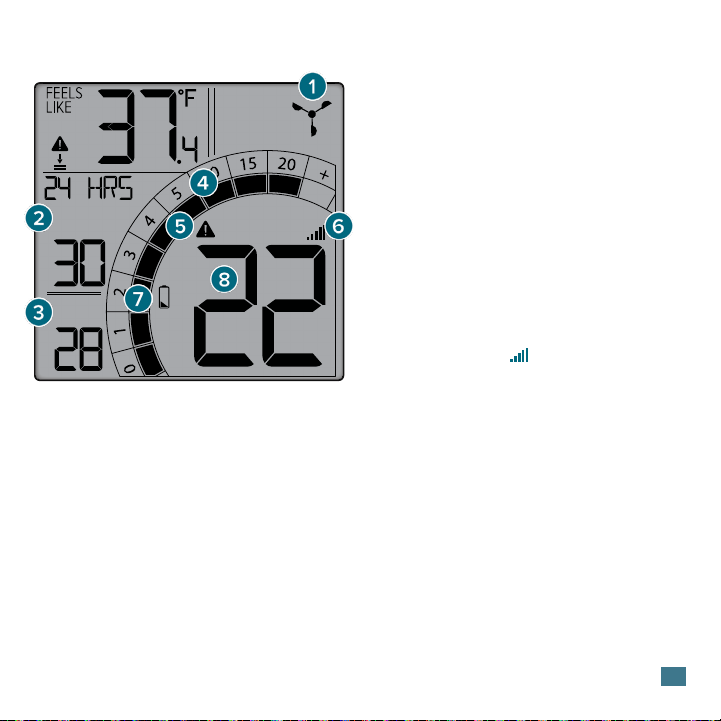

Wind Speed Readings
Indicates low battery in the Glide Sensor.
Wind Cup Icon will spin faster according to
actual wind speed.
Shows an Alert is armed.
Segments will animate according to the
current wind speed.
4. WIND SPEED GRAPH
1. WIND CUP ICON
Top Wind Speed for the past 60 minutes.
3. LAST HOUR
7. LOW BATTERY ICON
5. WIND SPEED ALERT ICON
Top Wind Speed for timeframe selected.
2. TOP SPEED HISTORY
Current Wind Speed.
8. WIND SPEED
Viewing History
Press and release the WIND button to toggle through wind speed records
with time and date stamps. The station will stay on the last history viewed.
When viewing the Monthly Record, press and release the PLUS (+) button
to toggle through the current and past 11 months of top speed records.
Top Speed History
Indicates the station is receiving data from
the Glide Sensor.
6. RECEPTION ICON
CURRENT
SPEED
WIND
SPEED
MPH
TOP SPEED
HISTORY
LAST HOUR
MPH
MPH

9
1. Press and release the WIND button to view the individual wind speed
record you’d like reset.
2. Hold the MINUS(-) button until dashes appear.
3. The reading will then reset to the current wind speed value.
Reset Wind Records
This station measures high wind speed records for the past 24 hours,
7 days, 1 month, and 1 year.
Custom Alerts
This station provides custom alerts for the following measurements:
•High Wind Speed
•High Feels Like Temperature
•Low Feels Like Temperature

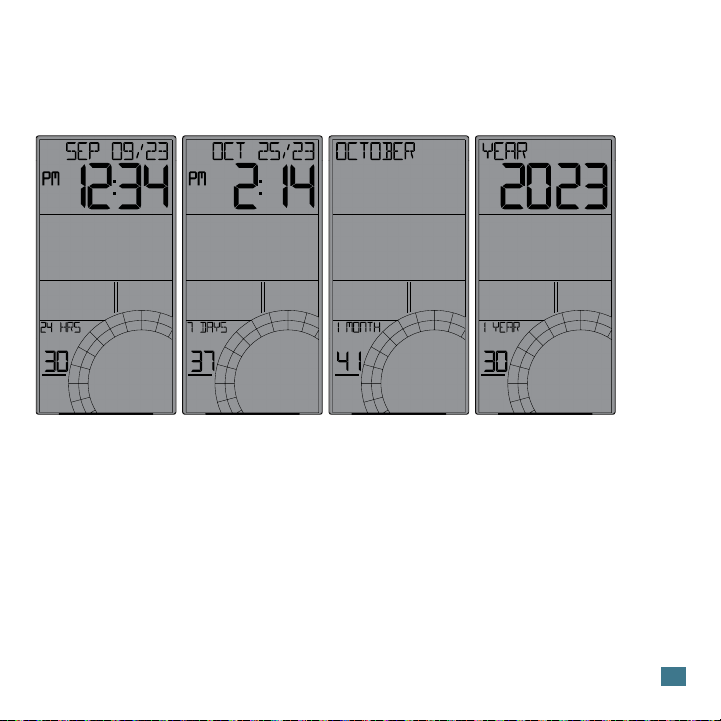

24 Hour
Record Example
1 Month
Record Example
1 Year
Record Example
TOP SPEED
HISTORY
MPH
TOP SPEED
HISTORY
MPH
TOP SPEED
HISTORY
MPH
TOP SPEED
HISTORY
MPH
7 Days
Record Example

10
Set Alerts
1. Hold the ALERTS button to enter the Alert Settings Menu.
2. Use the +/- buttons to activate/deactivate individual alerts, or press the
ALERTS button to skip to the next option.
3. Once activated, use the +/- buttons to adjust the values. Press the
ALERTS button to confirm and move forward.
CURRENT
SPEED
WIND
SPEED
MPH CURRENT
SPEED
WIND
SPEED
MPH
Wind Alert OFF/ON Feels Like High Alert ON/OFF
•When an alert value is reached, the corresponding value and alert icon
will flash on screen.
•The station will beep 5 times each minute until the value moves out of the
alert range.
•Press any button to stop the alert sound.
Triggered Alerts
Alert Icons
High Alert
Alert Icons
Low Alert

11
Rain Sensor Connection
Visit bit.ly/327-1418bw_parts to find and
purchase a compatible add-on rain sensor.
Purchase Add-on Rain Sensor TX145R
Add a Rain Sensor to Station:
1. Install batteries into your Rain Sensor.
2. Hold the PLUS (+) button on the station until the Reception Icon starts
to animate. This will start a search for all sensors.
3. Your sensor should connect within the next few minutes.
Press the EXIT/RAIN button to view rain readings.
Note: When a rain sensor is connected, and Time is showing, when rainfall
begins the station will automatically switch to the RAIN NOW readings.
This will automatically return to the Time display once there has been no
additional rainfall recorded for 15 minutes.
Rain Now (Current Storm)
Returns to Time when
Rain stops
Note: When Rain is displayed, press and release the SET/TIME button to
return to the Time display.

Viewing Rain History (add-on sensor required)
Press and release the EXIT/RAIN button to toggle through rain history
records. The station will stay on the last history viewed.
When viewing the Monthly Record, press and release the PLUS (+) button
to toggle through the current and past 11 months of rainfall totals.
Rain Past 7 Days
Rain Now Rain Past 24 Hours Rain Past 1 Hour
Rain 1 Month Rain Total since SetupRain Year
1. Press and release the EXIT/RAIN button to view the individual rainfall
record you’d like reset.
2. Hold the MINUS(-) button until dashes appear.
3. The reading will then reset to zero.
Reset Rain Records
12
Note: All rainfall history values will be reset after a battery change or restart.

13
If you are seeing “NO” or dashes for any sensor readings, please try the
following steps:
1. Hold the PLUS (+) button to search for your outdoor sensor.
The Reception Indicator will begin to animate.
2. If after 3 minutes the sensor still isn’t connected, bring the sensor inside
next to the display and remove power from the sensor and station.
3. Press any button on the station 20 times and leave the parts sit for a few
moments with the power o.
4. Install a new set of alkaline batteries into the sensor, then power up your
station again.
5. If your sensor data is still not appearing after these steps, please contact
our support sta. For additional help visit: bit.ly/basic_restart
Search for Sensors
Factory Restart
If your station is acting strangly, hold the ALERTS and EXIT/RAIN buttons
together to factory restart your station.

14
Sensor Mounting
•Ideally, the sensor should be mounted on the tallest object in your
area. Avoid positioning it parallel or below eaves, rooflines, trees, or
other objects that may obstruct wind readings.
•Make sure all the screws on the Mounting Bracket, Wind Cups, and
Battery compartment are securely fastened.
•The sensor should be mounted with the Wind Cups on top.
•To optimize battery life, ensure the Solar Panel is facing the sun. The
Solar Panel alone will not operate the sensor, batteries are required.
•The maximum wireless transmission range to the station is up to 330ft
(100m) in open air. This does not include walls, floors, or other large
obstructions.
•For more information visit: bit.ly/wind_sensor_mounting
For Accurate Temperature/Humidity Measurements
For Accurate Glide Sensor Measurements
•Insert a mounting screw through the hole at the top to securely mount
the sensor. It can also hang from the back using a nail.
•Mount the sensor vertically in a protected well-shaded area. Keeping
it out of direct weather elements such as sunlight, rain, snow, etc. will
help avoid inaccurate readings.
•For additional protection against weather elements, a Sensor Weather
Shield: bit.ly/weather-shield can be purchased separately.
•The maximum wireless transmission range to the station is up to 330ft
(100m) in open air. This does not include walls, floors, or other large
obstructions.
•For online video instructions, visit: bit.ly/th_sensor_mounting

Hand Screw
15
Glide Sensor Mounting
Fence posts, poles, decks, and mailboxes are common mounting options due to their
convenience. Many users prefer these types of locations as the data they provide is accurate
from their ground level. However, because the wind in these spots is often aected by
obstructions, the readings may dier when compared to local reporting stations.
Basic Installation
Mount the Mast to a flat surface
with the four provided screws.
Place the Sensor on top of the
Mast. Ensure the Solar Panel is
facing the sun.
Secure the Sensor to the Mast by
tightening the screws on the side.
1. 2. 3.
Flexible Installation
Remove the Small Insert from the bracket and
install the Short Arm with the Hand Screw in its
place. Then secure the sensor to the Mast by
tightening the screws on the side (step 3 above).
Be sure no to lose the washer on the Hand Screw.
This configuration allows you to attach the sensor
to angled locations and easily make adjustments to
ensure the Mast and Sensor are level.
Remove

16
Weather Station (327-1418BW)
Temperature Range:
32ºF to 122ºF (0ºC to 50ºC)
Humidity Range:
10% - 99% RH
Power:
2-AA, IEC, LR6 batteries
(not included)
Battery Life:
Over 12 months
Dimensions:
3.78” L x 1.14” W x 7.02” H
(9.60cm L x 2.90cm W x 17.83cm H)
Specifications
TH Sensor (TX141TH-Bv4
Temperature Range:
-40°F to 140°F (-40°C to 60°C)
Humidity Range:
10% - 99% RH
Transmission Range:
Over 330 feet (100 meters) in
open air RF 433MHz
Update Interval:
About every 51 seconds
Power:
2-AA, IEC, LR6 batteries (not included)
Battery Life:
Over 24 months
Dimensions:
1.58” L x 0.83” W x 5.08” H
(3.99cm L x 2.10cm W x 12.99cm H)

17
Glide Wind Speed Sensor (TX145W)
Wind Speed Range:
0 to 111 MPH (0 to 178 KMH)
Transmission Range:
Over 330 feet (100meters)
in open air RF 433MHz
Update Interval:
About every 31 seconds
Power:
3-AA, IEC, LR6 batteries (not included)
Battery Life:
Over 36 months
Dimensions:
5.14” L x 5.14” W x 13.37” H
(13.06cm L x 13.06cm W x 33.96cm H)
13.37”
33.96cm
8.91”
22.64cm
2.95”
7.50cm
5.14”
13.06cm
3.74”
9.50cm
2.76”
7.00cm
18
If you require additional assistance, get in touch with our
friendly customer support team based in La Crosse, WI.
Self Help: bit.ly/327-1418bw_support
Online: bit.ly/contact_techsupport
Phone: [phone]
Our knowledgable customer support team is available:
Mon-Fri 8am-6pm CST
We’re Here to Help SCAN HERE
Additional Info
and Support

Ask questions, watch setup videos, and provide feedback on our social
media outlets. Follow La Crosse Technology on YouTube, Twitter, Facebook
and Instagram.
Stay in Touch!
Warranty & Patents
La Crosse Technology, Ltd. provides a 1-year limited time warranty
(from date of purchase) on this product relating to manufacturing defects in
materials & workmanship.
La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601
For Full Warranty Details, Visit:
www.lacrossetechnology.com/pages/warranty
Patents: www.lacrossetechnology.com/pages/patents
Designed in La Crosse, Wisconsin •Made in China •Printed in China •DC 030723
This product can expose you to chemicals including acrylonitrile, butadiene,
and styrene, which are known to the State of California to cause cancer and
birth defects or other reproductive harm. For more information, go to:
www.P65Warnings.gov
CA WARNING:
18

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or processed using electronic,
mechanical or chemical process without the written permission of the publisher. This booklet may contain errors or misprints.
The information it contains is regularly checked and corrections are included in subsequent editions. We disclaim any
responsibility for any technical error or printing error, or their consequences. All trademarks and patents are recognized.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes or modifications to this
equipment. Such changes or modifications could void the user authority to operate the equipment.
FCC Statement
Care & Maintenance
When batteries of dierent brand or type are used together, or new and old batteries are used together,
some batteries may be over-discharged due to a dierence of voltage or capacity. This can result in venting,
leakage, and rupture and may cause personal injury.
•Do not mix Alkaline, Lithium, standard, or rechargeable battteries.
•Always purchase the correct size and grade of battery most suitable for the intended use.
•Always replace the whole set of batteries at one time, taking care not to mix old and new ones, or
batteries of dierent types.
•Clean the battery contacts and also those of the device prior to battery installation.
•Ensure the batteries are installed correctly with regard to polarity (+ and -).
•Remove batteries from product during periods of non-use. Battery leakage can cause corrosion and
damage to this product.
•Remove used batteries promptly.
•For recycling and disposal of batteries, and to protect the environment, please check the internet or your
local phone directory for local recycling centers and/or follow local government regulations.
19

DOUBLE YOUR WARRANTY
Scan Here
Scan the QR Code or visit:
bit.ly/327-1418bw_register
to register your product and double the
standard 1-year warranty for free by opting
to recieve occasional product emails.
