La Crosse Technology WS-2306 User manual

0
Professional Remote Weather Station
Model WS-2306
Operation Manual

1
Professional Remote Weather Station
Model WS2306
Operation Manual
Table of Contents
Page
1. Introduction………………………………………………. .......2
2. Intended use………………………………………… .............2
Weather Station…………… ...............................................2
System requirements for PC use…………. ........................3
Installation for the USB ada tor driver ...............................3
Features of the base station………… ................................4
Features of the thermo-hygro sensor…………...................4
Features of the wind sensor………….................................5
Features of the rain sensor ................................................5
3. Safety Notes ......................................................................5
4. Packaged contents ............................................................6
5. Setting u ...........................................................................7
6. O eration using cable connection or wireless 433MHz .....9
7. LCD overview...................................................................11
8. Function test ....................................................................12
9. Mounting ..........................................................................12
10. Resetting & factory settings .............................................18
11. Function descri tion.........................................................19
12. O eration keys.................................................................21
13. Basic rogramming modes ..............................................23
14. MIN/MAX rogramming modes........................................24
15. Alarm rogramming modes..............................................25
16. Auto-memory for stored values........................................33
17. Changing batteries...........................................................33
18. Interferences and roblems with o eration ......................34
19. Transmission range .........................................................35
20. Cleaning and maintenance ..............................................35
21. S ecifications...................................................................36
22. Warranty Information .......................................................38

2
This Operation Manual is part of this product and should be kept in a
safe place for future reference It contains important notes on setup and
operation
Please see www heavyweather info for a complete IM, FAQ and
downloads of the most current software
1 Introduction
Thank you for urchasing this Professional Remote Weather Station.
Designed for everyday use, the weather station will rove to be an
asset of great value for your ersonal use in the home or office.
Please read this instruction manual thoroughly to fully understand the
correct o eration of your weather station and benefit from its unique
features.
2 Intended Use
Weather Station
The base station measures the indoor environment of its surrounding
area and receives weather data from the following three outdoor
sensors:
1) Thermo-Hygro Sensor
2) Wind Sensor
3) Rain Sensor
The received data is continuously u dated to bring you the latest
weather information on the base station’s LCD. The outdoor thermo-
hygro sensor is the main data communication unit since both the wind
and rain sensors are connected to the thermo-hygro sensor for
o erating ower and rely on it to communicate to the base station.
Weather data sent from the thermo-hygro sensor can be done by
wireless 433MHz transmission (u to 100 metres in o en s ace) or by
cable connection.
Using the enclosed 2 metre com uter cable and CD-ROM, you can
install the Heavy Weather software to your PC and access the latest
weather information from your PC and u load u to 175 sets of
recorded weather data received by the base station. Recorded data
can be used to generate statistics and charts onto your s readsheets
(175 sets of data is stored in the base even if the PC is switched
OFF). The software itself does not set any limits as to how many data
sets can be transferred to PC.
This weather station is designed to work easily with your PC, sim ly
connect and disconnect the PC cable at any time.

3
System Requirements for PC use:
The minimum system requirement for use of this “Heavy Weather”
software is:
O erating system: Windows 98, Windows 2000, Vista, XP Pro and
Home Editions.
Processor: Pentium 166 MHz or above
RAM: 32MB of RAM or above
Hard disk: 20MB free s ace
CD-ROM drive
Installation for the USB adaptor driver
1- Find the Heavy Weather CD-ROM within the ackaging.
2- Plug in the USB ada tor to the com uter.
3- Follow the Windows Installation ste s to find the driver.
Select “Install" from a list of s ecific location (Advanced)”
4- Install the CD-ROM to CD drive.
5- From the list that a ears select:
E:\USB\ (where E: is the location of the CD drive).
Note:
For the latest USB ada tor driver, lease visit:
htt ://www.ftdichi .com/Drivers/VCP.htm
For the detail installation instruction for the USB ada tor, lease visit:
htt ://www.ftdichi .com/Documents/InstallGuides.htm
After installing the USB Ada tor Driver check in Device Manager to
confirm that Windows has recognized the ada tor:
To determine which COM Port your USB adaptor is on:
1- Find MY COMPUTER and “right click” the icon.
2- Select MANAGE.
3- Click on DEVICE MANAGER.
4- You should see COM Ports listed with numbers after them Ex:
Communications Port (COM 1), USB to Serial Bridge (COM 4).
If you do not see a COM setting, your com uter does not recog-
nize your USB driver.
5- If the USB ada tor is not on COM ort 1, 2, 3 or 4 you will need
to change it.
6- Double click the COM Port Ex: (COM 7) this will bring u a
Communications Port Pro erties Box. Click the Port Settings
Tab, Click Advanced.
7- Click the Dro Down next to the COM ort number and select
Com 1, 2, 3, or 4. If they are IN USE see your com uter erson
BEFORE changing.

4
After configuring the ada tor, connect the weather station and o en
the Heavy Weather software. Click SETUP button and select the
ro er COM Port. Data should begin to download within a minute or
two.
Features of the base station:
• Dis lays time and date
• Dis lay of extensive weather data, in all cases with
rogrammable alarm functions for certain weather conditions as
well as records of all minimum and maximum values along with
time and date of their recordings.
• Indoor and outdoor tem erature dis lays in degrees Celsius or
Fahrenheit (user selectable).
• Indoor and outdoor relative humidity dis lays.
• Air ressure reading in hPa or Hg, absolute or relative (user
selectable).
• Detailed dis lay of rainfall data in 1 hour, 24 hours, total since
last reset (user selectable in mm or inch).
• Wind s eed in km/h, m h, m/s, knots or Beaufort scale (user
selectable).
• Wind direction dis lay with LCD com ass as well as numerical
(e.g. 225°) and abbreviated characters (e.g. SW).
• Wind chill tem erature dis lay.
• Dew oint tem erature dis lay.
• Weather forecast dis lay by weather icons (sunny, cloudy, rainy).
• Weather tendency indicator.
• Storm warning alarm.
• E.L. back light.
• Simultaneous dis lay of all weather data with individual settings
by the user.
• COM ort for easy connection to your PC.
• All the weather data from the base station and u to 175 sets of
• weather history data with user adjustable measuring intervals
can be recorded and u loaded to your PC.
Features of the Thermo-Hygro Sensor
The thermo-hygro sensor measures the outdoor tem erature and
relative humidity. It also collects the readings from the rain and wind
sensors before transmitting the data to the base station by wireless
433MHz or by the 10 metre cable included in this set.

5
Features of Wind sensor
The wind sensor measures wind s eed and wind direction and sends
the data to the thermo-hygro sensor, which in turn transmits the data
to the base station. O erating ower is taken from the thermo-hygro
sensor using a 10 metre cable connection. The wind sensor takes
“sam les” at 60 second intervals and sends the eak sam le at every
u dated interval.
Features of Rain sensor
The rain sensor measures the rainfall and sends the data to thermo-
hygro sensor, which in turn transmits the data to the base station.
O erating ower is taken from the thermo-hygro sensor by a 10 metre
cable connection.
3 Safety Notes
• Damage caused by failure to com ly with this instruction manual
will invalidate any guarantee! The manufacturer and su lier will
not be held liable for damages due to failure to com ly with this
instruction manual or from data inaccuracies that may occur with
this roduct!
• In case of harm or damage to a erson or ro erty caused by
im ro er handling or failure to com ly with this instruction
manual, the manufacturer and su lier cannot be held liable.
• For reasons of safety and o eration, alterations to this device are
strictly rohibited.
• To o erate the weather station, use only the su lied ada tor
and batteries of the recommended ty e.
• Do not leave discharged batteries in the device as these may
corrode and release chemicals that may damage the unit.
• Inserting batteries in an incorrect olarity will cause damage to
this roduct.
• This roduct is not a toy and should be ke t out of the reach of
children.
• Do not dis ose of new or used batteries in a fire as they may
ex lode or release dangerous chemicals.
• This roduct is not to be used for medical ur oses or for ublic
information.
• Any modification or alteration to this roduct is strictly rohibited
without the manufacturer’s authorization and may rohibit the
user’s further use of this roduct.

6
4 Packaged Contents
Before setting u , carefully un ack the contents onto a table or flat
surface and check that the following are com lete:
Item: Consisting of: Fittings: Illustration:
Base
Station
• Main unit • AD/DC 240V ower
Ada tor - o tional use
(included)
Thermo-
Hygro
Sensor
• Main unit
• Rain
rotection
cover
• 10 metre cable -
o tional connection to
the base station
(included)
• Wall mounting screws
• Plastic anchors for
screws
Wind
Sensor
• Main unit with
wind vane
• 10 metre
cable (already
attached to
the main unit)
• Mast holder
• 1 x U-bolts for mast
holder
• 2 x Washers
• 2 x Nuts
• 2 x cable ties to
secure wind and rain
cords
Rain
Sensor
• Main unit
(base and
funnel)
• 10 metre
cable (already
attached to
the main unit)
Heavy
weather
PC
software
(Beta 2.0)
CD-Rom format
(English version
only)
• 2 metre PC serial
cable for PC
connection - o tional
use (included)

7
Battery
compartment
Sockets
and PC
COM port
5 Setting up
It is always best to set u on a table inside before mounting your
sensors. This way you can erform a function test (section 8).
First, choose to use the 240V ada tor (included in this set) or
batteries for o eration. Both these methods allow for o eration using
wireless 433MHz transmission or cable connection between the base
station and the sensors and setting u for both methods is as follows:
Base Station:
Socket for
Thermo-
Hygro
Sen
sor
Socket for
Adaptor
PC COM
Port

8
Setting up using batteries:
Important: To avoid o erating roblems, lease take note of
battery olarity if inserting any batteries.
1) Pull away the air flow cover of the thermo-hygro sensor to reveal
the three sockets (for the wind sensor, rain sensor and the base
station)
2) Connect the attached cables of wind and rain sensors to the
corres onding sockets of the thermo-hygro sensor by clicking
them into lace.
3) O en the battery cover of the thermo-hygro sensor located below
the three sockets and insert 2 x AA, IEC LR6, 1.5V batteries and
close the cover.
4) O en the base station’s battery cover located at the back of the
unit and insert 3 x AA, IEC LR6, 1.5V batteries into the battery
com artment and close the battery cover.
Sensor sockets
Battery
Compartment
Battery Cover
Thermo
-
Hygro Sensor
Sensor sockets

9
Setting up using the AC adaptor:
1) Power u all the sensors as described in setting u using
batteries above.
2) Using the AC ada tor (included), lug it into the mains wall outlet
first and ower u the base station by inserting the ada tor jack
into the DC 6.0V socket located on the side of the base station.
Every time the thermo-hygro sensor is owered u (for exam le after
a change of batteries), a random security code is transmitted and this
code must be synchronized with the base station to receive weather
data.
When the base station is owered u , a short bee will sound and all
LCD segments will light u for about 5 seconds before it enters into a
15 minute learning mode to learn the sensors security code.
E L backlight:
When using the ower ada tor or under battery o eration, the E.L.
backlight will switch on for 15 seconds when any button is ressed.
6 Operation using cable connection or wireless 433MHz
Cable Connection:
Using this method of o eration will rovide interference free transfer
of the weather data from the sensors to the base station. The data
sending interval from the sensors to the base station will also be more
frequent com ared to using 433MHz transmission and will result in
higher ower consum tion. Therefore batteries will have a shorter life
s an for cable connection com ared to using 433MHz.
To o erate using cable connection, sim ly use the enclosed 10 metre
cable and connect the thermo-hygro sensor to the base station. Once
the connection is detected, the base station will automatically
continue reading the data from the sensor.
The user may at any time switch from cable connection to using
433MHz (or vice versa) by sim ly disconnecting (or connecting) the
cable from the base station to the sensor. When the base station
detects no cable connection to the sensors, the base station will
automatically change to using 433 MHz for rece tion of the weather
data from the sensors.
The data receiving intervals are as follows:
- Using cable connection data is u dated every 8 seconds.
- Using wireless 433 MHz data is u dated from 16 to 128 second
intervals de ending on wind s eed and rain activity.

10
Using the AC ada tor to o erate the base station will also su ly
ower to the sensor if the cable is connected to it. Batteries used for
433MHz transmission may be left in the sensor when using cable
connection for ower back u in case of AC ower failure. A loss of
ower would desynchronize the base station and the sensor and no
weather data will be received. To synchronize the units so that the
weather data can be received, ress and hold the PLUS (+) key for 2
seconds. However in general, batteries that will not be used for long
eriods should be removed to avoid leakage.
Wireless 433MHz transmission:
Using 433MHz wireless transmission of weather data from the sensor
to the base station will rovide users greater freedom as to where
units can be ositioned without the need to be restricted by cable.
Note:
If no outdoor weather data is dis layed or the signal to the sensors is
lost during setting u , mounting, changing of batteries to the sensor or
lugging or un lugging cables, sim ly ress and hold the PLUS (+)
key for 2 seconds and a short bee will sound to synchronize the
base station to the sensors. Without synchronization, weather data
will not be received.

11
1. Low battery indicator
2. Date dis lay
3. Time zone dis lay
4. Date, seconds, alarm time and time
zone
5. Alarm icon
6. Weather forecast icons
7. Weather tendency indicator
8. Pressure alarm dis lay
9. hPa/inHg air ressure unit
10. Pressure units (relative or absolute)
11. 433MHz rece tion icon
12. Rainfall dis lay
13. Indoor, outdoor, humidity, dew oint,
wind chill, rainfall alarm icon
14. 24h, 1h or total hour dis lay
15. Humidity dis lay as RH%
16. Rainfall units (inch or mm)
17. Tem erature dis lay units (ºC or ºF)
18. Outdoor tem erature/humidity dis lay
19. Indoor tem erature/humidity dis lay
20. Dew oint tem erature dis lay
21. Wind chill tem erature dis lay
22. Wind alarm icon
23. Wind information for Min/Max s eed
and wind s eed low, high, direction
alarm
24.
Wind direction and s eed (m/s, knots,
Beaufort, km/h or m h) dis lay
25. Alarm buzzer ON/OFF icon
26. General alarm icon
7 LCD Overview
The following illustration shows the full segments of the LCD for
description purposes only and will not appear like this during
normal operation and use
15
1 2
3
4
5
6
7
8
9
12
11
13
14
16
22
10
18
19
21
20
17
23
24
25
26

12
8 Function test
Once the weather station is owered u , erform a function test by
checking that the weather data is received. To do this, ress the
DISPLAY, PRESSURE or WIND keys to toggle through the relevant
LCD sections:
1) Indoor tem erature and humidity
2) Outdoor tem erature and humidity
3) Outdoor wind chill
4) Dew oint
5) Rainfall 24 hour
6) Rainfall 1hour
7) Rainfall Total
8) Relative and absolute ressure
9) Wind s eed, wind direction and wind direction in degrees
If any readings cannot be received from the sensors, lines (- - -) will
be dis layed in the res ective weather sections of the LCD. In this
case, check that all cables are correctly inserted into the correct
sockets and/or check the batteries in the outdoor thermo-hygro
sensor and ress and hold the PLUS (+) key for 2 seconds and a
short bee will sound to synchronize the base station to the sensors
otherwise no weather data will be received.
Some weather readings such as wind s eed and direction may not
a ear immediately on the LCD if the wind-fan or vane of the wind
sensor is moved. This is due to the set reading time intervals for the
wind readings. However the current wind s eed or direction will be
dis layed once the time reading interval is reached. For rainfall, the
interval readings may take u to 2 minutes before the data is
dis layed on the LCD.
9 Mounting
Important Note
Prior to drilling mounting holes and ermanently affixing any of the
units, lease ensure the following oints are considered:
• Cable lengths of the units meet with your distance requirements
at the oint of fixing
• Signals from the sensors can be received by the base station at
oints of mounting

13

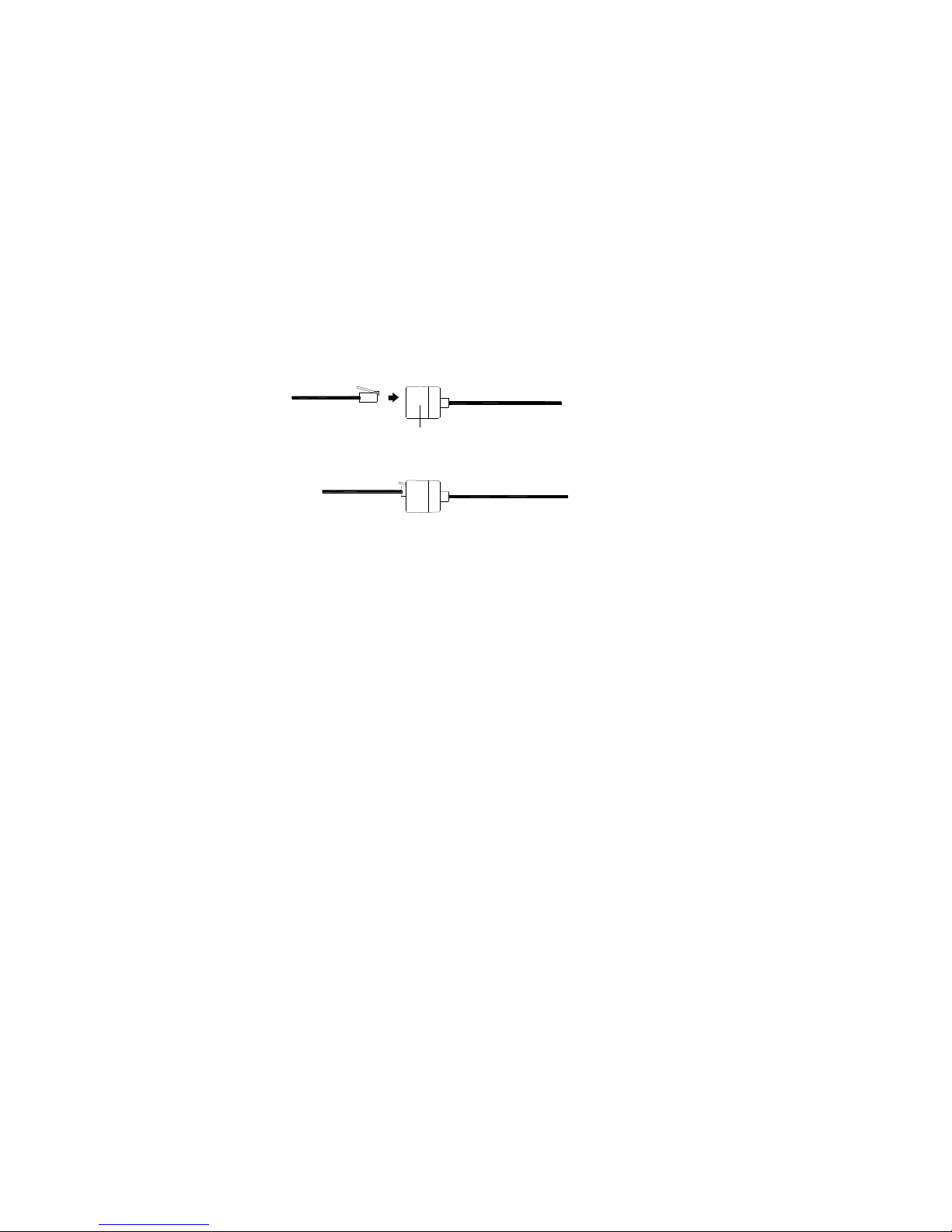

Accessories: adding cable extensions
Wired Extension Cable
When you require additional length to ro erly mount your sensor,
you can use a Wired Extension Cable. The Extension Cable is 10
metres in length and comes with the a ro riate connecter attached.
Please visit your local electrical retailer to urchase.
Phone cable and connections have more resistance than our exten-
sion cable and is not recommended for use. Using hone ca-
ble/connection may damage your sensors.
Warning: Never cut, s lice, shorten, or modify your sensor cables or
extension cables. Doing so may damage your sensors and will void
your Warranty.
Please Note: On all stations with corded sensors, the thermo-hygro
sensor owers the Wind and Rain sensors. Therefore, adding exten-
sions to a battery only unit will shorten battery life in the thermo-hygro
sensor.
When securing the cables during mounting, ensure that the base
station can receive the weather data since increasing the cables
length may also increase levels of interference and result with
rece tion difficulties. Interference levels will greatly de end on the
surrounding area for exam le setting u on or near metal i ing may
considerably reduce rece tion.
For best results, do not add more than 100 metres of extension cable
from item to item onto the existing cable lengths as this may reduce
rece tion levels. Again, rece tion and interference levels will greatly
de end on the surrounding environment at your oint of mounting.
Note:
It is im ortant to kee all the connected extension heads away from
rain, moisture and other extreme weather conditions as ex osure can
cause short circuits and damage to this item.
Wired Extension Cables

14
Base Station
With two foldable legs at the back of the unit, the base station can be
laced onto any flat surface or wall mounted at the desired location by
the hanging holes also at the back of the unit. It is im ortant to check
that the 433MHz (if using wireless connection) can be received before
ermanently mounting any of the units. Should the base station not
dis lay the 433MHz weather data from the sensors, then relocate the
units. Once the signals are received, the system can be affixed. Also
if you have selected to use cable connection, ensure that distances
can reach all desired locations before affixing any unit ermanently
Mounting the Wind Sensor onto a mast
First, check that the wind-fan and the wind-vane can rotate freely
before fixing the unit. For correct and accurate readings it is
im ortant to mount the sensor so that the front (marked E) is ointing
in East-West direction. The wind cu s must be below the mounting
bracket. The wind sensor should now be mounted using the screws
rovided onto a mast to allow the wind to travel around the sensor
unhindered from all directions (ideal mast size should be from
Ø16mm – Ø33mm).
Place the Wind sensor as high as you can install it. In most cases
1.22-1.83 m above the eak of your roof (or more) is required for
accurate readings. (Avoid tall trees or other obstructions that may
block or reflect the wind).Carefully thread the cord through the mast
and be sure the cord fits in the slot designed to revent inching. Be
sure not to overtighten U bolts to mast, as they can crack the mast.
Cords should be secured from blowing about as this may cause
static.
Avoid: Transmitting antennas, using PVC i e (unless electrical
grade), im ro er extension cords and modifications of the cords in
any way.
Please note most recording stations have sensors mounted 10.1
metres u or higher.
Vertical mast
Wind fan
Fixed with N
y
lon
strap

15
Once the wind sensor is fixed onto the mast, connect the cable to the
corres onding thermo-hygro sensor socket so that o erating ower
su ly can be received and data can be transmitted to the base
station. Be sure to leave a small amount of cord below the thermo-
hygro sensor as a “dri loo ” to revent water from running into the
orts of the sensor.
It is NOT RECOMMENDED to mount the sensors with the nylon
stra s as they may stretch in extreme weather. Stra s are excellent to
secure wind and rain cords from blowing about.
1. Unlock the mounting bracket from the remote wind s eed sensor
leaving the wire going through the bracket.
2. Place two nylon stra s through the slots on the mounting bracket.
3. Place the remote wind s eed sensor in your desired location.
4. Fasten the two nylon stra s securely around the mounting
location.
5. Slide the remote wind s eed sensor onto the bracket making
sure to lock it in lace.
Mounting the Rain Sensor
Base portion
Funnel portion
Horizontal panel
Wind
vane
Fixed with
screw

16
For accurate results, the rain sensor should be securely mounted
onto a horizontal surface at least 1.0 metre above the ground and in
an o en area away from trees or other coverings where rainfall may
be reduced causing inaccurate readings. Placing the gauge extremely
high is generally not a good idea as you may need to eriodically
clear debris such as leaves, s ider nests etc.
When securing into lace, check that rain excess will not collect and
store at the base of the unit but can flow out between the base and
the mounting surface (test by ouring clean water).
Install the Rain gauge on a level latform that is stationary. If the
gauge isn't level it will read low, and if it isn't stationary wind may
cause it to read rain that isn't falling. Tip: Be sure not to screw the
rain sensor down too tightly as that will result in a low or inaccurate
reading. On the bottom of the sensor there are 4 holes that can be
used to screw the gauge down. First remove the cover. You have to
ush in the tabs on the sides and then ull the cover off. There will
be a teeter-totter that has a metal bar for an axis. Pull the metal bar
out with liers. The teeter-totter can then be removed giving you
access to the screw holes. You may also choose to mount with
25mm (1 inch) stri s of silicone gel along the base. Be sure to leave
ga s for water to run out.
After mounting the rain sensor, connect the cable to the thermo-hygro
sensor at the corres onding socket so ower su ly can be received
and data can be transmitted to the base station. Be sure to leave a
small amount of cord below the thermo-hygro sensor as a “dri loo ”
to revent water from running into the orts of the sensor.
The rain sensor is now o erable. For testing ur oses, very slowly
our a small amount of clean water into the rain sensor funnel. The
water will act as rainfall and will be received and dis layed at the
base station after about 2 minutes delay i.e. when the reading interval
is reached (to clear this testing data on the base station, refer to the
section “MIN/MAX Mode” below).

17
Mounting the thermo-hygro Sensor
An ideal mounting lace for the thermo-hygro sensor would be the
outer wall beneath the extension of a roof, as this will rotect the
sensor from direct sunlight and other extreme weather conditions.
To wall mount, use the 2 screws to affix the wall bracket to the
desired wall, lug in the thermo-hygro sensor to the bracket and
secure both arts by the use of the su lied screw to revent ti ing
and ensure that the cables from the wind and rain sensors are
correctly lugged in otherwise data transmission errors could occur.
Place the Outdoor sensor in a well-shaded area that is rotected from
direct rainfall and sun, as it will read high if ex osed to the sun. If the
sensor gets too wet it will never read accurate humidity again, so take
care to ensure that it will not be ex osed to a down our. Light inci-
dental ex osure to water ty ically will not harm the sensor.
You can also build a small roof or box for it if you do not have an
overhang. Please be sure it is well vented.
NOTE: For best 433 MHz reception mount the thermo-hygro
sensor on an outside wall near the location of the base station
Air Flow
Cover
Wall Bracket
Main Unit

18
10 Resetting & factory settings
As reviously mentioned, in the event of a ower reset to the sensor
(for exam le a change of batteries), the base station has to
synchronize to the sensor again otherwise no weather data will be
received. To do this, sim ly ress and hold the PLUS (+) key for 2
seconds and a short bee will sound to synchronize the base station
to the sensor. When the units are synchronized, the data will be
received again and the base station will return to normal o eration
mode.
Do not remove batteries or un lug the AC ada tor of the base station
otherwise all 175 sets of recorded weather history data for
transferring to the PC will be lost (for full details of PC use, lease see
PC user manual in the enclosed Heavy Weather CD-ROM).
Factory Reset: However if you wish to make a full reset of the base
station and return to the original factory settings, simultaneously ress
and hold the PRESSURE and WIND keys for about 10 seconds. The
base station will bee once and the entire LCD will light u for 5
seconds and go back to the original factory settings. This rocess will
clear all revious user defined values and all weather history
recordings.
Factory default settings:
The following table shows the factory default values of the weather
station:
Matter: Default Setting:
Time 0:00
Date 01.01.2001
Time zone 0
Alarm time 0:00
Relative air ressure 1013.0 hPa
Weather- icture threshold 3 hPa
LCD contrast level 5 (1-8 levels)
Rainfall er im ulse 0.518mm
Storm alarm 5 hPa
Relative air ressure
alarm
960.0 hPa
(low)
1040.0 hPa
(high)
Indoor tem erature alarm 10.0°C (low) 30.0ºC (high)
Outdoor tem erature
alarm
0.0ºC (low) 40.0ºC (high)
Indoor humidity alarm 35%RH (low) 65%RH (high)
Outdoor humidity alarm 45%RH (low) 70%RH (high)
Wind chill alarm 10.0ºC (low) 30.0ºC (high)

19
Dew oint alarm 0.0ºC (low) 20.0ºC (high)
Rainfall 24h alarm 50.0mm
Rainfall 1h alarm 1.0mm
Wind S eed 1km/h (low) 100km/h (high)
Wind direction alarm None set
Note:
All alarm default values are deactivated at the start u and any alarm
must be activated by the user otherwise it will not sound.
11 Function Description of the Weather Station
After setting u , the following data will be dis layed in different
sections on the LCD. If this is not the case lease observe the notes
on “Interferences” below.
Time & Date (LCD Section 1)
Press the PLUS (+) key to change the format of date dis lay between
date/month/year, weekday/date/month, seconds, alarm set time and
time zone.
LCD Section 1:
Time, date, seconds, time zone,
weather forecasting icons with
tendency arrows, air ressure,
and res ective alarms sections
LCD Section 2
:
Indoor and outdoor tem erature
and relative humidity, wind chill,
dew oint, rainfall, and
res ective alarms se
c
tions
LCD Section 3:
Wind direction, wind s eed, and
res ective alarms sections
