Lab.gruppen NLB 60E User manual

NLB 60E
Technical Data
NomadLink®Bridge & Network Controller
A network bridge and dedicated user interface
The NLB 60E NomadLink®Bridge & Network Controller serves
as the keystone component in all networked applications for
Lab.gruppen ‘s NomadLink-ready power amplifiers. As a stand-alone
unit, the NLB 60E provides facilities for monitoring amplifier para-
meters, detecting fault conditions, and controlling key functions
(power on/off sequencing and mute) over a proprietary NomadLink®
network comprising up to 60 amplifiers.
Connecting a PC running DeviceControl software to the NLB 60E
greatly enhances the control and monitoring functions available
through NomadLink®. In this configuration, the NLB 60E operates as
a network bridge, relaying amplifier status and operation information
to the host PC over a standard TCP/IP Ethernet link. This Ethernet
connection also transmits control configuration data generated by
the DeviceControl application to the NLB 60E for dissemination to
amplifiers on the NomadLink®network. A secure connection feature,
with multiple levels of password protection, is also available within
DeviceControl to prevent unauthorized access to the amplifier net-
work.
Configuring a NomadLink®network is quick and straightforward.
A large rack of amplifiers can be networked in minutes simply by
clicking in Cat-5 cables and forming a daisy-chain loop beginning
and ending with the NLB 60E. Cables can be terminated with either
standard RJ45 connectors or impact-resistant Neutrik Ethercon
versions as appropriate (amplifier model dependent). Phantom
power for the amplifier network modules is supplied by the NLB 60E,
allowing all amplifiers to remain online in standby mode with zero
power consumption. To accommodate remote amplifier locations,
NomadLink®allows up to 300 meters between any two devices, and
a total closed-loop subnet length of up to 700 meters.
The NLB 60E also incorporates three GPIs (General Purpose Inputs):
one voltage sensing and two contact closure. The GPIs can be con-
figured to respond to remote equipment such as alarm systems and
external power-up sequencers. As an alternative, internal power-up
sequencing is included in the NLB 60E.
The front-panel interface provides convenient access to amplifier
status information and critical control functions. Dedicated power
on and off switches control all amplifiers on the network. Other
functions and comprehensive status information are accessible by
intuitive navigation of a menu tree, with all information clearly visible
on the ultra-bright 16x2 character LED display.
Ethernet to NomadLink•®Bridge – Provides an Ethernet link
between a PC and a NomadLink®network for monitoring and
control of up to 60 NomadLink-ready amplifiers per NLB 60E.
Network power on/off –•Dedicated switches control power
on/off for all amplifiers connected to the network.
General Purpose Inputs (GPIs) –•Three GPIs each individually
programmable for external triggering of power on/off or mute on
all amplifiers.
Bright LED display –•Ultra-bright 16x2 character display for easy
reading in high ambient light.
Keypad user interface –•Six momentary keys access amplifier
status information, parameter selection, and data entry.
Fault indication –•Bright red LED signals a fault condition,
with detailed information accessible on the 16x2 display or
connected PC.
Phantom powering for network –•Amplifiers stay online with
zero power consumption, remaining ready for immediate use.
Front and rear Ethernet ports –•Rear port for permanent
connection, with parallel front port for quick maintenance access.
Front-panel password lockout –•Prevents unauthorized opera-
tion or reprogramming.
Lab.gruppen ab •Sweden
internationaL contact • [email protected] | uS contact • [email protected]
www.labgruppen.com
Specifications NLB 60E
EtherCon housed RJ45
EtherCon housed RJ45
EtherCon housed RJ45
Standard RJ45
2-pole Phoenix
2-pole Phoenix
Front operation locked (Yellow); Fault warning (Red); Subnet muted (Red); NomadLink®network connected/activity (Blue);
Ethernet connected (Orange); Ethernet activity (Yellow).
2x16 character; white text on blue background
Yes, x6
Yes, x2
100 to 240 VAC, 50 to 60 Hz (auto-select)
<35 W
W: 483 mm (19”), H: 44 mm (1 U), D: 208 mm (8,2”)
2.25 kg (5 lbs.)
Black anodized aluminum front and painted steel chassis
Network Configurations using the NLB 60E
Total of up to 60 amplifiers
3 x GPIs for external triggering of key functions
Standard Ethernet
TCP/IP protocol
network to
Windows PC
Total of up to 60 amplifiers
Total of up to 60 amplifiersTotal of up to 60 amplifiersTotal of up to 60 amplifiers
Total of up to 60 amplifiers
Standard Ethernet network switch
Network with one NLB 60E and DeviceControl Multiple NomadLink®subnets connected to Ethernet LAN and
controlled from single PC (up to 16 subnet’s possible)
The possible NomadLink®network configurations range from a
single amplifier up to complex, TCP/IP-based networks comprising
as many as 960 amplifiers. The building block for all Lab.gruppen
amplifier networks is the single NomadLink®subnet.
This subnet is formed by connecting a number of amplifiers – from 1
to 60 – to an NLB 60E. Optionally a Windows PC can be operated on
the NLB 60E Ethernet connection, running DeviceControl software
for extensive control and monitoring of the network performance.
Item no. TDS-NLB60E_V2
Network connectors
Nomadlink®Out
Nomadlink®In
Ethernet rear-panel
Ethernet front-panel
General Purpose Input (GPI)
1x Voltage sensing input (10 V is the trigger level)
2x contact closure input
Front-panel l/c indicators
Display
Navigation and adjust keys
Subnet power on/off keys
Mains power supply
Power consumption
Dimensions (W/H/D)
Weight
Finish

Other manuals for NLB 60E

3

Other Lab.gruppen Controllers manuals

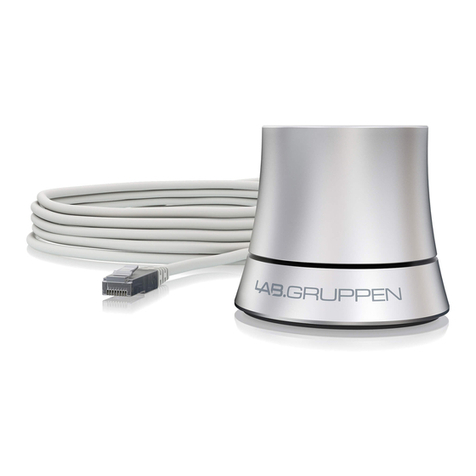

Lab.gruppen LAB.LEVEL4 User manual

Lab.gruppen

Lab.gruppen LAB.LEVEL4 User manual

Lab.gruppen NLB 60E Manual

Lab.gruppen

Lab.gruppen NLB 60E Manual

Popular Controllers manuals by other brands

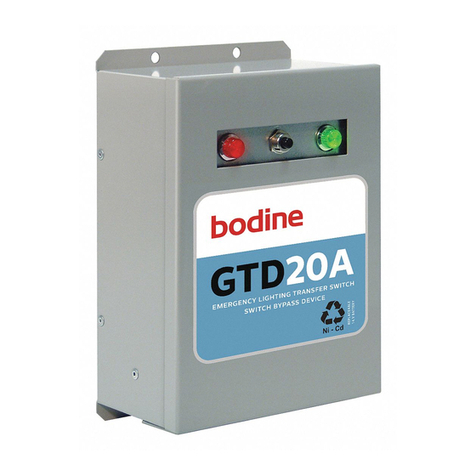

Bodine GTD20A installation instructions

Bodine

Bodine GTD20A installation instructions

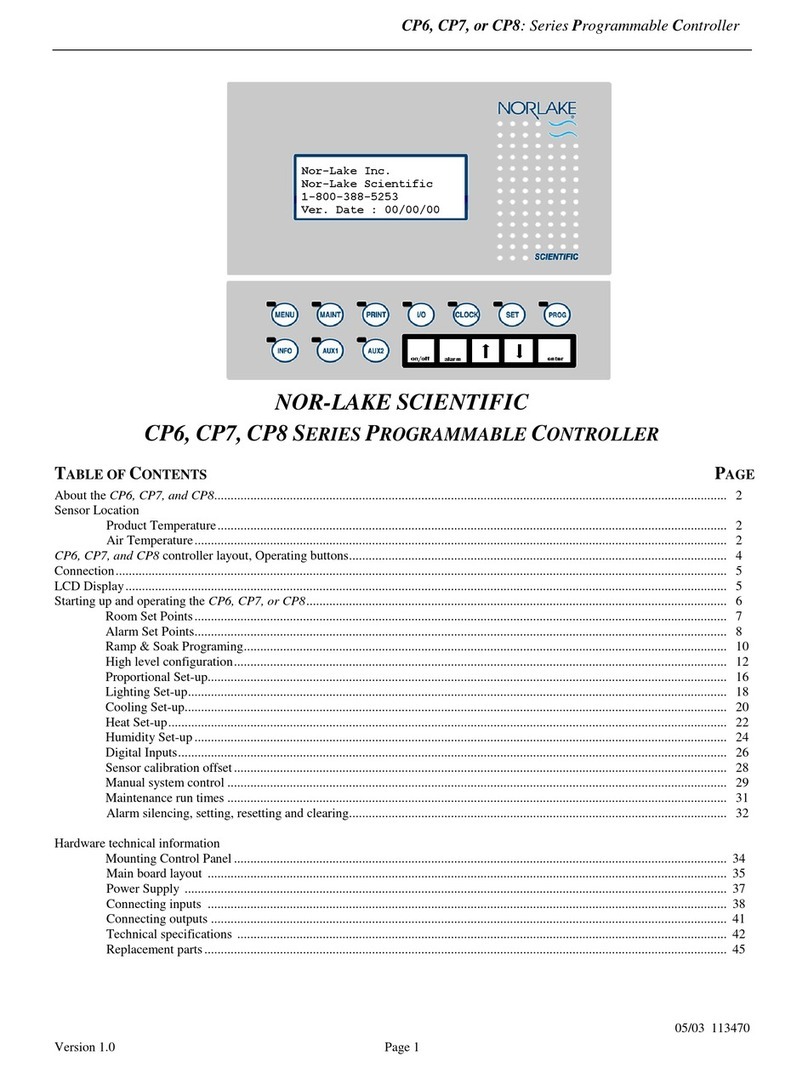

Norlake CP6 Series instruction manual

Norlake

Norlake CP6 Series instruction manual

PCB Piezotronics IMI SENSORS 683A101003 Installation and operating manual

PCB Piezotronics

PCB Piezotronics IMI SENSORS 683A101003 Installation and operating manual

HUSH OnAir Briefing Book

HUSH

HUSH OnAir Briefing Book

Allen-Bradley PowerFlex 4 installation instructions

Allen-Bradley

Allen-Bradley PowerFlex 4 installation instructions

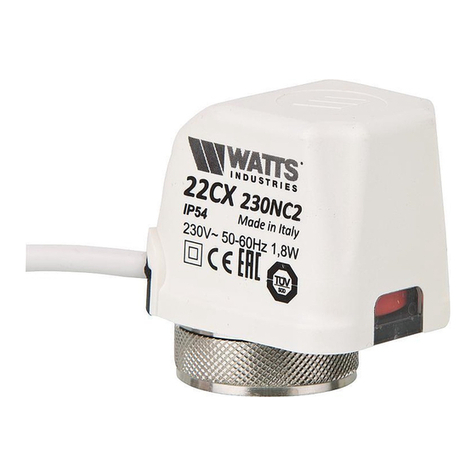

Watts Industries 22CX Series manual

Watts Industries

Watts Industries 22CX Series manual

Timotion JP3 user manual

Timotion

Timotion JP3 user manual

Allen-Bradley 22C-B012N103 user manual

Allen-Bradley

Allen-Bradley 22C-B012N103 user manual

Alpine RUX-H02 quick start guide

Alpine

Alpine RUX-H02 quick start guide

Coelbo Ecodrive manual

Coelbo

Coelbo Ecodrive manual

Watlow PM LEGACY PM3 user guide

Watlow

Watlow PM LEGACY PM3 user guide

Elation ELAR-DRIVER-8-12V user manual

Elation

Elation ELAR-DRIVER-8-12V user manual

Grin Technologies Frankenrunner user manual

Grin Technologies

Grin Technologies Frankenrunner user manual

Rockwell Automation ics triplex AADvance System Build Manual

Rockwell Automation

Rockwell Automation ics triplex AADvance System Build Manual

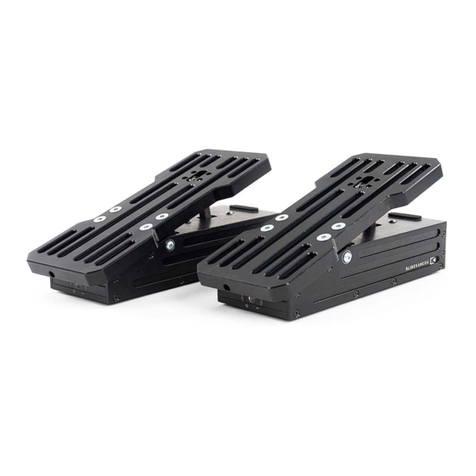

Slide Kamera FOOT CONTROLLERS HAD-10 user manual

Slide Kamera

Slide Kamera FOOT CONTROLLERS HAD-10 user manual

Honeywell VC2 Series, VC4 Series, VC60 Series,... quick start guide

Honeywell

Honeywell VC2 Series, VC4 Series, VC60 Series,... quick start guide

Triplett GSM500 user manual

Triplett

Triplett GSM500 user manual

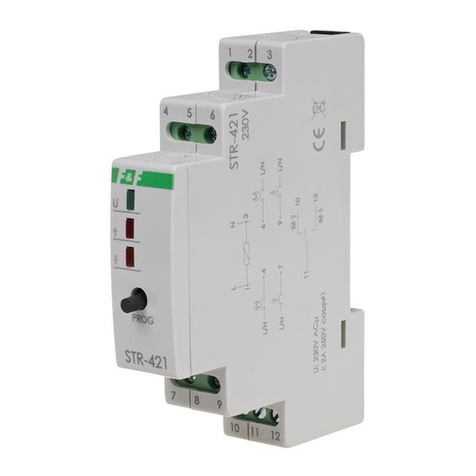

F&F STR-421 quick start guide
