AKL/8M FM LOG Antenna
MOUNTING INSTRUCTIONS
These wide band FM antennas, made of aluminum Alodyne 120 are particularly
recommended for medium Output Power Transmitters.
AKL/8
BAYS DB ANTENNA WEIGHT VIND VEL. WIND LOAD
GAIN Vert. dimensions Kg Km/h Kg.
1 7.5 1,8 mt 15 160 67
2 10.5 4,3 mt 30
4 13.5 9,3 mt 60
6 15.0 14,3 mt 90
8 16.5 19,3 mt 120

L A B E L I T A L Y S R L - V i a S . A l l e n d e , 5 9 – 4 1 1 2 2 M O D E N A
T E L : + 3 9 - 5 9 - 3 6 2 9 9 3 F A : + 3 9 - 5 9 - 3 7 6 0 5 6
w e b - w w w . l a b e l i t a l y . c o m e - m a i l - i n f o @ l a b e l i t a l y . c o m
2
SUGGESTED MAST SECTION
Is suggested install this Antenna over a pole with section from 65 to 105mm.

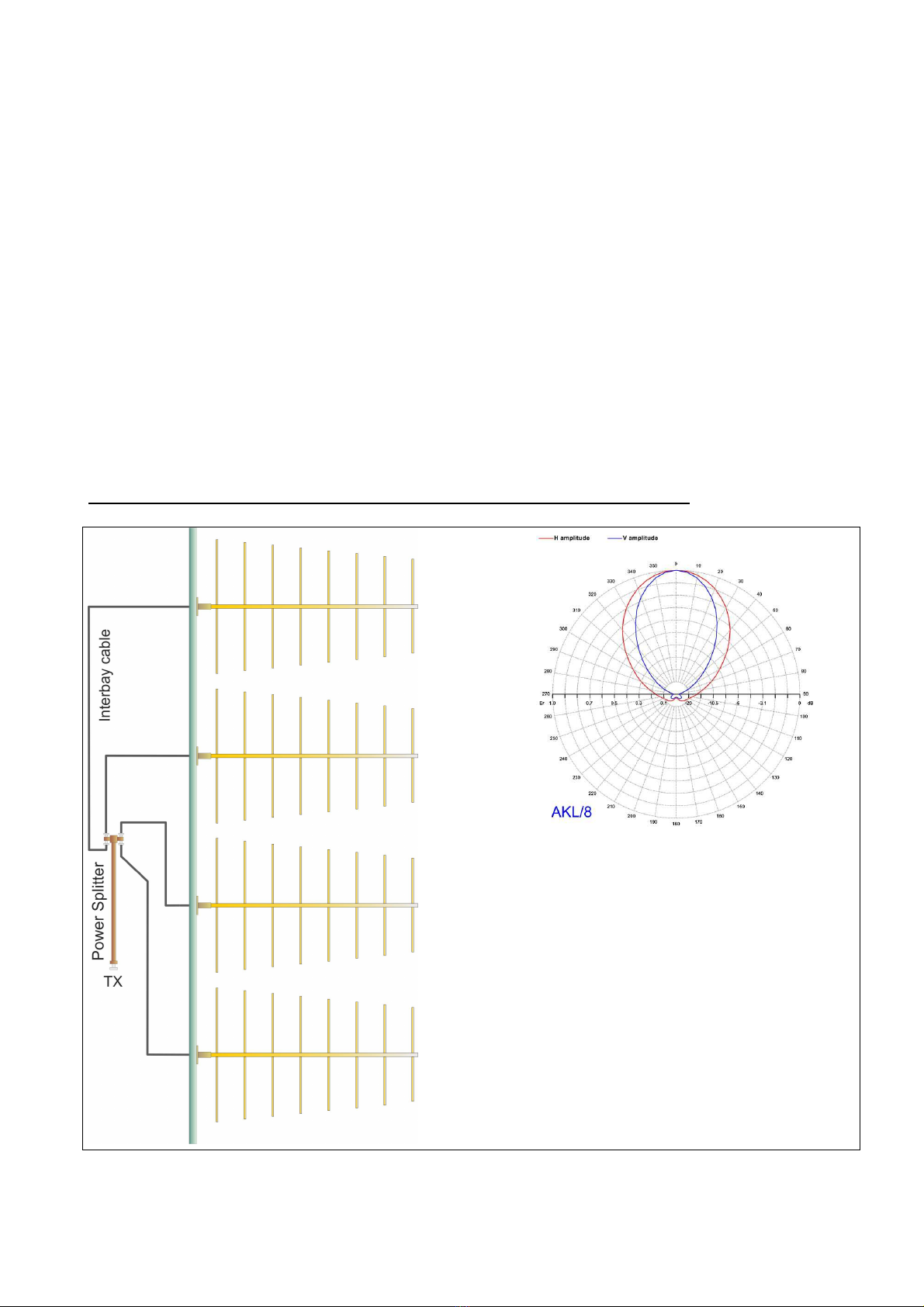

DISTANCE ESTIMATION BETWEEN FM ANTENNA BAYS
Wave Length =
λ
= 300 : f(MHz)
Distance between antenna bays ( all antenna types) = d
d (suggested) =
λ
x 0.85
examples
88MHz ➾
λ
= 300 : 88 = 3.41 mt ➾ d = 3.41 x 0.85 = 2.9 mt
98MHz ➾
λ
= 300 : 98 = 3.06 mt ➾ d = 3.06 x 0.85 = 2.6 mt
108MHz ➾
λ
= 300 : 108 = 2.78 mt ➾ d = 2.78 x 0.85 = 2.36 mt
Distance d suggested 2.6mt even if working frequency is Mid FM Band

L A B E L I T A L Y S R L - V i a S . A l l e n d e , 5 9 – 4 1 1 2 2 M O D E N A
T E L : + 3 9 - 5 9 - 3 6 2 9 9 3 F A : + 3 9 - 5 9 - 3 7 6 0 5 6
w e b - w w w . l a b e l i t a l y . c o m e - m a i l - i n f o @ l a b e l i t a l y . c o m
3

L A B E L I T A L Y S R L - V i a S . A l l e n d e , 5 9 – 4 1 1 2 2 M O D E N A
T E L : + 3 9 - 5 9 - 3 6 2 9 9 3 F A : + 3 9 - 5 9 - 3 7 6 0 5 6
w e b - w w w . l a b e l i t a l y . c o m e - m a i l - i n f o @ l a b e l i t a l y . c o m
4

L A B E L I T A L Y S R L - V i a S . A l l e n d e , 5 9 – 4 1 1 2 2 M O D E N A
T E L : + 3 9 - 5 9 - 3 6 2 9 9 3 F A : + 3 9 - 5 9 - 3 7 6 0 5 6
w e b - w w w . l a b e l i t a l y . c o m e - m a i l - i n f o @ l a b e l i t a l y . c o m
5
Please, apply spray Oil on all the contact surfaces
and the screw holes.

L A B E L I T A L Y S R L - V i a S . A l l e n d e , 5 9 – 4 1 1 2 2 M O D E N A
T E L : + 3 9 - 5 9 - 3 6 2 9 9 3 F A : + 3 9 - 5 9 - 3 7 6 0 5 6
w e b - w w w . l a b e l i t a l y . c o m e - m a i l - i n f o @ l a b e l i t a l y . c o m
6
Nylon Wire
