1 LCSU 4 Overview
– Important Information 4
– LCSU 4 - 800 ml (Cat. No. 880051/880052) 4
– LCSU 4 - 300 ml (Cat. No. 880061/880062) 4
2 Description and Intended Use
– Intended Use 5
– Cautions and Warnings 5
– Limited Warranty 5
3 LCSU 4 Setup
– Prepare the LCSU 4 for Operation 6
– Assemble 800 mlVersion 6
– Operation with High Efficiency Filter Kit 6
– Assemble 300 mlVersion 7
4 User Instructions
– Check Before Each Use 8
– Power Source Options 8
– Control Panel and Indicator Symbols 8
– Suction Level Setting 8
– How to Operate and Adjust Suction level 9
5 Battery Information
– Battery Charging 10
– Battery Test 10
– Charging Operations 10
– External Battery Charger 10
6 Cleaning and Maintenance
– Cleaning 11
– Device Test 11
7 Troubleshooting 12
8 Glossary of Symbols 13
9 Specifications 14
10 Regulatory Information 16

1 LCSU 4 Overview
English
4
Important Information
This User Guide covers two main versions of LCSU 4; one configured with 800 ml Canister, and one with 300 ml Canister. Both
versions can be purchased with or without RTCA compliance. Unless otherwise specified, the information in these User Guides
applies to all versions.
Note
Inspect all parts when unpacking. If there are signs of damage or parts are missing - immediately notify the seller. Do not
attempt to use the LCSU 4 if parts are damaged or missing.
LCSU 4 - 800 ml (Cat. No. 880051/880052)
Items Included:
• LCSU 4 Main Unit
• 800 ml Disposable Canister
• Patient Tube 1.8 m (6')
• Vacuum Tube
• AC/DC Adapter charger
• Battery
• User Guide
• Carry Bag (for 800 ml version)
• Wire Stand
LCSU 4 - 300 ml (Cat. No. 880061/880062)
Items Included:
• LCSU 4 Main Unit
• 300 ml Disposable Canister
• Patient Port
• Patient Tube 0.9 m (3')
• AC/DC Adapter charger
• Battery
• User Guide
• Carry Bag (for 300 ml version)
• The LCSU 4 Main Unit is the same for both versions. Each version can easily be converted to the other Canister option by
ordering additional parts.
• For latest version of Spare Parts, Accessories and Consumables, visit www.laerdal.com

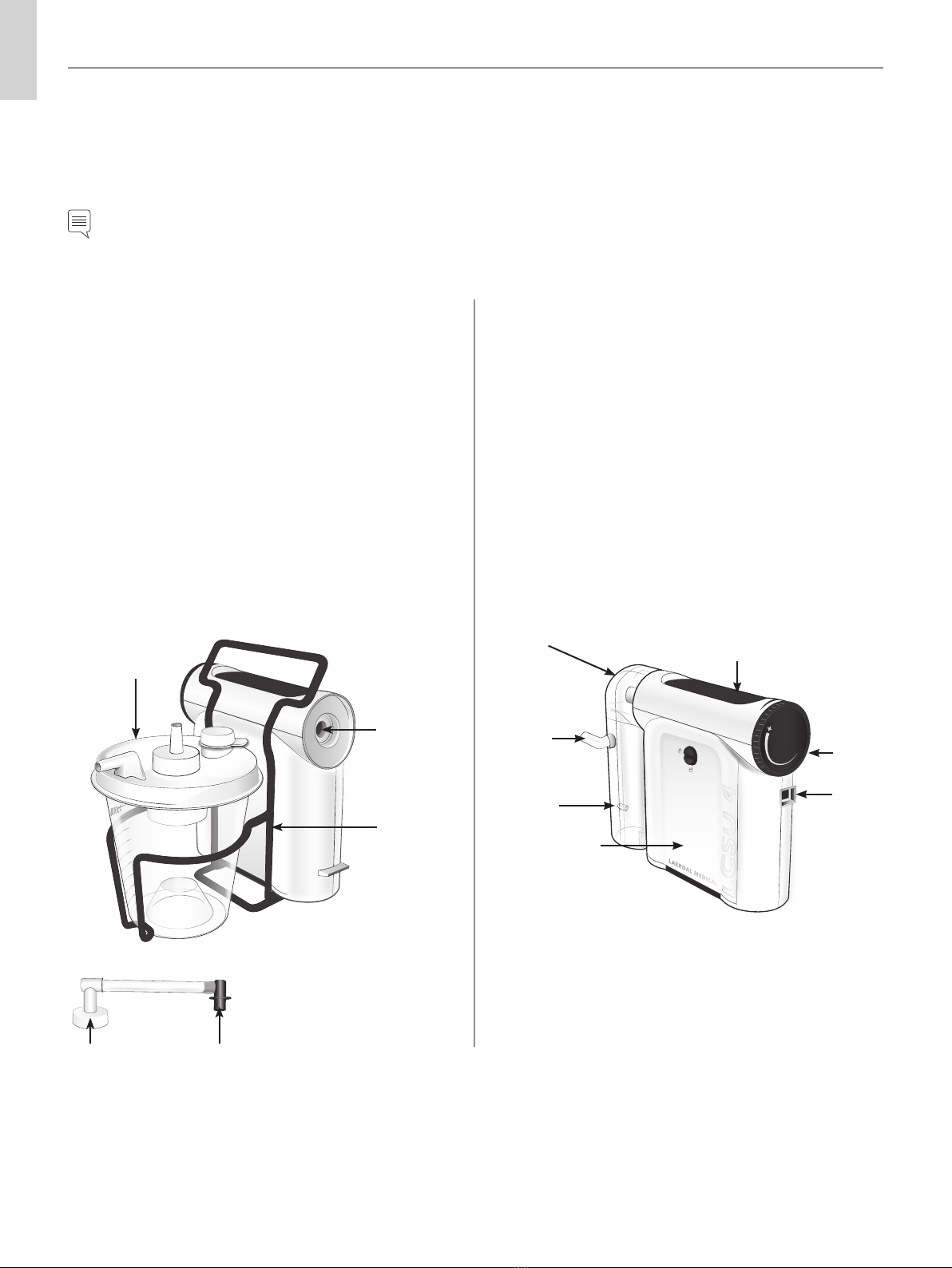

Control Panel
Vacuum
Regulator
Battery Cover
12V DC
Power Input
Patient Port
Disposable Canister
(300 ml) with Internal Filter
Vacuum Port
Connector
(Canister - white)
Vacuum Inlet
Connector
(LCSU 4 )
Vacuum Tube
Wire Stand
Vacuum Inlet
Disposable
Canister (800 ml)
with Internal Filter
Anti-Spill
Connector

2 Description and Intended Use
English
5
Intended Use
The LCSU 4 is a portable, electrically powered, medical suction device intended for field and transport use. It is intended for
intermittent operation to remove secretions, blood or vomit from a patient’s airway to allow ventilation. Higher vacuum levels are
generally selected for oropharyngeal suction, and lower vacuum levels are usually selected for tracheal suctioning and the suctioning
of children and infants.
Notes
• Do not use this unit until you have carefully read and fully understood these User Guides. Contact Laerdal Medical or its
authorized distributor for additional information if required.
• Use only Laerdal accessories supplied directly by Laerdal Medical or one of its authorized distributors to ensure that the
LCSU 4 operates satisfactorily.
• When using the LCSU 4 at home, take care to keep out of reach of children and pets. Do not store the LCSU 4 next to a
heater.
Cautions and Warnings
Cautions
• Only use canisters, tubes and accessories that are approved for the device by Laerdal Medical.
• The LCSU 4 is not suitable for use in the presence of flammable liquids or gases; danger of explosion or fire.
• Do not use the LCSU 4 under environmental conditions that are outside ranges specified. This can endanger safety and
adversely affect device operation.
• Ingress of suctioned material into the pump can damage and/or disable the device. If suctioning of liquid from the Canister or
patient into the pump is suspected, do not use the LCSU 4. Contact Laerdal Medical or your authorized distributor for advice.
• Changes or modifications not expressly approved by Laerdal Medical could void the user’s authority to operate the equipment.
• Federal law (USA) restricts the LCSU 4 to sale by or on the order of a physician or other licensed medical authority.
Warnings
• Follow local protocols for back-up suction devices.
• Do not repeatedly block the patient tube for more than 10 seconds at a time at vacuum levels greater than 300 mmHg.
• The LCSU 4 should only be used by persons trained in the use of medical suction equipment, and according to local protocol.
• Unauthorized service attempts, opening or tampering with the LCSU 4 or its electrical components can damage or disable the
device, and will void the Limited Warranty.
• Cat. No. 880052/880062 are approved according to RTCA/DO-160G Section 21 Category M but limited to battery operation
use only. Use of the AC/DC Adapter charger (Cat. No. 886111) or DC Power cord (Cat. No. 884500) for charging or operation
inside an aircraft must be avoided.
• Cat. No. 880051/880061 are not approved for use in aircrafts.
• Not intended for use in MRI environments.
• Disconnect the LCSU 4 from external power prior to cleaning.
• Consumables are single patient use only. Do not re-use. Re-use will lead to increased risk of cross-contamination, degradation
of performance and/or device malfunction. Laerdal is not responsible for any consequences of re-use.
Limited Warranty
The LCSU 4 comes with a two (2) year limited warranty, excluding the Canisters, Tubing systems and Battery. Refer to the
Laerdal Global Warranty for terms and conditions. For more information visit www.laerdal.com. The Battery is warranted for 90
days. Laerdal does not provide Service Parts for this product. Excluding the internal Battery, there are no user-serviceable/user-
replaceable parts inside the LCSU 4 Main Unit.

3 LCSU 4 Setup
English
6
Prepare the LCSU 4 for Operation
Note
All models are shipped with the Battery inside the unit, but not connected. Connect the Battery and charge it fully before
using the unit. See Battery Charging (Chapter 5).

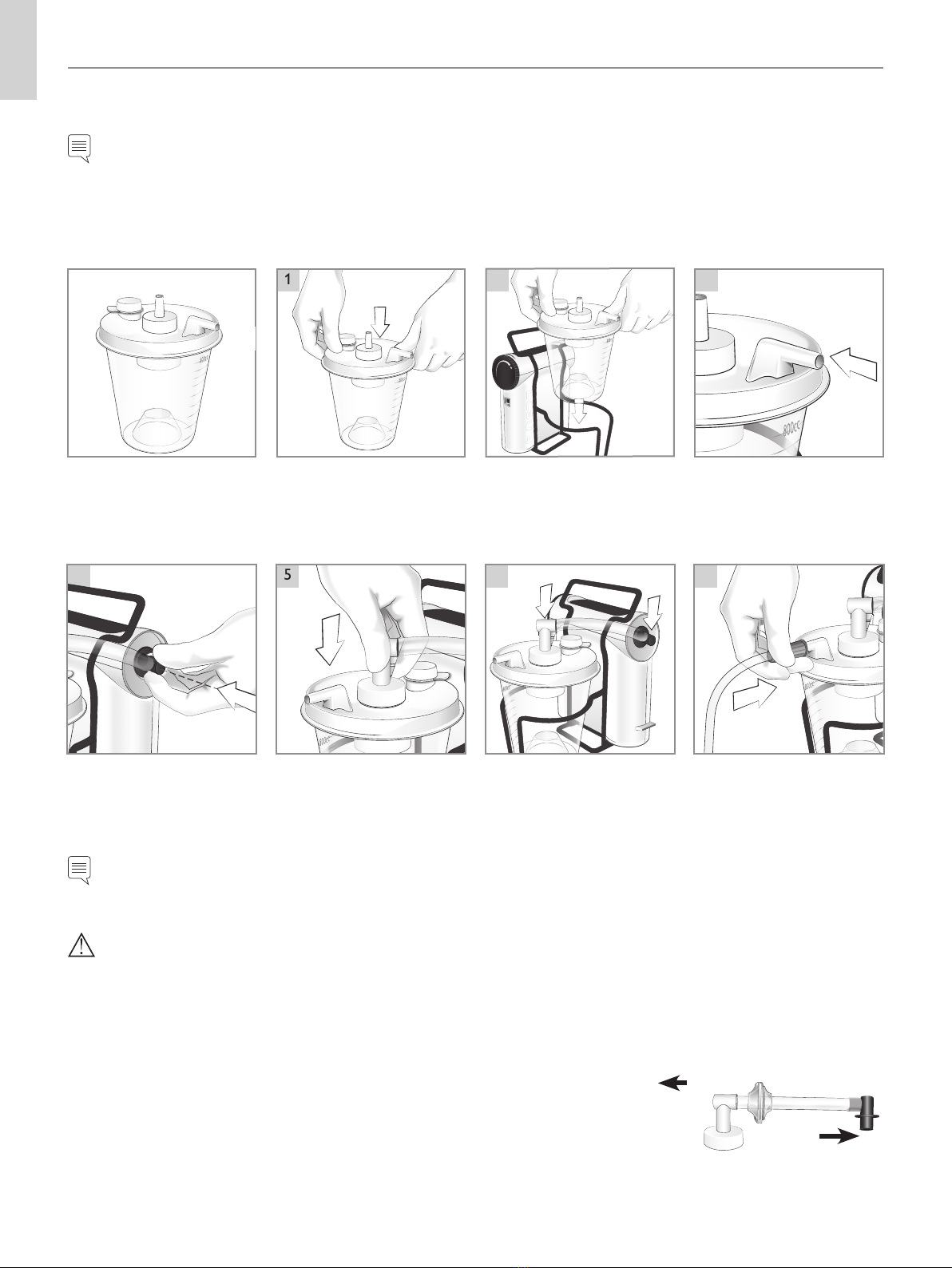

Assemble 800 ml Version
1 2 3
A
B
Canister Ports
A- Vacuum Port
B- Patient Port
1 Secure the Lid to the
Canister.
2 Place the Canister into
Wire Stand.
3 Ensure that the Patient
Port is accessible.
4 5 6 7
4 Attach the Vacuum Inlet
Connector to the Vacuum
Inlet on the Suction Unit.
5 Attach the WHITE
Connector to the Vacuum
Port Connector on the
Canister.
6 Check that all Vacuum
Tube connections are
firmly attached.
7 Attach the Patient Tube
to Patient Port on the
Canister.
Note
The 800 ml Canister has an internal Filter in the Lid. The Canister is disposable and cannot be cleaned. The Filter
automatically stops suction/flow when the Canister is full, or if the LSCU 4 tips over.
Caution
Always use the 800 ml Canister supplied by Laerdal, which has an internal Filter. Never connect any type of Patient Tubing
directly to the LCSU 4 Vacuum Inlet Port Connection. Overflow of suctioned material into the LCSU 4 pump will result in
loss of suction and permanent damage to the unit. In the event of overflow, do not use the LCSU 4. Contact Laerdal Medical
or your authorized distributor.
IN
OUT
Operation with High Efficiency Filter Kit
To increase filtration efficiency the Vacuum Tube may be replaced with a High Efficiency Filter Kit
(Cat. No. 886116).
Ensure Filter IN points towards the WHITE connector, and OUT towards the BLUE. For Cleaning
and Maintenance, see Chapter 6.

3 LCSU 4 Setup
English
7
Assemble 300 ml Version

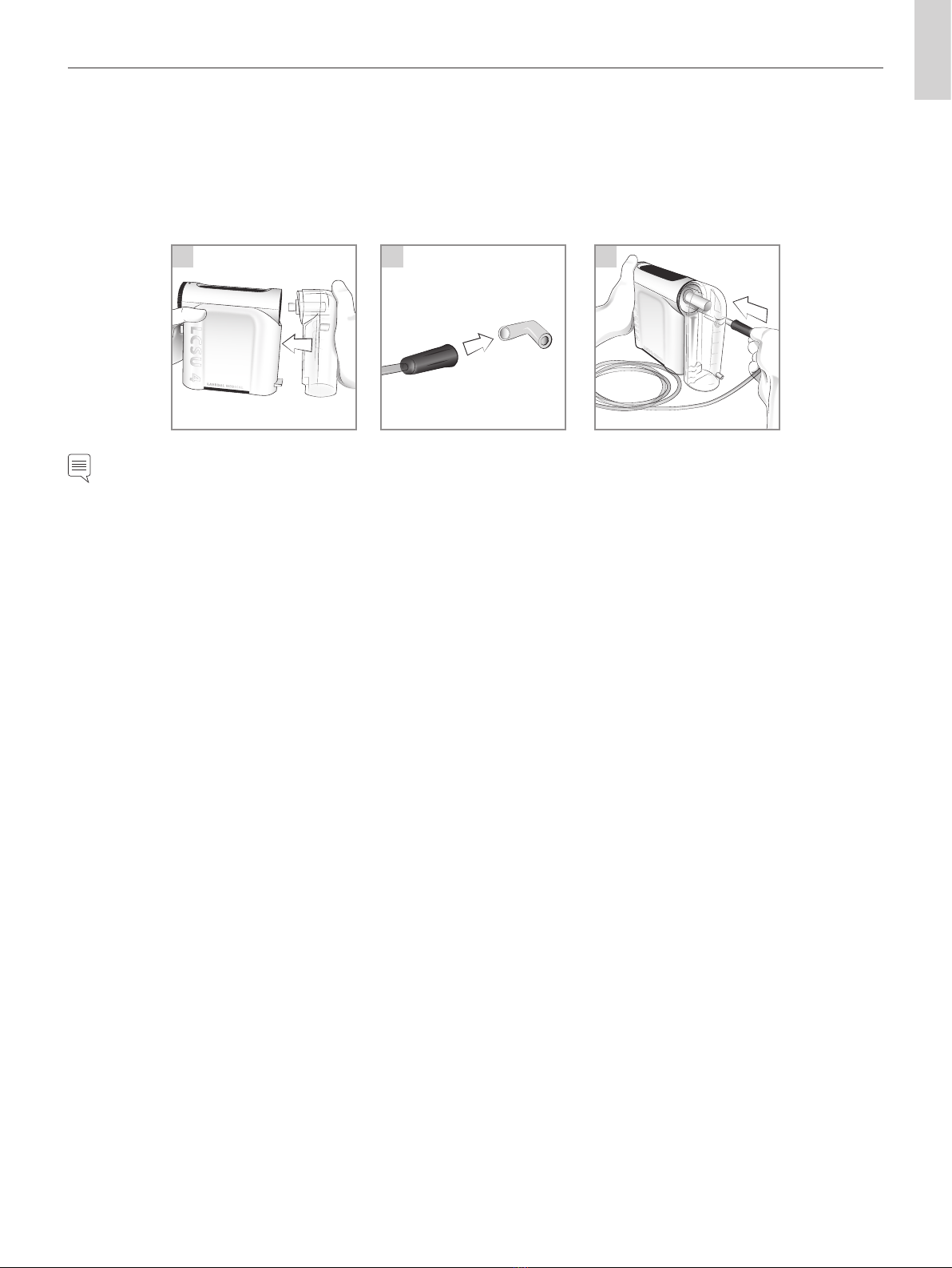

1 Push the upper port connection into the Vacuum Inlet and check that the lower part of the Canister clicks in place.
2 Connect the Patient Port onto Patient Tube
3 Connect the Patient Port onto the Canister. Ensure that all connections are secure to prevent leakage.
1 2 3
300ml
250ml
200ml
150ml
100ml
50ml
300ml
250ml
200ml
150ml
100ml
50ml
Notes
• The 300 ml Canister is sealed, with an internal Filter. The Canister is disposable and cannot be cleaned. The Filter automatically
stops suction/flow when the Canister is full, or the Filter becomes saturated if the unit tips onto its side during use.
• The 300 ml Canister (Cat. No. 886100) can also be used with the previous model LCSU 3. However, the LCSU 4 cannot be used
with LCSU 3 Canisters.
• To improve the upright stability, a Wire Stand (Cat. No 886115) is offered as an Optional Accessory. This adds both a handle
and a foot to the unit.

4 User Instructions
English
8
Check Before Each Use
1 The suction unit should not be damaged.
2 The suction unit should be clean.
3 All parts should be properly assembled (Canister, Tubes etc.).
4 Check that a suction catheter is attached to the patient
suction tube or suction adapter. Do not use the suction
tube or suction adapter without a suction catheter attached.
5 Perform Device Test after each reassembly (see Chapter 6).
6 Check Battery level: While performing the Device Test the
Battery level should not illuminate RED. If the Battery
level illuminates RED, the Battery should be charged. See
Charging Instructions (Chapter 5).
Note
Always have an extra Canister available in case the first
Canister is filled completely, or the suction unit tips on
to its side and the Filter becomes saturated and stops the
suction/flow.
Warning
If the Canister fills and the shut-off mechanism
activates, and you have no spare Canister ready for
immediate replacement, shut off LCSU 4 and utilize
alternative methods according to local protocol to clear
patient’s airway. Continued efforts to suction with a full
canister may cause overflow that will prevent suctioning,
damage the pump, void the unit warranty, and lead to
prolonged downtime.

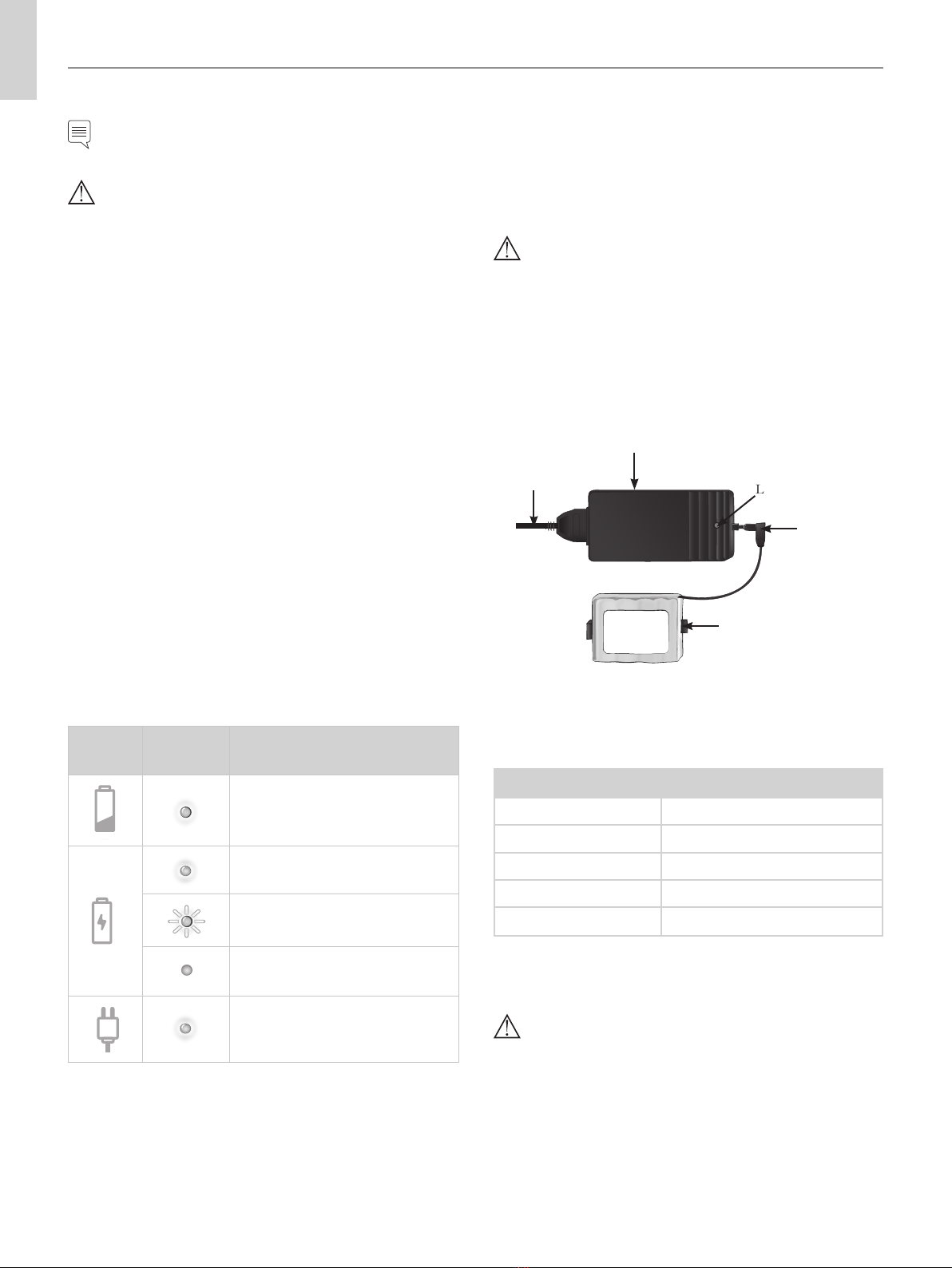

Control Panel and Indicator Symbols
Suction Level Setting External
power
connected
Battery
charging
Battery low
ON / OFF switch
Suction Level Setting
• The Scale illuminates ‘Green’ to indicate the level of
vacuum/suction strength
• The ‘Light Blue’ area indicates reduced suction levels for
infants and small children
The LEDs have two brightness levels. Half illuminated
indicates a halfway vacuum level, e.g., 175 is indicated by a fully
illuminated 150 and a half illuminated 200 LED.
Warning
If the Low Battery symbol illuminates, immediately
switch to an external power source to avoid interrupted
operation. If the LCSU 4 does not receive external
power, the Low Battery indicator will remain on and the
unit performance will drop rapidly leading to complete
LCSU 4 shutdown.
Power Source Options
Internal Battery Operation
LCSU 4 is equipped with an internal Battery, NiMH 12 volt
1.6 Ah.
The LCSU 4 will run on battery power, unless connected to
mains. Unplugging the external power source whilst running
will stop the unit from operating. To restart, press the on/off
switch.
External AC Operation
To run on mains power, use the AC/DC Adapter Charger.
Plug the smaller DC output cord power connector into the
LCSU 4 12V DC Power Input Connection. Plug the AC/
DC Adapter into mains power. It is normal that the adapter
becomes warm when in use.
AC/DC Adapter Charger (Cat. No. 886111)

4 User Instructions
English
9
How to Operate and Adjust Vacuum level
1 Unwind the Patient Tube (check that no kinks will obstruct
flow).
2 Turn the unit “ON” by pressing theON/OFF button.
3 Block the Patient Tube.
4
3
4 Set desired suction vacuum level by
turning the Vacuum Regulator.
• Turn clockwise (+) to increase vacuum
• Turn counter-clockwise to decrease vacuum
5 The vacuum level will display on the Suction Level Setting
Scale.
6 When the desired vacuum level is reached; unblock the
patient tube immediately.
Warning
Do not repeatedly block the patient tube for more than
10 seconds at a time at vacuum levels greater than 300
mmHg.
7 Apply necessary suction therapy. Apply appropriate suction
catheter (not supplied by Laerdal).
Warning
During patient treatment do not occlude or block the
patient tube by intentional bending or squeezing. The
patient tube should only be temporarily occluded by
suctioning matter.
Note
If LCSU 4 does not maintain the desired suction
performance level, refer to Troubleshooting instructions
(see Chapter 7).
After Each Use
1 After suctioning, let LCSU 4 run for a moment to allow all
suctioned material to flow from the Patient Tube into the
Canister.
2 To avoid spills, connect Patient Tube to Anti-Spill
Connector.
300ml
250ml
200ml
150ml
100ml
50ml
300ml
250ml
200ml
150ml
100ml
50ml
3 Disconnect and dispose of Canister and Patient Tube.
Contact local authorities to determine the proper method
of disposal of soiled canister and patient tube.
4 Clean the exterior and any reusable parts of the LCSU 4
assembly according to instructions (see Chapter 6).
5 Perform Device Test (see Chapter 6).
6 Place Battery on charge (see Chapter 5).
2

5 Battery Information
English
10
Battery Charging
Note
Use only Laerdal Battery Cat. No. 886113.
Cautions
• Use of other than Laerdal brand Battery may result in
errors related to the Battery status indicator, reduction of
the Battery operation time, failure to effectively operate
LCSU 4, and/or give rise to hazards to operator and/or
patient.
• Do not operate the unit for more than a few minutes if the
RED Low Battery indicator is illuminated. Recharge the
Battery as soon as possible.
When in operational use
• An empty Battery must charge up to 5 hours to reach full
capacity. Battery charging time may be increased when
charging below 10 oC
• Battery run time: Approximately 45 minutes of continuous
operation at zero vacuum level (free flow), fully recharged.
• Always fully charge Battery.
To prolong Battery lifetime it is recommended to place the
Battery on continuous charge. It will not harm the unit.
If continuous charging is not possible, charge Battery for
minimum 5 hours once a month.
Follow the LED status on the Control Panel on the LCSU 4
and charge the Battery as necessary.
Battery Test
Test Battery every 6-12 months.
1 Start the test with a fully charged Battery.
2 Set maximum vacuum level.
3 Let the unit run for 20 minutes (free flow).
Caution
Replace the battery when it does not pass battery test or
after 2 years, whichever comes first.
Optional Power/Charging Accessories
External Battery Charger (Cat. No. 886112)
The Battery can be charged externally by removing it from the
LCSU 4 unit and using the External Battery Charger.
Power cord
Battery
Connector
Battery
External Battery Charger
LED Indicator
An empty Battery must charge up to 5 hours to reach full
capacity. Follow the LED Indicator and charge the Battery as
necessary.
LED Indicator Status
LED not illuminated Plugs not connected
Yellow LED flashes Charging is pending
Yellow LED illuminated Charging
Green LED illuminated Battery is fully charged (*)
Red LED flashes Charge failure
* The Battery can be left on continuous charge, even if the
Green LED is illuminated. It will not harm the units.
Caution
Do not cover the Charger. When in use, it is normal that
the Charger and the Battery becomes warm.
DC Power-Cord (Cat. No. 884500)
DC Power-cord for connection to vehicle 12V DC is required.
Plug the smaller power connector into the LCSU 4 12V DC
Power Input Connection. Plug the larger connector into the
vehicle 12V DC power receptacle.
Icon LED
Indicator Status
Battery level low
Charging
Charging is pending
or battery not installed
Battery is fully charged
External power connected

6 Cleaning and Maintenance
English
11
Cleaning
Cautions
• Disconnect the LCSU 4 from external power prior to
cleaning. Use a minimum amount of liquid to prevent any
electrical shock hazard.
• Do not immerse the LCSU 4 or allow it to stand in water
or other liquids. This might damage the device, and cause
electrical hazard.
Warning
Do not pump any cleaning solution or other liquids
through the vacuum pump, i.e. through the Vacuum
Connector. This can damage the LCSU 4.
Main Cabinet
1 Disconnect from external power supply.
2 Clean Cabinet surfaces by carefully wiping with a soft cloth
or sponge with mild detergent. Use hand dishwashing liquid
or similar that is compatible with the Material Chart (see
Chapter 9).
3 Dry all surfaces using a clean cloth or paper towel.
Canisters and Patient Tubes
Dispose after use.
Note
The Canisters and Patient Tubes are all disposable items.
Do not attempt to clean or reuse these. Due to the risk
of cross contamination, all disposable items must be
replaced after each use. They are for single-patient use
only. Contact local authorities to determine the proper
method of disposal of soiled canister and patient tube.
Vacuum Tube (for 800 ml version) and Wire Stand
Wash by immersing and scrubbing in hand dishwashing liquid
or similar.
1 Rinse thoroughly in pure water.
2 Allow to dry. Disinfect if desired.
High Efficiency Filter Kit (for 800 mlVersion)
• Filter cannot be cleaned or disinfected.
• Replace Filter immediately if contamination or
discoloration is observed, or if it gets wet.
* If the unit is used on patients in areas where cross
contamination is an issue, it is recommended that the Filter is
replaced after each use.
Carry Bags
Wipe Bags according to instructions provided above for Main
Cabinet. Do not launder.
Device Test
After each reassembly, and before returning a LCSU 4 to
operational use, the Device Test should be performed:
1 Disconnect from external power
2 Start the test with a fully charged Battery
3 Turn the unit “ON”
4 Turn the vacuum level regulator to maximum
5 Block the Patient Tube
6 When the vacuum reaches minimum 500 mmHg
immediately release the blocking. The device is fully
functioning if it passes this test.
Warning
Do not block the patient tube for more than 10 seconds
at vacuum levels greater than 300 mmHg.
Caution
Do not attempt to use any LCSU 4 that has not passed
the above test. If the LCSU 4 unit does not test
satisfactorily, recheck all parts of the assembly and test
once again. If necessary, contact Laerdal Medical or one
of its authorized distributor.
Disposal
When discarding the LCSU 4, we recommend it be discarded
according to local protocol.
This appliance is marked according to the European directive
2012/19/EU on Waste Electrical and Electronic Equipment
(WEEE). By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents
accompanying the product, indicates that this appliance
may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the
recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local
environment regulations for waste disposal.
For more detailed information about treatment, recovery
and recycling of this product, please contact your local city
office, your household waste disposal service or the Laerdal
representative where you purchased the product.

7 Troubleshooting
English
12
Warning
Potential for Electrical shock. Do not attempt to open or disassemble pump or electrical accessories.
Caution
The LCSU 4 may not achieve the highest vacuum levels when operated at high altitudes.
Note
If the LCSU 4 condition is not resolved, contact Laerdal Medical or one of its authorized distributors for advice.
Fault Condition Action
LCSU 4 cannot be operated from
battery Battery uncharged or not connected Verify that the Battery is properly installed and charged.
The LCSU 4 operates, but little or
no suction available. Canister or tube not properly connected Verify proper Canister and Tubing connections. Check system for possible leaks in Canister and/or Tubing
connections.
Canister full Remove and replace Canister
Poor vacuum connection be-
tween LCSU 4 and Canister Follow procedure for proper assembly of Canister and Tub- ing
Lid (800 ml canister only)
not properly sealed Check that the lid is properly secured to the Canister
Patient tube twisted or
blocked Check that the Patient tube is not blocked or twisted, or alternately replace the tube
Filter clogged Check that the Filter has not been clogged (300 ml canister
only).
Vacuum level is too high or too
low Incorrect vacuum level set Follow procedure for adjusting vacuum suction level
Battery will not charge Battery or AC/DC adapter
charger not connected or
aged battery
Verify that the Battery is connected.
Re-connect mains power and observe charge.
Replace battery
Insufcient power level Battery not fully charged or
aged battery Charge the Battery for 5 hours. Perform the Battery Test.
Replace battery

8 Glossary of Symbols
English
13
Symbols Definition Symbols Definition
2460
This product is in compliance with the
essential requirements of Council Directive
93/42/EEC Medical Device Directive, as
amended by Council Directive 2007/47/EC,
class IIa
The product is in compliance with Council
Directive 2011/65/EU on restriction of the
use of certain hazardous substances (RoHS 2).
Do not cut
Single Patient Use. Do not re-use. Fragile. Handle with care
IP33 The degree of protection provided by the
chassis according to IP33 Keep dry
Unique product type identification Transport storage temperature range
Serial number Humidity
UL Certification Mark
Medical — General Medical Equipment
AS TO ELECTRICAL SHOCK, FIRE AND
MECHANICAL HAZARDS ONLY
IEC 60601-1 AND 3.1. CAN/CSA-C22.2 No.
60601-1 (2008 or 2014).
Exemptions:
External Battery Charger (Cat. No. 886112)
and DC Power-Cord (Cat. No. 884500)
Atmospheric pressure
Center positive polarity indicator Consult User Guide
Direct Current Caution: Federal law restricts this device to sale by
or on the order of a physician.
Date of production
Warning / Caution
Note
Recycle
Type BF applied part, according to IEC 60601-
1 Applied part of the LCSU4 is the catheter
(not supplied by Laerdal) which is connected to
the catheter adaptor.
Disposal must be carried out in accordance
with local environment regulations for waste
disposal.
Not made with natural rubber latex

9 Specifications
English
14
Power Source Options
Battery Rechargable, NiMH 12 volt 1.6 Ah
Power-cord DC (12 V) Dry Location Use Only
AC/DC Adapter Charger (Dry Location Use Only) Input: 100-240 V, 50-60 hz, 1.2 A Output: +12 V, 3.4 A
External Battery Charger (Dry Location Use Only) Input: 110-240 V, 50-60 hz, 250 mA Output: +18.5 V, 0.6 A
Environmental Conditions
Operating and Storage Temperature 0 °C (32 °F) to + 40 °C (104 °F)
Operating and Storage Relative Humidity 0 to 95% (non condensing)
Operating Atmospheric Pressure 9 psi (62 kPa) – 15.4 psi (106 kPa)
Charging temperature 10 °C (50 °F) to + 40 °C (104 °F)
Short-term Storage & Transport Temperature -40 °C (-40 °F) to + 70 °C (158 °F)
Humidity (Operating & Storage) 0 to 95% (non-condensing)
Storage & Transport Atmospheric Pressure: 7.3 psi (50 kPa) – 15.4 psi (106 kPa)
The time required for the LCSU4 to warm from the minimum storage temperature between uses until it is ready for intended use
is minimum 50 minutes at room temperature.
The time required for the LCSU4 to cool from the maximum storage temperature between uses until it is ready for intended use
is minimum 60 minutes at room temperature.
Physical Characteristics
Dimensions 880051/880052 (LCSU 4, 800 ml) 23.6 cm x 19 cm x 23.6 cm (9.3” x
7.5” x 9.3”)
880061/880062 (LCSU 4, 300 ml) 18.5 cm x 26.2 cm x 8.1 cm (7.3” x
10.3” x 3.2”)
Weight 880051/880052 (LCSU 4, 800 ml): 2 kg (4.4 lbs)
880061/880062 (LCSU 4, 300 ml): 1.6 kg (3.5 lbs)
Canister Capacity 300 ml 800 ml
Performance
Expected service life 3 years
This is assuming 5 suction passes per day lasting 15 seconds.
The service life may be longer if less frequent use.
Air flow at Vacuum Inlet
(without canister attached) All configurations 30 LPM (free flow) typical (May be less when running from internal battery)
Vacuum - Max. 550+ mmHg
Vacuum - Range 550+ mmHg
Vacuum Indicator accuracy ± 5% of full scale
High Efficiency Filter Kit With the High Efficiency Filter Kit installed the unit is in accordance with
ISO 10079-1. The Kit reduces the Air flow and Battery run time. The filter is
HEPA rated with an efficiency of 99.97% down to a particle size of 0.3 μm.
Material Chart
Cabinet front PC
Battery Cover PC
Vacuum Regulator PC
Bottom Cover PC
Vacuum Inlet Cover PC
Control Panel PVC
800 ml Disposable Canister GPPS Lid: HDPE Internal Filter: Aerostate
Vacuum Tube Silicone, K-Resin
Vacuum Port Connector TPR
Vacuum Inlet Connector PC
High Efficiency Filter PP

9 Specifications
English
15
Electromagnetic Emissions Tests
Emissions Test Standard or test Compliance
Conducted
and radiated
RF emissions
CISPR 11 Group 1 Class B
Harmonic distortion IEC 61000-3-2 Complies
Voltage
fluctuations/
flicker emissions
IEC 61000-3-3 Complies
Electromagnetic Immunity Tests
Immunity Test Standard or test Compliance Level
Electrostatic
discharge IEC 61000-4-2 ± 8 kV contact ± 2 kV, ± 4 kV, ± 8 kV, ± 15
kV air
Radiated RF EM fields IEC 61000-4-3 10 V/m
80 MHz- 2.7 GHz
80% AM at 1 kHz
Proximity fields from RF Wireless
communications equipment
IEC 61000-4-3 380-390 MHz: 27V/m
430-470 MHz: 28V/m
704-787 MHz: 9V/m
800-960 MHz: 28V/m
1700-1990 MHz: 28V/m
2400-2470 MHz: 28V/m
5100-5800 MHz: 9V/m
Electrical fast transients / bursts* IEC 61000-4-4 ± 2 kV
Surges Line-to-line* IEC 61000-4-5 ± 0,5 kV, ± 1 kV
Conducted
disturbances
induced by RF fields*
IEC 61000-4-6 3 V 0,15 MHz – 80 MHz
6 V in ISM and amateur radio bands between
0,15 MHz and 80 MHz
Voltage dips* IEC 61000-4-11 0% UT; 0,5 cycle At 0°, 45°, 90°, 135°, 180°,
225°, 270 ° and 315°
0% UT; 1 cycle and 70% UT; 25/30 cycles
Single phase: at 0°
Voltage
interruptions* IEC 61000-4-11 0% UT; 250/300 cycle
Rated power
frequency magnetic fields
IEC 61000-4-8 30 A/m
50 Hz or 60 Hz
Electrical transient conduction along
supply lines, DC
power port
ISO 7637-2 Test pulse severity level:
III in Table A2 of
ISO 7637-2
*AC/DC adapter only.
Filter housing K-Resin
300 ml Disposable Canister PC Internal Filter: PE
Patient Port PP
Patient Tube PVC
Wire Stands Steel, PVC

10 Regulatory Information
English
16
International Travel
This suction unit is equipped with an AC/DC Adapter Charger allowing operation on any AC voltage (100-240 VAC, 50/60Hz).
Regulatory Information
Classification
• Electrically powered medical suction equipment for field and transport use, according to ISO10079-1.
• High flow/High vacuum, 50 – 550+ mmHg
• Not suitable for the use in the presence of flammable liquids or gases.
• Internally powered/class I equipment type BF, according to IEC 60601-1
• Protection class IP33 and standard power supply
- Protected against solid foreign objects of 2.5 mm Ø and greater.
- Protected against spraying water.
• Intermittent Operation: 30 minutes on, 30 minutes off
Certifications
Cat. No. 880052/880062: Meets RTCA/DO-160G - Section 21 Category M (for battery operation only; commercial aircraft,
airborne equipment).
Electromagnetic Conformity
LCSU 4 is intended for use in the following environments: Professional Healthcare Facility environment, Home Healthcare
environment and Emergency Medical Services environment.
Essential performance of the LCSU 4 is identified as connection of the patient hose to the exhaust outlet. This is prevented by
coding of the outlet. EMC disturbances cannot affect this behavior.
No particular actions are required to maintain safety and performance with regard to electromagnetic disturbances for the expected
service life.
Warnings
• Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper
operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating
normally.
• Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this equipment could
result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper
operation.
• Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used
no closer than 30 cm (12 inches) to any part of the LCSU 4, including cables specified by the Laerdal Medical. Otherwise,
degradation of the performance of this equipment could result.

Table des matières
17
1 Vue d'ensemble du dispositif LCSU 4
– Informations importantes 18
– LCSU 4 - 800 ml (Cat. No. 880051/880052) 18
– LCSU 4 - 300 ml (Cat. No. 880061/880062) 18
2 Description et utilisation prévue
– Utilisation prévue 19
– Mises en garde et avertissements 19
– Garantie limitée 19
3 Montage du dispositif LCSU 4
– Préparation du dispositif LCSU 4 en vue de son utilisation 20
– Assemblage de la version 800 ml 20
– Utilisation avec le kit de filtration haute efficacité 20
– Assemblage de la version 300 ml 21
4 Instructions d'utilisation
– Vérifications avant chaque utilisation 22
– Options de source d'alimentation 22
– Symboles indicateurs et panneau de commande 22
– Réglage du niveau d'aspiration 22
– Mode d’emploi et réglage du niveau d’aspiration 23
5 Informations sur la batterie
– Charge de la batterie 24
– Test de la batterie 24
– Opérations de charge 24
– Chargeur de batteries externe 24
6 Nettoyage et entretien
– Nettoyage 25
– Test du dispositif 25
7 Guide de dépannage 26
8 Glossaire des symboles 27
9 Caractéristiques techniques 28
10 Informations réglementaires 30

1 Vue d'ensemble du dispositif LCSU 4
Français
18
Informations importantes
Ce mode d'emploi est applicable aux deux versions du dispositif LCSU 4 : la configuration avec le bocal de 800 ml et celle avec
le bocal de 300 ml. Les deux versions peuvent être achetées avec ou sans certification de conformité à RTCA. Sauf indication
contraire, les informations présentées dans ces modes d'emploi s'appliquent à toutes les versions.
Avis
Inspectez toutes les pièces lors du déballage. Si des pièces semblent endommagées ou sont manquantes, indiquez-le
immédiatement au vendeur. N'essayez pas d'utiliser le dispositif LCSU 4 si des pièces sont endommagées ou manquantes.
LCSU 4 - 800 ml (Cat. No. 880051/880052)
Éléments inclus :
• Unité principale du dispositif LCSU 4
• Bocal jetable de 800 ml
• Tuyau raccordé au patient de 1,8 m
• Tuyau de vide
• Chargeur-adaptateur CA/CC
• Batterie
• Mode d'emploi
• Housse de transport (pour la version 800 ml)
• Support métallique
LCSU 4 - 300 ml (Cat. No. 880061/880062)
Éléments inclus :
• Unité principale du dispositif LCSU 4
• Bocal jetable de 300 ml
• Port de raccord au patient
• Tuyau raccordé au patient de 0,9 m
• Chargeur-adaptateur CA/CC
• Batterie
• Mode d'emploi
• Housse de transport (pour la version 300 ml)
• L'unité principale du dispositif LCSU 4 est identique pour les deux versions. Vous pouvez facilement utiliser les deux versions
de bocal en commandant des pièces supplémentaires.
• Pour obtenir la dernière version des pièces détachées, accessoires et consommables disponibles, consultez le site www.laerdal.com.
Panneau de commande
Régulateur
de vide
Cache de la batterie
Entrée
d'alimentation
12 V CC
Port de
raccord au
patient
Bocal jetable
(300 ml) avec filtre interne
Connecteur
au port de vide
(Bocal - blanc)
Connecteur
d'entrée du vide
(LCSU 4)
Tuyau de vide
Support
métallique
Entrée
du vide
Bocal
jetable (800 ml)
avec filtre interne
Connecteur
anti-déversement

2 Description et utilisation prévue
Français
19
Utilisation prévue
Le dispositif LCSU 4 est un dispositif d'aspiration médical, électrique et portable, destiné à être utilisé pendant des déplacements ou
sur les lieux de vie des patients. Il permet d'aspirer de façon intermittente les sécrétions, le sang ou les vomissures du patient et de
maintenir le passage de l'air vers les poumons pour permettre la ventilation. Des niveaux de vide élevés sont en général nécessaires en
cas d'aspiration de l'oropharynx tandis que des niveaux de vide plus faibles sont recommandés en cas d'aspiration de la trachée, ainsi
que chez l'enfant et le nourrisson.
Remarques
• N'utilisez pas cette unité avant d'avoir lu attentivement et compris l'intégralité de ces modes d'emploi. Si besoin, vous pouvez
contacter Laerdal Medical ou ses distributeurs agréés pour obtenir de plus amples informations.
• Utilisez exclusivement les accessoires Laerdal fournis par Laerdal Medical ou l'un de ses distributeurs agréés afin de garantir le bon
fonctionnement du dispositif LCSU 4.
• Lorsque vous utilisez le dispositif LCSU 4 chez vous, veillez à le tenir hors de la portée des enfants et des animaux de compagnie.
N'entreposez pas le dispositif LCSU 4 près d'un appareil de chauffage.
Mises en garde et avertissements
Mises en garde
• Utilisez exclusivement les réservoirs, les tuyaux et les accessoires approuvés par Laerdal Medical.
• Le dispositif LCSU 4 ne doit jamais être utilisé en présence de liquides ou de gaz inflammables. Tout non-respect de cet
avertissement expose l'utilisateur à un risque d'explosion ou d'incendie.
• N'utilisez pas le dispositif LCSU 4 dans des conditions autres que celles indiquées. Vous risqueriez de compromettre la sécurité et
d'altérer le fonctionnement du dispositif.
• L'entrée de matières aspirées dans la pompe peut endommager et/ou rendre inutilisable le dispositif. En cas de suspicion
d'une aspiration de liquide provenant du bocal ou du patient dans la pompe, n'utilisez pas le dispositif LCSU 4. Contactez
Laerdal Medical ou votre distributeur agréé afin d'obtenir des conseils.
• Toute modification non explicitement approuvée par Laerdal Medical est susceptible d'annuler le droit de l'utilisateur à se servir de
cet appareil.
• La loi fédérale américaine limite la vente du dispositif LCSU 4. Il ne peut être vendu que par un médecin ou par une autre autorité
médicale autorisée, ou sur prescription de ces derniers.
Avertissements
• Suivez les procédures locales en vigueur pour les unités d’aspiration des sécrétions.
• Ne bloquez pas le tube d’aspiration de façon répétée pendant plus de 10 secondes d’aflées, avec une force d’aspiration supérieure
à 300 mmHg.
• Le dispositif LCSU 4 doit être utilisé uniquement par des personnes formées à l'utilisation d'équipements médicaux d'aspiration et
conformément aux protocoles locaux.
• Toute tentative d'entretien, toute ouverture ou toute manipulation non autorisée du dispositif LCSU 4 ou de ses composants
électriques peut endommager et/ou rendre inutilisable le dispositif, et annulera la garantie limitée.
• Cat. No. 880052/880062 : approuvé conformément à RTCA/DO-160G Section 21 Catégorie M mais uniquement pour le
fonctionnement de la batterie. L'utilisation du chargeur-adaptateur CA/CC (Cat. No. 886111) ou du cordon d'alimentation CC
(Cat. No. 884500) à des fins de chargement ou de fonctionnement dans un avion doit être évitée.
• Cat. No. 880051/880061 : non approuvé pour une utilisation dans des avions.
• Ce dispositif ne convient pas aux environnements d'IRM.
• Avant de le nettoyer, débranchez le dispositif LCSU 4 de l'alimentation externe.
• Les consommables sont conçus pour un usage unique sur un patient. Ne pas les réutiliser. La réutilisation augmente le risque de
contamination croisée, de détérioration des performances et/ou de dysfonctionnement du dispositif. Laerdal ne peut être tenu
pour responsable des conséquences d’une réutilisation.
Garantie limitée
Le dispositif LCSU 4 s'accompagne d'une garantie limitée de deux (2) ans, qui ne s'applique pas au bocal, aux systèmes de tubulure ni à
la batterie. Reportez-vous à la garantie mondiale de Laerdal pour en connaître les clauses. Pour plus d'informations, visitez le site www.
laerdal.com. La batterie est garantie 90 jours. Laerdal ne fournit aucune pièce détachée de rechange pour ce produit. À l'exception de la
batterie interne, aucune pièce comprise dans l'unité principale du dispositif LCSU 4 ne peut faire l'objet d'un remplacement ou d'une
réparation par l'utilisateur lui-même.

3 Montage du dispositif LCSU 4
Français
20
Préparation du dispositif LCSU 4 en vue de son utilisation
Remarque
Tous les modèles sont expédiés avec la batterie à l'intérieur de l'unité (celle-ci n'est pas branchée). Branchez la batterie et
chargez-la complètement avant d'utiliser l'unité. Reportez-vous à la section Charge de la batterie (Chapitre 5).
Assemblage de la version 800 ml
1 2 3
Ports du bocal
A- Port de vide
B- Port de raccordement
au patient
1 Fermez le bocal à l'aide
du couvercle.
2 Placez le bocal sur le
support métallique.
3 Assurez-vous que le port
de raccordement au patient
est accessible.
4 5 6 7
4 Branchez le connecteur
d'entrée du vide sur
l'entrée du vide sur
l'unité d'aspiration.
5 Branchez le connecteur
BLANC sur le connecteur
du port de vide sur le bocal.
6 Vérifiez que tous les
raccords du tuyau de
vide sont bien fixés.
7 Branchez le tuyau raccordé
au patient sur le port de
raccordement au patient
sur le bocal.
Remarque
Le bocal de 800 ml dispose d'un filtre interne situé dans le couvercle. Le bocal est jetable et ne peut pas être nettoyé. Le filtre
arrête automatiquement l'aspiration/le débit lorsque le bocal est plein ou si le dispositif LCSU 4 est renversé.
Mise en garde
Utilisez toujours le bocal de 800 ml (fourni par Laerdal) équipé d'un filtre interne. Ne branchez jamais aucun type de tubulure
raccordée au patient directement sur le raccord du port d'entrée du vide du dispositif LCSU 4. Un trop-plein de matières
aspirées dans la pompe du dispositif LCSU 4 entraîne une baisse de l'aspiration et endommage l'unité de façon permanente.
En cas de trop-plein, n'utilisez pas le dispositif LCSU 4. Contactez Laerdal Medical ou votre distributeur agréé.
ENTRÉE
SORTIE
Utilisation avec le kit de filtration haute efficacité
Afin d'augmenter l'efficacité de la filtration, le tuyau de vide peut être remplacé par un kit de
filtration haute efficacité (Cat. No. 886116).
Assurez-vous que l'entrée (« IN ») du filtre pointe vers le connecteur BLANC et que la sortie
(« OUT ») pointe vers le connecteur BLEU. Pour le nettoyage et l'entretien, reportez-vous au
Chapitre 6.
