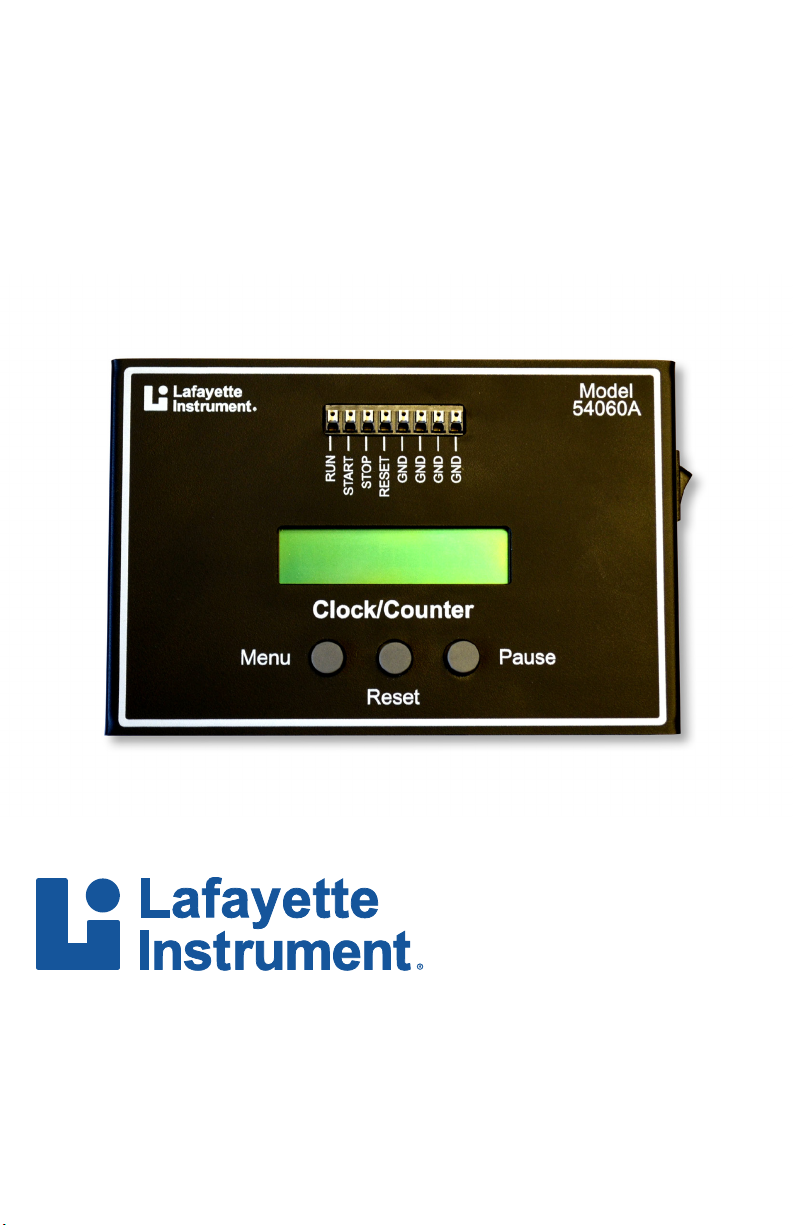

Model 54060A
Economy Clock/Counter
Instruction Manual
3700 Sagamore Pkwy N
Lafayette, IN 47904 USA
Tel: [phone] • [phone]
Fax: [phone]
[email protected]
www.lafayetteinstrument.com
MAN54060A

Lafayette Instrument Economy Clock/Counter
3700 Sagamore Pkwy N Lafayette, IN 47904 . Tel: [phone]
Table of Contents
Description 2
Specications 2
Operation 2
Wiring Instructions 3
Buttons 3
Inputs 4
Battery Exchange Instructions 5
Examples 6
Notes 7
Description
The Economy Clock/Counter is a timing device that is capable of accurately recording times
down to the millisecond. This device is powered by a single AA battery, and supporting
circuitry is engaged to provide all the operational needs of this device. All of the switch
contacts can be congured for Normally Open or Normally Closed contacts, adding versatility
to the device. This unit can display times up to 999.999 seconds before roll-over of the display
occurs, and it can display up to 9,999 count inputs before roll-over occurs.
Specications
• Voltage: AA Battery (1.5V Alkaline AA Included)
• Power: 12mW (no tone); 1/5 W (tone on)
• Weight: .7 lbs.
• Size: 6 3/8” wide x 4 1/4” long x 1 5/8” tall
Operation

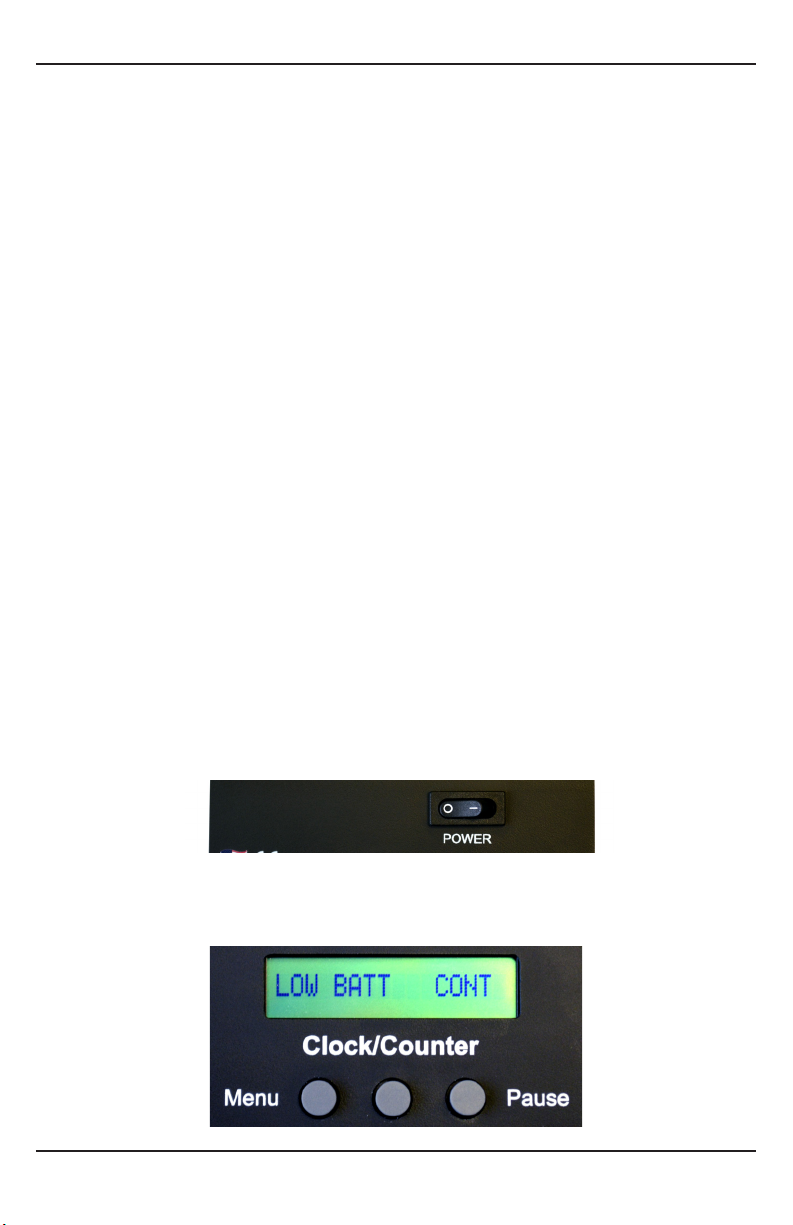

Turn the Economy Clock/Counter on by toggling the power button on the side so that the line
symbol is pressed down.
2
If the battery is below a certain threshold, the Low Battery Screen will appear indicating only
a couple hours of life remain. Press the button corresponding with Continue to proceed to
the test screen.

Model 54060A Instruction Manual
www.lafayetteinstrument.com . [email protected] 3
Wiring Instructions
24 AWG min
16 AWG max
Stripped portion length of wire should be a minimum
of 8mm and a maximum of 12mm

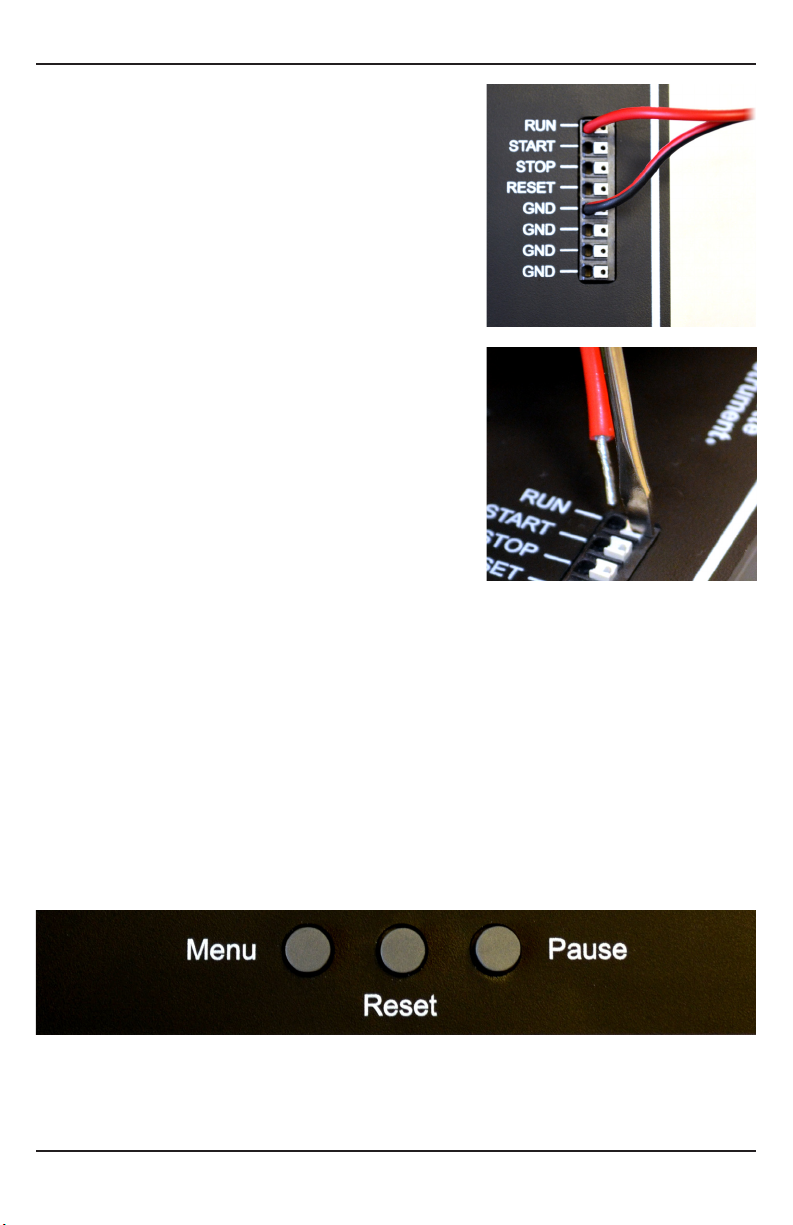

Insertion: Depress the white push button with
screwdriver (shown at right), and place stripped wire
end into corresponding terminal block hole
Removal: Depress the white push button; pull wire out
of hole
Buttons
Menu Button: Pressing the Menu button while no test
is running will cycle through the following options.
Press either the Reset button or Pause button to select
the rst or second option respectively. Each time
the device is powered on, the bolded option is set by
default.
• RUN: NO NC
• START: NO NC
• STOP: NO NC
• RESET: NO NC
• TONE: OFF ON
• START: SNGL REP
Reset Button: Pressing the Reset button is identical to activating the Reset input. The Reset
input is invalid if the timer is running or if the device is paused.
Pause Button: Pressing the Pause button toggles the Pause state. During the Pause state,
no inputs can be activated and the only button that works is the Pause button to toggle out
of the Pause state.

Lafayette Instrument Economy Clock/Counter
3700 Sagamore Pkwy N Lafayette, IN 47904 . Tel: [phone]
4
Inputs
Run: If the Run input is the initial input received, the unit will start timing for the duration of
the input. Each activation of the input will add to the count and continue the clock. The Start
and Stop inputs will be ignored until a Reset command is received.
Start: If a Start input is the initial input received, the unit will start timing until a Stop input is
received. During the timing or after it has stopped, the Run input will add an additional count.
Stop: The Stop input is used to stop the timer if Start was used as the initial input.
NO (Normally Open): The input is activated when it is connected to ground.
NC (Normally Closed): The input is activated when it is disconnected from ground.
TONE: If ON, whenever the Run input is activated, a tone will sound for the duration of the
activation.
Start Options
SNGL: If Start is set to Single Mode (SNGL), then the Start and Stop inputs may only be used
once before the Reset command is received.
REP: If Start is set to Repeat Mode (REP), then the Start and Stop inputs may be used multiple
times before the Reset command is received. Each subsequent Start will continue the timer
where it left off.

Model 54060A Instruction Manual
www.lafayetteinstrument.com . [email protected] 5
Battery Exchange Instructions
1. Loosen/remove four (4) screws on underside of enclosure.
2. Gently separate top and bottom of enclosure.
3. Remove discharged battery; replace with new battery
4. Gently slide top and bottom of enclosure back together.
5. Insert/tighten four (4) screws on underside of enclosure.

Lafayette Instrument Economy Clock/Counter
3700 Sagamore Pkwy N Lafayette, IN 47904 . Tel: [phone]
6
Examples
Hole Type Steadiness Tester Settings
• RUN: NO NC
• START: NO NC
• STOP: NO NC
• RESET: NO NC
• TONE: OFF ON (either is acceptable)
• START: SNGL REP
Connect a Lafayette Instrument Model 32011 binding post to any ground port of the 54060A.
Connect the stylus to the run input port of the 54060A. Keep the default settings as all
contacts Normally Open. The data recorded will show the number of times the subject
touches the side of the hole and the total amount of time the subject is in contact with the
side of the hole.
Switchmat Settings
• RUN: NO NC
• START: NO NC
• STOP: NO NC
• RESET: NO NC
• TONE: OFF ON
• START: SNGL REP
For a 40 yard dash, connect the Lafayette Instrument Model 63516 black wire to any ground
port of the 54060A. Connect the red wire to the Start input of the 54060A. The Stop input on
the 54060A should be wired to the red binding post of the 63502IR, while the black binding
post of the 63502IR should be wired to any other ground port of the 54060A. When the
runner steps off of the switch mat, the clock begins to run until the runner initiates the Stop
input by crossing the designated line.

Model 54060A Instruction Manual
www.lafayetteinstrument.com . [email protected] 7
Notes
This page is left intentionally blank. Enter any user notes here for your convenience.

Lafayette Instrument Economy Clock/Counter
3700 Sagamore Pkwy N Lafayette, IN 47904 . Tel: [phone]
