Lafferty VC-1016 Installation instructions

Lafferty Equipment Manufacturing, LLC
Installation & Operation Instructions

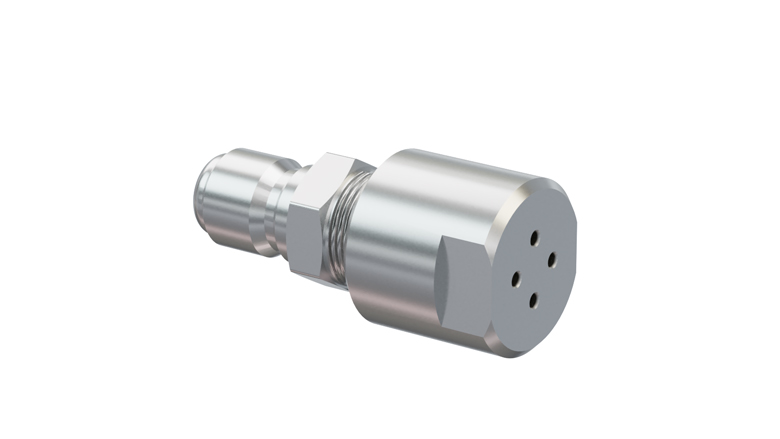

Model # VC-1016 · 4-Hole Nozzle W/ QD Plug
SPECIFICATIONS
Compatible with quick-disconnect socket for city water pressure
Compact Airless Foamers and Sprayers (and variants).
The 4-Hole Nozzle is strongly recommended for rinsing with the
stainless steel ball valve.
WEIGHT & DIMENSIONS
Single Package
Shipping Weight 1 lbs.
Shipping Dimensions 7" x 7" x 7"
www.laffertyequipment.com
501-851-2820
OVERVIEW
The 4-Hole Nozzle creates a powerful and focused water stream for effective rinsing. It quick connects to the stainless steel ball valve or standard garden hose gun
for any city water pressure Compact Airless Foamer or Sprayer.
W AR N I N G ! R E A D A L L
I N S T R U C T I O N S B E F O R E
U S I N G E Q U I P M E N T !
Lafferty Equipment Manufacturing, LLC • 5614 Oak Grove Road • North Little Rock, Arkansas 72118

VC-1016 • 4-Hole Nozzle W/ QD Plug
- Page 2 -

VC-1016 • 4-Hole Nozzle W/ QD Plug
- Page 3 -

VC-1016 • 4-Hole Nozzle W/ QD Plug
August 18th 2022 - Page 4 -
