Broadcaster 20 / 30X

User Manual

All contents of this manual, whose copyright belongs to our Corporation cannot be cloned, copied or

translated without the permission of the company. Product specifications and information which were

referred to in this document are for reference only. We may change, delete, or update any content at

any time and without prior notice.

=============================================================================

This is class A production. Electromagnetic radiation at specific frequencies may affect the image

quality of TV in home environment.

Catalogue

1Note............................................................................................................................ 1

2Packing List................................................................................................................ 1

3Quick Start.................................................................................................................. 2

4About Product............................................................................................................. 3

4.1 Features ................................................................................................................................3

4.2 Product Specification .............................................................................................................3

4.3 Interfaces and Buttons ...........................................................................................................4

4.4 Dimension..............................................................................................................................5

4.5 Remote Control......................................................................................................................5

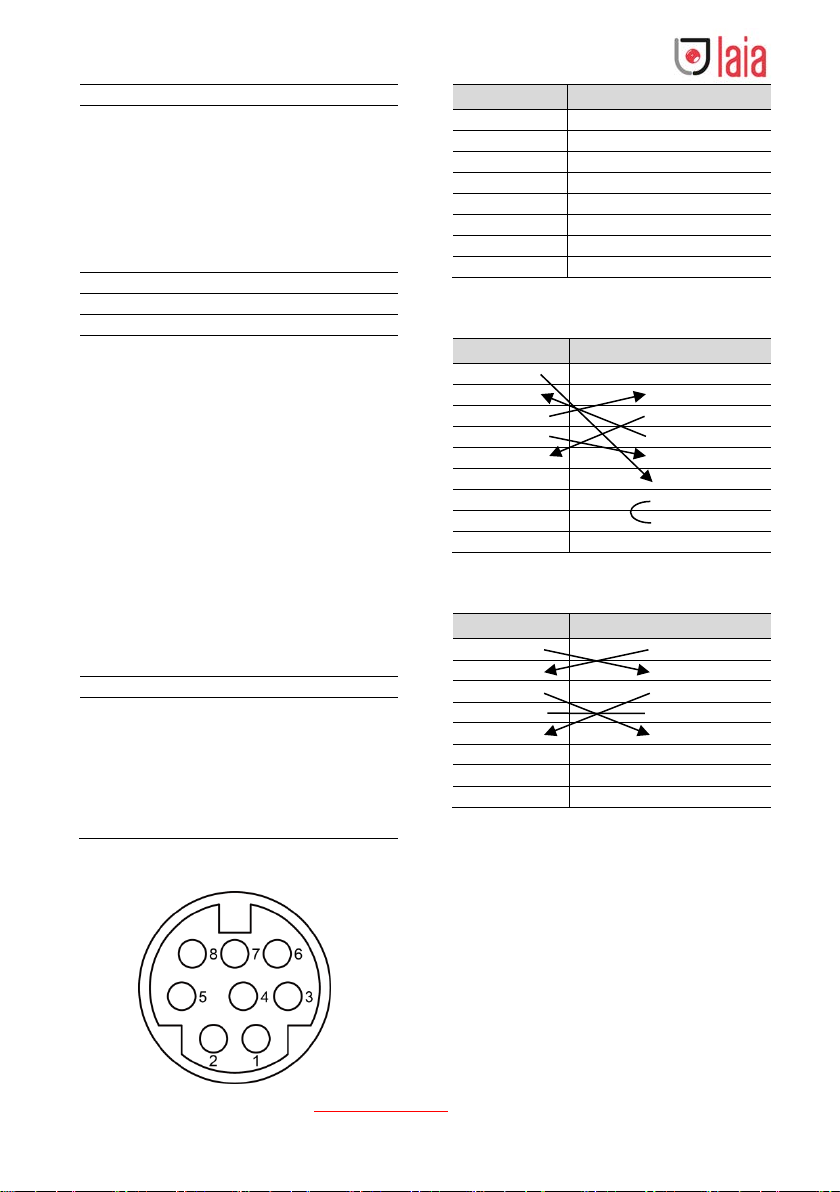

4.6 RS-232 Interface....................................................................................................................7

4.7 VISCA Network......................................................................................................................7

4.8 Serial Communication Control................................................................................................8

5GUI Settings............................................................................................................... 8

5.1 MENU....................................................................................................................................8

5.2 EXPOSURE...........................................................................................................................8

5.3 COLOR..................................................................................................................................9

5.4 IMAGE...................................................................................................................................9

5.5 P/T/Z....................................................................................................................................10

5.6 NOISE REDUCTION............................................................................................................10

5.7 SETUP.................................................................................................................................11

5.8 COMMUNICATION SETUP..................................................................................................11

5.9 RESTORE DEFAULT...........................................................................................................11

6Network Function ..................................................................................................... 12

6.1 Operating Environment ........................................................................................................12

6.2Equipment Installation..........................................................................................................12

6.3 Internet Connection..............................................................................................................12

6.4 IP camera controlled by LAN................................................................................................12

6.4.1 Setup IP address .....................................................................................................................12

6.4.2 Visit/Access IP Camera ...........................................................................................................12

6.5 IP Camera controlled by WAN..............................................................................................13

6.5.1 Setup IPC controlled by dynamic DNS....................................................................................13

6.5.2 Dynamic DNS visit camera......................................................................................................13

6.5.3 VLC stream media player monitoring......................................................................................13

6.6 IP Camera Parameter Setup ................................................................................................14

6.6.1 Homepage Introduction ...........................................................................................................14

6.6.2 Video Settings..........................................................................................................................16

6.6.3 Image Settings.........................................................................................................................17

6.6.4 Audio Settings..........................................................................................................................17

6.6.5 System Settings.......................................................................................................................18

6.6.6 Network Settings......................................................................................................................18

6.6.7 WiFi Settings............................................................................................................................19

6.6.8 Device Information...................................................................................................................19

6.7 Download the Network Upgrade Program.............................................................................19

7Maintenance and Troubleshooting ........................................................................... 20

1 Note

Electric Safety

Installation and operation must accord with

electric safety standard.

Use caution to transport

Avoid stress, vibration or soakage in transport,

storage and installation.

Polarity of power supply

The power supply of this product is +12V, the

max electrical current is 2A. Polarity of the

power supply plug drawing shows as below.

Installation Precautions

Do not grasp the camera lens when carrying it.

Don’t touch camera lens by hand. Mechanical

damage may be caused by doing so.

Do not use in corrosive liquid, gas or solid

environment to avoid any cover (plastic

material) damage. Make sure there is no

obstacle within rotation range.

Please never power on before installation is

completed.

Do not dismantle the camera

We are not responsible for any unauthorized

modification or dismantling.

Specific frequencies of electromagnetic field

may affect the image of the camera!

2 Packing List

When you unpack, check that all the supplied

accessories are included:

Name

Quantity

Camera

AC Power Adaptor

Power Cable

RS232 Cable

Remote Control

User Manual

3 Quick Start

1) Please check connections are correct before starting.

2) Connect the power adapter to the power connector on the rear panel of the camera. The power

indicator on the front panel of the camera is on.

3) After the camera is powered on, it starts to initialize, right up to the limit position, and then both

horizontal and vertical go to the middle position, the motor stops running, and the initialization

is completed.

(Note: If preset 0 is saved, PTZ will be move to preset 0)

4 About Product

4.1 Features

H.265 Encode

It supports H.265 encode, enabling transmit full

HD 1080p video stream by ultra-lowbandwidth.

1080P Full HD

Apply Panasonic's high quality HD CMOS

sensors of 1/2.7 inch, 2.07 million effective

pixels, so as to reach maximum 1920 x 1080

resolution and achieve quality image.

Ultra-high Frame Rate

The output frame rate up to 60fps in 1080P.

Multiple Interfaces

It supports HDMI, 3G-SDI interface, effective

transmission distance up to 150 meters (under

1080P30). HDMI, SDI, Network can output at

the same time. It also support CVBS interface.

30x Optical + 8x Digital Zoom

High quality super telephoto lens, it supports

30x optical zoom, and 8x digital zoom.

AAC Audio Encoding

Support AAC audio encoding, better sound

quality and smaller bandwidth.

Local Storage

Support U disk local storage, local recording

directly without NVR.

Low Light

The application of 2D and 3D noise reduction

algorithm greatly reduces image noise. Even

under the condition of ultra-low illumination, it

still keep the picture clean and clear, and the

SNR of image is as high as 55dB.

Remote Control

Through the RS232 and RS485 serial ports, the

camera can be controlled remotely.

4.2 Product Specification

Name Video Conference Camera

Camera

Signal System

HD: 1080p/60, 1080p/50,

1080i/60, 1080i/50,

1080p/30, 1080p/25,

720p/60, 720p/50,

720p/30, 720p/25

SD: 480i, 576i

Sensor

1/2.7 inch, CMOS,

Effective pixels: 2.07M

Scanning Mode Progressive

Lens

30x, f4.42mm ~ 132.6mm,

F1.8 ~ F2.8

Digital Zoom 8x

Minimum

Illumination

0.05 Lux @

(F1.8, AGC ON)

Shutter 1/30s ~ 1/10000s

White Balance

Auto, Indoor, Outdoor, One

Push, Manual, VAR

Backlight

Compensation

Support

Digital Noise

Reduction

2D & 3D Digital Noise

Reduction

Signal Noise

Ratio

≥55dB

Horizontal Angle

of View

60.7° ~ 2.28°

Vertical Angle of

View

34.1° ~ 1.28°

Horizontal

Rotation Range

±170°

Vertical Rotation

Range

-30° ~ +90°

Pan Speed

Range

1.7° ~ 100°/s

Tilt Speed

Range

1.7° ~ 69.9°/s

H & V Flip Support

Image Freeze Support

Local Storage Support

Number of

Preset

255

Preset Accuracy 0.1°

IPC Features

Video

Compression

H.264/H.265/MJPEG

Video Stream

First Stream,

Second Stream

First Stream

Resolution

1920x1080, 1280x720,

1024x576, 960x540,

640x480, 640x360

Second Stream

Resolution

1280x720, 1024x576,

720x576 (50Hz support),

720x480 (60Hz support),

720x408, 640x360,

480x270, 320x240,

320x180

Video Bit Rate 32Kbps ~ 20480Kbps

Bit Rate Type Variable Rate, Fixed Rate

Frame Rate 50Hz: 1fps ~ 50fps,

60Hz: 1fps ~ 60fps

Audio

Compression

AAC

Audio Bit Rate 96Kbps, 128Kbps,

256Kbps

Protocols

TCP/IP, HTTP, RTSP,

RTMP, ONVIF, DHCP,

Multicast, etc.

Input/Output Interface

Audio Interface

1 x LINE IN: 3.5mm Audio

Interface

CVBS Interface

1 x CVBS: 3.5mm RCA

jack, 1Vp-p, 75Ω

Communication

Interface

1 x RS-485: 2pin phoenix

port, Max Distance:

1200m, Protocol: VISCA /

Pelco-D / Pelco-P

1 x RS232 IN: 8pin Min

DIN, Max Distance: 30m,

Protocol: VISCA/ Pelco-D /

Pelco-P

1 x RS-232 OUT: 8pin Min

DIN, Max Distance: 30m,

Protocol: VISCA network

use only

Network

Interface

1 x RJ45: 10/100M

Adaptive Ethernet Ports

HDMI Interface 1 x HDMI: Version 1.3

3G-SDI

Interface

1 x 3G-SDI: BNC type,

800mVp-p, 75Ω. Along to

SMPTE 424M standard

USB Interface

1 x USB2.0: Type A female

jack

Power Jack JEITA type (DC IN 12V)

Physical Parameter

Input Voltage DC 12V

Current

Consumption

1.0A (Max)

Operating

Temperature

-10°C ~ 40°C

Storage

Temperature

-40°C ~ 60°C

Power

Consumption

12W (Max)

MTBF ＞30000h

Size 145.2 x 150.9 x 161.8mm

Net Weight 1.52Kg

4.3 Interfaces and Buttons

Item

Name

LINE IN Interface

CVBS Interface

System Select Switch

RS485 Interface

RS232 IN Interface

RS232 OUT Interface

Network Interface

HDMI Interface

3G-SDI Interface

USB 2.0 Interface

DC 12V Interface

Power Switch

4.4 Dimension

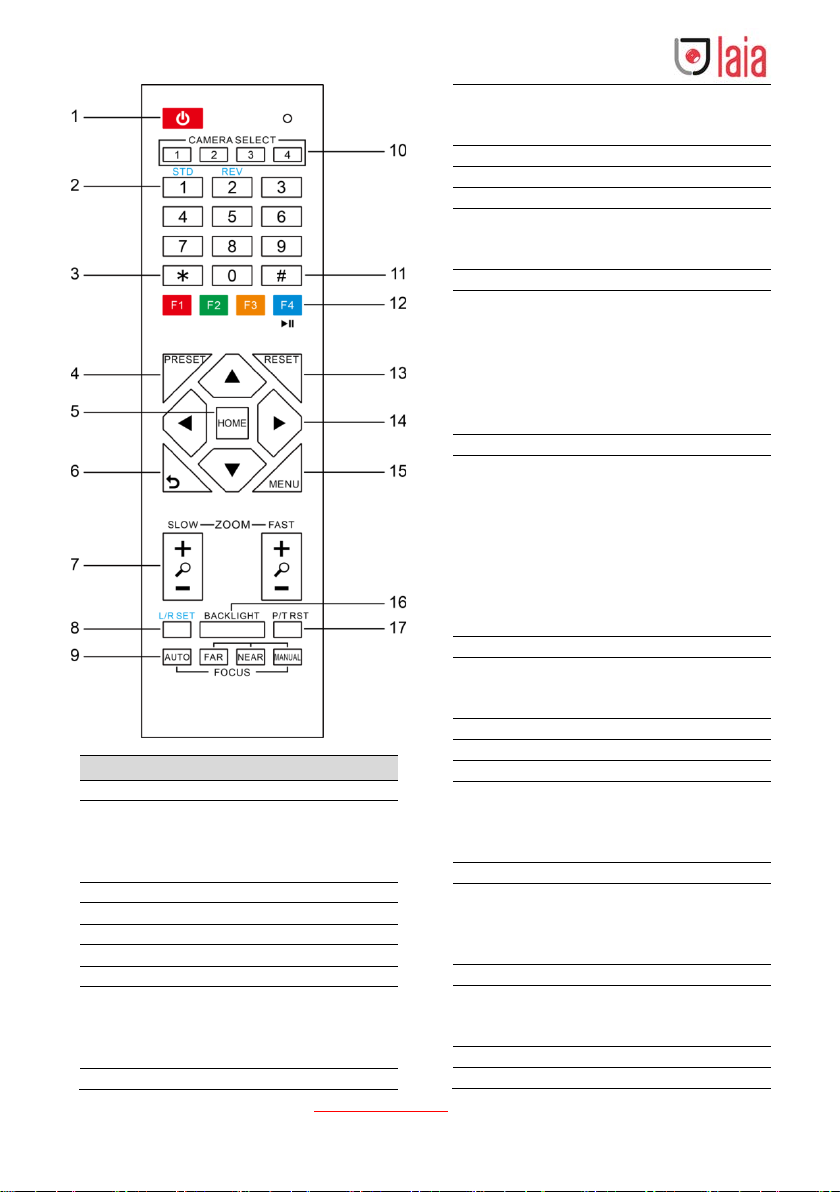

4.5 Remote Control

Key Description

1. Standby Key

Press this button to enter standby mode.

Press it again to enter normal mode.

Note: Power consumption in standby mode is

approximately half of the normal mode

2. Number Key

To set preset or call preset.

3. *Key

Used with other buttons.

4. Preset Key

Set preset: Store a preset position.

[SET PRESET] + Numeric button (0-9):

Setting a corresponding numeric key preset

position.

5. HOME Key

Confirm menu, enterthe submenu orthePTZ

will back to the middle position after pressed

6. Return Key

Return back the last level menu

7. Zoom Key

Slow Zoom: Zoom In [+] or Zoom Out [-]

slowly

Fast Zoom: Zoom In [+] or Zoom Out [-] fast

8. Left/Right Setting Key

Press with 1 buttons and2 buttons setting the

direction of the Pan-Tilt.

Simultaneously press L/R Set +1[STD]:

set the Pan-Tilt turn the same direction

as the L/R Set.

Simultaneously press L/R Set +2[REV]:

set the Pan-

Tilt turn the opposite

direction as the L/R Set.

9. Focus Key

Used for focus adjustment.

Press [AUTO] adjust the focuses on the

center of the object automatically. To adjust

the focus manually.

Press [MANUAL] adjust the focus on the

center of the object manual.

MANUAL button, and adjust it with [Far]

(Focus on far object) and [NEAR] (Focus on

near object).

10. Selection Key

Press the button corresponding to the

camera you want to operate with the remote

controller.

11. #Key

Used with other buttons.

12. IR Remote Control Key

[*]+[

＃

]+[F1]: Address 1

[*]+[＃]+[F2]: Address 2

[*]+[＃]+[F3]: Address 3

[*]+[

＃

]+[F4]: Address 4

13. Reset Key

Clear preset: Erase a preset position.

[CLEAR PRESET] + Numeric button (0-9)

Or: [*]+[#]+[CLEAR PRESET]: Erase all the

preset individually.

14. PTZ Control Key

Press arrow buttons to perform panning and

tilting. Press [HOME] button to face the

camera back to front.

15. Menu Key

MENU: enter or exit OSD MENU.

16. Backlight Key

BLC ON/OFF: Press this button to enable the

backlight compensation. Press it again to

disable the backlight compensation.

NOTE:

Effective only in auto exposure mode.

If a light behind the subject, the subject

will become dark. In this case, press the

backlight ON/OFF button. To cancel this

function, press backlight ON/OFF button.

17. PTZ Reset Key

Preset Pan/Tilt self-test.

18. Image Freezing Function

Manually freeze: Open the freezing function

after press the remote control [F4], display

“Freeze” on the left upper corner character,

after five

seconds display disappear

automatically. If you want to cancel the

freeze, press [F4] key and then can return to

normal, display “Unfreeze” on the left upper

corner, after five seconds display disappear

automatically.

Recalling the Preset image Freeze: By the

OSD Menu Setting “Recalling the Preset

image Freeze” function. After the function is

opened, the screen will stay in before

Recalling the Preset when Recalling the

Preset, the screen can be switched to the

preset position screen until the camera points

to the preset position.

19. Shortcut Set

[*]+[

＃

]+[1]: OSD menu default English

[*]+[＃]+[3]: OSD menu default Chinese

[*]+[＃]+[4]: Default IP address

[*]+[＃]+[5]: Save OSD

[*]+[＃]+[6]: Quickly recover the default

[*]+[＃]+[8]: Look the camera version

[*]+[

＃

]+[9]: Quickly set up inversion

4.6 RS-232 Interface

No.

Function

DTR

DSR

TXD

GND

RXD

GND

IR OUT

The correspondence between the camera and

Windows DB-9 pin:

Camera

Windows DB-9

1.DTR

1.CD

2.DSR

2.RXD

3.TXD

4.GND

4.DTR

5.RXD

5.GND

6.GND

6.DSR

7.IR OUT

7.RTS

8.NC

8.CTS

9.RI

The correspondence between the camera and

the Mini DIN pin:

Camera

Mini DIN

1.DTR

2.DSR

3.TXD

4.GND

5.RXD

6.GND

7.IR OUT

7.NC

8.NC

4.7 VISCA Network

This manual suits for next models

Table of contents

Other LAIA Security Camera manuals

LAIA

LAIA Follower User manual

LAIA

LAIA B&H User manual

LAIA

LAIA B&H PC PRO WIFI User manual

LAIA

LAIA CUTE 30X User manual

Popular Security Camera manuals by other brands

ADEMCO

ADEMCO RapidDome Owners Operating & Installation Guide

EverFocus

EverFocus EBA2880 user manual

Honeywell

Honeywell OptiCAM-IR Installation and setup guide

Uniq

Uniq UC-600 user manual

OPTICOM

OPTICOM NVD-120-S datasheet

Steren

Steren CCTV-221 instruction manual

Arm Electronics

Arm Electronics C420BCDNVFIR Features

Eneo

Eneo PLD-2036PTZ installation guide

Axis

Axis AXIS M20 Series installation guide

Panasonic

Panasonic KX-HCM230 operating instructions

COP-USA

COP-USA CC15NV-SL Specifications

Active Silicon

Active Silicon HARRIER H.264 quick start guide

Motorola

Motorola Avigilon 1.3C-H5SL-BO1-IR installation guide

INSTEON

INSTEON 2864-232 user manual

Wisenet

Wisenet XNB-6002 quick start guide

Axis

Axis M5525-E user manual

Vitek

Vitek VTC-IR62NZ922 user guide

Panasonic

Panasonic WV-SF342 Specifications

LAIA Broadcaster 30X User manual

Popular Security Camera manuals by other brands
