Lake Lite LL-REG-12v-5A-PB User manual

Worlds Most Advanced Solar Charge Regulator/Conditioner
Solar Charging Systems exposed to extreme weather/environmental conditions
(boat lifts, telecom, navigation buoys, etc.) have increased risk for damage in the
power electronics. In order to assure reliable battery charge control under such
conditions, this controller is fully encapsulated and (IP68) to prevent corrosion or
water damage.
This industrial-grade charge regulator is suitable for all practical PV applications.
Equipped with Lake Lite's innovative IARS Technology, makes this the worlds first
fully functional charge controller that can recover from any battery scenario. Unlike
the competition, IARS – Technology ensures the controller can WAKE UP in the
event of battery voltages dropping below normal levels from sub-par charging
conditions or in the event of a dead battery. This advance technology ensures the
regulator will ALWAYS work in any condition!
Advanced 3-stage charging process keeps your battery in top shape. Unlike other
regulators, Lake Lite's innovative design utilizes a microprocessor to fully monitor
the batteries SOC (State of Charge). Furthermore, advanced technology can
measure OFF-LINE battery voltage to become the worlds first controller to charge
a battery to its maximum potential. Yes, this regulator will actually condition your
battery up to 100% charge! A fully charged and conditioned battery means
increased battery life and performance!
A user convenient green LED indicates the charging status and condition of the
battery while a multi-color Red-Orange-Green LED indicates the battery level to
determine if the regulator is functioning properly.
For further information and specifications please contact us.
Solar Underglow: Model: LL
-SDL-UG-X
Description
Solar Charge Regulator
MODELS: LL-REG-12v-5A-PB
Rugged Aluminum Housing Charge Conditioning 12v Lead Acid Batteries
Overcharge Protection IP-68 Water Proof Charge Status LED
Max Solar Power: 60w Max Solar Input 5A IARS – Technology
Micro Processor Control Reverse Polarity Protection Lighting Protection
Works with All Lake Lite 12v Solar Panels or Solar Panels UP to 60 watts
LL-SP-5w-12v LL-SP-10w-12v
LL-SP-15w-12v LL-SP-20w-12v
LL-SP-20w-12v-ROUND LL-SP-30w-12v
All other Lake Lite 12v Charging panels below 60watt or 4A output: (36-cell Panels for charging 12v Batteries)
Note: 36-cell panels typically have a open circuit voltage or unloaded voltage of 18v – 23v
12v SOLAR
PANELS 12v
BATTERY
Charging LED
Indicator
Battery LED
Indicator
Lake Lite Inc.
105 W Simon St
Laotto, IN 46763
Phone: [phone]
Fax: [phone]
E-mail [email protected] www.lakelite.com

Red Male
Red Female
Black Male
Black Female
Red Female
Red Male
Black Male
Black Female
Red Female
Black Male
12v REGULATOR
+
-
12v BATTERY
Connector for use
without regulator
12v Solar Module (Maximum 5A)
BATTERY Using with
Regulator
Extension
Wire
Note: Regulator Required for
solar wattages higher than 10w
Charging Status LED
Battery Status LED
1 2 3 4
+ 1 4
Wire Connection Order Also OK
12v Systems
NEW Watch
Online Video
OR
Lake Lite Inc.
105 W Simon St
Laotto, IN 46763
Phone: [phone]
Fax: [phone]
E-mail [email protected] www.lakelite.com
Solar Charge Regulator
MODELS: LL-REG-12v-5A-PB

Lake Lite Inc.
105 W Simon St
Laotto, IN 46763
Phone: [phone]
Fax: [phone]
E-mail [email protected] www.lakelite.com

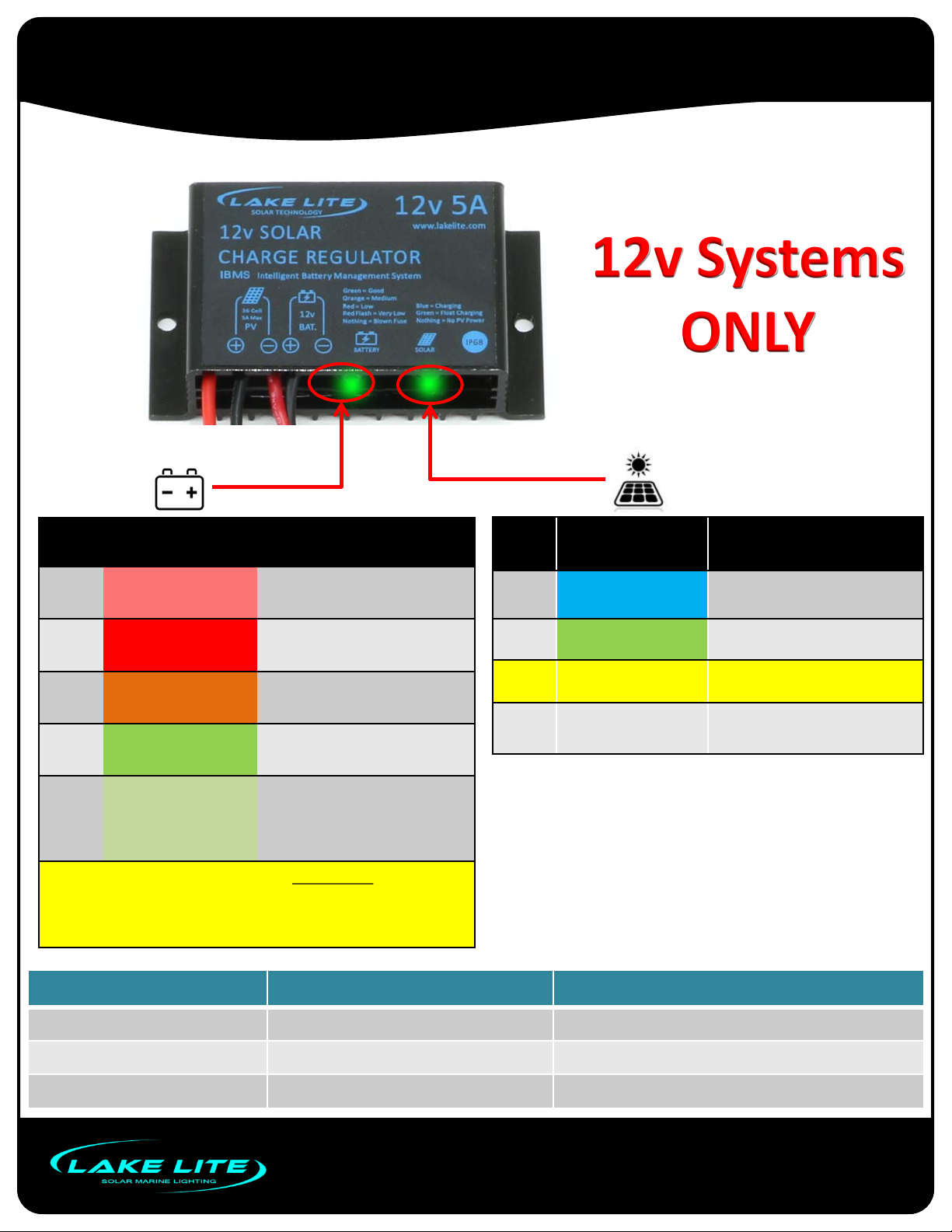

TIME LED COLOR DESCRIPTION
Any Red-Slow-Flash Extremely Low Battery
Level - Do NOT use battery
Any Red-Constant On Very Low Battery Level –
Limit Battery Use
Any Orange-Constant-
On
Medium Battery Level –
Charge Battery
Any Green-Constant-
On High Battery Level – Good!
ANY Green-Slow-Flash
Over Voltage Detected:
Regulator will correct back to
Green-Constant to protect
battery:
ANY OFF
Blown Fuse and or No
Battery Detected
Replace Fuse or Connect
Battery
Reverse Battery Reverse Solar Panel System Result
YES NO Fuse will be Blown – (Correct & Replace Fuse)
NO YES NO CHARGING – (Correct Solar Connection)
YES YES Fuse will be Blown – (Correct & Replace Fuse)
12v Systems
ONLY
Solar Charge Regulator
MODELS: LL-REG-12v-5A-PB
TIME LED COLOR DESCRIPTION
DAY BLUE - CONSTANT (Charging) Fast Charging or
Bulk Charging
DAY GREEN-CONSTANT Float Charging
DAY OFF Check Solar Panel (Shorted / Bad or
No Connection / Bad Diode)
NIGHT OFF Solar Panel is NOT Charging

Troubleshooting & Wiring Diagrams for DC Boat Lift Systems
Connecting
Mounting
1. Connect controller to battery
2. Connect controller to solar panel
NOTE: Order of connection is not important. System will automatically correct itself.
Expose Solar Panel to Light & Dark to confirm system is working correctly. Check that the
GREEN LED turns on when solar panel is exposed to sunlight.
PRE-CHECK #1: Connect Regulator to Solar panel to confirm Charging Status LED Turns
On (Battery is NOT yet connected)
PRE-CHECK #1: Connect Regulator to Battery to confirm Battery Status LED Turns On.
(Solar Panel NOT Connected)
NOTE: If both Pre-Checks are OK Regulator is functioning correctly unless the Battery
Status LED is constantly blinking slow-green: if this persist regulator is damaged.
1. Use necessary hardware to mount controller
2. Controller should be mounted near battery or inside battery box.
For more information & wiring diagrams for installation on DC boat lift
systems please visit: http://lakelite.com/wirediagrams.html
Or download PDF wiring diagram: http://lakelite.com/wirediagrams.pdf
Lake Lite Inc.
105 W Simon St
Laotto, IN 46763
Phone: [phone]
Fax: [phone]
E-mail [email protected] www.lakelite.com
Solar Charge Regulator
MODELS: LL-REG-12v-5A-PB

Owner Registration Card
Please fill out and affix proper postage and return this owner
registration card within 10 days to insure that your new Regulator is
covered by the limited warranty.
Purchaser’s Name .
Address .
State .Zip .
Purchase Date: .Number of Units: .
Where Purchased (Store Name): .
Model No. LL-REG-12v-5A-Pb-v3
UPC No. Varies On Different Models
Lake Lite Inc.
105 W Simon St. Laotto, IN 46763
Lake Lite Inc. 1-Year Limited Warranty
The retailer warrants the Solar Regulator to be free from defects in workmanship and material
present at time of shipment from the factory for a period of one year after the date of purchase by
the original purchaser.We agree to correct such defects without charge or at our option replace
with a comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copyof the receipt as proof of purchase. All costs of removing and
reinstalling the product are you responsibility. Damageto any part such as by accident or misuse
or improper installation or by affixing any accessories, is not covered by this warranty. There is no
other express warranty. The retailer hereby disclaims any and all warranties, includingbut not
limited to, those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty, which cannotbe disclaimed, is limited to the time
period as specified in the express warranty. Some states do no allow limitation on how long an
implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be
liable for incidental, consequential, or special damages arising out of or in connectionwith
product use or performance except as may otherwise be accorded by law. Some states do not allow
the exclusion of incidental or consequential damage, so the above exclusion or limitation may
apply to you. This warranty gives specific legal rights, and you may also have other rights, which
vary from state to state. This warranty supersedes all prior warranties.
Lake Lite Inc.
105 W Simon St
Laotto, IN 46763
Phone: [phone]
Fax: [phone]
E-mail [email protected] www.lakelite.com
20mm
190mm
ø4mm
ø10mm
SOLAR INPUT
CONNECTOR
Battery
Negative
Battery
Positive
DIMENSIONS
Solar Charge Regulator
MODELS: LL-REG-12v-5A-PB
66mm
45mm
8mm
82mm
190mm
490mm
