Lake Lite LL-SPL-PAG-WBA-v1 User manual

SOLAR PAGODA LITE
MODEL: LL-SPL-PAG-WBA-v1
35*
Lumens
Lake Lite Inc.
100 Industrial Dr.
Avilla, IN 46710
Phone: [phone]
E-mail [email protected]
Website www.lakelite.com
LIGHT CHARACTERISTICS
Light Source 2-Ultra-High intensity Cree XBD LED
(White/Amber/Blue)
Lumens output 3/7/12/17/23/28/35 *Varies with Color &
Power / Brightness Settings
Available LED Colors White, Amber & Blue
Light Mode Options Constant
Visible Range 0.1-0.5 Nautical Mile *Varies with LED color
& Brightness Settings
Horizontal Output (degrees) 360°
Vertical Divergence (degrees) 100-180°Various with Mounting
LED Life Expectancy (hours) > 100,000 hrs
ELECTRICAL CHARACTERISTICS
Circuit Protection Integrated
Nominal Voltage (v) 3.2v
Autonomy (hours) 6-24hrs *On full Charge * Varies With
Brightness Settings & Conditions
Temperature Range 14 to 158°Fahrenheit
SOLAR CHARACTERISTICS
Solar Module Type Multicrystalline or Monocrystalline
Power (watts) 0.6w
Solar Module Efficiency (%) 16-17%
POWER SUPPLY
Battery Type High Capacity LiFePo4 18500 1000mA
Battery Size 18500
Battery Capacity (mAh) 1000mA
Nominal Voltage (v) 3.2v
Battery Service Life 1-3 years (Varies with local Environment)
Battery Service Access Yes: User Changeable / Replaceable
PHYSICAL CHARACTERISTICS
Body Material Marine Grade Aluminum + Powder Coat
Lens Material UV-Stabilized Polycarbonate
External Lens Design NA
Internal Lens design NA
Water Proof Rating IP 68
Mounting Fits on Pilings or flat surfaces 5” diameter
and Larger
Height 9.75”
Width / Diameter 10”
Weight 4.0 lbs
OPTIONS
Custom Options, Sizes, & Colors Please Contact
Custom Hardware & Mounting Please Contact
* Informationsubject tochange without notice
SOLAR PAGODA LITES
The Solar Pagoda Piling Light provides the classic
Florida dock appearance without electrical
wires. A super bright LED illuminates the fixture
to provide a soft, ambient glow that is not
blinding at eye level.
Our new patented magnet technology allows
a quick change of LED intensity for adjustment
of the 7-brightness settings. Fast and simple
brightness setting for seasonal weather
conditions. Available in white powder coat finish
with White, Blue or Amber LED.

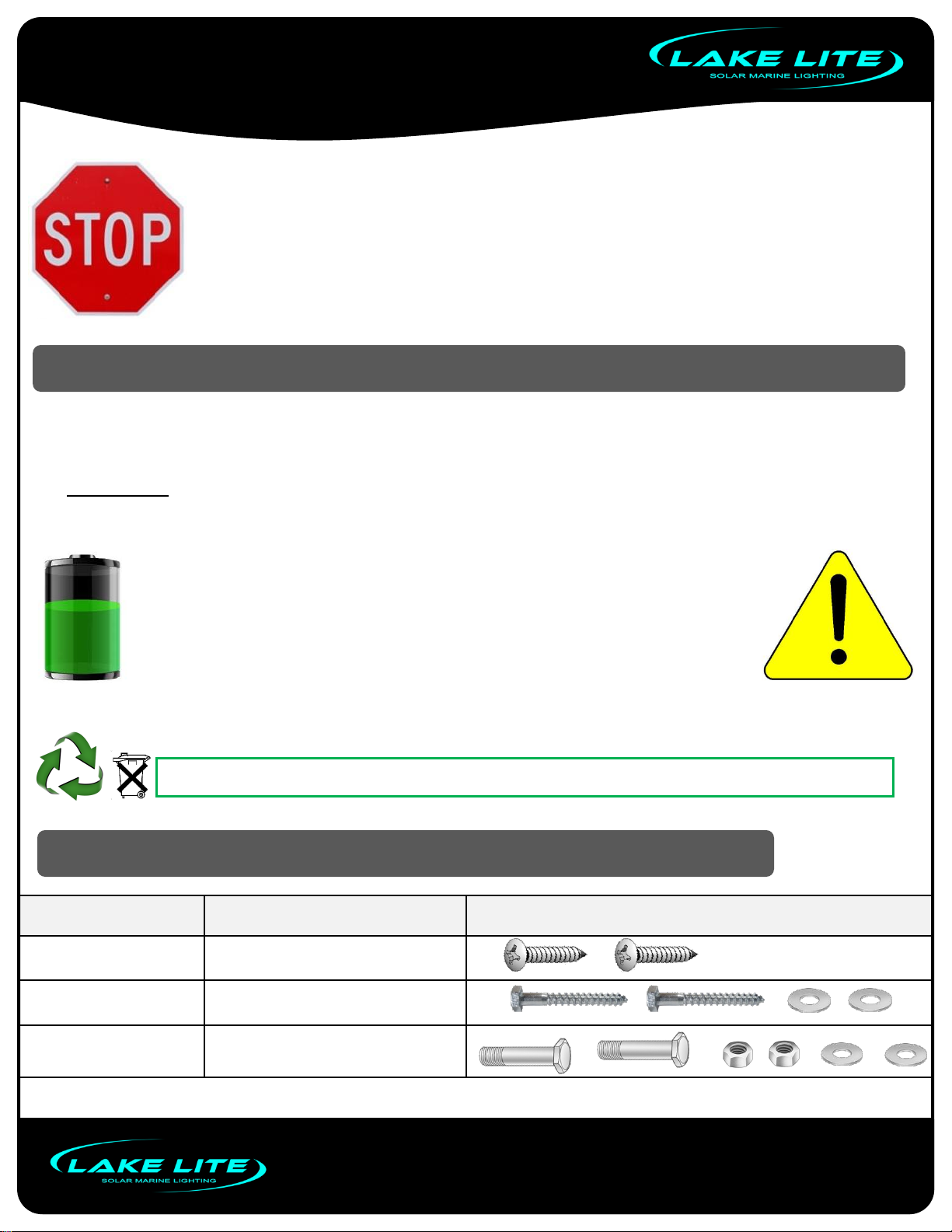

CAUTION: PLEASE KEEP OUR ENVIORNMENT CLEAN! BATTERIES MUST BE RECYCLED OR DISPOSED OF PROPERLY.
Installing Batteries & Cover
Mounting Hardware Suggestions –Not Included
Mount
Type
Hardware
Stainless Steel Recommended
No Through Hole Screws x Desired Length
No Through Hole Lag Bolts & Washers x Desired Length
Through Hole Bolts + Nuts + Washers x Desired Length
LiFePo4 Type Battery:
Volts: 3.2v Cell Size: 18500 Capacity: 1000mA
DO NOT USE: standard 1.2v NiMh or NiCd type Rechargeable
batteries or they will be damaged!
Caution! When plugging battery connectors
together, align notches before connecting both
connectors. Failure to do so could result in
permanent damage to the light.
Battery Information
BATTERY MAINTENANCE & STORAGE
For prolonged storage when NOT using or storing the product please follow these procedures.
1. Charge Batteries inside product on sunny day
2. Before Nightfall Disconnect the battery from the product
3. Store Battery and Product in warm/dry location.
4. Note: Batteries can be damaged from sub-zero temperatures when not in use.
5. Note: Batteries will be fully depleted and damaged if not disconnected before long term storage.
SOLAR PAGODA LITE
MODEL: LL-SPL-PAG-WBA
Lake Lite Inc.
100 Industrial Dr.
Avilla, IN 46710
Phone: [phone]
E-mail [email protected]
Website www.lakelite.com

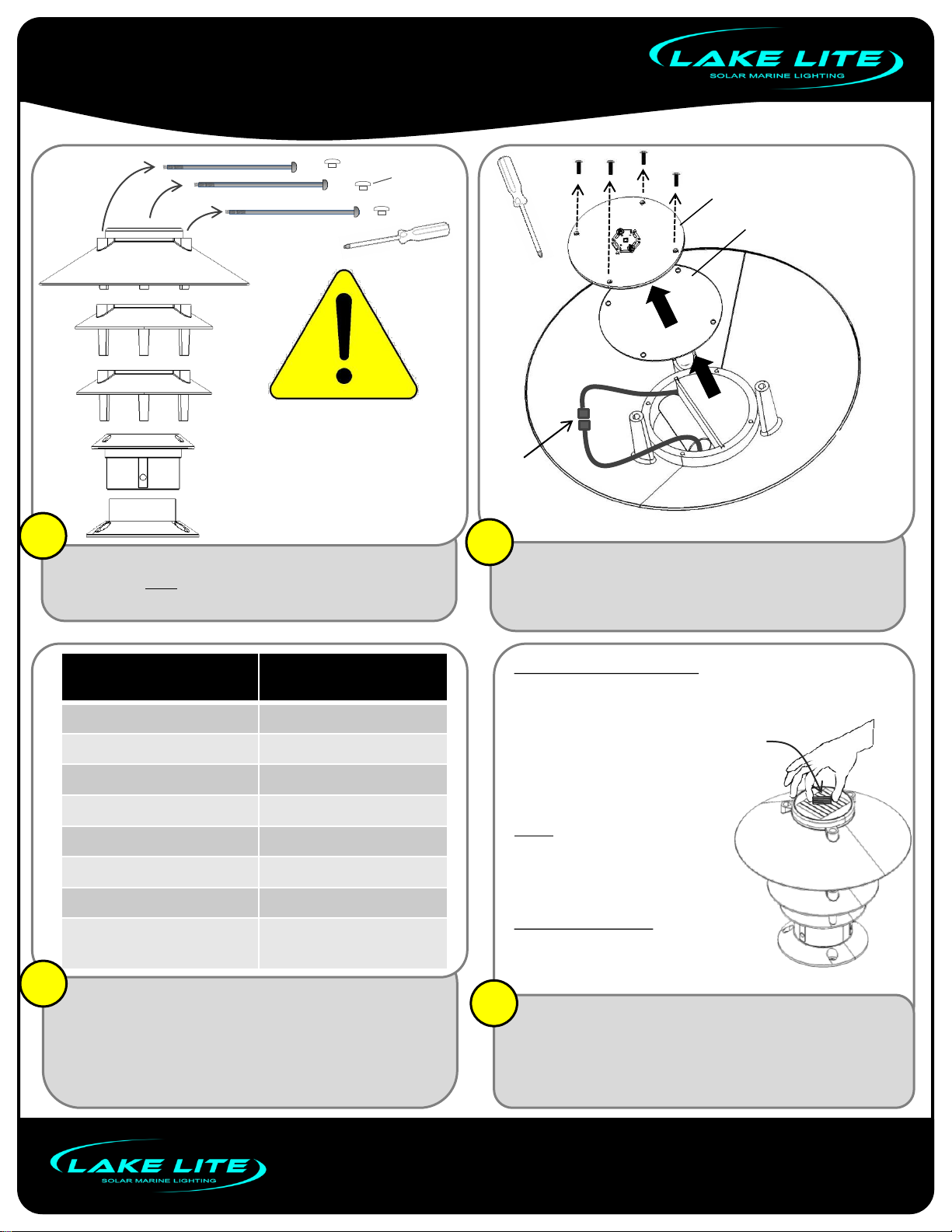

Use a screw driver to separate your light fixture. The
battery is NOT connected when shipped. You must
connect battery in order for the product to function.
Use screw driver to remove cover & silicone pad.
Connect Battery & LED.
Tuck wires neatly so they do not obstruct the silicone pad.
Reassemble silicon pad and cover and tighten securly.
Battery
Connector
12
SOLAR PAGODA LITE
MODEL: LL-SPL-PAG-WBA
Screws
Screw Covers
TOP
Level 2
Level 1
Base
Mount
You MUST open the
light and connect
the battery for the
product to function
Cover & LED
Silicone Pad
Change brightness/power level at night by waving the
magnet over the solar panel
Holding the magnet for 5-seconds in the activation area
will change to the next LED color. You may then change
between brightness/power levels on that LED color.
Power
Setting
* Run
Times
100% 6-8 hrs
80% 7-9 hrs
65% 10-12 hrs
50% 13-14 hrs
35% 15-17hrs
20% 17-22 hrs
OFF OFF
Holding for 5-seconds Changes LED color
* Note: Run times will vary significantly based on;
Seasonal Sun Angle, Sun Exposure, Geographic
Location, Shading, Installed Location/Position, Battery
Condition, Brightness Setting, etc… The following run
times should only be used as a general reference and
are not guaranteed. Consider your local environment.
34
NEW MAGNET
SWITCH OPERATION
CHANGING BRIGHTNESS LEVELS
Wave the magnet over the solar
panel at night until you find the
activation area which changes
the brightness level.
Make a quick up & down motion
over this area to change between
brightness levels and OFF.
NOTE: moving too slowly may
activate the magnet switch
multiple times going through
multiple levels at once. A quick
motion will help!
CHANGING LED COLORS
Hold the magnet over the
activation area for 5 seconds
until the LED color changes
Magnet
Lake Lite Inc.
100 Industrial Dr.
Avilla, IN 46710
Phone: [phone]
E-mail [email protected]
Website www.lakelite.com

Use the provided screws to secure the silicone pad and
cover. Fully tighten screws to ensure the chamber is water
proof. Make sure wires are not obstructing the silicone pad.
Place light onto piling and mark holes. Drill small pilot holes
in piling with drill bit. Use screwdriver to secure the light to
your piling with mounting screws –Not Included
Verify that silicone screw caps are in place.
Verify that the base of the light is secured to the piling.
Verify the set screw holding the light to base is tight.
78
Use the long screws to assemble the light fixture.
The lens is optional: With lens the pagoda will illuminate
more. Without the lens more light will escape outward.
Silicone Pad
Battery
TOP
56
MouMounting Screws
SOLAR PAGODA LITE
MODEL: LL-SPL-PAG-WBA
Wood Piling
Screwdriver
Wood Piling
Cover with LED
Screws
Screw Covers
TOP
Level 2
Level 1
Base
Mount
Lens
Lake Lite Inc.
100 Industrial Dr.
Avilla, IN 46710
Phone: [phone]
E-mail [email protected]
Website www.lakelite.com

Owner Registration Card
Please fill out and affix proper postage and return this owner
registration card within 10 days to insure that your new Solar Pagoda
Light is covered by the limited warranty.
Purchaser’s Name .
Address .
State . Zip .
Purchase Date: . Number of Lights: .
Where Purchased (Store Name): .
Model No. LL-SPL-PAG-WBA-v1
UPC No. Varies On Different
Models Lake Lite Inc.
100 Industrial Dr.
Avilla, IN 46710
Lake Lite Inc. 1-Year Limited Warranty
The retailer warrants the Solar Lite to be free from defects in workmanship and material present at
time of shipment from the factory for a period of one year after the date of purchaseby the
original purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty service,
you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling
the product are you responsibility. Damage to any part such as by accident or misuse or improper
installation or by affixing any accessories, is not covered by this warranty. There is no other
express warranty. The retailer hereby disclaims any and all warranties, including but not limited
to, those of merchantability and fitness for a particular purpose to the extent permitted by law. The
duration of any implied warranty, which cannot be disclaimed, is limited to the time period as
specified in the express warranty. Some states do no allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for
incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion
of incidental or consequentialdamage, so the above exclusion or limitation may apply to you.
This warranty gives specific legal rights, and you may also have other rights, which vary from
state to state. This warranty supersedes all prior warranties.
Dimensions = mm
Ø xxxmm
Ø xxx mm
Xxx mm
Xxx mm
SOLAR PAGODA LITE
MODEL: LL-SPL-PAG-WBA
Ø xxxmm
Ø xxmm
Xxx mm
Ø xcxxmm
Ø xxxc
Ø xx
Ø xxxx
∅253mm
∅90mm
∅253mm
∅7mm
∅125mm
∅150mm
130mm
253mm
∅150mm
∅150mm
∅125mm
245mm
