LAMAR Universal U325 User manual

FIRST EDITION
A
A
ASSEMBLY
SSEMBLY
SSEMBLY I
INSTRUCTIONS
NSTRUCTIONS /
/ O
O
OWNERS
WNERS
WNERS M
MANUAL
ANUAL
Part No. 06042 Revision: ADate: 6 /05
U
UNIVERSAL NIVERSAL U325 U325
R
RECUMBENT
ECUMBENT E
EXERCISE
XERCISE
BIKE
BIKE
SERIAL NO. _______________________________________ PURCHASE DATE:_________________

IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of injury, please read the following precautions before assembling or using your new product.
1. It is the responsibility of the owner to ensure that all users of this equipment are adequately informed of stated precautions.
2. Read all instructions and enclosed literature carefully. Understand the assembly and operation before using the equipment.
3. Use equipment on a flat level surface. Use adjustment levelers on the bottom of equipment to help stabilize unit.
4. It’s recommended to place an exercise / product mat beneath the equipment for added protection of floors or carpets.
5. Keep children & pets away from equipment at all times. Unplug equipment for added safety while not in use.
6. Inspect product on a frequent basis. Tighten loose assemblies or hardware as needed. Replace worn or damaged parts.
7. This equipment is intended for internal home use only. Do not use in a non-residential environment.
8. Use in non-recommended environments can lead to serious injury and will void all related warranties & liabilities.
9. Recommended user weight should not exceed 300 lbs.
10. Frequently wipe equipment down with a dampened soft cloth.
11. Observe and adhere to all warning labels posted on equipment.
12. Properly warm-up and stretch before starting any strength training or cardio exercise routine.
13. If you feel pain or dizziness at any time while exercising, stop immediately and consult your physician.
Safety Warning: Before starting an exercise program, consult your physician. This is especially important for individuals over the age of 35
or persons with pre-existing health problems. It’s important to read all instructions carefully. We assume no responsibility for personal in-
jury or consequential damages sustained by or through the use of this equipment. Additional terms & conditions are listed in the back of this
manual or enclosed owners manual.
PAGE 1 TABLE OF CONTENTS
Reference Information Page
Hardware Reference Chart 2
PartsListing 3
ProductExplodedView 4
AssemblyPreparation 5
Product Assembly Instruction 6-11
Computer Operation 12-14
Troubleshooting 15
Preventative Maintenance 16
WarrantyTerms 17
ProductRegistration 18

ASSEMBLY HARDWARE REFERENCE PAGE 2
NOTE: Most of the listed assembly hardware has been packaged separately, but some hardware items have been preinstalled in theidentified
assembly parts.In these instances, simply remove and reinstall the hardware as assembly is required. Please reference the individual assembly
steps and make note of all preinstalled hardware.
HARDWARE PACK #1
HARDWARE PACK #2
#26 CARRIAGE BOLT
#26 CARRIAGE BOLT
#27 FLAT WASHER
#27 FLAT WASHER
#28 ACORN NUT
#28 ACORN NUT
#29 TRUSS HEAD BOLT
#27 FLAT WASHER #27 FLAT WASHER
#30 TRUSS HEAD BOLT
#30 TRUSS HEAD BOLT
#27 FLAT WASHER
#32 ALLEN BOLT
#33 SPRING WASHER
#34 FLAT WASHER
SCREWDRIVER / WRENCH COMBO
ALLEN WRENCH
#16 MOUNTING CLAMP
FRONT STABILIZER
REAR STABILIZER
SEAT PAD
SEAT BACK PAD
ASSEMBLY TOOLS
HANDLEBAR ASSY. H-HANDLEBAR

PARTS REFERENCE
U325 Assembly Parts Listing
Item # Part Number Description QTY.
1 23062 Main Base Assembly 1
2 23065 Front Stabilizer Assembly 1
3 23066 Rear Stabilizer Assembly 1
4 05014 Left Pedal 1
5 05014 Right Pedal 1
6 03060 Seat Pad 1
7 03059 Seat Back Pad 1
8 05178 Seat Back Adjustment Knob 1
9 13002 Handlebar Assembly 1
10 13087 Adjustable Seat Back Frame 1
11 13088 Seat Slider 1
12 05001 Seat Slider Adjustment Knob 1
13 23017 Handlebar Mast 1
14 03012 Handlebar (H-shaped) 1
15 07054 Mounting Cover 1
16 13019 Handlebar Mounting Clamp 1
17 10015 Computer 1
18 12007 Upper Heart Rate Sensor Cable 1
19 12055 Lower Heart Rate Sensor Cable 1
20 12011 Upper Data Cable Assembly 1
21 12056 Lower Data Cable Assembly 1
22 12057 Heart Rate Cable (Seat Rail) 1
23 31001 Bottle Cage 1
24 31000 Sports Bottle 1
25 14001 AC Adapter 1
26 01062 Carriage Bolt M8 x 1.25 x 55 Length 4
27 01012 Flat Washer 8 x 16 x 2t 16
28 01015 Acorn Nut M8 4
29 01001 Truss Head Socket Bolt 4
30 01003 Truss Head Socket Bolt 12
31 01049 Curved Washer 8 x 19 x 2t 4
32 01039 Allen Bolt M7 x 1.0 x 30 Length 2
33 01056 Spring Washer 7 x 2t 2
34 01052 Flat Washer 7 x 12 x 1t 2
35 01041 Truss Screw (Computer Mounting) 4
36 01043 Truss Screw (Sports Bottle Mounting) 2
37 01355 Leveler 2
38 01016 Hex Nut 2
NOTE: Most of the listed assembly hardware has been packaged separately, but some hardware items have been preinstalled in theidentified
assembly parts.In these instances, simply remove and reinstall the hardware as assembly is required. Please reference the individual assembly
steps and make note of all preinstalled hardware.
PAGE 3

EXPLODED VIEW PAGE 4
11
17
14
15
1 10
13
6
7
16
2
3
4
U325 Assembly Parts
AC Power Adapter
Customer Service 1-877-861-2181
22
24
23
32 33 34
30
27
29
27
30
27
36
35
25
30
31
18
19
20
21
12
9
5
28
27
26
8

ASSEMBLY PREPARATION / INTRO
PAGE 5
PRODUCT PREPARATION
♦ To ensure ease of product assembly, please take time to verify the size and quantities of all required
assembly hardware. Use the itemized parts listing and hardware chart for reference.
♦ The product assembly process has been documented in easy to follow stages. Please read all assembly
instructions carefully. Take time to review the manual and familiarize yourself with the entire assembly
process before proceeding. Assembly Tip: It is always helpful to pre-stage the items needed for each
assembly step.
♦ Perform product assembly in a 4ft. x 6ft. flat area. Note: After assembly is completed, allow a minimal of
2-3ft. of space on each side of bike for user access.
♦ Do not dispose of any packaging materials until assembly of the product is completed.
♦ Assembly tools are included, but you may also use standard (similar) household tools to complete
assembly of this product.
♦ If you experience problems with operation of the equipment after assembly, please reference the
troubleshooting guide in the back this manual.
♦ For added component life, follow the preventative maintenance tips listed in this manual.
♦ Make sure to completely fill-out the product registration form & return it to us within 30-days of purchase.
♦ Please contact us if you have additional questions or need service assistance (877.861.2181)

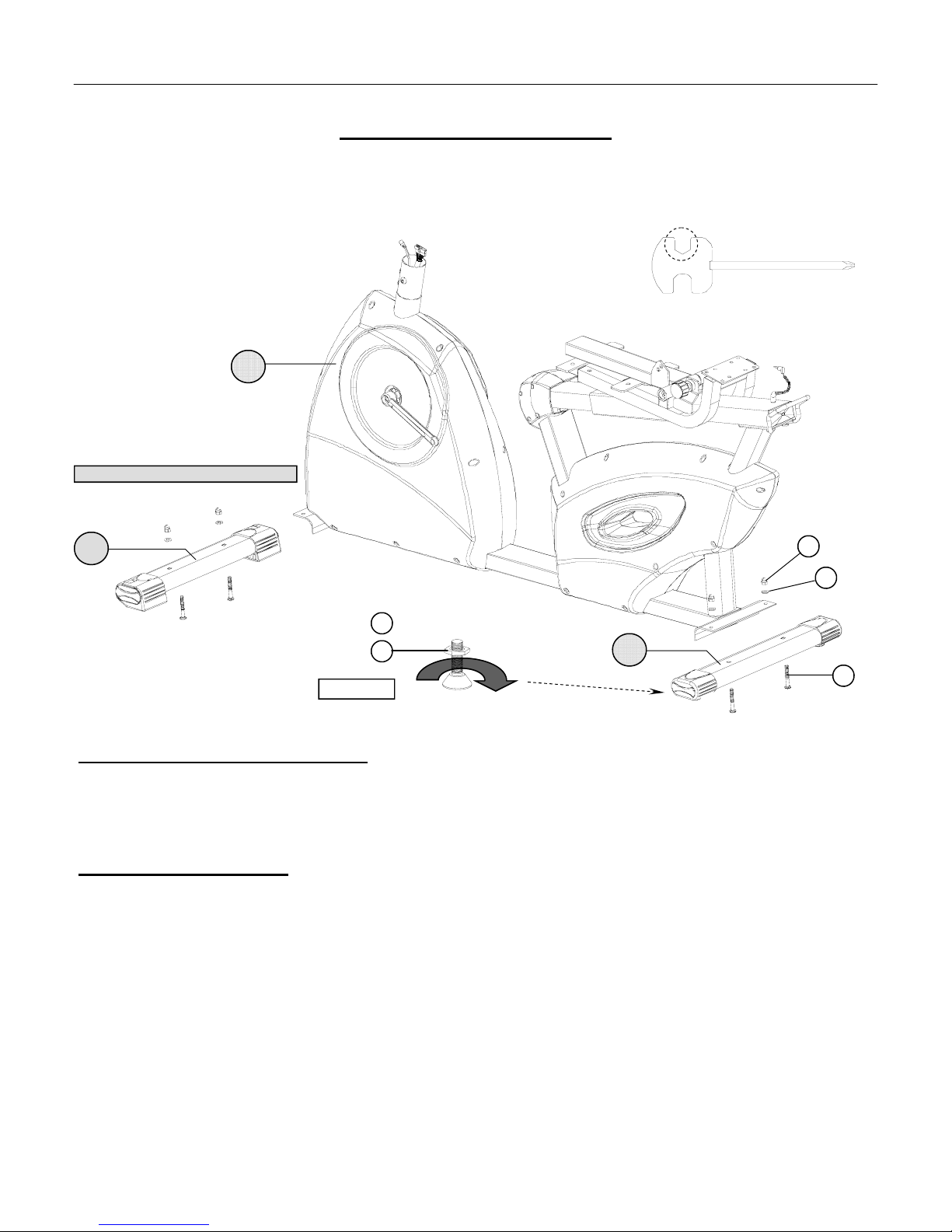

ASSEMBLY STAGE #1
Attach StabilizerAssemblies to the Base Assembly
Assembly Hardware Required: (Reference enclosed hardware pack).
#26 Carriage Bolt Qty. 4 #28 Acorn Nut Qty. 4
#27 Flat Washer Qty. 4
Assembly Description:
A) Securely fasten the Front Stabilizer Assembly (#2) to the Base Assembly (#1) using 2-Carriage Bolts (#26),
2–Flat Washers (#27), and 2-Acorn Nuts (#28). Note: The transport wheels should be facing outward..
B) Securely fasten the Rear Stabilizer Assembly (#3) to the back of the Base Assembly (#1) using 2-Carriage Bolts
(#26), 2–Flat Washers (#27), and 2-Acorn Nuts (#28).
Note: Use the Levelers (#37) on the bottom of the Rear Stabilizer Assembly(#3) to adjust the bike and keep it from
rocking on an uneven surface. Tighten the Hex Nut (#38) flush against the stabilizer surface to lock both levelers into
position. (Reference FIGURE 1).
♦ Assembly Stage #1 completed
ASSEMBLY INSTRUCTION PAGE 6
37
26
38
28
27
3
1
ADJUSTMENT LEVELER
2
USE TOOL
FIGURE #1
Note: Transport Wheels Face Outward
FRONT OF BIKE

ASSEMBLY STAGE #2
Attach Pedals to the Base Assembly
Assembly Hardware Required: (None Required)
Assembly Description:
A) Assemble the Left Pedal (#4) to the Left Crank Arm on the Base Assembly (#1). Thread the pedal onto the crank
arm (counterclockwise) and securely tighten in place using the pedal wrench. Note: A clockwise rotation will tighten
the pedal to the crank arm and a counterclockwise rotation will loosen the pedal. (*See Assembly Note)
B) Assemble the Right Pedal (#5) to the Right Crank Arm on the Base Assembly (#1). Thread the pedal on the crank
arm and securely tighten in place using the pedal wrench. Note: A counterclockwise rotation will tighten the pedal to
the crank arm and a clockwise rotation will loosen the pedal. (*See Assembly Note)
C) Attach the Pedal Straps (included with pedals) to each of the pedals. The straps are labeled (R) or (L) to correspond
with the right and left pedal.
*Important Assembly Note: The right and left pedals are appropriately marked (R) and (L). The threading orientation
on the left pedal is reversed from the threading orientation on the right pedal. To avoid stripping of the threads on the
pedals or crank arms make sure to follow the noted assembly orientation.
♦ Assembly Stage #2 completed
ASSEMBLY INSTRUCTIONPAGE 7
4
5
L
R
USE TOOL
Use This End to Tighten the Pedals
Note: Follow Assembly Instructions Carefully to Avoid Stripping Pedal Threads

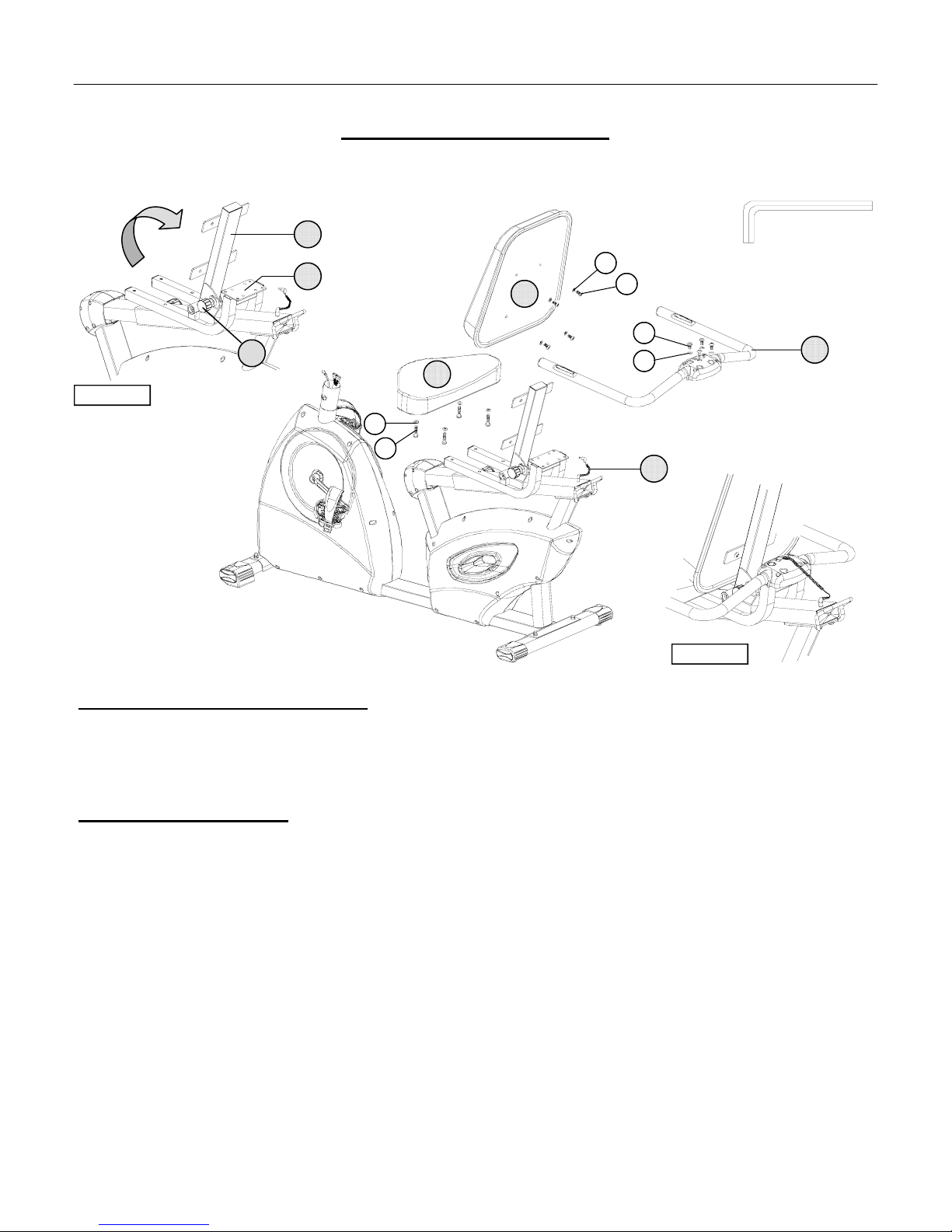

ASSEMBLY STAGE #3
Attach Seat Pads to the Seat Frame
Assembly Hardware Required:
#27 Flat Washer Qty. 8 #30 Truss Head Socket Bolt Qty. 8
#29 Truss Head Socket Bolt Qty. 4
Assembly Description:
A) Cut the packaging cable ties and lock the Adjustable Seat Back Frame (#10) into an upright position using the
Adjustment Knob (#8). (Reference FIGURE 2).
B) Mount the Seat Pad (#6) to the Seat Slider (#11) using 4-Truss Head Bolts (#29) and 4-Flat Washer (#27).
C) Attach the Seat Back Pad (#7) to the Adjustable Seat Back Frame (#10) using 4-Truss Head Socket Bolts (#30)
and 4-Flat Washers (#27).
D) Attach the Handlebar Assembly (#9) to rear mounting plate of Seat Slider (#11) using 4-Truss Head Socket Bolts
(#30) and 4-Flat Washers (#27).
E) Plug the end of the Heart Rate Cable (#22) into the rear plug-in receptacle of the Handlebar Assembly (#9).
(Reference FIGURE 3)
Assembly Note: The Seat Slider position can be adjusted using the side mounted Adjustment Knob (#12). (Not Shown)
♦ Assembly Stage #3 completed
ASSEMBLY INSTRUCTION PAGE 8
27
29
27
30
30
USE TOOL
10
9
11
8
FIGURE #2
22
FIGURE #3
27
7
6

ASSEMBLY INSTRUCTION
ASSEMBLY STAGE #4
Attach Mast & H-Handlebar to the Main Base
Assembly Hardware Required: (*Hardware is Preinstalled in Base Assembly)
#30 Truss Head Socket Bolts* Qty. 4 #33 Spring Washer Qty. 2
#31 Curved Washer* Qty. 4 #34 Flat Washer Qty. 2
#32 Allen Bolt Qty. 2
Assembly Description:
A) Remove the preinstalled hardware from the mast mounting area of the Base Assembly.
B) Connect the Upper Heart Rate Cable (#18) to the Lower Heart Rate Cable (#19). (FIGURE #4)
C) Connect the Upper Data Cable Assembly (#20) to the Lower Data Cable Assembly (#21). (FIGURE #5)
D) Tuck the excess cable lengths into frame tubing and slide the Handlebar Mast (#13) down on to the Base
Assembly (#1). Align the mounting holes and secure the mast in place by using the previously installed; 4-Truss
Head Socket Bolts (#30) and 4-Curved Washers (#31).
E) Secure the H-Shaped Handlebar (#14) to the front cradle mounting of the Handlebar Mast (#14) using the
Mounting Clamp (#16), 2-Allen Bolts (#32), 2-Spring Washers (#33) , and 2-Flat Washers (#34).
F) Once the H-Handlebar is secure, place the Mounting Cover (#15) over the hardware / clamping area..
♦ Assembly Stage #4 completed
34
16
33
32
15
18
19 21
20
13
30
PAGE 9
USE TOOL
14
31
FIGURE #4
FIGURE #5
