LAMAR Universal LS 760 Quick start guide

FIRST EDITION
A
A
ASSEMBLY
SSEMBLY
SSEMBLY I
INSTRUCTIONS
NSTRUCTIONS /
/ O
O
OWNERS
WNERS
WNERS M
MANUAL
ANUAL
Part No. 06005 Revision: ADate: 12 / 04
U

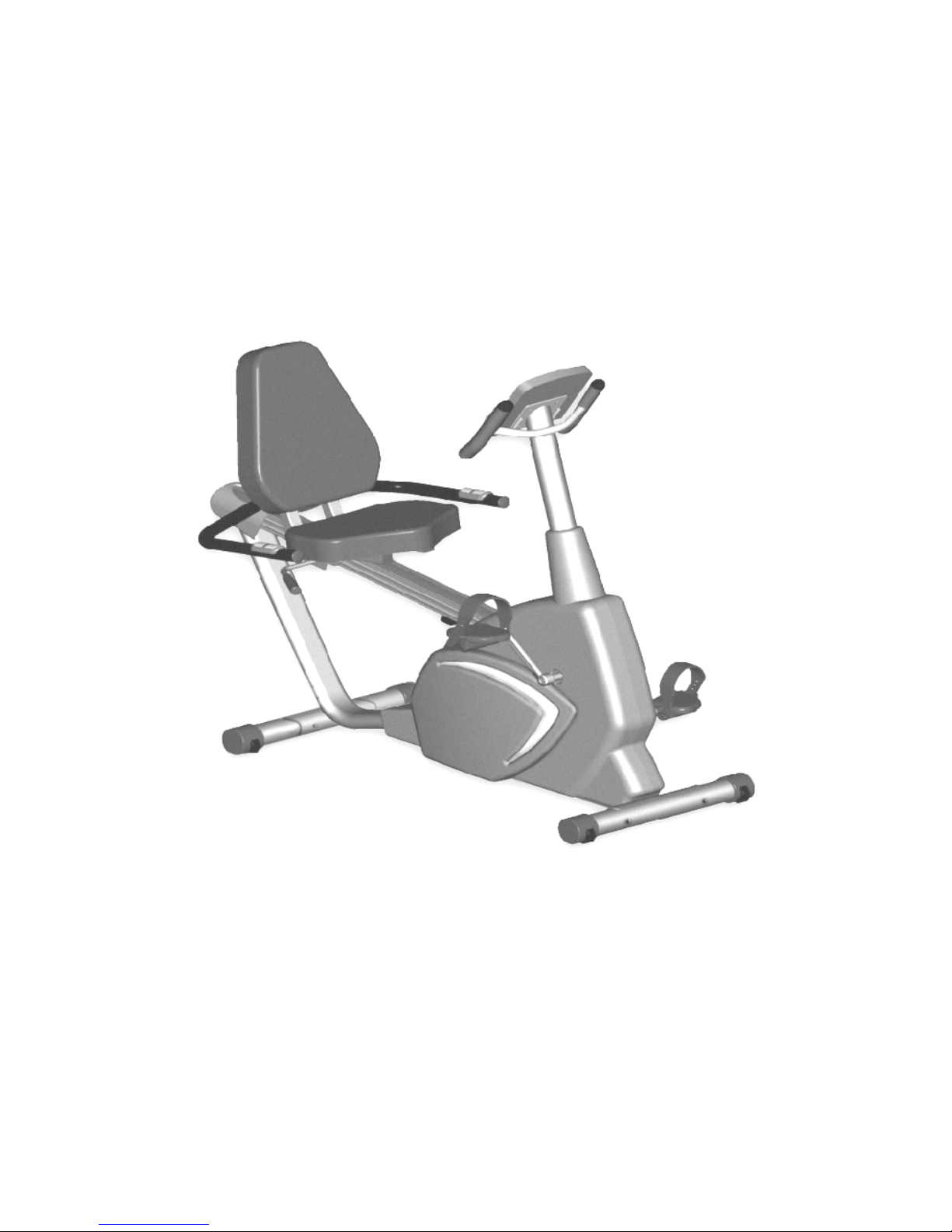

UNIVERSAL NIVERSAL LS 760 LS 760
R
RECUMBENT
ECUMBENT E
EXERCISE
XERCISE
BIKE
BIKE

IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of injury, please read the following precautions before assembling or using your new product.
1. It is the responsibility of the owner to ensure that all users of this equipment are adequately informed of stated precautions.
2. Read all instructions and enclosed literature carefully. Understand the assembly and operation before using the equipment.
3. Use equipment on a flat level surface. Use adjustment levelers on the bottom of equipment to help stabilize unit.
4. It’s recommended to place an exercise / product mat beneath the equipment for added protection of floors or carpets.
5. Keep children & pets away from equipment at all times. Unplug equipment for added safety while not in use.
6. Inspect product on a frequent basis. Tighten lose assemblies or hardware as needed. Replace worn or damaged parts.
7. This equipment is intended for internal home use only. Do not use in a non-residential environment. Use in non-recommended
environments can lead to serious injury and will void all related warranties & liabilities.
8. Recommended user weight should not exceed 300 lbs.
9. Frequently wipe equipment down with a dampened soft cloth.
10. Observe and adhere to all warning labels posted on equipment.
11. Properly warm-up and stretch before starting any strength training or cardio exercise routine.
12. If you feel pain or dizziness at any time while exercising, stop immediately and consult your physician.
Safety Warning: Before starting an exercise program, consult your physician. This is especially important for individuals over the
age of 35 or persons with pre-existing health problems. It’s important to read all instructions carefully. We assume no responsibility
for personal injury or consequential damages sustained by or through the use of this equipment. Additional terms & conditions are
listed in the back of this manual or enclosed owners manual.
PAGE 1 TABLE OF CONTENTS
Reference Information Page
AssemblyPrep/Intro 2
PartsList 3
ProductExplodedView 4
Product Assembly Instruction 5-11
Computer Operation 12-14
Troubleshooting 15
Preventative Maintenance 16
WarrantyTerms 17
ProductRegistration 18

ASSEMBLY PREPARATION / INTRO PAGE 2
PRODUCT ASSEMBLY
Assembly Prep:
♦ To ensure ease of product assembly, please take time to verify the size and quantities of all
required assembly hardware. Use the itemized parts listing and hardware chart for reference.
♦ The product assembly process has been documented in easy to follow stages. Please read all
assembly instructions carefully. Take time to review the manual and familiarize yourself
with the entire assembly process before proceeding. Assembly Tip: It is always helpful to
pre-stage the items needed for each assembly step.
♦ Perform product assembly in a 4ft. x 6ft. flat area. Note: After assembly is completed, allow
a minimal of 2-3ft. of space on each side of bike for user access and dismounting.
♦ The basic tools for assembling this product are included with main assembly hardware.
♦ Do not dispose of any packaging materials until assembly of the product is completed.
♦ If you experience problems with operation of the equipment after assembly, please review
the troubleshooting reference page in this manual.
♦ Make sure to completely fill-out the product registration form & return it to us within
30-days of purchase.
♦ For added component life, follow the preventative maintenance tips listed in this manual.
♦ Please contact us if have additional questions or need service assistance (877.861.2181)

PARTS REFERENCE
PAGE 3 LS 760Assembly Parts List
Item # Part Number Description QTY.
1 23010 Main Base Assembly 1
2 23000 Front Stabilizer Assembly 1
3 05014 Left Pedal 1 (pr.)
4 05014 Right Pedal 1 (pr.)
5 23004 Rear Stabilizer Assembly 1
6 13016 Seat Rail Support 1
7 13013 Seat Rail 1
8 05018 Cap / Cover 1
9 13002 Handlebar Assembly 1
10 13006 Seat Frame 1
11 03004 Seat 1
12 03008 Back Pad 1
13 13002 Magazine Rack 1
14 23017 Handlebar Mast 1
15 03012 Handlebar (H-shaped) 1
16 07010 Cover (Handlebar Mast) 1
17 10004 Computer 1
18 12007 Upper Heart Rate Sensor Cable 1
19 12001 Lower Heart Rate Sensor Cable 1
20 12011 Upper Data Cable Assembly 1
21 12009 Lower Data Cable Assembly 1
22 12002 Heart Cable (Seat Rail) 1
23 05001 Adjustment Knob 1
24 01062 Carriage Bolt M8 x 1.25 x 55 Length 4
25 01012 Flat Washer 8 x 16 x 2t 29
26 01015 Acorn Nut M8 4
27 01059 Leveler 2
28 01016 Hex Nut 2
29 01045 Truss Screw (Magazine Rack Mounting) 3
30 01001 Truss Head Hex Socket Screw 8
31 01003 Truss Head Hex Socket Screw 23
32 01049 Curved Washer 8 x 19 x 2t 6
33 01041 Truss Screw (Computer Mounting) 4
34 01043 Truss Screw (Sports Bottle Mounting) 2
35 31001 Bottle Cage 1
36 31000 Sports Bottle 1
37 14001 AC Adapter 1
NOTE: Most of the listed assembly hardware has been packaged separately, but some hardware items have
been preinstalled in the identified assembly parts. In these instance, simply remove and reinstall the hardware as
assembly is required. Please reference the individual assembly steps and make note of all preinstalled hardware.

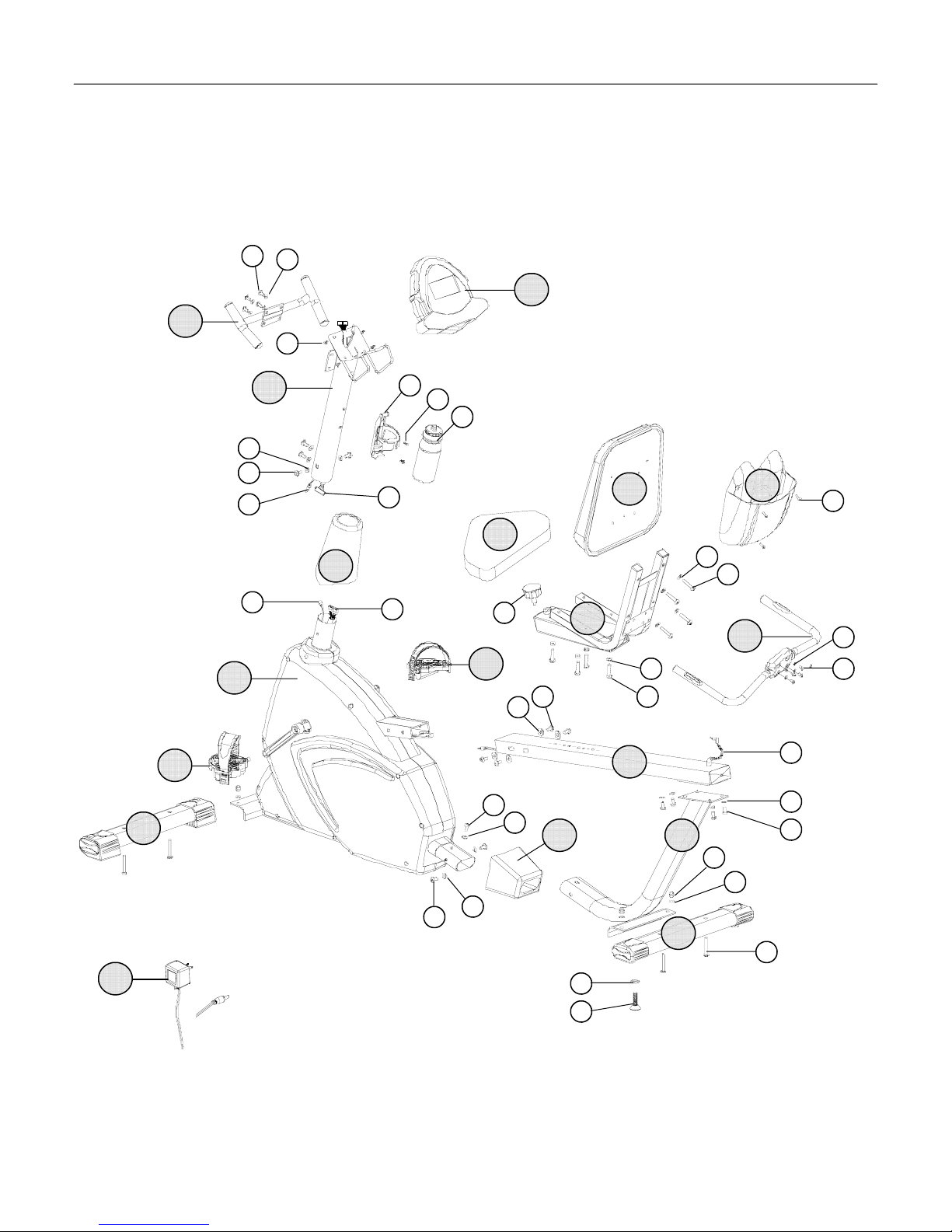

EXPLODED VIEW PAGE 4
12
11
17
14
15
1
10
13
6
7
16
2
5
8
9
3
4
31 25
31
32
35 34 36
18 20
19 21 23
25 30
25 31 30
25
32
31
22
31
25
26
25
24
25
31
29
33
28
27
37
LS 760 Assembly Parts
25
31
AC Power Adapter
Customer Service 1-877-861-2181

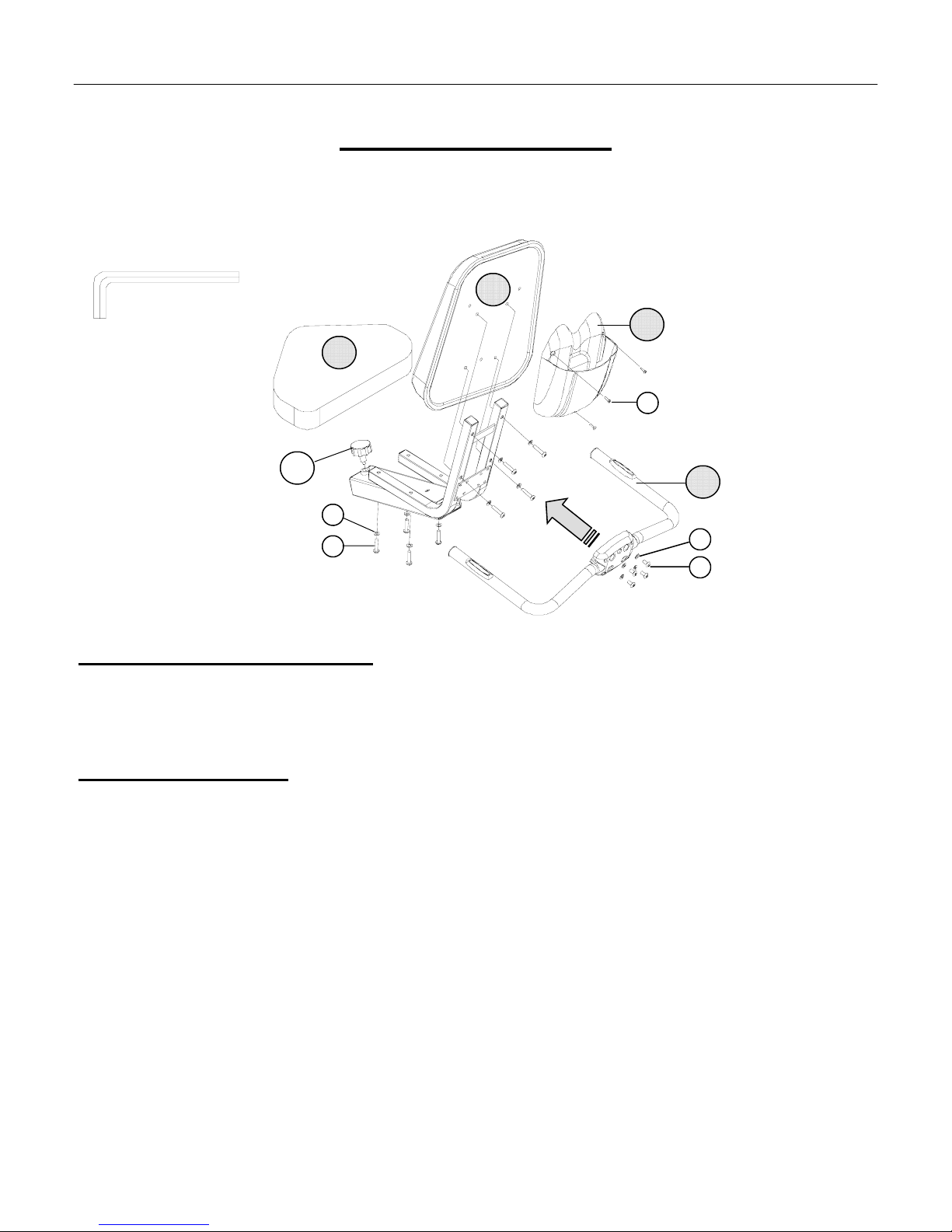

ASSEMBLY STAGE #1
Assemble Seat Pads & HandlebarAssembly to the Seat Frame
Assembly Hardware Required: (*Hardware may be preinstalled)
#30 Truss Head Hex Socket Screw Qty. 8 #25 Flat Washers Qty. 12
#31 Truss Head Hex Socket Screw Qty. 4 #29 Truss Screw* Qty. 3
Assembly Description:
A) Attach the Handlebar Assembly (#9) to the Seat Frame (#10) using 4-Truss Head Socket Screws (#31)
and 4– Flat Washers (#25). (Reference Step #1 on the enclosed hardware pack)
B) Fasten the Back Pad (#12) to the Seat Frame using 4-Truss Head Sockets Screws (#30) and 4-Flat
Washers (#25). (Reference Step #2 on the enclosed hardware pack).
C) Fasten the Seat (#11) to the Seat Frame (#10) using 4-Truss Head Socket Screws (#30) and 4-Flat
Washers (#25). (Reference Step #3 on the enclosed hardware pack)
D) Assemble the Magazine Rack (#13) to the back of the Seat Back (#12) using *3-Truss Screws (#29).
( Note: If assembly hardware is not preinstalled, reference Step #4 on the enclosed hardware pack).
E) Thread the Adjustment Knob (#23) into the Seat Frame (#10). Note: It is not necessary to fully tighten
the knob into the Seat Frame at this point.
♦ Assembly Stage #1 complete
ASSEMBLY INSTRUCTION
PAGE 5
11
12
13
31
25
29
25
30
23 9
USE TOOL

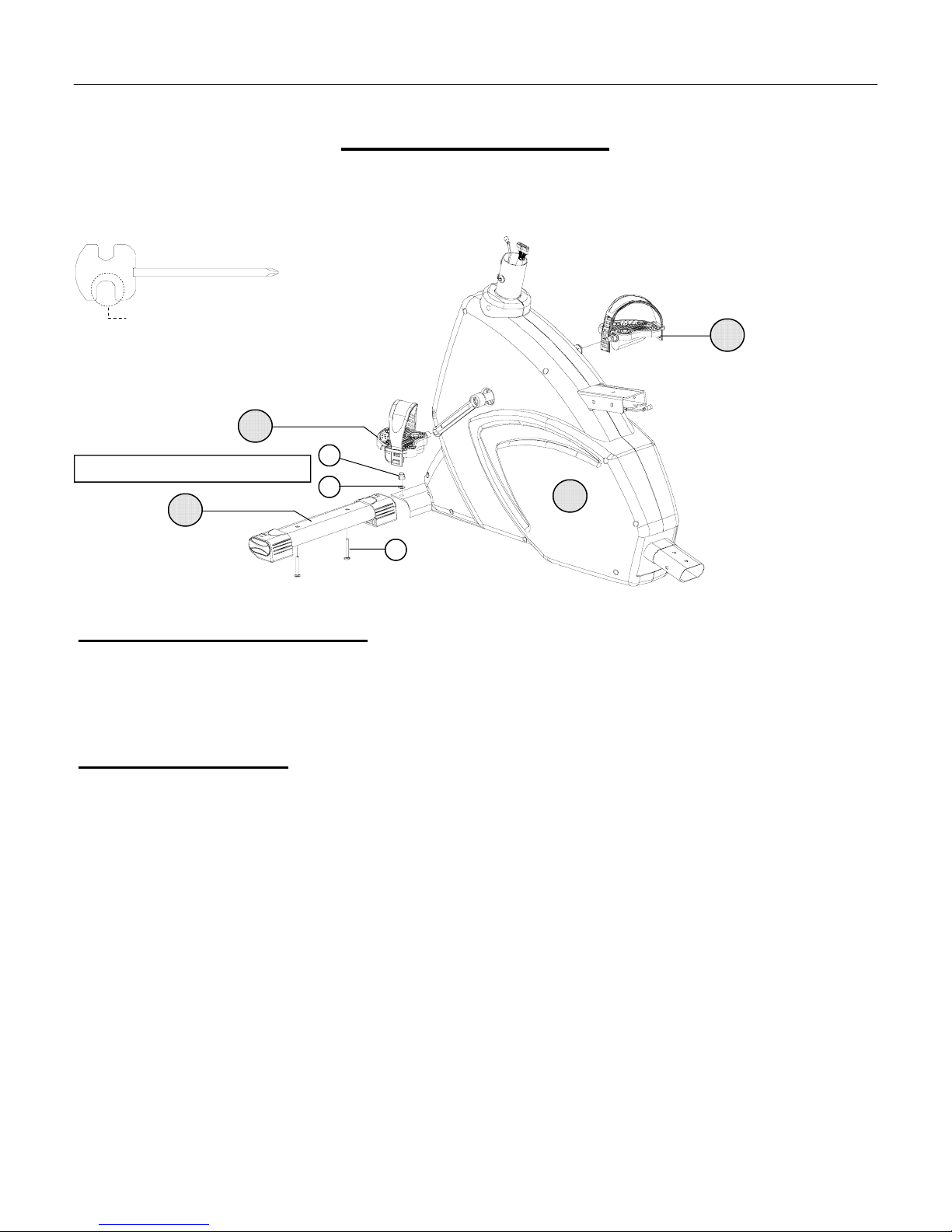

ASSEMBLY STAGE #2
Attach Front Stabilizer & Pedals to the Main Base
Assembly Hardware Required:
#24 Carriage Bolt Qty. 2
#25 Flat Washer Qty. 2
#26 Acorn Nut Qty. 2
Assembly Description:
A) Securely fasten the Front Stabilizer Assembly / with transport wheels (#2) to the Main Base (#1) using
2-Carriage Bolts (#24), 2–Flat Washers (#25), and 2-Acorn Nuts (#26). (Reference Step #5 on the
enclosed hardware pack)
B) Assemble the Right Pedal (#4) to the Right Crank Arm on the Main Base Assembly (#1). Thread the
pedal on the crank arm and then securely tighten with the pedal wrench. Note: A counterclockwise rotation
will tighten the pedal to the crank arm and a clockwise rotation will loosen the pedal. (*See Note Below)
C) Assemble the Left Pedal (#3) to the Left Crank Arm on the Main Base Assembly (#1). Thread the pedal
onto the crank arm (counterclockwise) and then securely tighten with the pedal wrench. Note: A clockwise
rotation will tighten the pedal to the crank arm and a counterclockwise rotation will loosen the pedal.
(*See Note Below)
D) Attach Pedal Straps (included with pedals) to each of the pedals. The straps are labeled (R) or (L) to
correspond with the right and left pedal.
*Important Assembly Note: The right and left pedals are appropriately marked (R) and (L). The threading
orientation on the left pedal is reversed from the threading orientation on the right pedal. To avoid stripping
of the threads on the pedals or crank arms make sure to follow the noted assembly orientation.
♦ Assembly Stage #2 completed
ASSEMBLY INSTRUCTION PAGE 6
3
4
1
24
26
25
2
L
R
USE TOOLS
Use This End to Tighten the Pedals
Note: Transport Wheels Face Away From the Main Base

ASSEMBLY STAGE #3
Attach Rear Stabilizer & Seat Rail Support to the Main Base
Assembly Hardware Required:
#24 Carriage Bolt Qty. 2 #31 Truss Head Hex Socket Screw Qty. 3
#25 Flat Washer Qty. 3 #32 Curved Washer Qty. 2
#26 Acorn Nut Qty. 2
Assembly Description:
A) Attach the Rear Stabilizer Assembly (#5) to the Seat Rail Support (#6) using 2-Carriage Bolts, 2-Flat
Washers (#25), and 2-Acorn Nuts (#26). (Reference Step #7 on the enclosed hardware pack)
B) Place the Cap / Cover (#8) over the end of the Seat Rail Support (#6) and slide the open end of the Seat
Rail Support over the lower frame extrusion of the Main Base (#). Secure in place using 3-Truss Head
Hex Socket Screws (#31), 2-Curved Washers (#32), and 1-Flat Washer (#25), but do not fully tighten
the hardware until the further assembly of the Seat Rail is completed. (Reference Step #8 on the enclosed
hardware pack)
Note: Use the Adjustment Levelers (#27) on the Rear Stabilizer Assembly (#5) to prevent the base unit
from rocking on an uneven surface. (Reference Figure #1)
♦ Assembly Stage #3 completed
ASSEMBLY INSTRUCTIONPAGE 7
31 25
31 32
1 6
5
26
25
24
8
ADJUSTMENT LEVELER
USE TOOLS
Figure #1
27

ASSEMBLY STAGE #4
Attach Seat Rail & Seat Assembly to the Main Base
Assembly Hardware Required:
#31 Truss Head Hex Socket Screw Qty. 8 #25 Flat Washer Qty. 8
Assembly Description:
A) Slide the Seat Rail (#7) through the sleeve insert of the Seat Frame (#10) (Reference Figure #2).Note: Be
careful not to damage the Seat Rail / Heart Rate Cable (#22).
B) Once the Seat Rail has been inserted through the Seat Frame sleeve, center the Seat Frame in the middle of
the Seat Rail and use the Adjustment Knob (#23) to lock the seat in position. Note: After the Seat frame
is locked into position hole, turn the knob (clockwise) to securely lock the Seat Frame in place.
C) Rest the Seat Rail assembly on back end of the Seat Support mounting plate. Connect the Seat Rail /
Heart Rate Cable (#22) to the Lower Heart Rate Cable (#19), as shown.
D) Tuck excess cable length inside the Seat Rail and slide the front end of the Seat Rail over the end of the
middle extrusion of the Main Base (#1). Note: Be Careful not to damage the heart rate cables. Secure the
Seat Rail in place using 4-Truss Head Hex Socket Screws (#31) and 4-Flat Washers (#25), but do not
fully tighten the mounting hardware. (Reference Step #10 on the enclosed hardware pack)
E) Align the Seat Rail rear mounting holes with the Seat Support mounting plate. Secure the Seat Rail in
place using 4-Truss Head Hex Socket Screws (#31) and 4-Flat Washers (#25). (Reference Step #11 on
the enclosed hardware pack)
F) Securely tighten all the hardware used to assemble the Seat Support (#6) and Seat Rail (#7) to the
Main Base, including the assembly hardware located under the Cap / Cover (#8).
G) Plug the Seat Rail / Heart Rate Cable (#22) into the receptacle located on the back of the Handlebar
Assembly (#9). (Reference Figure #3)
♦ Assembly Stage #4 completed
ASSEMBLY INSTRUCTION PAGE 8
1
31 25
25
31
19
22
22
23
7
Figure #2
Figure #3
USE TOOL
8
9

ASSEMBLY INSTRUCTION

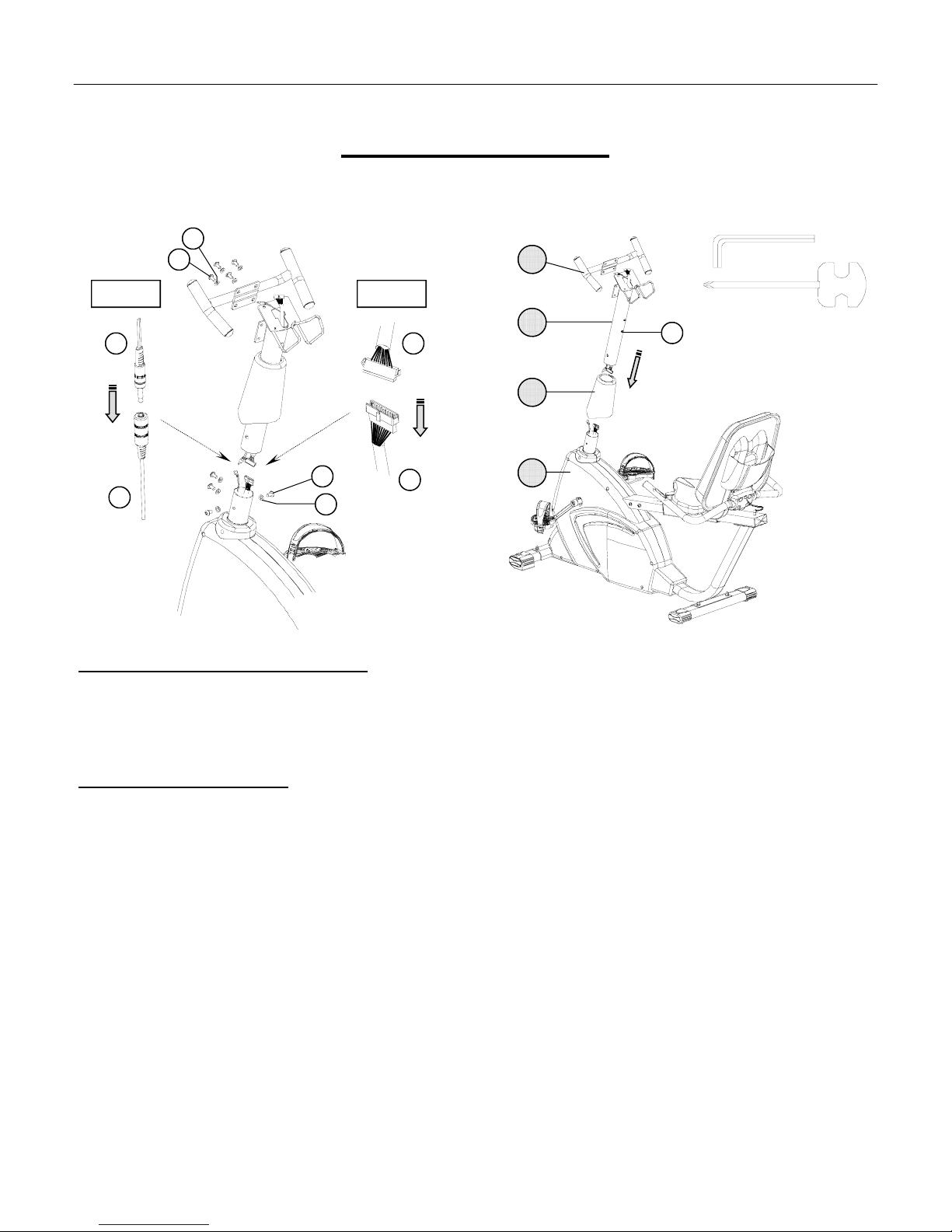

ASSEMBLY STAGE #5
Attach Handlebar & Handlebar Mast to the Main Base
Assembly Hardware Required: (*Hardware preinstalled)
#31 Truss Head Hex Socket Screw* Qty. 8 #32 Curved Washer* Qty. 4
#25 Flat Washer Qty. 4
Assembly Description:
A) Remove the preinstalled hardware from the mast mounting area of the Main Base.
B) Slide the Mast Cover (#16) over the lower end of the Handlebar Mast (#14). Note: It may be necessary
to remove the (Bottle Cage) mounting screws (#34) in order to slide the Cover up the mast.
Assembly Tip: Temporarily tape the Cover up out the way until the mast mounting hardware is installed.
C) Connect the Upper Heart Rate Cable (#18) to the Lower Heart Rate Cable (#19). (Figure #4)
D) Connect the Upper Data Cable Assembly (#20) to the Lower Data Cable Assembly (#21). (Figure #5)
Tuck excess cable lengths into frame tubing and slide the Handlebar Mast (#14) down on to the Main
Base (#1).
E) Align the mounting holes and secure the mast in place by using the previously installed 4-Truss Head
Screws (#31) and 4-Curved Washers (#32). Once assembly is completed, slide the Mast Cover (#16)
down over the hardware mounting area.
F) Mount the H-Shaped Handlebar (#15) to the upper-front plate of the Handlebar Mast (#14) using
4-Truss Head Socket Screws (#31) and 4-Flat Washers (#25). (Reference Step #13 on hardware pack)
♦ Assembly Stage #5 completed
18
19 21
20
16
14
15
31
32
1
34
31
32
Remove: Bottle Cage Mounting Screws
USE TOOLS
Figure #4 Figure #5
PAGE 9
