User manual

LAMAX S5 Navi+

CONTENTS

Introduction.........................................................................................................................1

LAMAX S5 Navi+ Multimedia System Features and Functions ........................................1

Package Contents................................................................................................................1

Product Layout ....................................................................................................................1

Screen Layout ......................................................................................................................1

Product Installation.............................................................................................................2

Using the LAMAX S5 Navi+ Car Camera.............................................................................2

1) Inserting a MicroSDHC Card................................................................................................................2

2) Powering the Device .............................................................................................................................2

3) Connecting the Rear Camera...............................................................................................................2

4) Connecting the GPS Module ...............................................................................................................2

5) Turning the Camera On and O..........................................................................................................2

6) Returning to the Menu .........................................................................................................................2

7) Turning Navigation On .........................................................................................................................3

8) Audio Controls........................................................................................................................................3

9) Controls ...................................................................................................................................................3

a. Navigation Icon.................................................................................................................................3

b. Menu Icon ..........................................................................................................................................3

c. Hide Panel Icon..................................................................................................................................3

d. Settings Icon......................................................................................................................................3

e. Back Icon.............................................................................................................................................3

f. Lock Video Icon..................................................................................................................................3

g. Camera Shutter Icon........................................................................................................................3

h. Record Video Icon ............................................................................................................................3

i. Mute/Unmute Microphone Icon....................................................................................................3

j. Camera Settings Icon........................................................................................................................3

k. Switch between Cameras ...............................................................................................................3

10) Bluetooth ..............................................................................................................................................4

11) CarRec....................................................................................................................................................4

12) File Manager.........................................................................................................................................4

13) FM...........................................................................................................................................................4

14) Music and Gallery................................................................................................................................4

15) Navigator ..............................................................................................................................................4

16) Real Time GPS Tracker.........................................................................................................................4

17) Settings .................................................................................................................................................4

a. Wi-Fi.....................................................................................................................................................4

b. Devices................................................................................................................................................4

c. Personal ..............................................................................................................................................5

d. System.................................................................................................................................................5

Further Features of the LAMAX S5 Navi+ ..........................................................................5

LAMAX S5 Navi+ Parameters..............................................................................................6

Warning................................................................................................................................6

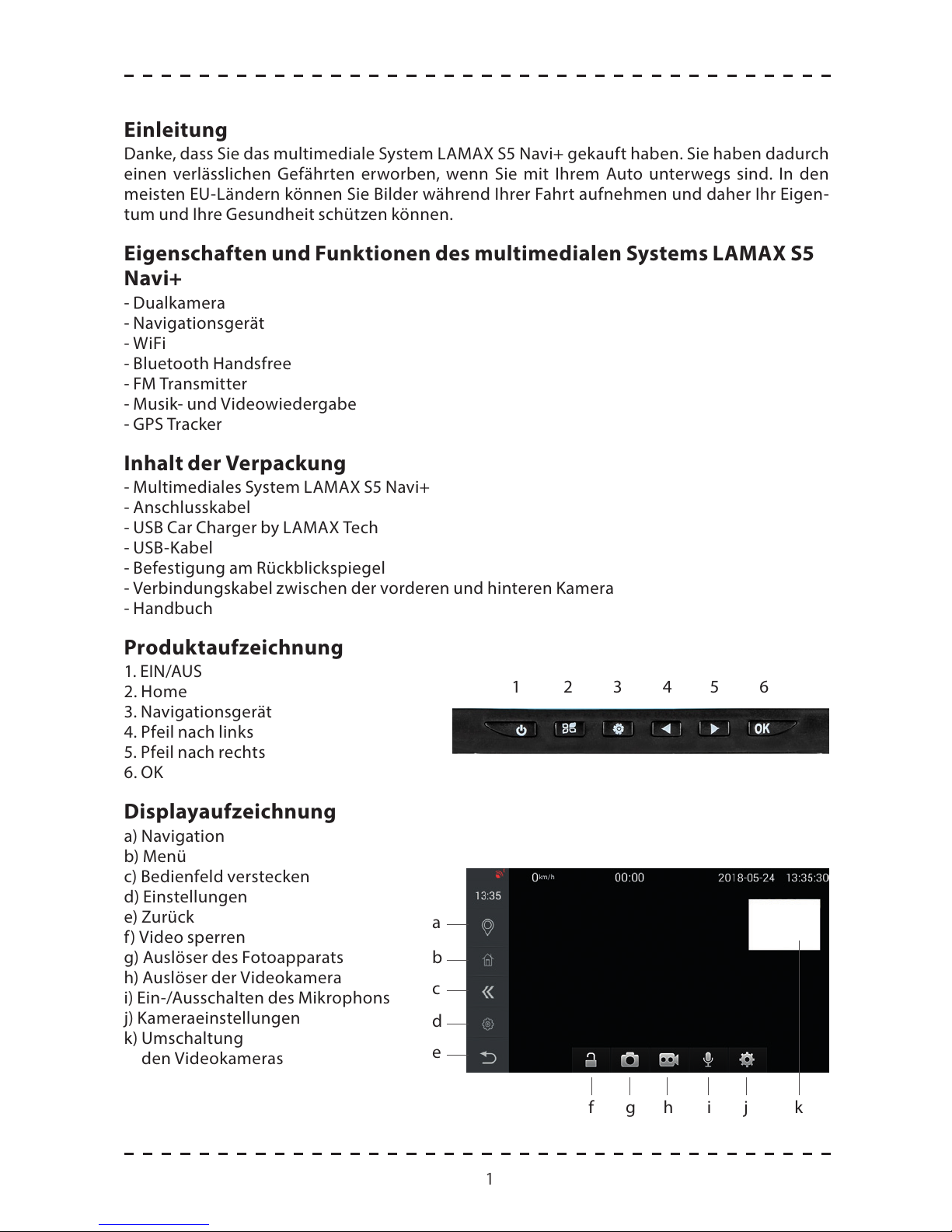

Introduction

Thank you for purchasing the LAMAX S5 Navi+ multimedia system. You’ve acquired a depen-

dable travel companion for your road trips. Throughout most of the EU, you’ll be able to record

footage whilst driving and thus protect your property and your safety.

LAMAX S5 Navi+ Multimedia System Features and Functions

- Dual car cameras

- Navigation

- Wi-Fi

- Handsfree Bluetooth

- FM Transmitter

- Music and Video Player

- GPS Tracker

Package Contents

- LAMAX S5 Navi+ Multimedia System

- Power Cable

- USB Car Charger by LAMAX Tech

- USB cable

- Rear-view mirror attachment

- Connection cable between front and rear camera

- Manual

Product Layout

1. ON/OFF

2. Home

3. Navigation

4. Left Arrow

5. Right Arrow

6. OK

Screen Layout

a) Navigation

b) Menu

c) Hide Panel

d) Settings

e) Back

f) Lock Video

g) Camera Shutter

h) Record Video

i) Mute/Unmute Microphone

j) Camera Settings

k) Toggle between Cameras

1 2 3 4 5 6

f g h i j k

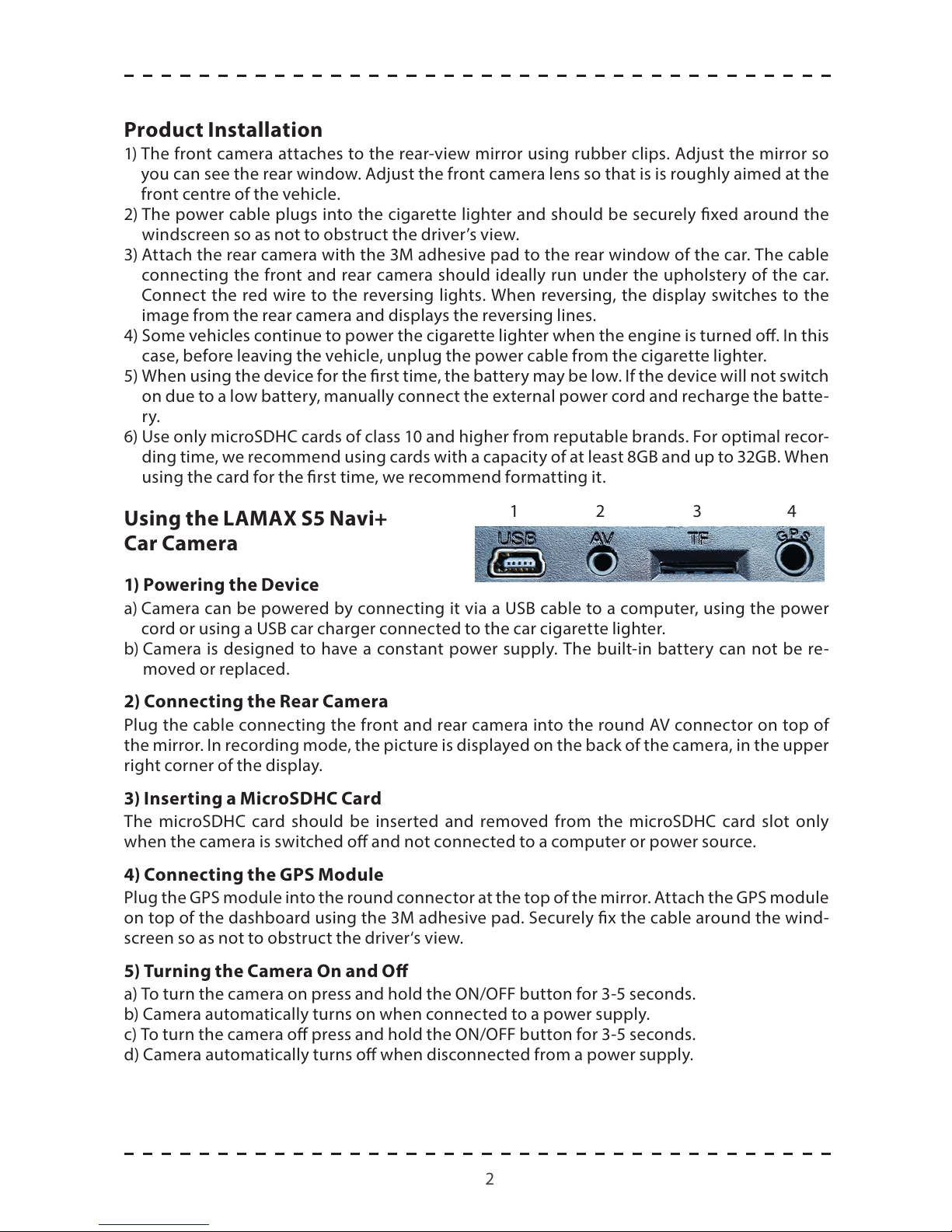

Product Installation

1) The front camera attaches to the rear-view mirror using rubber clips. Adjust the mirror so

you can see the rear window. Adjust the front camera lens so that is is roughly aimed at the

front centre of the vehicle.

2) The power cable plugs into the cigarette lighter and should be securely xed around the

windscreen so as not to obstruct the driver’s view.

3) Attach the rear camera with the 3M adhesive pad to the rear window of the car. The cable

connecting the front and rear camera should ideally run under the upholstery of the car.

Connect the red wire to the reversing lights. When reversing, the display switches to the

image from the rear camera and displays the reversing lines.

4) Some vehicles continue to power the cigarette lighter when the engine is turned o. In this

case, before leaving the vehicle, unplug the power cable from the cigarette lighter.

5) When using the device for the rst time, the battery may be low. If the device will not switch

on due to a low battery, manually connect the external power cord and recharge the batte-

ry.

6) Use only microSDHC cards of class 10 and higher from reputable brands. For optimal recor-

ding time, we recommend using cards with a capacity of at least 8GB and up to 32GB. When

using the card for the rst time, we recommend formatting it.

Using the LAMAX S5 Navi+

Car Camera

1 2 3 4

1) Powering the Device

a) Camera can be powered by connecting it via a USB cable to a computer, using the power

cord or using a USB car charger connected to the car cigarette lighter.

b) Camera is designed to have a constant power supply. The built-in battery can not be re-

moved or replaced.

2) Connecting the Rear Camera

Plug the cable connecting the front and rear camera into the round AV connector on top of

the mirror. In recording mode, the picture is displayed on the back of the camera, in the upper

right corner of the display.

3) Inserting a MicroSDHC Card

The microSDHC card should be inserted and removed from the microSDHC card slot only

when the camera is switched o and not connected to a computer or power source.

4) Connecting the GPS Module

Plug the GPS module into the round connector at the top of the mirror. Attach the GPS module

on top of the dashboard using the 3M adhesive pad. Securely x the cable around the wind-

screen so as not to obstruct the driver‘s view.

5) Turning the Camera On and O

a) To turn the camera on press and hold the ON/OFF button for 3-5 seconds.

b) Camera automatically turns on when connected to a power supply.

c) To turn the camera o press and hold the ON/OFF button for 3-5 seconds.

d) Camera automatically turns o when disconnected from a power supply.

6) Returning to the Menu

Press the Menu button to return to the directory of multimedia system functions.

7) Turning Navigation On

Press the navigation button to start the current primary navigation app. You can store multi-

ple navigation systems on the LAMAX S5 Navi+ multimedia system. Press and hold the icon in

the navigation menu to choose the primary navigation system.

8) Audio Controls

Left and right arrows control the audio of the device.

9) Controls

Camera is controlled by a combination of touch controls and physical buttons below the dis-

play. Most controls are the same as standard Android tablet controls.

a. Navigation Icon

Touch to start navigating.

b. Menu Icon

Touch the icon to switch to the multimedia system pop-up menu.

c. Hide Panel Icon

Touch the icon to hide the left control icon bar.

d. Settings Icon

Touch to access basic volume controls, brightness, WLAN and other specic settings.

e. Back Icon

Touch to return to the previous screen.

f. Lock Video Icon

Touch to lock the current recording. The locked le will not be overwritten in the camera

when loop recording.

g. Camera Shutter Icon

Touch to take a photo from the front camera.

h. Record Video Icon

Touch to start or stop recording.

i. Mute/Unmute Microphone Icon

Touch to turn the camera microphone on or o whilst recording.

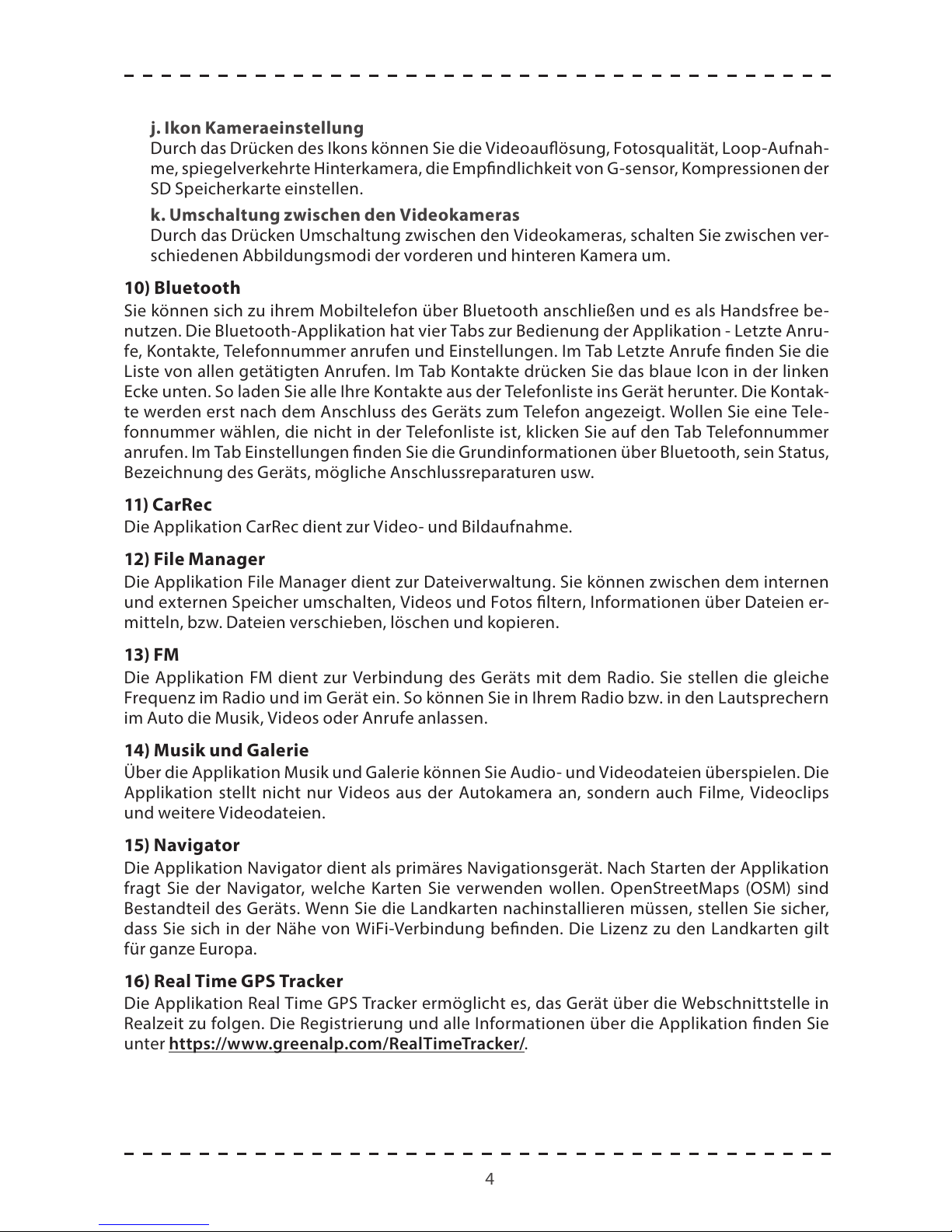

j. Camera Settings Icon

Touch to adjust the video resolution, photo quality, loop recording, rear camera rotation,

G-sensor sensitivity, SD card formatting.

k. Switch between Cameras

Touch the rearview camera image to switch between front and rear cameras.

10) Bluetooth

Using Bluetooth you can connect the device to your mobile phone and use it handsfree. The

Bluetooth app has four tabs to control the app – Recent Calls, Contacts, Dial and Settings. The

recent calls tab lists all calls made. In the contacts tab, press the blue icon in the bottom left

corner to upload you contacts to the device from the phonebook. Contacts only appear when

you connect the device to your phone. To dial a phone number that is not in the phonebook,

click on the Dial tab. In the Settings tab you can nd basic information about Bluetooth, its

status, device name, repair connectivity option and more.

11) CarRec

CarRec app is used for shooting videos and taking photos.

12) File Manager

File Manager app is used to manage les. You can toggle between internal and external me-

mory, lter videos and photos, nd out le info or move, copy and delete les.

13) FM

FM app connects the device with the radio. Set the car radio to the same frequency as the

device. Use the radio to play music and make video or phone calls through your car speakers.

14) Music and Gallery

Play music and videos through the Music and Gallery app. The app not only plays videos shot

on the car camera, but also movies, video clips and other video les.

15) Navigator

Navigator app serves as the primary navigation system. After launching the application, Navi-

gator asks which maps you want to use. OpenStreetMaps (OSM) comes as part of the device. If

you need to install maps, make sure you are near a Wi-Fi connection. The license covers maps

for the whole of Europe.

16) Real Time GPS Tracker

Real Time GPS Tracker app allows you to monitor devices via a web interface in real time. Re-

gistration and all application information can be found at:

https://www.greenalp.com/RealTimeTracker/

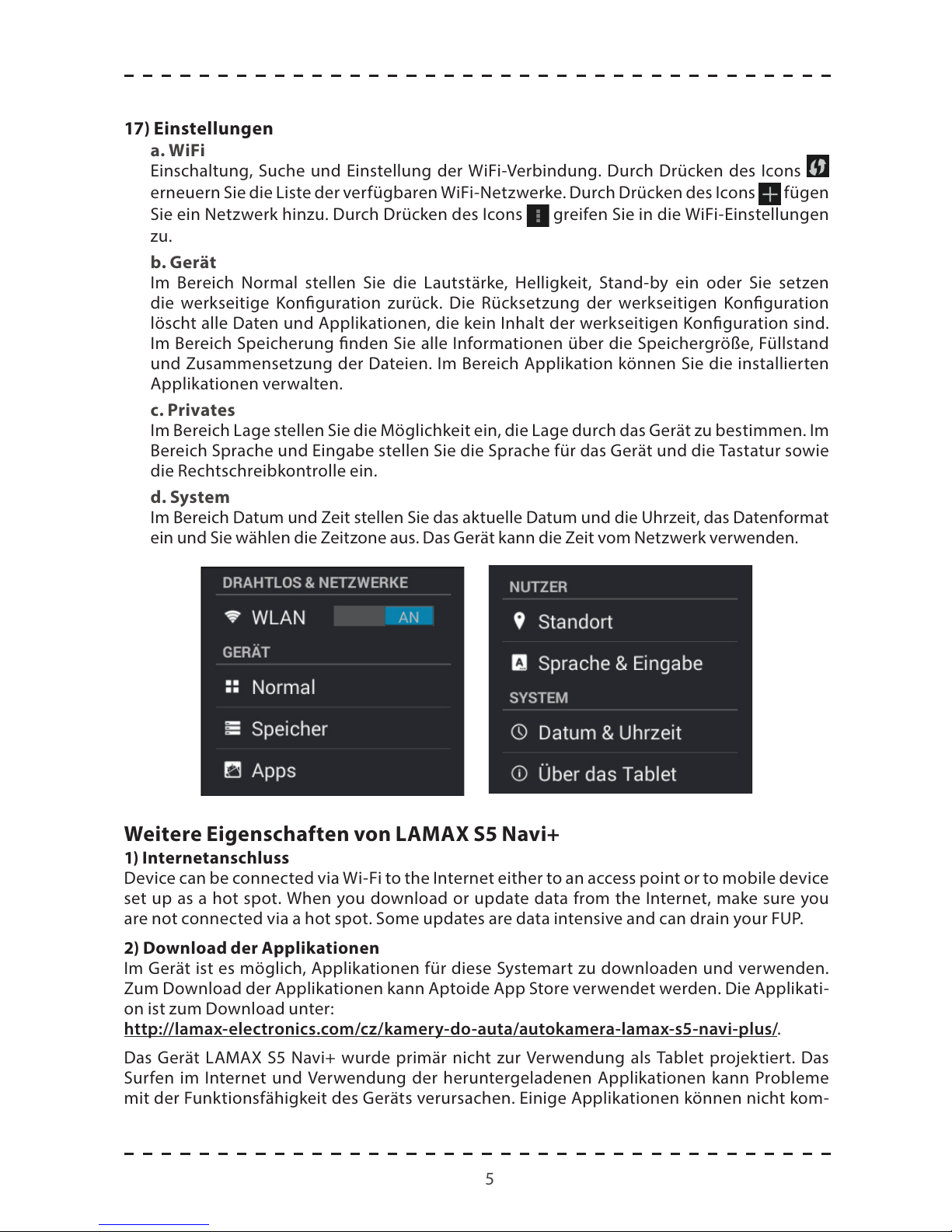

17) Settings

a. Wi-Fi

Turn on, locate and set up a Wi-Fi connection. Touch the icon to refresh the list of avai-

lable Wi-Fi networks. Press the icon to add the network. Press the icon to access

Wi-Fi settings.

b. Devices

Under the Normal section, set the volume, brightness, sleep mode or restore factory

settings. Restoring factory settings will erase all data and applications that were not inclu-

ded in the factory settings. In the Storage section you will nd all the information on the

memory size, how full the memory is and le structure. In the Applications section you can

manage your installed apps.

c. Personal

Under the Location section set options to determine the position of the device. In the

Language and Input section, set the language for the device, the input, the keyboard and

spellchecking.

d. System

Under the Date and Time section, set the current date and time, date format and select the

time zone. The device can use the network time.

Further Features of the LAMAX S5 Navi+

1) Accessing the Internet

Device can be connected via Wi-Fi to the Internet either to an access point or to mobile device

set up as a hot spot. When you download or update data from the Internet, make sure you

are not connected via a hot spot. Some updates are data intensive and can drain your FUP.

2) Downloading Applications

On the device you can download and use applications specic to this type of system.

To download apps you can use the Aptiode App Store. Apps can be downloaded from:

http://lamax-electronics.com/cz/kamery-do-auta/autokamera-lamax-s5-navi-plus/.

The LAMAX S5 Navi+ device is primarily designed for use as a tablet. Browsing the Internet

and using downloaded applications may cause problems with the functioning of the device.

Some apps may not be compatible with the device. If the app causes problems, uninstall it. If

uninstall does not work, back up all data and restore factory settings on the device.

LAMAX S5 Navi+ Parameters

Operating System Android 4.4 KitKat

Memory 16 GB

Cache 1 GB DDR3 667 MHz

Display 4.3“ LTPS

Angle of View 120°

Video Resolution 1920×1080, 1280×720

Video format TS

Microphone and speakers Built-in

GPS External

Memory Type MicroSDHC up to 32 GB

Connectivity Mini USB, Bluetooth, Wi-Fi, FM

Camera Dual

Note: Specications are subject to change when device components have been replaced or

the software updated.

Warning

Note that some European Union countries have specic laws regarding recording using a

car camera. Therefore we recommend that before each trip abroad, nd out about the local

law and ideally consult with local car clubs. The camera can be used as evidence, even when

dealing with the police. Again we recommend studying legal regulations in individual coun-

tries. Please note that such material can also be used against the author of the recording. The

LAMAX Electronics brand is not responsible for the illegal use of its cameras or the material

recorded by these cameras.

Some of the apps on the device are third-party products. Their license is intrinsically related to

the use of the equipment. Their use for commercial purposes or use in equipment other than

the LAMAX S5 Navi+ is a punishable oence.

Instructions on using third-party applications can be found on their manufacturers‘ websites.

Product produced by LAMAX:

elem6, s.r.o.

Braškovská 308/15, 16100 Prague 6

http://www.lamax-electronics.com

Printing errors and changes to the manual are reserved.

Betriebsanleitung

LAMAX S5 Navi+

INHALT

Einleitung.............................................................................................................................1

Eigenschaften und Funktionen des multimedialen Systems LAMAX S5 Navi+..............1

Inhalt der Verpackung.........................................................................................................1

Produktaufzeichnung .........................................................................................................1

Displayaufzeichnung ..........................................................................................................1

Produktinstallation .............................................................................................................2

Verwendung der Autokamera LAMAX S5 Navi+...............................................................2

1) Einlegen der Micro-SDHC-Karte .........................................................................................................2

2) Stromversorgung...................................................................................................................................2

3) Anschluss der hinteren Kamera..........................................................................................................2

4) Anschluss des GPS-Moduls..................................................................................................................2

5) Ein- und Ausschalten der Kamera.......................................................................................................2

6) Umschalten ins Menü ...........................................................................................................................3

7) Navigationsgerät einschalten .............................................................................................................3

8) Soundregelung ......................................................................................................................................3

9) Bedienung...............................................................................................................................................3

a. Ikon Navigation.................................................................................................................................3

b. Ikon Menü ..........................................................................................................................................3

c. Ikon Bedienfeld verstecken............................................................................................................3

d. Ikon Einstellung................................................................................................................................3

e. Ikon Zurück ........................................................................................................................................3

f. Ikon Video sperren............................................................................................................................3

g. Ikon Auslöser des Fotoapparats ...................................................................................................3

h. Ikon Auslöser der Videokamera....................................................................................................3

i. Ikon Ein-/Ausschalten des Mikrophons........................................................................................4

j. Ikon Kameraeinstellung...................................................................................................................4

k. Umschaltung zwischen den Videokameras...............................................................................4

10) Bluetooth ..............................................................................................................................................4

11) CarRec....................................................................................................................................................4

12) File Manager.........................................................................................................................................4

13) FM...........................................................................................................................................................4

14) Musik und Galerie ...............................................................................................................................4

15) Navigator ..............................................................................................................................................4

16) Real Time GPS Tracker.........................................................................................................................4

17) Einstellungen .......................................................................................................................................5

a. WiFi ......................................................................................................................................................5

b. Gerät....................................................................................................................................................5

c. Privates................................................................................................................................................5

d. System.................................................................................................................................................5
