IMPORTANT USER INFORMATION
These notes are provided in the interest of safety.
You must read them before installing or using the
appliance.
–This tumble dryer is intended for NORMAL
DOMESTIC USE ONLY.
SECTION 1: BEFORE USE
* Safety warnings
These notes are provided in the interest of safety. You must
read them before installing or using the appliance.
- This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be
made by children without supervision. Children of less than
3 years should be kept away unless continuously
supervised.
-Adequate ventilation must be provided to avoid back flow
of gases into the room from appliances burning other fuels,
including open fires.
-Exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliances burning gas or
other fuel.

–Please note it is not recommended that the dryer is placed
directly next to ovens or cookers as the performance of the
dryer may be affected.
–A carpet must not obstruct the ventilation openings in the
base of the dryer.
–Do not stack the tumble dryer on top of other appliances
without the correct stacking kit.
–Any electrical work required to install the appliance
should be carried out by a qualified person.
–It is important to clean the lint filter after each drying
cycle or the restrictions to airflow will extend drying times
and could cause the safety cut-out to trip.
–Under no circumstances should anything other than the
recommended articles be placed in the tumble dryer.
–The tumble dryer should be serviced by an appointed
service organisation and only genuine parts used.
–It is dangerous to alter or modify the product in any way
other than fitting authorized accessories.
–We recommend that the appliance is unplugged each time
after use. It should always be disconnected from the
electricity supply for long periods (i.e. weekends, if it is to
be left unattended for holidays etc.)
–The rear of the dryer gets quite hot during use. Position
the dryer so that the back is not accessible while in
operation, but ensure that the sides have a space available
to allow airflow.

–The special mains cable and plug assembly must only be
replaced with a genuine part by the manufacturer or his
service agents in order to avoid a hazard.
-It is important to clean fluff from the window of the dryer
and around the door seal after each drying cycle. Failure to
do so could result in water leaking.
WARNING: Never stop a tumble dryer before the end of a
drying cycle unless all items are quickly removed and
spread out so that heat is dissipated.
Remove all objects from pockets such as lighters and
matches.
DO NOT use a two-way adaptor, or extension lead. The
dryer must be connected to its own socket.
DO NOT block the air inlets at the base and side of your
dryer.
DO NOT allow fluff to accumulate around the tumble
dryer. Risk of fire
DO NOT exceed the recommended maximum load.
DO NOT dry unwashed items in the tumble dryer
DO NOT place articles in the dryer if anything other than a
water solution has been used in the cleaning process.
DO NOT attempt to dry dripping wet articles.
DO NOT use the tumble dryer if you suspect that it is
damaged in any way. Under no circumstances should you
attempt to repair the appliance yourself. Repairs carried out
by inexperienced persons may cause serious injury. Consult

your local appointed service engineer and insist on genuine
spare parts.
- The dryer must be installed by a Registered Installer.
- Any electrical work required to install the appliance
should be carried out by a qualified person.
- The tumble dryer should be serviced by an appointed
service organisation and only genuine parts used.
- It is recommended that the dryer be serviced annually by
a person competent to service gas fired tumble dryers.
Under no circumstances should you attempt to repair the
appliance yourself. Repairs carried out by inexperienced
persons may cause serious injury. Consult your local
appointed service engineer and insist on genuine spare
parts.
- The special mains cable and plug assembly must only be
replaced with a genuine part available from the
manufacturer or service agent.
- Keep the packing materials from your machine away
from children to avoid hazards.
- Keep pets away from your machine.
- Your machine is designed for use in a domestic
environment. The warranty will be invalid if you use it for
commercial purposes.
- It could be possible for a child or pet to gain access to the
tumble dryer through the porthole door. Therefore please
check the drum before using the appliance.

- Any packaging that is removed from the machine should
be kept away from children.
DO NOT - use a two-way adaptor, or extension lead. The
dryer must be connected to its own socket.
DO NOT - block the air inlets at the front and back of your
dryer.
DO NOT - exceed the recommended maximum load.
DO NOT - place articles in the dryer if anything other than
a water solution has been used in the cleaning process.
DO NOT - dry unwashed items in the tumble dryer.
DO NOT - attempt to dry dripping wet articles.
DO NOT - use the tumble dryer if you suspect that it is
damaged in any way
WARNING: The appliance must not be supplied through
an external switching device, such as a timer, or connected
.
INSTALLATION
The tumble dryer is fully compatible with any 600mm deep kitchen units and complies with
stringent EEC regulations.

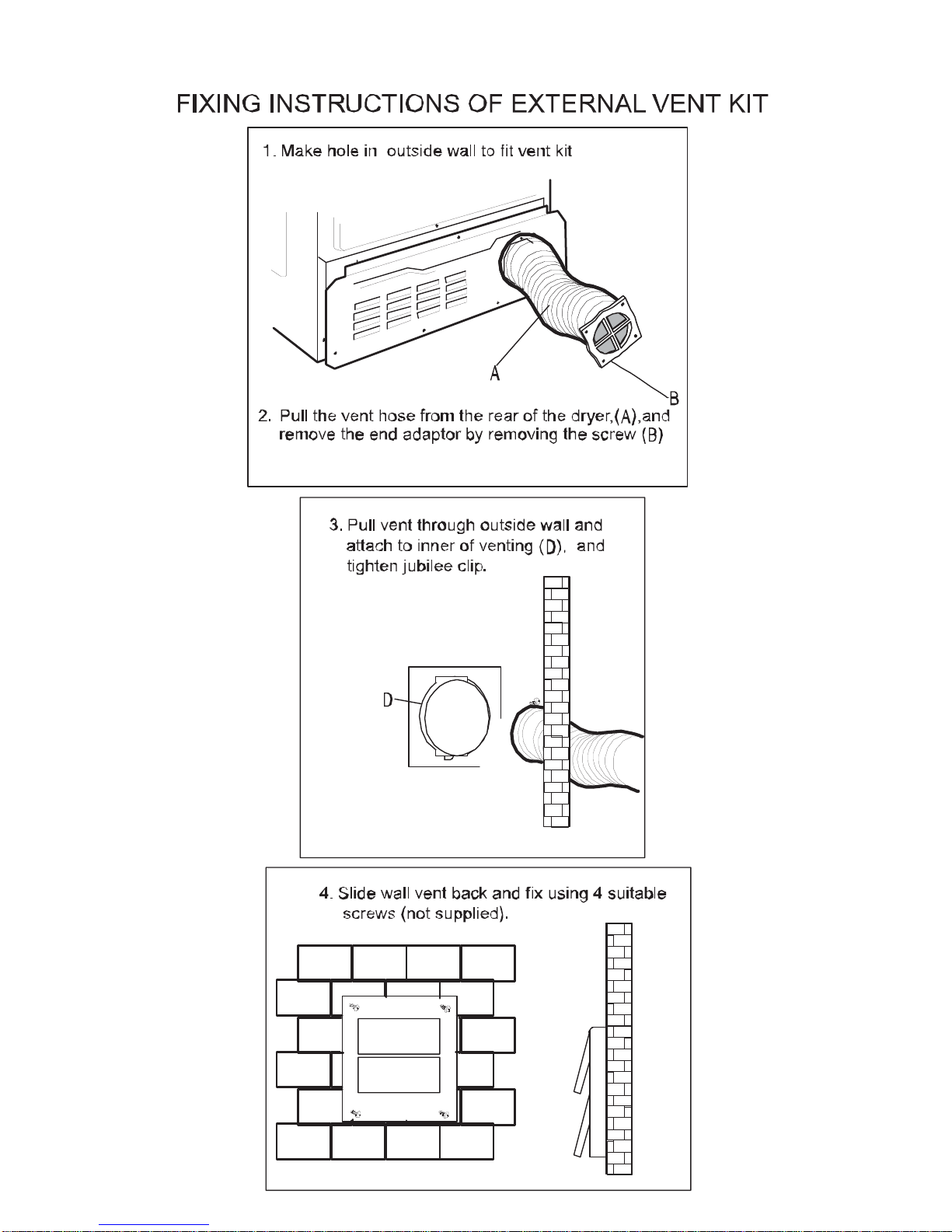

Your dryer is provided with a venthose which will extend to approx 2.4m(8ft). We strongly recommend that
this is vented through the wall with the attachment provided. The position of the hole (100mm diameter) for
the vent directly behind the tumble dryer is shown in the diagram.
If the through the wall vent is to be positioned other than behind the dryer, the vent hose should be
h adjacent side panel torelevant position. The plinth must be cut-out to
accommodate the air vent grill at the bottom front of the tumble dryer.
postitioned

The air vent at the front of the appliance must never be covered or blocked in any way as this will cause the
dryer to overheat.
The dryer should not be placed directly next to ovens or cookers, as the performance of the dryer may be
affected.
ELECTRICAL CONNECTIONS: We strongly recommend that any electrical work is carried out by a
qualified person complying with the IEE 17th addition of the electrical regulations.
IMPORTANT
Please remember that the tumble dryer must be capable of being switched off, (disconnected from the
supply), when fitted in position
THE FILTER
The filter is found, as seen from the diagram, by opening the door and must
always be in position when drying items in the appliance. To allow the dryer to
operate efficiently it should be cleaned after each drying cycle. Do not be
alarmed by the amount of fluff deposited on the mesh. It is not due to excessive
wear caused by the dryer but more an indication of its efficient operation. All
fabric loses fluff when drying but it goes unnoticed into the air. In a tumble dryer
it simply collects in the filter.

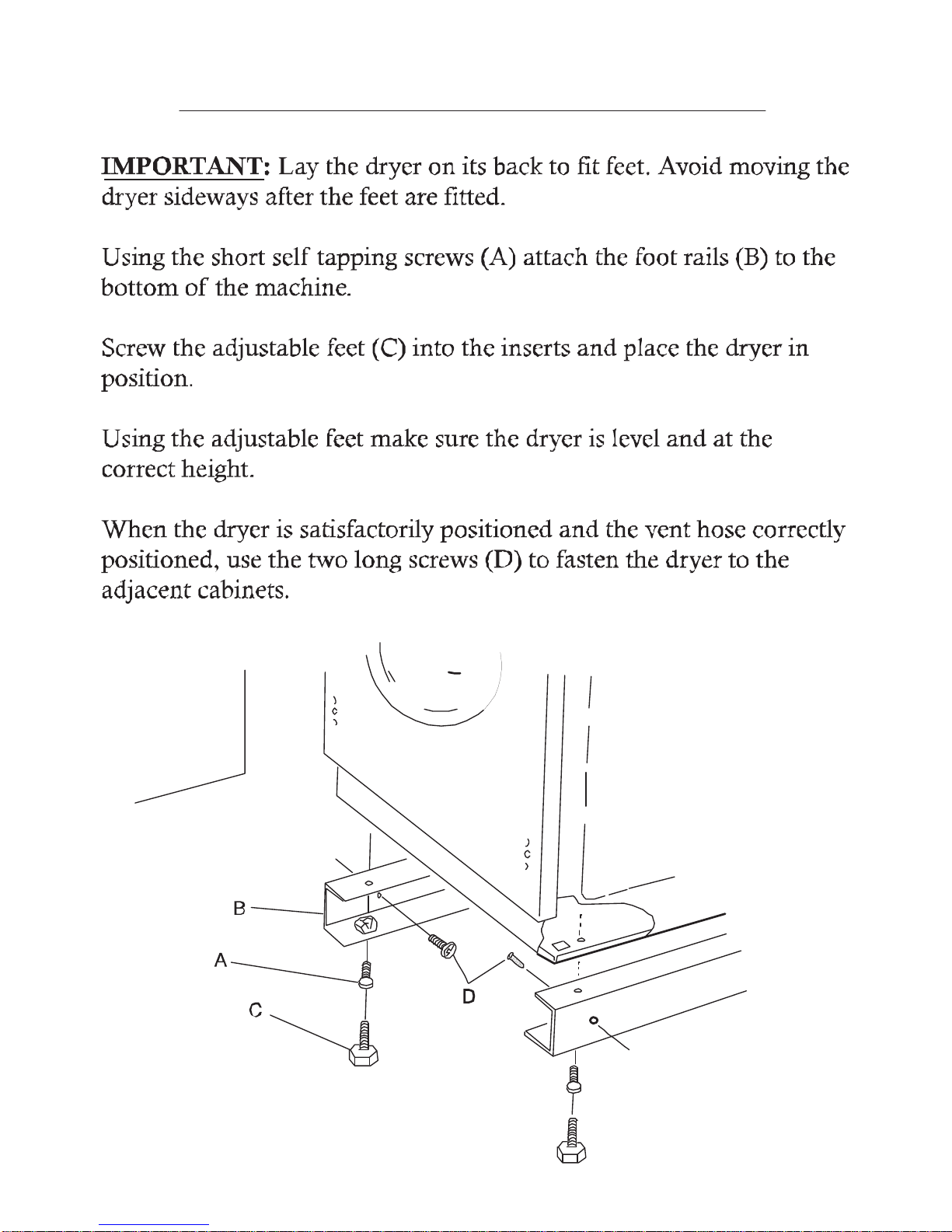

TO FIT THE FEET TO YOUR DRYER

CONTROL PANEL GUIDE
1. The Timer Select the drying time from the recommendations shown on the
control panel (3). Turn the timer knob to the required drying time.
2. Heat Setting Select half or full heat as recommended on the control panel.
3. Control Panel See below
4. Start Press the start button after selecting the required drying time.
OPERATION
Sort out the clothes into groups ofsimilar fabrics and colours. Check the care label inside the garment. We
suggest that a fabric conditioner be used to reduce static electricity. Delicate articles e.g. tights should be
placed inside a pillowcase. Itis better to dry small and large articles together.
Open the door.
Load clothes loosely into the drum.
Load sheets starting with one corner.
Close the door.
Dry your hands.
Check the timer is in the’0’ position.
Switch on the machine.
Select correct heat position (See programme chart on facia panel).
TIMESETTING
START
IMPORTANT:Readinstructionsbeforeuse.
HEAT
SETTING
0
40
20
100
115
66
90
60
HEAT TIMEDRYING
115 mins
40-60mins
20-40mins
66mins
Standard Cotton
PolyesterCotton
Acrylics
programme-full load
Standard Cotton
programme-half load
FULL
HEAT
HALF
HEAT
HEAT TIMEDRYING
115 mins
40-60mins
20-40mins
66mins
StandardCotton
PolyesterCotton
Acrylics
programme-full load
StandardCotton
programme-half load
1. 2.3. 4.

The standard cotton programme is suitable to dry normal wet cotton laundry. Itis the most
programme in terms of energy consumption for drying wet cotton laundry.
Your appliance is a reversing, small door opening; a full load will typically take 115 minutes and will use
approximately 3.92kWh of electricity. A half load will typically take 66 minutes and will use approximately
2.08 kWh of electricity.
The power consum -mode and the left-on mode is zero.
Set the timer to the correct position(See programme chart on facia panel).
Press the start button.
The drum will now begin to rotate and stop when the timer automatically reaches the ‘0’ position.
Should the clothes become dry before the cycle has the thermostat will automatically sw
heater and prevent over drying and save energy although the drumwill still rotate.
When drying large items such as sheets, we suggest you stop the dryer to redistribute the load.
To stop the machine during the middle of a programme, simply open the door: the drum will stop rotating
automatically and reset when you close the door. To lengthen or shorten the programme, turn the timer knob.
After removing the dried clothes clean the r as follows:
Pull the lter upwards.
Rem by hand or with a soft brush.
Slide the r back.
Wash the lter occasionally in detergent solution and with a soft brush remove small particles.
ying cycle occurs without heat (cool down cycle) to ensure that the items will not be
damaged.
CARE LABELS YOU
MAY FIND ON YOUR FABRICS
DOOR REVERSAL
APPLIANCE DOOR
The door on the dryer can be positioned either with the left or right hand hinging.
Please follow illustrations below to change the door position.

THE DECOR DOOR
The hinges can be fastened through the pre-drilled holes on either the leftor right hand with the door stops
being on the other side.
TECHNICAL DATA
Overall dimensions : height 86.5 – 89cm width 59.5cm depth 53cm
Maximum dry weight of cotton,linen 6.0kg synthetics 6.0kg.
For electrical ratings see plate
on rear of machine.
This product is manufactured to comply with the radio interference requirements of the Council directive
89/336/EEC, 2004/108/EC.
Fuse rating: 13amp.

- Check that the machine is switched on and the door properly closed.
- Some machines are with a resetable cut-out. Check this has not operated. If your
dryer has a red button on the right hand side at the back if your dryer, press it. If it has
operated the sharp “click” will be heard. This cut-out only operates if the air s
severely restricted so make sure the r is clean and that all other restrictions are
removed before restarting.
- Check the fuse in the moulded plug.
This appliance is marked according to the European Directive
2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
This guideline is the frame of a European wide validity of return and
Recycling on Waste Electrical and Electronic Equipment.
DON’TS….
Do not – Overload the dryer.
Do not – Dry articles singly as they tend to roll up and so increase drying time.
Do not – Dry woolen or wool mixture articles unless the article is labeled as suitable. This should avoid
shrinkage.
Do not – Allow venting hose (where applicable) or er to become blocked.
Do not mulate around the tumble dryer.
NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM – RISK OF FIRE.
WARNING: Never stop a tumble dryer before the end of a drying cycle unless all items are quickly removed
and spread out so the heat is dissipated.
ANY PROBLEMS
If the clothes are not dry after normal drying time:
- Check that you used the correct heat setting.
- Check that the venting hose is not blocked (sometimes a strong wind may cause a back
pressure).
- Check that you have not set the timer within a cool down period.
If your machine does not work, check the following points before contacting the Free –phone service
number.
- Check that there isa supply of electricity.

Model LAM8800
Capacity 6kg
Technology Air Vented
Energy Class C
AEc 459kWh/a
Automa on Non - Automa c
EU Ecolabel N/a
E,Dry 3.92kWh
E,Dry1/2 2.08 kWh
Eg,Dry N/A
Eg,Dry1/2 N/A
Eg,Dry,a N/A
Eg,Dry1/2,a N/A
Po0W
Pl0W
Dura on of le on mode N/A
Tt86 min
Tdry 115 mins
Tdry1/2 66 mins
Noise 62dBA
Installa on Built In
Product Fiche
CommissionRegula on(EU)No 392/2012
The standard co on program used at full and par al load is the standard drying
programme to which the informa on in the label and Įche relates. This
programme is suitable for drying normal wet co on laundry is the most eĸcient
program in terms of energy consump on for co on.
The Įgures above is based on 160 drying cycles of the standard co on
programme at full and par al load and the consump on of the low-power modes.
Actual energy consump on per cycle will depend on how the appliance is used.

Product Guarantee Details (UKonly)
Your appliance has the benefit of a comprehensive
Manufacturer’s guarantee which covers the cost of
breakdown repairs. (Details of which are shown on
your proof of Purchase Document).
• Any claim during the period of the guarantee (MUST BE ACCOMPANIED BY
THE PROOF OF PURCHASE)
• The product must be correctly installed and operated in accordance with the
manufacturer’s instructions and used for normal domestic purposes.
• This guarantee does not cover accidental damage, misuse or alterations which are likely
to affect the product.
• The guarantee is invalid if the product is tampered with, or repaired by any unauthorized
person.
(The guarantee in no way affects your statutory or legal rights)
What to do if you need to report a problem-
Please ensure you have ready:
ͲThe products’s model & serial numbers
ͲHowdens Proof of Purchase document
ͲYour full contact details.
Call the Service Line on 08450060
006

.
4213 094 72368
v5 09/11/2015
