Lamona LAM8876 User manual

Integrated Tumble Dryer
User Guide & Instructions
www.howdens.com/appliance-registration
LAM8876

3 year guarantee available.
Register your appliance within 90 days2
By registering your appliance and creating an account, we will keep
you up to date with the latest product information and notify you
immediately of any important product updates
1 Lines are open Monday to Friday 9am to 5pm. Calls will be charged at your local rate
and may be recorded and monitored for training and quality purposes.
2 So that in the event of an important product update, or recall, we can contact you.
Call now1
0333 010 0009
Alternatively, visit www.howdens.com/appliance-registration
Free 3 year
guarantee
L
A
M
O
N
A
A
P
P
L
I
A
N
C
E
G
U
A
R
A
N
T
E
E
YEARS
3

Page_4
www.howdens.com
Please read and follow these instructions carefully and operate the
machine accordingly.
This booklet provides important guidelines for safe use, installation,
maintenance and some useful advice for best results when using your
machine.
Keep all documentation in a safe place for future reference or for any
future owners.
Please check that the following items are delivered with the appliance:
• Instruction manual
• Energy label
By placing the mark on this product, we are confirming compliance to
all relevant UK & European safety, health and environmental requirements
which are applicable in legislation for this product.
1. SAFETY
2. PREPARING THE LOAD
3. CLEANING AND ROUTINE MAINTENANCE
4. WATER CONTAINER
5. DOOR, FILTER AND CONDENSER
6. CONTROLS AND INDICATORS
7. SELECTING THE PROGRAMME AND SET THE FUNCTION
8. TROUBLESHOOTING, CUSTOMER SERVICE
Index

Page_5
www.howdens.com
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical,sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand
and the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance should not be made
by children without supervision.
Children of less than 3 years should
•
be kept away unless continuously
supervised.
•WARNING Misuse of a tumble
dryer may create a fire hazard.
•This appliances is intended to be
used in household and similar
applications such as:
- Staff kitchen areas in shops,
offices and other working
environments;
- Farm houses;
- By clients in hotels, motels and
other
residential type environments;
- Bed and breakfast type
environments. A different use of
this appliance from house hold
environment or from typical
housekeeping functions,as
commercial use by expert or
trained users, is excluded even in
the above applications.
•If the appliance is used in a
manner inconsistent with this
it may reduce the life of the
appliance and may void the
manufacturer’s warranty.
•Any damage to the appliance
or other damage or loss arising
through use that is not consistent
with domestic or household use
( even if located in a domestic or
household environment) shall not
be accepted by the manufacturer
to the fullest extent permitted by
law.
•This machine should only be
used for its intended purpose
as described in this manual.
Ensure that the instructions for
installation and use are fully
understood before operating the
appliance.
•Do not touch the appliance when
hands or feet are damp or wet.
•Do not lean on the door when
loading the machine or use the
door to lift or move the machine.
•Do not allow children to play with
the machine or its controls.
•WARNING Do not use the product
if the fluff filter is not in position
or is damaged; fluff could be
ignited.
1. SAFETY

Page_6
www.howdens.com
Installation
• WARNING where the hot surface
symbol is located the
temperature rise during operation
of the tumble dryer may be in
excess of 60 degrees C.
•Always remove the plug before
cleaning the appliance.
•Do not continue to use this
machine if it appears to be faulty.
•Lint and fluff must not be allowed
to collect on the floor around the
outside of the machine.
•The final part of a tumble dryer
cycle occurs without heat (cool
down cycle) to ensure that the
items are left at a temperature
that ensures that the items will
not be damaged.
•The tumble dryer is not to be used
if industrial chemicals have been
used for cleaning.
•WARNING Never stop a tumble
dryer before the end of the drying
cycle unless all items are quickly
removed and spread out so that
the heat is dissipated.
•Maximum load drying weight: see
energy label.
• The appliance must not be
installed behind a lockable door,
asliding door or a door with a
hinge on the opposite side to
that of the tumble dryer, in such
way that a full opening of the
tumble dryer door is restricted.
Important: During transport
ensure that the dryer is in an upright
position, if it is necessary you can
only lay on the side shown;
CAUTION: wait at least 4 hours
before switching on so that the oil
can flow back into the compressor.
Failure to do this could result in
damage to the compressor.
• Do not use adapters, multiple
connectors and / or extensions.
•Never install the dryer against
curtains and be sure to prevent
items from falling or collecting
behind the dryer.
The Laundry
•Do not dry unwashed items in the
tumble dryer.
•WARNING Do not tumble dry
fabrics treated with dry cleaning
fluids.

Page_7
www.howdens.com
Ventilation
• WARNING Foam rubber
materials can, under certain
circumstances, when heated
become ignited by spontaneous
combustion. Items such as foam
rubber (latex foam), shower
caps, waterproof textiles, rubber
pads MUST NOT be dried in the
tumble dryer.
•Always refer to the laundry care
labels for directions on suitability
for drying.
•Clothes should be spin dried or
thoroughly wrung before they are
put into the tumble dryer.
•Remove all objects from pockets
such as lighters and matches.
•Clothes that are dripping wet
should not be put into the dryer.
Lighters and matches must not
be left in pockets and NEVER
use flammable liquids near the
machine.
•Glass fibre curtains should
NEVER be put in this machine.
Skin irritation may occur if other
garments are contaminated with
the glass fibres.
•Items that have been soiled with
substances such as cooking oil,
acetone, alcohol, petrol, Kerosene,
spot removers, turpentine, waxes
and wax removers should be
washed in hot water with an extra
amount of detergent before being
dried in the tumble dryer.
• Adequate ventilation must be
provided in the room where the
tumble dryer is located to prevent
gases from appliances burning
other fuels, including open fires,
being drawn into the room during
operation of the tumble dryer.
• Installing the rear of the
appliance close to a wall or
verticals surface.
• There should be a gap of at least
12mm between the machine
and any obstruction. To ensure
adequate ventilation the space
between the bottom of the
machine and the floor must not
be obstructed.
• Check regularly that the air
flowing through the dryer is not
restricted.
• Check frequently the fluff filter
after use, and clean, if necessary.
• Prevent items from falling or
collecting behind the dryer as
these may obstruct the air inlet
and outlet NEVER install the dryer
up against curtains.
• Fabric softeners, or similar
products, should be used as
specified by the fabric softener
instructions.

Page_8
www.howdens.com
Do not install the product
in a low temperature room
or in a room where there is
a risk of frost occurring. At
temperatures around freezing
point the product may not
be able to operate properly:
there is a risk of damage if the
water is allowed to freeze in
the hydraulic circuit (valves,
hoses, pumps).
For a better product
performance the ambient
room temperature must
be between 5-35°C. Please
note that operating in cold
condition (between +2 and
+5°C) might lead to some
water condensation and water
drops on the floor.
WARNING: the appliance must
not be supplied through an
external switching device, such
as a timer, or connected to a
circuit that is regularly switched
on and off by a utility.
If the supply cord is
damaged, it must be replaced
by the manufacturer, its
service agent or similarly
qualified persons in order to
avoid a hazard.

Page_9
www.howdens.com
• The appliance contains R290,
an eco-sustainable refrigerating
gas that is flammable. Keep open
flames and sources of ignition
away from the appliance.
• Check there is no visible damage
on the appliance. Do not use the
appliance if it is damaged.
• Should there be any kind of
problem, please contact your
specialised retailer or one of our
customer support centres.
• Any repairs or interventions on
the appliance must be carried
out only by an authorised
assistance service.
• Disposing of the device
incorrectly could cause fires or
poisoning.
• Dispose of the device correctly
and do not damage the pipes
used for the circulation of the
refrigerating fluid.
WARNING: Ensure that the
openings on the appliance and
the openings of the compartment
the appliance is fitted in (for
built-in models) are clear of
obstructions.
WARNING: Fire hazard /
Flammable materials. WARNING: Do not damage the
refrigerating circuit.

Page_10
www.howdens.com
Built-in installation
c. 45 mm

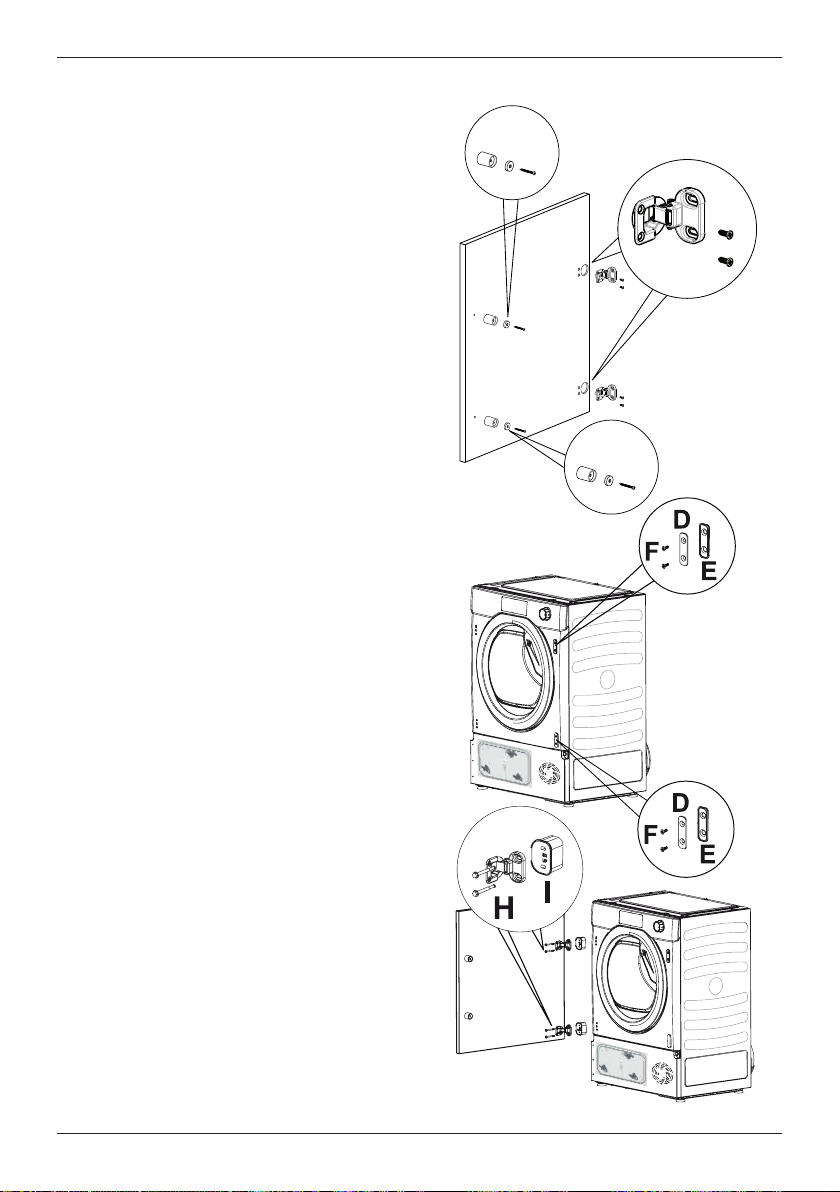

Instructions for mounting the furniture door
• Minimum Clearances
*Ensure plug is accessible after
installation.
• Measure, mark and drill the
upper hinge position. (*confirm
dimensions with décor door
range).
• Extend feet on dryer to c. 45 mm.
(Fitting based on default
Howdens Kitchen Installation
Manual set-up).
575
597 mm
716 mm
380 mm
130 mm
21.5 mm
12 mm +/- 1 mm
35 mm
