LAN Power LP-4812 User manual

LP-4812
PoE (Power over Ethernet)
12Vdc @ 1.75A (20 Watt) Splitter
Installation Guide
Purpose of this Guide
This Guide provides information and procedures for the product installation and operation of the PoE
12Vdc Splitter (LP-4812). This document is intended for technical personnel responsible for installing and
operating Power over Ethernet products in a Local Area Network (LAN) environment. To use this
document effectively, you should have a working knowledge of Local Area Networking (LAN) concepts and
hardware installation. In addition, you should be familiar with the following: Connection of Patch Cables
with RJ45 connectors and the LAN addressing map for your particular Network, Mounting of Network
hardware in a 19” equipment rack and local practices for power cord connections.
IMPORTANT SAFETY INSTRUCTIONS FROM LAN-Power
Read and keep these instructions. Follow all instructions and heed all warnings. Do not use this
equipment near water and clean only with a dry cloth. Do not block any equipment ventilation openings.
Install in accordance with manufacturer’s instructions. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat
the safety purpose of the polarized or grounding-type plug. Unplug this equipment during lightning storms
or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is
required when the equipment has been damaged in any way, such as power cord or plug damaged, liquid
has been spilled, or object has fallen into the equipment, the equipment has been exposed to rain or
moisture, does not operate normally, or has been dropped. The AC mains outlet, or appliance coupler
shall be readily available to the operator as a means of power disconnection.
WARNING - Only connect equipment to mains power outlet having protective earthing or grounding
connection. To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture.
CAUTION –These servicing instructions are for use by qualified service personnel only. To reduce the risk
of electric shock, do not perform any servicing other than that contained in the operating instructions
unless you are qualified to do so.
If You need Help or additional support relating to the contents of this Guide, please contact LAN Power
using one of the following methods: Phone: [phone] Fax: [phone] Mail: LAN Power, 47835
Westinghouse Drive, Fremont, CA 94539 Web Address: www.lan-power.com Email: support@lan-
power.com
Before contacting LAN-Power for technical support,please have the following information ready: the
product model number and unit serial number. A description of the failure or symptoms of problem. A
description of any action(s) already taken to resolve the problem (e.g., changing ports, rebooting the unit,
etc...). The type of End device being powered including Manufacturer name and part number. Powering
requirements of the End device. A description of your Network environment (layout, Ethernet switch
description, cable type, etc...). The unit history (i.e., have you returned the unit before, is this a recurring
problem, etc...)
Please note only qualified personnel should install this unit and
read instructions before attempting to install this unit
Verifying Contents of Package - Unpack the PoE Injector and verify that you have the
following item: LP-4812 Power over Ethernet 12Vdc Splitter
Technical Considerations - Before you mount the Splitter to a fixed location, consider all of the following:
Determine optimal placement, checking all cable paths and routing. Collect and document Network
information as required. Notes: 1.) The Splitter is not a repeater and does not amplify the Ethernet data
signal. Ensure the cable length from the Ethernet Network Switch to the Powered End device does not
exceed 328 feet/100 meters total length. 2.) The Splitter must be used in conjunction with a PoE
compliant PSE (Power Supply Equipment) such as a PoE Midspan Injector with a Minimum Output of 25
Watts to achieve full power output of 12Vdc @ 1.75Amps (20 Watts) from the LP-4812 Splitter.

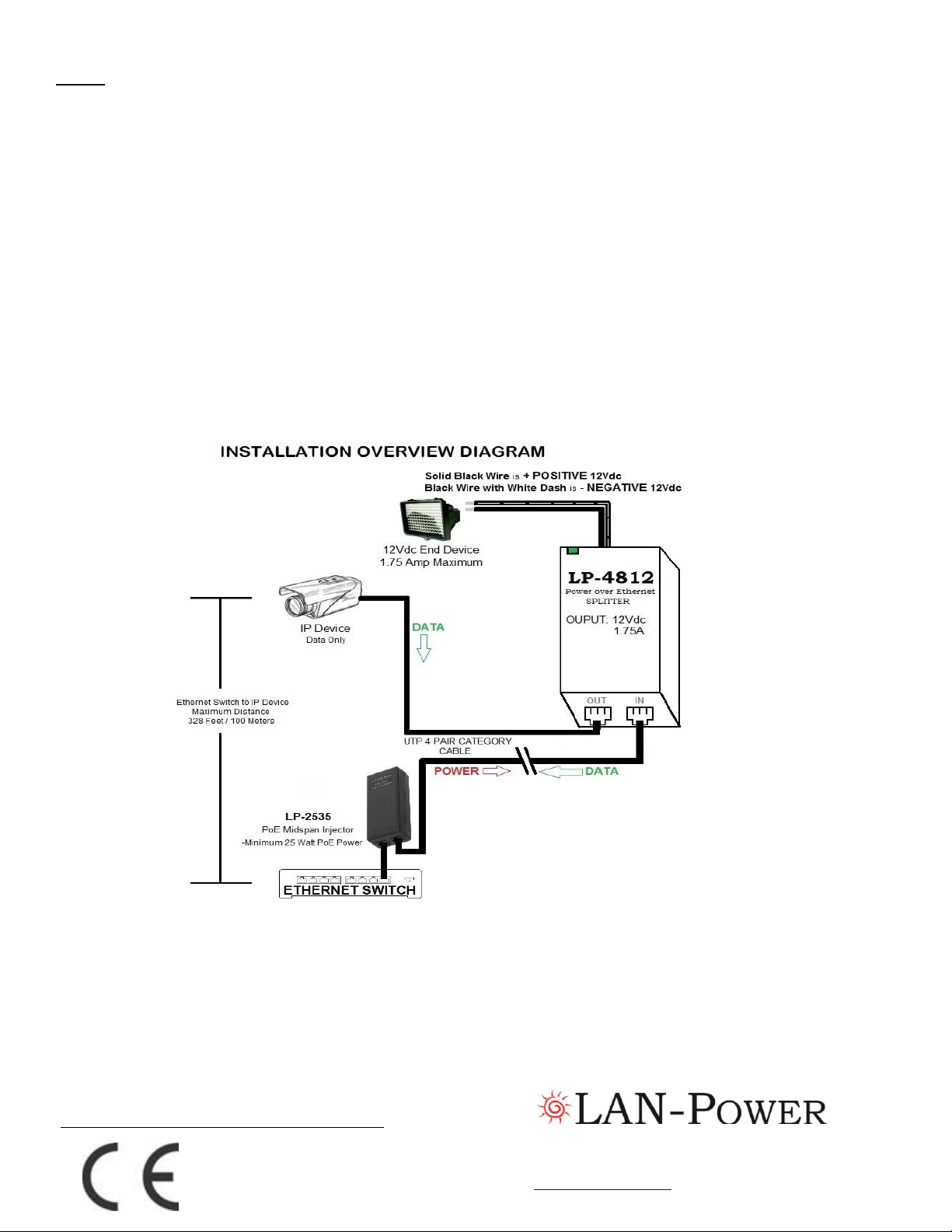

Powering Up and Installing the Splitter
NOTE: DO NOT apply power to devices until all connections have been terminated properly.
1.) Connect the 2 wires from the top of the LP-4812 to the appropriate 12Vdc Power Input connections of End
Device ensuring correct polarity. Failure to connect the polarity correctly or shorting the 2 wires together
while Splitter is powered can and will cause permanent damage to the LP-4812 Splitter.
2.) From the End IP Device connect the RJ45 Male Connector to the RJ45 Female Connector on the bottom
left of the LP-4812 Splitter labeled ‘OUT’. The LP-4812 will pass up to 100Mbs of data through the Splitter.
Note that the Maximum cable distance from the IP End Device to the Ethernet Switch is 100 Meters / 328
Feet.
3.) From the PSE (Power Supply Equipment such as PoE Midspan Injector or Endspan PoE Switch) connect
the incoming PoE (Power over Ethernet) via RJ45 Male Connector to the RJ45 Female Connector on the
bottom right of the LP-4812 Splitter labeled ‘IN’. Note the Minimum PoE Output from the PSE is 25 Watts to
achieve full power of 12Vdc @ 1.75A (20 Watts) from the LP-4812.
4.) Ensure all connections have been terminated appropriately to all the devices and then apply Mains Power
and Power Up the PSE (Power Supply Equipment such as PoE Midspan Injector or Endspan PoE Switch). The
LP-4812 will send appropriate Detection Signal/Handshake to the PSE and the PSE will provide PoE power to
the LP-4812. The GREEN status LED (on top left of the LP-4812) will illuminate. Once the GREEN status
LED is illuminated the LP-4812 has appropriate incoming power and the output is providing 12Vdc power.
5.) The LP-4812 has two mounting tabs (top right and bottom left of the unit) which should be screwed into
place to ensure unit is fixed appropriately.
Two Year Limited Warranty
LAN-Power warrants to the original consumer or purchaser that each of its products, and all components thereof, will be
free from defects in material and/or workmanship for a period of 2 years from the original purchase date. Any warranty
hereunder is extended only to the original consumer or purchaser and is not assignable.
Notice to user
LAN-Power reserves the right to make changes in specifications and other information contained in this document and its
web site without prior notice. The reader should in all cases consult LAN-Power to determine whether any such changes
have been made. The hardware described in this document is subject to change without notice due to market conditions
or user requirements.
44240 Fremont Blvd.
Fremont, Ca. 94538 USA
Telephone: [phone] FAX: [phone]
www.lan-power.com [e-mail]
SAFETY APPROVAL
This Equipment meets the following safety approval:
