lancer 815 LX User manual

LANCER RESERVES THE RIGHT TO MAKE CHANGES IN THIS MANUAL.
USER'S MANUAL
815 LX

NU_815_LX_ANG_C

815 LX / UTILIZATION
INTRODUCTION 1
INTRODUCTION
Dear Sir or Madam,
You are now the owner of a LANCER washer.
This machine is one of the most highly perfected on the market. It ensures
thorough washing through mechanical, thermal and chemical processes.
This washer has been developed and manufactured following the standards
(CE or UL).
For the washers in conformity with the CE standards, a “CE conformity
declaration” is delivered with the machines.
Please carefully consult this manual to ensure its correct operation in order
that you obtain full satisfaction. You should follow the advice given in this
document, which we have written for your benefit.
Before using your washer, you should become fully acquainted with it and
learn how to use it properly so that it will give you many years of service.

815 LX / UTILIZATION
CONTENTS 3
CONTENTS
INTRODUCTION...............................................................................................1
CONTENTS.........................................................................................................3
CHAPTER 1 BEFORE YOU START.............................................................7
1
1. . S SA AF FE ET TY Y R RE EC CO OM MM ME EN ND DA AT TI IO ON NS S 9 9
PRECAUTIONS TO BE TAKEN BEFORE USE 9
2
2. . O OP PE EN NI IN NG G T TH HE E W WA AS SH HE ER R’ ’S S D DO OO OR R 1 11 1
3
3. . I IN NS ST TA AL LL LI IN NG G T TH HE E 2 2 C CH
HA AM MB BE ER R F FI IL LT TE ER RS S 1 12 2
4
4. . C CL LE EA AN NI IN NG G C CH HE EM MI IC CA AL LS S 1 13 3
NON-FOAMING DETERGENT 13
NEUTRALIZING ACID 13
SWITCHING TYPE/BRAND OF CLEANING CHEMICALS 13
WHEN TO CHANGE THE CHEMICAL CONTAINERS ? 14
HOW TO CHANGE THE CHEMICAL CONTAINERS ? 14
5
5. . T TH HE E B BA AS SK KE ET TS S 1 15 5
SOME EXAMPLES 15
SETTING UP 18

815 LX / UTILIZATION
CONTENTS 4
CHAPTER 2 WASHING CYCLE LAUNCHING.......................................19
1
1. . D DE ES SC CR RI IP PT TI IO ON N A AN ND D B BA AS SI IC C F FU UN NC CT TI IO ON NS S O OF F K KE EY YP PA AD D 2 21 1
2
2. . S SE ET
TT TI IN NG G I IN NT TO O S SE ER RV VI IC CE E 2 22 2
3
3. . S ST TA AR RT TI IN NG G T TH HE E C CY YC CL LE E 2 22 2
4
4. . I IN NF FO OR
RM MA AT TI IO ON N A AV VA AI IL LA AB BL LE E D DU UR RI IN NG G T TH HE E W WA AS SH H C CY YC CL LE E 2 24 4
5
5. . E EN ND D O OF F C
CY YC CL LE E 2 25 5
6
6. . O OP PE EN NI IN NG G 2 25 5
7
7. . S SW WI IT TC CH HI IN NG G O OF FF F 2 25 5
CHAPTER 3 PROGRAMMING...................................................................27
1
1. . 1 1. . T TA AB BL LE E O OF F F FA AC CT TO OR RY Y- -P PR RO OG GR RA AM MM ME ED D C CY YC CL LE ES S 2 29 9
2
2. . 2 2. . A AC
CC CE ES SS S T TO O P PR RO OG GR RA AM MM MI IN NG G A A W WA AS SH HI IN NG G C CY YC CL LE E 3 31 1
3
3. . 3 3. . M MO OD DI IF FY
YI IN NG G T TH HE E W WA AS SH HI IN NG G C CY YC CL LE ES S 3 32 2
CHAPTER 4 MAINTENANCE.....................................................................35
1
1. . T TH HE E F FI IL LT TE ER RS S 3 37 7
BASIN 37
STRAINER 37
2
2. . S SH HU UT TD DO OW WN N A AT T E EN ND D O OF F D DA AY Y 3 37 7
3
3. . E EX XT TE ER RN NA AL L M MA AI IN NT TE EN NA AN NC CE E O
OF F T TH HE E W WA AS SH HE ER R 3 38 8
4
4. . D DE EC CO ON NT TA AM MI IN NA AT TI IO ON N O OF F T TH HE E M MA AC CH HI IN NE E A AN
ND D P PA AR RT TS S 4 40 0
WHEN TO DECONTAMINATE THE WASHER ? 40
HOW TO DECONTAMINATE THE MACHINE ? 40
5
5. . P PR RE EV VE EN NT TA AT TI IV VE E M MA AI IN NT TE EN NA AN NC CE E S SC CH HE ED DU UL LE E 4 41 1
6
6. . R RE EC CO OM MM ME EN ND DE ED
D S SP PA AR RE E P PA AR RT TS S 4 42 2

815 LX / UTILIZATION
CONTENTS 5
CHAPTER 5 PROBLEMS.............................................................................43
1
1. . O OP PE ER RA AT TI IN NG G P PR RO OB BL LE EM MS S 4 45 5
THE DETERGENT OR ACID DOES NOT ENTER THE WASHER 45
THE WASHER DOES NOT FILL WITH WATER (FILLING FAULT ALARM) 45
THE WASHER DISPLAY DOES NOT FUNCTION 45
ABNORMAL NOISE 45
THE WASHER DOES NOT HEAT (HEATING FAULT ALARM) 45
THE WASHER DOES NOT EMPTY (EMPTYING FAULT ALARM) 45
THE WASHER DOES NOT DRY 45
2
2. . F FA AU UL LT T A AL LA AR RM MS S 4 46 6

815 LX / UTILIZATION
CHAPTER 1 BEFORE YOU START 7
CHAPTER 1 BEFORE YOU START
After have install correctly your washer, in accordance with the install manual, you can to
familiarise with it.
You'll get in this chapter every indispensable information to ensure its good functioning and
avoid material damages and corporeal.
1. SAFETY RECOMMENDATIONS
2. OPENING THE WASHER'S DOOR
3. INSTALLING THE 2 CHAMBER FILTERS
4. CLEANING CHEMICALS
5. THE BASKETS

815 LX / UTILIZATION
CHAPTER 1 BEFORE YOU START 9
PLEASE READ AND UNDERSTAND THE
ENTIRE USERS MANUAL BEFORE
STARTING TO USE THIS MACHINE.
1. SAFETY RECOMMENDATIONS
PRECAUTIONS TO BE TAKEN BEFORE USE
USER TRAINING IS REQUIRED PRIOR TO OPERATING THIS MACHINE
All personnel that use or maintain this machine should be trained in every aspect of its
proper care and operation. This training should include selecting and running the proper
wash cycle, loading and unloading of the racks and baskets, handling of cleaning
chemicals, and decontamination after a faulty cycle.
All personnel working with toxic chemicals and vapors, which may be used in this
machine, must have comprehensive instructions in the relevant health hazards, methods
to detect the escape of toxic chemicals, and in the washer disinfection process. Please
see the Appendix for the protocol necessary for disinfecting this machine.
Training of user and maintenance personnel must be conducted regularly and made
available to all required personnel before use. All training sessions should be
documented so that attendance records are maintained and that an evidence of
understanding is demonstrated.
Please consult this manual for assistance with all aspects of the operation of this
machine.
AVOID OPENING THE CHAMBER DOOR DURING OPERATION
This machine uses detergent (caustic) and acid additives with elevated (95°C)
temperatures in the chamber during the different phases of the wash cycle. Opening the
door during the wash cycle can cause EXPOSURE TO HIGH TEMPERATURES
AND HAZARDOUS CHEMICALS AND VAPORS.

815 LX / UTILIZATION
CHAPTER 1 BEFORE YOU START 10
HIGH TEMPERATURES AT END OF CYCLE
Items that have been washed should be allowed to cool after a successful wash cycle
before handling them to avoid exposure to HIGH TEMPERATURES.
(D) NICHT WÄHREND
DEM SPÜLGANG ÖFFNEN
(F) NE PAS OUVRIR EN
FONCTIONNEMENT
(GB)DO NOT OPEN WHEN FUNCTIONING
TEMP. > 60°C (NL) NIET OPENEN TIJDENS PROCES
WASH CYCLE INTERRUPTED BY OPENED DOOR
If the wash chamber door is opened during the wash, the wash cycle is stopped and is
considered unsuccessful. The machine will return to its initial state. The wash cycle
should be restarted using the steps contained in this manual (see page 22).
WASH CYCLE INTERRUPTED BY ALARM CONDITION
If the machine goes into an alarm condition, the wash cycle is stopped and is considered
unsuccessful. The machine will return to its initial state. If the alarm requires service to
be performed on the machine, a decontamination cycle must be run to protect against
exposure to HAZARDOUS CHEMICALS AND VAPORS. Please consult the
Technician Reference Section of this manual for the proper decontamination procedure.
IT IS STRICTLY PROHIBITED TO USE THE WASHER IN AN
EXPLOSIVE ENVIRONMENT OR TO USE SOLVENTS,
HYDROCARBONS, NITRIC ACID, ALCOHOL, ALCOHOL
DERIVATIVES, OR OTHER FLAMMABLE PRODUCTS IN THE
MACHINE.
!

815 LX / UTILIZATION
CHAPTER 1 BEFORE YOU START 11

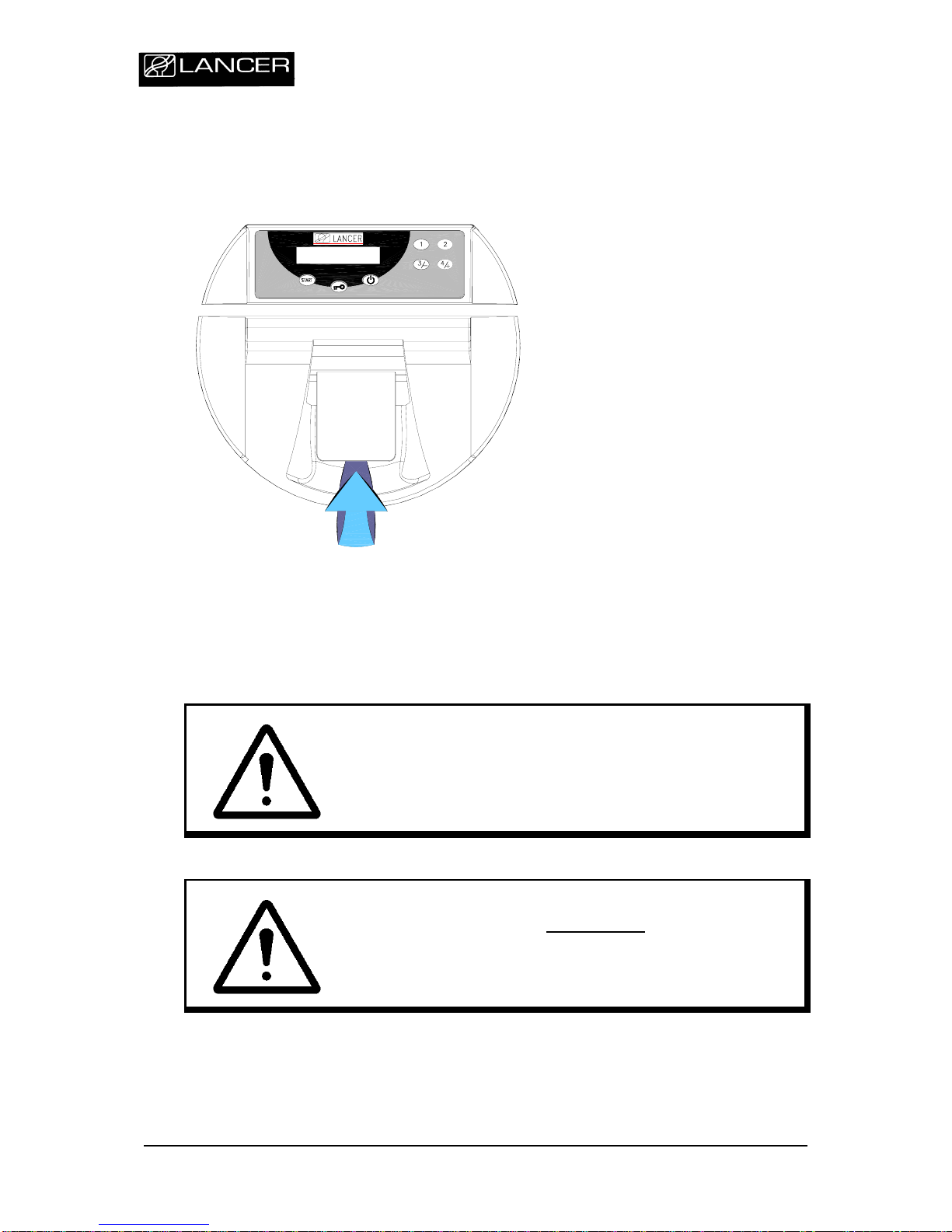

2. OPENING THE WASHER’S DOOR
Pull the handle towards you and lower the door to the horizontal position.
DO NOT CLIMB OR SIT ON THE DOOR.
MAXIMUM WEIGHT ALLOWED ON THE DOOR IS 35 Kg (77
lbs).
THE WASHERS LABEXIA WITH PLINTH MUST BE FIXED ON
THE WALL AS THE RECOMMENDATIONS GIVEN IN THE
INSTALLATION MANUAL.

815 LX / UTILIZATION
CHAPTER 1 BEFORE YOU START 12

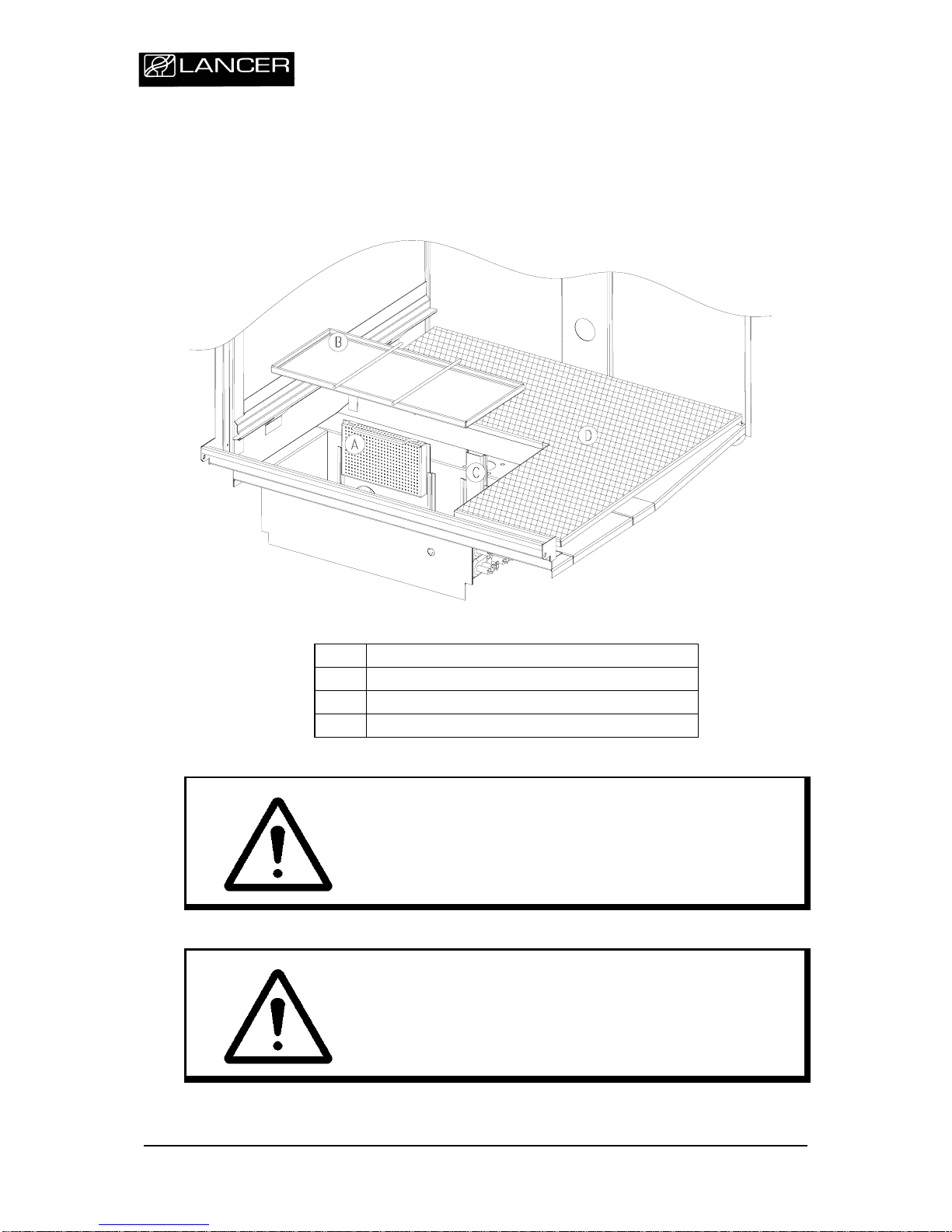

3. INSTALLING THE 2 CHAMBER FILTERS
Both chamber filters are necessary to large contaminants from entering the plumbing
circuit.
A PUMP SUCTION FILTER
B LABEL FILTER
C PRESSURESTAT PROTECTION
D PROTECTION GRID
DO NOT EXTRACT IN ANY CASE THE PROTECTION GRID D
TO AVOID EXPOSURE TO HIGH TEMPERATURES.
DO NOT USE THE WASHER WITHOUT BOTH FILTERS
FIRMLY A AND B SEATED IN PLACE.

815 LX / UTILIZATION
CHAPTER 1 BEFORE YOU START 13
4. CLEANING CHEMICALS
THE INFORMATION CONCERNING THE SAFETY
DATA OF THE LANCER WASHING PRODUCTS HAS
BEEN DELIVERED WITH THE MACHINE.
NON-FOAMING DETERGENT
Using the correct non-foaming detergent is required for proper cleaning in this machine.
The non-foaming detergent must be matched to remove the contamination source in
order to ensure satisfactory washing.
IT IS STRICTLY PROHIBITED TO USE SOLVENTS AS DETERGENT.
PLEASE REFER TO SUPPLIERS MATERIAL SAFETY DATA SHEET FOR
SPECIFIC SAFETY AND FORMULATION INFORMATION REGARDING THE
DETERGENT USED IN THIS EQUIPMENT.
THE PROGRAMMED CYCLES ON THIS WASHER HAVE BEEN VALIDATED
WITH LANCER CHEMICALS.
Please do not hesitate to consult LANCER for application specific solutions.
NEUTRALIZING ACID
Using the correct non-foaming neutralizing acid is required for proper cleaning in this
machine. The non-foaming neutralizing acid must be matched to remove the detergent
source in order to ensure satisfactory washing.
THE USE OF NITRIC ACID IS PROHIBITED. ONLY DILUTE PHOSPHORIC,
ACETIC AND CITRIC ACIDS CAN BE USED.
PLEASE REFER TO SUPPLIERS MATERIAL SAFETY DATA SHEET FOR
SPECIFIC SAFETY AND FORMULATION INFORMATION REGARDING THE
ACID USED IN THIS EQUIPMENT.
THE PROGRAMMED CYCLES ON THIS WASHER HAVE BEEN VALIDATED
WITH LANCER CHEMICALS.
Please do not hesitate to consult LANCER for application specific solutions.
SWITCHING TYPE/BRAND OF CLEANING CHEMICALS
Before changing to a different type or brand of cleaning chemical (acid or detergent) it
is necessary to rinse the plumbing circuitry of the machine. Install the new chemical(s)
per the installation instructions and then prime the detergent and acid pumps. Then a
wash cycle can be programmed and run which uses several rinses with water only. This
will prevent any cross contamination of chemicals.

815 LX / UTILIZATION
CHAPTER 1 BEFORE YOU START 14
After the new cleaning chemical have been installed, it will be necessary to adjust the
chemical dosing times in all applicable steps of the wash cycle in order to match the
formulation of the new cleaning chemicals.
Please contact LANCER for advice or assistance.
WHEN TO CHANGE THE CHEMICAL CONTAINERS ?
For a washer equipped with level detection devices :
This message is displayed when the chemical bottles are almost empty.
WARNING
L A C K O F C H E M I C .
It is necessary to fill or change the detergent or acid containers to continue the cycle.
For a washer not equipped with level detection devices :
The washing cycle can continue in when the chemical bottles are empty. It is therefore
necessary to visually check the detergent and acid containers for proper level of the
associated chemicals regularly.
HOW TO CHANGE THE CHEMICAL CONTAINERS ?
Press button to switch off the washer.
Use the necessary protection for the chemical to be changed (gloves, mask, safety
glasses…) .
Locate the container(s) that need to be changed.
Unscrew the cap(s) from the empty chemical bottle(s) and take out the chemical suction
tube(s).
Unscrew the cap(s) from the full chemical bottle(s) and insert the chemical suction
tube(s). Tighten the cap(s) to secure the chemical suction tube in place if necessary.
Press button to switch the washer on.
Dispose of used chemical bottles or caps according to local and company regulations.
Please consult the Material Safety Data Sheet for specific information regarding the
chemicals used in the washer.

815 LX / UTILIZATION
CHAPTER 1 BEFORE YOU START 15
5. THE BASKETS
SOME EXAMPLES
In order to wash items in "TE" or
"TH" type baskets, place the baskets
on the "PS" (basic rack) or "PSB"
(basic rack with spray arm) after
removing one or more "GS" (support
grilles). Check that the basket is
correctly fitted on the rods of the rack
designed for that purpose. Reinstall
the grilles for any washing operation
that does not require the use of "TE"
or "TH" type baskets.
Note : The "PS" should only be positioned at the bottom level of the washer chamber
where washing action is provided by the lower spray arm. The "PSB" can be positioned
on any level.

815 LX / UTILIZATION
CHAPTER 1 BEFORE YOU START 16
It is extremely important that the
items to be washed are prevented
from moving in order to obtain
correct cleaning and to avoid
breakage of fragile items. Items that
can be easily moved or knocked over
when loaded on the "PS" or "PSB"
rack should be secured in place. The
"GC" hold down screen should be
used for "PS"or "PSB" racks. The
"GCI" hold down screen should be
used for injector racks.
In the case of washing items with small diameter openings such as volumetric flasks, it
is very important that the flow rate of the injectors used must be lower than the flow
capacity of the flasks to be washed in order to avoid a gradual filling of the flasks during
the washing cycle. If the diameter of the opening is too small to allow the water to
escape from around the injector the mechanical action of the injector can be absorbed by
the water contained in the glassware giving poor cleaning results. It is imperative to use
baskets with injectors of proper diameter and, above all, to secure lightweight items with
a "GC" or "GCI" hold down screen.

815 LX / UTILIZATION
CHAPTER 1 BEFORE YOU START 17
In order to wash items on a
"PL" type basket (for cleaning
slides), place the baskets on the
"PS" (basic rack) or "PSB"
(basic rack with spray arm)
after removing one or more
"GS" (support grilles). Check
that the basket is correctly
fitted on the rods of the rack
designed for that purpose.
Reinstall the grilles for any
washing operation that does
not require the use of "PL"
type baskets.
You should only use baskets that are suitable for the parts to be washed. When your
washer is put into service, our technicians will give you useful advice on the best way to
load the racks relative to the items to be washed.
Please feel free to contact LANCER for advice or assistance.
When several racks are used simultaneously on the different levels, only one rack should
be pulled out of chamber on the door and the runners at a time.
The maximal load on the slide rails is 26 Kg.
IF THE LOADINGS TO BE HANDLED ARE SUPERIOR TO 25
KG THERE IS PLACE TO USE A HANDLING SYSTEM.

815 LX / UTILIZATION
CHAPTER 1 BEFORE YOU START 18
SETTING UP
a) Pull the slide rails out of the chamber.
b) Remove the front pins.
c) Insert wheels 1 and 2 of the basket in the slide rails.
d) FIT THE PINS BACK IN PLACE BETWEEN WHEELS 2 AND 3.
1-2-3 BASKET WHEELS
4 PIN
THE CHOICE OF THE BASKETS AND RACKS IS VERY
IMPORTANT TO EFFICIENT CLEANING.
Please feel free to contact LANCER for advice or
assistance.
