Land Pride RCR2510 Series User manual

Rotary Cutter
RCR2596, RCR2510 & RCRM2510
22352 312-753P
Parts Manual
Read the Operator's manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
© Copyright 2012 Printed 04/11/12
Cover photo may show optional equipment not
supplied with standard unit.
Table of Contents Part Number Index

Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4

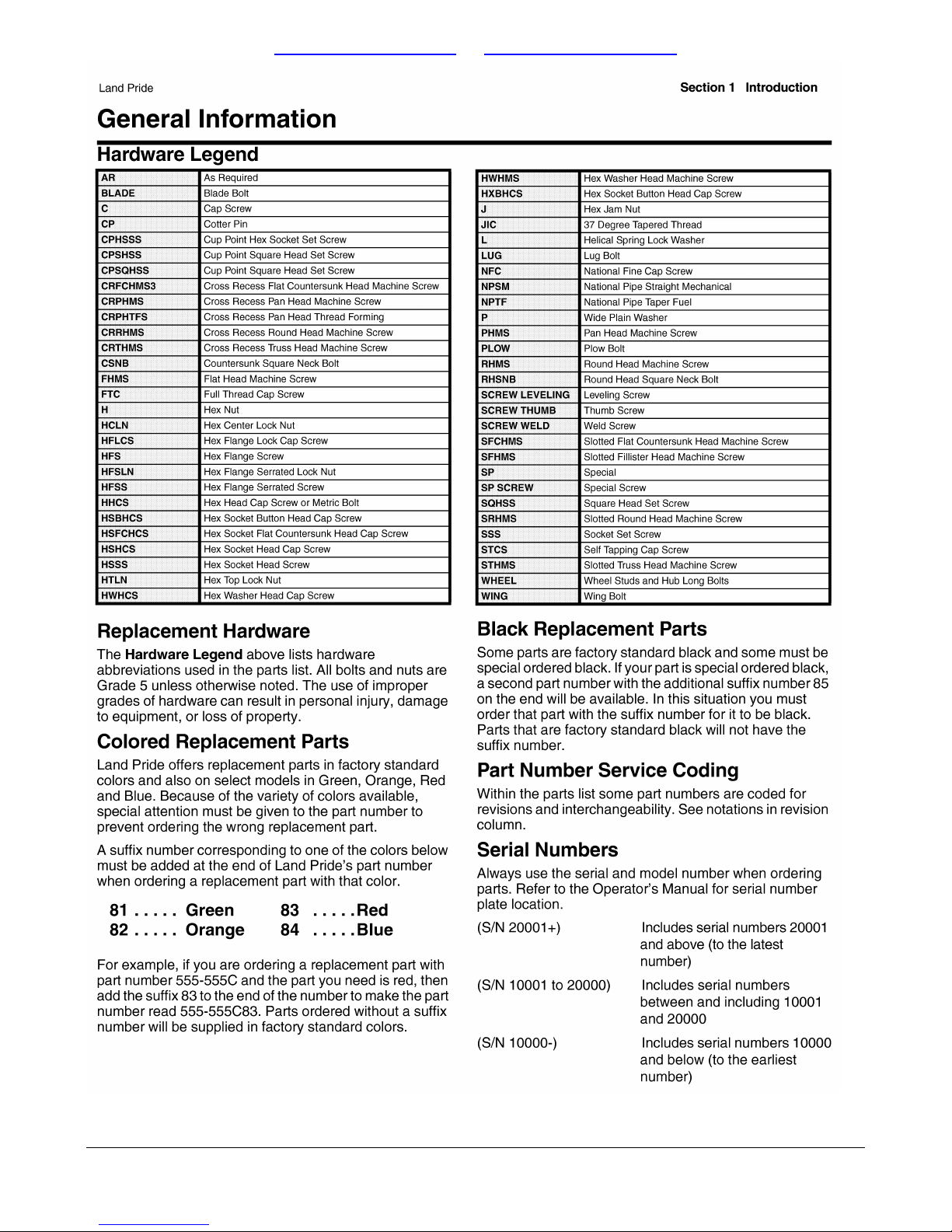

Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
Section 2: Frame............................................................6
3-Point Wheel......................................................................6
CV Trail Type Driveline........................................................8
Deck Blade Drive S/N 644967-.........................................10
Deck Blade Drive S/N 644968+........................................12
Deck Components & 3-Point Hitch....................................14
Equal Angle Pull Type Driveline........................................18
Hydraulic Lift.....................................................................20
Pull Type............................................................................22
Pull Type Axle and Tires....................................................24
Section 3: Guards........................................................26
Guarding Chain.................................................................26
Guarding Chain.................................................................28
Guarding Rubber...............................................................30
Guarding Rubber...............................................................32
Section 4: Drivelines...................................................34
Coupler Intermediate 826-646c & 826-647c.....................34
Driveline 1000 RPM (826-216C) Eurocardan...................36
Driveline 1000 RPM (826-221C) Eurocardan...................38
Driveline 1000 RPM (826-223C) Eurocardan...................40
Driveline 1000 RPM (826-226C) Eurocardan...................42
Driveline 540 RPM (826-151C) Eurocardan.....................44
Driveline 540 RPM (826-215C) Eurocardan.....................46
Driveline 540 RPM (826-220C) Eurocardan.....................48
Driveline 540 RPM (826-255C) Eurocardan.....................50
Driveline 540 RPM (826-256C) Eurocardan.....................52
Driveline CV 1000 RPM (826-063C) Walterscheid............54
Driveline CV Pull Type Cutter 540 RPM (826-053C)
Walterscheid...............................................................56
Driveline Flex Coupler (826-359C) Eurocardan................58
Driveline Flex Coupler (826-360C) Eurocardan................60
Driveline Slip Clutch (1406016) Eurocardan.....................62
Driveline Slip Clutch (1406028) Eurocarda.......................64
Driveline Slip Clutch (1406128) EC...................................66
Driveline Slip Clutch (1446016) Eurocardan.....................68
Driveline Slip Clutch (1446037) Eurocardan.....................70
Driveline Slip Clutch (1446137) Eurocardan.....................72
Driveline Stub Shaft Pull Type 540 RPM (826-225C)
Eurocardan.................................................................74
Section 5: Gearboxes..................................................76
Gearbox (826-356C) Comer.............................................76
Gearbox (826-358C) Comer.............................................78
Gearbox (826-424C) Comer.............................................80
Section 6: Hydraulics..................................................82
Hydraulic Cylinder (810-200C) Midway.............................82
Hydraulic Cylinder (810-200C) Red Lion..........................84
Section 7: Labels.........................................................86
Label Placement...............................................................86
Part Number Index.......................................................88
© Copyright 2012. All rights reserved.
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future. The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment. The illustrations are intended for
ordering parts only.
Land Pride is registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
2RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 04/11/12
Table of Contents Part Number Index
Table of Contents

33-Point Wheel.................................................................6
CCoupler Intermediate 826-646c & 826-647c................34
CV Trail Type Driveline....................................................8
DDeck Blade Drive S/N 644967-....................................10
Deck Blade Drive S/N 644968+...................................12
Deck Components & 3-Point Hitch...............................14
Driveline 1000 RPM (826-216C) Eurocardan...............36
Driveline 1000 RPM (826-221C) Eurocardan...............38
Driveline 1000 RPM (826-223C) Eurocardan...............40
Driveline 1000 RPM (826-226C) Eurocardan...............42
Driveline 540 RPM (826-151C) Eurocardan.................44
Driveline 540 RPM (826-215C) Eurocardan.................46
Driveline 540 RPM (826-220C) Eurocardan.................48
Driveline 540 RPM (826-255C) Eurocardan.................50
Driveline 540 RPM (826-256C) Eurocardan.................52
Driveline CV 1000 RPM (826-063C) Walterscheid.......54
Driveline CV Pull Type Cutter 540 RPM (826-053C)
Walterscheid..........................................................56
Driveline Flex Coupler (826-359C) Eurocardan...........58
Driveline Flex Coupler (826-360C) Eurocardan...........60
Driveline Slip Clutch (1406016) Eurocardan................62
Driveline Slip Clutch (1406028) Eurocarda..................64
Driveline Slip Clutch (1406128) EC..............................66
Driveline Slip Clutch (1446016) Eurocardan................68
Driveline Slip Clutch (1446037) Eurocardan................70
Driveline Slip Clutch (1446137) Eurocardan................72
Driveline Stub Shaft Pull Type 540 RPM (826-225C)
Eurocardan............................................................74
EEqual Angle Pull Type Driveline....................................18
GGearbox (826-356C) Comer.........................................76
Gearbox (826-358C) Comer.........................................78
Gearbox (826-424C) Comer.........................................80
Guarding Chain............................................................26
Guarding Chain............................................................28
Guarding Rubber..........................................................30
Guarding Rubber..........................................................32
HHydraulic Cylinder (810-200C) Midway........................82
Hydraulic Cylinder (810-200C) Red Lion......................84
Hydraulic Lift.................................................................20
LLabel Placement..........................................................86
PPull Type.......................................................................22
Pull Type Axle and Tires...............................................24
Table of Contents Part Number Index
Alphabetized Table of Contents
04/11/12 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 3

4RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 04/11/12
Table of Contents Part Number Index

04/11/12 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 5
Table of Contents Part Number Index

22334
6RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 04/11/12
Table of Contents Part Number Index
Land Pride Section 2: Frame

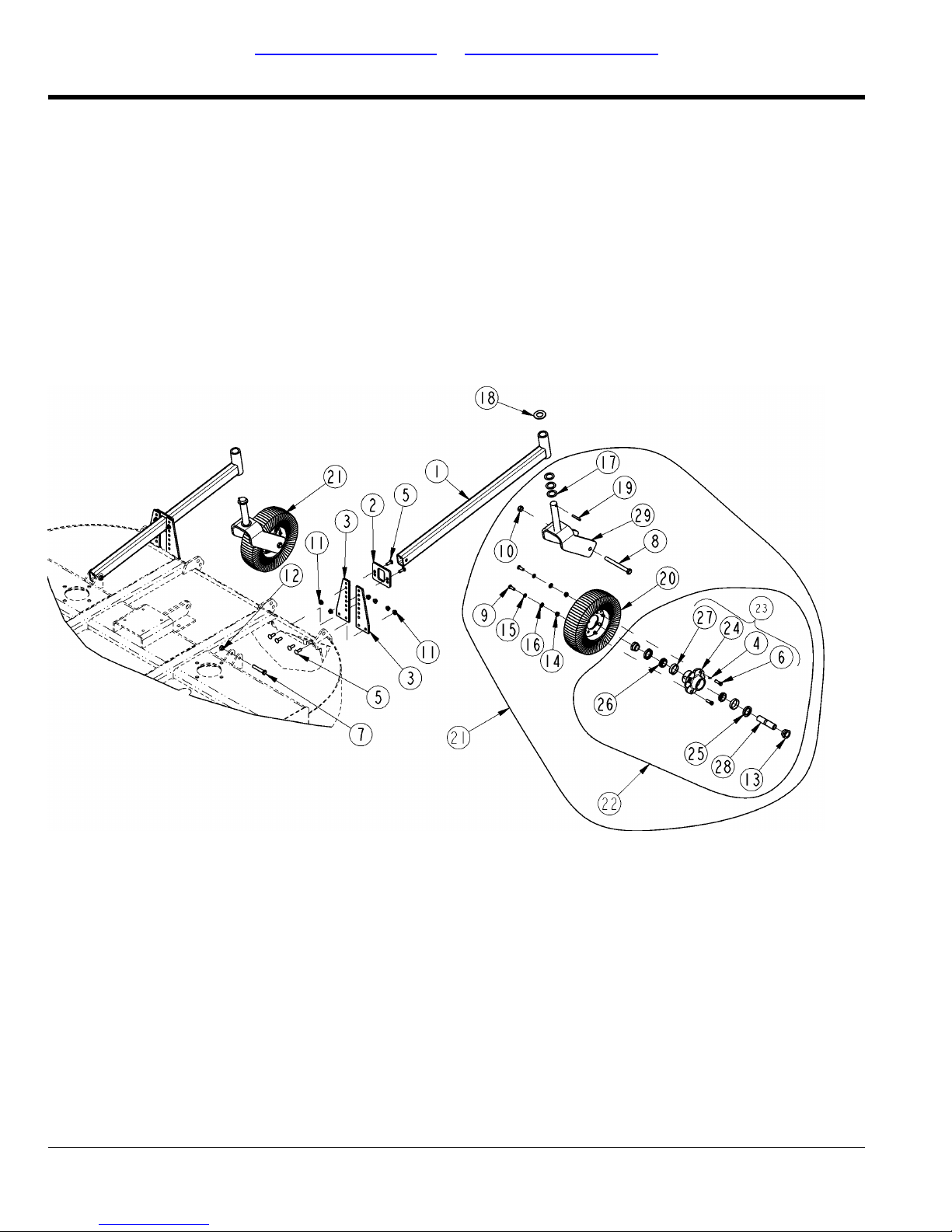

3-PointWheel
Applies to RCR2510, RCR2596, RCRM2510

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22334 RCR2596WLDMT TAILWHEEL BEAM312-614H1. RCR2510 RCRM2510TAILWHEEL BEAM WELDMENT312-512H1. RCR2596TAILWHEEL ARM ADJUST PLATE312-616D2. RCR2510 RCRM2510TAILWHEEL BEAM ADJ. BRKT.312-810D2. TAILWHEEL BEAM MOUNTING BRKT.312-811D3. GREASE ZERK STRAIGHT 1/4-28800-001C4. RHSNB 1/2-13X1 1/2 GR5802-106C5. HUB STUD 1/2-20X1 5/8 GR5802-135C6. HHCS 5/8-11X3 1/2 GR5802-162C7. HHCS 3/4-10X7 1/2 GR5802-280C8. HHCS 1/2-20X1 1/4 GR5802-326C9. NUT LOCK 3/4-10 PLT803-026C10. NUT HEX WHIZ 1/2-13 PLT803-037C11. NUT HEX TOP LOCK 5/8-11 PLT803-271C12. NUT HEX 1 1/4-7(MACHINED)PLAIN803-289C13. NUT HEX FLG/LK 1/2-20 PLT GR G803-308C14. WASHER LOCK SPRING 1/2 PLT804-015C15. WASHER FLAT 1/2 SAE PLT804-016C16. WASHER MACH 2.25 X 1.50 X 14GA804-066C17. WASHER FLAT 1 3/8HARD ASTMF436804-171C18. PIN ROLL 3/8 X 2 1/2 PLT805-255C19. TIRE & WHEEL LAMINATED 4.0 X 8814-058C20. LAM 4X8 TR-WL-HUB-YOKE 25 SER.814-161C21. HUB & SPINDLE ASSY 4 BOLT815-092C22. HUB 4 BLT W/CUPS, ZERK & STUDS815-230C23. HUB 4BLT DUCTILE(USE 815-230C)815-231C24. OIL SEAL DBL LIP 2.441 BORE816-286C25. BRG 1.25ID CONE 15123822-091C26. BRG CUP 2.44OD 15245822-092C27. BUSHING TW 1.25ODX.78IDX5 1/4827-036C28. RC25 TAILWHEEL YOKE890-961C29.
04/11/12 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 7
Table of Contents Part Number Index
Section 2: Frame Land Pride
3-PointWheel
Applies to RCR2510, RCR2596, RCRM2510

22342
8RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 04/11/12
Table of Contents Part Number Index
Land Pride Section 2: Frame

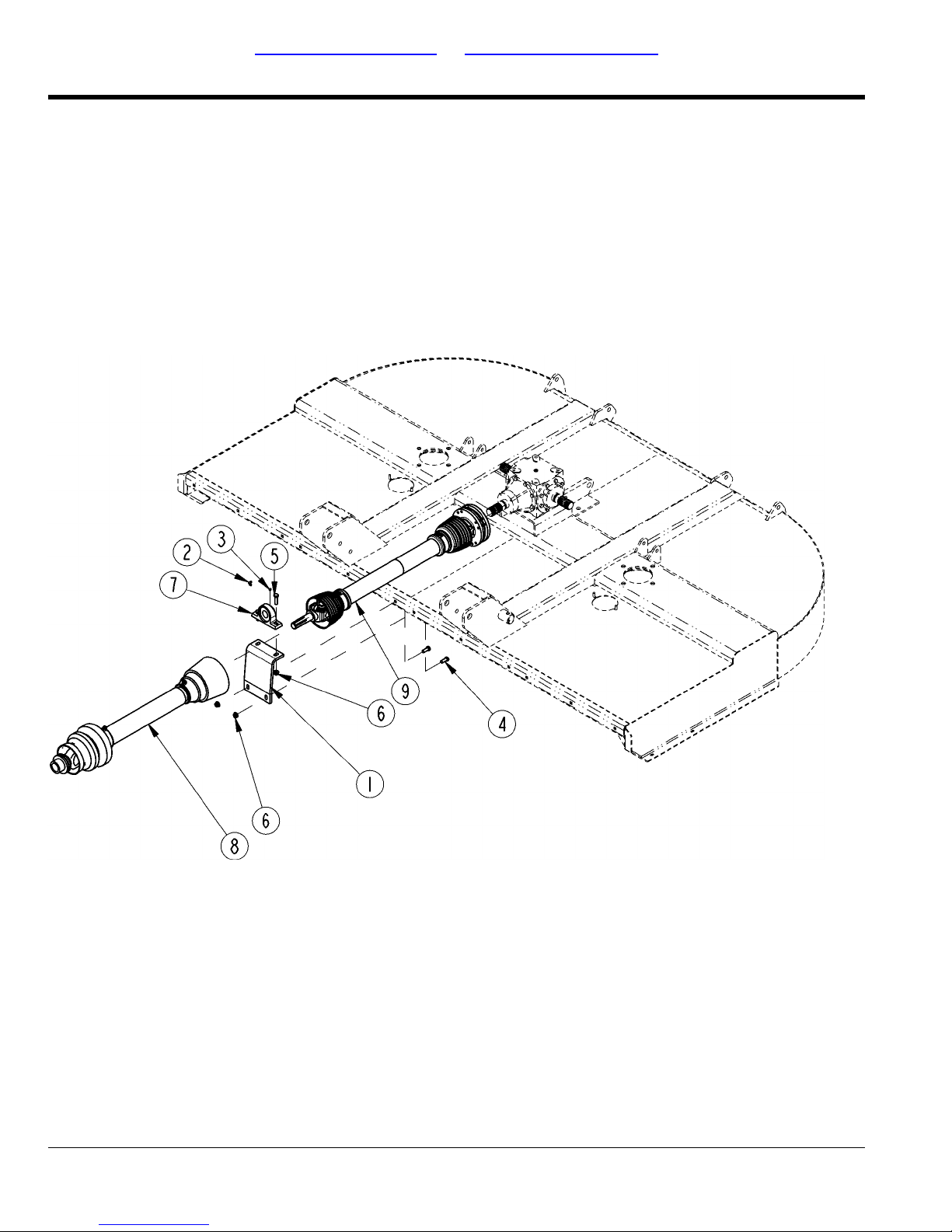

CVTrailType Driveline
Applies to RCR2510, RCRM2510

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22342 PILLOW BLOCK BRG. SUPPORT312-820D1. GREASE ZERK 1/4-28 X 90-DEG800-073C2. SCREW SET 5/16-18 SKT KP X 3/8801-035C3. HHCS 1/2-13X1 1/4 GR5802-034C4. HHCS 1/2-13X1 3/4 GR5802-082C5. NUT HEX WHIZ 1/2-13 PLT803-037C6. BEARING PILLOW BLOCK 1 3/8BORE822-094C7. RCR2510PTO CV 2400 X 60 540 RPM826-053C8. RCRM2510PTO CV 2400 X 60 1000 RPM826-063C8. RCR2510PTO W/STUB SHAFT/SC 540 1 3/4826-225C9. RCRM2510PTO W/STUB SHAFT/SC 1000 1 3/4826-226C9.
04/11/12 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 9
Table of Contents Part Number Index
Section 2: Frame Land Pride

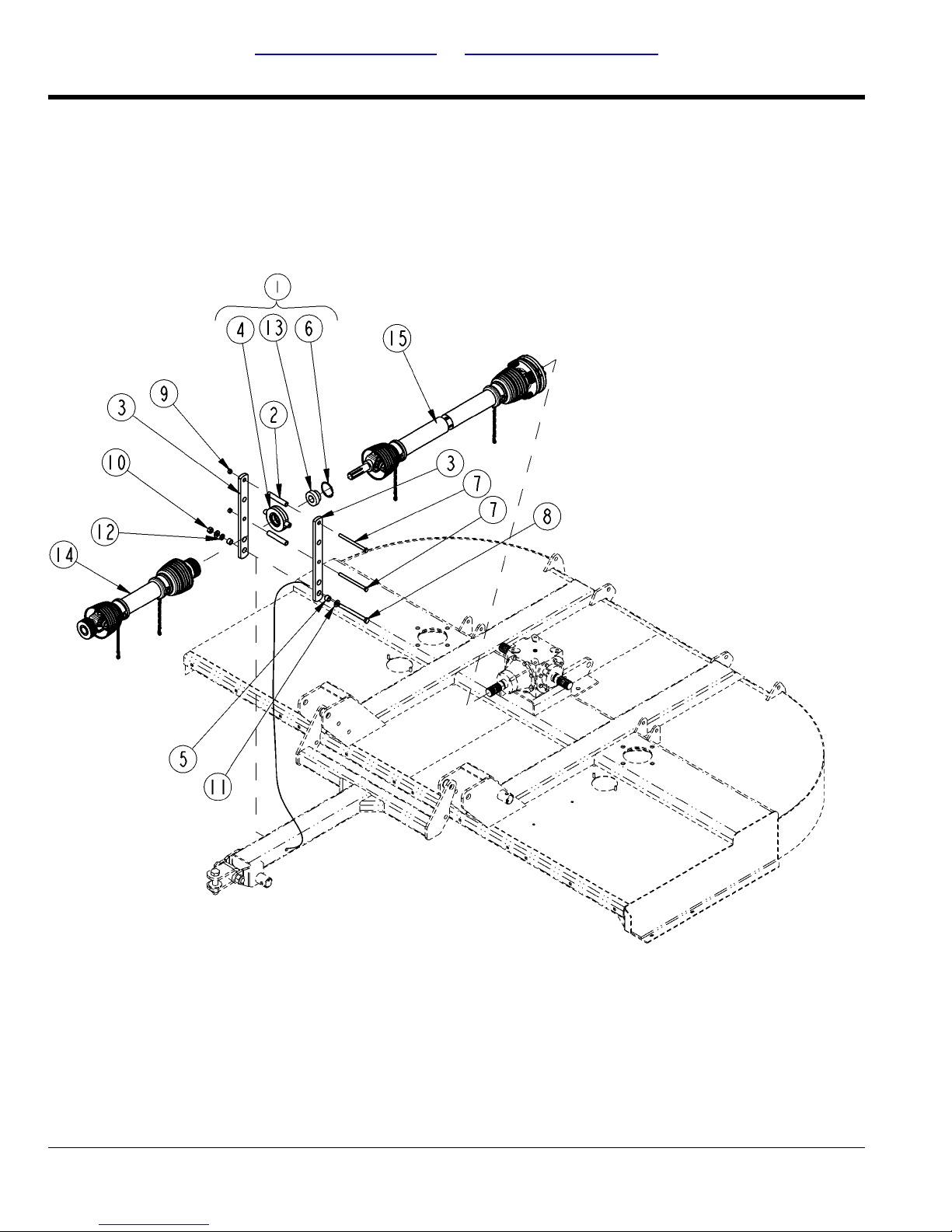

CVTrailType Driveline
Applies to RCR2510, RCRM2510

22333
10 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 04/11/12
Table of Contents Part Number Index
Land Pride Section 2: Frame

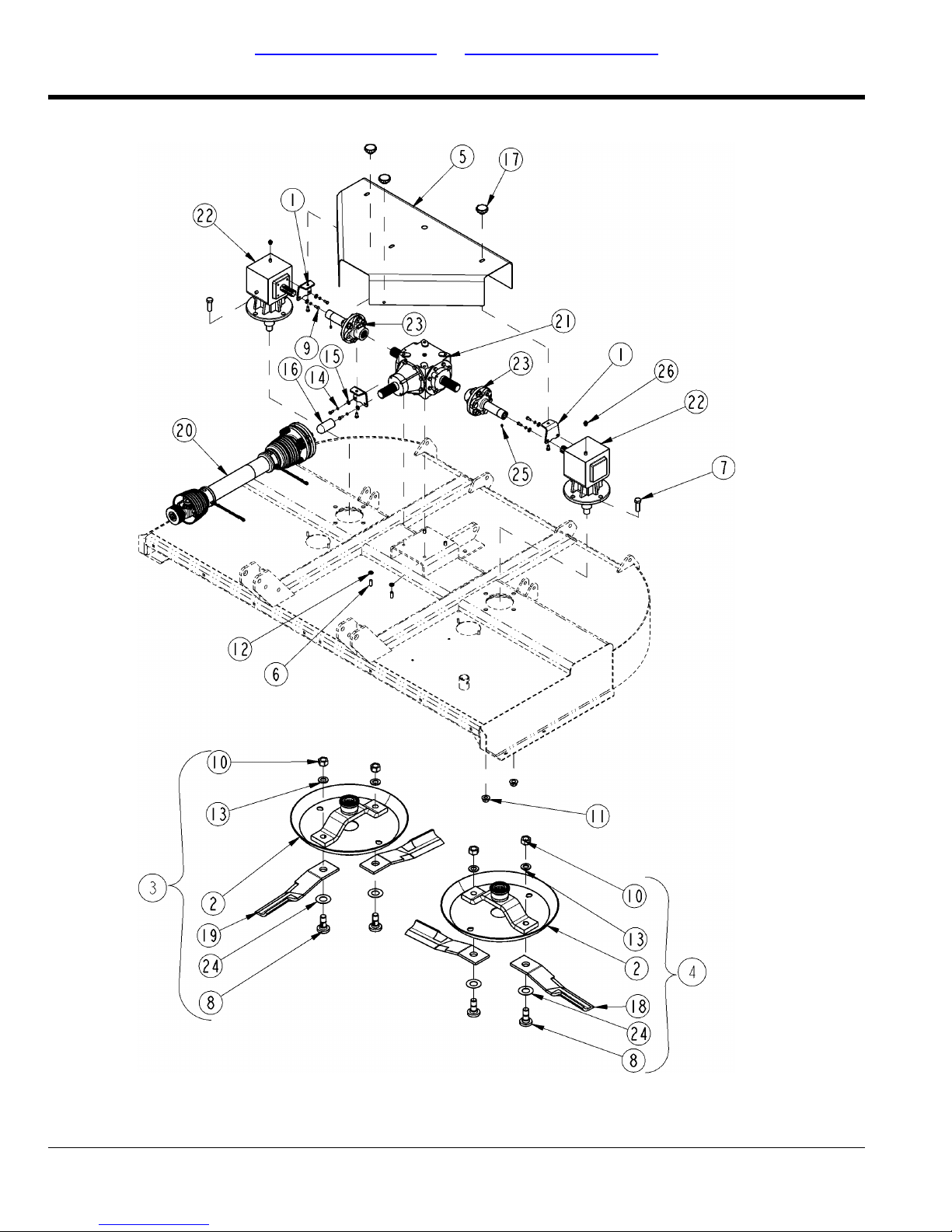

Deck Blade Drive S/N 644967-
Applies to RCR2510, RCR2596, RCRM2510

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22333 SHIELD BRACKET WELDMENT312-765H1. RCR2596DISHPAN WELDMENT 15" CTR312-767H2. RCR(M)2510DISHPAN WELDMENT 17" CTR312-748H2. Right HandRCR2596 CW BLADE CARRIER ASSY312-769S3. Right HandRCR2510 CW BLADE CARRIER ASSY312-749S3. Left HandRCR2596 CCW BLADE CARRIER ASSY312-770S4. Left HandRCR2510 CCW BLADE CARRIER ASSY312-750S4. RCR2596OUTER SHIELD326-116D5. RCR2510OUTER SHIELD326-101D5. HHCS 1/2-13X1 1/4 GR5802-034C6. (S/N 558465+)HHCS 3/4-10X2 1/4 GR5802-065C7. (S/N 558464-)HHCS 3/4-10X2 GR5802-064C7. BLADE BOL 1 1/8-12X3 7/16 W/KY802-277C8. HHCS M8X1.25X20 GR8.8802-314C9. NUT HEX TOP LOCK 1 1/8-12 PLT.803-170C10. NUT HEX FLG TOP LK 3/4-10 PLT803-299C11. WASHER LOCK SPRING 1/2 PLT804-015C12. WASHER FLAT 1 HARD ASTMF436 PN804-147C13. WASHER SPRING LOCK M8 PLT804-157C14. WASHER FLAT M8 PLT804-161C15. GRBOX SHAFT(1 3/4OD) PROTECTOR817-165C16. KNOB 3/8-16 FEMALE THD 2 3/8OD817-259C17. RCR2596 StandardCUTTER BLADE 1/2X4X20 1/2 CCW820-195C18. RCR2596 OptionalCUTTER BLADE 1/2X4X20.5 LL CCW820-210C18. RCR2510 RCRM2510 StandardCUTTER BLADE 1/2 X 4 X 25 CCW820-137C18. RCR2510 RCRM2510 OptionalCUTTER BLADE 1/2X4X25 LL CCW820-193C18. RCR2596 StandardCUTTER BLADE 1/2X4X20 1/2 CW820-196C19. RCR2596 OptionalCUTTER BLADE 1/2X4X20.5 LL CW820-211C19. RCR2510 RCRM2510 StandardCUTTER BLADE 1/2 X 4 X 25 CW820-112C19. RCR2510 RCRM2510 OptionalCUTTER BLADE 1/2X4X25 LL CW820-209C19. RCR2596PTO STD.W/4-PLATE SC CAT4 540826-255C20. RCR2510PTO STD.W/4-PLATE SC CAT4 540826-215C20. RCRM2510PTO STD.W/2-PLATE SC CAT4 1000826-216C20. RCR2596 RCR2510T-BOX 1.75-20 1:1.35826-356C21. RCRM2510T-BOX 1.75-20 1.35:1826-424C21. GBOX 1:1.50 STD. 1.38-6 SPL.826-358C22. RCR2596FLEX CPLR 1.75-20 TO 1.38-6 S826-360C23. RCR2510 RCRM2510FLEX CPLR 1.75-20 TO 1.38-6826-359C23. As RequiredBLADE SPACER 16 GA .06 thick312-075D24. As RequiredBLADE SPACER 18 GA .05 thick312-082D24. As RequiredBLADE SPACER 20 GA. .04 thick312-089D24. As RequiredBLADE SPACER 24GA .03 thick312-808D24. GREASE ZERK STRAIGHT 1/4-28800-001C25. COMER VENT #8.6.7.00269826-497C26.
04/11/12 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 11
Table of Contents Part Number Index
Section 2: Frame Land Pride

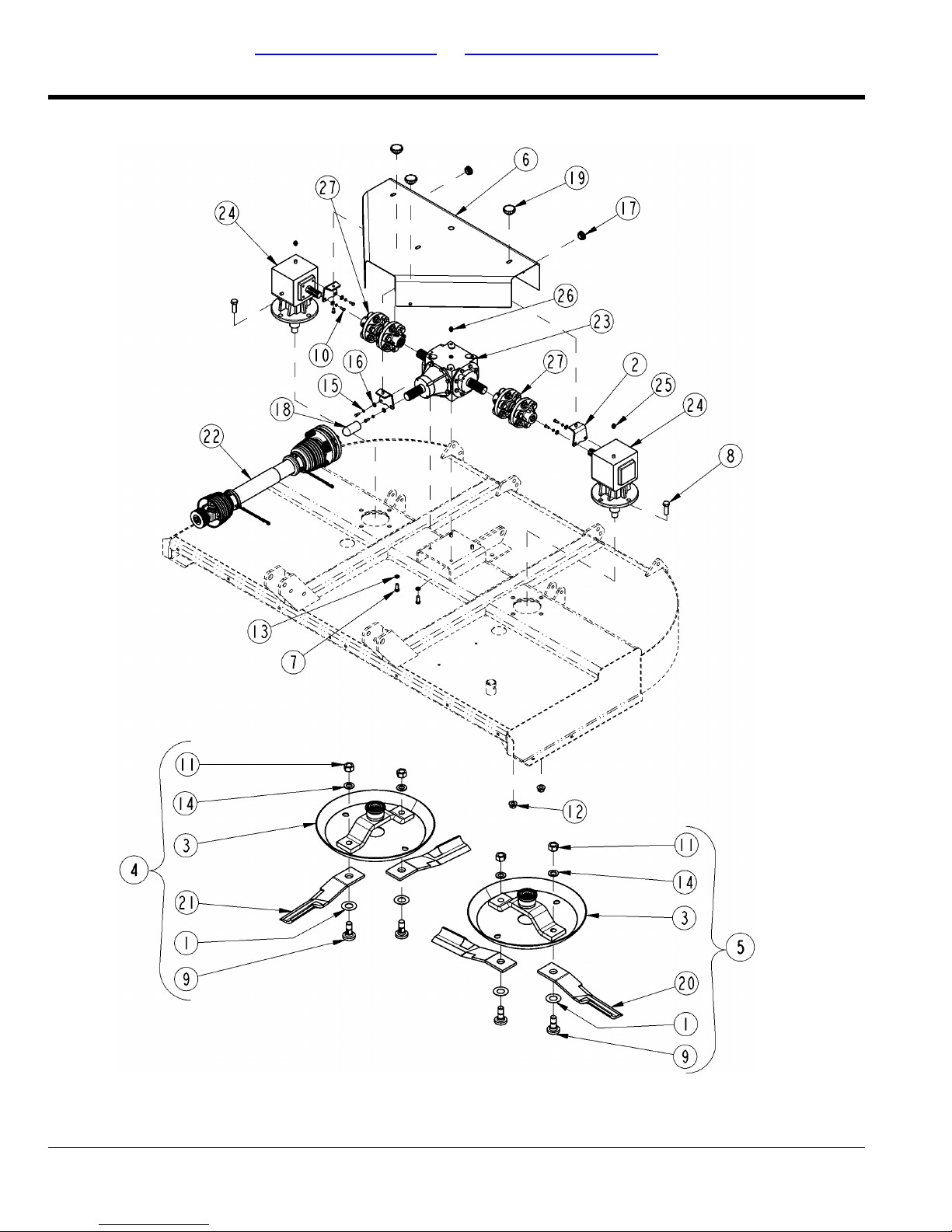

Deck Blade Drive S/N 644967-
Applies to RCR2510, RCR2596, RCRM2510

30117
12 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 04/11/12
Table of Contents Part Number Index
Land Pride Section 2: Frame
Deck Blade Drive S/N 644968+
Applies to RCR2510, RCR2596, RCRM2510

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg30117 As RequiredBLADE SPACER 16 GA .06 THICK312-075D1. As RequiredBLADE SPACER 18 GA .05 THICK312-082D1. As RequiredBLADE SPACER 20 GA .04 THICK312-089D1. As RequiredBLADE SPACER 24 GA .03 THICK312-808D1. SHIELD BRACKET WELDMENT312-765H2. RCR2596DISHPAN WELDMENT 15 CTR312-767H3. RCR(M)2510DISHPAN WELDMENT 17" CTR312-748H3. Right HandRCR2596 CW BLADE CARRIER ASSY312-769S4. Right HandRCR2510 CW BLADE CARRIER ASSY312-749S4. Left HandRCR2596 CCW BLADE CARRIER ASSY312-770S5. Left HandRCR2510 CCW BLADE CARRIER ASSY312-750S5. RCR2596OUTER SHIELD326-116D6. RCR(M)2510OUTER SHIELD326-101D6. HHCS 1/2-13X1 1/4 GR5802-034C7. HHCS 3/4-10X2 1/4 GR5802-065C8. BLADE BOL 1 1/8-12X3 7/16 W/KY802-277C9. HHCS M8X1.25X20 GR8.8802-314C10. NUT HEX TOP LOCK 1 1/8-12 PLT.803-170C11. NUT HEX FLG TOP LK 3/4-10 PLT803-299C12. WASHER LOCK SPRING 1/2 PLT804-015C13. WASHER FLAT 1 HARD ASTMF436 PN804-147C14. WASHER SPRING LOCK M8 PLT804-157C15. WASHER FLAT M8 PLT804-161C16. RUBBER PLUG 1 3/8 W/CROSS SLIT816-298C17. GRBOX SHAFT(1 3/4OD) PROTECTOR817-165C18. KNOB 3/8-16 FEMALE THD 2 3/8OD817-259C19. RCR2596 StandardCUTTER BLADE 1/2X4X20 1/2 CCW820-195C20. RCR2596 OptionalCUTTER BLADE 1/2X4X20.5 LL CCW820-210C20. RCR2510 RCRM2510 StandardCUTTER BLADE 1/2 X 4 X 25 CCW820-137C20. RCR2510 RCRM2510 OptionalCUTTER BLADE 1/2X4X25 LL CCW820-193C20. RCR2596 StandardCUTTER BLADE 1/2X4X20 1/2 CW820-196C21. RCR2596 OptionalCUTTER BLADE 1/2X4X20.5 LL CW820-211C21. RCR2510 RCRM2510 StandardCUTTER BLADE 1/2 X 4 X 25 CW820-112C21. RCR2510 RCRM2510 OptionalCUTTER BLADE 1/2X4X25 LL CW820-209C21. RCR2596PTO STD.W/4-PLATE SC CAT4 540826-255C22. RCR2510PTO STD.W/4-PLATE SC CAT4 540826-215C22. RCRM2510PTO STD.W/2-PLATE SC CAT4 1000826-216C22. RCR2596 RCR2510T-BOX 1.75-20 1:1.35826-356C23. RCRM2510T-BOX 1.75-20 1.35:1826-424C23. GBOX 1:1.50 STD. 1.38-6 SPL.826-358C24. COMER VENT #8.6.7.00269826-497C25. COMER VENT 8.6.7.00161826-503C26. RCR2596CPLR, 1.75-20X1.38-6X10.31 FLE826-646C27. RCR(M)2510CPLR, 1.75-20X1.38-6X16.56 FLE826-647C27.
04/11/12 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 13
Table of Contents Part Number Index
Section 2: Frame Land Pride
Deck Blade Drive S/N 644968+
Applies to RCR2510, RCR2596, RCRM2510

22332
14 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 04/11/12
Table of Contents Part Number Index
Land Pride Section 2: Frame
Deck Components & 3-Point Hitch
Applies to RCR2510, RCR2596, RCRM2510

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22332 PIN 1 1/8 OD X 7 1/8 USABLE300-202S1. CAT III BUSHING300-429D2. TUBE RD 2 1/4ODX1 5/32IDX2 5/8300-431D3. SKID SHOE312-602D4. RCR2596RCR2596 DECK WELDMENT312-739H5. RCR2596 DECK WELDMENT GREEN312-739H815. RCR2596 DECK WELDMENT ORANGE312-739H825. RCR2596 DECK WELDMENT RED312-739H835. RCR2510 RCRM2510RCR2510 DECK WELDMENT312-738H5. RCR2510 DECK WELDMENT GREEN312-738H815. RCR2510 DECK WELDMENT ORANGE312-738H825. RCR2510 DECK WELDMENT RED312-738H835. RCR2596 S/N 627646- RCR2510
S/N 627808-
ACCESS COVER PLATE312-812D6.
REAR BRACE STRAIGHT SHORT312-816D7. BUSHING 1 1/4ODX1 1/32IDX2LG312-821D8. REAR BRACE SHORT312-822D9. RCR2596 RCR(M)3596REAR BRACE STRAIGHT LONG312-931D10. RCR2510 RCR(M)2510REAR BRACE STRAIGHT LONG312-815D10. RCR2596A-FRAME RH.312-938D11. RCR2510 RCRM2596A-FRAME HITCH RH.312-813D11. RCR2596A-FRAME LH.312-939D12. RCR2510 RCRM2596A-FRAME HITCH LH.312-814D12. RCR2596REAR BRACE FORMED326-169D13. RCR2510 RCRM2596REAR BRACE FORMED312-817D13. (S/N 495422+ RCR2596) (S/N
495351+ RCR(M)2510)
HHCS 1/4-20X1 GR5802-005C14.
HHCS 3/4-10X2 GR5802-064C15. S/N 567029+HHCS 1-8X4 1/2 GR5802-098C16. S/N 567028-HHCS 1-8X4 GR5802-073C16. HHCS 1-8X3 1/2 GR5802-169C17. HHCS 1-8X3 GR5802-368C18. HHCS 3/4-10X1 3/4 GR5802-392C19. PLOW 3/8-16X1 GR5802-603C20. NUT LOCK 3/4-10 PLT803-026C21. NUT HEX TOP LOCK 1-8 PLT803-168C22. NUT HEX WHIZ 3/8-16 PLT803-198C23. RCR2596 S/N 627646- RCR2510
S/N 627808-
NUT WING 3/8-16 PLT803-231C24.
(S/N 495422+ RCR2596) (S/N
495351+ RCR(M)2510)
NUT HEX NYLOCK 1/4-20803-255C25.
(S/N 495422+ RCR2596) (S/N
495351+ RCR(M)2510)
WASHER FLAT 1/4 SAE PLT804-007C26.
RCR2596 S/N 627646- RCR2510
S/N 627808-
WASHER FLAT 3/8 SAE PLT804-012C27.
RCR2596 S/N 627646- RCR2510
S/N 627808-
WASHER LOCK SPRING 3/8 PLT804-013C28.
WASHER FLAT 3/4 SAE PLT804-025C29. WASHER FLAT 1 SAE804-029C30. PIN ROLL 1/4X1 3/4805-041C31. PIN COTTER 3/16 X 2805-058C32. PIN CLEVIS 1 X 3 3/16 LG805-090C33. PIN LINCH 7/16 X 1 3/4805-103C34. PIN CLEVIS 1 X 2 PLT805-137C35. PIN HITCH CAT.I-II805-274C36. PIN 1 1/8 OD X 7 1/8 USABLE805-301C37.
04/11/12 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 15
Table of Contents Part Number Index
Section 2: Frame Land Pride
Deck Components & 3-Point Hitch
Applies to RCR2510, RCR2596, RCRM2510

RevisionCommentsPart DescriptionPart No.Ref. (S/N 495422+ RCR2596) (S/N
495351+ RCR(M)2510)
MANUAL STORAGE CONTAINER816-481C38.
BUSHING 1 OD X 3/4 ID X 5/8 LG890-352C39. RCR2596 S/N 627647+ RCR2510
S/N 627809+
PLUG LP 3" ID RUBBER840-273C40.
Accessory Part Does Not Come W/
Unit
SPCR TUBE 1.44ODX.93IDX1.50LG320-044D41.
16 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 04/11/12
Table of Contents Part Number Index
Land Pride Section 2: Frame
Deck Components & 3-Point Hitch (continued)
Applies to RCR2510, RCR2596, RCRM2510

This Page Intentionally Left Blank
04/11/12 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 17
Table of Contents Part Number Index
Section 2: Frame Land Pride
Deck Components & 3-Point Hitch (continued)
Applies to RCR2510, RCR2596, RCRM2510

22341
18 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 04/11/12
Table of Contents Part Number Index
Land Pride Section 2: Frame
Equal Angle PullType Driveline
Applies to RCR2510, RCR2596, RCRM2510

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg22341 BEARING FLANGE ASSY.312-681S1. PIPE 1/2 SCH. 40 X 4 15/16312-715D2. BEARING SUPPORT312-833D3. BEARING FLANGE312-999D4. TUBE 1 OD X 11/16 LG. X 5/32w326-002D5. SNAP RING INT 2.835800-069C6. HHCS 1/2-13X7 GR5802-260C7. HHCS 5/8-11X7 GR5802-262C8. NUT LOCK 1/2-13 PLT803-019C9. NUT HEX 5/8-11 PLT803-021C10. WASHER FLAT 5/8 SAE PLT804-021C11. WASHER LOCK SPRING 5/8 PLT804-022C12. BRG 1 3/8 B X 72MM OD W/COLLAR822-100C13. RCR2596 RCR2510PTO CAT. 4 X 20.5 FIXED 540826-151C14. RCRM2510PTO CAT. 4 X 22 FIXED 1000826-223C14. RCR2510PTO CAT. 4 JACK SHAFT 540826-220C15. RCR2596PTO J/S.W/4-PLATE SC CAT4 540826-256C15. RCRM2510PTO CAT. 4 JACK SHAFT 1000826-221C15.
04/11/12 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 19
Table of Contents Part Number Index
Section 2: Frame Land Pride
Equal Angle PullType Driveline
Applies to RCR2510, RCR2596, RCRM2510

22343
20 RCR2596, RCR2510 & RCRM2510 Rotary Cutter 312-753P 04/11/12
Table of Contents Part Number Index
Land Pride Section 2: Frame
Hydraulic Lift
Applies to RCR2510, RCR2596, RCRM2510
