Land Pride RCR3510 User manual

Rotary Cutter
RCR3596, RCRM3596, RCR3510 & RCRM3510
15998 312-517P
Parts Manual
Read the Operator's manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
© Copyright 2011 Printed 04/05/12
Cover photo may show optional equipment not
supplied with standard unit.
Table of Contents Part Number Index

Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
Section 2: Decks............................................................6
Axle And Wheels Dual Pull Type Rear................................6
Axle And Wheels Pull Type Rear.......................................10
Axle Semi-Mount Rear......................................................14
Check Chain......................................................................16
Deck..................................................................................18
Driveline And Bearing Support..........................................22
Driveline And Pillowblock..................................................24
Hydraulic Lift.....................................................................26
Lift Type 3-Point Hitch........................................................28
Lift Type Tailwheels............................................................30
Pull Type Tongue...............................................................32
Section 3: Guards........................................................34
Guard Chain Double Front................................................34
Guard Chain Double Rear.................................................36
Guards Chain Single.........................................................38
Guards Rubber..................................................................40
Section 4: Drivelines...................................................42
Driveline Conv. Fixed Shaft Pull Type 540 RPM (826-151C)
Eurocardan.................................................................42
Driveline CV Pull Type Cutter 1000 RPM (826-063C)
Walterscheid...............................................................44
Driveline CV Pull Type Cutter 540 RPM (826-053C)
Walterscheid...............................................................46
Driveline Flex Coupler (826-214C) Eurocardan (S/N
384158-).....................................................................48
Driveline Flex Coupler (826-224C) Eurocardan................50
Driveline Flex Coupler (826-334C) Eurocardan (S/N
384159+)....................................................................52
Driveline Jackshaft (1000 RPM) (826-221C) Eurocardan..54
Driveline Jackshaft (1000 RPM) (826-259C) Eurcardan....56
Driveline Jackshaft (540 RPM) (826-220C) Eurcardan.....58
Driveline Jackshaft (540 RPM) (826-256C) Eurcardan.....60
Driveline Lift Type Cutter 1000 RPM (826-216C)
Eurocardan.................................................................62
Driveline Lift Type Cutter 1000 RPM (826-258C)
Eurocardan.................................................................64
Driveline Lift Type Cutter 540 RPM (826-215C)
Eurocardan.................................................................66
Driveline Lift Type Cutter 540 RPM (826-255C)
Eurocardan.................................................................68
Driveline Pull Type Conv. 1000 RPM (826-223C)
Eurocardan.................................................................70
Driveline Slip Clutch (1406028) Eurocarda.......................72
Driveline Slip Clutch (1406128) EC...................................74
Driveline Slip Clutch (1446016) Eurocardan.....................76
Driveline Slip Clutch (1446037) Eurocardan.....................78
Driveline Slip Clutch (1446137) Eurocardan.....................80
Driveline Slip Clutch 1000 RPM (1406016) Eurocardan....82
Driveline Slip Clutch 540 RPM (1446016) Eurocardan.....84
Driveline Slip Clutch 540 RPM (1446037) Eurocardan.....86
Driveline Stub Shaft Pull Type 1000 RPM (826-226C)
Eurocardan.................................................................88
Driveline Stub Shaft Pull Type 540 RPM (826-225C)
Eurocardan.................................................................90
Section 5: Gearboxes..................................................92
Gearbox (826-217C) OMNI...............................................92
Gearbox (826-356C) Comer.............................................94
Gearbox (826-378C) Comer.............................................96
Gearbox, T-Box 1000 RPM (826-219C) OMNI..................98
Gearbox, T-Box 540 RPM (826-218C) OMNI..................100
Section 6: Hydraulics................................................102
Hydraulic Cylinder (810-200C) Midway...........................102
Hydraulic Cylinder (810-200C) Red Lion........................104
Section 7: Labels.......................................................106
Label Placement.............................................................106
Part Number Index.....................................................109
© Copyright 2011. All rights reserved.
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future. The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment. The illustrations are intended for
ordering parts only.
Land Pride is registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
2RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 04/05/12
Table of Contents Part Number Index
Table of Contents

AAxle And Wheels Dual Pull Type Rear...........................6
Axle And Wheels Pull Type Rear..................................10
Axle Semi-Mount Rear.................................................14
CCheck Chain.................................................................16
DDeck.............................................................................18
Driveline And Bearing Support.....................................22
Driveline And Pillowblock.............................................24
Driveline Conv. Fixed Shaft Pull Type 540 RPM
(826-151C) Eurocardan.........................................42
Driveline CV Pull Type Cutter 1000 RPM (826-063C)
Walterscheid..........................................................44
Driveline CV Pull Type Cutter 540 RPM (826-053C)
Walterscheid..........................................................46
Driveline Flex Coupler (826-214C) Eurocardan (S/N
384158-)................................................................48
Driveline Flex Coupler (826-224C) Eurocardan...........50
Driveline Flex Coupler (826-334C) Eurocardan (S/N
384159+)................................................................52
Driveline Jackshaft (1000 RPM) (826-221C)
Eurocardan............................................................54
Driveline Jackshaft (1000 RPM) (826-259C)
Eurcardan..............................................................56
Driveline Jackshaft (540 RPM) (826-220C)
Eurcardan..............................................................58
Driveline Jackshaft (540 RPM) (826-256C)
Eurcardan..............................................................60
Driveline Lift Type Cutter 1000 RPM (826-216C)
Eurocardan............................................................62
Driveline Lift Type Cutter 1000 RPM (826-258C)
Eurocardan............................................................64
Driveline Lift Type Cutter 540 RPM (826-215C)
Eurocardan............................................................66
Driveline Lift Type Cutter 540 RPM (826-255C)
Eurocardan............................................................68
Driveline Pull Type Conv. 1000 RPM (826-223C)
Eurocardan............................................................70
Driveline Slip Clutch (1406028) Eurocarda..................72
Driveline Slip Clutch (1406128) EC..............................74
Driveline Slip Clutch (1446016) Eurocardan................76
Driveline Slip Clutch (1446037) Eurocardan................78
Driveline Slip Clutch (1446137) Eurocardan................80
Driveline Slip Clutch 1000 RPM (1406016)
Eurocardan............................................................82
Driveline Slip Clutch 540 RPM (1446016)
Eurocardan............................................................84
Driveline Slip Clutch 540 RPM (1446037)
Eurocardan............................................................86
Driveline Stub Shaft Pull Type 1000 RPM (826-226C)
Eurocardan............................................................88
Driveline Stub Shaft Pull Type 540 RPM (826-225C)
Eurocardan............................................................90
GGearbox (826-217C) OMNI..........................................92
Gearbox (826-356C) Comer.........................................94
Gearbox (826-378C) Comer.........................................96
Gearbox, T-Box 1000 RPM (826-219C) OMNI.............98
Gearbox, T-Box 540 RPM (826-218C) OMNI.............100
Guard Chain Double Front...........................................34
Guard Chain Double Rear............................................36
Guards Chain Single....................................................38
Guards Rubber.............................................................40
HHydraulic Cylinder (810-200C) Midway......................102
Hydraulic Cylinder (810-200C) Red Lion....................104
Hydraulic Lift.................................................................26
LLabel Placement........................................................106
Lift Type 3-Point Hitch...................................................28
Lift Type Tailwheels.......................................................30
PPull Type Tongue..........................................................32
Table of Contents Part Number Index
Alphabetized Table of Contents
04/05/12 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 3

4RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 04/05/12
Table of Contents Part Number Index

04/05/12 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 5
Table of Contents Part Number Index

25963
6RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 04/05/12
Table of Contents Part Number Index
Land Pride Section 2: Decks

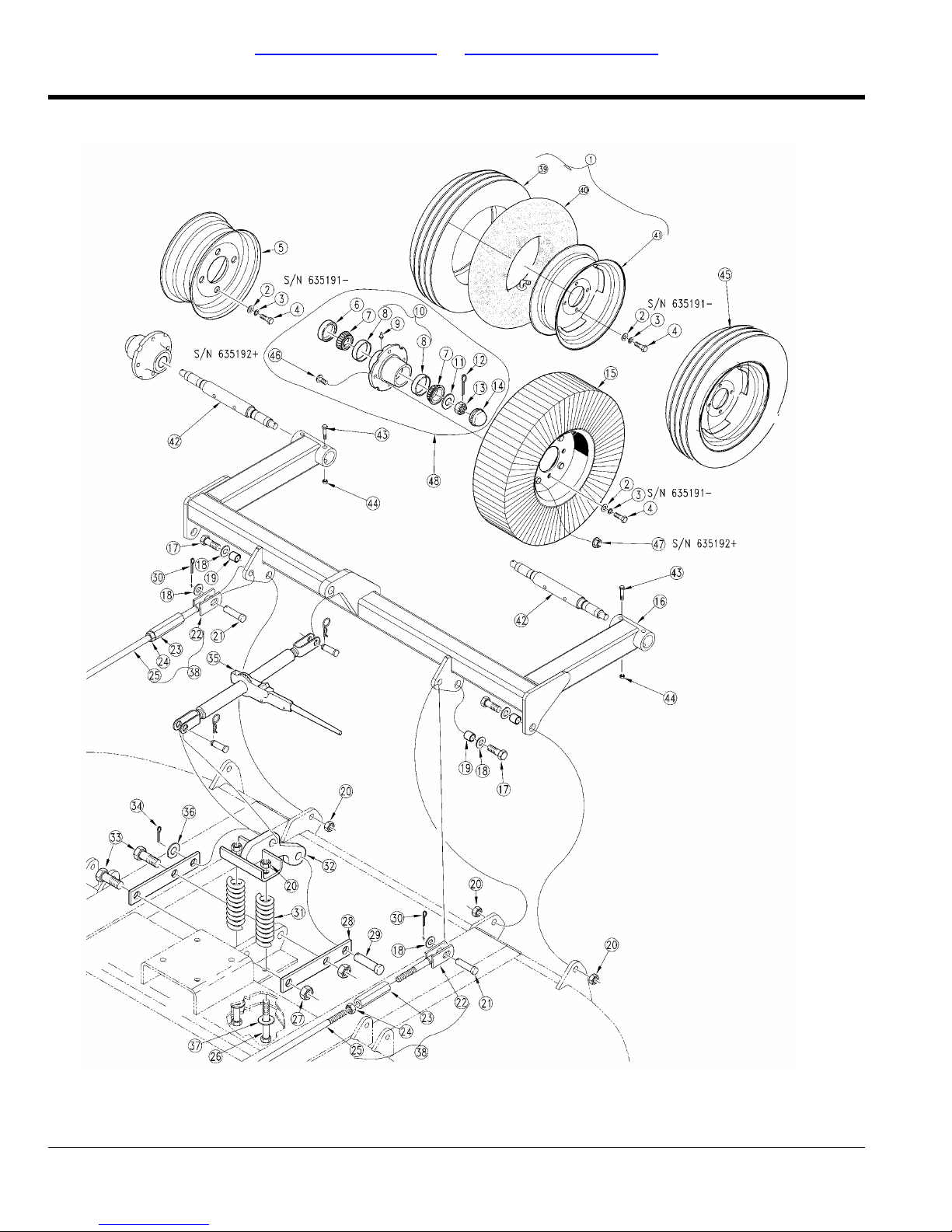

Axle AndWheels Dual PullType Rear
Applies to RCR3510, RCRM3510

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg25963 Check Cutter Tire Size Before OrdingAC TIRE 24 X 7.7 2PC814-263C1. Check Cutter Tire Size Before OrdingAC TIRE 27x7.75x15 MOUNTED814-201C1. Check Cutter Tire Size Before OrdingTIRE 25.5 X 8.0-14 - MOUNTED814-086C1. WASHER FLAT 1/2 SAE PLT804-016C2. WASHER LOCK SPRING 1/2 PLT804-015C3. Rev. 2(S/N 336501+)HHCS 1/2-20X1 1/4 GR5802-326C4. Rev 1; Use up stock(S/N 336500-)HHCS 1/2-20X1 GR5802-240C4. WHEEL 15 X 5 X 4 BOLT814-066C5. SEAL 1 3/8 ID X 2.441 OD X.313816-098C6. BEARING CONE 15123822-091C7. BEARING CUP 15245822-092C8. GREASE ZERK STRAIGHT 1/4-28800-001C9. S/N 635192+HUB 4 BLT W/CUPS, ZERK & STUDS815-230C10. S/N 635191-RPBY 815-230C815-093C10. WASHER SPINDLE - 7/8804-055C11. PIN COTTER 3/16 X 1 1/4 PLT805-016C12. NUT HEX SLOTTED 7/8-14 PLT803-029C13. HUB GREASE CAP200-001D14. TIRE & WHEEL LAMINATED 6.0 X 9814-059C15. RCR3510 & RCRM3510AXLE WELDMENT312-805H16. HHCS 3/4-10X2 1/4 GR5802-065C17. WASHER FLAT 3/4 SAE PLT804-025C18. TUBE 1 OD X 12 GA X 15/16 LG.312-712D19. NUT LOCK 3/4-10 PLT803-026C20. PIN CLEVIS 3/4 X 1 1/2805-083C21. WLDMT. LEVEL ROD SHORT318-008H22. NUT HEX COUPLER 7/8-9 x 5803-265C23. NUT HEX JAM 7/8-9803-075C24. RCR3510 & RCRM3510LONG LEVEL ROD WLDMT312-516H25. HHCS 3/4-10X6 1/2 GR5802-360C26. NUT HEX TOP LOCK 1-8 PLT803-168C27. SPRING SHOCK SUPPORT312-804D28. PIN CLEVIS 1 X 2 1/4 GR5 PLT805-187C29. PIN COTTER 5/32 X 1 1/4 LG805-045C30. SPRING COMP 1.88OD x .362W807-143C31. SPRING SHOCK WLDMT312-515H32. HHCS 1-8X3 GR5802-368C33. PIN COTTER 3/16 X 1 1/2 PLT805-104C34. RATCHET JACK - HEAVY DUT890-177C35. WASHER FLAT 1 SAE804-029C36. WASHER FLAT 3/4 USS PLT804-024C37. RCR3510 & RCRM3510ASSY. LEVEL ROD312-549L38. Check Cutter Tire Size Before OrdingTIRE 24X7.7-14 (814-263C)814-266C39. Check Cutter Tire Size Before OrdingTIRE 27X7.75-15 (814-201C)814-203C39. Check Cutter Tire Size Before OrdingTIRE 25.5 X 8.0-14 (814-086C)814-087C39. Check Cutter Tire Size Before OrdingTUBE FOR 24X7.7-14 (814-263C)814-268C40. Check Cutter Tire Size Before OrdingTUBE FOR 27X7.75-15(814-201C)814-204C40. Check Cutter Tire Size Before OrdingTUBE FOR 25.5X8.0-14(814-086C)814-088C40. Check Cutter Tire Size Before OrdingRIM 2PC. 4BLT 10X6 BLACK814-267C41. Check Cutter Tire Size Before OrdingRIM 2PC.4BLT 15X6 BLACK814-205C41. Check Cutter Tire Size Before OrdingRIM 2PC.4BLT 14X6BLACK814-086C814-089C41. SPINDLE - DUAL AXLE BOLT ON815-109C42. HHCS 1/2-13X3 1/4 GR5802-099C43. NUT LOCK 1/2-13 PLT803-019C44. AC TIRE 24 X 7.7 2PC FOAM FILL814-262C45. HUB STUD 1/2-20X1 5/8 GR5802-135C46. NUT HEX FLG/LK 1/2-20 PLT.GR.G803-308C47.
04/05/12 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 7
Table of Contents Part Number Index
Section 2: Decks Land Pride

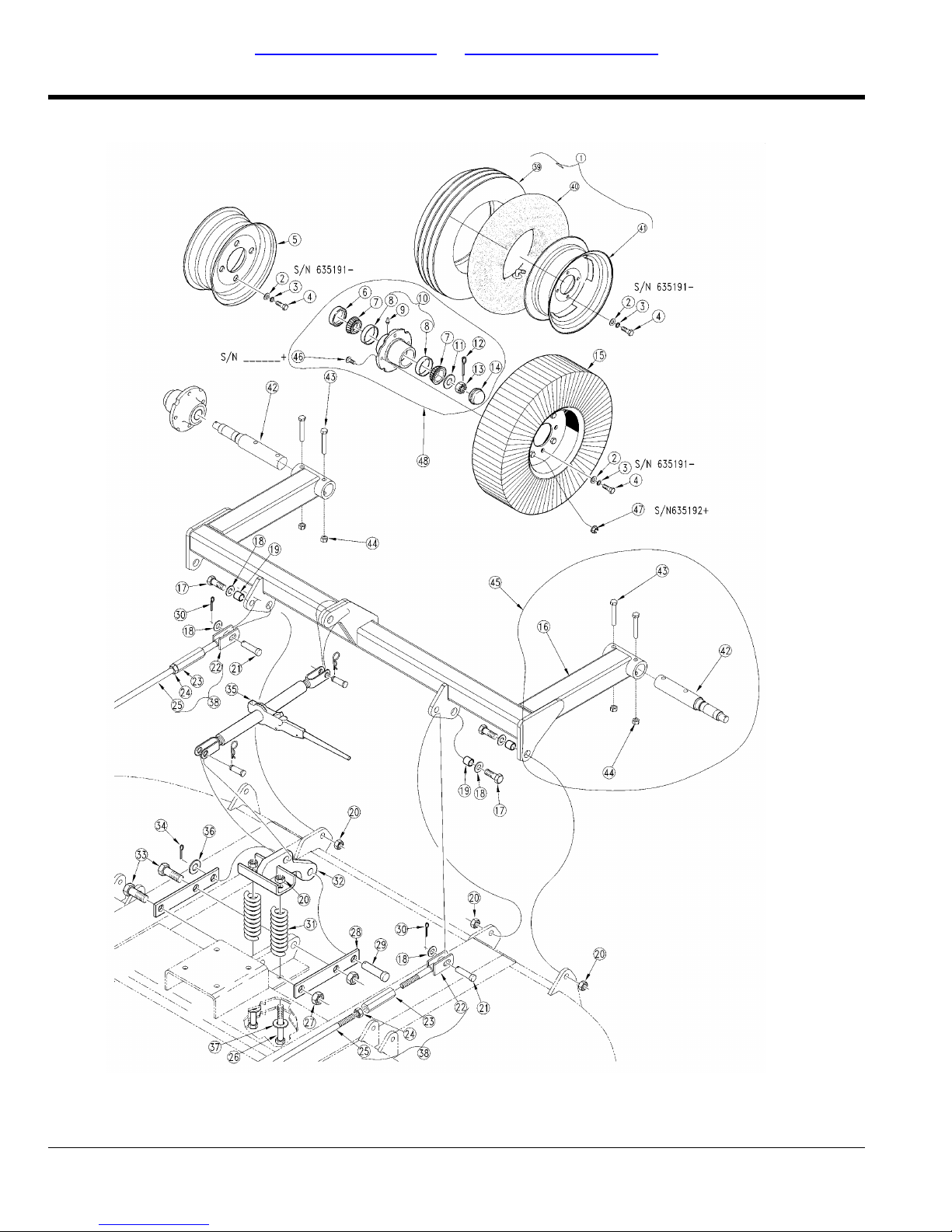

Axle AndWheels Dual PullType Rear
Applies to RCR3510, RCRM3510

RevisionCommentsPart DescriptionPart No.Ref. HUB 4 BOLT COMPLETE815-236C48.
8RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 04/05/12
Table of Contents Part Number Index
Land Pride Section 2: Decks
Axle AndWheels Dual PullType Rear (continued)
Applies to RCR3510, RCRM3510

This Page Intentionally Left Blank
04/05/12 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 9
Table of Contents Part Number Index
Section 2: Decks Land Pride
Axle AndWheels Dual PullType Rear (continued)
Applies to RCR3510, RCRM3510

15982
10 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 04/05/12
Table of Contents Part Number Index
Land Pride Section 2: Decks
Axle AndWheels PullType Rear
Applies to RCR3510, RCR3596, RCRM3510, RCRM3596

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15982 Check Cutter Tire Size Before OrdingAC TIRE 24 X 7.7 2PC814-263C1. Check Cutter Tire Size Before OrdingAC TIRE 27x7.75x15 MOUNTED814-201C1. Check Cutter Tire Size Before OrdingTIRE 25.5 X 8.0-14 - MOUNTED814-086C1. WASHER FLAT 1/2 SAE PLT804-016C2. WASHER LOCK SPRING 1/2 PLT804-015C3. Rev. 2(S/N 336501+)HHCS 1/2-20X1 1/4 GR5802-326C4. Rev 1; Use up stock(S/N 336500-)HHCS 1/2-20X1 GR5802-240C4. WHEEL 15 X 5 X 4 BOLT814-066C5. SEAL 1 3/8 ID X 2.441 OD X.313816-098C6. BEARING CONE 15123822-091C7. BEARING CUP 15245822-092C8. GREASE ZERK STRAIGHT 1/4-28800-001C9. S/N 635192+HUB 4 BLT W/CUPS, ZERK & STUDS815-230C10. S/N 635191-RPBY 815-230C815-093C10. WASHER SPINDLE - 7/8804-055C11. PIN COTTER 3/16 X 1 1/4 PLT805-016C12. NUT HEX SLOTTED 7/8-14 PLT803-029C13. HUB GREASE CAP200-001D14. TIRE & WHEEL LAMINATED 6.0 X 9814-059C15. RCR3510 & RCRM3510 S/N
627792+
AXLE WELDMENT312-805H16.
RCR3510&RCRM3510S/N627791-RPBY 312-902A312-511H16. RCR3596 & RCRM3596 ( Weld in
Spindles)
WLDMT AXLE312-612H16.
HHCS 3/4-10X2 1/4 GR5802-065C17. WASHER FLAT 3/4 SAE PLT804-025C18. TUBE 1 OD X 12 GA X 15/16 LG.312-712D19. NUT LOCK 3/4-10 PLT803-026C20. PIN CLEVIS 3/4 X 1 1/2805-083C21. WLDMT. LEVEL ROD SHORT318-008H22. NUT HEX COUPLER 7/8-9 x 5803-265C23. NUT HEX JAM 7/8-9803-075C24. RCR3510 & RCRM3510LONG LEVEL ROD WLDMT312-516H25. RCR3596 & RCRM3596WLDMT LEVEL ROD LONG.312-613H25. HHCS 3/4-10X6 1/2 GR5802-360C26. NUT HEX TOP LOCK 1-8 PLT803-168C27. SPRING SHOCK SUPPORT312-804D28. PIN CLEVIS 1 X 2 1/4 GR5 PLT805-187C29. PIN COTTER 5/32 X 1 1/4 LG805-045C30. SPRING COMP 1.88OD x .362W807-143C31. SPRING SHOCK WLDMT312-515H32. HHCS 1-8X3 GR5802-368C33. PIN COTTER 3/16 X 1 1/2 PLT805-104C34. RATCHET JACK - HEAVY DUT890-177C35. WASHER FLAT 1 SAE804-029C36. WASHER FLAT 3/4 USS PLT804-024C37. RCR3510 & RCRM3510ASSY. LEVEL ROD312-549L38. RCR3596 & RCRM3596ASSY. LEVEL ROD312-629L38. Check Cutter Tire Size Before OrdingTIRE 24X7.7-14 (814-263C)814-266C39. Check Cutter Tire Size Before OrdingTIRE 27X7.75-15 (814-201C)814-203C39. Check Cutter Tire Size Before OrdingTIRE 25.5 X 8.0-14 (814-086C)814-087C39. Check Cutter Tire Size Before OrdingTUBE FOR 24X7.7-14 (814-263C)814-268C40. Check Cutter Tire Size Before OrdingTUBE FOR 27X7.75-15(814-201C)814-204C40. Check Cutter Tire Size Before OrdingTUBE FOR 25.5X8.0-14(814-086C)814-088C40. Check Cutter Tire Size Before OrdingRIM 2PC. 4BLT 10X6 BLACK814-267C41. Check Cutter Tire Size Before OrdingRIM 2PC.4BLT 15X6 BLACK814-205C41. Check Cutter Tire Size Before OrdingRIM 2PC.4BLT 14X6BLACK814-086C814-089C41.
04/05/12 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 11
Table of Contents Part Number Index
Section 2: Decks Land Pride
Axle AndWheels PullType Rear
Applies to RCR3510, RCR3596, RCRM3510, RCRM3596

RevisionCommentsPart DescriptionPart No.Ref. S/N 627792+SPINDLE - SINGLE AXLE BOLT ON815-108C42. S/N 627792+HHCS 1/2-13X3 1/4 GR5802-099C43. S/N 627792+NUT LOCK 1/2-13 PLT803-019C44. For S/N 627791-RCR(M)3510 AXLE UPDATE KIT312-902A45. HUB STUD 1/2-20X1 5/8 GR5802-135C46. NUT HEX FLG/LK 1/2-20 PLT.GR.G803-308C47. HUB 4 BOLT COMPLETE815-236C48.
12 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 04/05/12
Table of Contents Part Number Index
Land Pride Section 2: Decks
Axle AndWheels PullType Rear (continued)
Applies to RCR3510, RCR3596, RCRM3510, RCRM3596

This Page Intentionally Left Blank
04/05/12 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 13
Table of Contents Part Number Index
Section 2: Decks Land Pride
Axle AndWheels PullType Rear (continued)
Applies to RCR3510, RCR3596, RCRM3510, RCRM3596

16562
14 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 04/05/12
Table of Contents Part Number Index
Land Pride Section 2: Decks
Axle Semi-Mount Rear
Applies to RCR3510, RCR3596, RCRM3510, RCRM3596

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg16562 HUB & SPINDLE ASSY 4 BOLT815-092C1. NUT HEX 1 1/4-7(MACHINED)PLAIN803-289C2. OIL SEAL DBL LIP 2.441 BORE816-286C3. BEARING CONE 15123822-091C4. BEARING CUP 15245822-092C5. HUB 4 BOLT815-091C6. GREASE ZERK STRAIGHT 1/4-28800-001C7. BUSHING TW 1.25ODX.78IDX5 1/4827-036C8. RC35 TAILWHEEL ASSY-21312-067K9. TIRE & WHEEL LAMINATED 6.0 X 9814-059C10. DECAL NOTICE - 20 MPH MAX818-681C11. WASHER FLAT 1/2 SAE PLT804-016C12. WASHER LOCK SPRING 1/2 PLT804-015C13. Rev. 2(S/N 336501+)HHCS 1/2-20X1 1/4 GR5802-326C14. Rev 1; Use up stock(S/N 336500-)HHCS 1/2-20X1 GR5802-240C14. PIN ROLL 3/8 X 2 1/2 PLT805-255C15. WASHER MACH 3.25 X 1.75 X 10GA804-074C16. GREASE ZERK 1/4-28 THD FORMING800-080C17. WLDMT. YOKE ARM SUPPORT312-591H18. TAILWHEEL WASHER312-231D19. RC35 YOKE WLDMT312-100H20. HHCS 3/4-10X10 GR5802-272C21. WASHER LOCK SPRING 3/4 PLT804-023C22. NUT HEX 3/4-10 PLT803-027C23. RC 35 TW & YOKE ASSY312-084L24. NUT HEX FLANGE LOCK 5/8-11 PLT803-263C25. U-BOLT 5/8-11 X 3 1/32X4 1/4G5806-018C26. RCR3510 & RCRM3510WLDMT. SEMI-MOUNT AXLE312-588H27. RCR3596 & RCRM3596WLDMT. SEMI-MOUNT AXLE312-630H27. HHCS 3/4-10X2 1/4 GR5802-065C28. WASHER FLAT 3/4 SAE PLT804-025C29. TUBE 1 OD X 12 GA X 15/16 LG.312-712D30. NUT LOCK 3/4-10 PLT803-026C31. HHCS 3/4-10X6 1/2 GR5802-360C32. WASHER FLAT 3/4 USS PLT804-024C33. NUT HEX TOP LOCK 1-8 PLT803-168C34. SPRING SHOCK SUPPORT312-804D35. PIN CLEVIS 1 X 2 1/4 GR5 PLT805-187C36. SPRING COMP 1.88OD x .362W807-143C37. SPRING SHOCK WLDMT312-515H38. HHCS 1-8X3 GR5802-368C39. PIN COTTER 3/16 X 1 1/2 PLT805-104C40. WASHER FLAT 1 SAE804-029C41. OptionalRATCHET JACK - HEAVY DUT890-177C42.
04/05/12 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 15
Table of Contents Part Number Index
Section 2: Decks Land Pride
Axle Semi-Mount Rear
Applies to RCR3510, RCR3596, RCRM3510, RCRM3596

15984
16 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 04/05/12
Table of Contents Part Number Index
Land Pride Section 2: Decks
Check Chain
Applies to RCR3510, RCR3596, RCRM3510, RCRM3596

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15984 CHECK CHAIN ASSY312-071A NUT HEX 3/4-10 PLT803-027C1. WASHER LOCK SPRING 3/4 PLT804-023C2. CHECK CHAIN MT - TRACTOR312-136D3. PLUG CAP 1 3/8 X 3/4817-057C4. CHECK CHAIN WLDM'T312-062H5. HHCS 3/4-10X1 1/2 GR5802-184C6.
04/05/12 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 17
Table of Contents Part Number Index
Section 2: Decks Land Pride
Check Chain
Applies to RCR3510, RCR3596, RCRM3510, RCRM3596

15976
18 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 04/05/12
Table of Contents Part Number Index
Land Pride Section 2: Decks
Deck
Applies to RCR3510, RCR3596, RCRM3510, RCRM3596

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg15976 (S/N 558465+)HHCS 3/4-10X2 1/4 GR5802-065C1. (S/N 558464-)HHCS 3/4-10X2 GR5802-064C1. Rev. 2S/N 375614+GBOX RC35 1.75-20 1:1.47 STD.826-378C2. Rev. 1S/N375613-ReplaceBoth 826-217C
Boxes
GBOX RC71SR 1.75-20 1:1.46826-217C2.
Rev. 2(Shown)RCR3510&RCRM3510S/N
384159+
FLEX COUPLER 1 3/4-20 (16.44)826-334C3.
Rev. 1S/N 384158-REP BY 826-334C826-214C3. RCR3596 & RCRM3596FLEX COUPLER 1 3/4-20 (9.21)826-224C3. SCREW SET SQ HD 3/8-16X7/8 PLT801-007C4. NUT HEX JAM 3/8-16 PLT803-012C5. 540 RPMT-BOX 500 SER. 1.75-20 1:1.35826-218C6. Only on RCR3596 S/N 473191 Thru
473290
T-BOX 1.75-20 1:1.35826-356C6.
1000 RPMT-BOX 500 SER. 1.75-20 1.35:1826-219C6. RCR3596 S/N 639636- RCR3510
S/N 627791-
NUT WING 3/8-16 PLT803-231C7.
RCR3596 S/N 639636- RCR3510
S/N 627791-
WASHER LOCK SPRING 3/8 PLT804-013C8.
RCR3596 S/N 639636- RCR3510
S/N 627791-
WASHER FLAT 3/8 SAE PLT804-012C9.
RCR3596 S/N 639636- RCR3510
S/N 627791-
ACCESS COVER PLATE312-812D10.
HHCS 1/2-13X1 1/4 GR5802-034C11. NUT HEX WHIZ 3/8-16 PLT803-198C12. WASHER LOCK SPRING 1/2 PLT804-015C13. SKID SHOE312-602D14. PLOW 3/8-16X1 GR5802-603C15. NUT HEX TOP LOCK 1 1/8-12 PLT.803-170C16. Rev. 2 not compat. w/Rev. 1COMER; RCR3510 & RCRM351017 DISHPAN WLDMT LG.HUB(COMER)312-817H17. Rev. 1OMNI; RCR3510 & RCRM3510DISHPAN WELDMENT 17" CTR312-510H17. Rev. 2 not compat. w/Rev. 1COMER R; RCR3596 & RCRM359615 DISHPAN WLDMT LG.HUB(COMER)312-820H17. Rev. 1OMNI; RCR3596 & RCRM359615 ROUND DISHPAN WLDMNT(OMNI)312-404H17. Standard Blade; RCR3510 &
RCRM3510; Quantity 2 per cutter
CUTTER BLADE 1/2 X 4 X 25 CCW820-137C18.
Optional blade; RCR3510 &
RCRM3510; Quantity 2 per cutter
CUTTER BLADE 1/2X4X25 LL CCW820-193C18.
Standard Blade; RCR3596 &
RCRM3596; Quantity 2 per cutter
CUTTER BLADE 1/2X4X20 1/2 CCW820-195C18.
Optional blade; RCR3596 &
RCRM3596; Quantity 2 per cutter
CUTTER BLADE 1/2X4X20.5 LL CCW820-210C18.
BLADE BOL 1 1/8-12X3 7/16 W/KY802-277C19. (Shown) RCR3510 & RCRM3510CCW BLADE CARRIER ASSY.312-529S20. RCR3596 & RCRM3596CCW BLADE CARRIER ASSY.312-627S20. WASHER FLAT 1 SAE804-029C21. NUT HEX SLOTTED 1-14803-095C22. PIN COTTER 3/16 X 1 3/4 PLT805-017C23. Standard Blade; RCR3510 &
RCRM3510; Quantity 2 per cutter
CUTTER BLADE 1/2 X 4 X 25 CW820-112C24.
Optional blade; RCR3510 &
RCRM3510; Quantity 2 per cutter
CUTTER BLADE 1/2X4X25 LL CW820-209C24.
Standard Blade; RCR3596 &
RCRM3596; Quantity 2 per cutter
CUTTER BLADE 1/2X4X20 1/2 CW820-196C24.
Optional blade; RCR3596 &
RCRM3596; Quantity 2 per cutter
CUTTER BLADE 1/2X4X20.5 LL CW820-211C24.
(Shown) RCR3510 & RCRM3510CW BLADE CARRIER ASSY.312-528S25. RCR3596 & RCRM3596CW BLADE CARRIER ASSY.312-626S25. NUT HEX FLANGE LOCK 3/4-10 PLT803-181C26.
04/05/12 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 19
Table of Contents Part Number Index
Section 2: Decks Land Pride
Deck
Applies to RCR3510, RCR3596, RCRM3510, RCRM3596

RevisionCommentsPart DescriptionPart No.Ref. HHCS 5/16-18X3/4 GR5802-007C27. WASHER LOCK SPRING 5/16 PLT804-009C28. WASHER FLAT 5/16 SAE PLT804-036C29. RCR(M)3510 S/N640037+RCR3596
S/N 640017+
LARGE SHAFT CONE W ACCESS DOOR826-648C30.
RCR(M)3510S/N640036- RCR3596
S/N 640016-
RPBY 826-648C826-222C30.
GRBOX SHAFT(1 3/4OD) PROTECTOR817-165C31. SHIELD BRACKET WELDMENT312-509H32. KNOB 3/8-16 FEMALE THD 2 3/8OD817-259C33. (Shown) RCR3510 & RCRM3510OUTER SHIELD312-805D34. RCR3596 & RCRM3596OUTER SHIELD312-933D34. SHIELD BRACKET WELDMENT312-508H35. (Shown) RCR3510 & RCRM35103510 DECK WELDMENT312-507H36. 3510 DECK WELDMENT GREEN312-507H8136. 3510 DECK WELDMENT ORANGE312-507H8236. 3510 DECK WELDMENT RED312-507H8336. RCR3596 & RCRM3596WLDMT DECK 96" CUTTER312-611H36. WLDMT DECK 96" CUTTER GREEN312-611H8136. WLDMT DECK 96" CUTTER ORANGE312-611H8236. WLDMT DECK 96" CUTTER RED312-611H8336. WASHER FLAT 1 HARD ASTMF436 PN804-147C37. (S/N 521802+)MANUAL STORAGE CONTAINER816-481C38. (S/N 521802+)HHCS 1/4-20X1 GR5802-005C39. (S/N 521802+)WASHER FLAT 1/4 SAE PLT804-007C40. (S/N 521802+)NUT HEX NYLOCK 1/4-20803-255C41. RCR3596 S/N 639637+ RCR3510
S/N 627792+
PLUG LP 3" ID RUBBER840-273C42.
20 RCR3596, RCRM3596, RCR3510 & RCRM3510 Rotary Cutter 312-517P 04/05/12
Table of Contents Part Number Index
Land Pride Section 2: Decks
Deck (continued)
Applies to RCR3510, RCR3596, RCRM3510, RCRM3596
