Land CT-300B User manual

1
/
14
Curve Treadmill Manual
Note: The code interpretation right of the product is based on the final confirmation
of the order.
This equipment meets the GB17498.1/GB17498.6 Class S Standard (S=studio)

2
/
14
Catalog ............................. 2
Important safety instructions .................. 3
Product description..........................5
Installation instructions ........................6
Instructions for use........................ 7
Display description (model CT300B)........9
Technical data........................ 11
Equipment movement and
adjustment....................12
Routine maintenance....................13
Fault diagnosis ......................... 14

3
/
14
Important Safety Instructions
Prior to the implementation of any nutrition intake plan or dietary control plan and
any stretching or exercise program, you must consult with physician or qualified
health care practitioner. It is best to have a thorough understanding of the relevant
information before deciding to implement any activities that may affect health or
make any choices.
Please read all instructions before using the product. These instructions can ensure
user safety and protect products.
Only under the supervision of qualified personnel, the children and Disabled people
can come to close or use of products.
This product can be used only by instruction noted in this User Manual and can be
used only by the way and conditions specified in the manual. Any other use will be
taken as improper behavior that may cause danger.
Do not use non LAND recommended accessories.
Don't put your hands near the moving parts. Don't put your feet under the moving
parts.
Do not let objects fall or insert the opening parts .
For certain special exercises,relevant doctor issued certificate will be needed before
use, but also to meet the conditions of use of LAND.
Under special conditions, this product can only be used under the close supervision
of a professional doctor.
Before each exercise starts, you have to adjust yourself well, avoiding hindering any
components.
According to self physical condition and health conditions to develop training
programs, starting from a smaller load of exercise.
Don't be too tired or too exhausted. Wrong training or excessive exercise may result
in serious injury or death. When suffering from pain or abnormal symptoms,
immediately stop exercising and consulting doctors.
Wear suitable clothes and shoes when training; Don't wear clothes that hinder
perspiration. Tidy up long hair. Keep clothing or towels away from moving parts.
When the product is in operation, any third party must maintain a safe distance.
Do not use equipment in the presence of children or pets.

4
/
14
Fitness center staff should clearly clarify to the user the correct use of equipment to
avoid improper use.
The product can only be used after fully installed,Each time before use, the product
should be checked. If it is abnormal, please do not use any more..
Install and launch the product on a hard floor surface. 2m*1m safety area must be
reserved in the rear of the treadmill.
Do not expose the product to the direct sunshine.
Do not use the products outdoor ; Do not put the product in the open, avoiding from
atmospheric factors; Do not spray to the product.
Do not place the product in a humid environment, such as a swimming pool, bathtub
and sauna room.
All the components (such as power cables and switches) must be away from liquids,
in case of electric shock.
This product should be kept in a good operating condition. If you find any wearness,
please consult LAND technical support services.
Do not attempt to maintain the product according to the instruction not from User
Manual.
The installation, maintenance and adjustment of equipment shall be carried out by
the professional or designated personnel of LAND company.
The electrical equipment shall conform to the standards or laws of the country
where the equipment is used.
Don't put anything on the rack or display.
LAND will not be responsible for the loss caused by the following reasons:
maintenance without authorization, improper use, accident, negligence, improper
assembly or installation, any modifications or adjustments without the written
authorization of LAND and users do not comply with the user manual when using,
running and maintenance of the product.

5
/
14

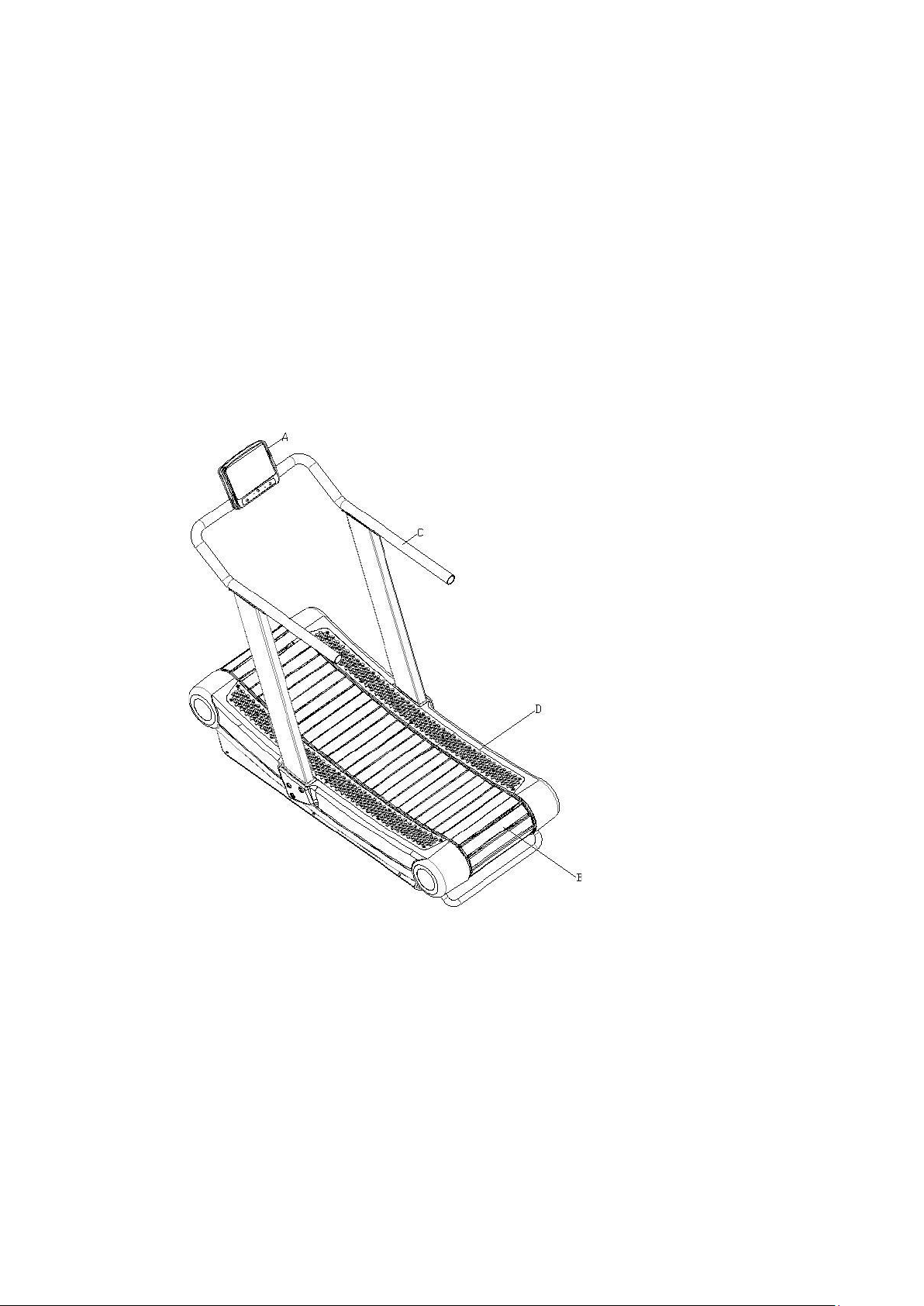

Product Description
Display(A):Display ongoing exercise ,Model No CT-300B is equipped with display.
Running Belt (B): Surface is polyurethane,which can ease the impact on the joints.
Lateral Handle(C):When standing on treadmill or losing balance ,you can hold it to
stand firm;when quick walking or running ,you can keep balance by it .
Side upper boards (D):When the user is in danger or feel tired,he can put his feet on
the boards for a short pause,in addition,it can be used as a tool for single foot
exercise.

6
/
14
Installation Instructions
A、Take down side boards (02)、side shells(01) (Picture 1)
B 、First fix the left pillar with Inner Hex Cylindrical Head Screws 4(M12*45) 、
Washer 6(Φ12)、Spring pad 5(Φ12),then connect data wire of left
pillar to the data wire of main frame .(Picture 2)
C、First fix the right pillar with Inner Hex Cylindrical Head Screws 4(M12*45) 、
Washer 6(Φ12)、Spring pad 5(Φ12),Then connect the Wire C bypass
wire disc(03)to Reluctance shaft d.(Picture2、Picture 3)
D、Fixing the central armrest with Inner Hex9(M10*20),washer 7(Φ
10,spring pad 8(Φ10)(Picture 4)
E、Fixing the screen with Inner Hex Flat Head Screw 10(M10*20)、Washer 11
(Φ10)(Picture 5)
F、Re-install Side upper boards (01)and side shells (02) (Picture 1)
The above instructions for CT-300B installation way with it.

7
/
14
Instructions for use
Hold the side handle,then step on the running belt from
the back.View front ,then put the feet on both sides of
the upper boards.
Standing firm on the running belt and then begin to
exercise.
At the beginning of exercise, hold the handle to keep
safety.After adaption ,release your hand from the handle
which can improve the sense of balance and maintain
the correct posture.
At beginning ,walking fast with the speed of 6-7 km
/h.Then increase the speed gradually while maintaining a
certain stability and security.
Because the running surface is slightly curved, the more
toward the central handle ; the speed more faster. more
backward, the speed more slower
If the user feels that the running belt is suddenly
subsided, grasp both sides of the handle, hold yourself
and put your feet on the side upper boards,
Finally boarded down
When finishing exercise, you can grasp the handle on
both sides, hard to hold yourself and put your feet on
the side upper boards, and finally boarded.
When Exercise,please adjust the braking level gradually.
Running belt is not driven by motor, can run freely.When
boarding on or down the equipment, you need to hold
the side handle.
According to different exercise and braking strength, the uses of side and central
handles are different, the device can provide a variety of exercise methods.

8
/
14
BRISK WAILKING FAST RUNNING
Side shuffle step
WARNING
User must keep concentrate, to avoid losing stability and balance
Two person use one treadmill at the same time is forbidden
CT300B treadmill designed and produced only for simulation walking and running,
Any other purpose will be regarded as improper behavior and may cause danger.
Do not touch the running belt when it is rotating.
Be careful to avoid shoelaces and other clothing rolled into the crevices of the
equipment, as it may cause wrestling.

9
/
14
Display description (CT-300B)
1. Key function
Select&Confirm/Erase
(MODE/RESET)
1.Used for switch Windows TIME、DISTANCE、CALORISE、
PULSE
2.This key has functions of the confirmation choice, and
setting time confirmation.
3.Constant Press for 2 seconds to clean the input settings.
Settings
(SET)
1.Press one time will be added one time, constant press is
set as quick adding.
2.It can set(TIME)、(DISTANCE)、(CALORISE)、
(PULSE)numerical values.
Recovery
(Heart Rate)
It is used to test the athlete's recovery of heart rate after
finishing exercise.
Note: While the heart rate’s digital is running, and the
movement is stopped, you can use it.
2. Operating instructions
Turn On: After loading the battery, listen to a sound lasting 2 seconds,in the
meantime the display all shows 2 seconds.
Turn Off:
An electronic watch enters into a sleep state after 4 minutes without any signal
input.

10
/
14
Enter motion picture:
Boot into motion picture
1.Press Selection (MODE) key to choose (TIME)、(DISTANCE)、(CALORISE)、
(PULSE),Press the (SET) key to set the value,Confirm by pressing the Confirmation
(MODE)key.
2.Inputting signal, time (TIME), distance (DST), and calories (CAL) to start counting.
Note:
When the display fades,Please replace the battery.
If there is no input signal, please check whether the wire is connected or not.

11
/
14
Technical data
Model No.
CT-300B
Power Supply(Optional Adapter)
-
N.Weight
195KG
Max User Weight
180KG
Noise Degree
Below 80dB (A)
Protection Level
IP 20
Running Temperature
From +5°C to +40°C
Electrical insulation level
II Level
Product Dimension(L*W*H)
1680*960*1980mm
Package Dimension(L*W*H)
2000*1100*900mm

12
/
14
Movement and adjustment of equipment
The equipment is equipped with two fixed front wheels.If need to move the
equipment, just lift it slightly and move forward or backward.
As the equipment is heavy, you had better to find a few people to move together.
If the floor condition isnot suitable to use wheel to move, lifting and transporting
equipment will be needed .
Warning
You must be very careful when you move, otherwise it will damage the
stability of the equipment.
Equipment can only be run on flat floor.

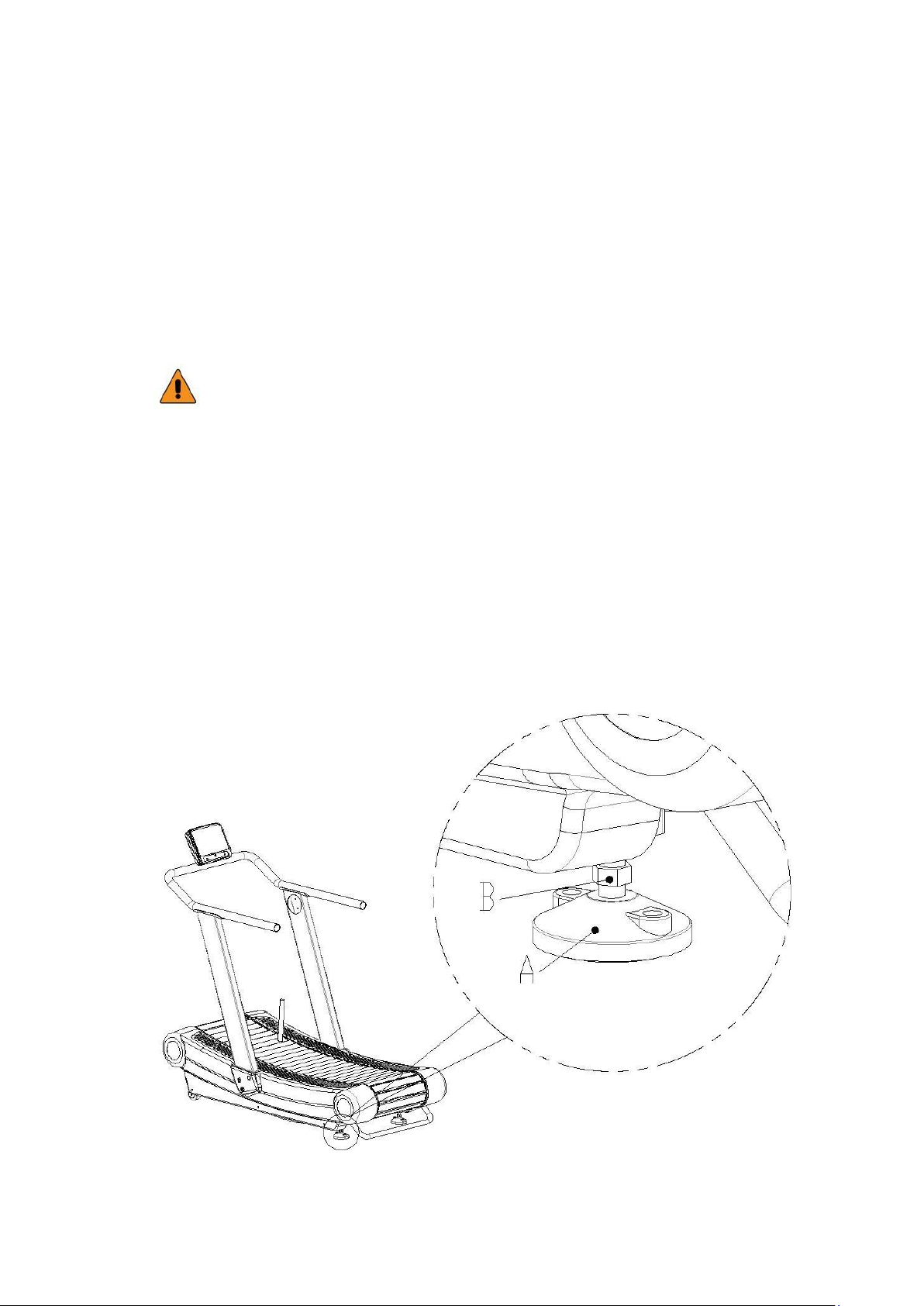

You have to adjust the equipment foundation horizontal,as shown:
A, unscrew the nut (B);
B, screwing or unscrewing the universal foundation (A) till the equipment is stable
and firm.
C, after adjustment, tighten the nut (B).

13
/
14
Routine maintenance
In order to ensure good sanitation, the equipment should always be kept clean and
dust-free,comply with basic hygienic standards, especially used in the gyms or by
many people.
-Clean the outside of equipment with a wet sponge
-After removing the equipment,clean the floor with a vacuum cleaner
Do not use chemicals or solvents.
Warning
Be careful not to wipe with efforts the pattern and instructions on the label.
In order to ensure the equipment can be used safely,it should be inspected every
two weeks for product damage or wearing issue.
All operations of cleaning and maintenance should be carried out under fully static
conditions of running belt.
What unmentioned care and maintenance operations would be needed in this
manual,please contact LAND Technical Services.
Periodic maintenance,adjustment or lubrication of the product shall be carried out
by LAND Technical Support Services.
Inspecting should be every two weeks:
-Whether the components and surfaces of the running belt are worn;
-Whether the plastic protector is intact.

14
/
14
Fault diagnosis
The following table illustrates the possible failures in the use of equipment: if the
remedies provided cannot solve the problem, please contact the technical support
service.
Fault
Reason
Remedies
When screen
cannot be
started
Insufficient voltage
Please replace battery
Power cord damage
Contact LAND technical support
services.
The power cord is not
plugged in.
Check connection status.
There is a problem
installing the wires
Check connection status.
The connector of the
control panel suddenly
disconnects.
Contact LAND technical support
services.
Abnormal
internal noise
The equipment stand
not flat.
Check and adjust whether all the feet
are stable on the floor.
Bearing damage
Contact LAND technical support
services.
The running belt
deviates from the central
position.
Contact LAND technical support
services.
Incorrect or
unreliable data
in display
during exercise
The equipment's
environment is disturbed
by other equipment
(such as household
appliances).
Move equipment to other places or
move household appliances.
Wrongly
heartbeat
display with
chest strap
Other signal emitters
appeared near the
equipment.
Move the equipment to other places
to avoid overlap with other signals
(between two devices)
The minimum distance is 80 cm).
There is a strong
interference source near
the equipment
Find the source of interference (such
as home appliances), and move away
from interfering sources or moving
equipment.
Heart rate monitor
bandages wears .
Changing chest bandage.
The belt conveyor does
not contact the skin
properly.
Use water to wet the internal of chest
bandage.
conveyor is broken
Replace chest bandage.
Table of contents
