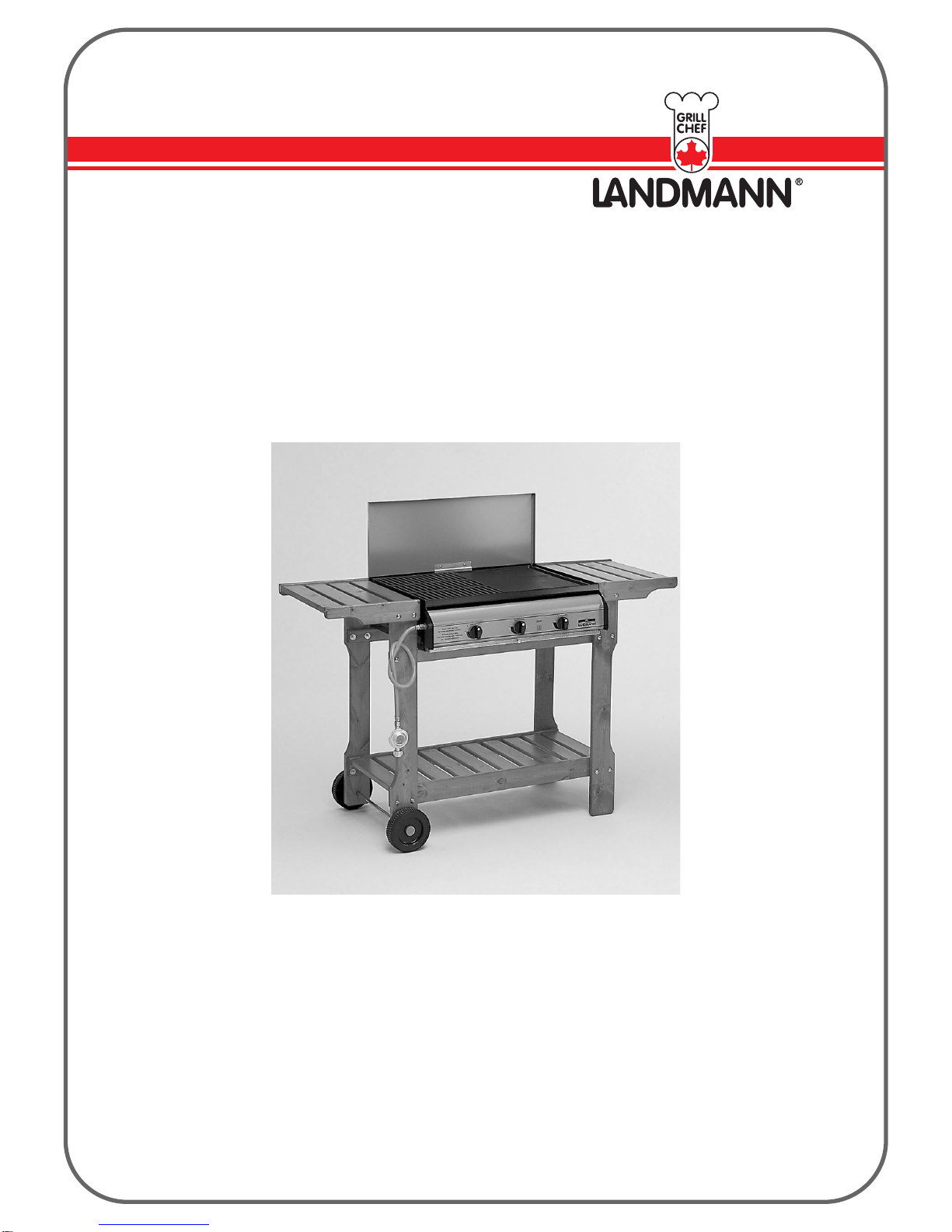

Landmann 54 User manual

1
Assembly Instruction for
flat bed BBQ Art.-No. 0054
0054UK 10/04bt-rk
IMPORTANT:
READ ALL INSTRUCTIONS AND OPERATIONS
BEFORE OPERATING THIS UNIT.
FOLLOW THE CORRECT LIGHTING AND USAGE
PROCEDURES. HANDLE METAL PARTS WITH CARE
TO AVOID INJURIES. FOLLOW ALL STEPS IN
ORDER. NEVER ALLOW CHILDREN TO OPERATE
THIS UNIT.

2
Contents:
1.: Technical data
2.: Function
3.: Single part list & exploring drawing
4.: Mounting Steps
5.: Preparation
6.: Installation
7.: Warning and safety points
8.: Safety precautions
9.: Lighting instructions
10.: Storage
11.: Cleaning instructions
12.: Barbecue Safety Hints
Warnings:
Ensure to use this appliance outdoors.
Do not attempt to move this appliance during
operation. Never leave fuel cylinder attached to
regulator if disconnected from burner tube.
Attention:
Some parts of this appliance become
very hot, take special care when children or elderly are present
For your safety:
Do not store or use gasoline or methylated fuels
or any other flammable vapours and liquids in the
vicinity of this or any other appliance.
Never light a barbecue with gasoline or
comparable fluids !

3
1.:Technical Data
Gas: LPG (Propane)
Gas Bottle: Propane Gas Bottle with 27mm Clip valve
Pressure: Propane at 37 Mbar
3+ (28-30/37)
Consumption: 1,2 kg / h
Power: approx. 16,5 kW
Weight: approx. 18 kg
Overall dimensions: approx. W 134 cm, D 59 cm, H 59,8 cm
Cooking Area: approx. 64 x 49 cm
Burner set: adjustable
Ignition: Piezo Ignitor
Lava rocks: 1 Bag
The capacity of a 15 kg Butane Gas Bottle is sufficient for
a heating period of approx. 12,5 hours with full power.
You have purchased a high quality LANDMANN
Gas Appliance. This appliance has been made with
regard to the European Gas Standard (EN 498)
and bears the certification no.
CE - 0085.
The gas hose assembly that is enclosed with this
appliance conforms to British Standard BS 3212.2.

4
2.: Function
a) Pilot Gas Control Ignition:
With all gas controls on the Barbecue in the 'OFF' position, turn the gas cylinder valve
to the on position on the regulater. Push in the Barbecue ignition gas control knob and
turn anticlockwise until spring resistance is felt. Hold in this position for 3-5 seconds
to allow gas flow, and then continue to turn anticlockwise to 'HIGH"' position. Keep
the knob pressed in until the burner is seen to be alight. When the burner is alight,
adjacent burners will cross light when their controls are turned to 'HIGH'.
b) Manual Ignition:
With all the gas controls in the 'OFF' position, turn the gas cylinder valve on the regulator
to the on position. Lift out one of the cast iron cooking grills and holding a lighted taper
or gas match alongside the burner, push in and turn the gas control knob for that burner
to 'HIGH'. The burner will light in seconds. Replace the cast iron cooking grille. Once
the first burner is alight, adjacent burners will cross light when their gas controls are turned
to 'HIGH'.
At 'HIGH' setting the burner flame should be approximately 12-20mm long with a
minimum of yellow tipping. Turn the gas control fully anticlockwise for minimum setting.
Should you have any difficulty lighting your barbecue following the above steps, contact
your dealer for advice.

5

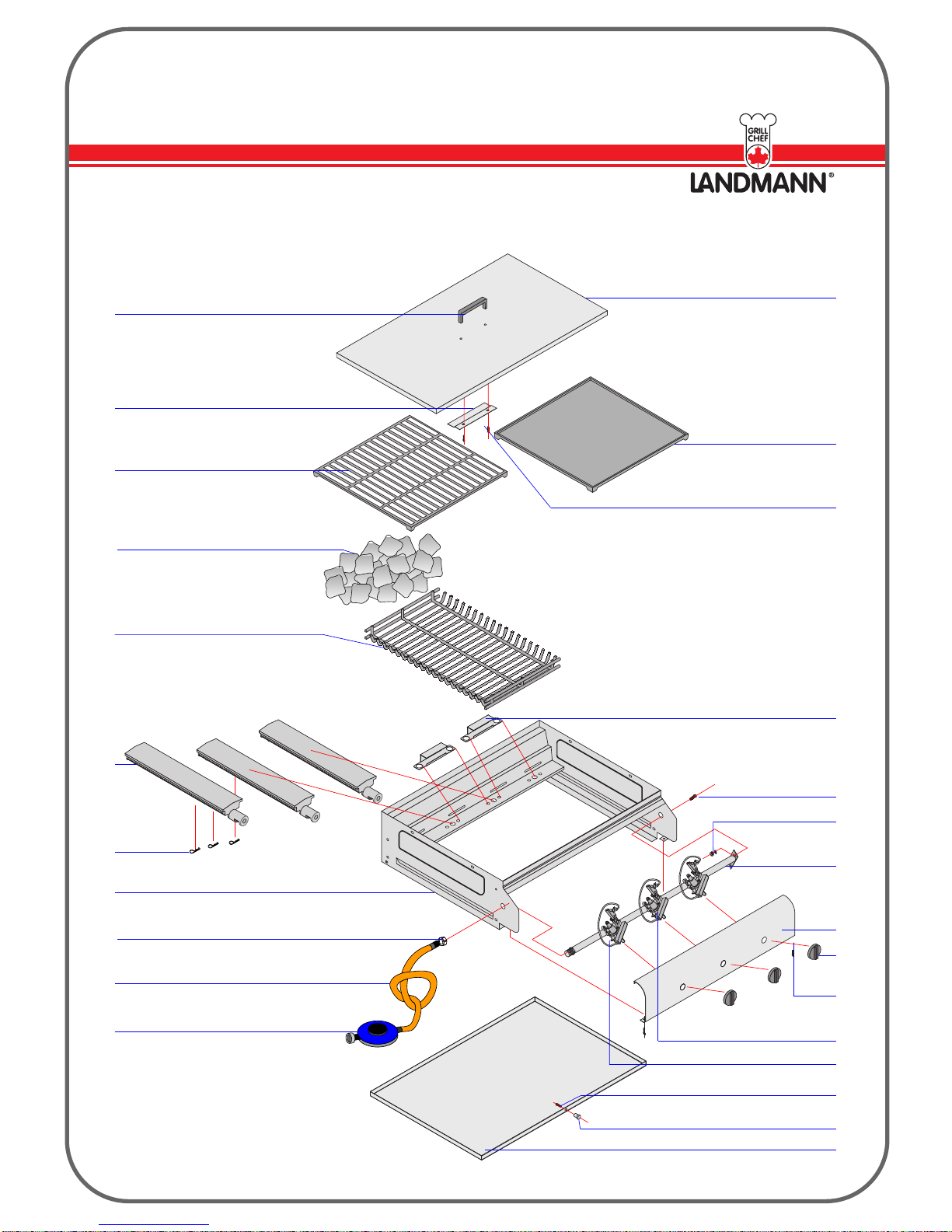

3.: Single part list / Exploring drawing
1. Raincover 1
2. Handle clip 1
3. Raincover handle 1
4. Cooking grill 1
5. Hot plate 1
6. Burner 3
7. BBQ body (pre-assembled) 1
8. R Clip 3
9. Knob 3
10. Cross Lighting tube 2
11. Front panel 1
12. Regulator 1
13. Hose 1
14. Gas control bar 1
15. Valve with ignitor 1
16. Valve 2
17. Drip pan 1
18. Drip pan handle 1
19. Gas Hose connection 1
20. Screw Ø4x10 with washer 2 Self tappers
21. Bolt M6x12 1
22. Nut M6 1
23. Screw Ø5x6 1
24. Screw Ø4x10 with washer 2
25. Lava rocks 1 Bag
26. Lava rock grid 1

6
3
2
4
6
8
7
19
13
12
5
20
10
21
22
14
11
9
24
16
15
23
18
17
1
25
26

7
4.: Mounting steps

8

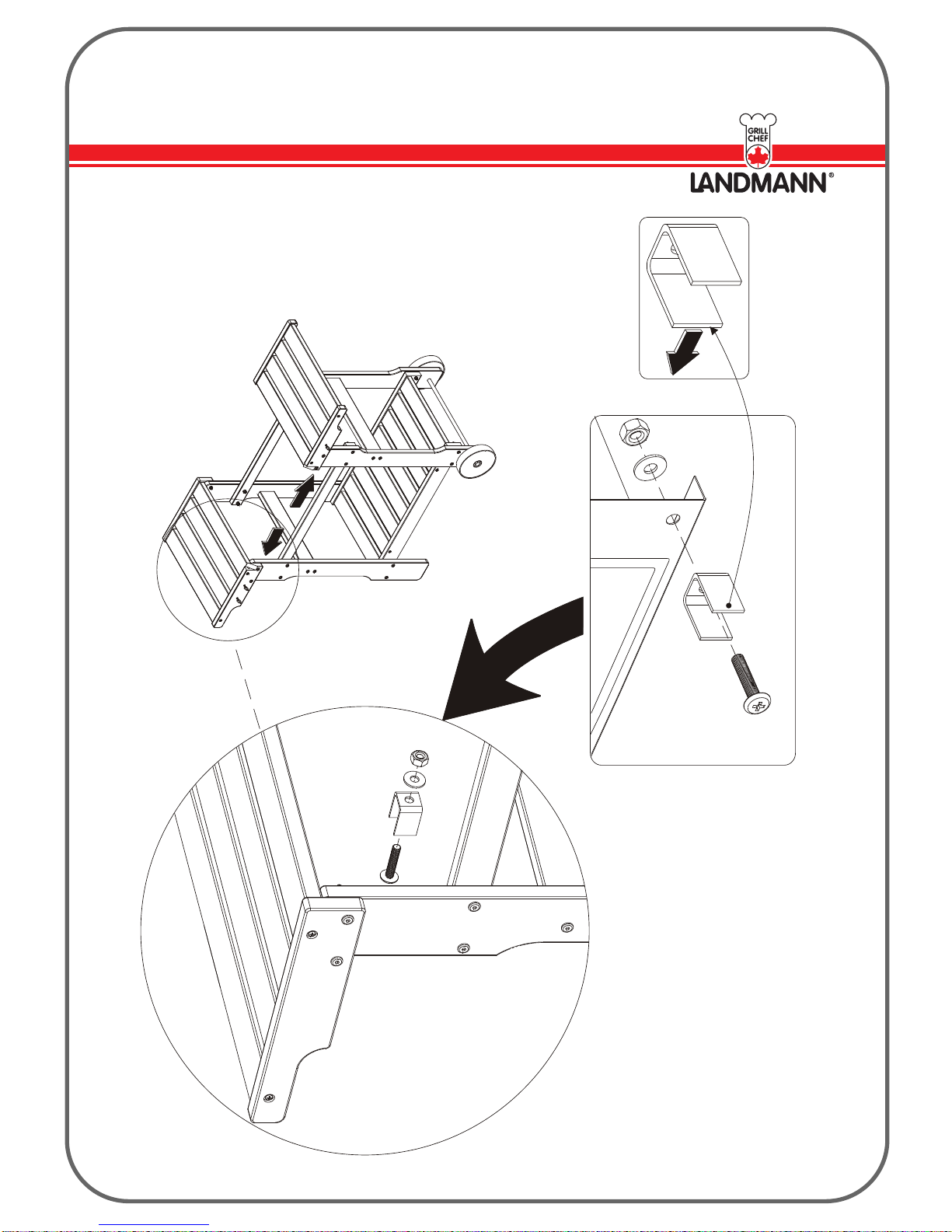

1.: Attach the bbq body on the trolley (see page 7)using “U” brackers provided
2.: The cross lighting tubes (10) are placed on the burner rest and are retained in place
by the locating pegs of the burners. Fit each burner (6) to the barbecue by placing the
neck of the burner over the brass jet of the gas control valve (15)(16). The rear of
the burner is then lowered onto the back burner rest, locating the cast peg on the
underside of the burner into the hole in the burner rest and trapping the cross lighting
tube (10) in place. Repeat for the other burners. Fit the burner retaining clips to the
rear pegs of the burners, from under the burner rest.
Note: The burners should be loose on the gas control nipples. Do not attempt to fix
them tightly or seal them.
3.: Fit the drip pan handle (18) to the front edge of the drip pan (17), using the
screw supplied. Slide the drip pan into place from the front of the barbecue
below the fascia panel. Push it all the way back to its stop. This tray must be
filled before use with an even layer, approximately 10mm thick, of non-combustible,
fat absorbing medium or clean, dry sand. This must be kept clean and loose in
order to absorb fat drippings. If this is not done, it may be possible for the fat
drippings to ignite and burn. Check regularly that the absorbing medium is loose
and clean. Lining the tray with aluminium foil before filling can assist in removal
of the fat soaked absorbing medium. DO NOT USE SAWDUST OR OTHER
FLAMMABLE MATERIAL IN THE GREASE TRAY. Always ensure the tray
is pushed back to its stop point and is not held by the bottom edge of the fascia
panel.
4.: Place the lava rock grid (26) into the barbecue. This rests on the ledges formed on the
front and back panels above the burner. Spread the lava rocks (25) onto the grid in
a single even layer. Place the cast iron cooking grill and hotplate into the barbecue.
These rest on the ledges formed on the front and back panels. The cast iron cookware
should be washed thoroughly in warm soapy water, dried and coated with a liberal
coating of cooking oil before first use.
5.: Attach the raincover handle (3) to the outside and the retainer to the inside of the
raincover (1), using the two self tapping screws provided. The raincover will store
vertically behind the barbecue body when the retainer is hooked over the back panel
of the body, also acting as a windshield.

9
5.: Preparation
You will need to purchase a Propane bottle with a 27mm clip on valve to operate this barbecue
which can be obtained from your nearest Gas Retailer.
Energy saving tips:
a.: Preheat the barbecue for 5 minutes low then 10 minutes on medium.
b.: Do not preheat longer than recommended.
c.: Do not use a higher setting than required.
6.: Installation
After purchasing your gas bottle you will then be ready to set it up
with your barbecue.
a.: Position the gas bottle at the side of your barbecue, not underneath, keeping in mind
that the bottle must be kept away from heat and in a safe position.
b.: When ready to use your barbecue insert the regulator into the gas bottle valve and
tighten firmly.
Note: Before attempting to light your barbecue you must refer to your lighting instructions
and warning / safety points.
Check the hose before each use, searching for cracking, cuts or any abrasions. If the hose is
found to be faulty in any way do not attempt to use your barbecue.
When changing your gas bottle ensure that there are no sources of ignition close by i.e. fires,
cigarettes, naked flames etc. Make sure that the appliance is switched off.
Ensure that the hose is free from any kinks or bends which will affect the gas flow when using
your barbecue. Also the hose must not have undue tension and must not touch any part of
the barbecue which may be hot.
How to change your cylinder
These cylinders take a regulator which incorporates a switch for the on / off control of the
gas supply. No spanner is required.

10
How to connect a gas bottle
a.: Turn the orange cap so that the arrow is pointing to the gap in the shroud.
b.: Remove the orange safety cap by pulling the lanyard out, then out. Do not use tools.
Leave the cap hanging.
c.: Check that the black sealing washer is fitted inside the cylinder valve. Place the regulator
down over the valve with switch in 6 o´clock position.
d.: Turn the switch clockwise to the OFF (9 o’clock) position.
e.: To turn gas on turn control counter anti - clockwise on gas bottle - then turn on the
barbecue as instructed.
Note: Always test gas line for leaks at connector with soapy water finishing all connections.
How to disconnect a gas bottle
a.: Turn the switch clockwise to the OFF (9 o’clock) position.
b.: Except for twin - cylinder installations with a changeover valve, turn off the gas tap if
fitted to the appliance. Wait until the burner and pilot light have gone out.
For installations with a changeover valve, it is only necessary to switch off the empty
cylinder.
c.: Never turn the switch to the disconnect (6 o’clock) position straight from the ON
(12 0´clock) position.
d.: Depress the centre button of the switch. Keeping it depressed turn the switch anticlockwise
to the disconnect (6 o’clock) position and lift off the regulator.
e.: Replace the orange safety cap onto the empty cylinder.
7.: Warning and Safety Points
Please read the following points before using your barbecue:
1.: Please follow all assembly instructions in this manual, if instructions are not followed it
may cause problems in use.
2.: This barbecue will become very hot when being used, care is to be taken especially when
pets, children or elderly people are present.
3.: In the event of a gas leak shut off gas to the barbecue, extinguish any open flames, open
lid and if leak continues check for damages, poor connections etc. Contact your local
gas dealer immediately if the problem can not be solved.
4.: Do not attempt to move Barbecue while it is in operation.
5.: Do not use or store any flammable liquids or vapours in the vicinity when operating the
barbecue.

11
6.: This gas barbecue is designed for outdoor use only.
7.: Do not use a naked flame to check for gas leaks.
8.: Do not operate barbecue if there is a gas leak.
9.: Do not attempt to disconnect any gas fitting part if your barbecue is being used, on the
barbecue or the gas regulator / bottle.
10.: Care is advised when operating your barbecue, you should never leave unattended when
in use.
11.: Only use lava rock in this barbecue, do not attempt to use charcoal.
12.: The barbecue should be cleaned on a regular basis. Take care not to enlarge burner ports
or orifice openings when cleaning the burner or valves.
13.: Do not attempt to use this appliance in a garage or any enclosed area. Also ensure to
keep clear of any combustible materials, etc. We recommend to keep a distance of at
least 0.5 to 1.0 metre clear of any combustible materials.
14.: We would recommend that this barbecue be serviced by your local gas retail outlet at
least once a year by a competent engineer. Do not attempt to service this appliance
yourself.
15.: Do not attempt any unauthorised interference of the main controls on this barbecue, i.e.
gas taps, injectors, valves etc.
16.: After every use, check the drip tray for fat build-up in the sand. Discard any saturated
sand and replace with fresh sand, failure to fill with sufficient clean dry loose sand may
result in a fat fire or excessive flare up. This can severely damage your barbecue and is
NOT covered by the warranty.
17:. Flare ups occur when meat is barbecued, and its fats and juices fall upon the hot lava
rock. The smoke from some flare-ups gives the food its barbecues flavour, but excessive
flare up will result in meat being burned. To control flare-ups it is advisable to trim away
excess fat from meat and poultry before grilling. Also the burners should always be placed
on a low setting during cooking. Finally extinguish flare-ups by applying baking soda or
salt directly onto the lava rocks. Always protect your hands when handling anything near
the cooking surface of the barbecue.
8.: Safety Precautions
1. Always test gas line for leaks at connector with soapy water after making connections.
2. Use oven gloves and sturdy, long handled barbecue tools when cooking on the grill.
3. Be prepared if an accident or fire should occur. Know where the first aid kit and fire
extinguishers are and know how to use them.
4. Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
5. Always cook with great care.

12
9.: Lighting Instructions
Caution:
Do not stand with your face directly over the barbecue when lighting it.
Your barbecue will have one of the following methods of ignition:
a) Pilot Gas Control Ignition:
With all gas controls in the 'OFF' position, open the gas cylinder valve. Push in the
ignition gas control knob and turn anticlockwise until spring resistance is felt. Hold in
this position for 3-5 seconds to allow gas flow, and then continue to turn anticlockwise
to 'HIGH"' position. Keep the knob pressed in until the burner is seen to be alight.
When the burner is alight, adjacent burners will cross light when their controls are turned
to 'HIGH'.
b) Manual Ignition:
With all the gas controls in the 'OFF' position, open the gas cylinder valve. Lift out
one of the cast iron cooking grilles and holding a lighted taper or gas match alongside
the burner, push in and turn the gas control knob for that burner to 'HIGH'. The burner
will light in seconds. Replace the cast iron cooking grille. Once the first burner is alight,
adjacent burners will cross light when their gas controls are turned to 'HIGH'.
At 'HIGH' setting the burner flame should be approximately 12-20mm long with a
minimum of yellow tipping. Turn the gas control fully anticlockwise for minimum setting.
Should you have any difficulty lighting your barbecue following the above steps, contact
your dealer for advice.
10.: Storage
Your Gas bottle must be stored outdoors in a well ventilated area and must be disconnected
from your barbecue when not being used. Ensure that you are outdoors and away from any
sources of ignition before attempting to disconnect your gas bottle from your barbecue.
When you are using your barbecue after a period of storage, please ensure to check for gas
leaks and check for any obstructions in the burner etc. before using. Also follow the cleaning
instructions to ensure barbecue is safe.
If barbecue is stored outdoors ensure to check that all areas under the front panel are free from
any obstructions (insects etc.). This area must be kept free as this may effect the flow of
combustion or ventilation air.
11.: Cleaning Instructions
Your barbecue is easy to clean with minimum effort, just follow these helpful hints for cleaning
convenience.

13
Trouble Shooting
Problem Possible Cause Solution
Burners will not light using LP gas cylinder empty Replace with full cylinder
the ignition system Faulty regulator Have regulator checked
or replaced
Obstructions in burners Clean burners
Obstructions in gas jets or hose. Clean jets and hose.
Electrode wire is loose or Reconnect wire
disconnected on ignition valve.
Electrode or wire is damaged. Change electrode and wire.
Faulty integrated ignitor. Change ignitor.
Burner will not light with a match. LP gas cylinder is empty. Replace with full cylinder.
Faulty regulator. Have reg checked or replaced
Obstructions in burners. Clean burners.
Obstructions in gas jets or hose. Clean jets and hose.
Low flame or flashback(fire in Obstructions in burners. Clean burners.
burner tube-a hissing or roaring
noise may be heard)
Obstructions in gas jets Clean jets and hose.
or hose.
Windy conditions. Use BBQ in a more sheltered
spot
Gas valve knob difficult to turn. Ignition valve jammed. Replace Ignition valve.
Gas valve jammed Replace gas valve
If your problem is not resolved from the information above, please call the Barbecue helpline.

13
1. Turn the burner on for 15 to 20 minutes. Grease drippings will be burned off from your
grill as well as your lava rock. Ensure appliance is cold before continuing.
2. Grids should be cleaned periodically by soaking and washing in soapy water.
3. The interior surfaces of the grill housing cover should also be washed with hot, soapy
water. Use a wire brush, steel wool or a scouring pad to remove stubborn spots.
4. Periodically check the burner to see that it is free from insects and spiders which may
clog the gas system, deflecting gas flow. Ensure to clean venturi pipes on burner very
carefully, make sure that there are no obstructions. We recommend that you use a pipe
cleaner to clean the venturi pipe area.
5. Any modifications of this appliance may be dangerous and are not permitted.
12.: Barbecue Safety Hints
Stand your barbecue on a safe level surface, away from inflammable items such as wooden
fences or overhanging tree branches.
Never use your barbecue indoors !
Once lit do not move your barbecue or leave it unattended.
Keep children and pets at a safe distance from the barbecue.
Keep a fire extinguisher handy.
The barbecue will become hot when in use, so handle lids etc. with the help of mits / gloves.
Ensure that the appliance has completely cooled down before storing.
Landmann always takes every precaution to ensure that your purchase reaches you
in the best condition. If you are unhappy with your choice in any way please contact the
Customer Service Department:
Landmann Ltd., P.O. Box 28,
Kidderminster , Worcs. DY12 2EZ
Barbecue Helpline 01299 - 251747
Monday to Thursday 9am to 5pm,
Friday, 9am to 4pm.
e-mail: [email protected]
www.Landmann.co.uk

To claim under your guarantee, contact the Barbecue Helpline No.
1. Your Gas Barbecue is guaranteed against any defect in manufacture
or materials for a period of TWELVE MONTHS from the date of
purchase. The guarantee covers the replacement of all defective
parts free of charge.
2. This guarantee certificate is only valid when accompanied by proof
of purchase.
3. The guarantee will not apply if the appliance is defective due to
use that is not in accordance with these instructions, accidental
damage, incorrect assembly or modification or repairs to the
appliance by an unauthorised dealer. Failure to also carry out the
correct maintenance procedures and storage procedures will also
invalidate this warranty. Guarantee does not cover any rust, which
could appear on any of the parts over a period of time.
4. This guarantee is in addition to and does not affect your statutory
rights.
Keep this guarantee in a safe place.
