Landmann Falcon 42122 Guide

MODEL 42122/42202
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at: 1-800-321-3473 8:00 AM - 5:00 PM (EST) English Only,
or Email [email protected]
2 Burner LP Barbecue Grill
Español p. 24
Français p. 47
ASSEMBLY, CARE AND USE INSTRUCTIONS
READ CAREFULLY
IMPORTANT:
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
This appliance is for
Household use only.
This is not a
commercial appliance.
Falcon gas grill series

2
Important Safety Information ................................... 2
Liquid Propane (LP) Safety Information.................... 4
Package Contents.................................................... 6
Preparation............................................................... 7
Hardware Contents .................................................. 7
Tools Required.......................................................... 7
Assembly Instructions .............................................. 7
Connecting Gas Cylinder ......................................... 15
Lighting Instructions................................................. 16
Care and Maintenance ............................................. 17
Cooking Methods and Grilling Tips.......................... 18
Troubleshooting........................................................ 19
Replacement Parts List ............................................ 20
Grilling Guidelines .................................................... 21
Warranty .................................................................. 23
Assembler/Installer
This instruction manual contains important information necessary for the proper assembly and safe use of this
appliance. Read and follow all warnings and instructions before assembling and using this appliance.
Leave these instructions with the consumer.
Consumer/User
Follow all warnings and instructions when using this appliance.
Keep these instructions for future reference.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
5. Failure to follow these instructions could
result in explosion, or burn hazard which
could cause property damage, personal
injury or death.
1. DO NOT store or use gasoline or other
flammable liquids or vapors in the vicinity of this
or any other appliance.
2. An LP (liquid propane) cylinder not
connected for use should not be stored in the
vicinity of this or any other appliance.
3. This grill is FOR OUTDOOR USE only and
shall not be used in a building, garage, under
overhangs or any other enclosed area.
4. DO NOT leave a lit grill unattended. Keep
children and pets away from the grill at all times.
5. This appliance is for Household use only.
This is not a commercial appliance.
Table of Contents
Important Safety Information
Warnings and Cautions contained
in this instruction manual may result
in serious bodily injury or death,
or may result in a fire or explosion
causing damage to property.
UÊÊ Ê>iÊÃÕÀiÊÌÊvÜÊ>Ê>ÃÃiLÞÊÃÌÀÕVÌÃÊ
carefully. Improper assembly of this grill may be
dangerous.
UÊÊ ÊNEVER use charcoal, lighter fluid, gasoline,
kerosene or alcohol to ignite this grill.
UÊÊ Ê7iÊ}Ì}ÊÌiÊ}ÀÊÀÊV}]ÊDO NOT lean
over the open grill.
UÊÊ ÊÜ>ÞÃÊ«iÊÌiÊ}ÀÊ`ÊÃÜÞÊ>`ÊV>ÀivÕÞÊ>ÃÊi>ÌÊ
trapped inside the grill can cause severe burns.
UÊÊ ÊDO NOT place hands or fingers at edge of the
firebox when the lid is open or the grill is hot.
UÊÊ Êii«ÊV`ÀiÊ>`Ê«iÌÃÊ>Ü>ÞÊvÀÊÌiÊ}ÀÊÜiÊÊ
use. Accessible parts may be very hot.
UÊÊ ÊDO NOT attempt to disconnect the gas regulator
and hose assembly or any gas fitting while your
grill is operating.

3

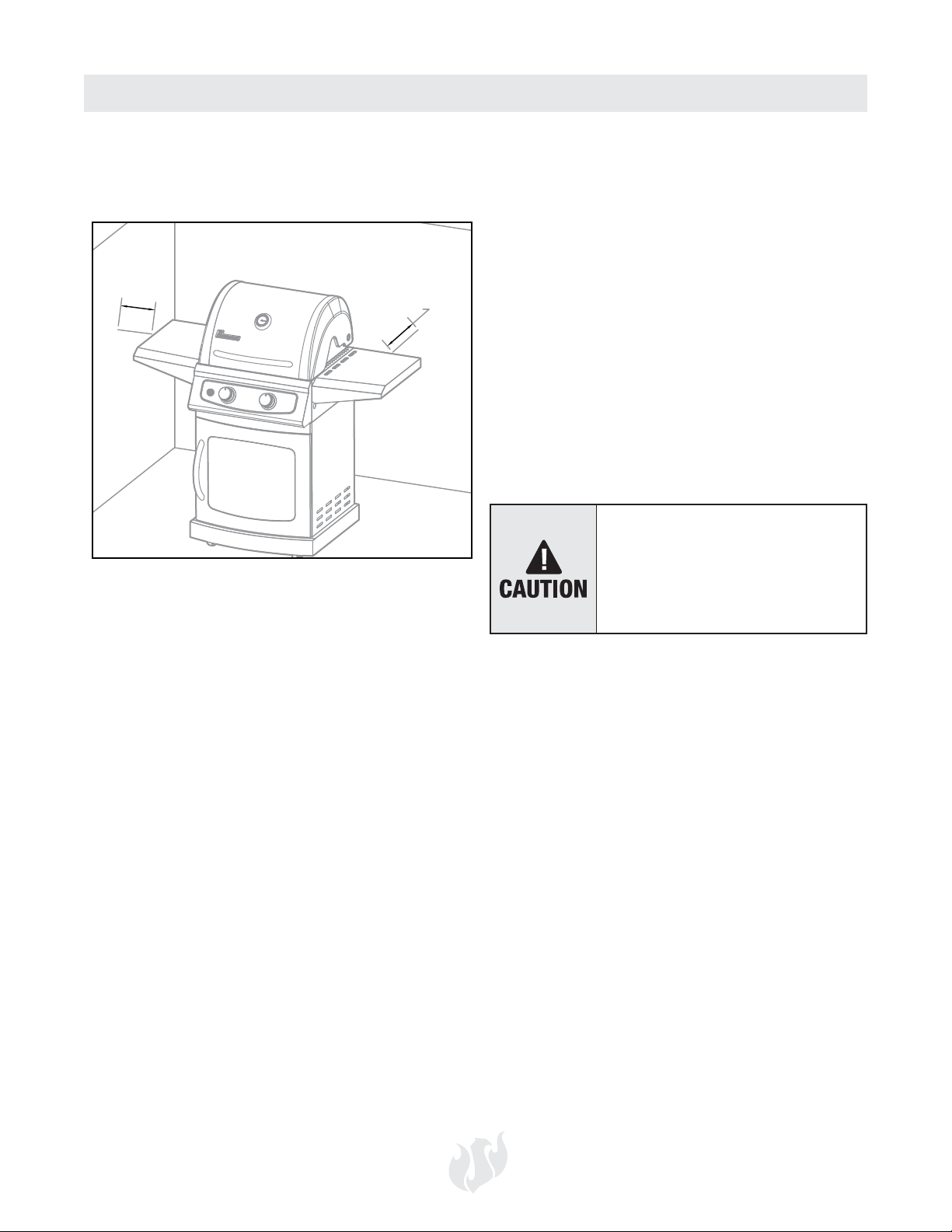

UÊÊ Ê/ÃÊ}ÀÊSHOULD NOT be located under any
overhead unprotected combustible construction.
Always allow at least 24" from the top, bottom,
back and 24" from the sides of the grill (see below).
UÊÊ Ê/ÃÊ}ÀÊÃÊ>ÊÕÌÃ`iÊ>««>ViÊ>`ÊSHOULD
NOT be operated in a building, garage, or any
other enclosed area.
UÊÊ ÊDO NOT obstruct the flow of combustion and
ventilation air. Keep the ventilation openings of the
cylinder enclosure free and clear of debris.
UÊÊ Ê-Õ`ÊÌiÊLÕÀiÀÃÊ}ÊÕÌÊÜiÊÌiÊ}ÀÊÃÊÊ
operation, turn all gas valves off. Open the lid and
wait five minutes before attempting to relight the
grill, using the igniting instructions.
UÊ Êii«ÊÌÃÊ}ÀÊVi>ÀÊ>`ÊvÀiiÊvÀÊVLÕÃÌLiÊ
material, gasoline and other flammable vapors and
liquids.
UÊÊ NEVER store an extra or disconnected liquid
propane cylinder under or near this grill.
UÊÊ ÊÜ>ÞÃÊÕÃiÊi>ÌÀiÃÃÌ>ÌÊL>ÀLiVÕiÊÌÌÃÊÀÊ}ÛiÃÊ
when operating the grill.
UÊÊ ÊDO NOT leave a hot grill unattended or move it
during operation.
UÊÊ Ê/ÃÊ}ÀÊÃÊÌÊÌi`i`ÊÌÊLiÊÕÃi`ÊÊÀÊÃÌ>i`Ê
on recreational vehicles, boats, portable trailers, or
in any moving location.
UÊÊ ÊDO NOT put a grill cover or anything flammable on
the grill while the grill is in operation or is hot.
UÊ ÊÊ-ÌÀ>}iÊvÊ>ÊÕÌ`ÀÊV}Ê}>ÃÊ>««>ViÊ
indoors is permissible only if the cylinder is
disconnected and removed from the outdoor
cooking gas appliance.
UÊÊ Ê7iÊÌiÊ}ÀÊÃÊÌÊÊÕÃi]Ê>iÊÃÕÀiÊÌiÊ}>ÃÊÃÊ
ÌÕÀi`ÊUÊOFF at the supply cylinder.
UÊÊ ÊÞ`iÀÃÊÕÃÌÊLiÊÃÌÀi`ÊÕÌ`ÀÃÊ>`ÊÕÌÊvÊÌiÊ
reach of children. Cylinder must not be stored in a
building, garage or other enclosed areas.
UÊÊ ÊÜ>ÞÃÊëiVÌÊÌiÊ}>ÃÊÃÕ««ÞÊÃiÊLivÀiÊiÛiÀÞÊ
use. If the hose shows any signs of abrasions or
cuts, DO NOT use the grill. The hose must be
replaced before using again.
UÊÊ ÊÜ>ÞÃÊViVÊÌiÊLÕÀiÀÃÊ>`ÊÛiÌÕÀÊÌÕLiÃÊvÀÊ
insects and insect nests. A clogged tube can lead
to a fire beneath the grill.
UÊÊ ÊÜ>ÞÃÊViVÊÌiÊViVÌÃÊvÀÊi>ÃÊi>VÊÌiÊ
you connect and disconnect the LP gas supply
cylinder.
The pressure regulator and hose
assembly supplied with this grill
must be used. Any requirements for
a replacement regulator and hose
assembly must be made through the
manufacturer, LANDMANN-USA.
UÊÊ Ê>ÃÊVÞ`iÀÃÊÕÃÌÊVÕ`iÊ>ÊV>ÀÊÌÊ«ÀÌiVÌÊÌiÊ
cylinder valve.
UÊÊ ÊiÌi`ÊÀÊÀÕÃÌÞÊ*Ê}>ÃÊVÞ`iÀÃÊ>ÞÊLiÊ
hazardous and need to be checked by your LP gas
supplier.
UÊÊ ÊDO NOT use LP gas cylinders with a damaged
valve.
UÊÊ ÊDO NOT enlarge the valve orifices or burner ports
when cleaning the valves or burners.
UÊÊ ÊvÊÞÕÊÃii]ÊÃiÊÀÊi>ÀÊÃÃ}ÊvÊ}>ÃÊiÃV>«}Ê
from the LP gas cylinder, move away from the
LP gas cylinder. DO NOT attempt to correct the
problem yourself and call the fire department.
UÊÊ ÊvÊ>Ê}Ài>ÃiÊwÀiÊVVÕÀÃ]ÊÌÕÀÊUÊOFF all burners and
leave the lid closed until the fire is out.
UÊÊ ÊÊDO NOT alter this grill in any manner. Any
alteration automatically voids the warranty.
UÊÊ ÊÊDO NOT use the grill in high wind situations.
Important Safety Information
24" inches
609mm
24"inches
609mm

4
This product contains one or more
chemicals known to the state of
California to cause cancer or cause
birth defects or other reproductive
harm.
Important Safety Information
4
A fire causing death or serious
injury may occur if the following
is not followed exactly:
NEVER store or use gasoline or
other volatile substances in the
vicinity of this grill. NEVER store
a spare propane cylinder in the
vicinity of this grill, or in the vicinity
of another potential heat source.
NEVER fill the propane cylinder
beyond 80% full.
DO NOT store spare gas
cylinder in or near grill.
Place dust cap on cylinder valve
outlet whenever the cylinder is not
in use. Install only the type of dust
cap on cylinder valve outlet that is
provided with the cylinder valve.
Other types of caps or plugs may
result in leakage of propane.
State of California Proposition 65 WarningsThe LP gas supply cylinder to be used must be
constructed and marked in accordance with the
Specification for LP Gas Cylinders of the U.S.
Department of Transportation (DOT) or the National
Standard of Canada, CAN/CSA-b339 (Cylinders,
Spheres, and Tubes for transportation of Dangerous
Goods).
The LP gas cylinder must be:
– provided with a listed overfilling prevention device
– provided with a cylinder connection device
compatible with the connection for outdoor
cooking gas appliances.

5
General Information
UÊ Ê/ÃÊ}ÀÊÃÊ`iÃ}i`ÊÌÊLiÊÕÃi`ÊÜÌÊ>ÊÃÌ>`>À`ÊÓäÊ
lb. LP gas cylinder.
UÊ ÊÞÊLÀ>`ÊvÊÓäÊL°Ê*Ê}>ÃÊVÞ`iÀÊÃÊ>VVi«Ì>LiÊ
for use on this grill, provided that it is compatible
with the grill’s retention means (tank tray bolt).
UÊ Ê/ÃÊ}ÀÊÃÊ`iÃ}i`ÊViÀÌwi`ÊLÞÊ-ÊÌiÀ>Ì>Ê
for local LP gas supply.
UÊ Ê/ÃÊ}ÀÊCANNOT be converted to natural gas.
DO NOT attempt to convert this grill with a
different gas type.
Safety Information
UÊ Ê*Ê}>ÃÊ>ÃÊ>Ê`ÀÊÃ>ÀÊÌÊ>ÌÕÀ>Ê}>ð
UÊ Ê*Ê}>ÃÊÃÊi>ÛiÀÊÌ>Ê>ÀÊ>`Êi>}Ê}>ÃÊ>ÞÊ
collect in low areas and resist dispersion.
UÊ Ê*ÊVÞ`iÀÃÊÕÃÌÊLiÊÃÌ>i`]ÊÌÀ>ëÀÌi`Ê>`Ê
stored in an upright position.
UÊ Ê*ÊVÞ`iÀÃÊÃÕ`ÊÌÊLiÊ`À««i`ÊÀÊ>`i`Ê
roughly.
UÊ ÊDO NOT use a damaged LP cylinder. A dented or
rusty LP cylinder or an LP cylinder with a damaged
valve may be hazardous and should be replaced
with a new cylinder immediately.
UALWAYS close the cylinder valve after use.
UÊ ÊALWAYS close the cylinder valve when
disconnecting the regulator.
UÊ ÊALWAYS treat possible empty LP cylinders with
the same care as a full LP cylinder. There may
still be gas pressure inside a possible empty LP
cylinder.
UÊ ÊNEVER store or transport an LP cylinder where the
temperature can reach 125ºF.
UÊ Êii«Ê*ÊVÞ`iÀÃÊ>Ü>ÞÊvÀÊV`ÀiÊ>`Ê«iÌð
UÊ ÊDO NOT store disconnected LP cylinders in a
building, garage or other enclosed areas.
UÊ ÊvÊÌiÊ*ÊVÞ`iÀÊÃÊi«ÌÊÊÌiÊ}ÀÊLiÌÜiiÊÕÃiÃ]Ê
make sure to keep both the grill and the cylinder in
an outdoor area with good ventilation.
UÊ ÊALWAYS leak test the LP cylinder connection to
the regulator whenever changing LP cylinders.
Installation of LP Cylinder
£°Ê Ê>iÀÊÃÕÀiÊ>ÊLÕÀiÀÊVÌÀÃÊ>ÀiÊÊÌiÊUÊOFF
position.
2. Open the cabinet door.
3. Carefully position in the large hole on the bottom
panel.
4. To secure the LP cylinder in place, screw the tank
holding tray bolt through the bottom section of the
LP cylinder.
5. Attach the regulator to the cylinder by carefully
HAND TIGHTENING only.
6. NEVER use a wrench or other tool to tighten this
connection.
7. Observe all governing codes and ordinances.
Important
The United States LP gas appliance installation must
conform with local codes and ordinances. In the
absence of local codes, appliance installation must
conform with either the National Fuel Gas Code, ANSI
Z223.1/NFPA54, Natural Gas and Propane Appliance
code, CSA B149.1, or Propane Storage and Handling
Code, B149.2, as applicable.
For Canada, installation of this grill must comply with
local codes and/or Standard CSA-B149.2 (Propane
Storage and Handling Code).
Liquid Propane (LP) Safety Information
Please review the below guidelines and safety information when using Liquid Propane (LP) gas.

6

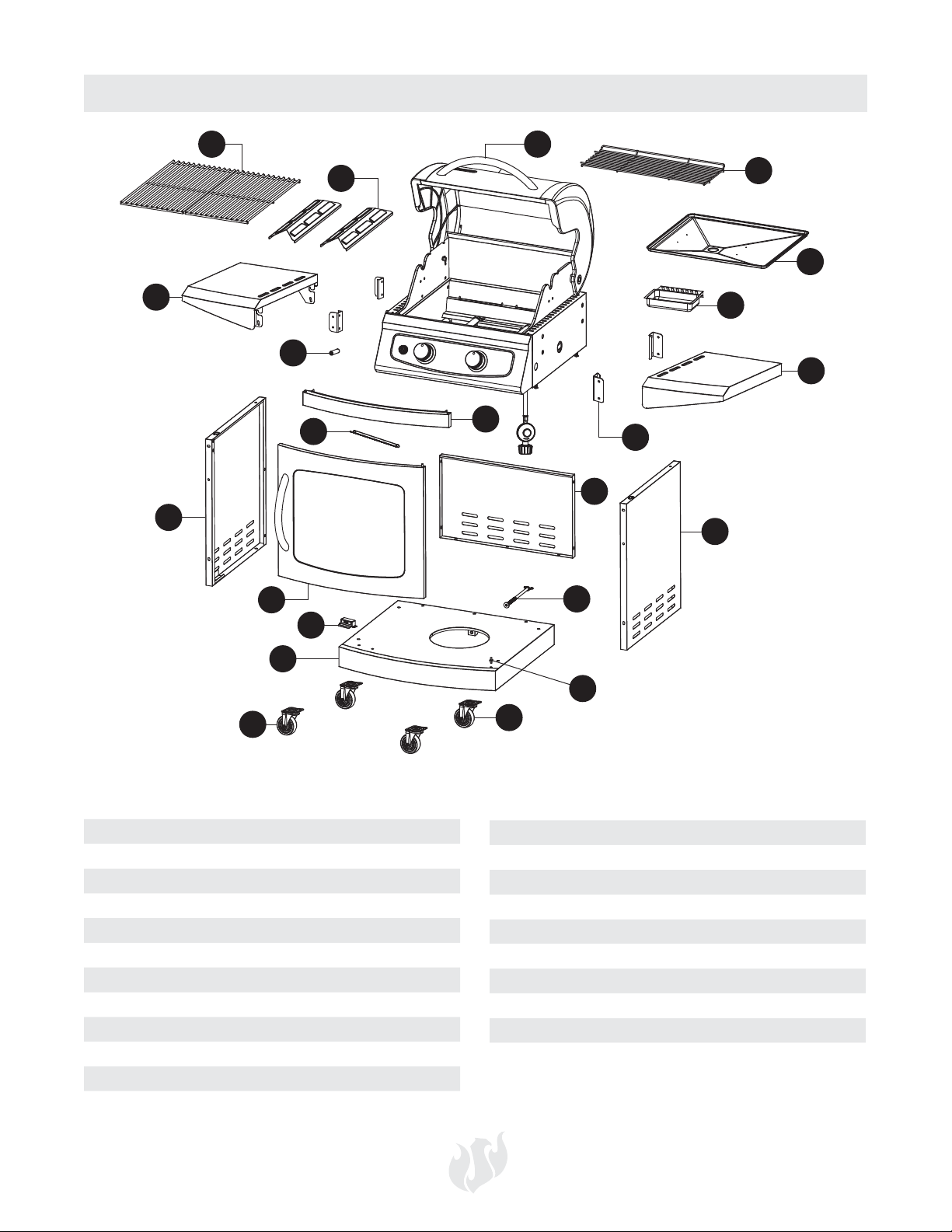

Package Contents
Part Description Quantity
A Bottom panel 1
B Non-locking caster 2
C Locking caster 2
D Tank tray bolt 1
E Left side panel 1
F Right side panel 1
G Back panel 1
H Cart frame 1
J Grill body 1
K Door 1
L Door bottom pin 1
M Side shelf bracket 4
Part Description Quantity
N Left shelf 1
P Right shelf 1
Q Flame tent 2
R Cooking grate 2
S Warming rack 1
T Grease tray 1
U Grease box 1
V AA battery 1
W Magnet 1
X Match lighting tool
(not shown)
1
A
W
BC
L
D
K
EF
G
H
N
P
X
V
Q
R
S
T
U
M
J

7
Hardware Contents
Preparation
Before beginning assembly of this grill, make sure all parts are present (see Package Contents on page 6 and
Hardware Contents below). If any part is missing or damaged, DO NOT attempt to assemble the product.
Estimated assembly time: 50 minutes with two people
Assembly Instructions
1
BB
AA
A
BAC
2
AA x8
BB
AA
Attach non-locking casters (B) to the front of the
bottom panel (A) and secure using spring washers
(BB) and bolts (AA).
Attach locking casters (C) to bottom panel (N) and
secure with spring washers (BB) and bolts (AA).
Tools Required
2 pt Phillips
Screwdriver
Adustable Wrench
BB
Spring
Washer
Qty: 16
CC
M5 Nut
Qty: 8 Step Bolt
Qty: 8
DD
EE
V
AA
M
6 x 12mm
Bolt
Qty: 45
M5 x 10mm Bolt
Qty: 3
AA Battery
Qty: 1
+ –

8
Assembly Instructions
4A
W
EE
Thread tank tray bolt (D) through hole in back of bottom
panel (A) and holder. Secure firmly with washer and
small bolt.
Note: Washer and small bolt are attached to the tank
tray bolt (D) and must be removed for assembly.
Attach magnet (W) to bottom panel (A) and secure
with bolts (EE) as shown.
Attach right side panel (F) to bottom panel (A) with
bolts (AA).
3A
D
5
AA
A
E
Attach left side panel (E) to bottom panel (A) with
bolts (AA).
6
A
F
AA x3 AA

9
Assembly Instructions
From front of cart, install cart frame (H) to top of left
and right side panels (E,F).
Secure back panel (G) to left and right side panels
(E, F) using bolts (AA) as shown.
Secure cart frame (H) with bolts (AA) to top of left and
right panels (E,F) as shown.
Attach back panel (G) to bottom panel (A) using
bolts (AA).
7G
A
AA
8
F
EG
AA
9
E
H
F
10
E
H
F
AA AA

10
Assembly Instructions

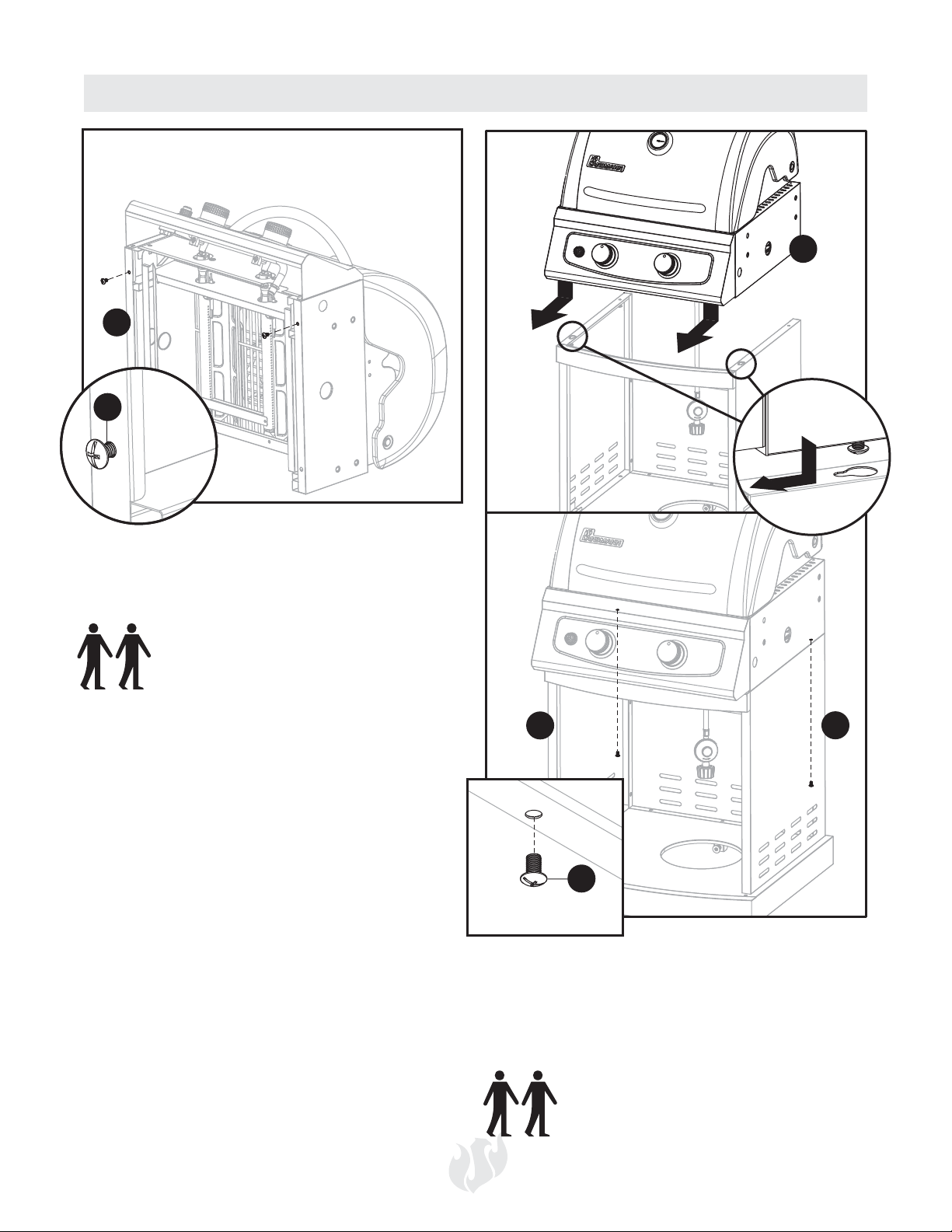

Lower grill body (J) onto left and right side panels
(E, F) and align bolts from step 12 with keyholes on
top of side panels. Slide grill body forward. Insert
bolts (AA) into back bolt location. Securely tighten all
four bolts underneath grill body.
IMPORTANT NOTE:
This step requires two people to properly
and safely position and attach the grill
body.
Carefully place the grill body (J) on its back. Insert
bolts (AA) into the two bolt locations closest to the
front of grill body. Insert these bolts ONLY half way.
IMPORTANT NOTE:
This step requires two people to properly
and safely position the grill body.
11
J
AA
J
EF
AA
112

11
Assembly Instructions

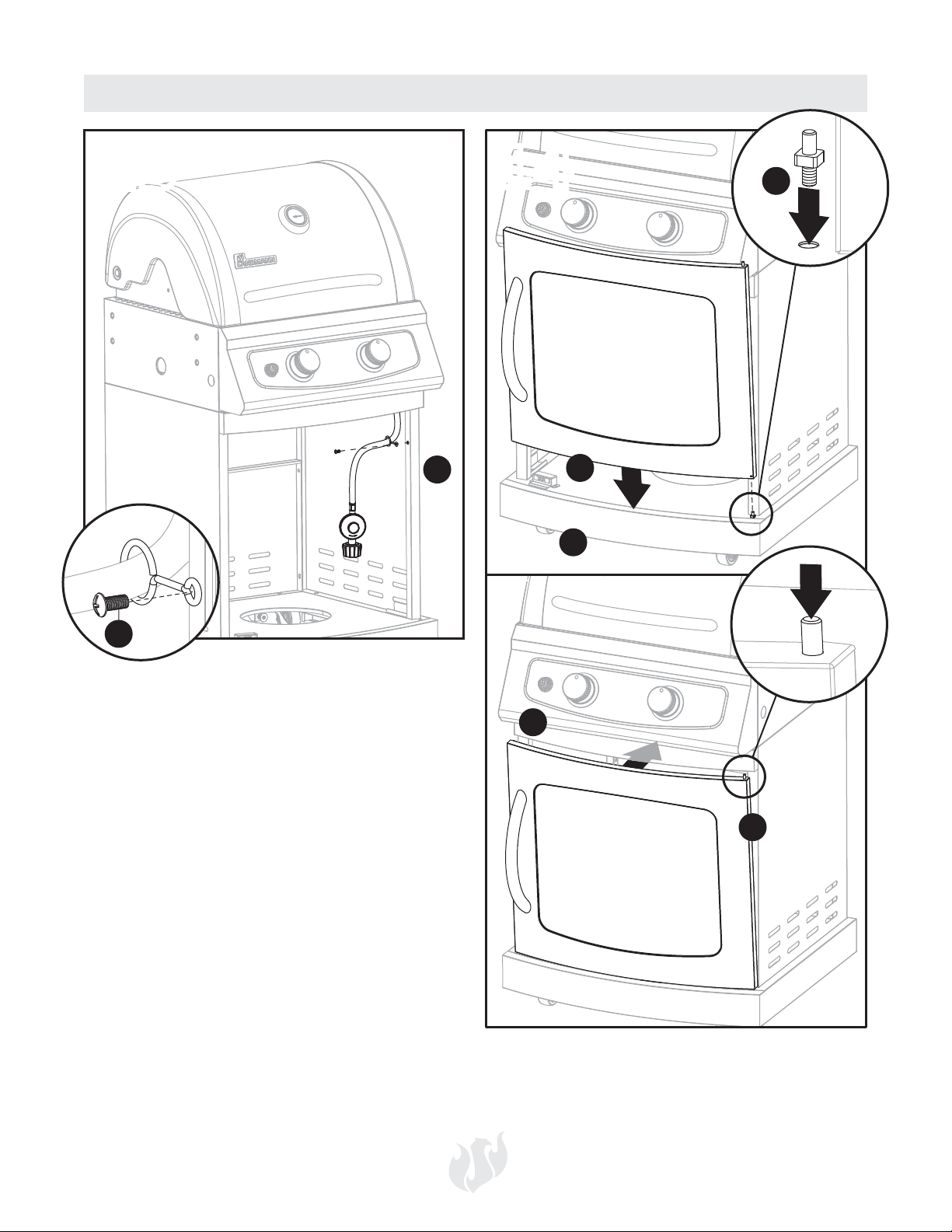

Secure the regulator and hose assembly to the inside
right side panel (F) with one bolt (EE) as shown.
Thread door bottom pin (L) into hole on bottom panel
(A). Align bottom hole on lower right corner of door (K)
to fit over door bottom pin (L). Carefully push down
spring pin on top right corner of door (K) and move
door so spring pin slides into the hole on cart frame (H).
F
EE
1313 1414
K
H
K
A
L

12
Assembly Instructions
Attach right shelf (P) to side shelf brackets with step
bolts (DD) and M6 nuts (CC) as shown.
Attach side shelf brackets (M) to left and right side of the grill body (J). Secure using bolts (AA) as shown.
Attach left shelf (N) to side shelf brackets with step
bolts (DD) and M6 nuts (CC) as shown.
2
J
M
15
AA
1717
CC
P
DD
1616
CC
N
DD

13
Assembly Instructions

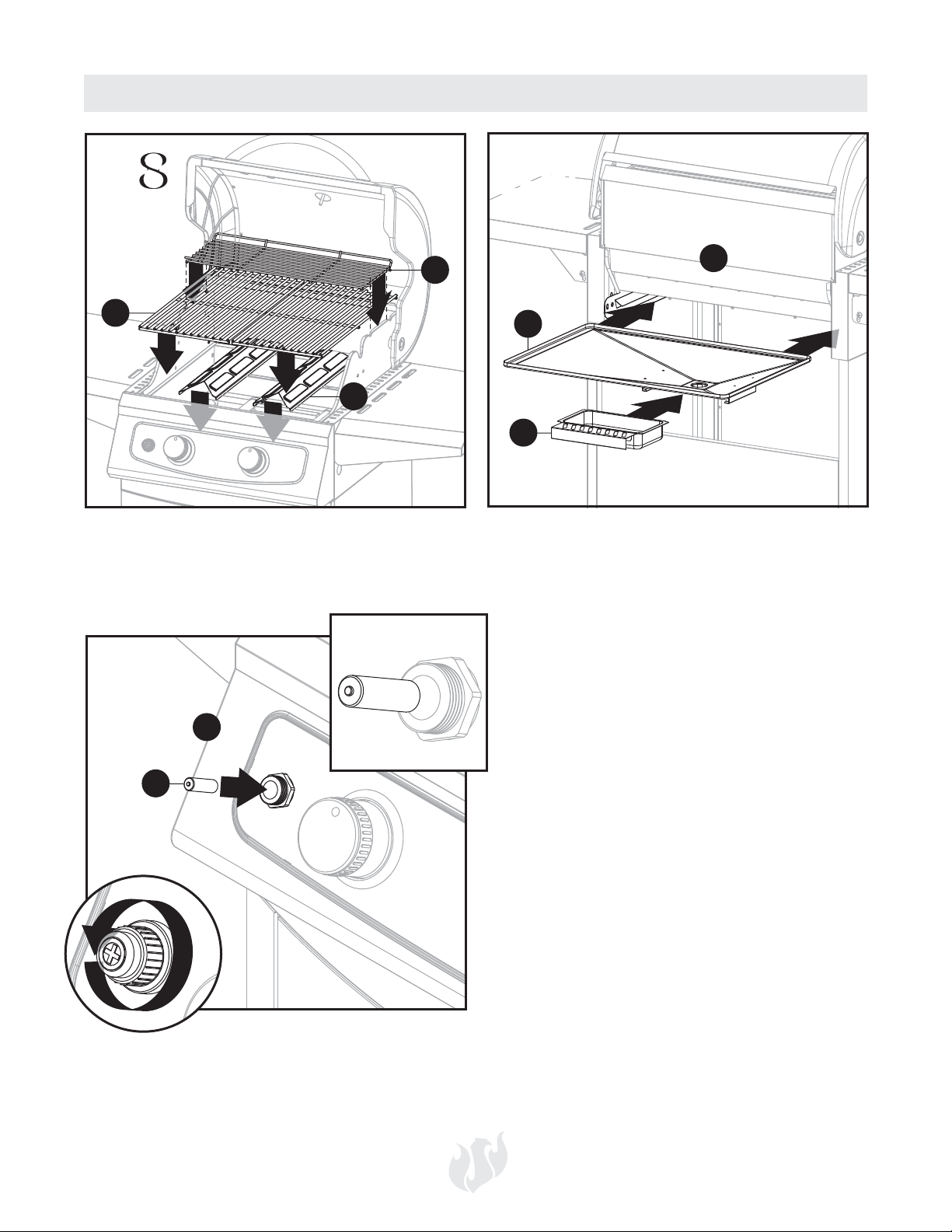

Unscrew the igniter button cap on the control panel of
grill body (J). Insert the AA battery (V) so the positive
end of battery is facing outward.
From back of grill, first slide grease tray (T) into slots
on the grill body (J) until it lines up with the bottom of
the grill. Then place the grease box (U) into the slot on
the bottom of the grease tray.
First insert flame tents (Q), then cooking grates (R)
and warming rack (S) in that order.
1818
R
S
Q
J
U
T
1919
+–
20
J
V

14
Tank Assembly
Place the 20 lb LP gas fuel tank bottom collar into the
mounting hole in the tank tray.
IMPORTANT NOTE:
The 20 lb LP gas fuel tank dimensions should be
D 315mm x H 480mm.
Tighten the tank bolt (D) clockwise against the bottom
collar of the 20 lb LP gas fuel tank to secure.
Twist the tank bolt (D) counterclockwise until it is
loosened.
Open cabinet door (K).
22
D
11
K
33 44
D

15
Connecting Gas Cylinder
1. ALWAYS place the propane cylinder on the tank
holder under the cart.
2. ALWAYS confirm that all burner control knobs are
ÊÌiÊUÊOFF position before activating the gas
supply.
3. Before connection, be sure that there is no debris
caught in the head of the gas cylinder, head of the
regulator valve, or in the head of the burner and
burner ports.
4. ALWAYS connect the gas supply regulators as
follows: Insert the nipple of the valve coupling into
the tank valve and tighten the connection collar by
turning it clockwise with one hand while holding
the regulator with the other hand.
5. Disconnect the propane cylinder from the regulator
valve when the grill is not in use.
6. DO NOT obstruct the flow of combustion air and
ventilation air to the grill.
7. Keep ventilation openings of the cylinder
enclosure free and clear from debris.
Please make sure the cylinder valve connection
device shall properly and safely mate with the
connection device attached to the inlet of the pressure
regulator.
Checking for Leaks
1. Make 2-3 oz. of leak solution by mixing one part
liquid dishwashing soap with three parts water.
Ó°Ê>iÊÃÕÀiÊVÌÀÊLÃÊ>ÀiÊÊÌiÊUÊOFF position.
3. Spray some solution on the tank valve up to the
valve connection. (See diagram to below.)
4. Inspect the solution at the connections for bubbles.
If no bubbles appear, the connection is secure.
5. If bubbles appear, you have a leak. Go to step 6.
6. Disconnect the regulator from the tank and
reconnect. Make sure the connection is tight and
secured.
7. Retest with solution.
8. If “growing” bubbles appear do not use or move the
LP cylinder. Contact an LP gas supplier or your fire
department!
To prevent fire or explosion
hazard when testing for a leak:
1. ALWAYS perform the “leak test“
before lighting the grill and each
time the cylinder is connected
for use.
2. DO NOT smoke or allow other
sources of ignition in the area
while conducting a leak test.
3. Conduct the leak test outdoors
in a well-ventilated area.
4. DO NOT use matches, lighters
or a flame to check for leaks.
5. DO NOT use grill until all
leaks have been stopped. If
you are unable to stop a leak,
disconnect the propane supply,
call for gas appliance service or
your local propane gas supplier.

16
Lighting Instructions
Prior to the first use, it is important to clean your grill
with heat. This will clean the internal parts by burning
off any residue and odor from the manufacturing
process. To perform this cleaning, operate the grill for
approximately 30 minutes at the highest heat setting
with the lid closed.
IMPORTANT
Please read these instructions before attempting to
light the grill.
Failure to open the lid before igniting
may result in an explosive flare-up,
which can cause serious bodily
injury or death.
DO NOT lean over the open grill
when lighting.
1. Turn all gas control knobs to the OFF position.
2. Turn on gas valve from gas source.
3. Lid MUST be open when lighting.
4. To ignite a burner, push and turn any control knob
to the HIGH position.
5. Press and hold the electronic igniter button to
light the selected burner.
6. If the burner does NOT ignite in five seconds, turn
the burner control knob to the OFF position,
wait at least five minutes for the gas to clear and
repeat this lighting procedure.
Failure to follow the five-minute
waiting period may result in an
explosive flare-up, which can cause
serious bodily injury or death.
7. To extinguish the burner, push in the control
knob(s) and turn clockwise to the OFF position.
Match Lighting
Note: Match lighting tool (W) is located on the inside
of the door (K).
1. Turn all gas control knobs to the OFF position.
2. Turn on gas valve from gas source.
3. Lid MUST be open when lighting.
4. Remove the match lighting tool and stick a match
into the end of the tool.
5. Light the match.
6. Once lit, guide the lit match under the grate.
7. Push in and turn the control knob to HIGH for the
burner closest to the light match. The burner
should light immediately.
8. Adjust burner control knob to the desired cooking
temperature.

17
Care and Maintenance
Please use the following guidelines to keep your grill
clean and looking new. Before any cleaning, make
ÃÕÀiÊ>ÊÌiÊLÕÀiÀÃÊ>ÀiÊÊÌiÊUÊOFF position and grill
is cool to the touch.
Cleaning the Outside of the Grill
For the stainless steel surfaces, wash the outside of
the surface with a soft cloth and a soap and water
solution, and rinse with water.
UÊ Ê7iÊVi>}]Ê>Ü>ÞÃÊÀÕLÊÀÊÜ«iÊÊÌiÊ`ÀiVÌÊ
of the stainless steel grain.
UÊ ÊÀÊÃÌÕLLÀÊëÌÃ]Ê>Ü>ÞÃÊVi>ÊÊÌiÊ`ÀiVÌÊvÊ
the stainless steel grain.
UÊ ÊDO NOT clean stainless steel with anything
containing acid, mineral spirits or xylene.
UÊ ÊDO NOT use a wire brush or any abrasive cleaner
on the stainless steel surface as this will cause
scratches in the stainless steel finish.
Cleaning the Inside of the Grill
For safety and efficiency, it is important to remove any
debris or excess grease that may accumulate inside
the grill.
UÊ Ê7«iÊvvÊÌiÊiÀÊ`ÊiÀÊÜÌÊ>Ê«>«iÀÊÌÜiÊÌÊ
prevent grease build up.
UÊ Ê7>ÃÊÌiÊÃ`iÊvÊÌiÊ`ÊÜÌÊÜ>À]ÊÃ>«ÞÊÜ>ÌiÀÊ
and rinse with water.
UÊ ÊÃ`iÊÌiÊV}ÊV>LiÀÊÜ>ÃÊÜÌÊÜ>À]Ê
soapy water and rinse with water.
UÊÊÊ/iÊLÕÀvvÊiÌ`ÊÃÊiÊÜ>ÞÊÌÊVi>ÊÌiÊ
stainless steel rod grates. After cooking, turn
the burners to HIGH and run for approximately
15 minutes with the lid closed. Then turn off the
burners, carefully open the lid and use a wire brush
to clean the excess food residue off the grates.
UÊ ÊÀÊÌiÊÃÌ>iÃÃÊÃÌiiÊy>iÊÌiÌÃ]ÊVi>ÊÀiÃ`ÕiÊvvÊ
with wire brush and wash with a mild soapy water.
Rinse with water.
UÊ Ê,iÛiÊÌiÊ}Ài>ÃiÊLÝÊvÀÊÌiÊÌÀ>ÞÊ>`ÊÜ«iÊ
off the inner box with a paper towel to remove
excess grease. Then wash the inside of box with
warm, soapy water and rinse with water. For easier
cleanups, you can line the interior of the box with
aluminum foil.
UÊ Ê,iÛiÊÌiÊ}Ài>ÃiÊÌÀ>ÞÊvÀÊÌiÊ}ÀÊ>`ÊÜ«iÊ
off the top surface with a paper towel to remove
excess grease. Then wash the top surface with
warm, soapy water and rinse with water.
DO NOT line the grease tray with
aluminum foil.
Hose Inspection
The hose should be inspected periodically for any
signs of cracking, nicks, cuts or abrasions.
UÊ ÊvÊÌiÊÃiÊÃÊvÕ`ÊÌÊLiÊ`>>}i`ÊÊ>ÞÊÜ>Þ]Ê
DO NOT use the grill.
UÊ Ê/iÊÃiÊÕÃÌÊLiÊÀi«>Vi`ÊLÞÊ>ÊViÀÌwi`ÊÃiÊ>ÃÊ
shown in the replacement parts section.
Checking the Flame
The flame coming out of the burners should be a
blue/yellow combination and between one to two
inches tall (see below).
To Remove Burner
>iÊÃÕÀiÊ>ÊVÌÀÊLÃÊ>ÀiÊÊÌiÊUÊOFF position,
the LP gas supply valve has been closed, and the gas
hose is disconnected from the gas supply.
1. Open Lid and remove warming rack, cooking racks
and flame tents.
2. Using a 2 pt Phillips screwdriver, loosen the bolt
holding the burner in the back of the grill.
Note: This is a bolt/nut combination so make sure
to hold the nut while removing the bolt.
3. Slide the burner forward and out of the firebox.
4. Detach the ignition wire from the ignitor.
To Clean Burner
UÊ Ê>iÊÃÕÀiÊ>ÊLÕÀiÀÊ«ÀÌÃÊ>ÀiÊVi>ÀÊvÊ>ÞÊV}ð
Tip: Use a pin or paper clip to unclog.
UÊ Ê>iÊÃÕÀiÊÌiÊLÕÀiÀÊÃÊvÀiiÊvÊ>ÞÊ`>>}i°ÊvÊ
damage is found, replace the burner.
UÊ Ê>iÊÃÕÀiÊÌiÊi`ÊvÊÌiÊLÕÀiÀÊ>`Ê«À>ÀÞÊ>ÀÊ
screen are clear from insect nests, dirt, or debris.
Good Flame
Yellow
Light Blue
2 in.(5 cm)
Blue
Yellow
Light Blue
Blue
Bad Flame

18
Direct Heat
Direct heat cooking means that the food is placed on
grill grates directly over the lighted burners.
UÊ ÊÊ/iÊ`Ê«ÃÌÊV>ÊLiÊiÌiÀÊÕ«ÊÀÊ`Ü°
UÊ ÊvÊÌiÊ`ÊÃÊÊÌiÊÕ«Ê«ÃÌ]Ê}iiÀ>ÞÊV}Ê
time may be longer.
UÊÊÊÊÊÀiVÌÊi>ÌÊÃÊÕÃi`ÊÌÊÃi>ÀÊÌiÊv`ÊÌÊÃi>ÊÊÌiÊ
natural juices by cooking with intense heat for a
short period of time. The outside of the food is
browned with a flavorful grilled coating.
Indirect Heat
Indirect heat cooking means the food is placed on the
grill grate above an unheated burner, allowing the heat
from the lighted burner(s) on either side to cook the food.
UÊÊÊÊÀÊLiÃÌÊÀiÃÕÌÃ]ÊÌÕÀÊÊÌÜÊLÕÀiÀÃÊ>`ÊVÊÜÌÊ
the lid down. This will shorten the cooking time.
UÊ ÊDO NOT select indirect heat cooking when
it is windy outside.
Before Grilling
UÊ Ê>iÊÃÕÀiÊÌ>ÌÊÌiÊv`ÊÌiÃÊ>ÀiÊV«iÌiÞÊ
thawed before grilling.
UÊ Ê7ÌÊÌiÊ`ÊVÃi`]Êi>ÌÊÌiÊ}ÀÊÊ}ÊÕÃ}Ê>Ê
burners) for 10-15 minutes until the temperature
reaches over 500º F. This timing is influenced by
ambient conditions such as wind and air temperature.
UÊ ÊDO NOT lift the lid during the heating process.
UÊ Ê/iÊ«Àii>Ì}Ê«ÀViÃÃÊÜÌÊ}Êi>ÌÊÃÊiViÃÃ>ÀÞÊ
to brown and seal juices of the food.
UÊ ÊÀÊ}v>ÌÊi>ÌÊ>`Ê«ÕÌÀÞ]ÊÌÀÊiÝViÃÃÊv>ÌÊvÀÊ
meats and shorten the preheat time. Both will help
reduce flare-ups from dripping grease.
UÊ Ê}ÌÞÊÊÌiÊV}Ê}À>ÌiÃÊÜiÊV}ÊÜv>ÌÊ
meat, fish or poultry. Beware that using too much
oil can cause a gray ash to deposit on the food.
During Grilling
UÊ Ê/iÊÌi«iÀ>ÌÕÀiÊ}>Õ}iÊÊÌiÊ`Ê`V>ÌiÃÊÌiÊ
cooking temperature inside the grill.
UÊ Ê/ÕÀÊv`ÃÊÞÊViÊvÊ«ÃÃLi°ÊÕViÃÊ>ÀiÊÃÌÊ
when meat is turned several times.
UÊ Ê/ÕÀÊi>ÌÊÕÃÌÊÜiÊÌiÊÕViÃÊLi}ÊÌÊ>««i>ÀÊÊ
the surface.
UÊ ÊÛ`Ê«ÕVÌÕÀ}ÊÀÊVÕÌÌ}ÊÌiÊi>ÌÊÌÊÌiÃÌÊ
doneness. This allows the juices to escape.
UÊ Ê``ÊL>ÀLiVÕiÊÃ>ÕViÊÞÊ`ÕÀ}ÊÌiÊ>ÃÌÊ£äÊ
minutes of cooking to avoid burning the sauce.
UÊ Ê/iÊ`iiÃÃÊvÊÌiÊi>ÌÊÜÊLiÊVÌÀi`ÊLÞÊÌiÊ
type of meat, the size, shape and thickness of the
meat, the heat setting or method, and the length of
time on the grill.
UÊ Ê}ÊÌiÊÜÊLiÊ}iÀÊÜÌÊ>Ê«iÊ}ÀÊ`°
UÊ ÊÜÊvÀÊÀiÊV}ÊÌiÊÊV`Ê>`ÊÜ`ÞÊ
days, or at higher altitudes. In reverse, allow for
less cooking time in extremely hot weather.
UÊ ÊÀ}ÊV`ÌÃÊ>ÞÊÀiµÕÀiÊ>`ÕÃÌiÌÃÊvÊÌiÊ
burners to obtain and maintain the correct cooking
temperatures.
UÊ ÊÀÜ`}Êv`ÊÊÌiÊV}Ê}À>ÌiÊÜÊÀiµÕÀiÊ
more time to cook the food.
UÊ Ê1ÃiÊÌ}ÃÊvÀÊÌÕÀ}Ê>`Ê>`}Êi>ÌÊÃÌi>`ÊvÊ
a fork, to avoid losing the meat juices.
UÊ ÊvÊ>Êy>ÀiÊÕ«ÊVVÕÀÃ]ÊÌÕÀÊ>ÊÌiÊLÕÀiÀÃÊÌÊÌiÊÊÊÊÊÊÊÊÊ
UÊOFF position and move the food to another area
of the cooking grate. After flames subside, relight
the burners using the lighting instruction in this
manual.
UÊ ÊNEVER use water to extinguish flame on a gas grill.
Cooking Methods And Grilling Tips
Care and Maintenance

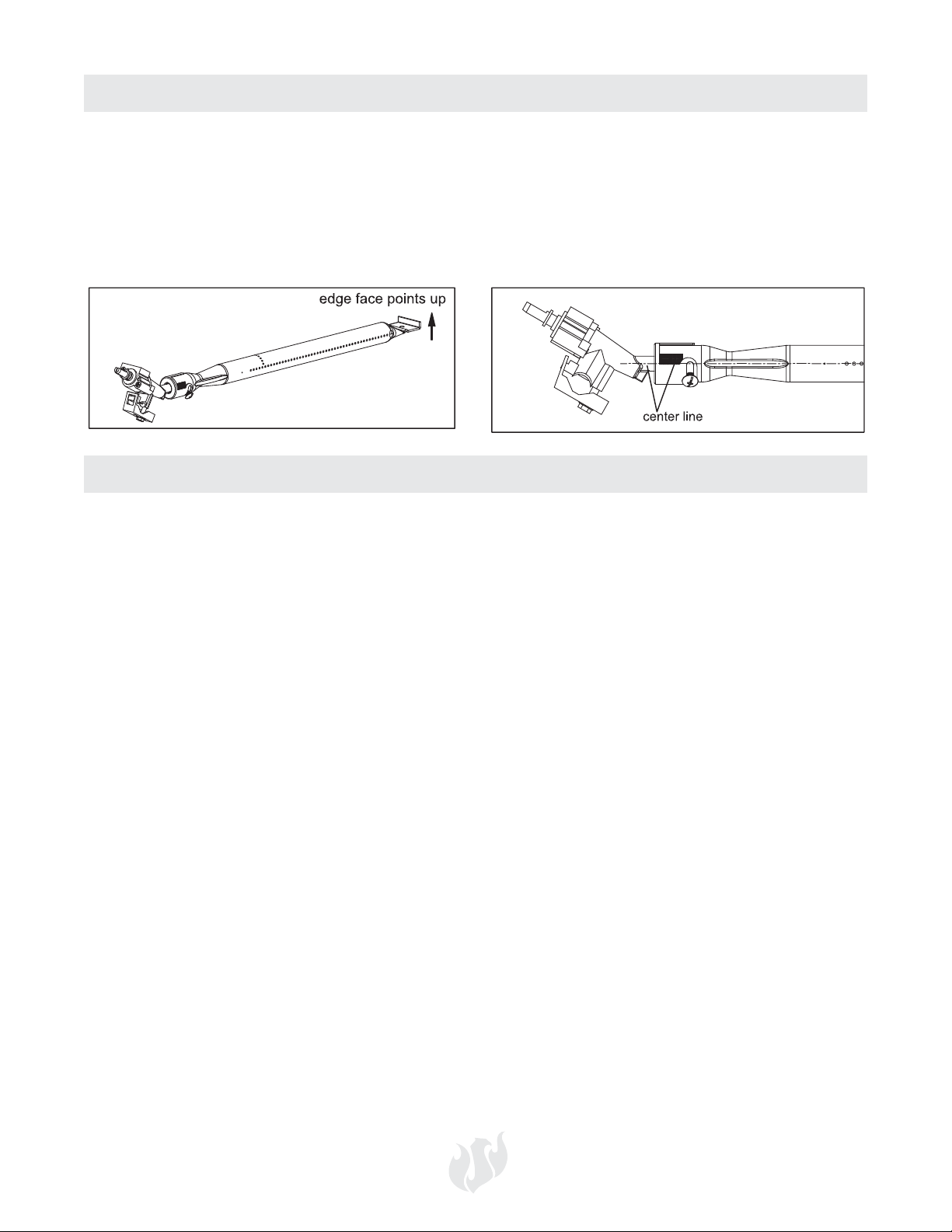

To Reinstall Burner
1. Be sure the gas valve orifices are correctly
positioned inside the burner inlet.
2. Reattach the bolt/nut combination.
3. Reposition flame tents, cooking racks, and
warming rack.
Changing AA Battery
When changing the AA battery, make sure to only use
standard AA batteries, ensuring the proper polarity
when positioning the battery. Remove the Igniter
button cape and insert the AA battery so the positive
(+) terminal of the battery is facing out of the
battery box.

19
Troubleshooting
Problem Cause Solution
Grill will not light. 1. LP cylinder valve is closed.
2. LP cylinder gas level is low.
3. Igniter battery is not properly
installed or battery needs to be
replaced.
4. “Match lighting” may be
necessary.
5. Connections to the igniter or
electrodes are loose.
6. Electrodes may be wet.
7. Debris is blocking the electrodes.
8. No spark shows at igniter tip.
1. Turn ON LP cylinder valve.
2. Replace LP cylinder.
3. Properly install or replace igniter
battery.
4. “Match lighting” light grill per this
manual’s instructions.
5. Reconnect or replace wiring to
igniter or electrodes.
6. Dry electrodes with dry cloth.
7. Clean electrodes with rubbing
alcohol and retry.
8. Replace igniter.
Flame will not stay lit. 1. LP cylinder valve is closed.
2. LP cylinder gas level is low.
3. Burner is not properly installed or
dirty.
1. Turn ON LP cylinder valve.
2. Replace LP cylinder.
3. Reinstall burner properly and clean
out any debris.
Flame is low, irregular
or noisy.
1. LP cylinder gas level is low.
2. Burner ports may be clogged.
3. Gas supply may be bent or
kinked.
4. Burner may be getting too much
air.
5. Grill may be in an area that is too
windy.
6. There are obstructions such as
grease, debris, or insects in air
inlets.
7. Air shutter needs adjustment.
1. Replace LP cylinder.
2. If only one burner is affected, check
and clean the burner ports.
3. Straighten out the gas supply hose.
4. If burner flame is mostly yellow or
orange, adjust the air shutter.
5. Wait until wind subsides to continue.
6. Clean burner air inlets of
obstructions.
7. Adjust air shutter.
Excessive flare-ups
DO NOT spray
water on the gas
flames – this could
damage the grill.
1. Flare-up are normally caused by
excessive fat from meat being
grilled.
2. Grill is dirty.
3. The cooking temperature may be
too high.
4. Lid is closed.
5. Food is overcooked or burnt.
6. Grease tray and grease box are
full of grease.
1. Trim fat from meat being grilled.
2. Make sure grill is clean.
3. Keep flame on low or turn one
burner off.
4. Keep the lid up when grilling to
avoid excessive flare-ups.
5. Move food to the warming rack until
flames subside.
6. Clean grease tray and grease box.

20
Replacement Parts
Questions, problems, missing parts? Before returning to your retailer, call our customer service department at
1-800-321-3473, 8:00 a.m. – 5:00 p.m., EST, Monday – Friday.
Part Description Part#
A Bottom panel FA0150
B Non-locking caster FA0053
C Locking caster FA0054
D Tank tray bolt FA0004
E Left side panel FA0056
F Right side panel FA0055
G Back panel FA0059
H Cart frame FA0062
J Grill body FA0071
K Door FA0078
L Door bottom pin FA0011
M Side shelf bracket FA0083
N Left shelf FA0085
P Right shelf FA0084
Q Flame tent FA0091
R Cooking grate FA0093
S Warming rack FA0099
T Grease tray FA0102
Part Description Part#
U Grease box FA0104
V AA battery
W Magnet FA0020
X Match lighting tool FA0033
Control knob FA0021
Temperature gauge FA0022
Electronic igniter
button
FA0023
Lid FA0036
Lid handle FA0117
Lid holding pins with cotter
pin
FA0119
Door handle FA0118
Regulator/Hose/LP coupler FA0029
SS Tube burners FA0105
Igniters FA0031
