Landoll 2000 Series User manual

F-140-0512 05/2012
LANDOLL CORPORATION
1900 North Street
Marysville, Kansas 66508
[phone]
800-428-5655 ~ WWW.LANDOLL.COM
Model 2000 Series
Row Crop Cultivator
Operator’s Manual

F-140-0512 Edition i
Table of Contents
1 Introduction
Understanding Safety Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2 Standard Specifications
3 Assembly Instructions
Assembly Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Wing Fold Plumbing Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Disc Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Gauge Wheel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Shank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Coulter Blade Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Shields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Ridgers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Anhydrous Ammonia Knives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Fertilizer Tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Lift Assist Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Spray Nozzle Mount Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Nurse Tank Hitch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Decal Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
4 Operation and Maintenance
Tractor Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Cultivator Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Attaching To Three Point Hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Field Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Gauge Wheel Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Coulter Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Disc Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Disc Bearing Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Tool Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

ii F-140-0512 Edition
Ridgers and Knives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Shields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Lift Assist Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Tool Hold Down Springs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Hydraulic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
5 Troubleshooting Guide

1-1
Chapter 1
Introduction
The Landoll Model 2000 Series Row Crop Cultivator is a quality product designed to give years of trouble free
performance. By following each section of this manual, your system will perform as designed for you and your
operation
CHAPTER 1 gives basic instructions on the use of this manual.
CHAPTER 2 gives product specifications. These specifications supply lengths and measures for your
equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques to
be used when servicing this product.
CHAPTER 3 contains assembly instructions for your Model 2000 Series Row Crop Cultivator. When
these procedures are correctly followed, your equipment should provide you years of
trouble-free operation and service.
CHAPTER 4 instructs how to operate your equipment before using it, and describes adjustments
needed. It also gives practical advice for the care and maintenance of your Landoll
equipment. Drawings in this section locate adjustment points on the equipment.
NOTE: IF THE EQUIPMENT IS IMPROPERLY ASSEMBLED OR MAINTAINED, THE
WARRANTY IS VOID. IF YOU HAVE ANY QUESTIONS CONTACT:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
or phone:
[phone] or
[phone]
[phone]
CHAPTER 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equipment.
PARTS LIST is a separate manual showing the various assemblies, subassemblies, and systems.
Refer to that manual when ordering Landoll replacement parts. Order parts from your
Landoll dealer.
WARRANTY The Warranty Registration form is included with the product documents. Fill it out and
mail it within 15 days of purchase.
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
LANDOLL MACHINE CAN VOID YOUR WARRANTY.
COMMENTS Address comments or questions regarding this publication to:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
ATTENTION: PUBLICATIONS -DEPT. 55

1-2 F-140-0512 Edition
INTRODUCTION
Understanding Safety
Statements
You will find various types of safety information on the
following pages and on the machine signs (decals)
attached to the vehicle. This section explains their
meaning.
The Safety Alert Symbol means ATTENTION! YOUR
SAFETY IS INVOLVED!

DANGER

WARNING

CAUTION
NOTE
Means that failure to follow these instructions could
cause damage to the equipment or cause it to operate
improperly.
NOTE
Make sure you read and understand the information
contained in this manual and on the machine signs
(decals) before you attempt to operate or maintain this
vehicle.
The safety statements contained in this manual relate to
the operation of the Model 2000 Series Row Crop
Cultivator.
Danger means a life-threatening situation exists.
Death can occur if safety measures or
instructions on this label are not properly
followed.
Warning means serious injury or death can occur
if safety measures or instructions on this label
are not properly followed.
Caution means serious equipment or other
property damage can occur if instructions on this
label are not properly followed.

2-1
Chapter 2
Standard Specifications
2000 SERIES ROW CROP CULTIVATOR RIGID MODELS
MODEL
NO.
NO. OF
ROWS
TRANSPORT
WIDTH
NO. OF
SHANKS
NO. OF
COULTERS
SHANK
SPACING
ESTIMATED
WEIGHT (LBS.)
2004-30HC-94 4 11’-0” 5 5 30” 2,100
2004-36HC-94 4 13’-8” 5 5 36” - 38” 2,225
2006-30HC-94 6 16’-0” 7 7 30” 3,000
2006-36HC-94 6 20’-0” 7 7 36” - 38” 3,131
2008-30HC-94 8 21’-0” 9 9 30” 3,872
2008-36HC-94 8 26’-4” 9 9 36” - 38” 4,046
2008-40HC-94 8 27’-8” 9 9 40” 4,070
2010-30HC-94 10 26’-0” 11 11 30” 5,500
2000 SERIES ROW CROP CULTIVATOR FOLD MODELS
MODEL
NO.
NO. OF
ROWS
TRANSPORT
WIDTH
NO. OF
SHANKS
NO. OF
COULTERS
SHANK
SPACING
ESTIMATED
WEIGHT (LBS.)
2006-36HCF-94 6 15’-4” 7 7 36” - 38” 3,989
2008-30HCF-94 8 12’-7” 9 9 30” 4,730
2008-36HCF-94 8 15’-4” 9 9 36” - 38” 4,905
2008-40HCF-94 8 16’-8” 9 9 38” - 40” 5,035
2010-30HCF-94 10 17’-5” 11 11 30” 5,900
2010-38HCF-94 10 17’-2” 11 11 38” 6,200
2012-30HCF-94 21 17’-7” 13 13 30” 6,700
2012-36HCF-94 12 21’-8” 13 13 36” 8,151
2012-38HCF-94 12 23’-8” 13 13 38” 8,171
2012-40HCF-94 12 _____ 13 13 40” 8,191
2016-30HCF-94 16 22’-7” 17 17 30” 8,663

2-2 F-140-0512 Edition
STANDARD SPECIFICATIONS
Table 2-1: General Torque Specifications
LANDOLL CORPORATION
GENERAL TORQUE SPECIFICATIONS (REV. 4/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR GENERAL PURPOSE APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON PROCESS
OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED NUTS AND CAPSCREWS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS RECEIVED CONDITION). THEY
DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
WHEN FASTENERS ARE DRY (SOLVENT CLEANED), ADD 33% TO AS RECEIVED CONDITION TORQUE.
BOLT HEAD IDENTIFICATION MARKS INDICATE GRADE AND MAY VARY FROM MANUFACTURER TO MANUFACTURER.
THICK NUTS MUST BE USED ON GRADE 8 CAPSCREWS.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
TORQUE IS SPECIFIED IN FOOT POUNDS
UNC
Size
SAE Grade
2
SAE Grade
5
SAE Grade
8
UNF
Size
SAE Grade
2
SAE Grade
5
SAE Grade
8
1/4-20 4 [5] 6 [7] 9 [11] 1/4-28 5 [6] 7 [9] 10 [12]
5/16-18 8 [10] 13 [16] 18 [22] 5/16-24 9 [11] 14 [17] 20 [25]
3/8-16 15 [19] 23 [29] 35 [43] 3/8-24 17 [21] 25 [31] 35 [44]
7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]
1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]
9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]
5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]
3/4-10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]
7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]
1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]
1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]
1-1/4-7 380 [475] 840 [1050] 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]
1-3/8-6 490 [612] 110 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260 [1575] 2010 [2512]
1-1/2-6 650 [812] 1460 [1825] 2360 [2950] 1-1/2-12 730 [912] 1640 [2050] 2660 [3325]
1-3/4-5 736 [920] 1651 [2063] 2678 [3347] 1-3/4-12 920 [1150] 2063 [2579] 3347 [4183]
METRIC
COARSE THREAD METRIC CLASS 10.9 FASTENERS AND CLASS 10.0 NUTS AND THROUGH HARDENED FLAT WASHERS, PHOSPHATE COATED, ROCKWELL
“C” 38-45.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
Nominal
Thread
Diameter
mm
Standard Torque Nominal
Thread
Diameter
mm
Standard Torque
Newton-
Meters
Foot-
Pounds
Newton-
Meters
Foot-
Pounds
6 10 [14] 7 [10] 20 385 [450] 290 [335]
7 16 [22] 12 [16] 24 670 [775] 500 [625]
8 23 [32] 17 [24] 27 980 [1105] 730 [825]
10 46 [60] 34 [47] 30 1330 [1470] 990 [1090]
12 80 [101] 60 [75] 33 1790 [1950] 1340 [1450]
14 125 [155] 90 [115] 36 2325 [2515] 1730 [1870]
16 200 [240] 150 [180] 39 3010 [3210] 2240 [2380]
18 275 [330] 205 [245]

STANDARD SPECIFICATIONS
2-3
Table 2-2: Hydraulic Fitting Torque Specifications
LANDOLL CORPORATION
HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS, & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON PROCESS
OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS
RECEIVED CONDITION).THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL. STAINLESS STEEL, ALUMINUM AND MONEL - THREADS ARE TO BE
LUBRICATED.
TORQUE IS SPECIFIED IN FOOT POUNDS
PARKER BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-13 15-17 13-15
-5 14-16 — 21-23
-6 20-22 34-36 25-29
-8 43-47 58-62 40-44
-10 55-65 100-110 57.5-62.5
-12 80-90 134-146 75-85
-16 115-125 202-218 109-121
-20 160-180 248-272 213-237
-24 185-215 303-327 238-262
-32 250-290 — 310-340
GATES BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 10-11 10-12 14-16
-5 13-15 — —
-6 17-19 18-20 24-26
-8 34-38 32-40 37-44
-10 50-56 46-56 50-60
-12 70-78 65-80 75-83
-14 — 65-80 —
-16 94-104 92-105 111-125
-20 124-138 125-140 133-152
-24 156-173 150-180 156-184
-32 219-243 — —
AEROQUIP BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-12 10-12 14-16
-5 15-16 — 18-20
-6 18-20 18-20 24-26
-8 38-42 32-35 50-60
-10 57-62 46-50 72-80
-12 79-87 65-70 125-135
-14 — — 160-180
-16 108-113 92-100 200-220
-20 127-133 125-140 210-280
-24 158-167 150-165 270-360
-32 245-258 — —

2-4 F-140-0512 Edition
STANDARD SPECIFICATIONS

3-1
Chapter 3
Assembly Instructions
It is very important that your new 2000 Series Row Crop
Cultivator be properly assembled, adjusted and
lubricated before use. Illustrations to assist with the
assembly process are provided in Section 2, “Standard
Specifications”. They show proper shank, disc gang
and mounting bracket spacings. Illustrations in this
section show proper assembly procedures. Remove paint
from grease fittings. Replace any grease fittings that are
damaged or missing. Be sure to return screws, clips, etc.,
to their original locations.
To insure alignment of assemblies, leave the nuts loose
until completion of final assembly. Use split lock
washers or flat washers as specified. Spread all cotter
pins.
After completion of final assembly, tighten all nuts
evenly to prevent misalignment, distortion or binding.
Tighten all screws and nuts to the recommended torques
shown in Tabl e 2- 1.

DANGER

CAUTION

DANGER

WARNING

DANGER
Assembly Preparation
1. Hook up the cultivator to a tractor using the
three-point hitch. Raise the cultivator about 36" and
place stands under the main frame to prevent
accidental lowering.
To prevent accidental lowering:
1. All hydraulically elevated equipment must be
locked out using the cylinder lockouts:
2. Lower equipment to the ground while servicing
or when it is idle.
Failure to take measures to prevent accidental
lowering may result in serious personal injury or
death.
Be sure to bleed the hydraulic system of all air in
lines after installation. Failure to bleed the system
of all air can result in permanent equipment
damage.
Coulter blades are extremely sharp. Exercise
extreme care when working on or near disc
blades. Do not allow discs to roll over or fall onto
any bodily part. Do not allow wrenches to slip
when working near disc blades. Never push
wrenches toward disc blades. Do not climb over
machine above disc blades. Failure to stay clear
of disc blade edges can cause serious personal
injury or death.
Do not attempt to lift heavy parts (such as the
frame, disc gangs, rock shaft, and pull hitch)
manually. Use a hoist or a fork lift to move these
parts into position.
Never stand under or near the hydraulic folding
wings during folding or unfolding operations. The
wings can drop very quickly resulting in serious
injury or death to anyone under or near the
cultivator wings.

3-2 F-140-0512 Edition
ASSEMBLY INSTRUCTIONS

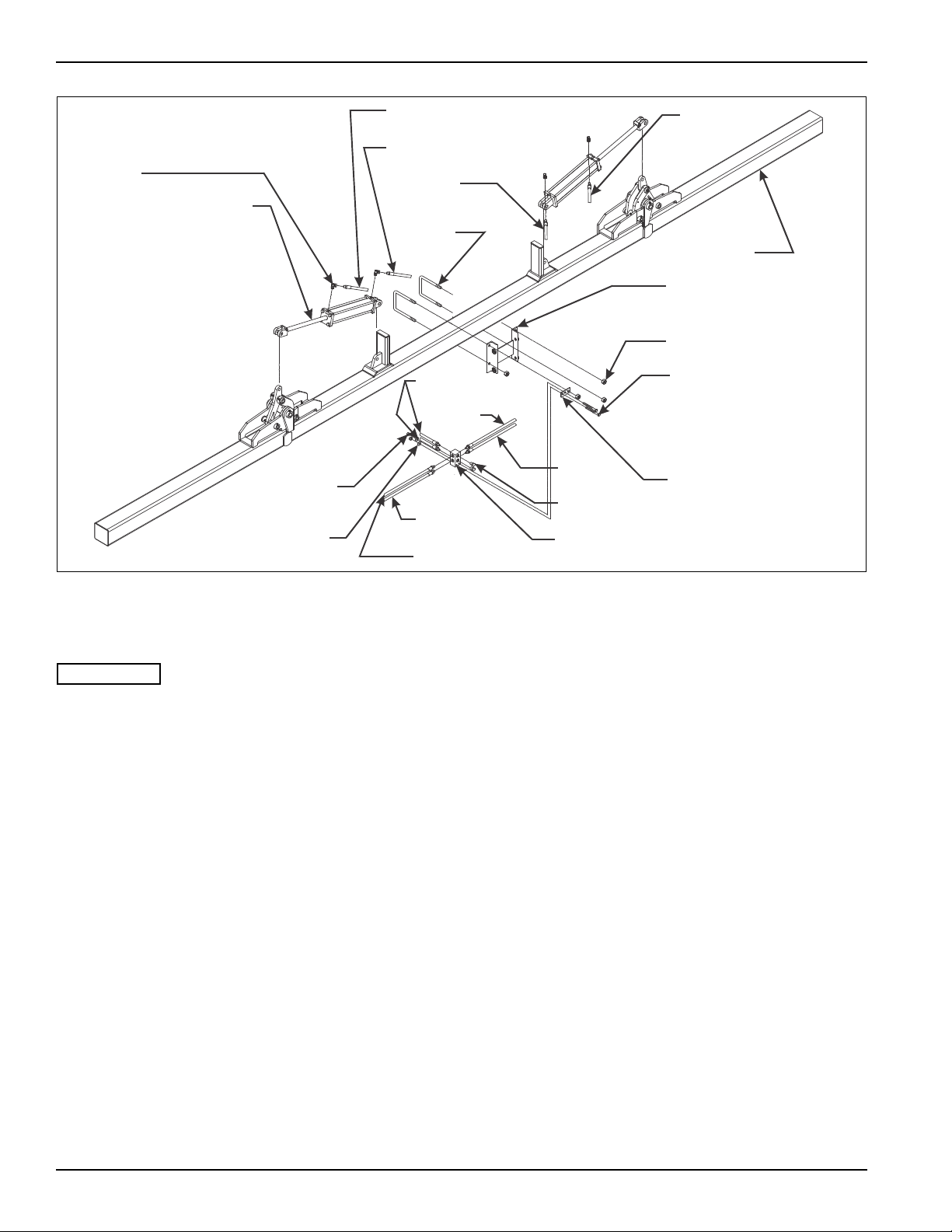

Figure 3-1: Hydraulic Installation
Wing Fold Plumbing Installation
IMPORTANT
See Figure 3-1 and Table 3-1 for parts names. When
assembly is done, tighten all fastening hardware to
the torques listed in Table 2-1 and Table 2-2. Tighten
u-bolts evenly to show an even amount of thread on
both legs of the u-bolt.
1. Assemble the base of each cylinder to a cylinder
base mount. Secure each with a clevis pin and the
hairpin clips that come with the cylinders. Be sure the
cylinders are set with the hose ports on the top when
installation is done.
2. Assemble the rod end of each cylinder to the top of
the inner hinge arms. Secure each with the clevis
pins and the hairpin clips given with the cylinders.
3. Install the hydraulic manifold mounting bracket on the
upper leg of the left-hand U-bolt on the center tool
frame (See Figure 3-1.)
4. Assemble the hydraulic manifold to the manifold
mounting bracket using bolts and nuts provided (See
Figure 3-1.)
5. Insert Hose B with a 90° fitting to the base end of the
left-hand cylinder. Insert the other end to the bottom
hole in the left-hand side of the hydraulic manifold.
6. Insert Hose A with a 90° fitting to the rod end of the
left-hand cylinder. Insert the other end of the hose to
the top hole in the left-hand side of the hydraulic
manifold.
7. Insert Hose D with a 90° fitting to the base end of the
right-hand cylinder. Insert the other end to the bottom
hole in the right-hand side of the hydraulic manifold.
8. Insert Hose E with a 90° fitting to the rod end of the
right-hand cylinder. Insert the other end of the hose
to the top hole in the right-hand side of the hydraulic
manifold.
9. Insert coupling Hoses C (2 hoses supplied - 48" long
on all models, coupler fittings are owner supplied) to
the holes in the front of the hydraulic manifold.
Connect the coupler fittings to the tractor.
10. Lift the cultivator clear of the stands. Leave the
stands under the main frame bar to prevent
accidental lowering.
11. Cycle the wing fold through several cycles to
completely charge the hoses and cylinders with
hydraulic oil. The hydraulic system must be free of air
to keep movement of the wings in control during
folding or unfolding. Add oil as needed to the tractor
hydraulic system.
2mc809-010082 op
90º RESTRICTOR
FITTING
HYDRAULIC CYLINDER
HOSE B
HOSE A
HOSE D
TOOL MOUNT
U-BOLT
TOOL BAR
TOOL FRAME
MOUNTING ANGLE
3/4-10 HEX LOCK NUT
1/2-13 X 3-1/2 HEX
HEAD CAP SCREW
HYDRAULIC MANIFOLD
MOUNTING BRACKET
HOSE E
HOSE C
HOSE E
HOSE A
HOSE B
HOSE D
PLUG
HYDRAULIC
MANIFOLD
1/2-13 HEX
LOCK NUT
1/2 FLAT
WASHER

ASSEMBLY INSTRUCTIONS
3-3
Table 3-1: Hydraulic Hose Installation for 2000 Series Row Crop Cultivator
2000 SERIES HYDRAULIC HOSE TABLE
ITEM PART NUMBER
HOSE
LENGTH USED ON MODEL
A 1-397-010299-14 24" 2008-30HCF-94
1-397-010299-15 48" 2006-36HCF-94, 2008-36HCF-94, 2008-40HCF-94
1-397-010299-06 56" 2010-30HCF-94, 2010-30HCFLG-94, 2012-30HCF-94
1-397-010299-12 84" 2010-36HCF-94, 2010-38HCF-94, 2012-36HCF-94, 2012-40HCF-94,
2016-30HCF-94
1-397-010299-19 90" 2012-38HCF-94
B 1-397-010299-15 48” 2008-30HCF-94
1-397-010299-13 74” 2008-40HCF-94
1-397-010299-18 68” 2006-36HCF-94, 2008-36HCF-94
1-397-010299-17 78” 2010-30HCF-94, 2010-30HCFLG-94, 2012-30HCF-94
1-397-010299-20 108” 2010-36HCF-94, 2010-38HCF-94, 2012-36HCF-94, 2012-40HCF-94,
2016-30HCF-94
1-397-010299-21 120” 2012-30HCF-94
C 1-397-010299-15 48” ALL FOLD MODELS
D 1-397-010299-01 36" 2008-30HCF-94
1-397-010299-02 60” 2006-36HCF-94, 2008-36HCF-94, 2008-40HCF-94
1-397-010299-18 68” 2010-30HCF-94, 2010-30HCFLG-94, 2012-30HCF-94
1-397-010299-22 98” 2010-36HCF-94, 2010-38HCF-94, 2012-36HCF-94, 2012-40HCF-94,
2016-30HCF-94
1-397-010299102 102” 2012-38HCF-94
E 1-397-010299-02 60” 2008-30HCF-94
1-397-010299-24 80” 2006-36HCF-94, 2008-36HCF-94
1-397-010299-19 90” 2010-30HCF-94, 2010-30HCFLG-94, 2012-30HCF-94
1-397-010299-21 120” 2010-36HCF-94, 2010-38HCF-94, 2012-36HCF-94, 2012-40HCF-94,
2016-30HCF-94
1-397-010299126 126” 2012-38HCF-94

3-4 F-140-0512 Edition
ASSEMBLY INSTRUCTIONS
Figure 3-2: Disc Installation
Disc Installation
IMPORTANT
See Figure 3-2 for parts names. When assembly is
done, tighten all fastening hardware to the torques
listed in Table 2-1 and Table 2-2. Tighten u-bolts
evenly to show an even amount of thread on both
legs of the u-bolt.
IMPORTANT
The outer tool frames have a disc blade only on the
inside of the tool frame. The outside has a spacer
tube installed instead of the disc hiller bracket.
1. Remove the clevis pin and hair pin from each disc
hiller bracket.
2. Insert a disc blade and spindle assembly through
each disc hiller bracket to the desired depth. Reinstall
the clevis pin and hair pin.
SPACER TUBE
(END TOOL FRAMES ONLY)
1/2-13 HEX LOCK NUT
WEEDING DISC LOCK PIN
1/8 HAIR PIN
CLEVIS
PIN
OFFSET WEED
DISC ASSEMBLY
DISC HILLER
BRACKET
TOOL FRAME
MOUNT
WEDGE CASTING
1/2-13 X 8-1/2 HEX
HEAD CAP SCREW
545ma014585 op

ASSEMBLY INSTRUCTIONS
3-5

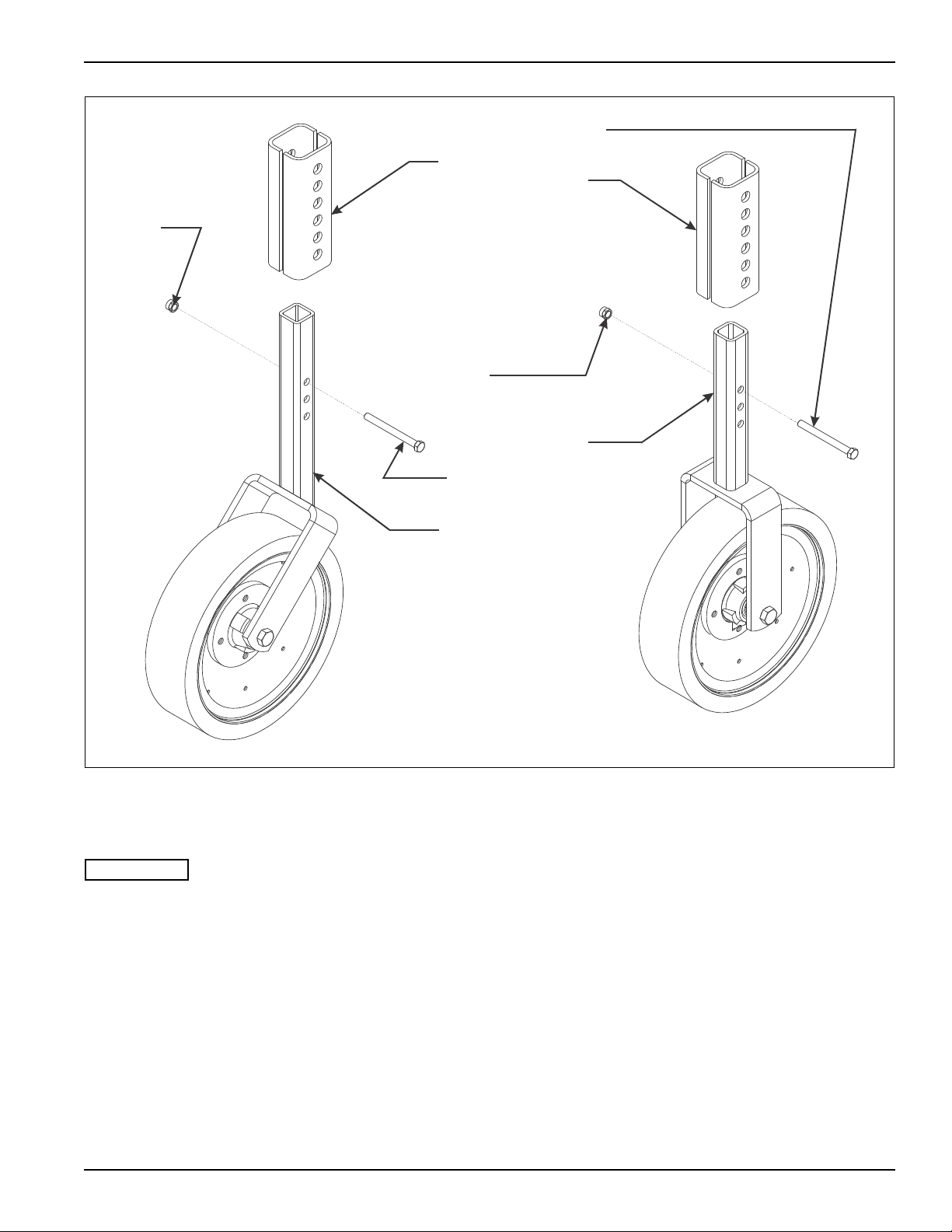

Figure 3-3: Gauge Wheel Installation
Gauge Wheel Installation
IMPORTANT
See Figure 3-3 for parts names. When assembly is
done, tighten all fastening hardware to the torques
listed in Table 2-1 and Table 2-2. Tighten u-bolts
evenly to show an even amount of thread on both
legs of the u-bolt.
1. Find the end gauge wheel assemblies with the 45°
angle mounting forks.
2. Remove the 1/2-13 X 3-1/2 hex head cap screw and
serrated flange head nut from the gauge wheel
brackets. These are on the front of the outer tool
frames.
3. Slide a gauge wheel square tube up through the
bracket on each outer tool frame with the forks
pointing forward. Position the gauge wheel for proper
depth. Use the 1/2-13 X 3-1/2 hex head cap screw
and serrated flange head nut to position the gauge
wheel. Tighten the nut until wheel tube is securely
clamped into place.
4. The remaining middle gauge wheel assemblies are
installed on the inner tool frames. They are installed
using the steps described in steps 2 through 3.
TOOL MOUNT
FRAME BRACKET
1/2-13 FLANGE
HEAD SERRATED
NUT
1/2-13 X 3-1/2 HEX
HEAD CAP SCREW
MIDDLE GAUGE
WHEEL ASSEMBLY
(INNER FRAMES)
1/2-13 X 3-1/2 HEX
HEAD CAP SCREW
END GAUGE
WHEEL ASSEMBLY
(OUTER FRAMES)
2000 gauge wheel assembly
1/2-13 FLANGE
HEAD SERRATED
NUT

3-6 F-140-0512 Edition
ASSEMBLY INSTRUCTIONS
Figure 3-4: Shank Installation
Shank Assembly
IMPORTANT
See Figure 3-4 for parts names. When assembly is
done, tighten all fastening hardware to the torques
listed in Table 2-1 and Table 2-2. Tighten u-bolts
evenly to show an even amount of thread on both
legs of the u-bolt.
1. Assemble the sweeps and half sweeps to the shanks
using 1/2-13 X 2-1/2 plow bolts, flat washer, split lock
washer, and nuts. Install spacer washers between
the shank and the sweep, as needed, to get desired
penetration angle.
IMPORTANT
If the optional shields are to be used, the shield
mounting brackets should now be installed (See
Section 4, “Operation and Maintenance” for
operation and maintenance procedures.)
2. Position the shank with the right-hand sweep (the
half sweep with the right-hand wing) under the rear of
the left end tool frame. Secure it with the shank u-bolt
and 5/8-11 hex lock nuts, and a 3/4-10 X 3 hex head
cap screw and hex lock nut.
3. Position the shank with the left-hand sweep (the half
sweep with the left-hand wing) under the rear of the
right most tool frame. Secure it with the shank u-bolt
and 5/8-11 hex lock nuts, and a 3/4-10 X 3 hex head
cap screw and hex lock nut.
4. Install the remainder of the shanks (with full sweeps)
on the inner tool frames the same way as the end
shanks described above.
3/4-10 X 3 HEX
HEAD CAP SCREW
5/8-11 HEX LOCK NUT
LONG SHANK
1/2 FLAT WASHER
1/2 SPLIT LOCK
WASHER
1/2-13 HEX NUT
TOOL MOUNT FRAME
3/4-10 HEX LOCK NUT
SHANK U-BOLT
1/2-13 X 2-1/2 PLOW BOLT
SWEEP
545m104598

ASSEMBLY INSTRUCTIONS
3-7

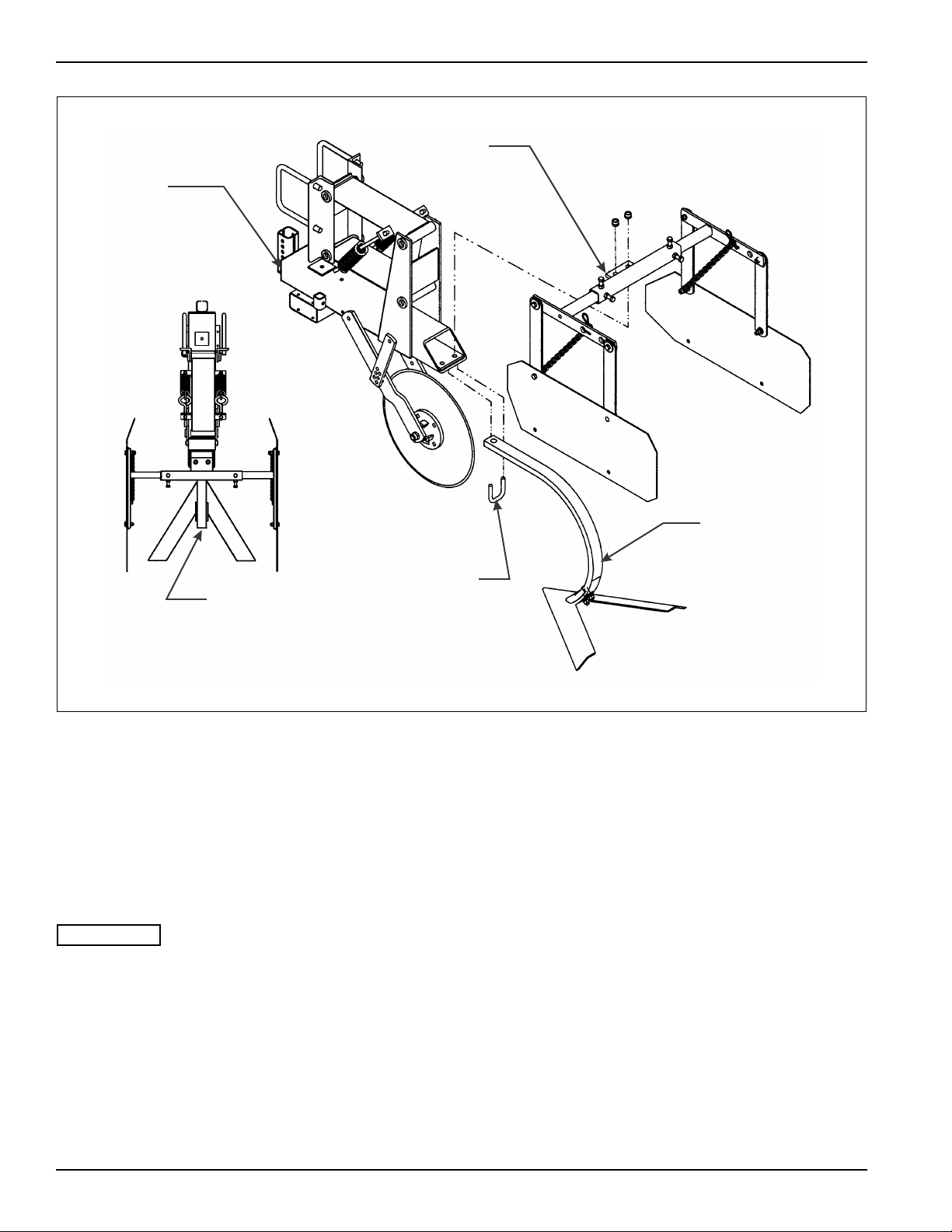

Figure 3-5: Coulter Blade Installation
Coulter Blade Installation
IMPORTANT
See Figure 3-5 for parts names. When assembly is
done, tighten all fastening hardware to the torques
listed in Table 2-1 and Table 2-2. Tighten u-bolts
evenly to show an even amount of thread on both
legs of the u-bolt.
1. Loosely assemble a coulter brace to the outer sides
of each coulter fork with 1/2-13 X 2 hex head cap
screws and hex lock nuts (Figure 3-5 shows proper
mounting position.)
2. Loosely assemble each coulter fork assembly to a
tool frame with a 1/2-13 X 8 hex head cap screw
inserted through the coulter fork side, the tool frame,
and the other coulter fork side, secured with a locking
nut (Figure 3-5 shows proper mounting position.)
3. Loosely attach the coulter braces to the tool frames
by inserting a 1/2-13 X 8-1/2 hex head cap screw
through one brace, the tool frame, and through the
other brace. Secure them with 1/2-13 hex lock nuts.
4. Leave all attaching hardware loose until final
adjustments are made (See “Initial Setup” on
page 4-3 for operation and maintenance
procedures.)
COULTER FORK
PLATE
1/2-13 HEX
LOCK NUT
COULTER
BRACE
TOOL MOUNT FRAME
1/2-13 X 8 HEX
HEAD CAP SCREW
1/2-13 X 8-1/2 HEX
HEAD CAP SCREW
1/2-13 X 2 HEX
HEAD CAP SCREW
3/4-10 HEX LOCK NUT
COULTER FORK
ASSEMBLY
545m104383 op

3-8 F-140-0512 Edition
ASSEMBLY INSTRUCTIONS
Figure 3-6: Shield Installation (Option)
Shields
1. Mount the shield bracket centered over the shank
(See Figures 3-4 and 3-6) during shank installation.
(See “Shank Assembly” on page 3-6.)
2. Install the shank u-bolt over the shank, through the
frame tool mount and the shield mounting bracket.
Secure with 5/8-11 hex lock nuts.
IMPORTANT
The outer end tool frames only have a half shield,
found on the inside of the tool assembly.
545m104649 op
FRAME TOOL
MOUNT
TOP VIEW
ASSEMBLED
SHANK
SHIELD MOUNTING
BRACKET
SHANK
U-BOLT
SHANK

ASSEMBLY INSTRUCTIONS
3-9
Figure 3-7: Optional Accessories Installation
Ridgers
A ridger is an optional device that can be installed on
each shank.
1. Full ridgers should be installed on the inner shanks,
and half ridgers should be mounted on the outer, end
shanks. (Half ridgers should be inside of the tool
assembly.)
2. Assemble a shank clamp (See Figure 3-7) to the
rear of each shank. Secure the bracket with u-bolts
and 5/8-11 hex lock nuts.
Anhydrous Ammonia Knives
1. The ammonia knives are mounted in the same
manner as the ridgers. They cannot be used at the
same time the ridgers are being used (See
Figure 3-7.)
Fertilizer Tubes
1. The fertilizer tubes should be mounted on the disc
shaft assemblies. Secure with a u-bolt and 5/16-18
hex lock nuts (See Figure 3-7.)
IMPORTANT
Be sure to raise the tubes high enough to clear the
ground to prevent plugging the tubes.
SHANK
U-BOLT
U-BOLT
OFFSET DISC
ASSEMBLY
AMMONIA KNIFE
ASSEMBLY
IRRIGATION RIDGERS
(OPTION)
FERTILIZER ATTACHMENT
5/16-18 HEX LOCK NUT
FERTILIZER TUBE
ASSEMBLY
PLASTIC TUBE END
5/8-11 HEX LOCK NUT
RIDGER ASSEMBLY
545m104602

3-10 F-140-0512 Edition
ASSEMBLY INSTRUCTIONS

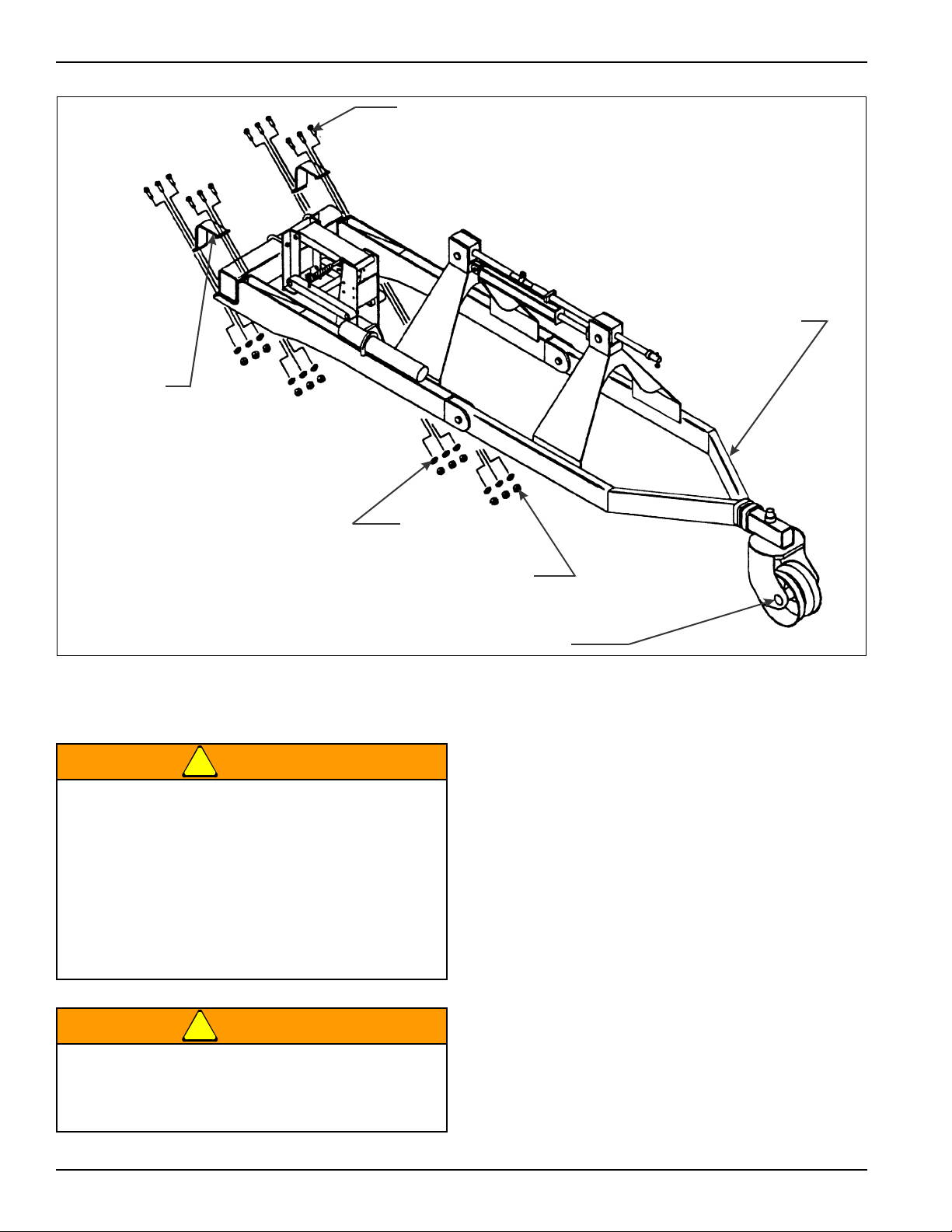

Figure 3-8: Lift Assist Wheel Installation
Lift Assist Wheel

WARNING

WARNING
1. Place the base of the lift assist wheel frame against
the main frame bar, straddling (on both sides of) the
center tool frame assembly. Secure the assist wheel
using the mounting brackets, 5/8-11 X 3 hex head
cap screws, lock washers, and hex nuts that come
with the lift assist wheel (See Figure 3-8.)
2. Coupling hoses are to be owner-supplied. They
should be long enough to allow lifting or lowering of
the cultivator without stretching the hoses. Be sure to
set the hoses so not to interfere with the operation of
the cultivator. Once set, secure the hoses with tie
wraps.
5/8-11 X 3 HEX
HEAD CAP SCREW
5/8-11 SPLIT
LOCK WASHER
5/8-11 HEX NUT
LIFT ASSIST WHEEL
MAIN FRAME
MOUNTING
BRACKET
lift assist wheel op
An escaping hydraulic oil under pressure can
produce enough force to penetrate the skin,
causing serious personal injury. Before applying
pressure to the system, be sure all connections
are tight and that lines, pipes, and hoses are not
damaged before disconnecting lines, be sure to
relieve all pressure. Hydraulic oil escaping from a
very small hole can be almost invisible. Use a
piece of cardboard or wood, not your hands, to
search for suspected leaks.
If injured by escaping hydraulic oil, see a doctor
at once. Serious infection or reaction can develop
if proper medical treatment is not administered
immediately.
