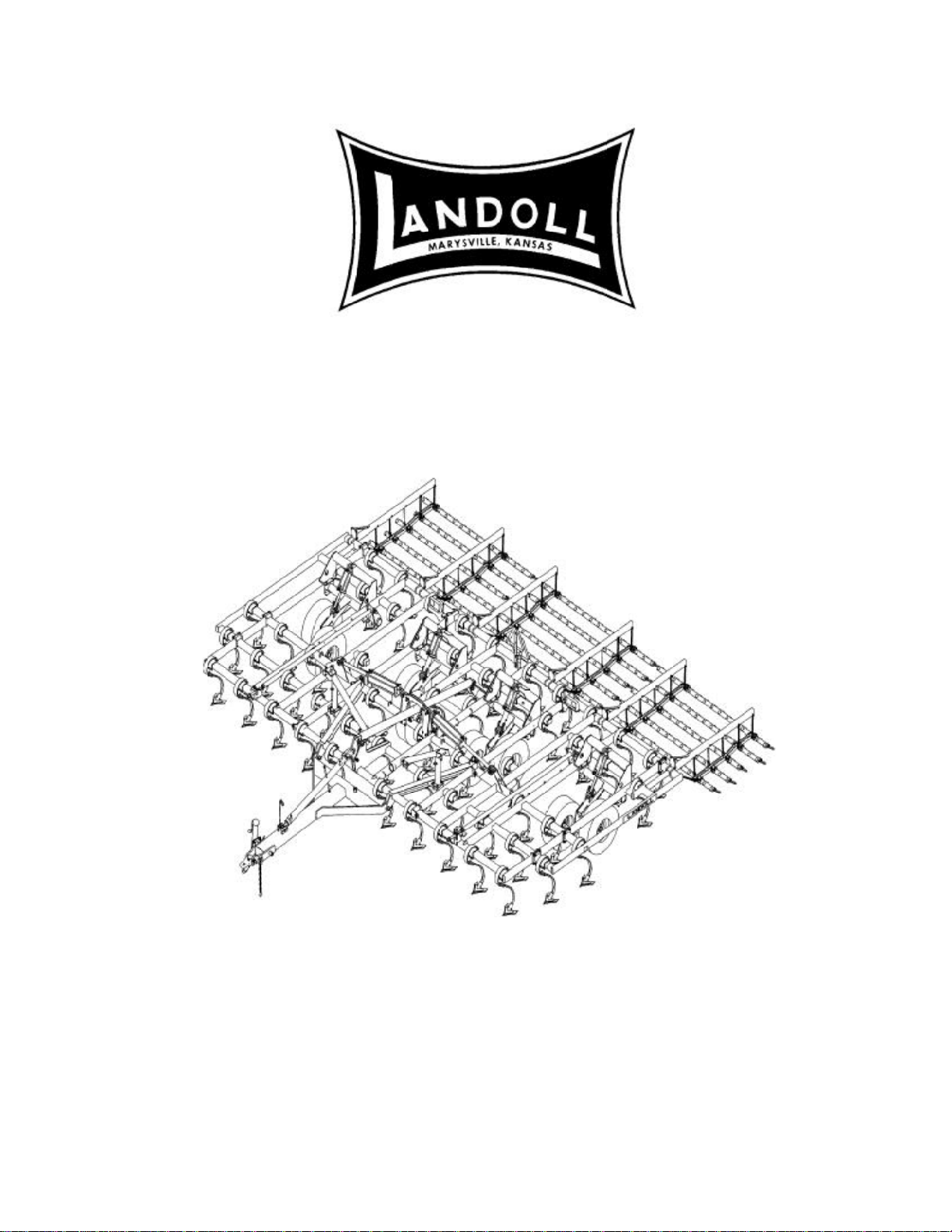

MODEL 9800 SERIES
FIELD CULTIVATOR
OPERATOR’S MANUAL
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
[phone]
F-216-1000 10/00

WARRANTY
MANUFACTURER’S GUARANTEE POLICY
LANDOLL CORPORATION WARRANTY
LANDOLL warrants each new and unused LANDOLL machine, when
properly assembled, adjusted, and operated, to be free of defects in
material and workmanship, in normal use and when properly serviced,
for a period of twelve (12) months after date of delivery by the Dealer to
the original retail purchaser. LANDOLL shall repair or replace, at its op-
tion, freight on board (f.o.b.) at its factory or designated DEALER loca-
tion, any part or parts of such new and unused machine which shall
have been reported in writing to LANDOLL within thirty (30) days from
date of failure thereof and which LANDOLL inspection shall disclose to
have been defective. Defective parts must be returned to the LANDOLL
factory, freight prepaid. LANDOLL will not be liable for labor, transpor-
tation, or any other charges resulting from replacement of a defective
part. This warranty is void if any part not supplied by LANDOLL is used
in assembly or repair, or if the machine has been altered, abused, or
neglected. LANDOLL repair parts are warranted for ninety (90) days
from date of replacement or for the unexpired warranty period of the
applicable LANDOLL machine, whichever period is longer. LANDOLL
makes no warranty, whatsoever, as to purchased component parts and
other trade accessories, except to the extent that such items are war-
ranted by the manufacturer thereof. THIS WARRANTY IS EXCLUSIVE
AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED,
IMPLIED, OR STATUTORY (INCLUDING WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR PURPOSE), AND LANDOLL SHALL NOT BE
LIABLE FOR SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND
ON ACCOUNT OF ANY LANDOLL PRODUCT.
NO EMPLOYEE OR REPRESENTATIVE IS AUTHORIZED TO CHANGE
THIS WARRANTY, VERBALLY OR IN WRITING, OR GRANT ANY OTHER
WARRANTY.
LANDOLL CORPORATION, WHOSE POLICY IS ONE OF CONTINUOUS
IMPROVEMENT, RESERVES THE RIGHT TO MAKE CHANGES WITHOUT
OBLIGATION TO MODIFY PREVIOUSLY PRODUCED EQUIPMENT.

MODEL 9800 SERIES
FIELD CULTIVATOR
OPERATOR’S MANUAL
PURCHASED FROM: DATE //
ADDRESS:
PHONE NO.: SERIAL NO.:

TABLE OF CONTENTS
SECTION DESCRIPTION PAGE NO.
1INTRODUCTION 1-1
2STANDARD SPECIFICATIONS 2-1
3ASSEMBLY INSTRUCTIONS 3-1
3-1 FRAME ASSEMBLY ..................................3-5
3-2 WING AND EXTENSION INSTALLATION...................3-5
3-3 ROCKSHAFT INSTALLATION ...........................3-5
3-4 HYDRAULIC INSTALLATION............................3-7
3-5 SMV BRACKET INSTALLATION ........................3-28
3-6 SHANK INSTALLATION...............................3-29
3-7 PULL HITCH INSTALLATION (SMALL FRAME MODELS) .....3-30
3-8 PULL HITCH INSTALLATION (LARGE FRAME MODELS) .....3-31
3-9 LEVELING ASSEMBLY INSTALLATION...................3-32
3-10 WARNING LIGHTS INSTALLATION ......................3-33
3-11 WING SUPPORT BRACKET INSTALLATION ...............3-34
3-12 HARROW INSTALLATION .............................3-38
4OPERATION AND MAINTENANCE 4-1
4-1 TRACTOR PREPARATION .............................4-2
4-2 FIELD CULTIVATOR PREPARATION......................4-2
4-3 ATTACHING TO THE TRACTOR .........................4-2
4-4 FIELD OPERATION ...................................4-2
4-5 HARROWS .........................................4-4
4-6 WHEEL BEARING MAINTENANCE .......................4-5
4-7 HYDRAULIC MAINTENANCE............................4-6
4-8 TRANSPORT........................................4-6
4-9 LUBRICATION.......................................4-8
4-10 STORAGE .........................................4-8
5TROUBLESHOOTING GUIDE 5-1

SAFETY PRECAUTIONS
THIS IS THE SAFETY ALERT SYMBOL. IT IS USED TO ALERT YOU
TO POTENTIAL INJURY HAZARDS. OBEY ALL SAFETY MESSAGES
THAT FOLLOW THIS SYMBOL TO AVOID POSSIBLE INJURY OR
DEATH.
DANGER DANGER INDICATES AN IMMINENTLY HAZARDOUS SITUATION
WHICH, IF NOT AVOIDED, WILL RESULT IN DEATH OR SERIOUS IN-
JURY.
WARNING WARNING INDICATES A POTENTIALLY HAZARDOUS SITUATION
WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH OR SERIOUS
INJURY.
CAUTION CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUATION
WHICH, IF NOT AVOIDED, MAY RESULT IN MINOR OR MODERATE
INJURY.
CAUTION CAUTION USED WITHOUT THE SAFETY ALERT SYMBOL INDICATES
A POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED,
MAY RESULT IN PROPERTY DAMAGE.
ii

1INTRODUCTION
The Landoll 9800 Series Field Cultivator is a quality product designed to give years of trouble free per-
formance. By following each section of this manual, your system will perform as designed for you and your
operation.
SECTION 1 gives basic instructions on the use of this manual.
SECTION 2 gives product specifications. These specifications supply lengths and measures for your
equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques
to be used when servicing this product.
SECTION 3 contains assembly instructions for your 9800 Series Field Cultivator. When these proce-
dures are correctly followed, your equipment should provide you years of trouble-free
operation and service.
SECTION 4 instructs how to operate your equipment before using it, and describes adjustments
needed. It also gives practical advice for the care and maintenance of your Landoll
equipment. Drawings in this section locate adjustment points on the equipment.
NOTE: IF THE EQUIPMENT IS IMPROPERLY ASSEMBLED OR MAINTAINED, THE
WARRANTY IS VOID. IF YOU HAVE ANY QUESTIONS CONTACT:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
or phone:
[phone] or
[phone]
or FAX:
[phone]
SECTION 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equip-
ment.
PARTS LIST is a separate manual showing the various assemblies, subassemblies, and systems.
Refer to that manual when ordering Landoll replacement parts. Order parts from your
Landoll dealer.
WARRANTY The Warranty Registration form is included with the product documents. Fill it out and
mail it within 15 days of purchase. The Warranty is printed inside the front cover.
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
LANDOLL EQUIPMENT CAN VOID YOUR WARRANTY.
COMMENTS Address comments or questions regarding this publication to:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
ATTENTION: PUBLICATIONS -DEPT. 55
1-1

2STANDARD SPECIFICATIONS
MODEL NO. OF
SHANKS CUT WIDTH TRANS. WIDTH TRANS. HEIGHT FRAME SIZE
980319C 39 19’-6” 14’-5" 8’-5” 12’-0"
980319S 39 19’-6” 14’-5" 8’-5” 12’-0"
980321C 43 21’-6” 14’-5" 9’-5” 12’-0"
980321S 43 21’-6” 14’-5" 9’-5” 12’-0"
980324C 49 24’-6" 14’-5" 10’-11" 12’-0"
980324S 49 24’-6" 14’-5" 10’-11" 12’-0"
980327C 55 27’-6" 14’-5" 12’-5" 12’-0"
980327S 55 27’-6" 14’-5" 12’-5" 12’-0"
980329C 59 29’-6” 14’-5" 13’-5” 12’-0"
980329S 59 29’-6” 14’-5" 13’-5” 12’-0"
980332C 65 32’-6” 14’-5" 14’-11” 12’-0"
980332S 65 32’-6” 14’-5" 14’-11” 12’-0"
980533C 67 33’-6" 14’-10" 11’-0" 12’-0"
980533S 67 33’-6" 14’-10" 11’-0" 12’-0"
980533CH 67 33’-6” 14’-10" 11’-0" 12’-0"
980533SH 67 33’-6” 14’-10" 11’-0" 12’-0"
980535C 71 35’-6” 14’-10" 13’-6” 12’-0"
980535S 71 35’-6” 14’-10" 13’-6” 12’-0"
980538C 77 38’-6” 14’-10" 13’-6” 12’-0"
980538S 77 38’-6” 14’-10" 13’-6” 12’-0"
980542C 85 42’-6” 14’-10" 13’-6” 12’-0"
980542S 85 42’-6” 14’-10" 13’-6” 12’-0"
980545C 91 45’-6” 14’-10" 13’-6” 12’-0"
980545S 91 45’-6” 14’-10" 13’-6” 12’-0"
NOTE: WIDE FRAME MODELS CALLED OUT ON NEXT PAGE
9 8 _ _ _ _ _
SHANK CLAMP: C = C-FLEX CLAMP
S = SPRING CLAMP
WORKING WIDTH OF UNIT
NUMBER OF SECTIONS:
3 = 3 SECTIONS
5 = 5 SECTIONS
FRAME SIZE: 0 = NARROW FRAME
1 = WIDE FRAME
MODEL NO.
2-1

MODEL NO. OF
SHANKS CUT WIDTH TRANS. WIDTH TRANS. HEIGHT FRAME SIZE
981333C 67 33’-6” 18’-5” 13’-5” 15’-0"
981333S 67 33’-6” 18’-5” 13’-5” 15’-0"
981534C 69 34’-6” 18’-10” 11’-0" 15’-0"
981534S 69 34’-6” 18’-10” 11’-0" 15’-0"
981336C 73 36’-6” 18’-5” 14’-11” 15’-0"
981336S 73 36’-6” 18’-5” 14’-11” 15’-0"
981537C 75 37’-6” 18’-10” 11’-0" 15’-0"
981537S 75 37’-6” 18’-10” 11’-0" 15’-0"
981539C 79 39’-6” 18’-10” 13’-6” 15’-0"
981539S 79 39’-6” 18’-10” 13’-6” 15’-0"
981542C 85 42’-6” 18’-10” 13’-6” 15’-0"
981542S 85 42’-6” 18’-10” 13’-6” 15’-0"
981546C 93 46’-6” 18’-10” 13’-6” 15’-0"
981546S 93 46’-6” 18’-10” 13’-6” 15’-0"
981549C 99 49’-6” 18’-10” 13’-6” 15’-0"
981549S 99 49’-6” 18’-10” 13’-6” 15’-0"
981551C 103 51’-6” 18’-10” 14’-6” 15’-0"
981551S 103 51’-6” 18’-10” 14’-6” 15’-0"
981554C 109 54’-6” 18’-10” 14’-6” 15’-0"
981554S 109 54’-6” 18’-10” 14’-6” 15’-0"
NOTE: NARROW FRAME MODELS CALLED OUT ON PREVIOUS PAGE
9 8 _ _ _ _ _
SHANK CLAMP: C = C-FLEX CLAMP
S = SPRING CLAMP
WORKING WIDTH OF UNIT
NUMBER OF SECTIONS:
3 = 3 SECTIONS
5 = 5 SECTIONS
FRAME SIZE: 0 = NARROW FRAME
1 = WIDE FRAME
MODEL NO.
2-2

2-3
LANDOLL CORPORATION
GENERAL TORQUE SPECIFICATIONS (REV. 4/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR GENERAL PURPOSE APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED
ON PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED NUTS AND CAPSCREWS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS RECEIVED
CONDITION). THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
WHEN FASTENERS ARE DRY (SOLVENT CLEANED), ADD 33% TO AS RECEIVED CONDITION TORQUE.
BOLT HEAD IDENTIFICATION MARKS INDICATE GRADE AND MAY VARY FROM MANUFACTURER TO MANUFACTURER.
THICK NUTS MUST BE USED ON GRADE 8 CAPSCREWS.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
TORQUE IS SPECIFIED IN FOOT POUNDS
UNC
Size SAE Grade 2SAE Grade 5SAE Grade 8UNF Size SAE Grade 2 SAE Grade 5SAE Grade 8
1/4-20 4[5] 6[7] 9[11] 1/4-28 5[6] 7[9] 10 [12]
5/16-18 8[10] 13 [16] 18 [22] 5/16-24 9[11] 14 [17] 20 [25]
3/8-16 15 [19] 23 [29] 35 [43] 3/8-24 17 [21] 25 [31] 35 [44]
7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]
1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]
9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]
5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]
3/4-10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]
7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]
1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]
1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]
1-1/4-7 380 [475] 840 [1050] 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]
1-3/8-6 490 [612] 110 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260 [1575] 2010 [2512]
1/1-2-6 650 [812] 1460 [1825] 2360 [2950] 1/1-2-12 730 [912] 1640 [2050] 2660 [3325]
METRIC
COARSE THREAD METRIC CLASS 10.9 FASTENERS AND CLASS 10.0 NUTS AND THROUGH HARDENED FLAT WASHERS, PHOSPHATE
COATED, ROCKWELL “C” 38-45.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
Nominal
Thread
Diameter
mm
Standard Torque Nominal
Thread
Diameter
mm
Standard Torque
Newton-
Meters Foot- Pounds Newton- Meters Foot- Pounds
610 [14] 7[10] 20 385 [450] 290 [335]
716 [22] 12 [16] 24 670 [775] 500 [625]
823 [32] 17 [24] 27 980 [1105] 730 [825]
10 46 [60] 34 [47] 30 1330 [1470] 990 [1090]
12 80 [101] 60 [75] 33 1790 [1950] 1340 [1450]
14 125 [155] 90 [115] 36 2325 [2515] 1730 [1870]
16 200 [240] 150 [180] 39 3010 [3210] 2240 [2380]
18 275 [330] 205 [245]
Table 2-1General Torque Specifications

2-4
LANDOLL CORPORATION
HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS, & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED
ON PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHO UT SUPPLEMENTAL
LUBRICATION (AS RECEIVED CONDITION). THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE
LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL. STAINLESS STEEL, ALUMINUM AND MONEL - THREADS ARE
TO BE LUBRICATED.
TORQUE IS SPECIFIED IN FOOT POUNDS
PARKER BRAND FITTINGS
Dash
Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-13 15-17 13-15
-5 14-16 —21-23
-6 20-22 34-36 25-29
-8 43-47 58-62 40-44
-10 55-65 100-110 57.5-62.5
-12 80-90 134-146 75-85
-16 115-125 202-218 109-121
-20 160-180 248-272 213-237
-24 185-215 303-327 238-262
-32 250-290 —310-340
LANDOLL CORPORATION
HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED
ON PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHO UT SUPPLEMENTAL
LUBRICATION (AS RECEIVED CONDITION). THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE
LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL.
TORQUE IS SPECIFIED IN FOOT POUNDS.
AEROQUIP BRAND FITTINGS
Dash
Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-12 10-12 14-16
-5 15-16 —18-20
-6 18-20 18-20 24-26
-8 38-42 32-35 50-60
-10 57-62 46-50 72-80
-12 79-87 65-70 125-135
-14 — — 160-180
-16 108-113 92-100 200-220
-20 127-133 125-140 210-280
-24 158-167 150-165 270-360
-32 245-258 — —
Table 2-2Hydraulic Fitting Torque Specifications

NOTES:
2-5

3ASSEMBLY INSTRUCTIONS
It is very important that your new 9800 Series
Field Cultivator be properly assembled, adjusted
and lubricated before use. Illustrations in this sec-
tion show proper assembly procedures. Remove
paint from grease fittings. Replace any grease fit-
tings that are damaged or missing. Be sure to re-
turn screws, clips, etc., to their original locations.
To insure alignment of assemblies, leave the
nuts loose until completion of final assembly.
Use lock washers or flat washers as specified.
Spread all cotter pins.
After completion of final assembly, tighten all
nuts evenly to prevent misalignment, distortion or
binding. Tighten all screws and nuts to the recom-
mended torques shown in Tables 2-1and 2-2.
WARNING
DO NOT ATTEMPT TO LIFT HEAVY
PARTS (SUCH AS THE FRAME, ROCK
SHAFT, AND PULL HITCH) MANU-
ALLY. USE A HOIST OR A FORK LIFT
TO MOVE THESE PARTS INTO POSI-
TION.
DANGER
TO PREVENT ACCIDENTAL LOWER-
ING:
1. ALL HYDRAULICALLY ELEVATED
EQUIPMENT MUST BE LOCKED OUT
USING THE CYLINDER LOCKOUTS:
2. LOWER EQUIPMENT TO THE
GROUND WHILE SERVICING OR
WHEN IT IS IDLE.
FAILURE TO TAKE MEASURES TO
PREVENT ACCIDENTAL LOWERING
MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH.
CAUTION
BE SURE DEPTH STOPS ARE EQUAL
LENGTHS ON ALL CYLINDERS. USING
UNEQUAL DEPTH STOP LENGTHS
CAN CAUSE PERMANENT EQUIP-
MENT DAMAGE.
CAUTION
BE SURE TO BLEED THE HYDRAULIC
SYSTEM OF ALL AIR IN LINES AFTER
INSTALLATION. FAILURE TO BLEED
THE SYSTEM OF ALL AIR CAN RE-
SULT IN PERMANENT EQUIPMENT
DAMAGE.
3-1

3-2
Figure 3-1Frame Assembly

3-3
Figure 3-2Wing and Extension Assembly

3-4

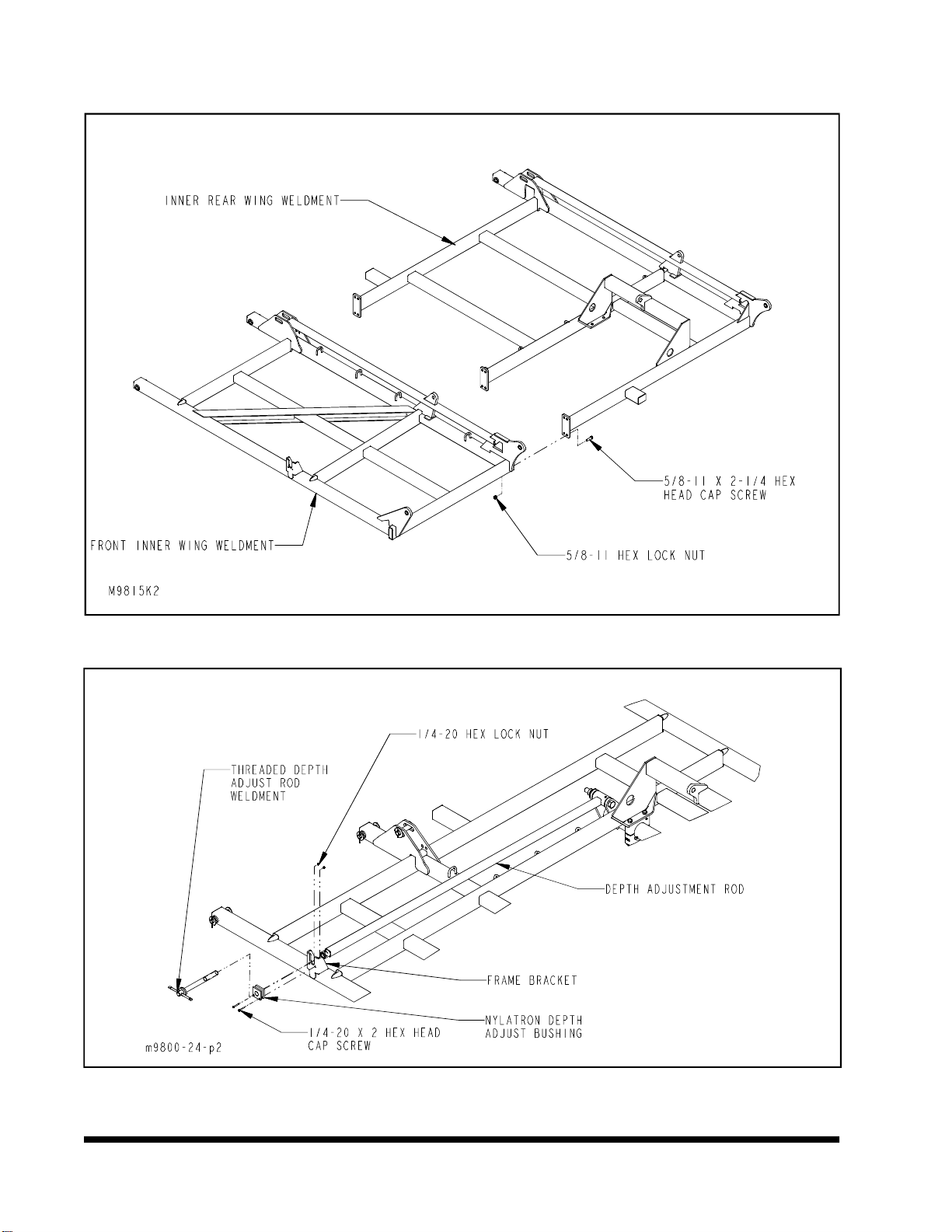

Figure 3-3Wing Assembly (981551 & 981554 Models)
Figure 3-4Depth Adjust Rod to Wing Installation

3-1 FRAME ASSEMBLY
IMPORTANT
READ ALL SAFETY PRECAUTIONS AT THE
FRONT OF THE SECTION BEFORE ATTEMPT-
ING ANY OF THE FOLLOWING PROCEDURES.
3-1.1 Place frame halves on stands approxi-
mately 36" high.
3-1.2 Bolt frame halves together using 5/8-11 X
2-1/4 screws and lock nuts (See Figure 3-1).
WARNING
DO NOT ATTEMPT TO LIFT HEAVY
PARTS (SUCH AS THE FRAME, ROCK
SHAFT, AND PULL HITCH) MANU-
ALLY. USE A HOIST OR A FORK LIFT
TO MOVE THESE PARTS INTO POSI-
TION.
3-2 WING AND EXTENSION INSTALLATION
WARNING
DO NOT ATTEMPT TO LIFT HEAVY
PARTS (SUCH AS THE FRAME, ROCK
SHAFT, AND PULL HITCH) MANU-
ALLY. USE A HOIST OR A FORK LIFT
TO MOVE THESE PARTS INTO POSI-
TION.
3-2.1 On 981551 and 981554 models, bolt inner
wing halves together using 5/8-11 x 2-1/4
hex head cap screws and hex lock nuts (See
Figure 3-3).
3-2.2 On all models, install wings using pins,
washers and cotter pins provided. (See Fig-
ure 3-1).
3-2.3 Slide nylatron depth adjust bushing into
frame bracket on wing. Bolt bushing into
place using 1/4-20 x 2 hex head cap screws
and hex lock nuts. Insert threaded depth ad-
just rod weldment into bushing and screw
into depth adjustment rod to desired depth.
(See Figure 3-4).
3-2.4 On 980321, 980327, 980332, 980545,
981336, and 981549 models, extensions are
attached to the frame 180ofrom where they
should be installed. Loosen hex lock nuts
and remove u-bolts. Flip the wing extension
over to the outside of the outer frame and in-
stall wing extensions on wings using same
u-bolts and hex lock nuts (See Figure 3-2).
3-2.5 For 980545 and 981549 models, install 5”
extension to outer wing plate with 5/8-11 x
2-1/4 hex head cap screws and hex lock
nuts (See Figure 3-2).
3-2.6 On 5-section models, install outer wings
using pins, washers and cotter pins provided.
(See Figure 3-2).
3-3 ROCKSHAFT INSTALLATION
3-3.1 All rockshafts and hubs come already as-
sembled from the factory.
3-3.2 Mount tires on the wheels and install on
hubs.
3-3.3 For 980333, 980535, 981534, and 981537
models, a manual adjust gauge wheel must
be installed on the outer wings. Attach spin-
dle assembly with tube and rigid gauge
wheel clamp to outer wing frame using u-
bolts and hex lock nuts (See Figure 3-5).
3-3.4 Recommended tires:
Frame and wings
(3 & 5 section small frame models
up through 980535):
9.5L X 15 8 ply recommended
11L x 15 10 ply
Frame (5 section large frame models
and small frame models 980538, 980542,
and 980545):
11L x 15 18 ply
Wings (5-section large frame models):
9.5L X 15 8 ply
3-5

3-6

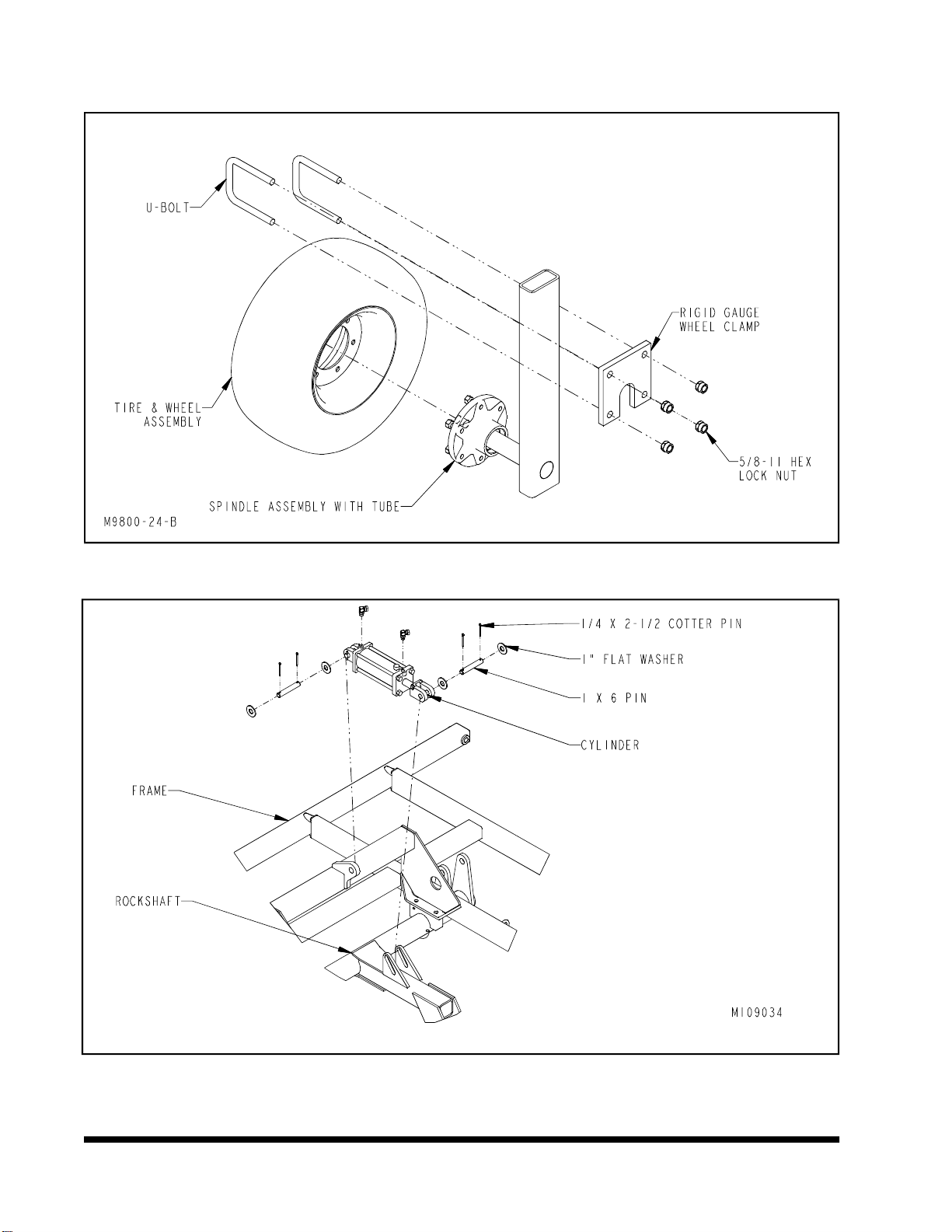

Figure 3-5Manual Adjust Gauge Wheel Installation
Figure 3-6Master and Slave Cylinder Installation
