Landoll 9630 Series User manual

F-632-1218 12/2018-Present
LANDOLL CORPORATION
1900 North Street
Marysville, Kansas 66508
[phone]
800-428-5655 ~ WWW.LANDOLL.COM
Model 9630
Field Cultivator
Operator’s Manual

F-632-1218 i
Table of Contents
1 Introduction
Understanding Safety Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2 Standard Specifications
General Torque Specifications (rev. 4/97) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Hydraulic Fitting Torque Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
3 Assembly Instructions
9600 Frame Assembly- 9630-30’, 32’ & 34’ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Hitch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Center Frame Tire Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Leveling Linkage Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Wing Frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Wing Lift Tire Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Front Gauge Wheel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Lighting and SMV Bracket Installation (Prior to August, 2013) (Non-LED Lights) . . . . . . . . 3-11
LED Light and SMV Bracket Installation (After August, 2013) . . . . . . . . . . . . . . . . . . . . . . 3-13
Hydraulic Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-14
Shank Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22
4 Row Coil Tine Harrow Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
3 Row Coil Tine and Reel Harrow Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
5 Row Spike Harrow Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
3 Row Spike and Reel Harrow Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Rear Tow Hitch (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32

ii F-632-1218
4 Operation and Maintenance
Hydraulic Lift System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Hydraulic Fold System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Tractor Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Prior to Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Leveling (Front-to-Rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
Leveling (Side to Side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Gauge Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Depth Stop Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
LED Light Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8
Spring Shank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Sweeps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Wheel Bearing Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
4 Row Coil Tine Harrow Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
3 Row Coil Tine and Reel Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
5 Row Spike Harrow Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
3 Row Spike and Reel Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
5 Troubleshooting Guide

1-1
Chapter 1
Introduction
The Landoll Model 9630 Field Cultivator is a quality product designed to give years of trouble free performance. By
following each section of this manual, your system will perform as designed for you and your operation
CHAPTER 1 gives basic instructions on the use of this manual.
CHAPTER 2 gives product specifications. These specifications supply lengths and measures for your
equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques to
be used when servicing this product.
CHAPTER 3 contains assembly instructions for your Model 9630 Field Cultivator. When these
procedures are correctly followed, your equipment should provide you years of
trouble-free operation and service.
CHAPTER 4 instructs how to operate your equipment before using it, and describes adjustments
needed. It also gives practical advice for the care and maintenance of your Landoll
equipment. Drawings in this section locate adjustment points on the equipment.
NOTE: IF THE EQUIPMENT IS IMPROPERLY ASSEMBLED OR MAINTAINED, THE
WARRANTY IS VOID. IF YOU HAVE ANY QUESTIONS CONTACT:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
or phone:
[phone] or
[phone]
or FAX:
[phone]
CHAPTER 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equipment.
PARTS LIST is a separate manual showing the various assemblies, subassemblies, and systems.
Refer to that manual when ordering Landoll replacement parts. Order parts from your
Landoll dealer.
WARRANTY The Warranty Registration form is included with the product documents. Fill it out and
mail it within 15 days of purchase.
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
LANDOLL MACHINE CAN VOID YOUR WARRANTY.
COMMENTS Address comments or questions regarding this publication to:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
ATTENTION: PUBLICATIONS -DEPT. 55

1-2 F-632-1218
INTRODUCTION
Understanding Safety
Statements
You will find various types of safety information on the
following pages and on the machine signs (decals)
attached to the vehicle. This section explains their
meaning.
The Safety Alert Symbol means ATTENTION! YOUR
SAFETY IS INVOLVED!

DANGER

WARNING

CAUTION
NOTE
Means that failure to follow these instructions could
cause damage to the equipment or cause it to operate
improperly.
NOTE
Make sure you read and understand the information
contained in this manual and on the machine signs
(decals) before you attempt to operate or maintain this
vehicle.
The safety statements contained in this manual relate to
the operation of the Model 9630 Field Cultivator.
Danger means a life-threatening situation exists.
Death can occur if safety measures or
instructions on this label are not properly
followed.
Warning means serious injury or death can occur
if safety measures or instructions on this label
are not properly followed.
Caution means serious equipment or other
property damage can occur if instructions on this
label are not properly followed.

2-1
Chapter 2
Standard Specifications
9630 Field Cultivator
Model No. 9630-20 9630-24 9630-28 9630-30NC 9630-30 9630-32 9630-34
Working Width 20’-6” 24’-6” 28’-6” 30’-6” 30’-6” 32’-6” 34’-6”
Transport Width 16’-0” 15’-6” 15’-1” 15’-1” 17’-4” 17’-4” 17’-4”
Transport Height9’-3” 11’-1” 13’-0” 13’-10” 13’-0” 13’-10” 14’-10”
No. Of Shanks 41 49 57 61 61 65 69
Shanks per
Section
9-23-9 13-23-13 17-23-17 19-23-19 17-27-17 19-27-19 21-27-21
Tire Size And
Ply
(4) 12.5L x 15, 12 ply
(4) 11L x 15, 12 ply Tires
(8) 280/70R15
(4) 12.5L x 15 HD (Center Frame) (4) 11L x 15, 12 ply Tires (Wings)
(4) 320/70R15 (Center Frame) (4) 280/70R15 (Wings)
Spindle Size 2-1/4” Spindle
Wheel Bolt
Pattern
6 Bolt Wheels (Center
Frame and Wings)
8 Bolt Wheels (Center Frame) and
6 Bolt Wheels (Wings)
Estimated
Weight
N/AN/AN/AN/AN/A N/A
Specifications Are Subject To Change Without Prior Notification.
Tire Inflation
Tire Size Tire Manufacturer Ply/Load Rating Inflation Pressure (Psi) (Max.)
12.5L - 15 FI Carlisle Load Range F/4680 lbs. @ 55 mph 90 psi
12.5L - 15, 12 ply Carlisle 12 Ply/3,860 lbs. @ 30 mph 52 psi
11L x 15, 12 ply Carlisle 12 Ply/ 3,200 lbs. @ 30 mph 52 psi
20.5 x 8.0-10 Load Range D/ 1,320 lb. 70 psi
280/70R15 Firestone Load Index 134/ 4680 lbs. @ 40 mph 64 psi
320/70R15 Firestone Load Index 144/6150 lbs. @ 40 mph 70 psi
RECOMMENDED TORQUE SPECIFICATION FOR LUG BOLTS AND NUTS
BOLT SIZE TORQUE (FT. LBS.)
9/16-18 (Heavy Duty Disc) 80 - 90 ft. lbs
5/8-18 (Heavy Duty Disc) 85 - 100 ft. lbs

2-2 F-632-1218
STANDARD SPECIFICATIONS
General Torque Specifications
(rev. 4/97)
Table 2-1: General Torque Specifications
TORQUE SPECIFIED IN FOOT POUNDS - This chart provides tightening torques for general purpose applications
when special torques are not specified on process or drawing. Assembly torques apply to plated nuts and capscrews
assembled without supplemental lubrication (as received condition). They do not apply if special graphite moly-disulfide or
other extreme pressure lubricants are used. When fasteners are dry (solvent cleaned) add 33% to as received condition
torque. Bolt head identification marks indicate grade and may vary from manufacturer to manufacturer. Thick nuts must be
used on grade 8 capscrews. Use value in [ ] if using prevailing torque nuts.
UNC
SIZE
SAE
Grade 2
SAE
Grade 5
SAE
Grade 8
UNF
SIZE
SAE
Grade 2
SAE
Grade 5
SAE
Grade 8
1/4-20 4 [5] 6 [7] 9 [11] 1/4-28 5 [6] 7 [9] 10 [12]
5/16-18 8 [10] 13 [13] 18 [22] 5/16-24 9 [11] 14 [17] 20 [25]
3/8-16 15 [19] 23 [29] 35 [42] 3/8-24 17 [21] 25 [31] 35 [44]
7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]
1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]
9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]
5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]
3/4/10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]
7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]
1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]
1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]
1-1/4-7 380 [475] 840 [1050 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]
1-3/8-6 490 [612] 1010 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260 [1575] 2010 [2512]
1-1/2-6 650 [812] 1460 [1825] 2360 [2950] 1-1/2-12 730 [912] 1640 [2050] 2660 [3325]
1-3/4-5 736 [920] 1651 [2063] 2678 [3347] 1-3/4-12 920 [1150] 2063 [2579] 3347 [4183]
METRIC:
Coarse thread metric class 10.9 fasteners and class 10.0 nuts and through hardened flat washers, phosphate coated,
Rockwell “C” 38-45. Use value in [ ] if using prevailing torque nuts.
Nominal
thread
diameter
(mm)
Newton
Meters
(Standard
Torque)
Foot Pounds
(Standard
Torque)
Nominal
Thread
Diameter
(mm)
Newton
Meters
(Standard
Torque)
Foot Pounds
(Standard
Torque
6 10 [14] 7 [10] 20 385 [450] 290 [335]
7 16 [22] 12 [16] 24 670 [775] 500 [625]
8 23 [32] 17 [24] 27 980 [1105] 730 [825]
10 46 [60] 34 [47] 30 1330 [1470] 990 [1090]
12 80 [125] 60 [75] 33 1790 [1950] 1340 [1450]
14 125 [155] 90 [115] 36 2325 [2515] 1730 [1870]
16 200 [240] 150 [180] 39 3010 [3210] 2240 [2380]
18 275 [330] 205 [245] --------------- --------------- ---------------

STANDARD SPECIFICATIONS
2-3
Hydraulic Fitting Torque
Specifications
Table 2-2: Hydraulic Fitting Torque Specifications
TORQUE IS SPECIFIED IN FOOT POUNDS- 37oJIC, ORS, & ORB (REV. 10/97)
This chart provides tightening torques for general purpose applications when special torques are not specified on process or
drawing. Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received
condition). They do not apply if special graphite moly-disulfide or other extreme pressure lubricants are used. When fasteners are
dry (solvent cleaned) add 33% to as received condition torque. Bolt head identification marks indicate grade and may vary from
manufacturer to manufacturer. Thick nuts must be used on grade 8 capscrews. Use value in [ ] if using prevailing torque nuts.
Parker Brand Fittings
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-13 15-17 13-15
-5 14-16 --------------- 21-23
-6 20-22 34-36 25-29
-8 43-47 58-62 40-44
-10 55-65 100-110 58-62
-12 80-90 134-146 75-85
-16 115-125 202-218 109-121
-20 160-180 248-272 213-237
-24 185-215 303-327 238-262
-32 250-290 -------------- 310-340
Gates Brand Fittings
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 10-11 10-12 14-16
-5 13-15 --------------- ---------------
-6 17-19 18-20 24-26
-8 34-38 32-40 37-44
-10 50-56 46-56 50-60
-12 70-78 65-80 75-83
-14 -------------- 65-80 --------------
-16 94-104 92-105 111-125
-20 124-138 125-140 133-152
-24 156-173 150-180 156-184
-32 219-243 -------------- --------------
Aeroquip Brand Fittings
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-12 10-12 14-16
-5 15-16 --------------- 16-20
-6 18-20 18-20 24-26
-8 38-42 32-35 50-60
-10 57-62 46-50 75-80
-12 79-87 65-70 125-135
-14 -------------- -------------- 160-180
-16 108-113 92-100 200-220
-20 127-133 125-140 210-280
-24 158-167 150-165 270-360
-32 245-258 -------------- --------------

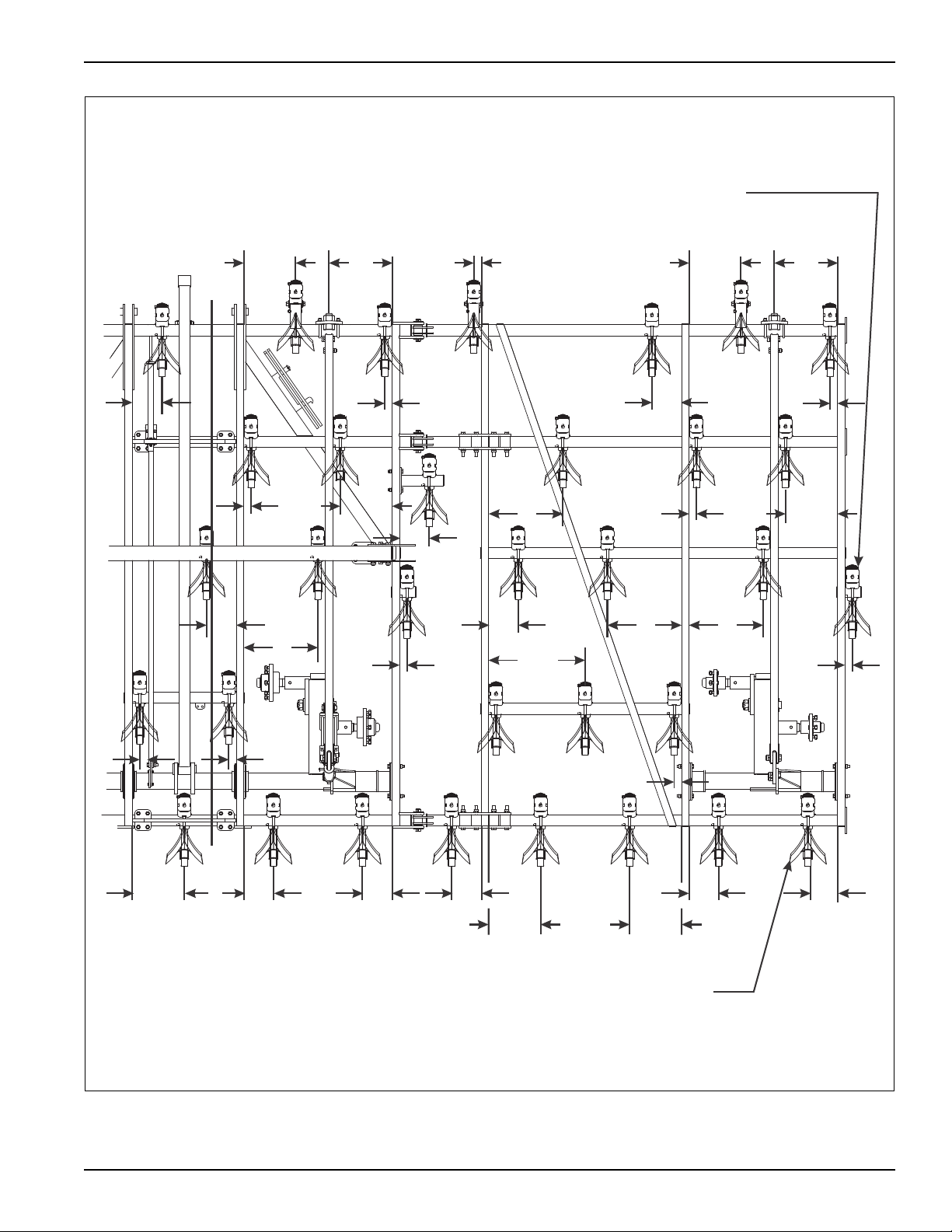

2-4 F-632-1218
STANDARD SPECIFICATIONS

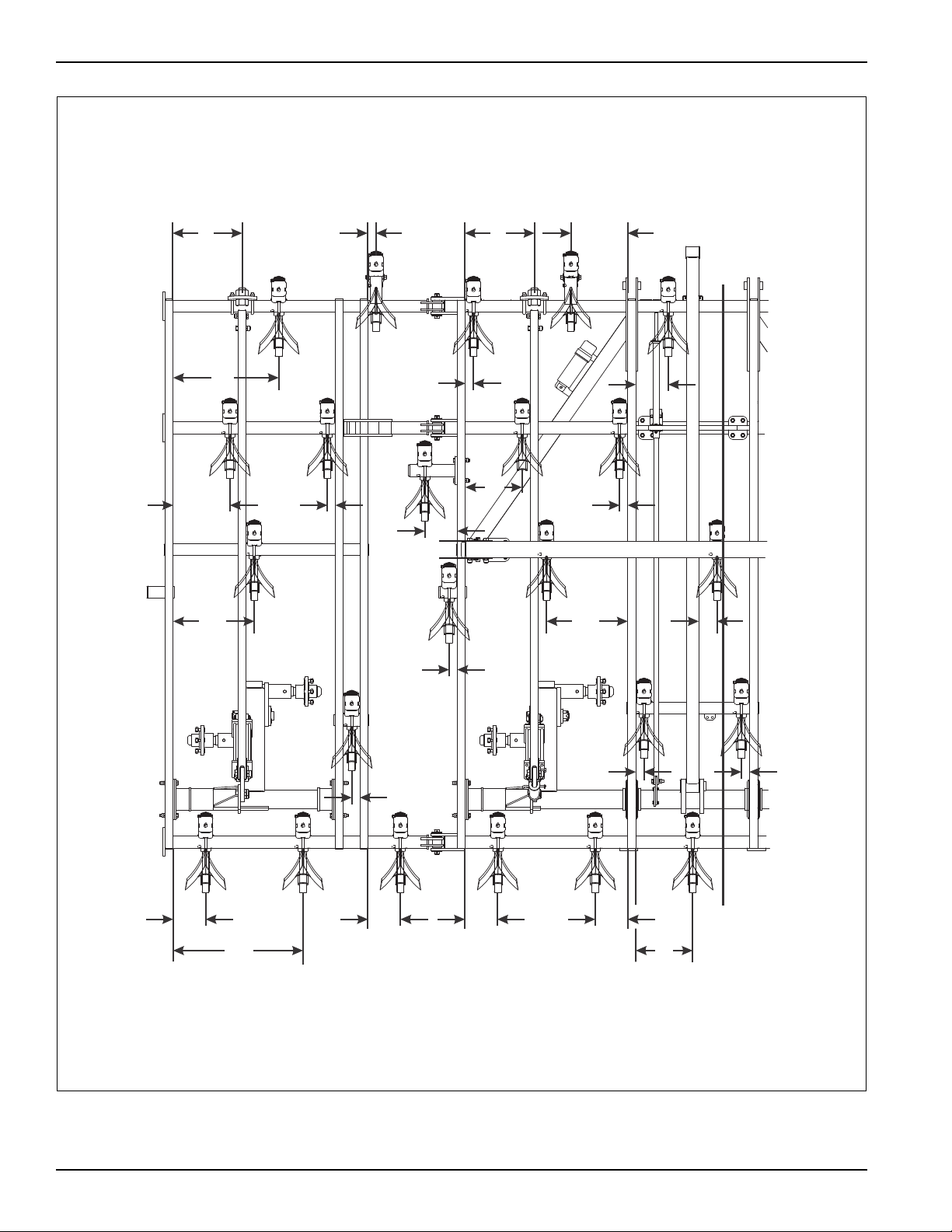

Figure 2-1: Shank Placement (20' Model)
(Left Half)
8
32
8
2
20
14 2
26
17 2
8
8
14
2
20
8
2
2
8
14
2
2
8
17 14
9630-20place lt half
A
A

STANDARD SPECIFICATIONS
2-5

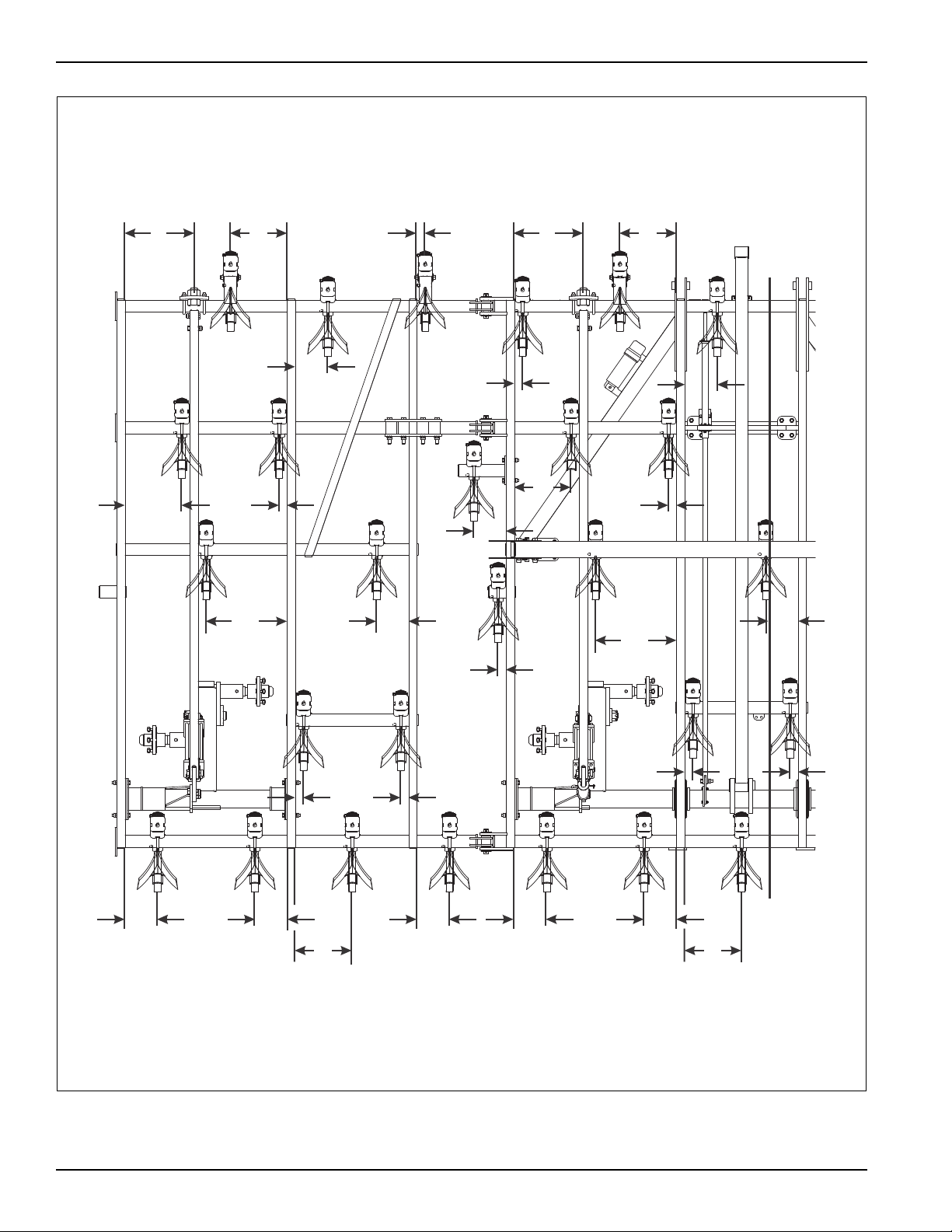

Figure 2-2: Shank Placement (20' Model)
(Right Half)
8
32
8
2
20
14
2
26
17
2
88
14
2
20
8
2 2
8
14
2
2
8
1714
9630-20place rt half
A
A

2-6 F-632-1218
STANDARD SPECIFICATIONS

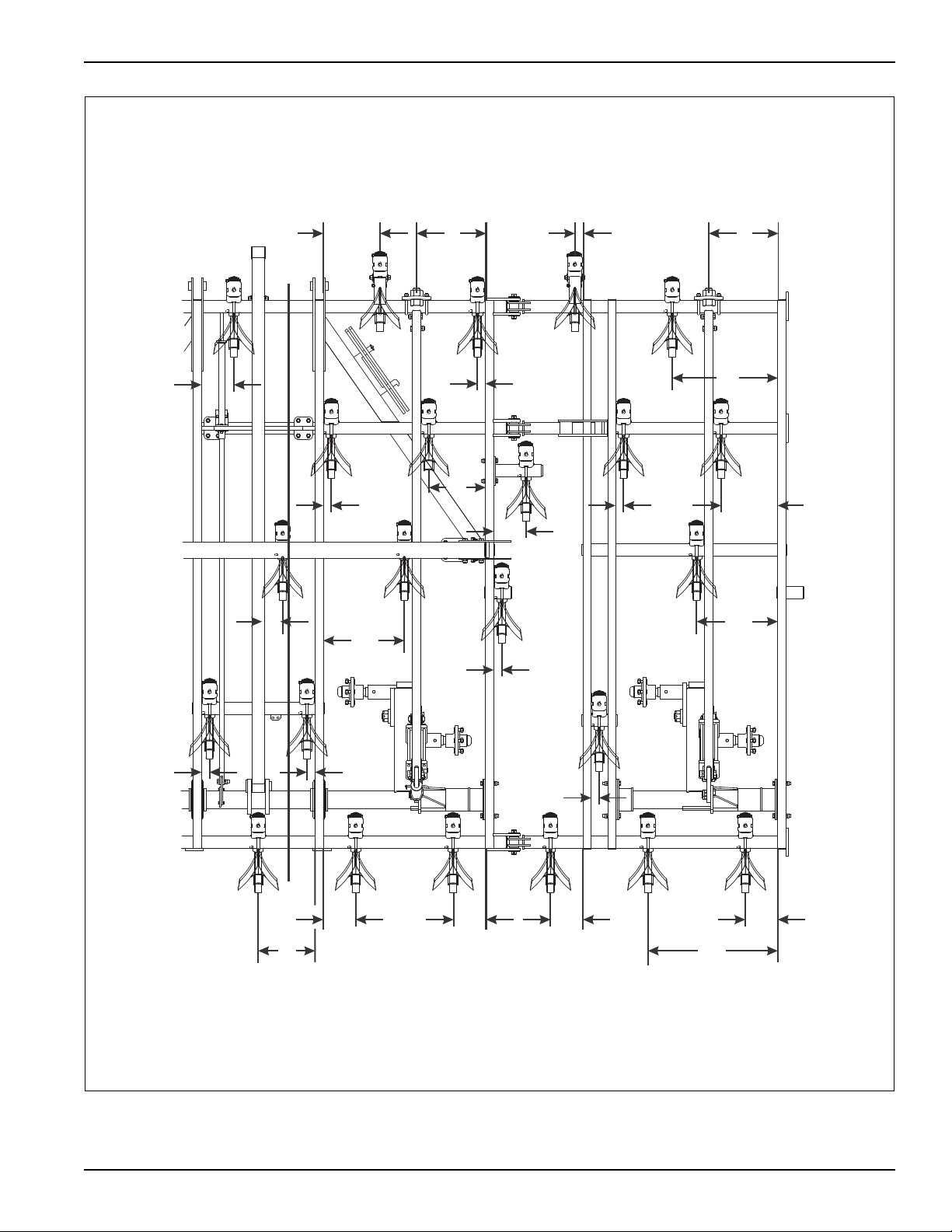

Figure 2-3: Shank Placement (24' Model)
(Left Half)
8
14
8
2
20
14 2
17 2
8
8
14
2
20
8
2
2
8
14
2
2
8
17 14
8
14
8
2
8
9630-24place lt half
A
A

STANDARD SPECIFICATIONS
2-7
Figure 2-4: Shank Placement (24' Model)
(Right Half)
8
14
8
2
20
14
2
17
2
88
14
2
20
8
2 2
8
14
2
2
8
1714
8
14
8
2
8
9630-24place rt half
A
A

2-8 F-632-1218
STANDARD SPECIFICATIONS

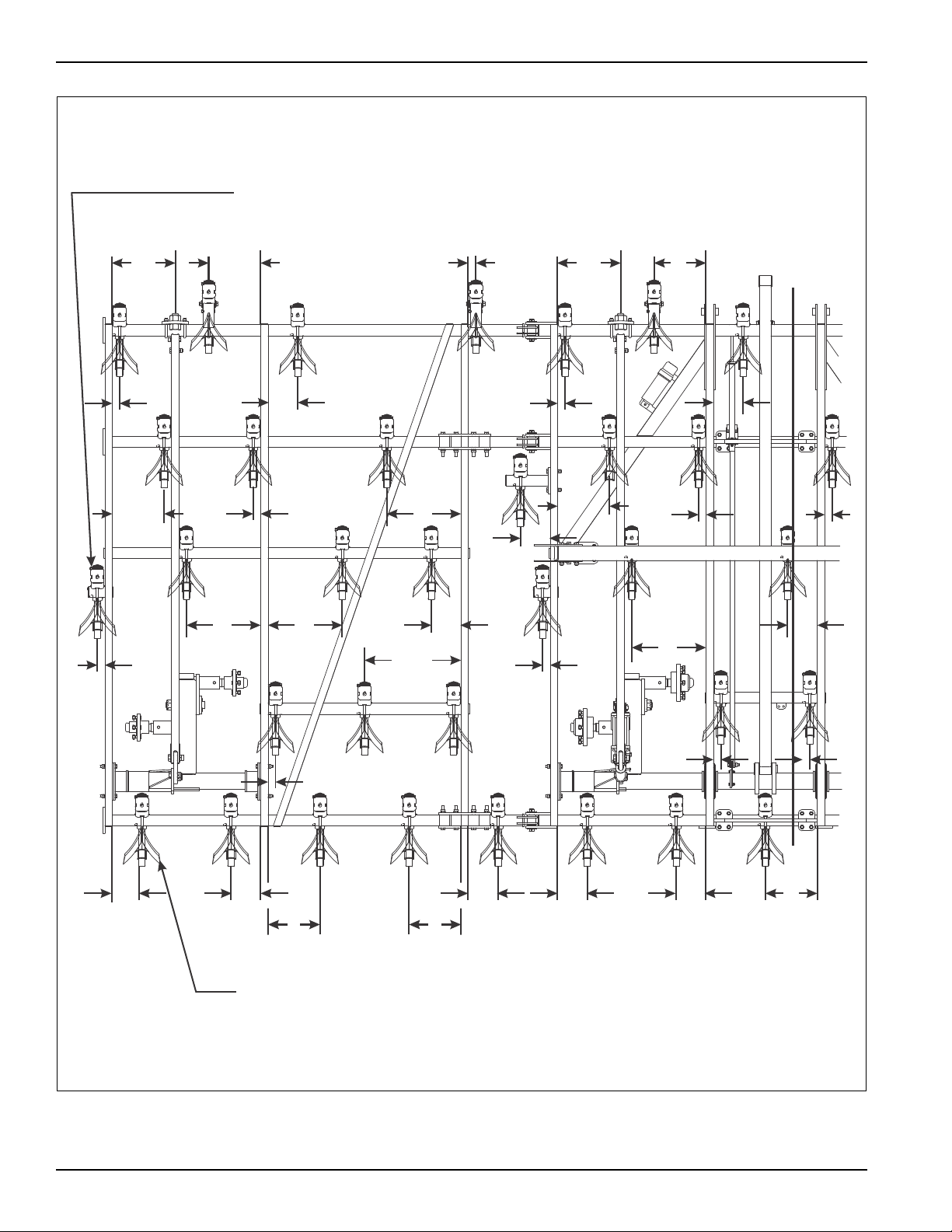

Figure 2-5: Shank Placement (28’ and 30'NC Models)
(Left Half)
8
14
2
8
9630-30ncplace lt half
14
8
8
8
14
2
2
2
2
20 20
26
8
2
8
20
14
20
14
28
1417 21417
2
2
8
8
30’ NC MODEL
28’ MODEL
2
A
A

STANDARD SPECIFICATIONS
2-9
Figure 2-6: Shank Placement (28’ and 30'NC Models)
(Right Half)
8
14
2
8
9630-30ncplace rt half
14
88814
2
22
2
20
20
26
8
2
820
14
20
14
2
8
14
17
214 17
2
2
8
8
30’ NC MODEL
28’ MODEL
A
A

2-10 F-632-1218
STANDARD SPECIFICATIONS

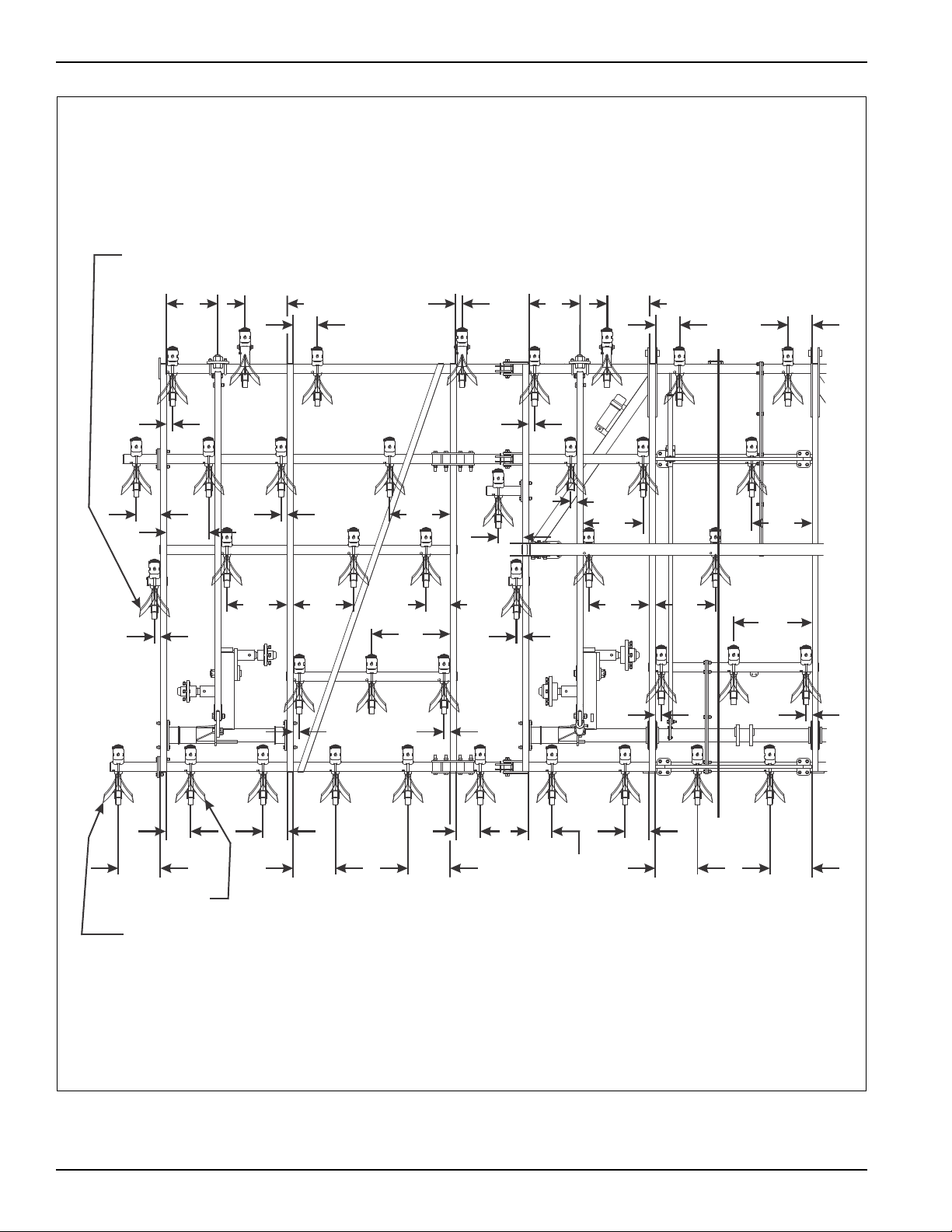

Figure 2-7: Shank Placement (30’, 32’, and 34' Models)
(Left Half)
8
9630-34place lt half
32’ MODEL
30’ MODEL
34’ MODEL
14
8
14
8
14
7-3/4
8
14
14
2 2
26
20 20 8
20
2
14
8
2
2
17 14 817 14
8
2
2
8
2
20
26
2
2
20
2
20
8
20
A
A

STANDARD SPECIFICATIONS
2-11

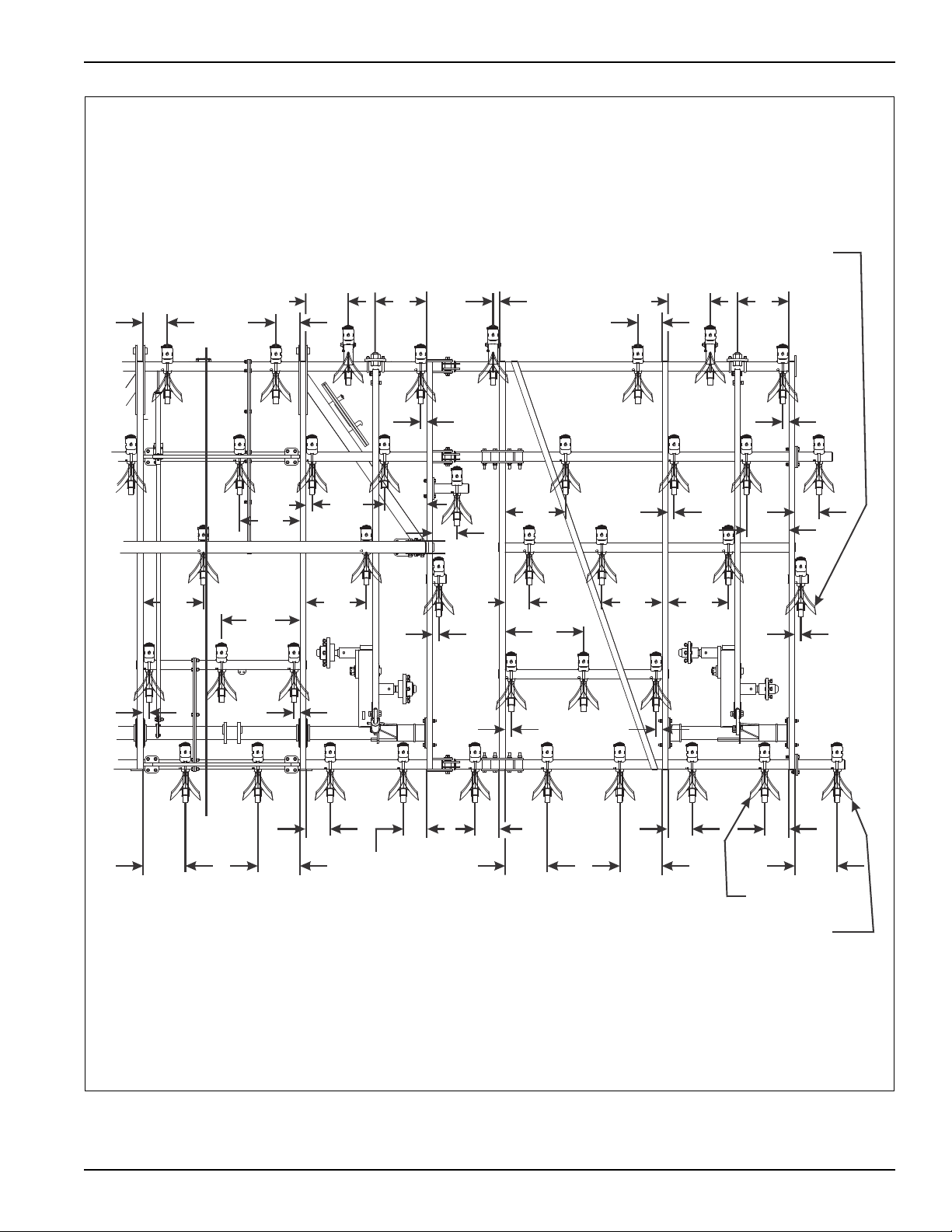

Figure 2-8: Shank Placement (30’, 32’, and 34' Models)
(Right Half)
8
9630-34place rt half
32’ MODEL
30’ MODEL
34’ MODEL
14
8
14
8
14
7-3/4
8
14
14
2
2
26
20
20
8
20
2
14
8
2
2
17
14
8
1714
82
2
8
2
20
26
22
20
214
20 8
A
A

2-12 F-632-1218
STANDARD SPECIFICATIONS

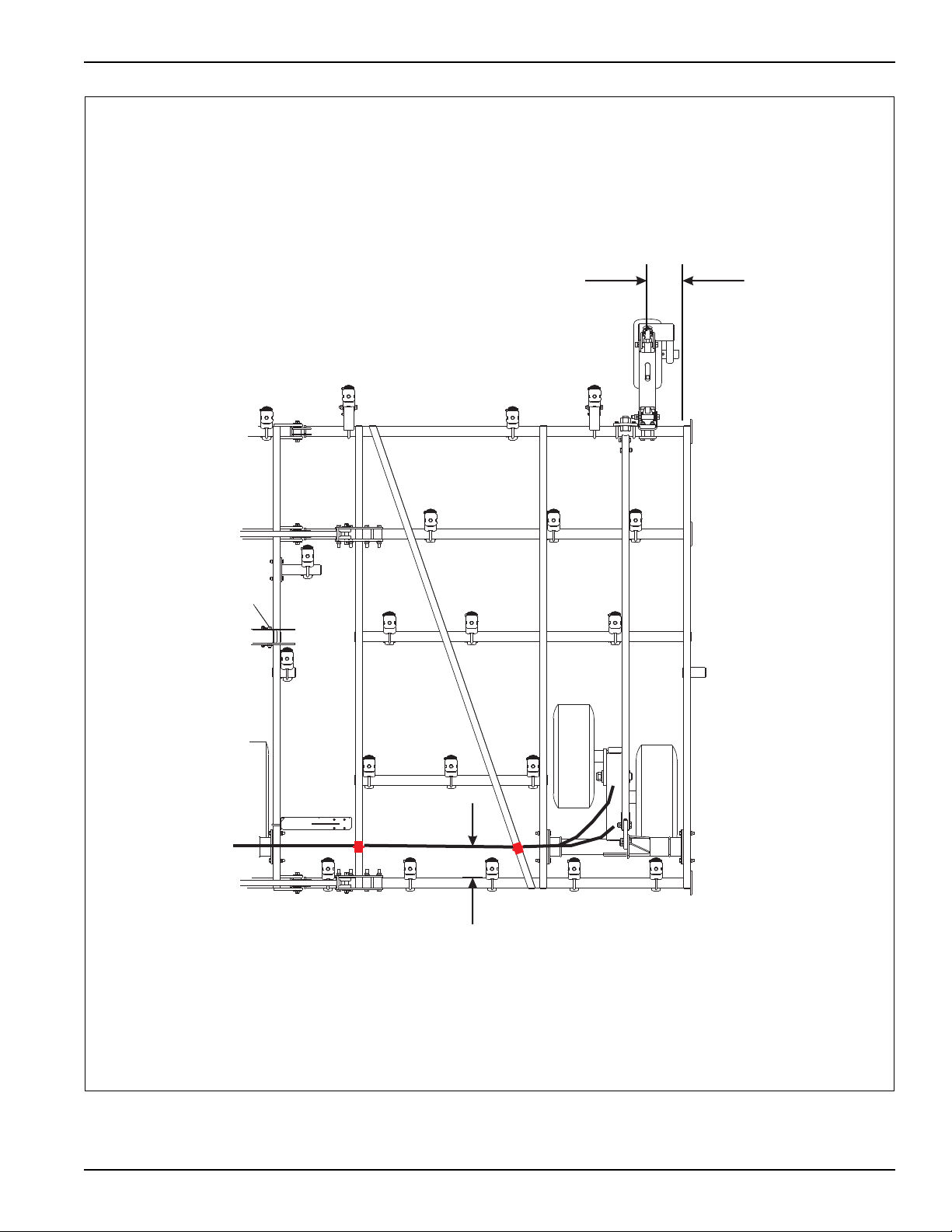

Figure 2-9: Light and SMV Bracket Placement (All Models)
 
 
SODFHPHQW
609%5$&.(7$77$&+(6
72&(17(52))2/'
&</,1'(55($502817
127(5($5)2/'&</,1'(56
12786('21¶¶02'(/6

STANDARD SPECIFICATIONS
2-13
Figure 2-10: Front Gauge Wheel Plaement

IURQWJDXJHZKHHOSODFHPHQW
127(5,*+76,'(6+2:1/()76,'()5217*$8*(
:+((/3/$&(0(1786(66$0(',0(16,216



2-14 F-632-1218
STANDARD SPECIFICATIONS

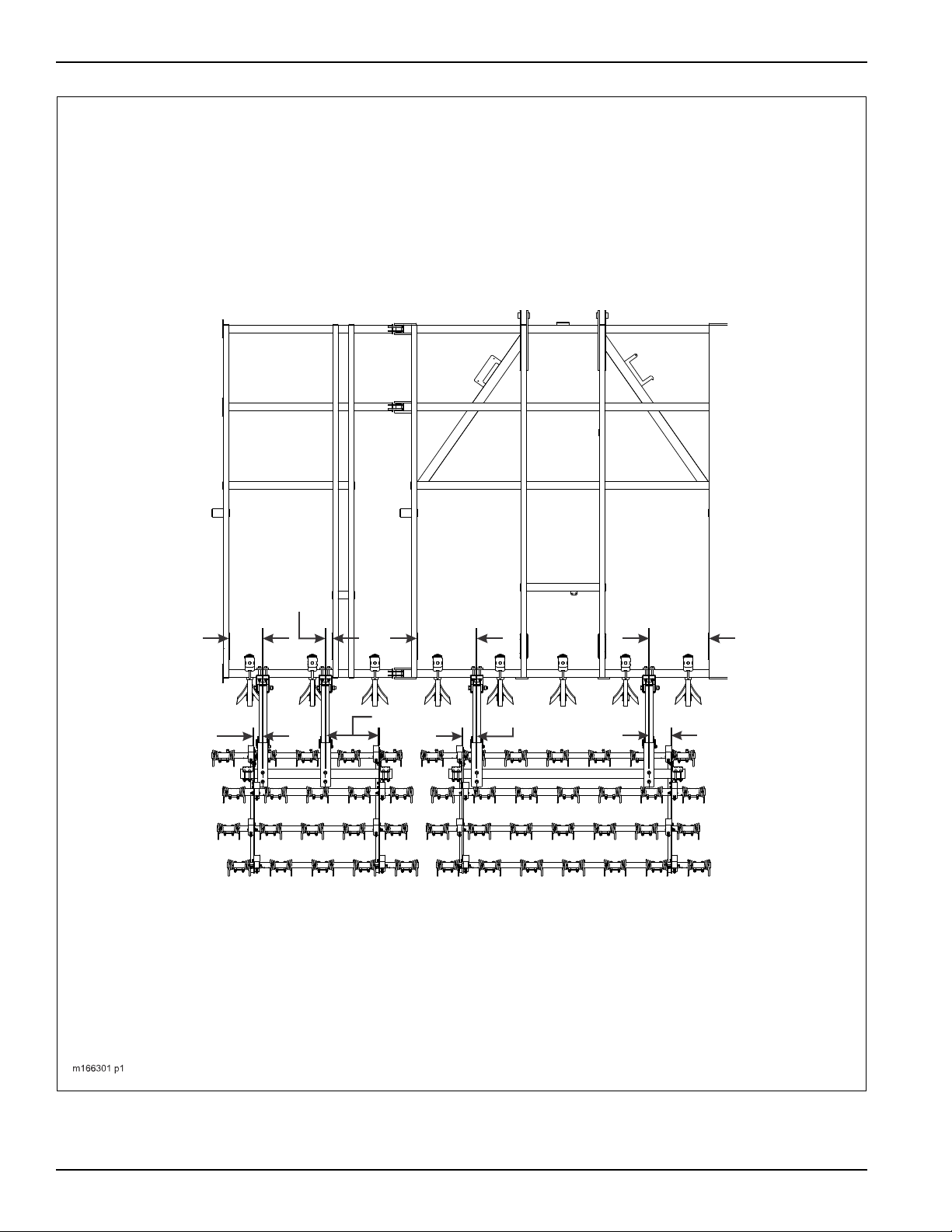

Figure 2-11: 4 Row Coil Tine Harrow Placement (20' Model)
(Left Half)
13
3-1/4
23
20-7/16
8-7/16
5 TINE 8 IN
HARROW ASSEMBLY 7 TINE 8 IN HARROW ASSEMBLY
2-7/8
23
5-1/4
