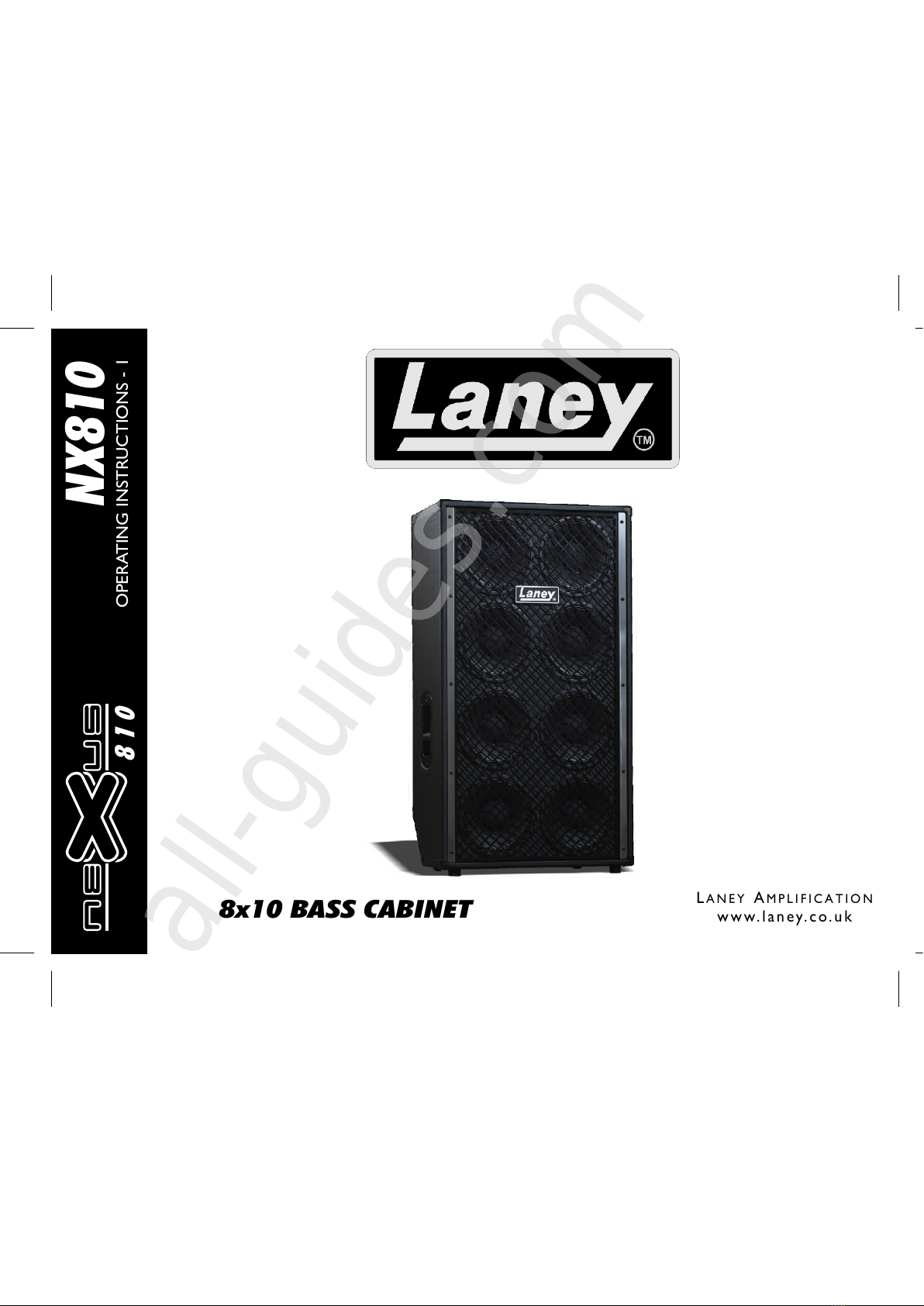

Laney NEXUS 810 User manual

NX810
OPERATING INSTRUCTIONS - 1
LA N E Y A M P L I F I C A T I O N
w w w. l a n e y. c o. u k
8x10 BASS CABINET
08 1
All manuals and user guides at all-guides.com
all-guides.com

INTRODUCTION
The NX810 is an 8 x 10 cabinet developed for the Nexus bass range. Loaded with 8 x 10” Celestion Neodymium drivers this cabinet is
capable of moving a huge amount of air to deliver the equally huge Nexus sound with both power and finesse.
The huge power handling capability of 1600 Watts (4ohms) has the added flexibility to be split into 2 x 800 Watts (each 8ohms).
Construction features a fully-sealed, shelved plywood cabinet with transportation wheels, kick plate, large grip handles and removable kick-
proof front grille, combine this with lightweight speakers and you have an incredibly light and rugged cabinet.
Every Nexus product is extensively play tested by experienced guitarists to ensure it has the tone and durability to perform at the very
highest level, before being shipped to our customers.
Your NX810 should give you years of trouble-free service, however please take time to read this manual, as it will allow you to get the best
from your Bass cabinet.
We hope you enjoy using your NX810 as much as we enjoyed designing and making it.
Best wishes from all at Laney.
Laney
OPERATING INSTRUCTIONS
Dear Player,
Thank you very much for purchasing your new Laney product and becoming part of the worldwide Laney family. Each and every Laney unit
is designed and built with the utmost attention to care and detail, so I trust yours will give you many years of enjoyment.
Laney products have a heritage which stretches back to 1967 when I first began building valve amplifiers in my parent’s garage. Since then
we have moved on from strength to strength developing an extensive range of guitar, bass, public address and keyboard amplification
products along with a list of Laney endorsees that includes some of the world’s most famous and respected musicians. At the same time
we believe we have not lost sight of the reason Laney was founded in the first place - a dedication to building great sounding amplification
for working musicians.
Warm Regards,
Lyndon Laney CEO
Page 2/4
NX810
81 0
All manuals and user guides at all-guides.com

Page3 /4
NX810
81 0

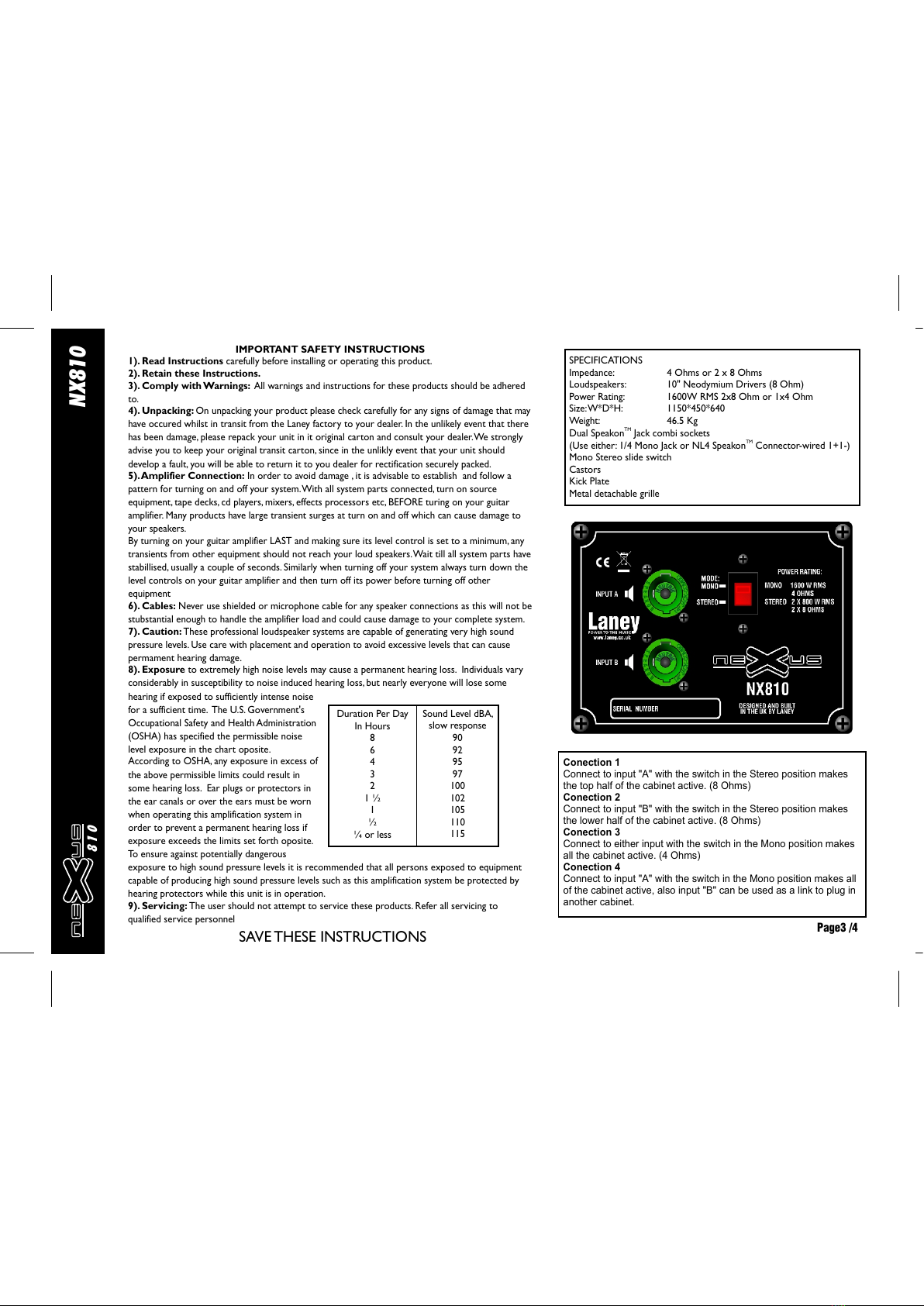

SPECIFICATIONS
Impedance: 4 Ohms or 2 x 8 Ohms
Loudspeakers: 10" Neodymium Drivers (8 Ohm)
Power Rating: 1600W RMS 2x8 Ohm or 1x4 Ohm
Size: W*D*H: 1150*450*640
Weight: 46.5 Kg
TM
Dual Speakon Jack combi sockets
TM
(Use either: 1/4 Mono Jack or NL4 Speakon Connector-wired 1+1-)
Mono Stereo slide switch
Castors
Kick Plate
Metal detachable grille
Duration Per Day
In Hours
8
6
4
3
2
1 ½
1
½
¼ or less
Sound Level dBA,
slow response
90
92
95
97
100
102
105
110
115
IMPORTANT SAFETY INSTRUCTIONS
1). Read Instructions carefully before installing or operating this product.
2). Retain these Instructions.
3). Comply with Warnings: All warnings and instructions for these products should be adhered
to.
4). Unpacking: On unpacking your product please check carefully for any signs of damage that may
have occured whilst in transit from the Laney factory to your dealer. In the unlikely event that there
has been damage, please repack your unit in it original carton and consult your dealer. We strongly
advise you to keep your original transit carton, since in the unlikly event that your unit should
develop a fault, you will be able to return it to you dealer for rectification securely packed.
5). Amplifier Connection: In order to avoid damage , it is advisable to establish and follow a
pattern for turning on and off your system. With all system parts connected, turn on source
equipment, tape decks, cd players, mixers, effects processors etc, BEFORE turing on your guitar
amplifier. Many products have large transient surges at turn on and off which can cause damage to
your speakers.
By turning on your guitar amplifier LAST and making sure its level control is set to a minimum, any
transients from other equipment should not reach your loud speakers. Wait till all system parts have
stabillised, usually a couple of seconds. Similarly when turning off your system always turn down the
level controls on your guitar amplifier and then turn off its power before turning off other
equipment
6). Cables: Never use shielded or microphone cable for any speaker connections as this will not be
stubstantial enough to handle the amplifier load and could cause damage to your complete system.
7). Caution: These professional loudspeaker systems are capable of generating very high sound
pressure levels. Use care with placement and operation to avoid excessive levels that can cause
permament hearing damage.
8). Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary
considerably in susceptibility to noise induced hearing loss, but nearly everyone will lose some
hearing if exposed to sufficiently intense noise
for a sufficient time. The U.S. Government's
Occupational Safety and Health Administration
(OSHA) has specified the permissible noise
level exposure in the chart oposite.
According to OSHA, any exposure in excess of
the above permissible limits could result in
some hearing loss. Ear plugs or protectors in
the ear canals or over the ears must be worn
when operating this amplification system in
order to prevent a permanent hearing loss if
exposure exceeds the limits set forth oposite.
To ensure against potentially dangerous
exposure to high sound pressure levels it is recommended that all persons exposed to equipment
capable of producing high sound pressure levels such as this amplification system be protected by
hearing protectors while this unit is in operation.
9). Servicing: The user should not attempt to service these products. Refer all servicing to
qualified service personnel
SAVE THESE INSTRUCTIONS
Conection 1
Connect to input "A" with the switch in the Stereo position makes
the top half of the cabinet active. (8 Ohms)
Conection 2
Connect to input "B" with the switch in the Stereo position makes
the lower half of the cabinet active. (8 Ohms)
Conection 3
Connect to either input with the switch in the Mono position makes
all the cabinet active. (4 Ohms)
Conection 4
Connect to input "A" with the switch in the Mono position makes all
of the cabinet active, also input "B" can be used as a link to plug in
another cabinet.
All manuals and user guides at all-guides.com

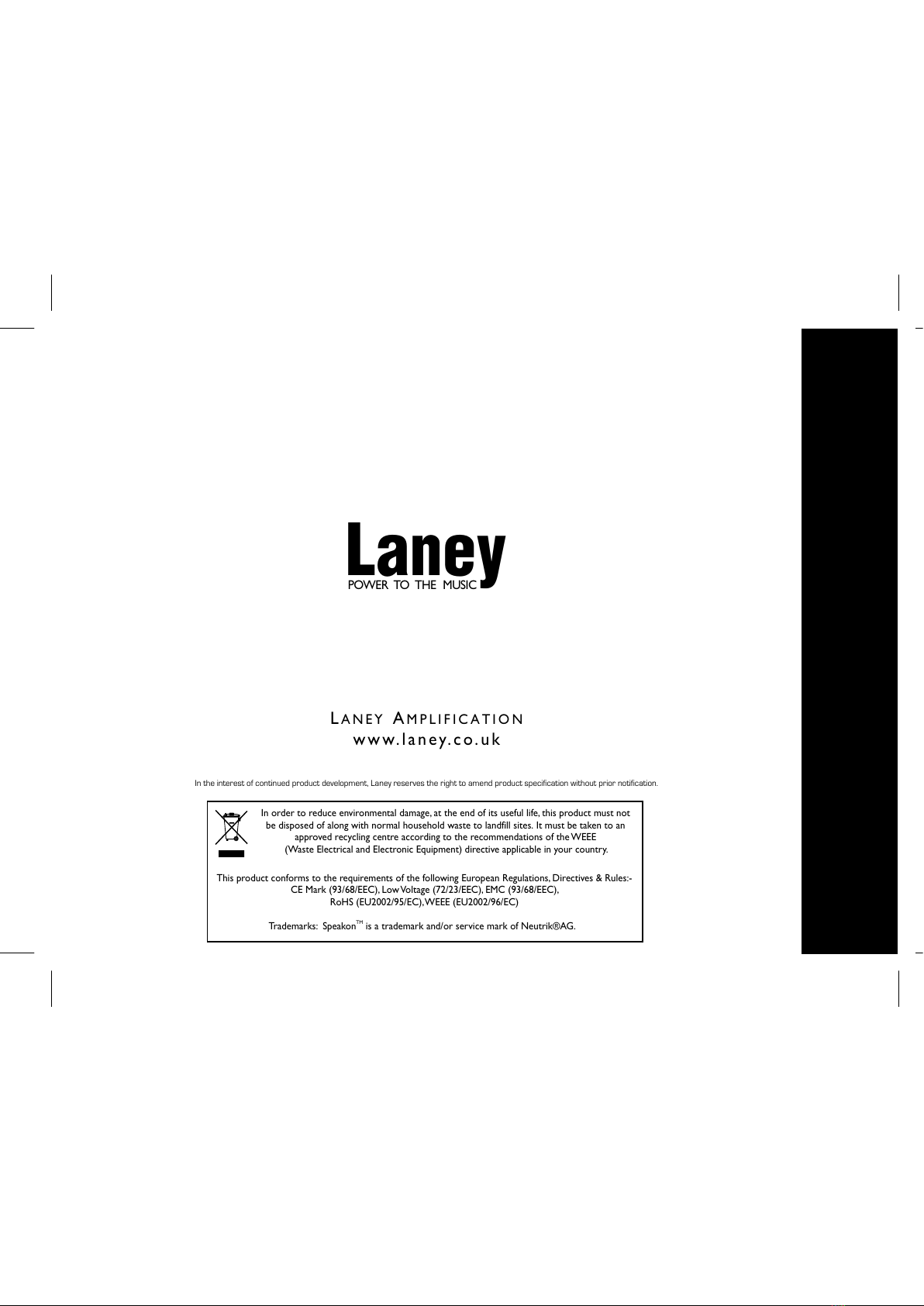

In the interest of continued product development, Laney reserves the right to amend product specification without prior notification.
POWER TO THE MUSIC
Laney
LA N E Y A M P L I F I C A T I O N
w w w. l a n e y. c o . u k
TM
Trademarks: Speakon is a trademark and/or service mark of Neutrik®AG.
This product conforms to the requirements of the following European Regulations, Directives & Rules:-
CE Mark (93/68/EEC), Low Voltage (72/23/EEC), EMC (93/68/EEC),
RoHS (EU2002/95/EC), WEEE (EU2002/96/EC)
In order to reduce environmental damage, at the end of its useful life, this product must not
be disposed of along with normal household waste to landfill sites. It must be taken to an
approved recycling centre according to the recommendations of the WEEE
(Waste Electrical and Electronic Equipment) directive applicable in your country.
