Lanner NCA-6120 User manual

NCA-6120 User Manual
1
NCA-6120
User Manual
Network Appliance Platform

NCA-6120 User Manual
2
This manual describes the overview of the various functionalities of this product, and the information you
need to get it ready for operation. It is intended for those who are:
-responsible for installing, administering and troubleshooting this system or Information Technology
professionals.
-assumed to be qualified in the servicing of computer equipment, such as professional system integrators,
or service personnel and technicians.
The latest version of this document can be found on Lanner’s official website, available either through the
product page or through the Lanner Download Center page with a login account and password.
The icons are used in the manual to serve as an indication of interest topics or important messages. Below
is a description of these icons:
Icon
Usage
This mark indicates that there is something you should pay special
attention to while using the product.
This mark indicates that there is a caution or warning and it is
something that could damage your property or product.
To obtain additional documentation resources and software updates for your system, please visit the Lanner
Download Center. As certain categories of documents are only available to users who are logged in, please
be registered for a Lanner Account at http://www.lannerinc.com/ to access published documents and
downloadable resources.
In addition to contacting your distributor or sales representative, if there are any technical queries, you could
submit a support ticket to our Lanner Technical Support department.
Your feedback is valuable to us, as it will help us continue to provide you with more accurate and relevant
documentation. To provide any feedback, comments or to report an error, please email to
[email protected]m. Thank you for your time.
Note or Information
Warning or Important

NCA-6120 User Manual
3
Taiwan Corporate Headquarters
Lanner Electronics Inc.
7F, No.173, Sec.2, Datong Rd.
Xizhi District, New Taipei City 22184,
Taiwan
立端科技股份有限公司
221 新北市汐止區
大同路二段 173 號7樓
T: [phone]
F: [phone]
E: [email protected]m
China
Beijing L&S Lancom Platform Tech. Co., Ltd.
Guodong LOFT 9 Layer No. 9 Huinan Road,
Huilongguan Town, Changping District, Beijing
102208 China
T: [phone]
F: [phone]
E: [e-mail]
USA
Lanner Electronics Inc.
47790 Westinghouse Drive
Fremont, CA 94539
T: [phone]
F: [phone]
E: [e-mail]
Canada
Lanner Electronics Canada Ltd
3160A Orlando Drive
Mississauga, ON
L4V 1R5 Canada
T: [phone]
F: [phone]
E: [e-mail]
Europe
Lanner Europe B.V.
Wilhelmina van Pruisenweg 104
2595 AN The Hague
The Netherlands
T: [phone]
E: [e-mail]

NCA-6120 User Manual
4
This document is copyrighted © 2022. All rights are reserved. The original manufacturer reserves the right
to make improvements to the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without the prior written permission of the original manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original manufacturer assumes no responsibility for its
use, nor for any infringements upon the rights of third parties that may result from such use.
Intel® and Atom™ are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the U.S.
and/or other countries. Intel® is a trademark of Intel Corporation or its subsidiaries in the U.S. and/or other
countries. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product
names or trademarks are properties of their respective owners.
This product has passed the CE test for environmental specifications. Test conditions for passing included
the equipment being operated within an industrial enclosure. To protect the product from being damaged
by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial
enclosure products.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.

NCA-6120 User Manual
5
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and roll up your
sleeves.
Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before installing or removing a
chassis or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.
Suivez ces consignes pour assurer la sécuritégénérale :
Laissez la zone du châssis propre et sans poussière pendant et après l’installation.
Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis. Attachez votre cravate ou
écharpe et remontez vos manches.
Portez des lunettes de sécurité pour protéger vos yeux.
N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre l’équipement dangereux.
Coupez complètement l’alimentation en éteignant l’alimentation et en débranchant le cordon d’alimentation avant
d’installer ou de retirer un châssis ou de travailler à proximité de sources d’alimentation.
Ne travaillez pas seul si des conditions dangereuses sont présentes.
Ne considérez jamais que l’alimentation est coupée d’un circuit, vérifiez toujours le circuit. Cet appareil génère,
utilise et émet une énergie radiofréquence et, s’il n’est pas installé et utilisé conformément aux instructions des
fournisseurs de composants sans fil, il risque de provoquer des interférences dans les communications radio.
There is risk of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Installation should be conducted only by a trained electrician or only by an electrically trained person who knows
all installation procedures and device specifications which are to be applied.
Do not carry the handle of power supplies when moving to another place.
Please conform to your local laws and regulations regarding safe disposal of lithium battery.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an
explosion.
Leaving a battery in an extremely high temperature environment can result in an explosion or the leakage of
flammable liquid or gas.
A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or
gas.
Risque d’explosion si la pile est remplacée par une autre d’un mauvais type.
Jetez les piles usagées conformément aux instructions.
L’installation doit être effectuée par un électricien formé ou une personne formée à l’électricité connaissant toutes
les spécifications d’installation et d’appareil du produit.
Ne transportez pas l’unité en la tenant par le câble d’alimentation lorsque vous déplacez l’appareil.
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment to
acceptable operating temperatures without adequate circulation. Be sure that the room in which you choose to
operate your system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively. An open
chassis permits air leaks, which may interrupt and redirect the flow of cooling air from internal components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when
electronic components are improperly handled and can result in complete or intermittent failures. Be sure to follow
ESD-prevention procedures when removing and replacing components to avoid these problems.

NCA-6120 User Manual
6
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is available, ground
yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1 and 10 megohms
(Mohms).
L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être adéquate pour refroidir
l’équipement à une température de fonctionnement acceptable sans circulation adaptée. Vérifiez que votre site
propose une circulation d’air adéquate.
Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de refroidissement de bien
circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut interrompre et rediriger le flux d’air frais destiné aux
composants internes.
Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les circuits électriques. Des
dégâts d’ESD surviennent lorsque des composants électroniques sont mal manipulés et peuvent causer des pannes
totales ou intermittentes. Suivez les procédures de prévention d’ESD lors du retrait et du remplacement de
composants.
Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est disponible,
reliez votre corps àla terre en touchant la partie métallique du châssis.
Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise entre 1 et 10
mégohms (Mohms).
Mounting Installation Precautions
The following should be put into consideration for rack-mount or similar mounting installations:
Do not install and/or operate this unit in any place that flammable objects are stored or used in.
The installation of this product must be performed by trained specialists; otherwise, a non-specialist might create
the risk of the system’s falling to the ground or other damages.
Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for supporting the
system or use of inappropriate installation components.
Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given
to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified
by the manufacturer.
Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of airflow required for
safe operation of the equipment is not compromised.
Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not
achieved due to uneven mechanical loading.
Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and
the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing this concern.
Reliable Grounding - Reliable grounding of rack mounted equipment should be maintained. Particular attention
should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).
Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National Electrical
Code and NFPA 75.
The machine can only be used in a restricted access location and must be installed by a skilled person.
Warning
Class I Equipment. This equipment must be earthed. The power plug must be connected to a properly wired earth
ground socket outlet. An improperly wired socket outlet could place hazardous voltages on accessible metal parts.
“Product shall be used with Class 1 laser device modules.”
Avertissement
Équipement de classe I. Ce matériel doit être relié à la terre. La fiche d’alimentation doit être raccordée à une prise de
terre correctement câblée. Une prise de courant mal câblée pourrait induire des tensions dangereuses sur des parties
métalliques accessibles.
“Le produit doit être utilisé avec des modules de dispositifs laser de classe 1.”

NCA-6120 User Manual
7
Before turning on the device, ground the grounding cable of the equipment. Proper grounding (grounding) is very
important to protect the equipment against the harmful effects of external noise and to reduce the risk of electrocution
in the event of a lightning strike. To uninstall the equipment, disconnect the ground wire after turning off the power. A
ground wire (green-and-yellow) is required and the part connecting the conductor must be greater than 4 mm2 or 10
AWG.
Avant d’allumer l’appareil, reliez le câble de mise à la terre de l’équipement à la terre.
Une bonne mise à la terre (connexion à la terre) est très importante pour protéger l’équipement contre les effets
néfastes du bruit externe et réduire les risques d’électrocution en cas de foudre.
Pour désinstaller l’équipement, débranchez le câble de mise à la terre après avoir éteint l’appareil.
Un câble de mise à la terre est requis et la zone reliant les sections du conducteur doit faire plus de 4 mm2 ou 10
AWG.
Connect the grounding cable to the ground.
The protection device for the DC power source must provide 10A current.
This protection device must be connected to the power source before DC power.
Branchez le câble de mise àla terre àla terre.
L’appareil de protection pour la source d’alimentation CC doit fournir 10A de courant.
Cet appareil de protection doit être branché à la source d’alimentation avant
l’alimentation CC.

NCA-6120 User Manual
8
Main Features.............................................................................................................................10
Package Content.........................................................................................................................10
Ordering Information .................................................................................................................10
Optional Accessories ..................................................................................................................11
System Specifications.................................................................................................................12
Front Panel .................................................................................................................................13
Rear Panel...................................................................................................................................14
Motherboard Information..........................................................................................................15
Opening the Chassis ...................................................................................................................24
Installing the CPU .......................................................................................................................25
Installing the System Memory....................................................................................................28
Installing the Disk Drive(s)..........................................................................................................30
Installing the NIC Modules .........................................................................................................32
Replacing the Cooling Fans.........................................................................................................34
Installing the AC Power Supply...................................................................................................35
Mounting the System .................................................................................................................36
BIOS Setup..................................................................................................................................42
Main Page...................................................................................................................................43
Advanced Page ...........................................................................................................................44
Chipset........................................................................................................................................74
Security.......................................................................................................................................76

NCA-6120 User Manual
9
Boot Menu..................................................................................................................................79
Save and Exit Menu ....................................................................................................................80
Event Logs...................................................................................................................................82
Warranty Policy ..........................................................................................................................88

NCA-6120 User Manual
10
The NCA-6120, a high-performance 2U rackmount network security appliance, is powered by the AMD
EPYC™7000 Series CPUs (Rome/Milan) and delivers up to 40Gbps encryption/decryption security
acceleration for application delivery, MEC, WAN optimization, DPI/IPS/IDS, NFV/SDN and NGFW/UTM.
AMD EPYC™ 7000 Series, w/ Support for Milan & Rome
16x 288-pin DIMM, Max. 1024GB DDR4 3200MHz ECC R-DIMM
1x GbE RJ45 Intel® i210, 1x RJ45 Console, Max. 8x NIC Slots
Max. 4x 3.5” or 2.5” Swappable Bays
2x PCIe*8 FHHL or 1x PCIe*16 FHFL
Your package contains the following items:
1x NCA-6120 Network Security Platform
2x Power cable (Default US Type)
1x Short Ear Rack mount kit with screws
1x Console cable (RJ45)
1x LAN cable (Grey)
1x LAN cable (Red)
SKU No.
Main Features
NCA-6120A
AMD EYPC 7000 Series, Up to 64C128T, 2x GbE RJ45, 4x 2.5”/ 3.5”SSD/HDD, 4x NIC Module Slots.
NCA-6120B
AMD EYPC 7000 Series, Up to 64C128T, 2x GbE RJ45, 2x 2.5”/3.5”SSD/HDD, 8x NIC Module Slots.
Note: If you should find any components missing or damaged, please contact your dealer for assistance.

NCA-6120 User Manual
11
Slim Type NIC Module
Module
Ports
Connector
Speed
Chipset
PCIe
Interface
LAN Bypass
NCS2-IGM428A
4 RJ-45
1Gb
Intel i350AM-4
Gen2
G3
NCS2-IGM806A
8 RJ-45
1Gb
Intel i350AM-4
Gen2
G3
NCS2-ISM405A
4 SFP
1Gb
Intel i350AM-4
Gen2
G3
NCS2-ISM406A
4 SFP
1Gb
Intel i350AM-4
Gen2
N/A
NCS2-ISM802A
8 SFP
1Gb
Intel i350AM-4
Gen2
N/A
NCS2-IMM802A
4+4 SFP + RJ-45
1Gb
Intel i350AM-4
Gen2
N/A
NCS2-IXM407A
4 SFP+
10Gb
Intel XL710-BM1
Gen3
N/A
NCS2-IXM801A
8 SFP+
10Gb
Intel XL710-BM1
Gen3
N/A
NCS2-IXM803A
8 SFP+
10Gb
Intel E810-CAM2
Gen4
N/A
NCS2-IXM409A
4 SFP+
10Gb
Intel XL710-BM1
Gen3
G3
NCS2-ITM401A
4 RJ-45
10Gb
Intel XL710-BM1
Gen3
N/A
NCS2-IXM206A
2 SFP+
10Gb
Intel X710-BM2
Gen3
N/A
NCS2-IXM415A
4 SFP28
25Gb
Intel E810-CAM1
Gen4
N/A
NCS2-IVM201A
2 SFP28
25Gb
Intel XXV710-AM2
Gen3
N/A
NCS2-IQM201A
2 QSFP+
40Gb
Intel XL710-BM2
Gen3
N/A
N2S-IHM203A
2 QSFP28
100Gb
Intel E810-CAM2
Gen4
N/A
NCS2-IHM204A
2 QSFP28
100Gb
Intel E810-CAM2
Gen4
N/A
N2S-MHM203A
2 QSFP28
100Gb
Mellanox connectX VI
Gen4
N/A
Additional Optional Accessories Kits
Model No.
Description
IAC-TPM01C
TPM 2.0 Module
IAC-AST2500B
IPMI Module
0P1W000164000
DC 900W Redundant Power Supply Kit
PSF6407-010
2U Slide Rackmount Rail Kit
Note: We recommended to use Lanner Slim type NIC modules on this system; please consult Lanner
for product compatibility if you consider adopting modules manufactured by other vendors.

12
Form Factor
2U 19“Rackmount
Platform
Processor Options
AMD EPYC™7000 Series 64C128T
CPU Socket
SP3
Security Acceleration
40Gbps Encryption + 40Gbps Decryption
BIOS
AMI SPI Flash BIOS
System Memory
Technology
DDR4 3200MHz ECC REG DIMM
Max. Capacity
1024GB
Socket
16x 288-pin DIMM
Networking
Ethernet Ports (By SKU)
1x GbE RJ45 Intel® i210
Bypass
N/A
NIC Module Slot
A SKU: 4x NIC Module Slot
B SKU: 8x NIC Module Slot
LOM
IO Interface
1x RJ45
OPMA slot
Yes
I/O Interface
Reset Button
1x Reset Button
LED Indicator
Power/Status/Storage, pls refer to Appendix A
Power Button
1x ATX Power Switch
Console Port
1x RJ45 Console Port
USB Port
2x USB 3.0 Ports
Display Port
1x VGA Port (Optional)
Power Input
AC Power Inlet on PSU
Storage
HDD/SSD Support
SKU A: 4x 3.5” / 2.5” Swappable Bays
SKU B: 2x 3.5” / 2.5” Swappable Bays
Onboard Slots
1x M.2 (SATA/PCIe) 2280 B-Key
Expansion
PCIe
2x PCIe*8 FHHL or 1x PCIe*16 FHFL (Optional)
Miscellaneous
Watchdog
Yes
Internal RTC with Li Battery
Yes
TPM
Yes (Optional)
Cooling
Processor
Passive CPU heat sink
System
4x Individual Hot-Swappable Cooling Fans
Environmental Parameters
Temperature
0~40ºC Operating
-20~70ºC Non-Operating
Humidity (RH)
5~90% Operating
5~95% Non-Operating
System Dimensions
(WxDxH)
438 x 600 x 88 mm
Weight
24 kg
Package Dimensions
(WxDxH)
825 x 600 x 270 mm
Weight
26 kg
Power
Type/Watts
850W 1+1 ATX Redundant PSUs
Input
AC 100~240V @47~63 Hz
Approvals and Compliance
RoHS, CE/FCC, UL

NCA-6120 User Manual
13
NCA-6120A
NCA-6120B
No.
Description
F1
Reset Button
1x Reset Button
(Press Once for Software Reset; Press Twice for Hardware Reset)
F2
LED Indicators
F3
USB Port
2x USB 3.0 Ports
F4
Management Port
1x RJ45 Management (LOM) Port
F5
Console Port
1x RJ45 Console Port
F6
NIC Module Slots
SKU A: 4x NCS2 NIC Module Slots
SKU B: 8x NCS2 NIC Module Slots
F7
HDD Tray
SKU A: 4x 3.5”/2.5” HDD/SSD Trays
SKU B: 2x 3.5”/2.5” HDD/SSD Trays
HDD 1 HDD 2 HDD 3 HDD 4
F6
F4
F5
F3
F1
F2
F7
HDD 1
HDD 2
F4
F5
F3
F1
F2
F7
F6
System Power
System Status
HDD Activity

NCA-6120 User Manual
14
No.
Description
R1
Rear PCIe Expansion
1x PCIe expansion slot (Optional)
R2
Power Switch
1x Power Button
-Short press to power off the system;
-Long press (> 4sec) to force the system to shut down
-Short press twice to have GPIO select NMI EVENT
R3
Alarm off Button
An audible alarm will sound when the system’s redundant
power is missing. Press this button to turn the alarm off.
R4
Fans
4x Independent Swappable Fans
R5
Power Supply
2x 850W Redundant (N+1 Design)
R4
R2
R3
R1
R5

NCA-6120 User Manual
15

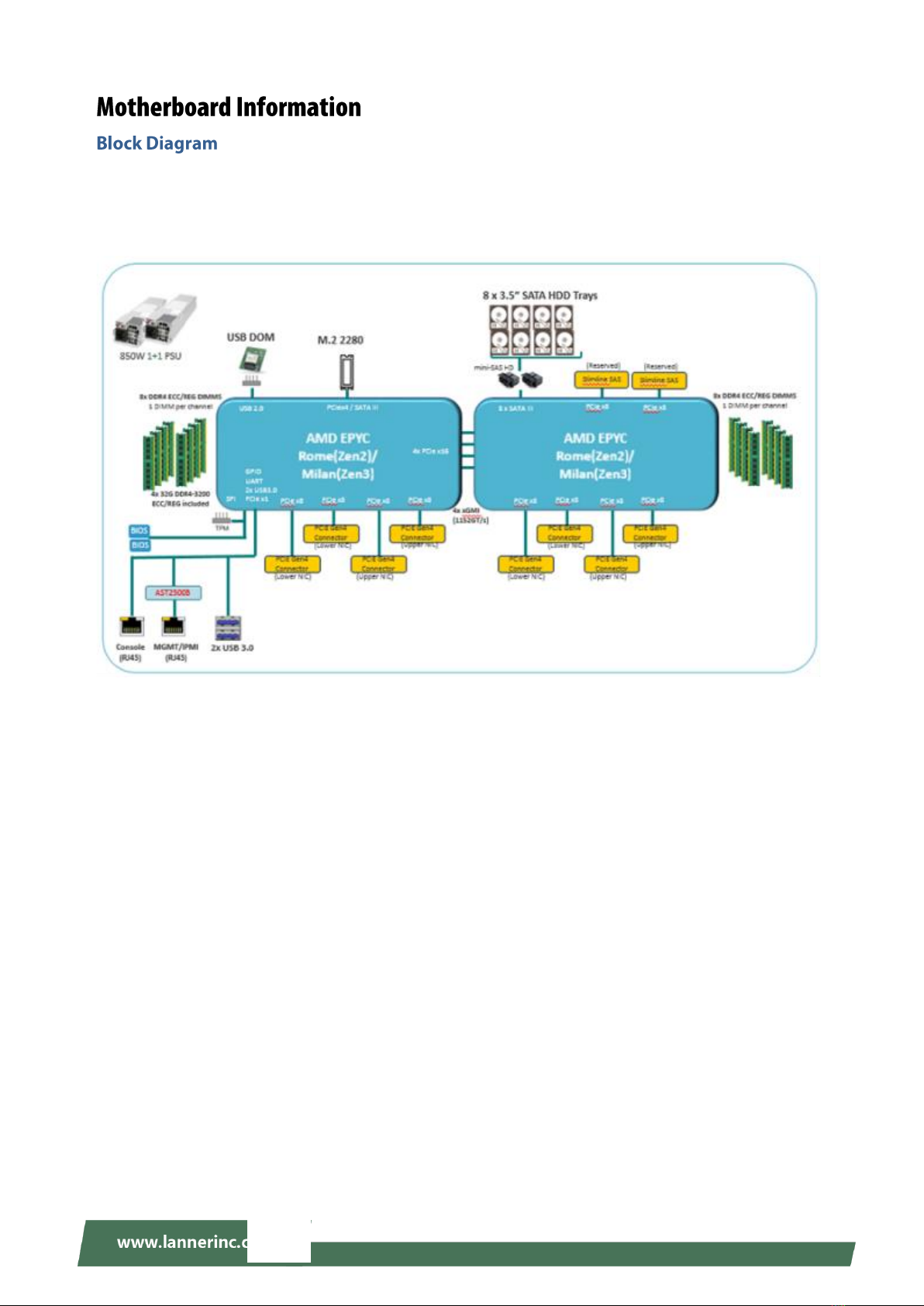

The block diagram indicates how data flows among components on the motherboard. Please refer to the
following figure for your motherboard’s layout design.

NCA-6120 User Manual
16
The IO board layout shows the connectors and jumpers on the board. Refer to the below picture as a
reference of the pin assignments and the internal connectors.

NCA-6120 User Manual
17
The pin headers on the motherboard are often associated with important functions. With the shunt (Jumper)
pushed down on the designated pins (the pin numbers are printed on the circuit board, surrounding the pin
header), certain feature can be enabled or disabled. While changing the jumpers, make sure your system is
turned off.
Jumper Setting
To short the designated pins, push the jumper down on them so that they become SHORT. To make the
pins setting OPEN, simply remove the jumper cap.
2-pin Header
3-pin Header
4-pin Header
Open Short
Open (1-2) Jumped
Open (1-2) Jumped
JIOB1: IO Board Connector
OPMA1: IPMI Card Connector
1
2
1
2
3
4
1
3
2

NCA-6120 User Manual
18

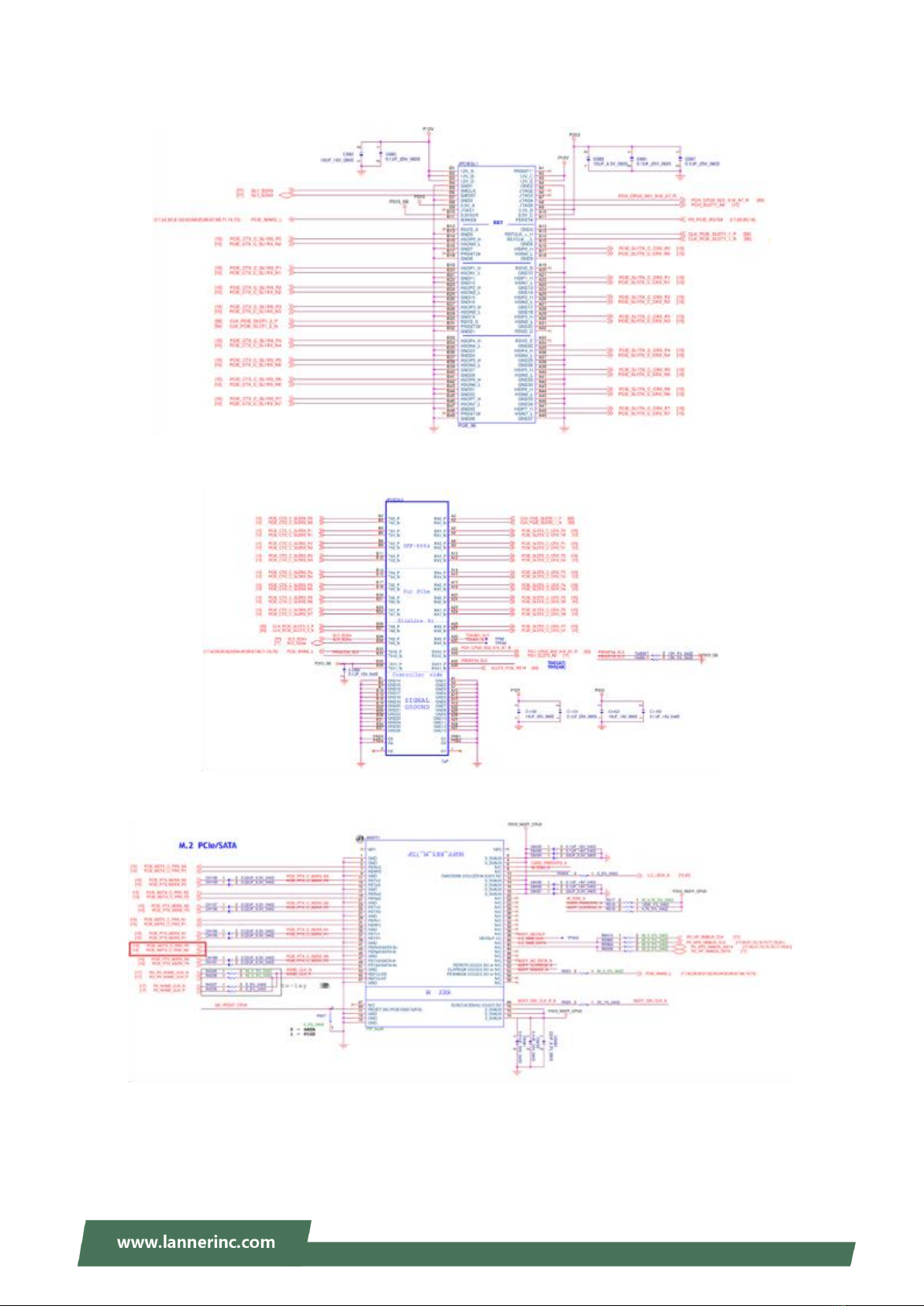

JPCIESL1~4: PCIe Slot
JPCIESL5~10: PCIe SlimSAS Cable Connector
JNGFF1: M.2 PCIe/SATA Connector

NCA-6120 User Manual
19

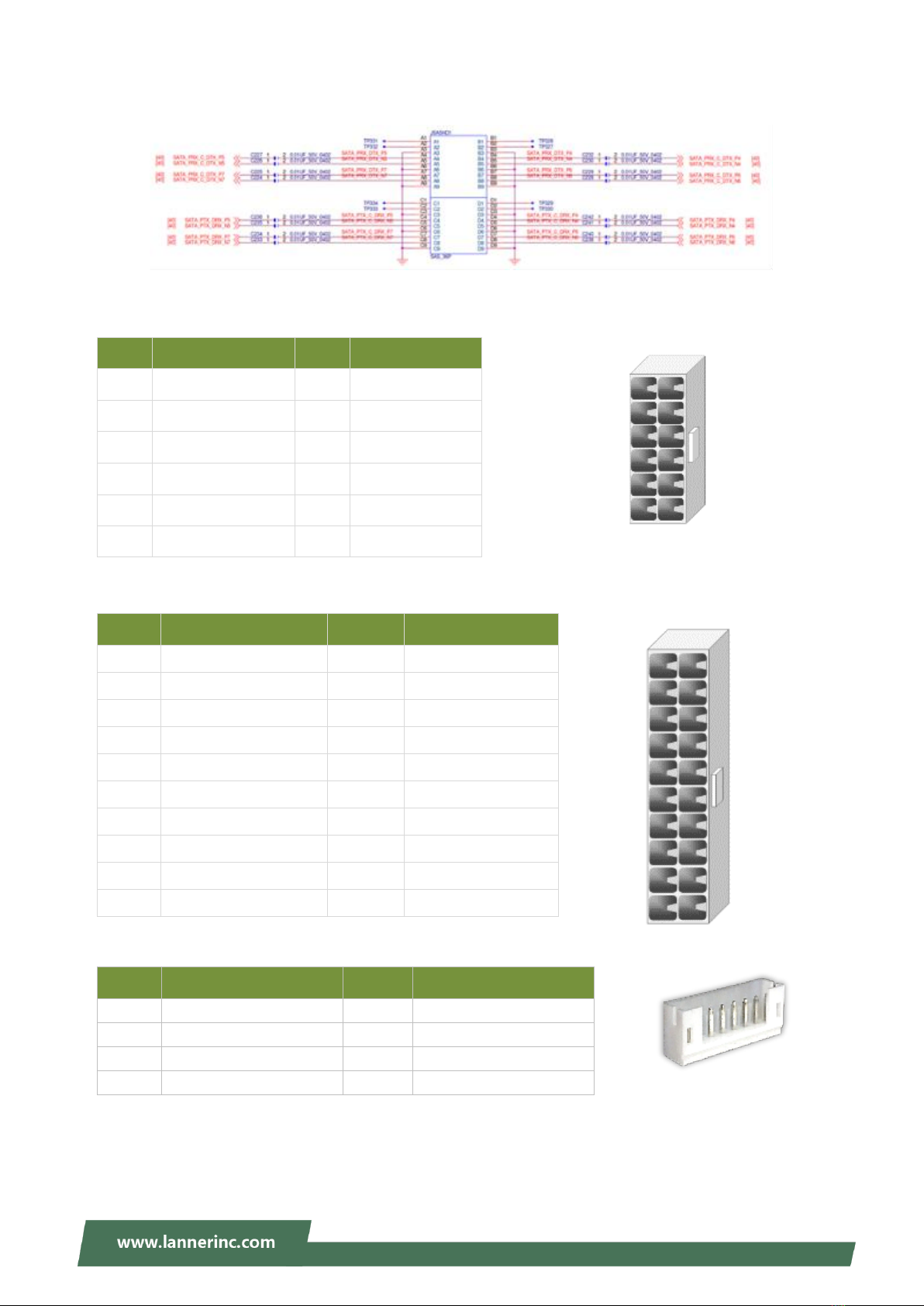

JSASHD1: SASHD Connector
ATX1: 12 Pin Power Connector
PIN
Description
PIN
Description
1
GND
2
P12V
3
GND
4
P12V
5
GND
6
P5V
7
GND
8
P3V3
9
GND
10
P3V3
11
GND
12
P12V_SB
ATX2: 20-Pin Power Connector
PIN
Description
PIN
Description
1
GND
2
P3V3
3
GND
4
GND
5
GND
6
GND
7
GND
8
GND
9
GND
10
GND
11
P12V
12
P12V
13
P12V
14
P12V
15
P12V
16
P12V
17
P12V
18
P12V
19
P12V
20
P12V
JPMB1：PMBUS Connector
PIN
Description
PIN
Description
1
NC
2
NC
3
ATX_PSON#
4
GND
5
ATXPWGD
6
PMBUS_CLK_PSU_R
7
PMBUS_DAT_PSU_R
8
PMBUS_ALERT#_R
2
1
20
19
12
11
1
2
1
8

NCA-6120 User Manual
20
JSATA1 ~ JSATA4：SATA Connector
PIN
Description
1
GND
2
TX_P
3
TX_N
4
GND
5
RX_N
6
RX_P
7
GND
JFAN1 ~ 4: Fan Connector
PIN
Description
1
GND
2
P12V
3
RPM Sense
4
RPM Sense
5
PWM
DC1: SATA Power Connector
PIN
Description
1
P12V
2
P5V
3
P3V3
4
GND
JATX1~6: 4-Pin PCIe Power Connector
PIN
Description
PIN
Description
1
GND
2
GND
3
P3V3
4
P12V
JUSB1: USB 2.0 Function
PIN
Description
PIN
Description
1
P5V_USB1
2
--
3
USB20_L_N3
4
--
5
USB20_L_P3
6
--
7
USBGND1
8
--
9
NC
10
--
1
2
3
4
5
6
7
1
2
3
4
5
8
1
2
9
