User's Manual | Digital Comparison Microscope BD1601
To avoid danger or damage incurred to the lens, do not touch the lens or sensor directly with your
fingers.
Chapter 1 Notes and Safety Requirements
1.1 Cautions and Notes
To avoid failure or electric shock hazard and so on, do not disassemble or modify the internal
structure of the device.
Do not plug in or unplug the Power connection port when hands are wet.
Do not use alcohol and other organic solvents to clean.
If the lens or sensor is dirty or damp, you should better use dry and non-linen fabric or professional
lens tissue to wipe them. To avoid scratches on the surface, do not touch the lens with your fingers.
Wipe the lens or sensor lightly.
The products are not specifically designed for an outdoor use. Do not expose it to outdoor
environment without any protection. Excessive temperature and humidity will damage the lens.
Please avoid using the product under the following environment: high temperature or high humidity
environment, places with direct sunlight, dirt or vibration and places near heat source.
Please use and store in the following environment:
Operating temperature ： 0℃~ 40℃
Storage temperature ： -20℃~ 60℃
Operating Humidity ： 30~60%RH
Storage Humidity ： 10~80%RH
If any foreign matter, water or liquid enter into the device by accident, disconnect the Power line
immediately. Please send it to the maintenance center and do not use the hair dryer to dry it by
yourself.
To prevent microscope from being tripped over or dropped, please put away the device’s connect
cable in use or standby.
To avoid electric shock by accident, please power off microscope before you move your computer or
laptop.
The cleanliness of the device lens will directly affect clarity degree of contents from the computer
screen during preview. Problems like various circles or spots on the screen may mostly be incurred
by dirt on the lens. When cleaning, please use professional lens tissue or other professional detergent
to clear the dirt on the lens.
Registered trademark and copyright: Copyright ownership of this produc belongs to Lanoptik
Technologies Ltd. Without written authorization of this company, any organizations or individuals
shall not photocopy, print, or translation to another language to any part of this document.
www.lanoptik.com
- 1 -

Chapter 2 Software System Requirements
User's Manual | CA800 Series Embedded Camera
Windows 7 (64bit), Windows 8 (64bit), Windows 8.1 (64bit), Windows 10 (64bit) , Windows 11 (64bit)
Dual core 3GHz or higher CPU
100Mbps / 1000Mbps network interface
8G or more memory
DVD-ROM driver (only needed when installing software)
www.lanoptik.com
- 2 -

www.lanoptik.com
- 3 -
Quick-mount rail x2
Microscope body
AC/DC power adapter
Clamp holder x2
Chapter 3 Packing List
Rotatable ball head x2
Object distance
extension ring x2
Hand screw x8 CableInstallation tools
Stage clip x2
User's Manual | Digital Comparison Microscope BD1601

www.lanoptik.com
- 4 -
① Camera
② Movable hand wheel
③ Lens
④ Main light
⑤ Clamp holder
⑥ Rotatable ball head
⑦ Adjustable stage
⑧ Lifting hand wheel
⑨ Side light
⑩ Ports and Indicator lights
4.1 Product schematic and part name
Chapter 4 Introduction of Each Part
User's Manual | Digital Comparison Microscope BD1601

www.lanoptik.com
- 5 -
⑪ Signal indicator
：
Blue light flashing, output signal.
⑫ Power switch
：
Turn right (ON), turn on the camera; turn left (OFF), turn off the
camera.
⑬ Power indicator
：
Light does not shine, abnormal power supply; red Indicator light stays
ON, camera is off; green Indicator light stays ON, camera is on.
⑭ Network cable interface
：
Connect to the CAM interface on the bracket of main body through
the network cable to realize DC 12V power supply, network 100Mbsp.
4.2.2 Movable Hand Wheel
4.2 Product parts introduction
4.2.1 Camera
Rotate clockwise, the lens moves outward; counterclockwise rotation, the lens moves inward; Travel is
80mm, each turn of the hand wheel moves 1.5mm.
User's Manual | Digital Comparison Microscope BD1601

www.lanoptik.com
- 6 -

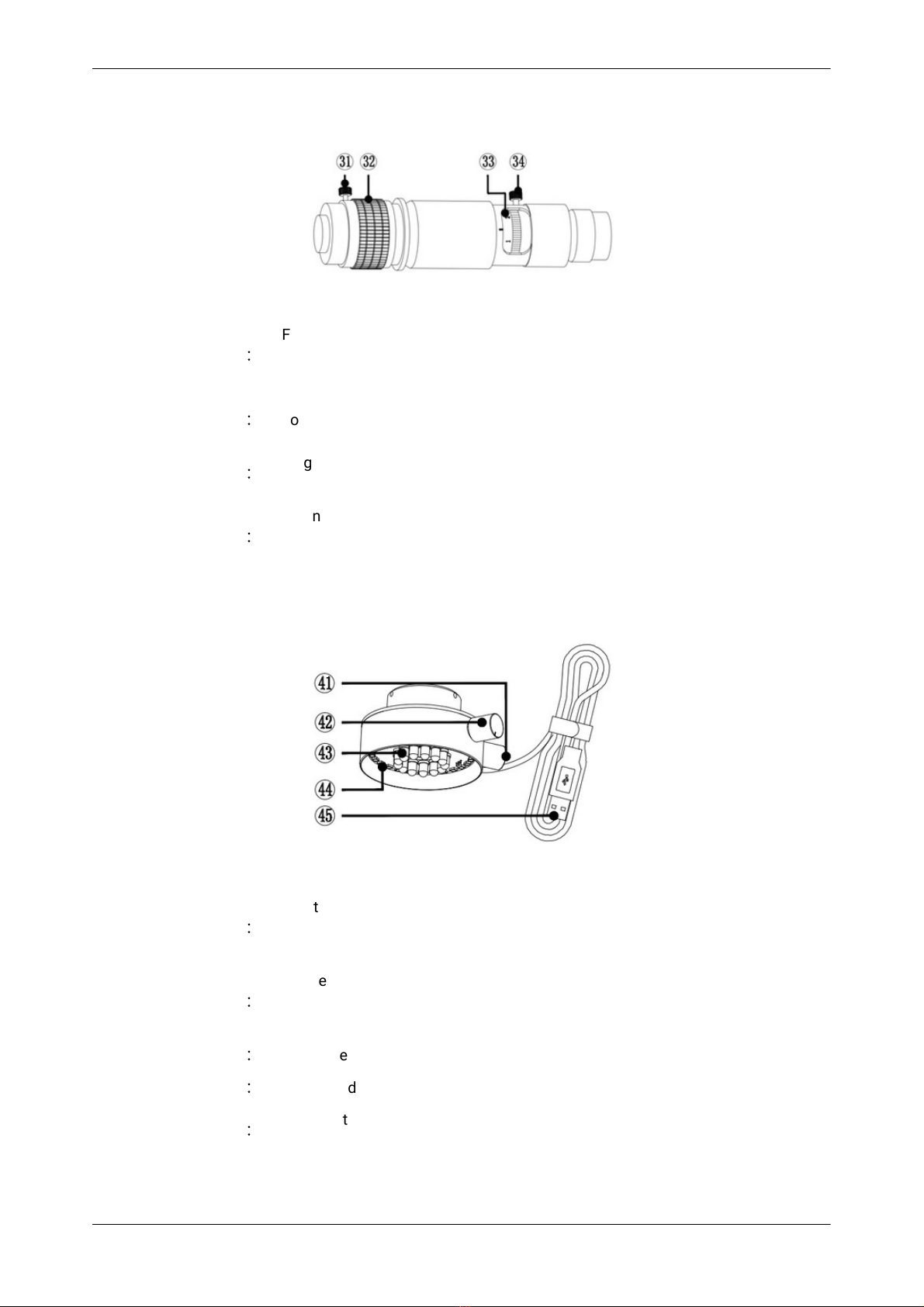

4.2.3 Lens
31. Focal length
fixing screw
：
Focal length fixing screw: After loosening, turn the Focal length adjustment ring
to adjust the focus; after tightening, fix the magnification at the current
position.
32. Focal length
adjustment ring
：
Focal length adjustment ring: Turn this ring to fine focus the lens.
33. Magnification
adjustment ring
：
Magnification adjustment ring: continuous zoom, turn to the corresponding
position, you can get the corresponding magnification.
34. Magnification
fixing screw
：
Magnification fixing screw: After loosening, the magnification adjustment ring
can be rotated to adjust the magnification; after tightening, the current
magnification can be fixed.
4.2.4 Main Light
41. Coaxial light
control knob
：
Rotate clockwise to turn on the coaxial light, the brightness of the lamp is
enhanced; counterclockwise rotation, the brightness of the lamp is weakened,
and the coaxial light is turned off.
42. Diffuse light
control knob
：
Rotate clockwise to turn on the diffuse light, the brightness of the lamp is
enhanced; counterclockwise rotation, the brightness of the lamp is weakened,
and the diffuse light is turned off.
43. Coaxial light
：
Composed of 13 small angle high-brightness lamp beads.
44. Diffuse light
：
Composed of 40 large angle bright white LED.
45. USB cable
：
Connect to the "5V 1A OUT" interface on the Bracket of main body to achieve
power supply.
User's Manual | Digital Comparison Microscope BD1601

www.lanoptik.com
- 7 -
51. Rotation
adjustment screw
：
Loosen the screw, the rotating block can be rotated 360°; tighten the screw to fix
the current rotation angle
52. Clamp holder
adjustment screw
：
Turn the screw clockwise to expand the clamp; turn the screw counterclockwise to
tighten the clamp.
53. Chuck clamp
：
By rotating the screw, the slider is contracted to clamp the object, and the slider
expands to support the ring.
54. Slider
：
It can be fastened with the ball head guide rail and rail block. (Detailed reference:
5.1.1 Ball head and quick-mount rail assembly)
4.2.5 Clamp Holder
4.2.6 Rotatable Ball Head
61. Ball head guide rail
：
Cooperates with the chuck slider for mounting the clamp holder.
62. Guide rail screw
：
After the clamp holder is installed. Tighten the screw, to secure the clamp holder to
the ball head; loosen the screw, slide or remove the clamp holder.
63. Quick- mount screw hole
：
The ball head can be quickly mounted to the adjustable stage by means of a hand
screw. (Detailed reference: 5.1.1 Ball head and quick-mount rail assembly)
64. Ball head fastening bolt
：
After loosening the screw, the position of the ball head guide rail can be rotated
and oscillated; after tightening the screw, the position of the current ball head
guide rail can be fixed.
User's Manual | Digital Comparison Microscope BD1601

www.lanoptik.com
- 8 -
71. Z axis adjustment knob
：
Rotate clockwise, the stage rises; counterclockwise rotation, the stage
descends; each turn of the knob, the stage moves 1.5mm, Z-axis
travels 50mm.
72. X axis adjustment knob
：
Rotate clockwise, the stage moves to the inside; counterclockwise
rotation, the stage moves outward; each turn of the knob, the stage
moves 2mm, the X-axis travels 55mm.
73. Round platform screw hole
：
M3 screw hole, the ball head and the guide rail can be fixed on the
adjustable stage by hand screw.
74. Round platform
：
Damping round platform, can rotate 360°; fix each accessory; level the
stage.
75. Y axis adjustment knob
：
Rotate clockwise, the stage moves to the inside; counterclockwise
rotation, the stage moves outward; the knob moves 2mm per turn, and
the X-axis travels 55mm.
4.2.7 Clamp Holder
4.2.8 Lifting Hand Wheel
Lifting hand wheel: Turn the knob to drive the microscope to move up and down; turn clockwise to raise
the bracket; counterclockwise to rotate, the bracket is lowered; each turn of the hand wheel, the lens
moves 4mm.
User's Manual | Digital Comparison Microscope BD1601

www.lanoptik.com
- 9 -
91. Adjustment knob
：
Loosen the knob to swing the position of the articulated arm
arbitrarily within a certain range; tighten the knob to fix the current
position of the articulated arm. (Note: When you need to swing the
position of the lamp, you must first loosen the knob, otherwise it will
damage the articulated arm)
92. Light switch knob
：
Each time a gear is rotated, the color of the light is switched once;
the cycle is switched.
93. Brightness adjustment knob
：
Rotate clockwise to turn on the light source, the brightness of the
light is increased; counterclockwise rotation, the brightness of the
light is weakened, and the light source is turned off.
94. Focus adjustment ring
：
Rotate clockwise, the light spreads; counterclockwise rotation, the
light gathers.
95. USB power connector
：
Connect to the “5V 1A OUT” interface on the bracket of main body
to supply power to the light source.
96. Articulating arm
It consists of multiple sets of movable joints; after loosening the
adjustment knob, the position of the light source can be arbitrarily
oscillated.
4.2.9 Clamp Holder
User's Manual | Digital Comparison Microscope BD1601

www.lanoptik.com
- 10 -

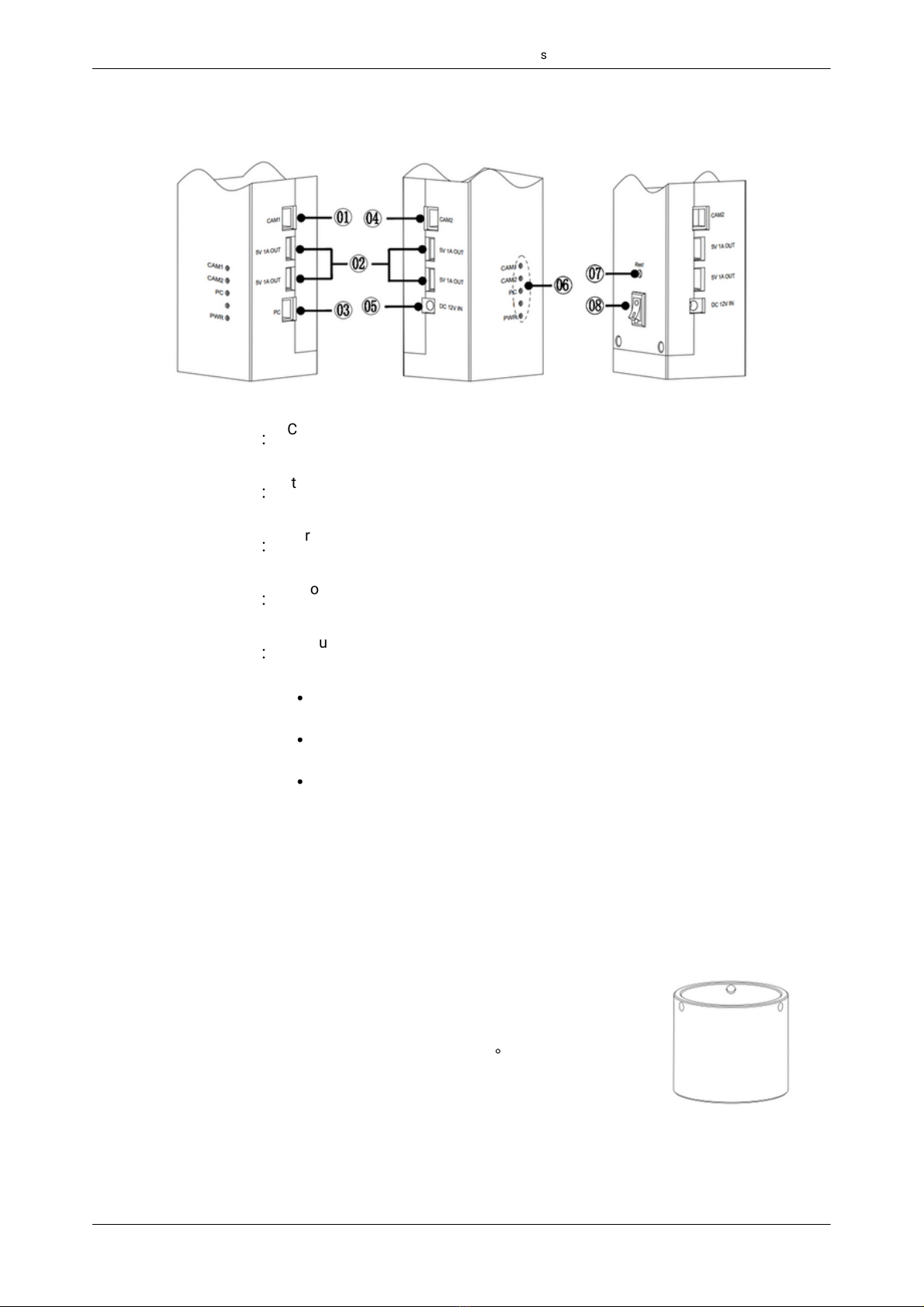

01. CAM1 interface
：
Connected to the camera on the right through the network cable to realize
power supply and signal transmission to the camera.
02. USB 5V 1A power
output
：
It is connected with the USB power interface of the main light and side light to
realize the power supply to the main light and the side light.
03. PC connection
interface
：
Through the network cable and the computer's LAN interface to achieve signal
transmission between the camera and the computer.
04. CAM2 interface
：
Through the network cable and the left camera connected to achieve power
and signal transmission to the camera.
05. Power input
interface
：
Through the power adapter and 110V ~ 240V power supply connection;
provide DC12V power supply to the microscope.
06. Indicator
CAM1/CAM2: blue light flashes, signal transmission; the higher the
flashing frequency, the stronger the transmission signal.
PC: blue light flashes, computer and microscope signal transmission; the
higher the flashing frequency, the stronger the transmission signal.
PWR: The blue light is always on, the power is on; the light is off, and the
power is off.
07. Reset button
Press it to restore the default settings.
08. Power switch
Turn the main power on and off, press down (1) to turn on the power; press up
(0) to turn off the power.
4.2.10 Ports and Indicator Lights
4.2.11 Ports and Indicator Lights
In the case of insufficient object distance, the lens can be raised and the
object distance is increased by 45 mm. (Detailed assembly operation
reference: 5.1.3 Object distance extension ring assembly) 。
User's Manual | Digital Comparison Microscope BD1601

www.lanoptik.com
- 11 -
5.1 Stage assembly
Chapter 5 Product Installation
5.1.1 Ball head and quick-mount rail assembly

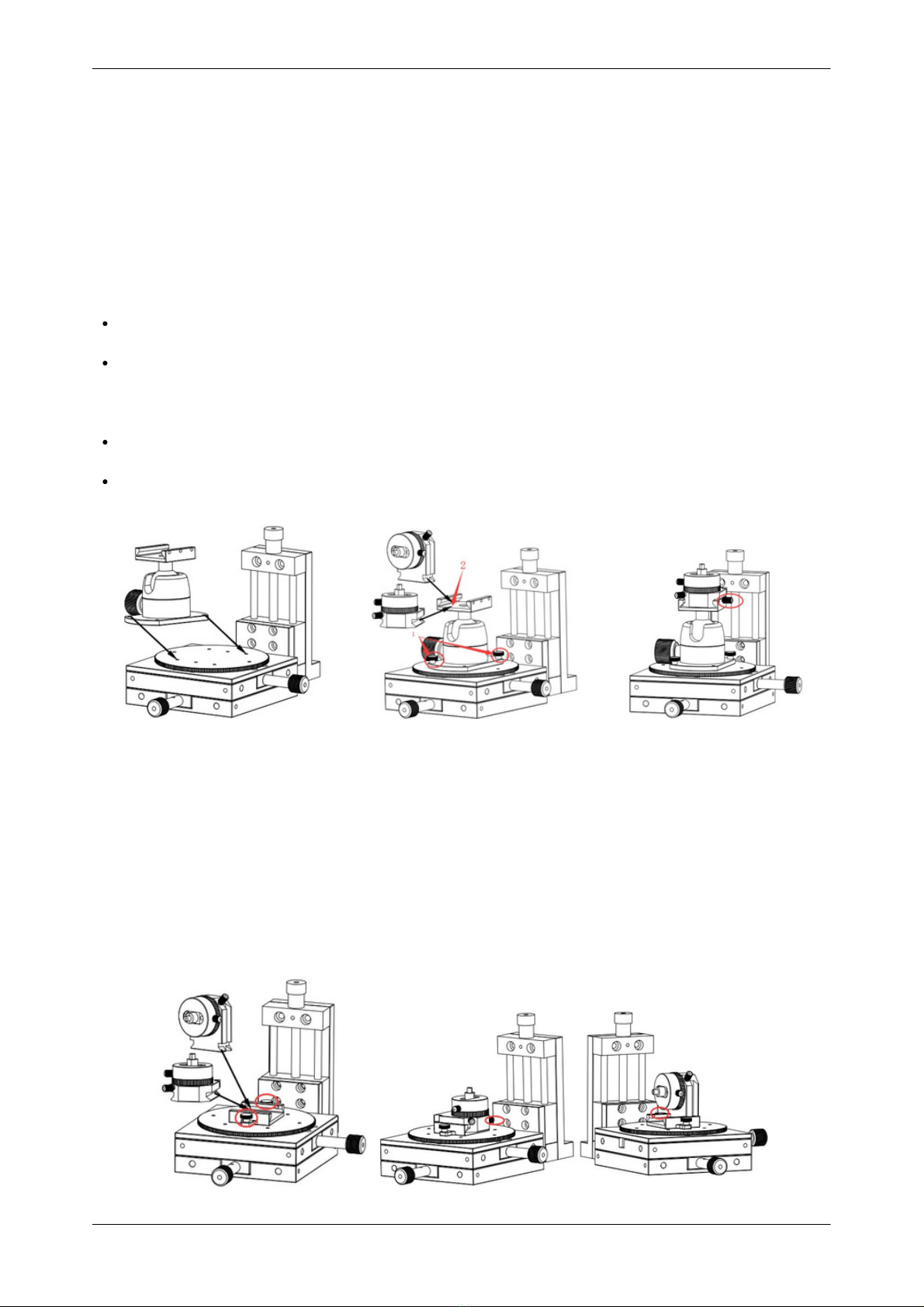

Place the ball head on the round platform, and the ball stud hole is aligned with the screw hole of the
bottom plate. (Figure 1)
Fix the ball head on the round platform by hand screw. (Figure 2)
Put the clamp holder slider on the guide rail (can be installed in different directions as needed).
(Figure 2)
Fix the slider by hand screw. (Figure 3)
1. Adjustable stage and ball head assembly
2. Slider and ball head assembly
Figure 1 Figure 2 Figure 3
5.1.2 Quick-mount rail and clamp holder assembly
Fix the guide rail to the round platform by hand screw. (Figure 4)
Put the clamp holder slider on the quick-mount rail (Figure 4)
Fix the slider on the rail by hand screw. (Figure 5)
1.
2.
3.
User's Manual | Digital Comparison Microscope BD1601

www.lanoptik.com
- 12 -
5.1.3 Ball head and quick-mount rail assembly
1. Install the stage clips in the form of image 6. (Figure 6)
2. Screw the screws on the stage clips to the round platform with a screwdriver. (Figure 7)
Figure 6 Figure 7
5.1.4 Object distance extension ring assembly

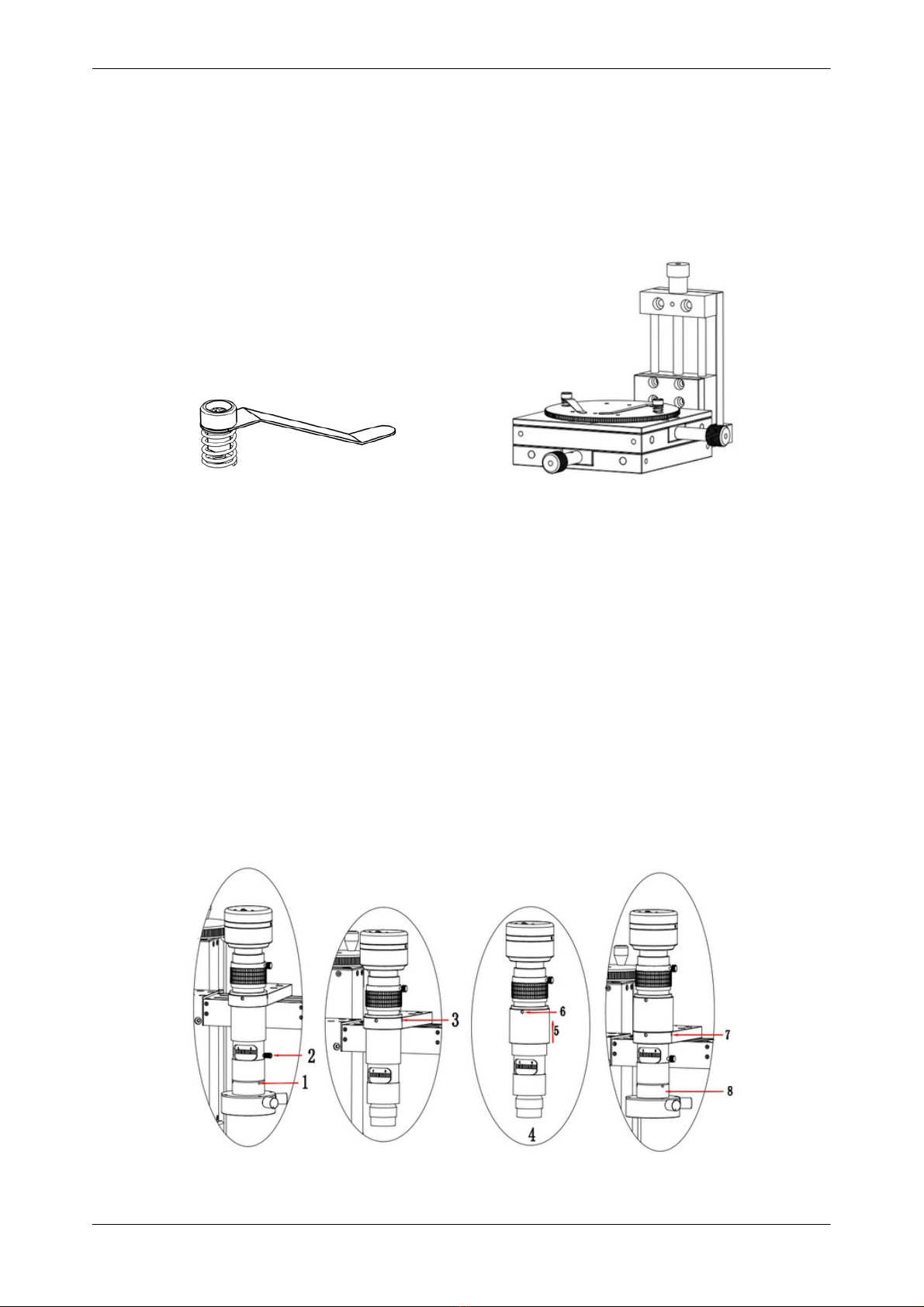

Loosen the main light fixing screw and remove the main light.
Unscrew the lens fixing screw and unplug the cable of the camera.
Loosen the lens fixing screw.
Take out the lens.
Put the object distance extension ring on the lens.
Fixed object distance extension ring with screws.
Put the lens back on the bracket and tighten the screws on the bracket.
Put the main light back on the lens and plug in the internet cable.
1.
2.
3.
4.
5.
6.
7.
8.
User's Manual | Digital Comparison Microscope BD1601

www.lanoptik.com
- 13 -
Network cable connection: Connect the camera to the bracket network port (the CAM1 or CAM2
interface is marked on the bracket) with the network cable. Camera on the right is connected with the
CAM1 interface, and camera on the left is connected with the CAM2.
PC network cable connection: Connect the PC interface on the bracket to the LAN interface on the
computer with a network cable.
Light connection: The USB interface of the main light and the side light can be connected to the USB
interface (5V 1A OUT) on the bracket for power supply.
Power connection: Connect to the power input port of the bracket (DC 12V IN connector) with the
standard power adapter (DC 12V IN port), and power adapter to AC: 100-240V, 50~60HZ.
1.
2.
3.
4.
Figure 9
5.2 Cable Connection
User's Manual | Digital Comparison Microscope BD1601

www.lanoptik.com
- 14 -
Software installation (software installation and usage instructions, please refer to the software
manual)
Stage assembly (Detailed reference 5.1 ）
Cable connection (Detailed reference 5.2 ）
1.
2.
3.
Chapter 6 Instructions
6.1 Start to Use
6.2 Instructions
After the device is connected, open the software.
Turn on the main switch of the device and turn on the light as needed.
Place the object on the workbench and observe them with rotating ball head or Clamp holder
according to different needs. The ball head or the collect according to different objects.
For cylindrical, spherical, etc., to view the entire outer surface, can match rotating ball head together
with Clamp holder.
For small objects, it is difficult to be placed flat. Can use clamp holder to lock it.
According to the height of the observed object, adjust the lifting handle until the image is clear.
According to the imaging requirements, the focus and magnification of the microscope can be
adjusted to make the image clearer; Adjust the position of the table to adjust the imaging position of
the object.
Software operation (detailed reference: software manual)
1.
2.
3.
4.
5.
6.
7.
8.
User's Manual | Digital Comparison Microscope BD1601

www.lanoptik.com
- 15 -
Please do not use wet hands to plug and unplug the power supply of the equipment.
Please be sure to use a regular brand power socket, and make sure the grounding is well grounded to
prevent electric shock.
Please be sure to make regular safety checks on sockets and plugs to avoid potential electrical
safety hazards caused by aging and short circuit.
Please be sure not to use the product in a humid or hot environment to ensure the safety of the
product.
Please be sure to loosen bundle cords of the power cable before using, to avoid electromagnetic
induction and heating, thus increasing the heat dissipation speed.
Please be sure not to use the product equipment or socket or other places in high or easy to fall, so
as to avoid damage.
Before opening the socket power supply, please be sure to turn off the load power switch of the
product equipment.
The company reserves the rights to improve product, upgrade technology and change parameters
without prior notice.
1. In order to protect the legitimate rights and interests of users, please carefully read the
instructions, disclaimers and safety instructions provided with this product before using it. The company
reserves the right to update the above documents. Please operate the product
according to the instructions and safety instructions.
2. Once you begin to use the product, you shall be deemed to have read, understood,
recognized and accepted all terms and contents of the product's instructions, disclaimers and
safety instructions. Users undertake to be responsible for their actions and all consequences.
User undertakes to use the product only for legitimate purposes and agrees to these terms and
any relevant policies or guidelines that the company may establish.
3. In the process of using this product, please strictly abide by and execute the requirements
including but not limited to the instructions and safety instructions. All personal injuries,
accidents, property losses, legal disputes and other adverse events that cause conflicts of
interest caused by violation of the safety instructions or irresistible factors shall be borne by
users themselves, and the company shall not assume any responsibility.
4. Safety instructions:
Chapter 7 Disclaimer
User's Manual | Digital Comparison Microscope BD1601

LANOPTIK TECHNOLOGIES LTD
No. 72 Hongjing Street, Lejia Road, Baiyun District, Guangzhou, China. 510400
Phone: [phone] | Fax: [phone]
Website: http://www.lanoptik.com | Email: [e-mail]
Specifications are subject to change without any obligation on the part of the manufacturer.
