Lantech CM-011 User manual

Fast Fiber Converter Module
MODEL:CM-011
User Guide
Rev.1.24
29-May-2007

i
Content
Introduce...........................................................1
Features..........................................................2
Package Contents ..........................................3
Hardware Description ......................................4
Front Panel .....................................................4
Ports................................................................5
LED Indicators ................................................5
DIP-switch.......................................................7
Rear Panel ...................................................... 8
Installing Converters module..........................9
Cabling..........................................................10
Troubles shooting..........................................11
Optical Fiber Specification............................12
Technical Specification .................................14

1
Introduce
The Fast Fiber Converter Module (Auto MDI/MDIX) is a cost-effective
solution for the converting between 10/100Base-TX and 100Base-FX
cabling, It allows you to extend the cabling distance of your 100Base-FX
network up to 2 kilometers for multi-mode fiber or 30 kilometers for
single-mode fiber. The Fast Fiber Converter module gives you the option
to choose from the most popular fiber cabling connectors:
SC/ST/MT-RJ/VF-45 multi- mode fiber connector and SC single-mode
fiber connector. The Fast Fiber Converters module provides you with one
Fiber connector for your fiber optic cable and one Ethernet RJ-45 port
(Auto MDI/MDIX) for your 100BaseTX copper cable connection. There are
4 DIP- switches to set the operation mode for UTP, Fiber ports and link
loss forwarding function.
The Fast Fiber Converter Module also supported WDM technology that
offers a cost efficient solution and allows a grouping of different services
on existing optical fibers inside. WDM Converter module converts signals
between 10/100Base-TX and 100Base-FX cabling, and incorporates
WDM technology. The WDM technology makes transmit (TX) and receive
(RX) lines onto a single fiber, which reduces half cabling cost. A pair of
WDM converters (wavelength 1310 and 1550 nm) should be installed at
both ends of the single fiber cable. The fiber cabling can extend the
connectivity distance up to 20 kilometers. The UTP port (RJ-45 connector)
of this converter supports Auto MDI/MDIX function. Besides, there are 4
DIP- switches on the front panel of the converter to set the operation
mode and Link Loss Forwarding Function.
The Fast Fiber Converter Module can be slotted in Multi-Converter
Chassis up to 10 optional modular converter units, which allows your
network connectivity to be more flexible. It also can be use stand-alone
without slot in Multi-Converter Chassis.

2
Features
Fast Fiber Converter Module
Comply with IEEE 802.3, 802.3u, and 802.3x standards.
Convert between UTP cabling and Fiber-optic cabling.
One RJ-45 connector, Auto-MDI/MDIX for UTP port.
Support 10/100 Mbps Auto-negotiation for UTP port.
Fiber cabling connectivity up to 30Km.
Store-and-forward switching architecture.
One fiber connector (SC/ SC single-mode fiber/ST/ MT-RJ/VF-45) for
100Base-FX.
4DIP-switches to set the operation mode and Link- Lost-Forwarding
function.
6 LEDs for per port: 100, Link, Activity, Full, Collision, and per unit
Power.
External DC power adapter 9V/0.7A.
Two types of module: Stand-alone and mounted in converter chassis.
FCC Class A, CE, UL, and CUL Mark certification
WDM Converter Module
Comply with IEEE 802.3, 802.3u, and 802.3x standards.
Convert between UTP cabling and Fiber-optic cabling.
WDM (Wavelength Division Multiplexing) supports single fiber
converter, transporting Bi-direction full-duplex signal over a single
fiber simultaneously.
One RJ-45 connector, Auto-MDI/MDIX for UTP port.
Support 10/100 Mbps Auto-negotiation for UTP port.
One Single-SC Style Single-Mode Connector for 100 Base- FX fiber
cable.
Fiber cabling connectivity up to 20Km.
Uses store-and-forward switching architecture.
4DIP-switches to set the operation mode and Link- Lost-Forwarding
function.

3
6 LEDs for Per port: 100, Link/Activity, Full/Collision, Per Unit: Power.
External DC power adapter 9V/0.7A.
Two types of module: Stand-alone and mounted in converter chassis.
FCC Class A, CE, UL, and CUL Mark certification
Package Contents
Beware of which type of converter module that you have purchased. And,
please refer to the package content list below to verify them against the
checklist.
Stand-alone converter module package contains following items.
¾Modular Fast Fiber Converter (or WDM converter)
¾AC-DC Power Adapter
¾User Guide
Mounted in converter chassis converter module package contains
following items.
¾Modular Fast Fiber Converter (or WDM converter)
¾Rack mount kit
¾User Guide
Compare the contents of your converter module with the checklist above.
If any item is damaged or missing, please contact your local dealer for
service.

4
Hardware Description
Fast Fiber Converter Module dimension (L x W x H) is : 119mm x
85mm x 26mm

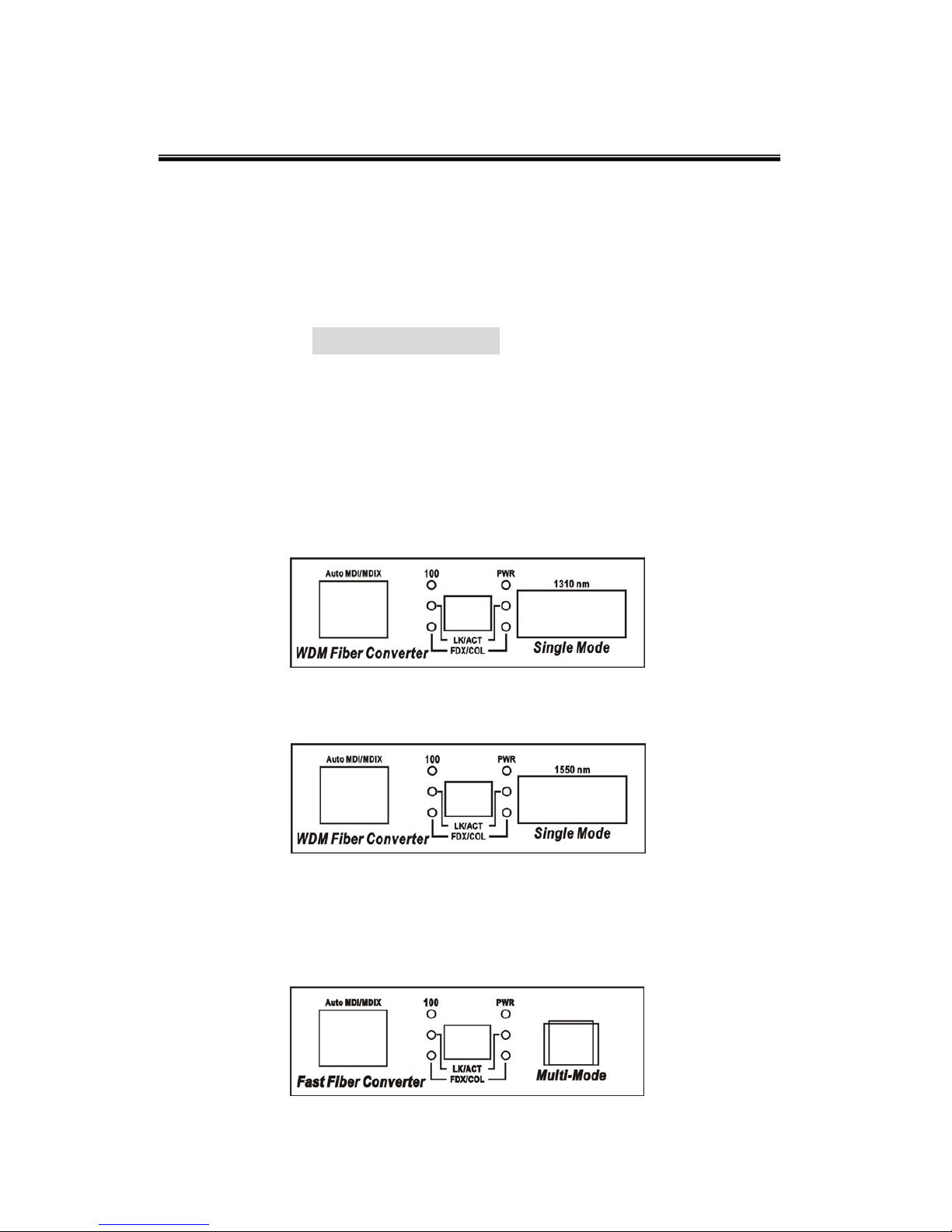

FrontPanel
The Front Panel of the Fast Fiber Converter Module consists of one
RJ-45 Port (Auto MDI/MDIX), 6 LED Indicators (UTP 100, LK/ACT,
FDX/COL, Fiber LK/ACT, FDX/COL and PWR) and one fiber 100Base-FX
Port.
(1) RJ-45 Port (3) DIP-Switch
(2) LED (4) SC Connector
2
43
1
WDM converter (Single Mode/ 1550m)
13
2
4
Fast Fiber Converter Module—VF-45
13
2
4
WDM converter (Single Mode/ 1310m)

5
(1) RJ-45 Port (3) DIP-Switch
(2) LED (4) Fiber Connector
Ports
RJ-45 Port (Auto MDI/MDIX): the Ethernet RJ-45 will auto-sense for
10Base-T or 100Base-TX connections. Auto MDI/MDIX means that
you can connect to another Switch or workstation without changing
non-crossover or crossover cabling.
Fiber Port: This port is for 100 Base-FX connection. We provide five
different style of fiber connectors (SC / SC single-mode / ST / MT-RJ /
VF-45) to meet your needs.
LEDIndicators
There are 6 diagnostic LEDs located on the Front panel of WDM
Converter. They provide real-time information of system and optional
13
2
4
Fast Fiber Converter Module-- ST & SC
13
2
4
Fast Fiber Converter Module--SC-SM30
[Multi-Mode] power budget : Min: 9dB , MAX: 19dB.
[Single-Mode] power budget : Min: 19dB , MAX: 26dB.

6
status. The indicator includes Power, UTP 100, LK/ACT, FDX/COL, Fiber
LK/ACT, FDX/COL. The following table provides description of the LED
status and their meanings.
LED Status Meaning
PWR Green Power on
Green 100Mbps UTP Speed
100
OFF 10 Mbps UTP Speed
Green The unit is linking with it’s link partner.
Blinks The unit is transmitting or receiving packets
from UTP devices.
LK/ACT
(UTP)
Off No device attached
Green The unit is linking with it’s link partner.
Blinks The unit is transmitting or receiving packets
from FX devices.
LK/ACT
(Fiber)
Off No device attached
Orange The UTP port is operating in full-duplex
mode.
Blinks Collision of Packets occurs in the port.
FDX/COL
(UTP)
Off Half-duplex mode or no device attached
Orange The fiber port is operating in full-duplex
mode.
Blinks Collision of Packets occurs in the port.
FDX/COL
(Fiber)
Off Half-duplex mode or no device attached

7
DIP-switch
The DIP-switch is used to configure operation mode for LLF (Link Lost
Forwarding) and operation mode for UTP/Fiber port. The default value of
DIPswitch is OFF.
S/W No Status Description
ON UTP 100Mbps Full Duplex mode
1 OFF UTP Auto-Nego
ON Fiber in Half Duplex
2 OFF Fiber in Full Duplex
ON LLF Enable
3 OFF LLF Disable
ON Pure converter mode
4 OFF Switch Converter mode
Link Lost Forwarding (DIP-Switch 3): When LLF is enable, it allows
UTP link failures to be reported to the fiber side and also allows Fiber link
failure to be reported to the UTP side. Therefore, a link loss forward
feature is provided in both UTP and Fiber side.
Pure Converter mode (DIP-Switch 4): When pure converter mode is
enabling (on), it operates with the minimum latency. The transmission flow
does not wait until entire frame is ready, but instead it forwards the
received data immediately after the data being received. And TP port
should be forced at 100M in this application. When DIP-Switch is in Switch
Converter mode (off), the converter function is same as Switch Hub.
[Note] Please don’t change the DIP-switch setting when UTP or fiber port
is transmitting or receiving data. It may cause some data error. Besides, if
you change the DIP-switch setting, please power off the converter and
power on again to make the setting effective.

8

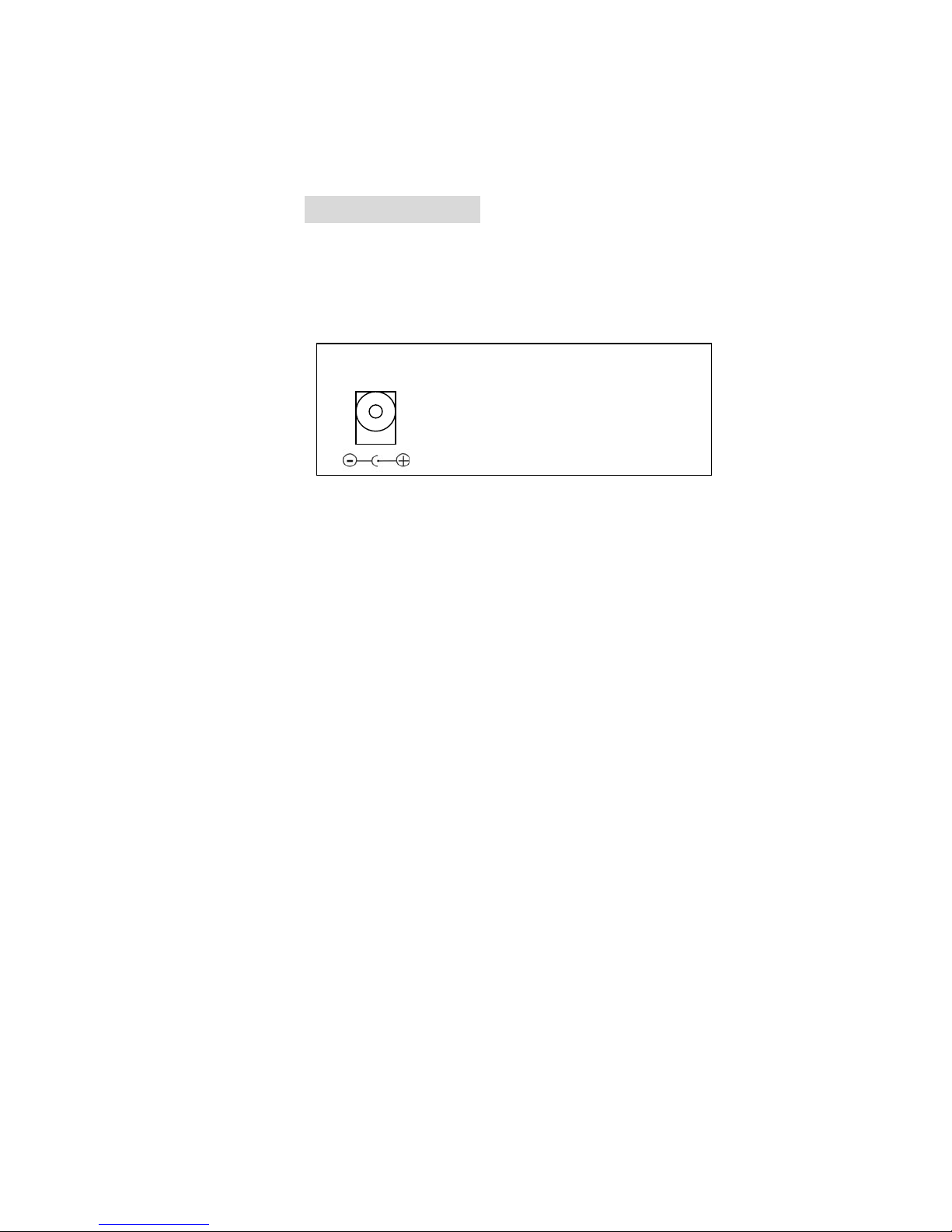

RearPanel
The rear panel contains a power socket. This power socket accepts DC9V
voltage and minimum 0.7A supplied current.
DC IN

9

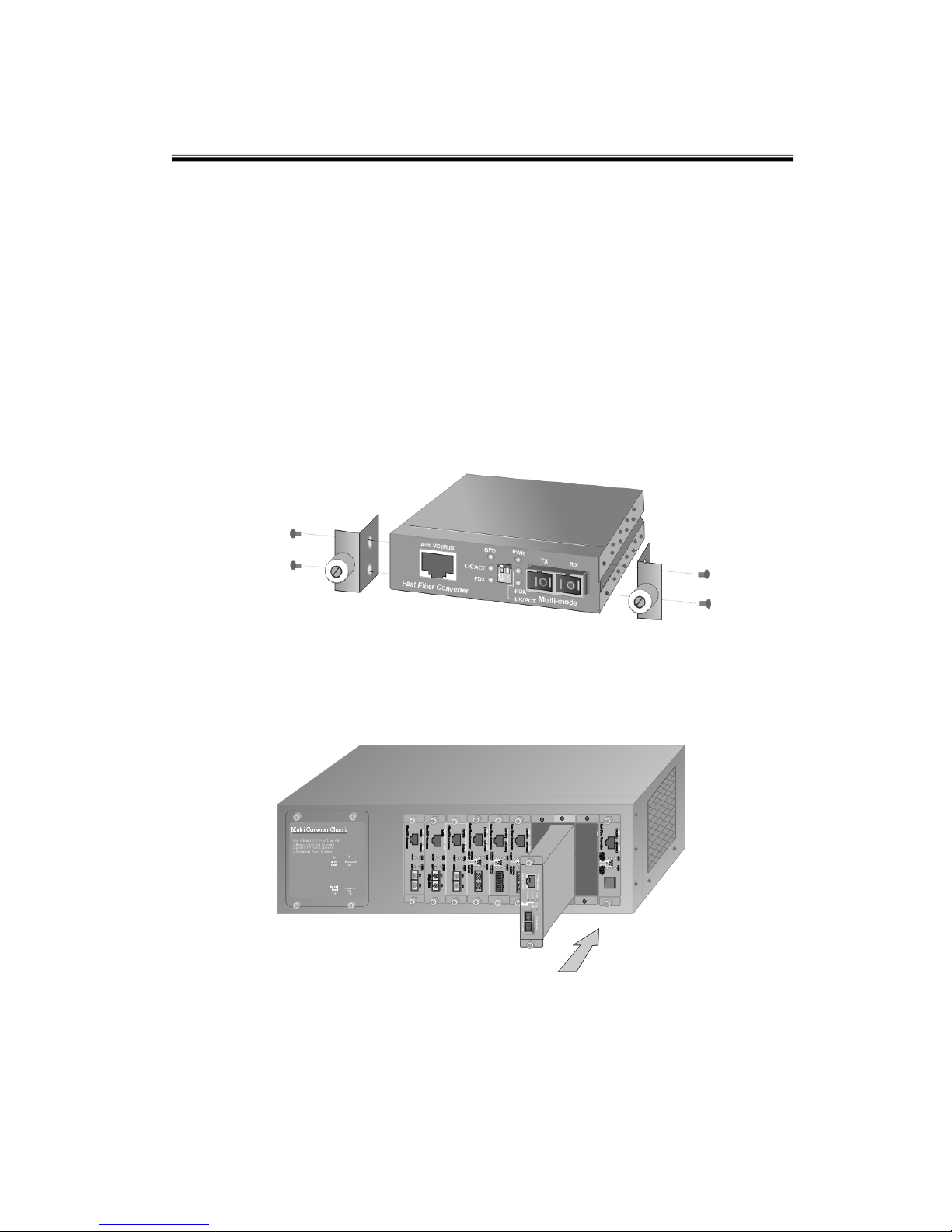

Installing Converters module
This installation is only for mounted in converter chassis converter module.
You can follow the steps below to install converter module.
A、Remove the blank bracket by rotating thumbscrew counterclockwise.
Put the blank bracket aside, but don’t discard blanket bracket.
B、Open the rack mount ear kit. The kit contains two-rack mount ear
(with thumbscrew) and four screws.
C、Attach rack mount ear on both sides of the converter module by using
a screwdriver to secure the rack mount ears.
D. Install the converter module by inserting it into the guides and sliding it
in until it stops. Press it firmly until the power plug in the chassis plugs into
the converter module receptacle. Slide the converter module in smoothly.
E. Gently push the thumbscrews in and turn clockwise to tighten. Do not
over tighten the thumbscrews.

10
Cabling
Twisted-pair segment can be use unshielded twisted pair (UTP) or
shielded twisted pair (STP) cabling. The cable must comply with the
IEEE 802.3u 100Base TX standard for Category 5. The cable
between the converter and the link partner (switch, hub, workstation,
etc.) must be less than 100 meters (328 ft.) long.
Fiber segment using single-mode connector type must use 9/125 μm
single-mode fiber cable. You can connect two devices in the distance
of 30 Kilometers in full duplex operation. For half-duplex operation,
the recommended maximum distance is 412 meters (1,352 ft.)
Fiber segment using multi-mode connector type must use 50 or
62.5/125 um multi-mode fiber cable. You can connect two devices up
to a 2-kilometer (6,562 ft.) distance.

11
Troubles shooting
Check the configuration DIP-switch. It must be setting in the same
operation mode with the link partner.
Select the proper UTP/Fiber cable to construct your network. The
single-mode converter must use single-mode fiber cable. Please
check that you are using the right cable.

12
Optical Fiber Specification
The following table shows the optical Fiber Specification
Module Name Wavelength
(nm)
Avg. Launch
Power (dB)
Avg.
Sensitivity
(dB)
Fast Fiber Converter
Module (SC) 1310 (nm) -18 (dB) -30 (dB)
Fast Fiber Converter
Module (SC-Single
mode)
1310 (nm) -6 (dB) -34 (dB)
Fast Fiber Converter
Module (ST) 1310 (nm) -18 (dB) -30 (dB)
Fast Fiber Converter
Module (MT-RJ) 1310 (nm) -15.7 (dB) -33.5 (dB)
Fast Fiber Converter
Module (VF-45) 1310 (nm) -16 (dB) -33 (dB)
Module Name
Avg. Power
Loss Budget
(dBm)
Max. FDX Fiber
Distance (Km)
Fiber Size
(um)
Fast Fiber Converter
Module (SC) 12 (dBm) 2 (Km) 62.5/125 50/125
Fast Fiber Converter
Module (SC-Single
mode)
28 (dBm) 30(Km) 9/125
Fast Fiber Converter
Module (ST) 12 (dBm) 2 (Km) 62.5/125 50/125
Fast Fiber Converter
Module (MT-RJ) 17.8 (dBm) 2 (Km) 62.5/125 50/125

13
Fast Fiber Converter
Module (VF-45) 17 (dBm) 2 (Km) 62.5/125 50/125
Optical Specifications of Transceivers
Transmitter (Output Center Wavelength): 1261~1360 nm
Receiver (Wavelength of Operation): 1100~1600 nm
Optical Transmit Power: Min. –15 dBm, Max. –7 dBm
1310 nm
Single mode
Sensitivity: Min. ---, Max. –34 dBm
Transmitter (Output Center Wavelength): 1510~1590 nm
Receiver (Wavelength of Operation): 1100~1600 nm
Optical Transmit Power: Min. –15 dBm, Max. –7 dBm
1550 nm
Single mode
Sensitivity: Min ---, Max. –34 dBm

14
Technical Specification
Fast Fiber Converter Module technical specification is as following:
Standard
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX/100BASE-FX
IEEE802.3x Flow Control and Back pressure
Connector
Fiber: Duplex ST/SC/MT-RJ, VF-45, Simplex SC
(WDM single mode)
RJ-45 Socket: CAT-3/5 (10/100Mbps) Twisted Pair
cable Auto MDI/MDI-X and Auto-Negotiation
Function Support
Switch
architecture Store and Forward
Fiber parameters
Fiber Core: Multi-Mode (62.5/125um, 50/125um)
Single-Mode (9/125μm)
Wavelength: 1310nm(Multi-mode)
1310nm(Single-mode)
1550nm(WDM, TX), 1310nm(WDM,
RX)
Fiber Distance: Multi-Mode Fiber 2KM
Single-Mode Fiber (30 KM)
WDM (Single-Mode) 20KM
Transparent
packet 64 to 1518 Bytes for Non-VLAN Ethernet packet
Link Lost
Forward
UTPÎFiber: If UTP port link down, then converter
will forced fiber to link down.
Fiber ÎUTP: If Fiber port link down, the media
converter will force UTP port to link down.
[Multi-Mode] power budget : Min: 9dB , MAX: 19dB.
[Single-Mode] power budget : Min: 19dB , MAX: 26dB.

15
DIP Switch
DIP Switch 1: UTP Auto-Nego / 100Mbps Full
Duplex mode
DIP Switch 2: Fiber Full/Half Duplex
DIP Switch 3: LLF (Link Lose Forwarding)
Disable/Enable
DIP Switch 4: Switch Converter / Pure converter
mode
LED Module: Power, TX (100Mbps, LK/Act, FDX/COL)
Fiber (LK/Act, FDX/COL)
Power Stand-alone (external adapter): DC9V / 0.7A
Dimension Module: 119mm x 85mm x 26mm
EMI & safety FCC Class A, CE, UL, CUL
