Lantech IGC-0101GB User manual

Lantech
IGC-0101GB
10/100/1000T to Mini-GBIC
Industrial Switch Converter
User Manual

Lantech
Content
Overview.............................................................1
Introduction .............................................................. 1
Features ................................................................... 3
Packing List.............................................................. 3
Safety Precaution..................................................... 3
Hardware Description.........................................4
Front Panel............................................................... 4
Top View .................................................................. 5
Wiring the Power Inputs ........................................... 5
Wiring the Fault Alarm Contact ................................ 6
LED Indicators.......................................................... 7
DIP-Switch ............................................................... 8
Ports......................................................................... 9

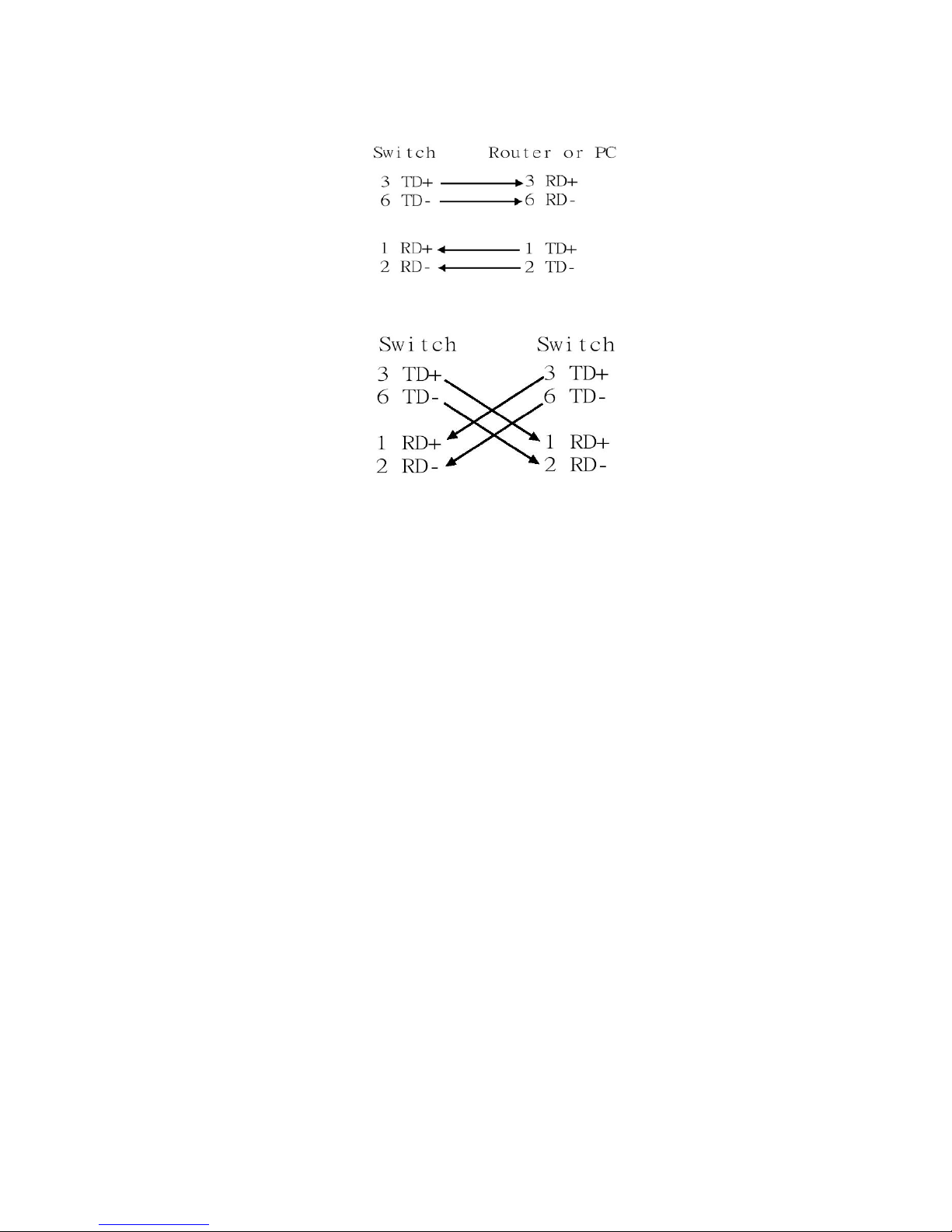

Cabling ................................................................... 10
Mounting Installation ........................................14

Lantech
DIN-Rail Mounting.................................................. 14
Wall Mount Plate Mounting .................................... 16
Hardware Installation........................................17
Installation Steps.................................................... 17
Troubles shooting.............................................19
Technical Specification.....................................20

Lantech
FCC Warning
This Equipment has been tested and found to comply with the limits for a Class-A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in
accordance with the instructions. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.

Lantech
1
Overview
Introduction
The 10/100/1000TX to MINI-GBIC Industrial Switch Converter is
designed to convert Gigabit Ethernet networks to Gigabit fiber networks
by transparently converting Ethernet signals to optic signals. The
advantages of fiber optics are wide bandwidth, EMI immunity and
long-distance transmission capability. Therefore, the industrial switch
converter is an ideal solution for “fiber to building” applications at central
offices or local sites. The industrial switch converter supports MDI/MDIX
auto detection, so you don’t need to use crossover wires. Furthermore,
the industrial switch converter can work normally from -10 ~ 60o C and
accepts a wide voltage range from +12 ~ 48 VDC.Besides, it also
provides 3,000 VDC surge (EFT) protection against over-voltage, so it is
suitable for harsh operating environments.
Gigabit Fiber Converter
The 10/100/1000TX to MINI-GBIC Industrial Switch Converter has
one SFP fiber slot which provides the flexibility when planning and
implementing a network. The slot can accept any 1000M SFP-type fiber
module and these modules are designed for transmitting over distances
of either 500m (multi-mode), 10km, 30km, 50km, 70km or 110km

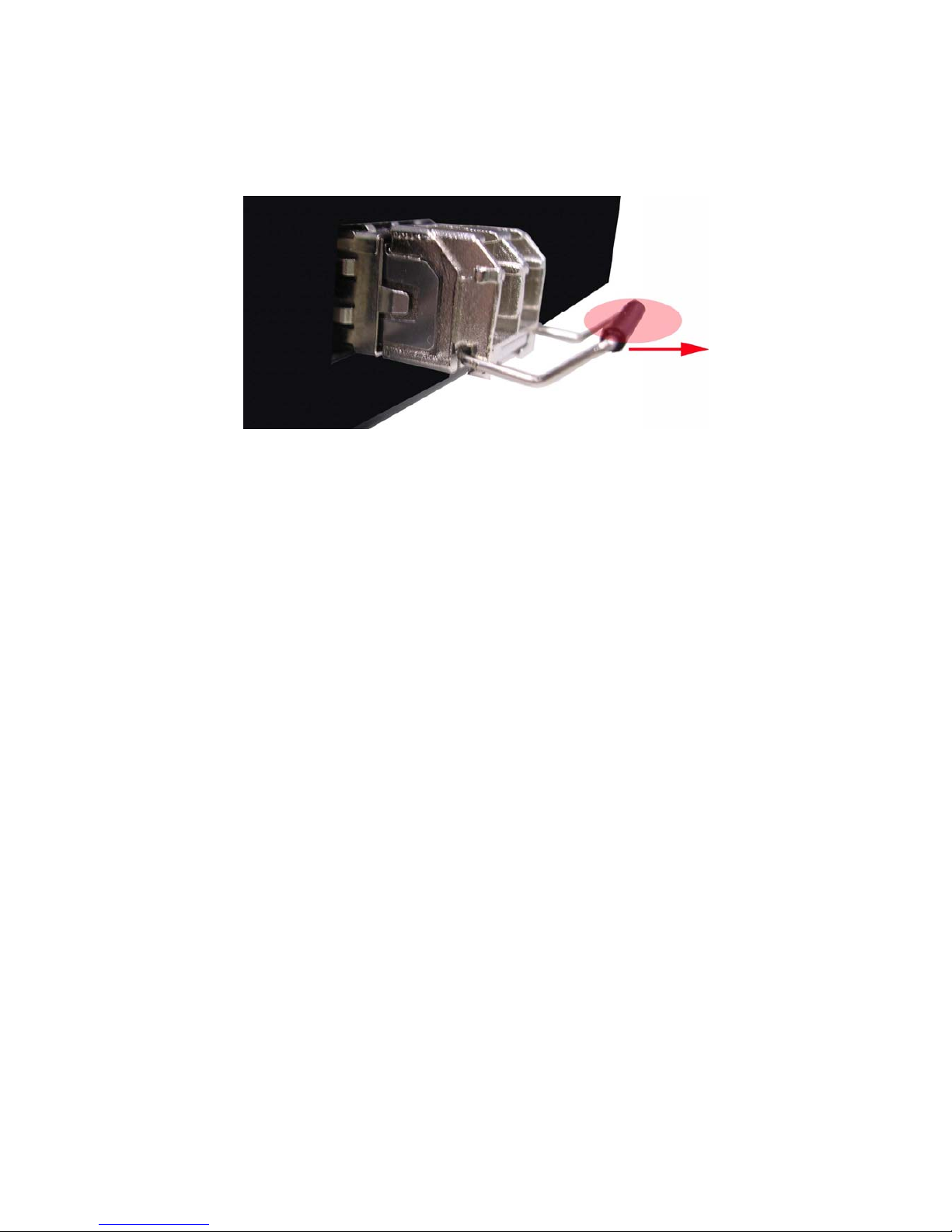

(single-mode). This means you can easily change the transmission
mode and distance of the switch by simply pulling out the SFP module
and plugging in a different module. The SFP module is hot-swappable
and plug-and-play!

Lantech
2
Dual Power Input
To reduce the risk of power failure, the 10/100/1000TX to MINI-GBIC
Industrial Switch Converter provides +12 ~ 48 VDC dual power inputs.
If there is power failure, 10/100/1000TX to MINI-GBIC Industrial
Switch Converter will switch automatically to the secondary power
input.
Flexible Mounting
10/100/1000TX to MINI-GBIC Industrial Switch Converter is compact
and can be mounted on a DIN-rail or a panel, so it is suitable for any
space-constrained environment.
Advanced Protection
The power line of 10/100/1000TX to MINI-GBIC Industrial Switch
Converter supports up to 3,000 VDC EFT protection, which secure
equipment against unregulated voltage and make systems safer and
more reliable. Meanwhile, 6,000 VDC ESD protections for Ethernet ports
make the industrial switch converter more suitable for harsh
environments.
Wide Operating Temperature
The operating temperature of the 10/100/1000TX to MINI-GBIC
Industrial Switch Converter is between -40 ~ 75 oC (wide operating
temperature model) or -10 ~ 60 oC (standard model). With such a wide
range, you can use the industrial switch converter in some of the
harshest industrial environments that exist.
Easy Troubleshooting
LED indicators make troubleshooting quick and easy. The 10/100/1000
Base-TX port has 2 LEDs that display the link status, whether the port is
working at 1000M transmission speed or not. Also the three power
indicators P1, P2 and Fault help you diagnose immediately.

Lantech
3
Features
Provides 1 x SFP (mini-GBIC) type socket (10/100/1000TX to
MINI-GBIC model)
Provides 1 x 10/100/1000Mbps Ethernet ports with RJ-45 connector
Supports full/half duplex flow control
Supports MDI/MDI-X auto-crossover
Supports surge (EFT) protection 3,000 VDC for power line
Supports 6,000 VDC Ethernet ESD protection
Embedded with a switch controller, supports auto-negotiation
Supports store & forward transmission
Supports redundant +12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail, Wall Mounting
Supports operating temperatures from -40 ~ 75oC (wide operating temperature model)
or -10 ~ 60oC (standard model)
Packing List
1 x 10/100/1000 to Mini-GBIC Industrial Switch Converter
1 x User manual
2 x Wall Mounting Bracket and Screws
Safety Precaution
Attention IF DC voltage is supplied by an external circuit, please use a
protection device on the power supply input.

Lantech
4
Hardware DescriptionHardware Description
In this paragraph, we will introduce the Industrial switch converter’s
hardware spec, port, cabling information, and wiring installation.
In this paragraph, we will introduce the Industrial switch converter’s
hardware spec, port, cabling information, and wiring installation.
Front PanelFront Panel
The Front Panel of the 10/100/1000TX to MINI-GBIC/10/100/1000TX
Industrial Switch Converter are shown as below.
The Front Panel of the 10/100/1000TX to MINI-GBIC/10/100/1000TX
Industrial Switch Converter are shown as below.

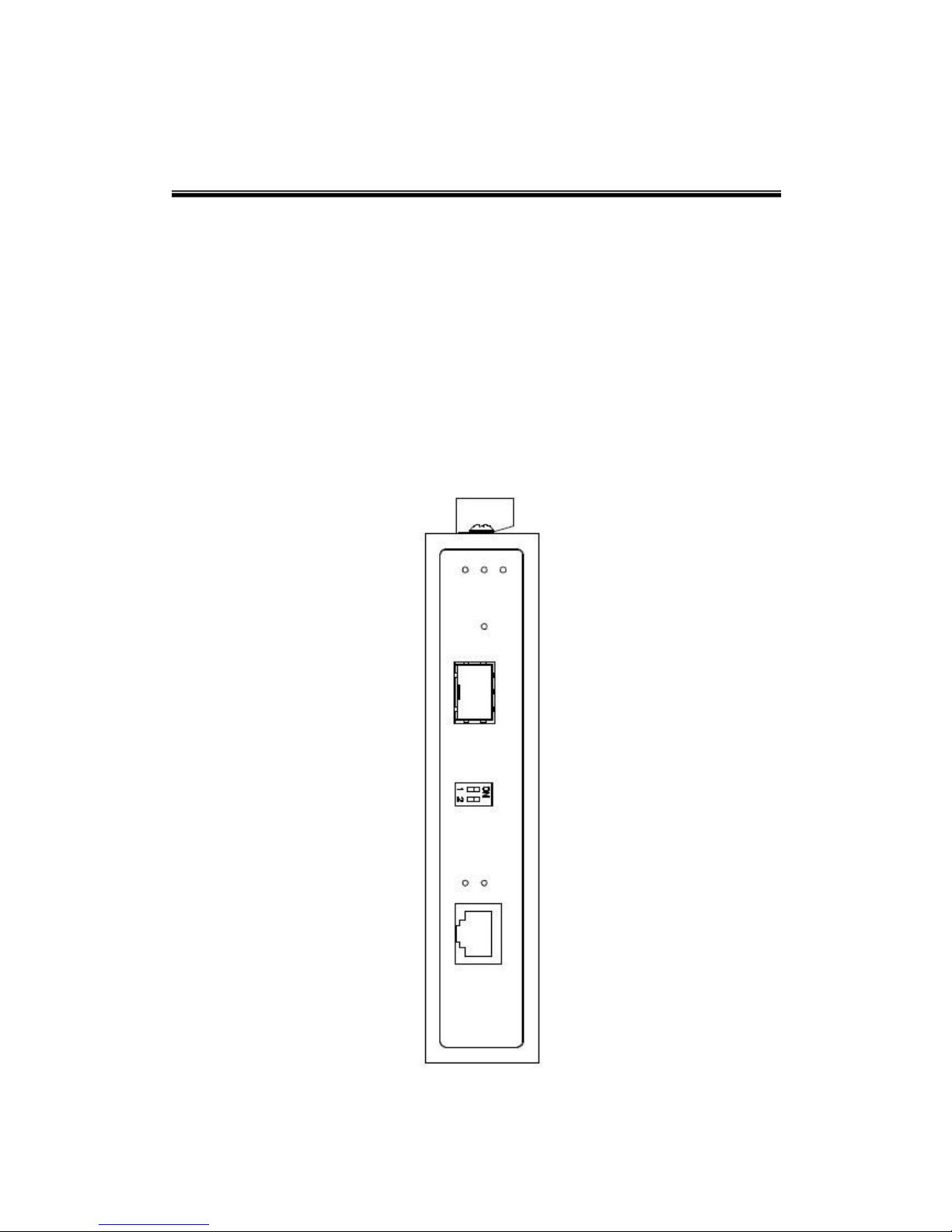

Front Panel of the Industrial Switch Converter

Lantech
5
Top View
The top panel of the Industrial Switch Converter is equipped one
terminal block connector of two DC power inputs.
Top panel of the Industrial Switch Converter
Wiring the Power Inputs
Please follow the steps below to insert the power wire.
1. Insert the positive and negative wires into the V+ and V- contacts on the
terminal block connector.

Lantech
6
2. To tighten the wire-clamp screws for preventing the DC wires to loose.

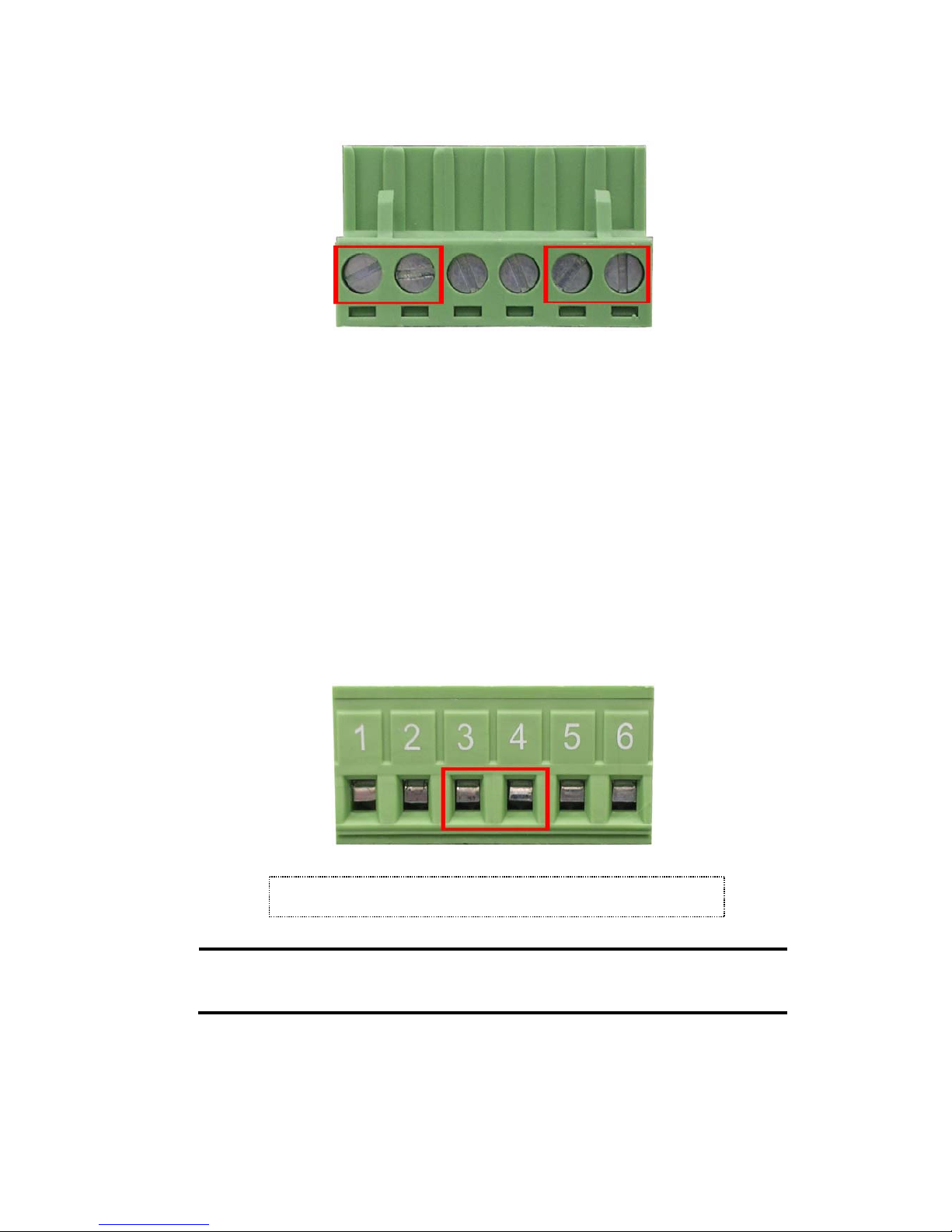

Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of terminal block connector as the
picture shows below. Inserting the wires, it will detect the fault status
which the power is failure or port link failure (for managed model) and form
an open circuit.
Insert the wires into the fault alarm contact (No. 3 & 4)
Note The wire gauge for the terminal block should be in the range
between 12~ 24 AWG.
