owner’s manual operation
preamp equalizer

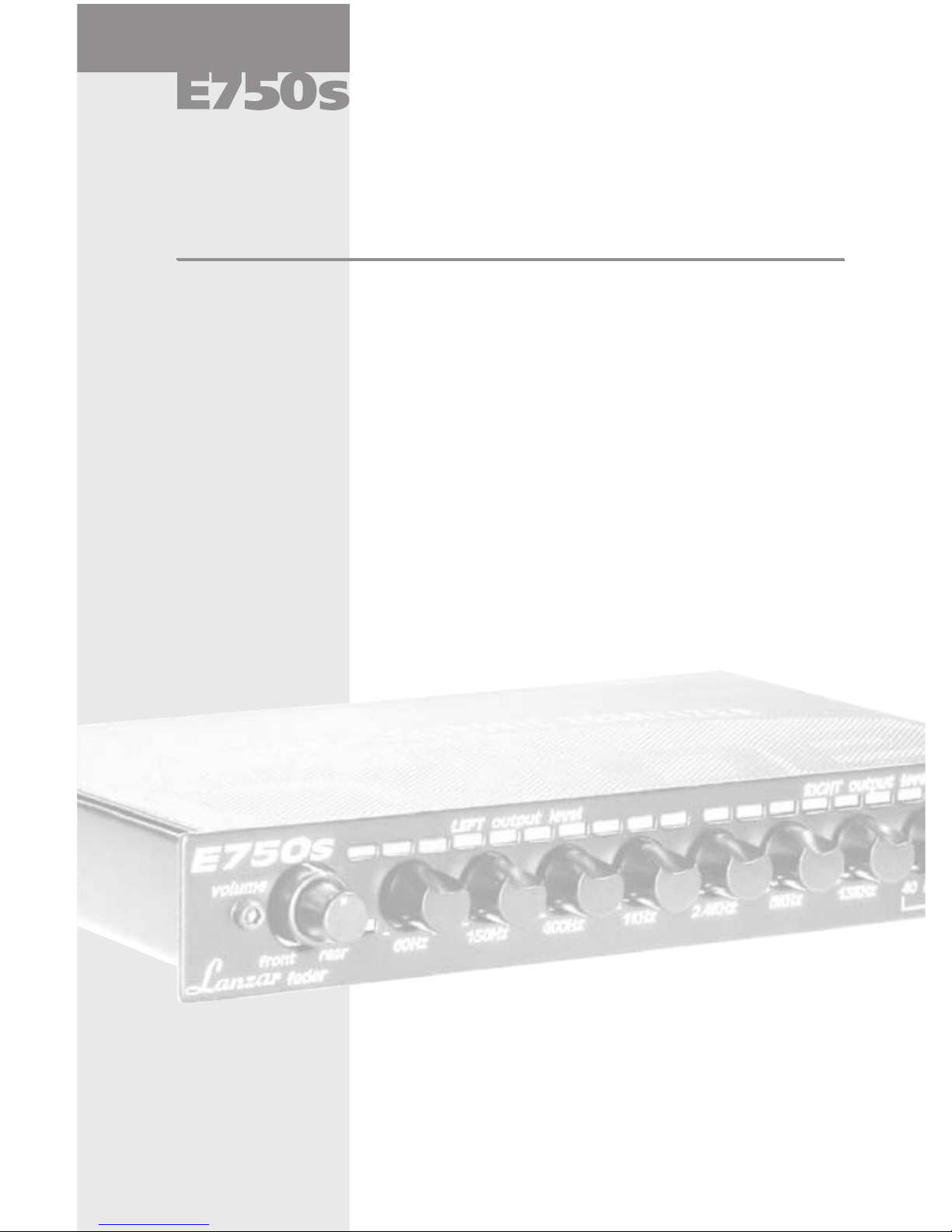

Control/Connector Function
2Power Indicator LED This LED is illuminated when the unit is
properly powered, grounded and the remote
power has been turned on.
3Equalizer Controls This seven-band equalizer’s rotary controls
give you control over musical frequency
ranges.

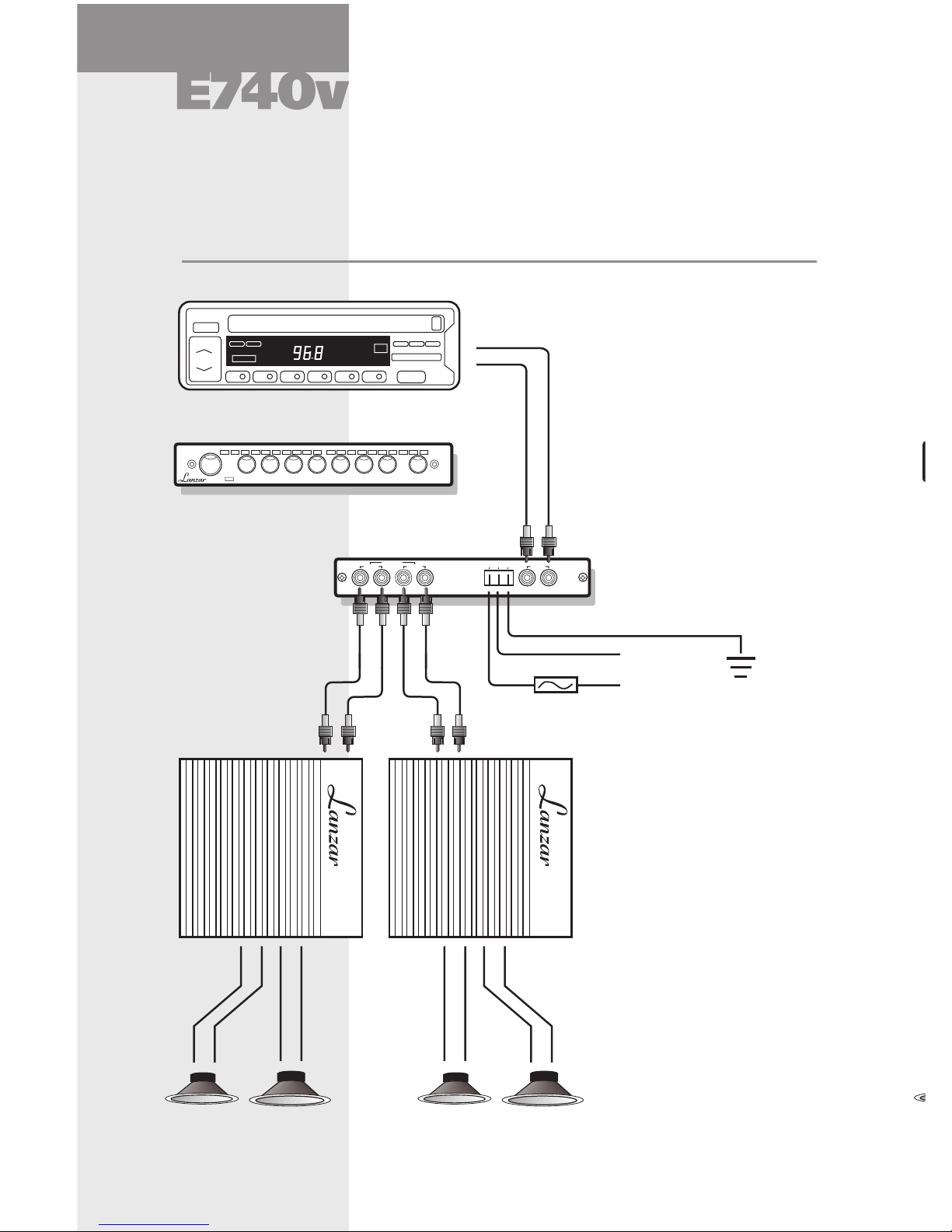

7Power Connection Connect to power source as follows:
+12: Connect a red wire of at least 12 gauge to
the car battery or other power source.
GROUND: Connect a black wire of at least 12 gauge
to car chassis for ground connection
REMOTE: Connect an orange wire to remote
activating (12V DC wire of car stereo or other
head unit.
These rows of LEDs display the Preamp
Output Level. Left and right \channels are
displayed independently at peak levels.
1LED Level Display
4Volume Control Allows adjustment of sound level for particular
program material or source.
• In a 2 Speaker system, the fader control
should be rotated to the position which
provides highest levels for both sets of
speakers.
5Fader Control • In a 2 Amplifier, 4 Speaker system, rotating
the knob to the FRONT side increases the
level of the front speakers; rotating to the
REAR side increase level of the rear speakers.
At mid position, both sets of speakers are at
maximum level
6Line Channel Inputs RCA cables are used to connect the front
input signal from head unit or other source.
8Front Channel Outputs RCA cables are used to connect the front
channel ouputs to the front channel amplifier
inputs.
9Rear Channel Outputs RCA cables are used to connect the rear
channel ouputs to the rear channel amplifier
inputs.
